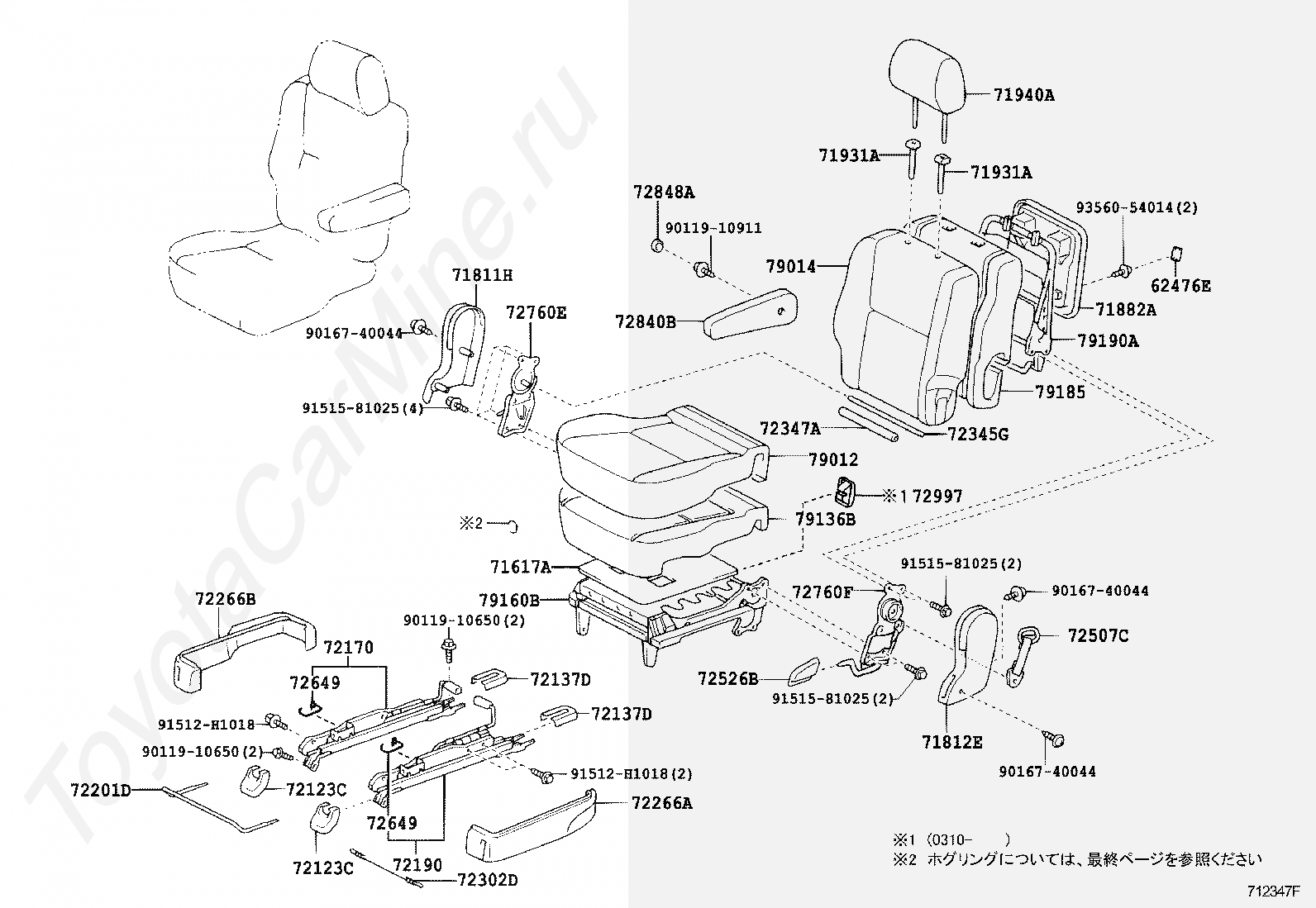

Задние кресла TOYOTA IPSUM, 2001/05 - 2007/06, 2,4 литра, 16 клапанов DOHC, EFI, 240S TYPE, ACM21

Каталог

Япония

Модель

IPSUM

Двигатель

2,4 литра, 16 клапанов DOHC, EFI

Класс

240S TYPE

Фрейм

ACM21

Опции

6-местный

Код

Описание

62476E

CAP, REAR SEAT

71617A

CLOTH, REAR SEAT CUSHION UNDER

71811J

COVER, RECLINING ADJUSTER, RH

71812K

COVER, RECLINING ADJUSTER, LH

71881

BOARD, REAR SEAT BACK, RH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72123C

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72137D

COVER, REAR SEAT TRACK, RH

72160

TRACK ASSY, REAR SEAT, OUTER RH

72180C

TRACK ASSY, REAR SEAT, INNER RH

72201C

HANDLE SUB-ASSY, SEAT TRACK, RH

72265A

COVER, SEAT TRACK UPPER RAIL, RH

72265B

COVER, SEAT TRACK UPR RAIL, RH

72302C

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH

72345F

PIPE, RECLINING CONNECTING, RH

72347A

COVER, RECLINING CONNECTING HOOK

72507B

HANDLE SUB-ASSY, RECLINING RELEASE, RH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72649

SPRING, REAR SEAT CUSHION SUPPORT

72750E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH

72750F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER LH

72830M

ARMREST ASSY, SEAT CENTER, RH

72848A

CAP, SEAT ARMREST, NO.1

72996

COVER, REAR SEAT BACK, RH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79135A

PAD, NO.1 SEAT CUSHION, RH

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

9011910650

Крепеж

9011910911

Крепеж

9016740044

Крепеж

91512H1018

Крепеж

9151581025

Крепеж

9356054014

Крепеж

Код

Описание

62476E

CAP, REAR SEAT

71617A

CLOTH, REAR SEAT CUSHION UNDER

71811H

COVER, RECLINING ADJUSTER, RH

71812E

COVER, RECLINING ADJUSTER, LH

71882A

BOARD, REAR SEAT BACK, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72123C

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72137D

COVER, REAR SEAT TRACK, RH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72190

TRACK ASSY, REAR SEAT INNER, LH

72201D

HANDLE SUB-ASSY, SEAT TRACK, LH

72266A

COVER, SEAT TRACK UPPER RAIL, LH

72266B

COVER, SEAT TRACK UPPER RAIL, LH

72302D

WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, LH

72345G

PIPE, RECLINING CONNECTING, LH

72347A

COVER, RECLINING CONNECTING HOOK

72507C

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72649

SPRING, REAR SEAT CUSHION SUPPORT

72760E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER RH

72760F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH

72840B

ARMREST ASSY, SEAT CENTER, LH

72848A

CAP, SEAT ARMREST, NO.1

72997

COVER, REAR SEAT BACK, LH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79136B

PAD, NO.1 SEAT CUSHION, LH

79160B

SPRING ASSY, NO.1 SEAT CUSHION, LH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

9011910650

Крепеж

9011910911

Крепеж

9016740044

Крепеж

91512H1018

Крепеж

9151581025

Крепеж

9356054014

Крепеж

Код

Описание

51185

WEIGHT, FRAME, FRONT NO.1

66310E

HOOK ASSY, ROPE

66990

HOLDER ASSY, CUP

71218C

REINFORCEMENT, RR SEAT CUSHION, LH

71222A

REINFORCEMENT, REAR SEAT CUSHION, REAR

71461

SPRING, REAR SEAT CUSHION

71617A

CLOTH, REAR SEAT CUSHION UNDER

71697

PROTECTOR, REAR SEAT BACK EDGE

71811J

COVER, RECLINING ADJUSTER, RH

71812K

COVER, RECLINING ADJUSTER, LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71881

BOARD, REAR SEAT BACK, RH

71881B

CLIP, REAR SEAT BACK BOARD

71893B

CARPET, REAR SEAT CUSHION, UNDER RH

71931A

SUPPORT, REAR SEAT HEADREST

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940E

HEADREST ASSY, NO.2 SEAT

72123C

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127G

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137D

COVER, REAR SEAT TRACK, RH

72159B

COVER, REAR SEAT TRACK BRACKET, OUTER

72160

TRACK ASSY, REAR SEAT, OUTER RH

72180C

TRACK ASSY, REAR SEAT, INNER RH

72201C

HANDLE SUB-ASSY, SEAT TRACK, RH

72265B

COVER, SEAT TRACK UPR RAIL, RH

72266B

COVER, SEAT TRACK UPPER RAIL, LH

72345F

PIPE, RECLINING CONNECTING, RH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72615B

COVER, REAR SEAT LOCK STRIKER, RH

72637A

HANDLE, REAR SEAT LOCK

72649

SPRING, REAR SEAT CUSHION SUPPORT

72694B

COVER, REAR SEAT CUSHION LOCK, RH

7270244120

Крепеж

72704A

CABLE, REAR SEAT RECLINING CONTROL

72704B

CABLE, REAR SEAT RECLINING CONTROL, NO.2

72750E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH

72750F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER LH

72808A

BRACKET SUB-ASSY, SEAT CENTER ARMREST

72830

ARMREST ASSY, REAR SEAT, CENTER

72996

COVER, REAR SEAT BACK, RH

76973E

COVER, REAR UNDER SIDE, RH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79101B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79135A

PAD, NO.1 SEAT CUSHION, RH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

9011910650

Крепеж

9014960110

Крепеж

9015960532

Крепеж

9016740044

Крепеж

9038608155

Крепеж

9046710015A0

Крепеж

9046710015C0

Крепеж

9151160612

Крепеж

9151281020

Крепеж

91611B0614

Крепеж

9162640618

Крепеж

9356055014

Крепеж

9418560600

Крепеж

Код

Описание

66310E

HOOK ASSY, ROPE

71218B

REINFORCEMENT, RR SEAT CUSHION, RH

71221A

REINFORCEMENT, REAR SEAT CUSHION, REAR

71461

SPRING, REAR SEAT CUSHION

71617A

CLOTH, REAR SEAT CUSHION UNDER

71811H

COVER, RECLINING ADJUSTER, RH

71812E

COVER, RECLINING ADJUSTER, LH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71876E

COVER, RECLINING ADJUSTER INSIDE, LH

71881B

CLIP, REAR SEAT BACK BOARD

71882A

BOARD, REAR SEAT BACK, LH

71894B

CARPET, REAR SEAT CUSHION, UNDER LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72123C

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72137D

COVER, REAR SEAT TRACK, RH

72159B

COVER, REAR SEAT TRACK BRACKET, OUTER

72170

TRACK ASSY, REAR SEAT, OUTER LH

72190

TRACK ASSY, REAR SEAT INNER, LH

72201D

HANDLE SUB-ASSY, SEAT TRACK, LH

72203

HANDLE SUB-ASSY, REAR SEAT TRACK

72265A

COVER, SEAT TRACK UPPER RAIL, RH

72266A

COVER, SEAT TRACK UPPER RAIL, LH

72345G

PIPE, RECLINING CONNECTING, LH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72615B

COVER, REAR SEAT LOCK STRIKER, RH

72638

HANDLE, REAR SEAT LOCK, LH

72649

SPRING, REAR SEAT CUSHION SUPPORT

72694C

COVER, REAR SEAT CUSHION LOCK, LH

7270244120

Крепеж

72704A

CABLE, REAR SEAT RECLINING CONTROL

72760E

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER RH

72760F

ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH

72997

COVER, REAR SEAT BACK, LH

76974E

COVER, REAR UNDER SIDE, LH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79136B

PAD, NO.1 SEAT CUSHION, LH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

9011910650

Крепеж

9014960110

Крепеж

9015960532

Крепеж

9016740044

Крепеж

9046710015A0

Крепеж

9046710015C0

Крепеж

9151281020

Крепеж

91611B0614

Крепеж

9162640618

Крепеж

9356055014

Крепеж

Код

Описание

66310F

HOOK ASSY, ROPE

6777128050

Крепеж

71261A

WIRE, REAR SEAT BACK CONNECTING, RH

71261B

WIRE, REAR SEAT BACK CONNECTING, LH

71628E

SPACER, REAR SEAT CUSHION

71647C

PROTECTOR, REAR SEAT CUSHION EDGE,OUTER RH

71647D

PROTECTOR, REAR SEAT CUSHION EDGE, INNER RH

71647E

PROTECTOR, REAR SEAT CUSHION EDGE, OUTER LH

71647F

PROTECTOR, REAR SEAT CUSHION EDGE, INNER LH

71701B

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702B

BOARD SUB-ASSY, REAR SEAT BACK, LH

7176944020

Крепеж

71931E

SUPPORT ASSY, REAR NO.3 SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72067

LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

72068

LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH

72345C

PIPE,RECLINING CONNECTING, RH

72507B

HANDLE SUB-ASSY, RECLINING RELEASE, RH

72507C

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72553A

PROTECTOR, RECLINING COVER, RH

72553C

PROTECTOR, RECLINING COVER, RH

72554A

PROTECTOR, RECLINING COVER, LH

72554B

PROTECTOR, RECLINING COVER, LH

72558

STOPPER, RECLINING

72558A

STOPPER, RECLINING

7270244020

Крепеж

72750C

ADJUSTER ASSY, NO.3 SEAT RECLINING, RH

72760H

ADJUSTER ASSY, NO.3 SEAT RECLINING, LH

79031B

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79303A

FRAME SUB-ASSY, NO.3 SEAT BACK, RH

79304A

FRAME SUB-ASSY, NO.3 SEAT BACK, LH

79331

LEG, NO.3 SEAT, OUTER RH

79335A

PAD, NO.3 SEAT CUSHION, RH

79339

CLOTH, NO.3 SEAT CUSHION RH

79339A

CLOTH, NO.3 SEAT CUSHION LH

79341

LEG, NO.3 SEAT, OUTER LH

79345A

PAD, NO.3 SEAT CUSHION, LH

79360A

SPRING ASSY, NO.3 SEAT CUSHION, RH

79370A

SPRING ASSY, NO.3 SEAT CUSHION, LH

79372

COVER, NO.3 SEAT FRONT BRACKET, RH

79375A

PAD, NO.3 SEAT BACK, RH

79382

COVER, NO.3 SEAT FRONT BRACKET, LH

79385A

PAD, NO.3 SEAT BACK, LH

9010910164

Крепеж

9011910827

Крепеж

9017606042

Крепеж

9020614083

Крепеж

91611B0616

Крепеж

9162640618

Крепеж

9331116010

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Задние кресла TOYOTA IPSUM, 2001/05 - 2007/06, 2,4 литра, 16 клапанов DOHC, EFI, 240S TYPE, ACM21
