Каталог
ЕвропаМодель
HILUXДвигатель
1,6 литраКузов
DOUBLE CAB TRUCKКласс
STANDARD TYPEФрейм
RN40Трансмиссия
МКПП, 4 ступени, на рулеОпции
правый руль GENERAL COUNTRIES ENLARGE CAB COMPLETED VEHICLE

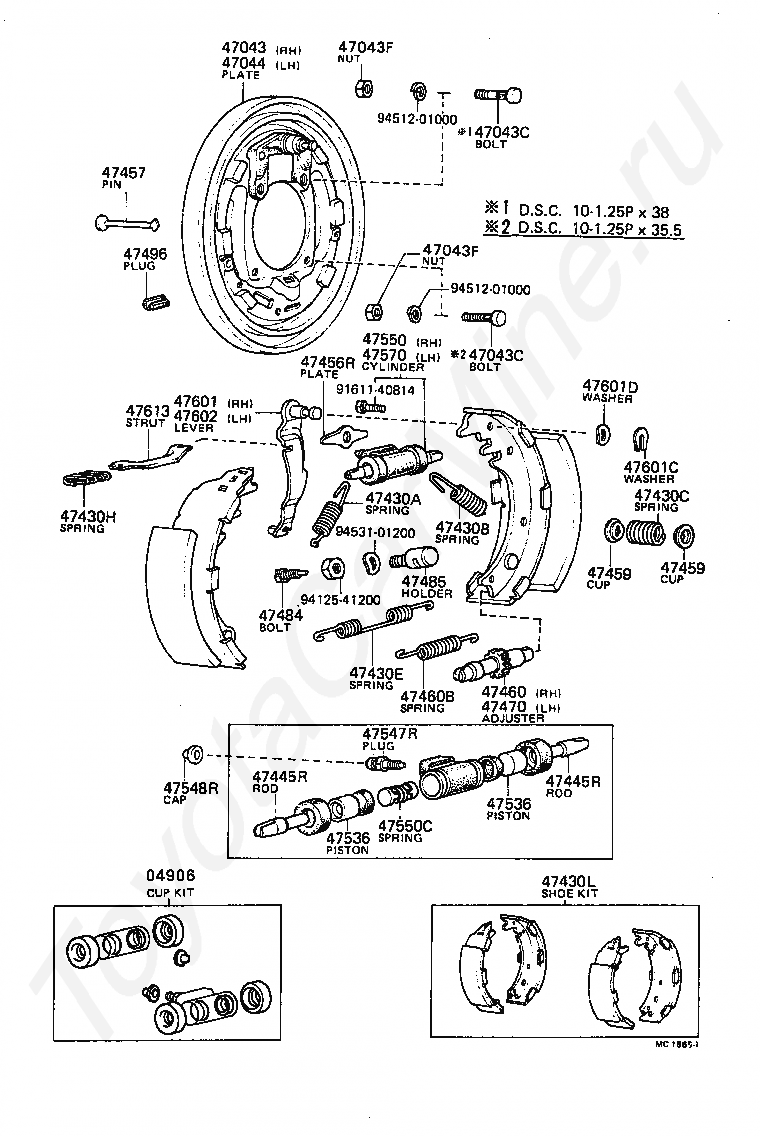

Код
Описание
04906
CUP KIT, REAR WHEEL CYLINDER
47043
PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043C
BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47043F
NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044
PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47430A
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430B
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430C
SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430E
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430H
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47430L
SHOE KIT, REAR BRAKE
47445R
ROD, REAR WHEEL CYLINDER
47456R
PLATE, REAR BRAKE SHOE GUIDE
47457
PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47459
CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47460
ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47460B
SPRING, TENSION(FOR REAR BRAKE ADJUSTER)
47470
ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47484
BOLT, REAR BRAKE SHOE RETRACTING SPRING CLAMP
47485
SPACER OR HOLDER, SHOE RETRACTING SPRING CLAMP
47496
PLUG, HOLE(FOR REAR BRAKE)
47536
PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47547R
PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548R
CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550
CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550C
SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47570
CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601
LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601C
WASHER, C(FOR REAR BRAKE)
47601D
WASHER, WAVE(FOR REAR BRAKE)
47602
LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47613
STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)
9161140814
Крепеж
9412541200
Крепеж
9451201000
Крепеж
9453101200
Крепеж
