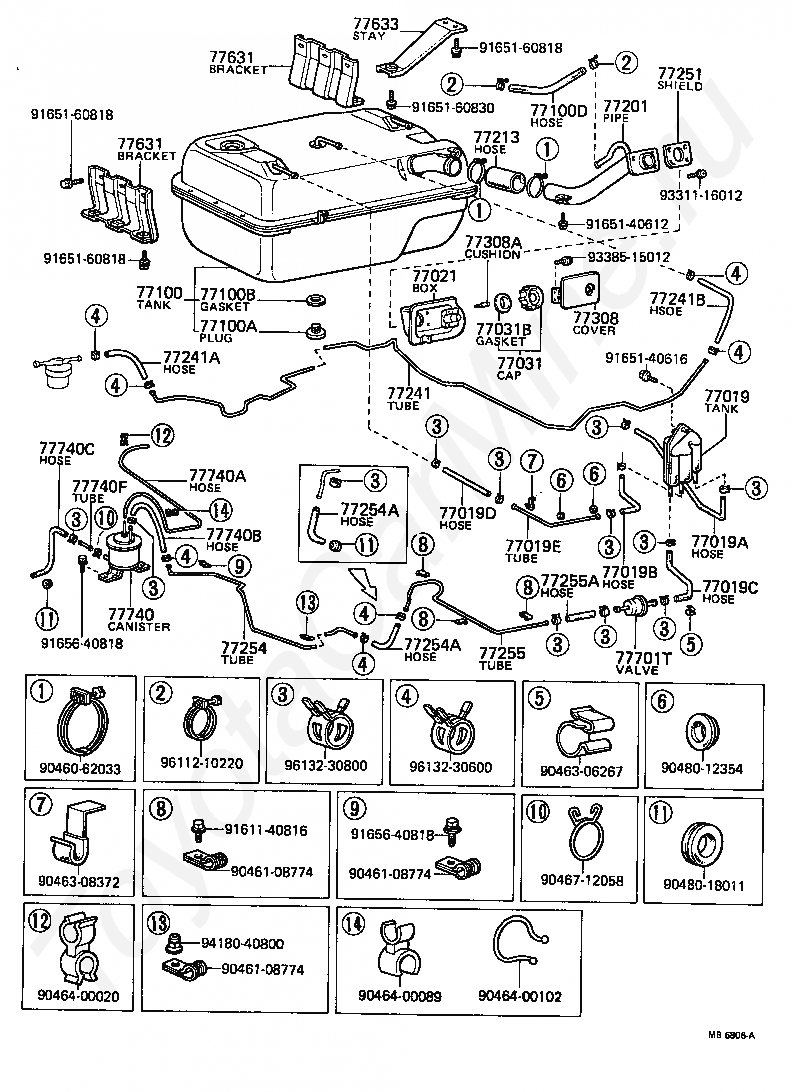

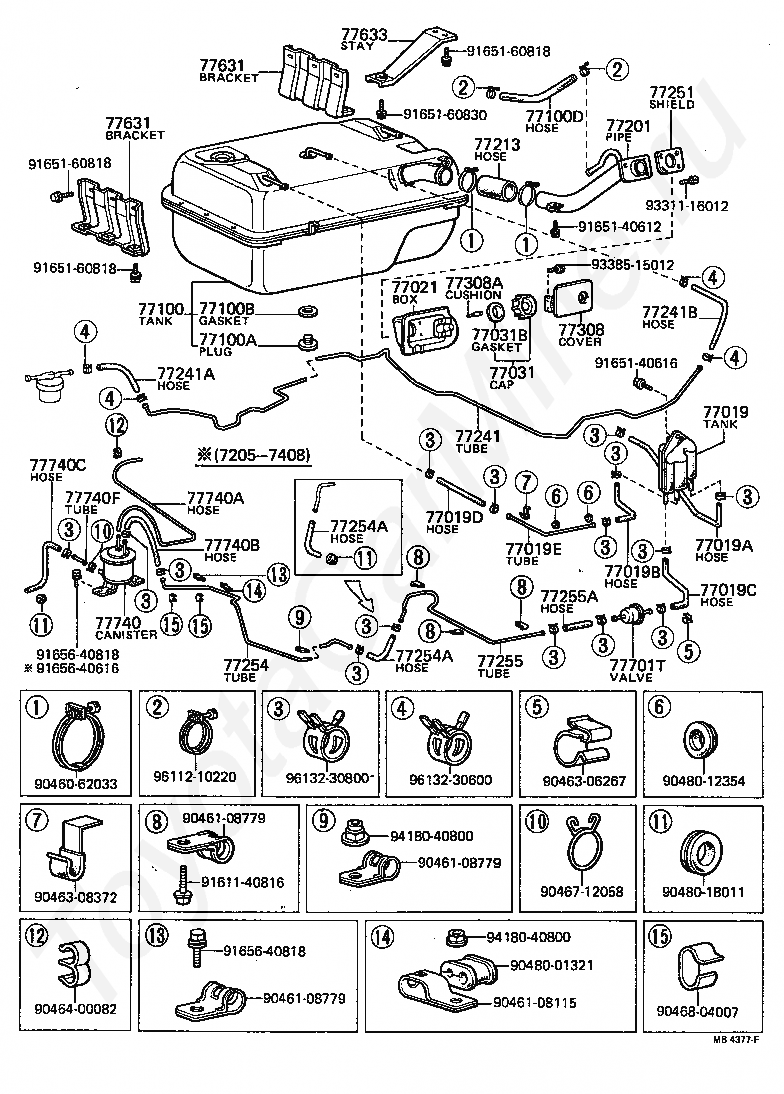

Топливный бак и горловина TOYOTA HILUX, 1972/05 - 1978/07, 1,6 литра, RN20, механика, МКПП, 4 ступени

Каталог

Европа

Модель

HILUX

Двигатель

1,6 литра

Фрейм

RN20

Трансмиссия

механика МКПП, 4 ступени

Опции

левый руль

Код

Описание

77019

TANK SUB-ASSY, FUEL EXPANSION

77019A

HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)

77019B

HOSE, FUEL, NO.2(FOR FUEL EXPANSION TANK)

77019C

HOSE, FUEL, NO.3(FOR FUEL EXPANSION TANK)

77019D

HOSE, FUEL, NO.4(FOR FUEL EXPANSION TANK)

77019E

TUBE, FUEL, NO.1(FOR FUEL EXPANSION TANK)

77021

BOX ASSY, FUEL TANK INLET

77031

CAP ASSY, FUEL TANK

77031B

GASKET (FOR FUEL TANK CAP)

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77100D

HOSE, FUEL, NO.1(FOR FUEL TANK)

77201

PIPE SUB-ASSY, FUEL TANK INLET

77213

HOSE, FUEL TANK SUB INLET

77241

TUBE, FUEL MAIN, NO.1

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77251

SHIELD, FUEL TANK, INLET, NO.1

77254

TUBE, FUEL EMISSION, NO.1

77254A

HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

77255

TUBE, FUEL EMISSION, NO.2

77255A

HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)

77308

COVER SUB-ASSY, FUEL INLET BOX

77308A

CUSHION(FOR FUEL INLET BOX COVER)

77631

BRACKET, FUEL TANK, NO.1

77633

STAY, FUEL TANK

77701T

VALVE, CHECK (FOR MAIN FUEL TANK)

77740

CANISTER ASSY, CHARCOAL

77740A

HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

77740B

HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)

77740C

HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

77740F

TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)

9046062033

Крепеж

9046108115

Крепеж

9046108779

Крепеж

9046306267

Крепеж

9046308372

Крепеж

9046400082

Крепеж

9046712058

Крепеж

9046804007

Крепеж

9048001321

Крепеж

9048012354

Крепеж

9048018011

Крепеж

9161140816

Крепеж

9165140612

Крепеж

9165140616

Крепеж

9165160818

Крепеж

9165160830

Крепеж

9165640616

Крепеж

9165640818

Крепеж

9331116012

Крепеж

9338515012

Крепеж

9418040800

Крепеж

9611210220

Крепеж

9613230600

Крепеж

9613230800

Крепеж

Код

Описание

77019

TANK SUB-ASSY, FUEL EXPANSION

77019A

HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)

77019B

HOSE, FUEL, NO.2(FOR FUEL EXPANSION TANK)

77019C

HOSE, FUEL, NO.3(FOR FUEL EXPANSION TANK)

77019D

HOSE, FUEL, NO.4(FOR FUEL EXPANSION TANK)

77019E

TUBE, FUEL, NO.1(FOR FUEL EXPANSION TANK)

77021

BOX ASSY, FUEL TANK INLET

77031

CAP ASSY, FUEL TANK

77031B

GASKET (FOR FUEL TANK CAP)

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77100D

HOSE, FUEL, NO.1(FOR FUEL TANK)

77201

PIPE SUB-ASSY, FUEL TANK INLET

77213

HOSE, FUEL TANK SUB INLET

77241

TUBE, FUEL MAIN, NO.1

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77251

SHIELD, FUEL TANK, INLET, NO.1

77254

TUBE, FUEL EMISSION, NO.1

77254A

HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

77255

TUBE, FUEL EMISSION, NO.2

77255A

HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)

77308

COVER SUB-ASSY, FUEL INLET BOX

77308A

CUSHION(FOR FUEL INLET BOX COVER)

77631

BRACKET, FUEL TANK, NO.1

77633

STAY, FUEL TANK

77701T

VALVE, CHECK (FOR MAIN FUEL TANK)

77740

CANISTER ASSY, CHARCOAL

77740A

HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

77740B

HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)

77740C

HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

77740F

TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)

9046062033

Крепеж

9046108774

Крепеж

9046306267

Крепеж

9046308372

Крепеж

9046400020

Крепеж

9046400089

Крепеж

9046400102

Крепеж

9046712058

Крепеж

9048012354

Крепеж

9048018011

Крепеж

9161140816

Крепеж

9165140612

Крепеж

9165140616

Крепеж

9165160818

Крепеж

9165160830

Крепеж

9165640818

Крепеж

9331116012

Крепеж

9338515012

Крепеж

9418040800

Крепеж

9611210220

Крепеж

9613230600

Крепеж

9613230800

Крепеж

Код

Описание

77019

TANK SUB-ASSY, FUEL EXPANSION

77019A

HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)

77019B

HOSE, FUEL, NO.2(FOR FUEL EXPANSION TANK)

77019C

HOSE, FUEL, NO.3(FOR FUEL EXPANSION TANK)

77019D

HOSE, FUEL, NO.4(FOR FUEL EXPANSION TANK)

77019E

TUBE, FUEL, NO.1(FOR FUEL EXPANSION TANK)

77021

BOX ASSY, FUEL TANK INLET

77031

CAP ASSY, FUEL TANK

77031B

GASKET (FOR FUEL TANK CAP)

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77100D

HOSE, FUEL, NO.1(FOR FUEL TANK)

77201

PIPE SUB-ASSY, FUEL TANK INLET

77213

HOSE, FUEL TANK SUB INLET

77241

TUBE, FUEL MAIN, NO.1

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77241B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

77251

SHIELD, FUEL TANK, INLET, NO.1

77254

TUBE, FUEL EMISSION, NO.1

77254A

HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

77255

TUBE, FUEL EMISSION, NO.2

77255A

HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)

77308

COVER SUB-ASSY, FUEL INLET BOX

77308A

CUSHION(FOR FUEL INLET BOX COVER)

77631

BRACKET, FUEL TANK, NO.1

77633

STAY, FUEL TANK

77701T

VALVE, CHECK (FOR MAIN FUEL TANK)

77740

CANISTER ASSY, CHARCOAL

77740A

HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

77740B

HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)

77740C

HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

77740F

TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)

9046062033

Крепеж

9046108774

Крепеж

9046306267

Крепеж

9046308372

Крепеж

9046400020

Крепеж

9046400089

Крепеж

9046400102

Крепеж

9046712058

Крепеж

9048012354

Крепеж

9048018011

Крепеж

9161140816

Крепеж

9165140612

Крепеж

9165140616

Крепеж

9165160818

Крепеж

9165160830

Крепеж

9165640818

Крепеж

9331116012

Крепеж

9338515012

Крепеж

9418040800

Крепеж

9611210220

Крепеж

9613230600

Крепеж

9613230800

Крепеж
