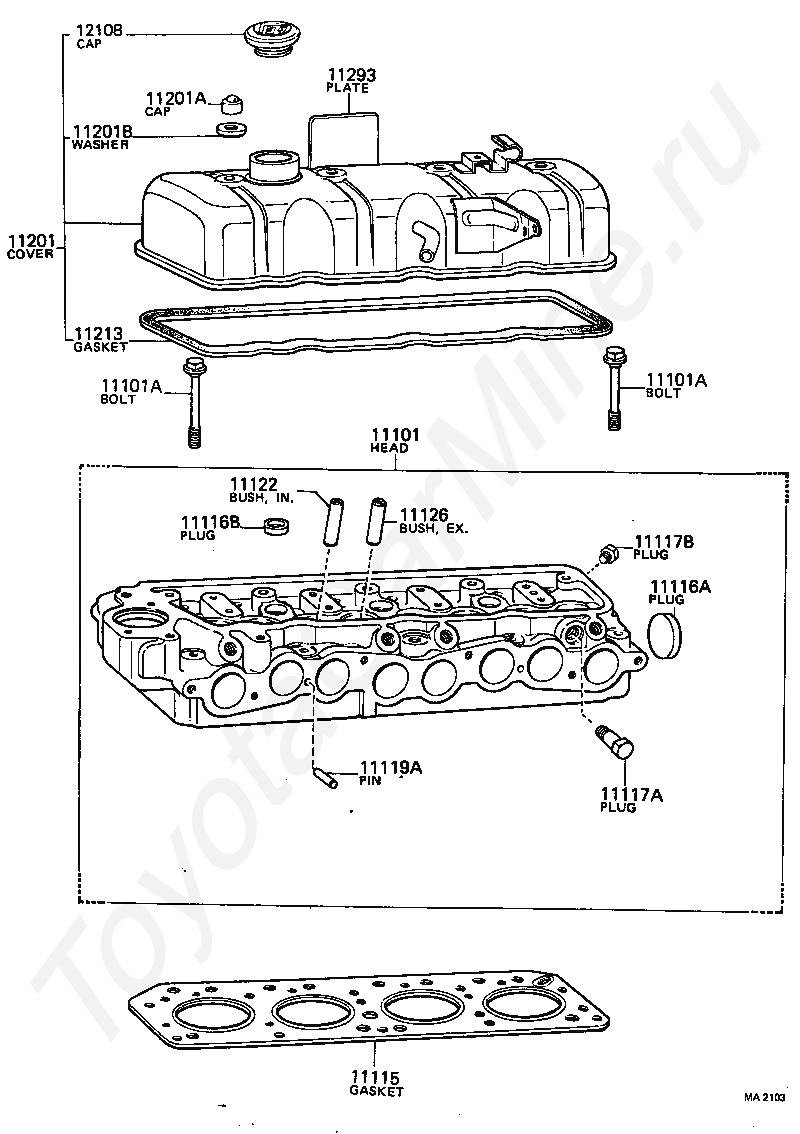

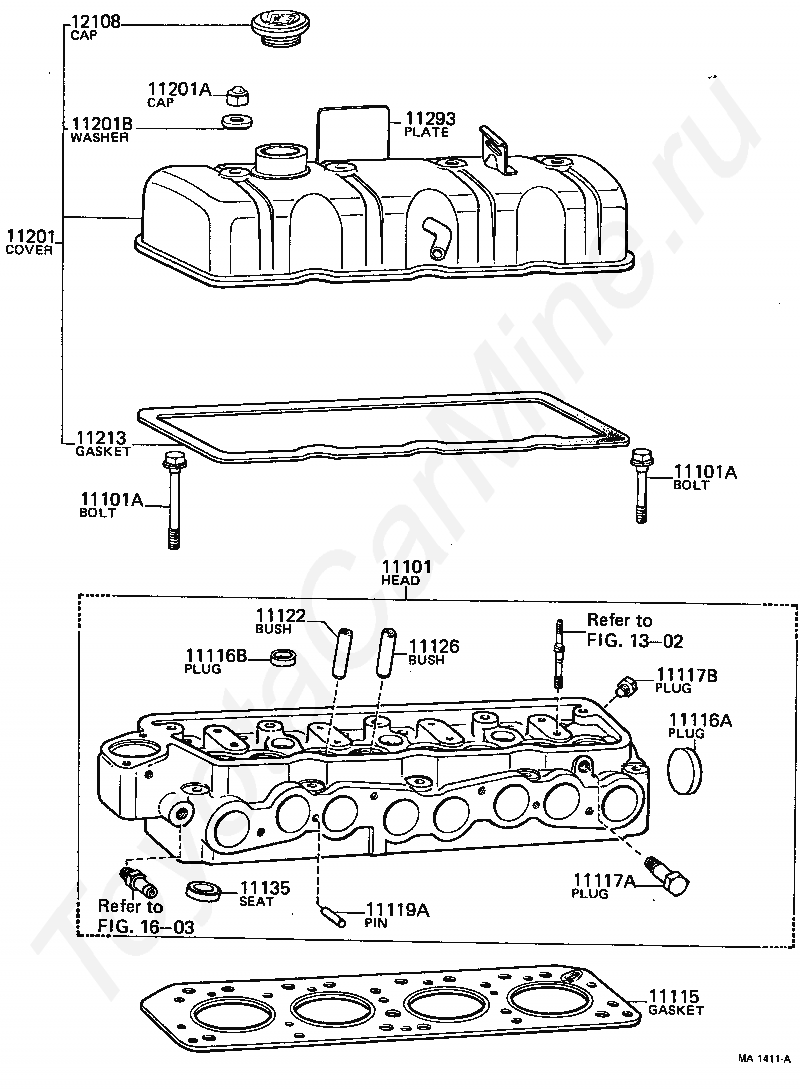

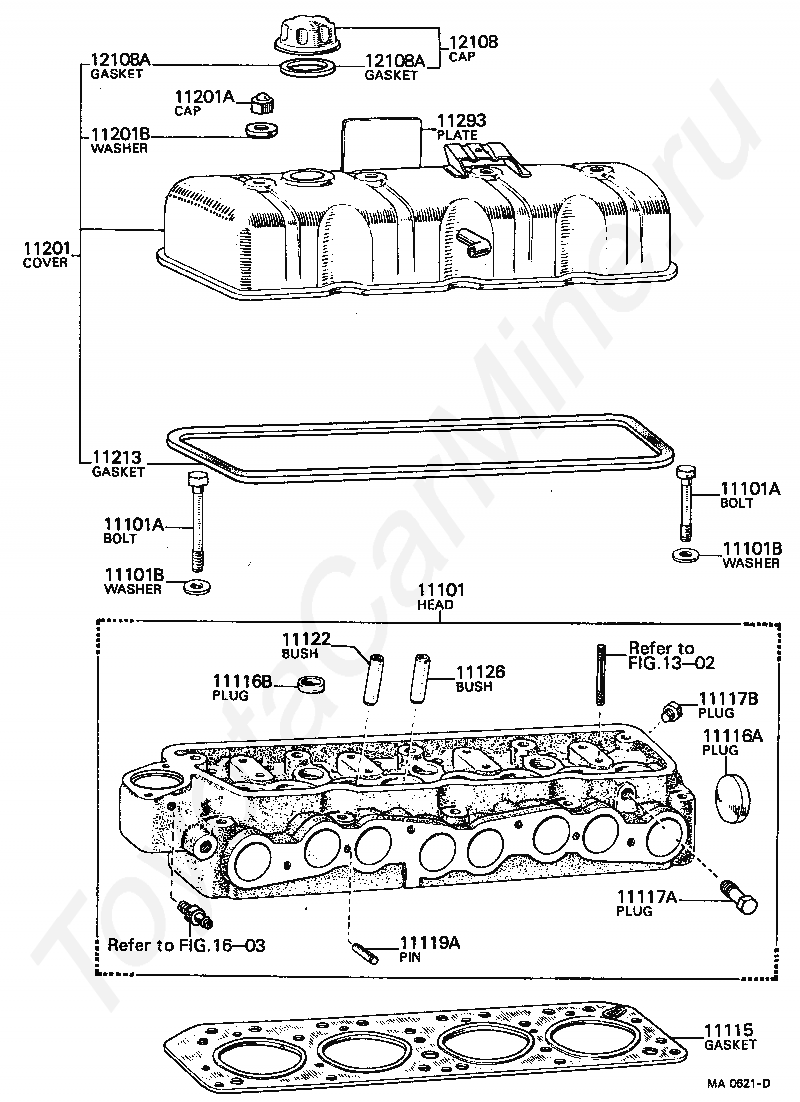

Головка блока цилиндров TOYOTA HILUX, 1972/05 - 1978/07, 1,6 литра, RN20, механика, МКПП, 4 ступени

Каталог

Европа

Модель

HILUX

Двигатель

1,6 литра

Фрейм

RN20

Трансмиссия

механика МКПП, 4 ступени

Опции

левый руль

Код

Описание

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11101B

WASHER, PLATE(FOR CYLINDER HEAD SET)

11115

GASKET, CYLINDER HEAD

11116A

PLUG, TIGHT, NO.1

11116B

PLUG, TIGHT, NO.2

11117A

PLUG, W/HEAD TAPER SCREW, NO.1

11117B

PLUG, W/HEAD TAPER SCREW, NO.2

11119A

PIN, STRAIGHT, NO.1

11122

BUSH, INTAKE VALVE GUIDE

11126

BUSH, EXHAUST VALVE GUIDE

11201

COVER SUB-ASSY, CYLINDER HEAD

11201A

NUT, CAP(FOR CYLINDER HEAD COVER)

11201B

WASHER, SEAL(FOR CYLINDER HEAD COVER)

11213

GASKET, CYLINDER HEAD COVER

11293

PLATE, ENGINE CAUTION & ENGINE NAME

12108

CAP SUB-ASSY, OIL FILLER

12108A

GASKET(FOR OIL FILLER CAP)

1302

переход к группе запчастей

1603

переход к группе запчастей

Код

Описание

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11115

GASKET, CYLINDER HEAD

11116A

PLUG, TIGHT, NO.1

11116B

PLUG, TIGHT, NO.2

11117A

PLUG, W/HEAD TAPER SCREW, NO.1

11117B

PLUG, W/HEAD TAPER SCREW, NO.2

11119A

PIN, STRAIGHT, NO.1

11122

BUSH, INTAKE VALVE GUIDE

11126

BUSH, EXHAUST VALVE GUIDE

11135

SEAT, EXHAUST VALVE

11201

COVER SUB-ASSY, CYLINDER HEAD

11201A

NUT, CAP(FOR CYLINDER HEAD COVER)

11201B

WASHER, SEAL(FOR CYLINDER HEAD COVER)

11213

GASKET, CYLINDER HEAD COVER

11293

PLATE, ENGINE CAUTION & ENGINE NAME

12108

CAP SUB-ASSY, OIL FILLER

1302

переход к группе запчастей

1603

переход к группе запчастей

Код

Описание

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11115

GASKET, CYLINDER HEAD

11116A

PLUG, TIGHT, NO.1

11116B

PLUG, TIGHT, NO.2

11117A

PLUG, W/HEAD TAPER SCREW, NO.1

11117B

PLUG, W/HEAD TAPER SCREW, NO.2

11119A

PIN, STRAIGHT, NO.1

11122

BUSH, INTAKE VALVE GUIDE

11126

BUSH, EXHAUST VALVE GUIDE

11201

COVER SUB-ASSY, CYLINDER HEAD

11201A

NUT, CAP(FOR CYLINDER HEAD COVER)

11201B

WASHER, SEAL(FOR CYLINDER HEAD COVER)

11213

GASKET, CYLINDER HEAD COVER

11293

PLATE, ENGINE CAUTION & ENGINE NAME

12108

CAP SUB-ASSY, OIL FILLER

Код

Описание

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11115

GASKET, CYLINDER HEAD

11116A

PLUG, TIGHT, NO.1

11116B

PLUG, TIGHT, NO.2

11117A

PLUG, W/HEAD TAPER SCREW, NO.1

11117B

PLUG, W/HEAD TAPER SCREW, NO.2

11119A

PIN, STRAIGHT, NO.1

11122

BUSH, INTAKE VALVE GUIDE

11126

BUSH, EXHAUST VALVE GUIDE

11201

COVER SUB-ASSY, CYLINDER HEAD

11201A

NUT, CAP(FOR CYLINDER HEAD COVER)

11201B

WASHER, SEAL(FOR CYLINDER HEAD COVER)

11213

GASKET, CYLINDER HEAD COVER

11293

PLATE, ENGINE CAUTION & ENGINE NAME

12108

CAP SUB-ASSY, OIL FILLER

Головка блока цилиндров TOYOTA HILUX, 1972/05 - 1978/07, 1,6 литра, RN20, механика, МКПП, 4 ступени
