Каталог
ЕвропаМодель
HILUX (VWP)Двигатель
2,4 литра, дизельКласс
STANDARD TYPEФрейм
LN85Трансмиссия
механика МКПП, 5 скоростейОпции
PRODUCED AT VW правый руль RENT-A-CAR SPECIFICATION PACKAGE B LOW DECK (STANDARD DECK) DSL IV3

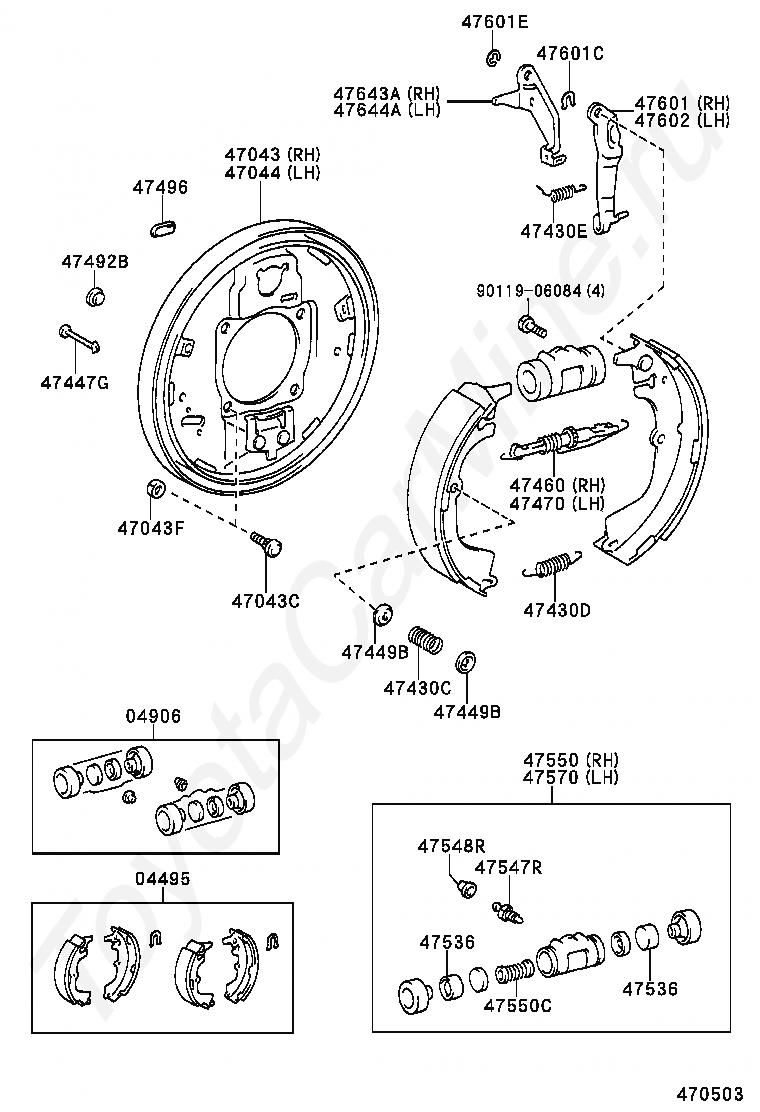

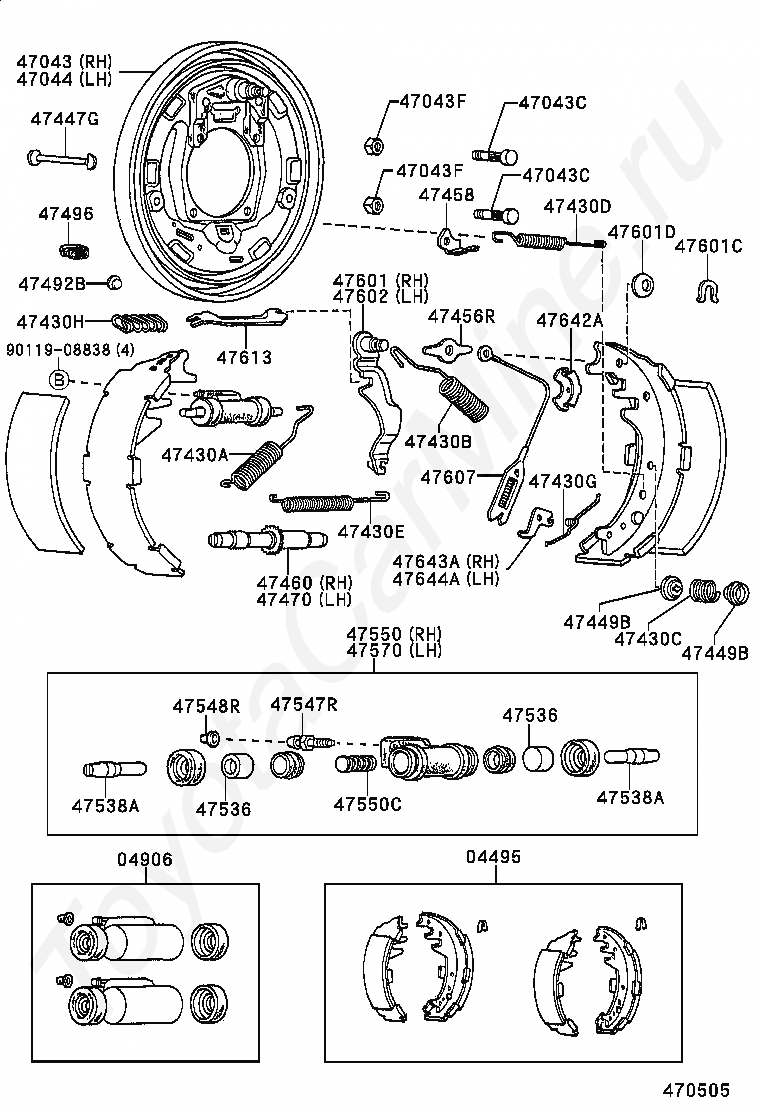

Код
Описание
04495
SHOE KIT, REAR BRAKE
04906
CUP KIT, REAR WHEEL CYLINDER
47043
PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043C
BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47043F
NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044
PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47430A
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430B
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430C
SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430D
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430E
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430G
SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
47430H
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47447G
PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449B
CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47456R
PLATE, REAR BRAKE SHOE GUIDE
47458
BRACKET, REAR BRAKE SHOE RETURN SPRING
47460
ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47470
ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47492B
PLUG, SHOE INSPECTION(FOR REAR BRAKE)
47496
PLUG, HOLE(FOR REAR BRAKE)
47536
PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47538A
LINK, WHEEL CYLINDER CONNECTING
47547R
PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548R
CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550
CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550C
SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47570
CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601
LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601C
WASHER, C(FOR REAR BRAKE)
47601D
WASHER, WAVE(FOR REAR BRAKE)
47602
LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47607
CABLE SUB-ASSY, REAR BEAKE AUTOMATIC ADJUST
47613
STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)
47642A
GUIDE, REAR BRAKE AUTOMATIC ADJUST CABLE
47643A
LEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47644A
LEVER, REAR BRAKE AUTOMATIC ADJUST, LH
9011908838
Крепеж
Код
Описание
04495
SHOE KIT, REAR BRAKE
04906
CUP KIT, REAR WHEEL CYLINDER
47043
PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043C
BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47043F
NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044
PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47430C
SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430D
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430E
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47447G
PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449B
CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47460
ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47470
ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47492B
PLUG, SHOE INSPECTION(FOR REAR BRAKE)
47496
PLUG, HOLE(FOR REAR BRAKE)
47536
PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47547R
PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548R
CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550
CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550C
SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47570
CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601
LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601C
WASHER, C(FOR REAR BRAKE)
47601E
RING, E(FOR REAR BRAKE)
47602
LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47643A
LEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47644A
LEVER, REAR BRAKE AUTOMATIC ADJUST, LH
9011906084
Крепеж
