Кресла TOYOTA HILUX, 2011/11 - 2025, 2,5 литра, турбо-дизель, DELUX SPECIFICATION, KUN25, МКПП, 5 скоростей

Каталог

Европа

Модель

HILUX

Двигатель

2,5 литра, турбо-дизель

Класс

DELUX SPECIFICATION

Фрейм

KUN25

Трансмиссия

МКПП, 5 скоростей

Опции

левый руль EXTRA CAB SLIDE DOOR система впрыска дизельного топлива высокой мощности CBU FLD 520W

Код

Описание

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72138B

COVER, SEAT TRACK, LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72158B

COVER, SEAT TRACK BRACKET, INNER LH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72503A

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH

72504A

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72637G

SPRING, SEAT BACK, LH

72992

COVER, FRONT SEAT CUSHION, LH

90119T0001

Крепеж

9016740044

Крепеж

90167T0019

Крепеж

91621B0816

Крепеж

91622B1018

Крепеж

Код

Описание

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72138B

COVER, SEAT TRACK, LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72158B

COVER, SEAT TRACK BRACKET, INNER LH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72503A

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH

72504A

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72637G

SPRING, SEAT BACK, LH

72992

COVER, FRONT SEAT CUSHION, LH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

90119T0001

Крепеж

9016740044

Крепеж

90167T0019

Крепеж

91621B0816

Крепеж

91622B1018

Крепеж

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72138B

COVER, SEAT TRACK, LH

72158B

COVER, SEAT TRACK BRACKET, INNER LH

72992

COVER, FRONT SEAT CUSHION, LH

791690K100

Крепеж

8202

переход к группе запчастей

8401

переход к группе запчастей

85822

MOTOR ASSY, POWER SEAT SLIDE, LH

85822C

MOTOR ASSY, POWER SEAT LIFTER, LH

90119T0001

Крепеж

9016740044

Крепеж

9016740048

Крепеж

90167T0019

Крепеж

9016850078

Крепеж

91622B1018

Крепеж

9353054010

Крепеж

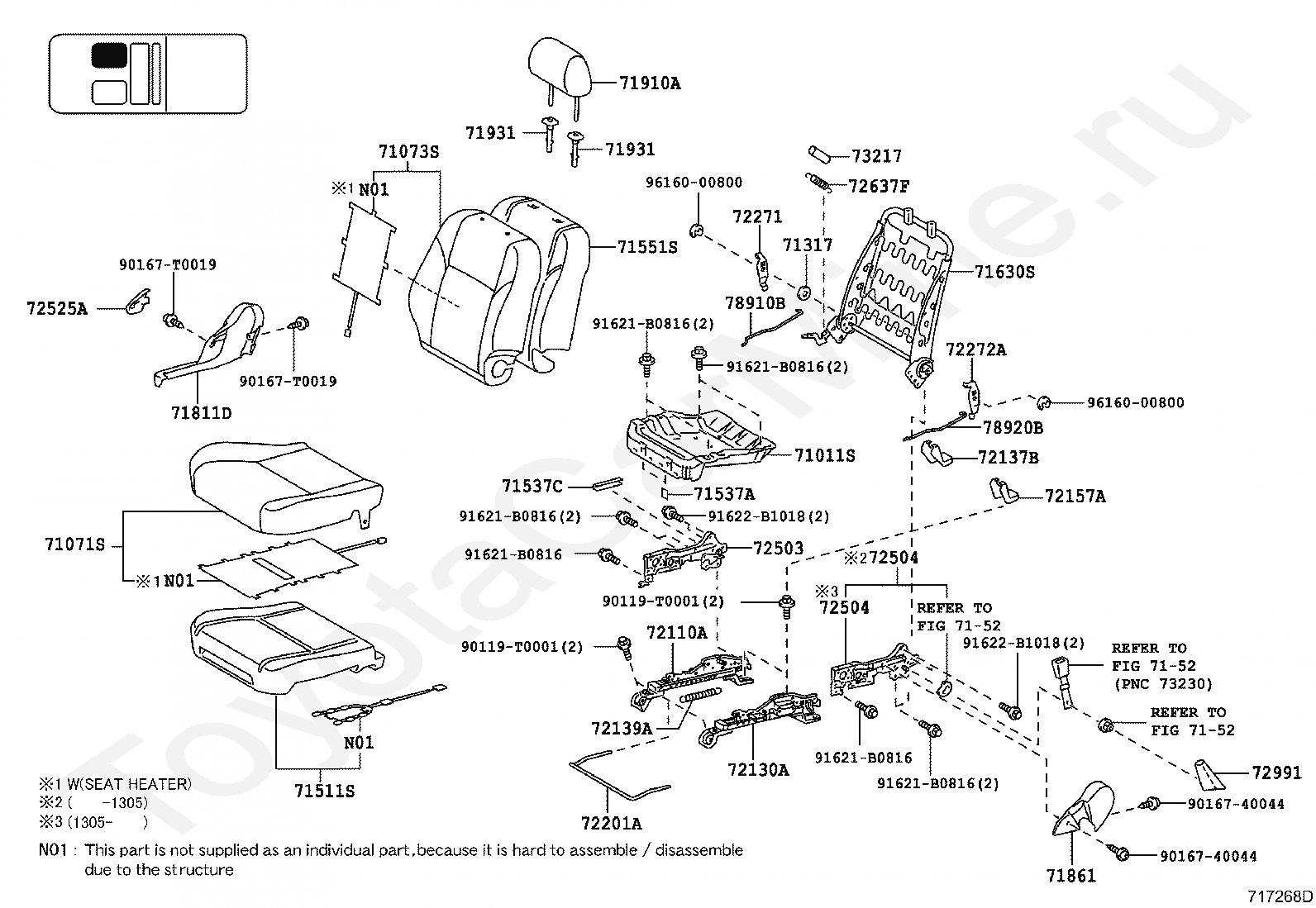

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71317

PLATE, FRONT SEAT BACK HINGE

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137B

COVER, SEAT TRACK, RH

72139A

SPRING, SEAT TRACK COVER

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72271

BRACKET, SEAT TRACK CONTROL CABLE, RH

72272A

BRACKET, SEAT TRACK CONTROL CABLE, LH

72503

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH

72504

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72637F

SPRING, SEAT BACK, RH

72991

COVER, FRONT SEAT CUSHION, RH

73217

TUBE, ADJUSTER, RH

78910B

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 RH

78920B

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 LH

90119T0001

Крепеж

9016740044

Крепеж

90167T0019

Крепеж

91621B0816

Крепеж

91622B1018

Крепеж

9616000800

Крепеж

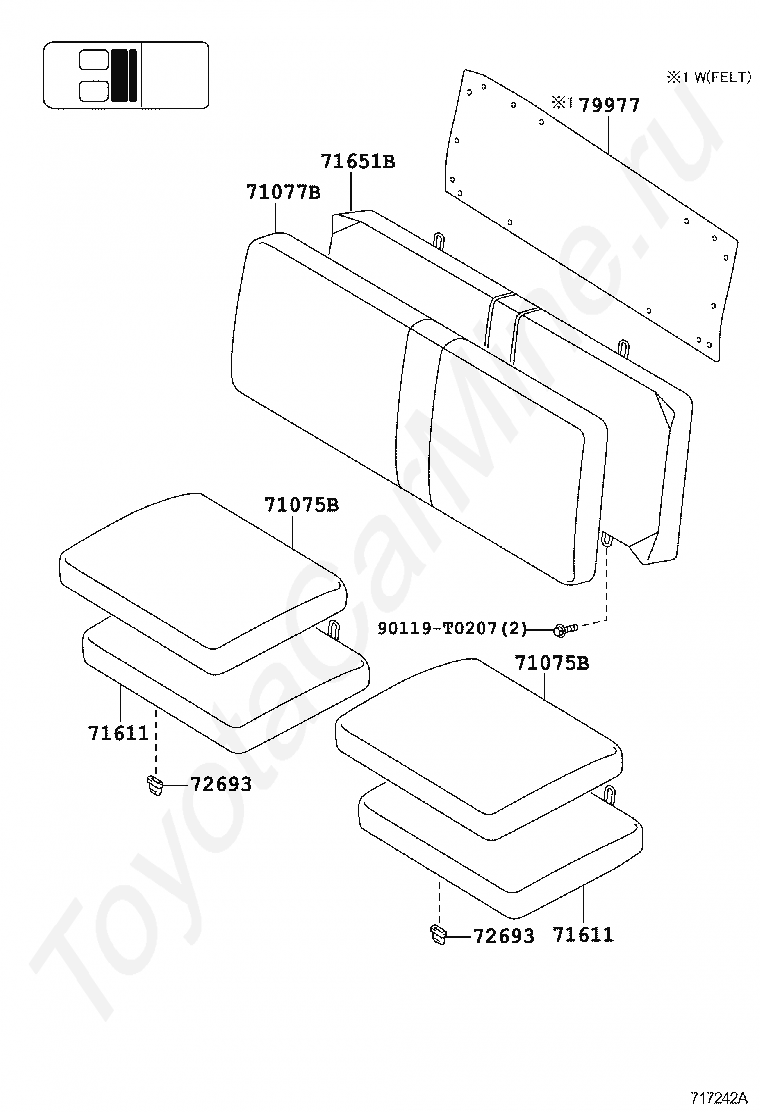

Код

Описание

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71611

PAD, REAR SEAT CUSHION

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

72693

HOOK, REAR SEAT CUSHION LOCK

79977

FELT, SEAT BACK

90119T0207

Крепеж
