REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE TOYOTA HILUX 2WD, 1988/08 - 1999/09, 1,8 литра, RENT-A-CAR SPECIFICATION PACKAGE B, STANDARD TYPE, YN85, механика, МКПП, 4 ступени

Каталог

Ближний Восток

Модель

HILUX 2WD

Двигатель

1,8 литра

Кузов

RENT-A-CAR SPECIFICATION PACKAGE B

Класс

STANDARD TYPE

Фрейм

YN85

Трансмиссия

механика МКПП, 4 ступени

Опции

правый руль LOW DECK (STANDARD DECK) STANDARD CARBURETOR SPECIFICATION GENERAL COUNTRIES COMPLETED VEHICLE

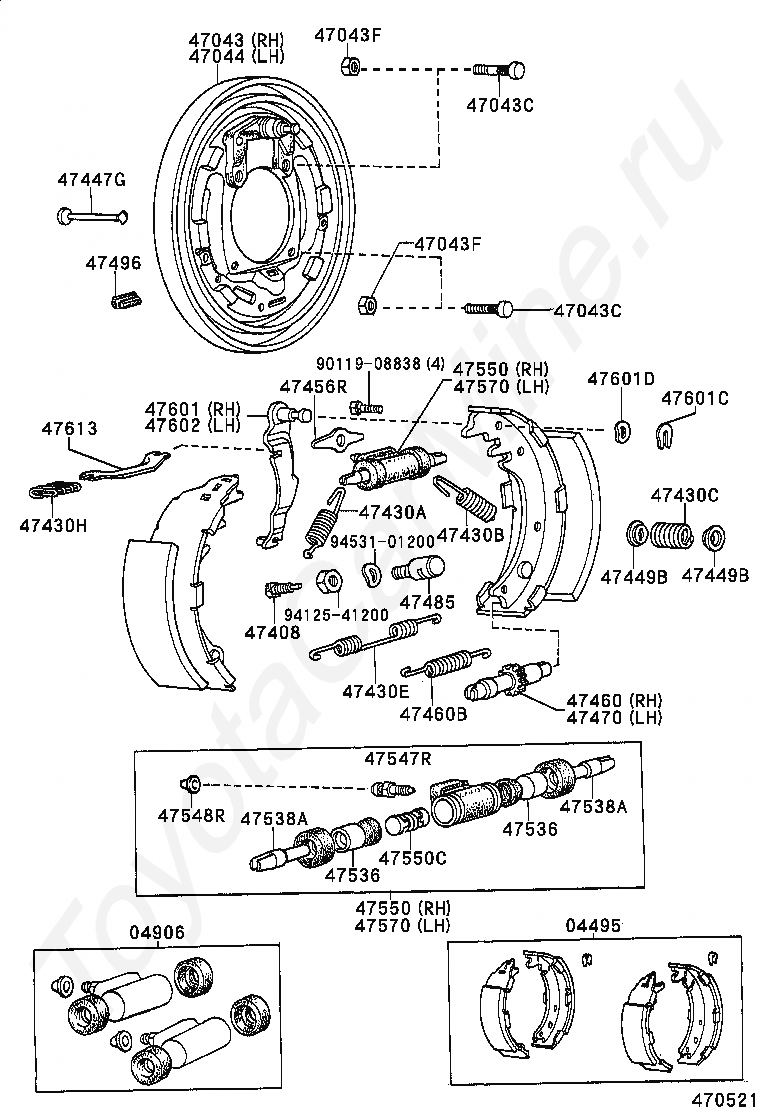

Код

Описание

04495

SHOE KIT, REAR BRAKE

04906

CUP KIT, REAR WHEEL CYLINDER

47043

PLATE SUB-ASSY, BRAKE BACKING, REAR RH

47043C

BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

47043F

NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

47044

PLATE SUB-ASSY, BRAKE BACKING, REAR LH

47408

BOLT SUB-ASSY, RETRACTING SPRING CLAMP

47430A

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47430B

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47430C

SPRING(FOR REAR BRAKE SHOE HOLD DOWN)

47430E

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47430H

SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

47447G

PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

47449B

CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

47456R

PLATE, REAR BRAKE SHOE GUIDE

47460

ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

47460B

SPRING, TENSION(FOR REAR BRAKE ADJUSTER)

47470

ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

47485

SPACER OR HOLDER, SHOE RETRACTING SPRING CLAMP

47496

PLUG, HOLE(FOR REAR BRAKE)

47536

PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

47538A

LINK, WHEEL CYLINDER CONNECTING

47547R

PLUG, BLEEDER(FOR DRUM BRAKE, REAR)

47548R

CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

47550

CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

47550C

SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

47570

CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

47601

LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

47601C

WASHER, C(FOR REAR BRAKE)

47601D

WASHER, WAVE(FOR REAR BRAKE)

47602

LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

47613

STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

9011908838

Крепеж

9412541200

Крепеж

9453101200

Крепеж

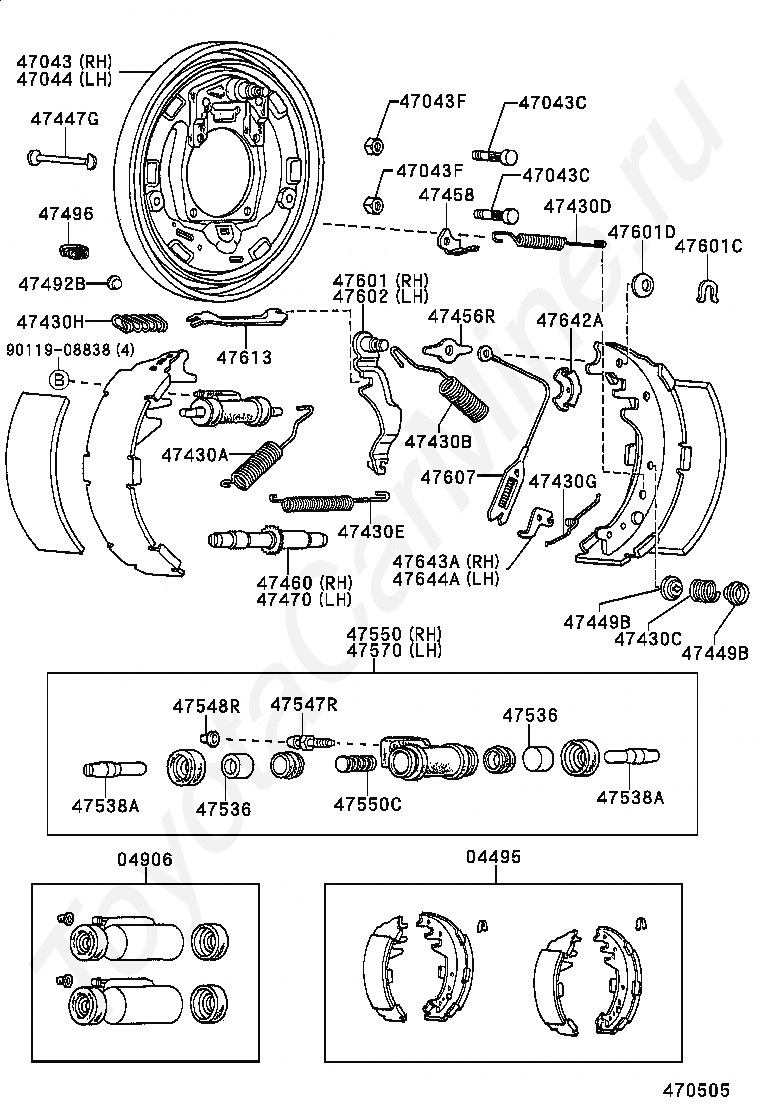

Код

Описание

04495

SHOE KIT, REAR BRAKE

04906

CUP KIT, REAR WHEEL CYLINDER

47043

PLATE SUB-ASSY, BRAKE BACKING, REAR RH

47043C

BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

47043F

NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

47044

PLATE SUB-ASSY, BRAKE BACKING, REAR LH

47430A

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47430B

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47430C

SPRING(FOR REAR BRAKE SHOE HOLD DOWN)

47430D

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47430E

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47430G

SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

47430H

SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

47447G

PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

47449B

CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

47456R

PLATE, REAR BRAKE SHOE GUIDE

47458

BRACKET, REAR BRAKE SHOE RETURN SPRING

47460

ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

47470

ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

47492B

PLUG, SHOE INSPECTION(FOR REAR BRAKE)

47496

PLUG, HOLE(FOR REAR BRAKE)

47536

PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

47538A

LINK, WHEEL CYLINDER CONNECTING

47547R

PLUG, BLEEDER(FOR DRUM BRAKE, REAR)

47548R

CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

47550

CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

47550C

SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

47570

CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

47601

LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

47601C

WASHER, C(FOR REAR BRAKE)

47601D

WASHER, WAVE(FOR REAR BRAKE)

47602

LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

47607

CABLE SUB-ASSY, REAR BEAKE AUTOMATIC ADJUST

47613

STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

47642A

GUIDE, REAR BRAKE AUTOMATIC ADJUST CABLE

47643A

LEVER, REAR BRAKE AUTOMATIC ADJUST, RH

47644A

LEVER, REAR BRAKE AUTOMATIC ADJUST, LH

9011908838

Крепеж

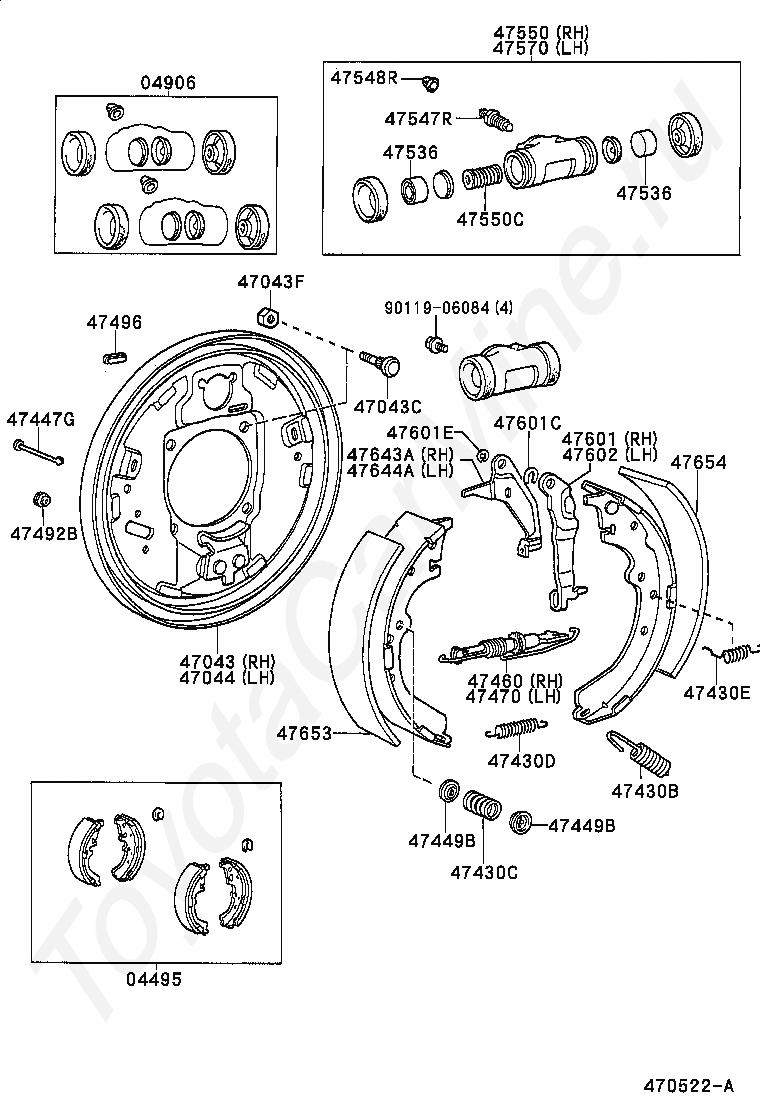

Код

Описание

04495

SHOE KIT, REAR BRAKE

04906

CUP KIT, REAR WHEEL CYLINDER

47043

PLATE SUB-ASSY, BRAKE BACKING, REAR RH

47043C

BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

47043F

NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

47044

PLATE SUB-ASSY, BRAKE BACKING, REAR LH

47430B

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47430C

SPRING(FOR REAR BRAKE SHOE HOLD DOWN)

47430D

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47430E

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47447G

PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

47449B

CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

47460

ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

47470

ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

47492B

PLUG, SHOE INSPECTION(FOR REAR BRAKE)

47496

PLUG, HOLE(FOR REAR BRAKE)

47536

PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

47547R

PLUG, BLEEDER(FOR DRUM BRAKE, REAR)

47548R

CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

47550

CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

47550C

SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

47570

CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

47601

LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

47601C

WASHER, C(FOR REAR BRAKE)

47601E

RING, E(FOR REAR BRAKE)

47602

LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

47643A

LEVER, REAR BRAKE AUTOMATIC ADJUST, RH

47644A

LEVER, REAR BRAKE AUTOMATIC ADJUST, LH

47653

LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

47654

LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

9011906084

Крепеж

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE TOYOTA HILUX 2WD, 1988/08 - 1999/09, 1,8 литра, RENT-A-CAR SPECIFICATION PACKAGE B, STANDARD TYPE, YN85, механика, МКПП, 4 ступени
