Кресла TOYOTA HILUX SURF, 1997/08 - 2000/08, 3 литра, турбо-дизель, WIDE BODY, SSR-X TYPE, KZN185, автомат, АКПП, 4 ступени

Каталог

Япония

Модель

HILUX SURF

Двигатель

3 литра, турбо-дизель

Кузов

WIDE BODY

Класс

SSR-X TYPE

Фрейм

KZN185

Трансмиссия

автомат АКПП, 4 ступени

Опции

TURBO CHARGED EFI DIESEL ENGINE WITH INTERCOOLER

Код

Описание

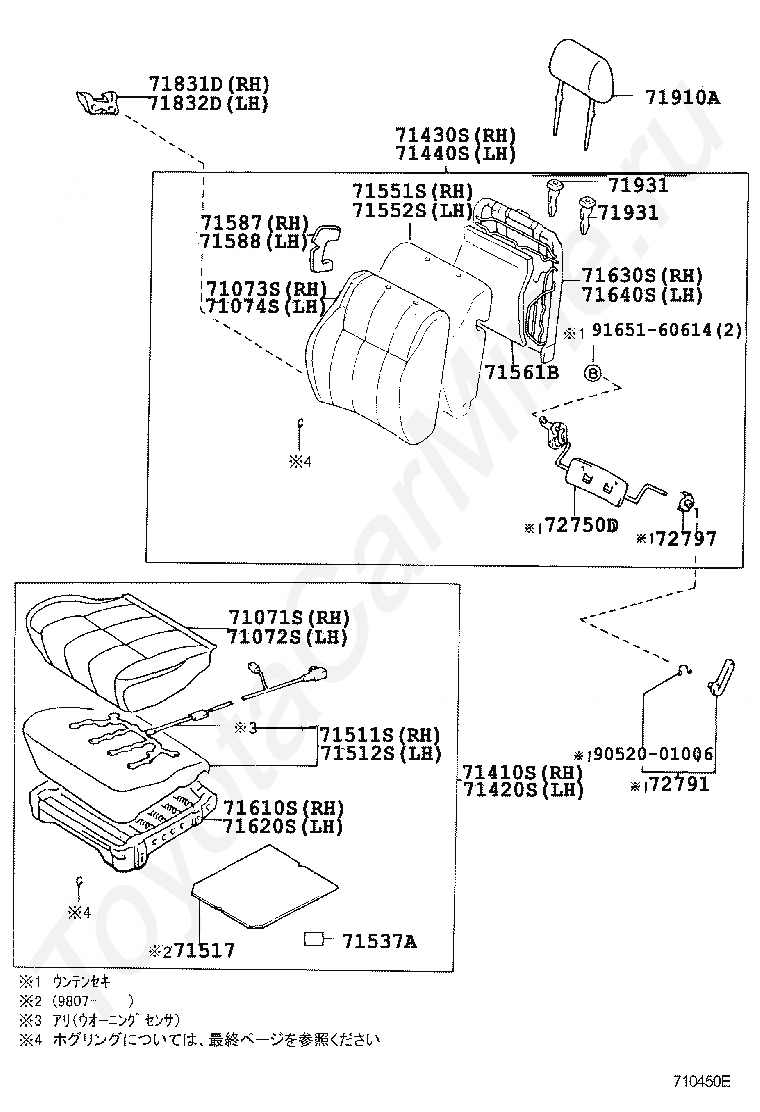

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71517

CLOTH, FRONT SEAT CUSHION UNDER

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71561B

PAD, FRONT SEAT BACK, UPPER

71587

PROTECTOR, FRONT SEAT BACK EDGE

71588

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

72791

LEVER, LUMBAR SUPPORT

72797

SPACER, LUMBAR SUPPORT

9052001006

Крепеж

9165160614

Крепеж

Код

Описание

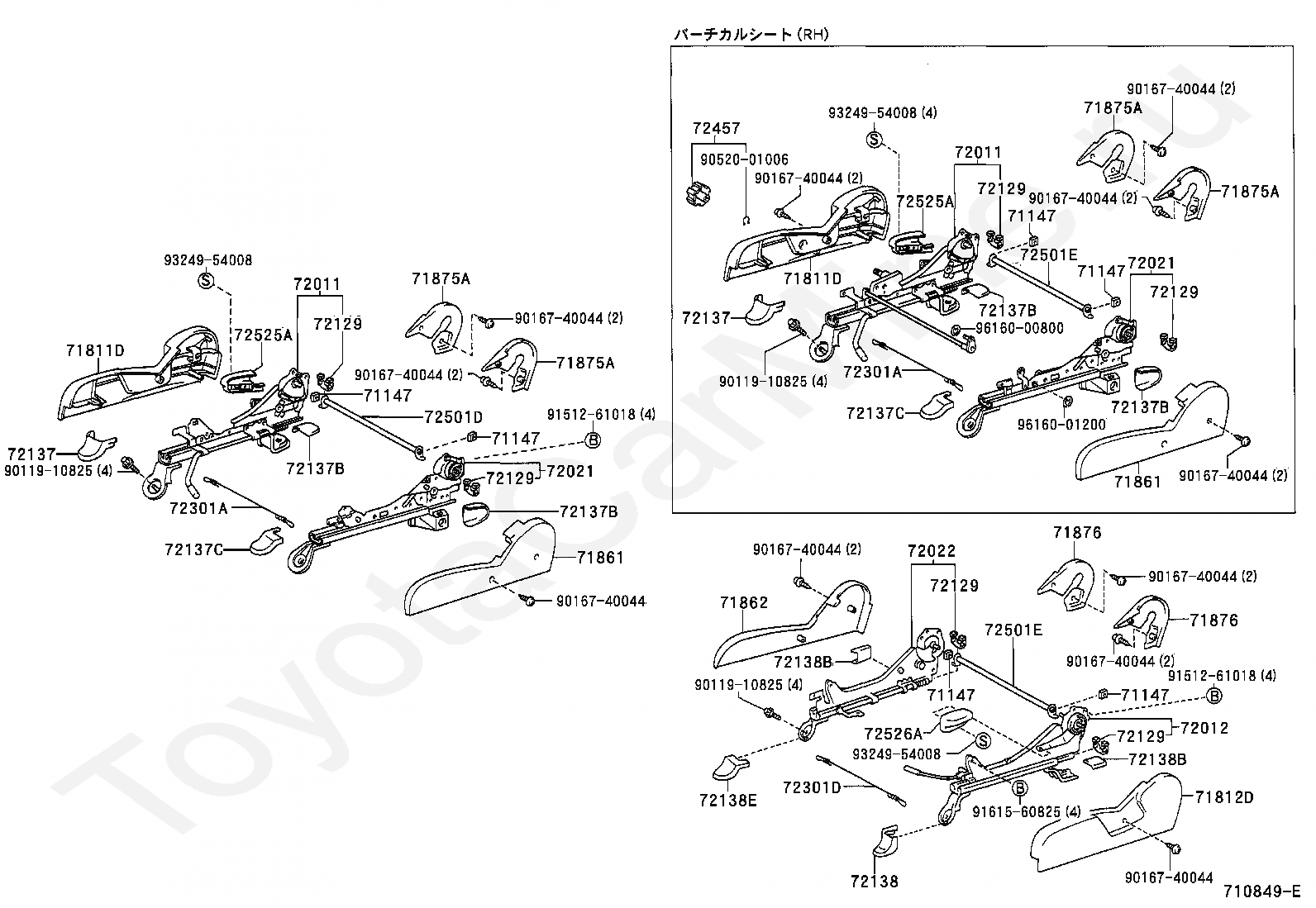

71147

SILENCER, SEAT SPRING

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72012

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72022

ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72137

COVER, SEAT TRACK, OUTER RH

72137B

COVER, SEAT TRACK, RH

72137C

COVER, SEAT TRACK INNER, RH

72138

COVER, SEAT TRACK, OUTER LH

72138B

COVER, SEAT TRACK, LH

72138E

COVER, SEAT TRACK, INNER LH

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72301D

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH

72457

KNOB, VERTICAL SEAT ADJUSTER

72501D

PIPE SUB-ASSY, RECLINING CONNECTING, RH

72501E

PIPE SUB-ASSY, RECLINING CONNECTING, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910825

Крепеж

9016740044

Крепеж

9052001006

Крепеж

9151261018

Крепеж

9161560825

Крепеж

9324954008

Крепеж

9616000800

Крепеж

9616001200

Крепеж

Код

Описание

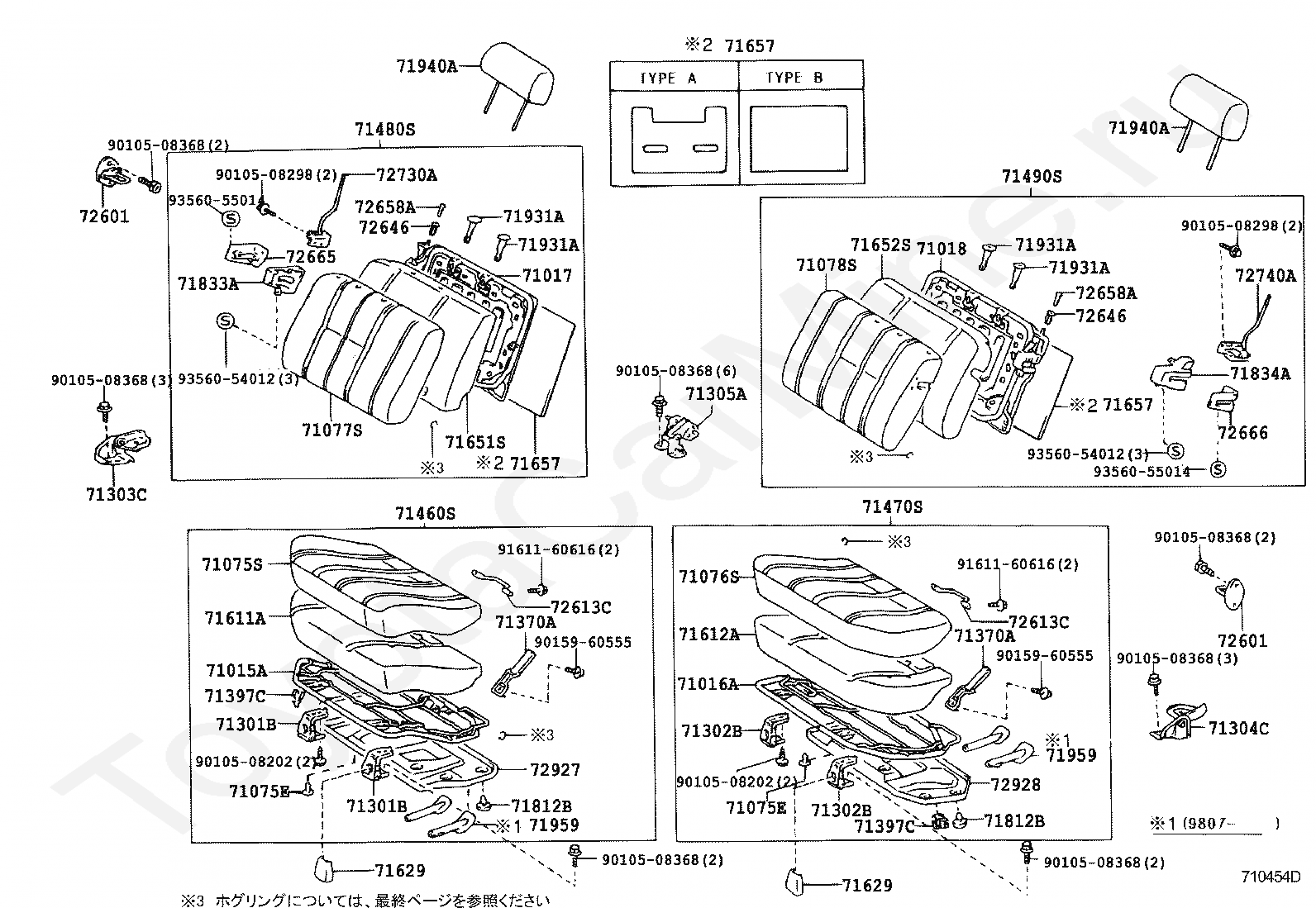

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075E

CLIP(FOR REAR SEAT)

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71301B

HINGE SUB-ASSY, REAR NO.1 SEAT, RH

71302B

HINGE SUB-ASSY, REAR NO.1 SEAT, LH

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71370A

HOLDER ASSY, REAR SEAT CUSHION

71397C

STOPPER, REAR SEAT

71460S

CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)

71470S

CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71480S

BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

71490S

BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71629

COVER, REAR SEAT CUSHION HINGE

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71657

CLOTH, REAR SEAT BACK UNDER

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71959

HOLDER, REAR SEAT HEADREST

72601

STRIKER SUB-ASSY, REAR SEAT LOCK

72613C

STRIKER, REAR SEAT LOCK

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72658A

KNOB, REAR SEAT BACK LOCKING

72665

COVER, REAR SEAT BACK LOCK, RH

72666

COVER, REAR SEAT BACK LOCK, LH

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72927

COVER, REAR SEAT CUSHION UNDER, RH

72928

COVER, REAR SEAT CUSHION UNDER, LH

9010508202

Крепеж

9010508298

Крепеж

9010508368

Крепеж

9015960555

Крепеж

9161160616

Крепеж

9356054012

Крепеж

9356055014

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Кресла TOYOTA HILUX SURF, 1997/08 - 2000/08, 3 литра, турбо-дизель, WIDE BODY, SSR-X TYPE, KZN185, автомат, АКПП, 4 ступени
