> Запчасти HIGHLANDER > Поиск по каталогу
Запчасти Аксессуары Масло Расходники Каталог Шины, Диски

Задние кресла TOYOTA HIGHLANDER (CHINA), 2021/08 - 2025, 2500CC 16-VALVE DOHC, AXUH79, вариатор

Каталог

Ближний Восток

Модель

HIGHLANDER (CHINA)

Двигатель

2500CC 16-VALVE DOHC

Фрейм

AXUH79

Трансмиссия

вариатор

Опции

левый руль 7-местный N(MODEL MARK) 822W

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
  • 4
  • 5
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

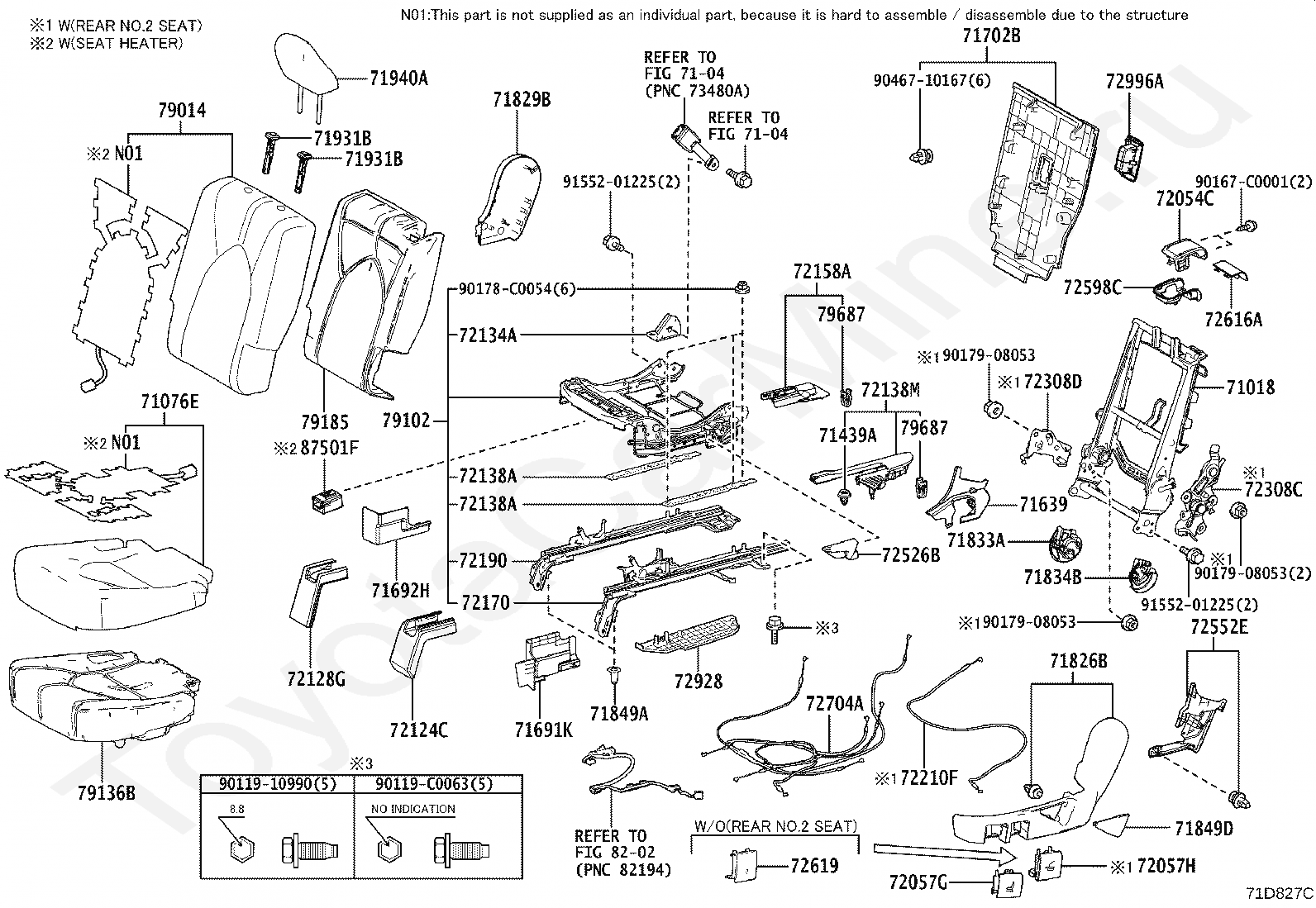

Код

Описание

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71076E

COVER SUB-ASSY, REAR SEAT CUSHION, LH

71439A

CLIP

71639

COVER, REAR SEAT CUSHION HINGE, LH

71691K

COVER, REAR SEAT CUSHION HINGE, NO.4

71692H

COVER, REAR SEAT CUSHION HINGE, NO.3

71702B

BOARD SUB-ASSY, REAR SEAT BACK, LH

71826B

MOULDING, REAR SEAT CUSHION, LH

71829B

MOULDING, REAR SEAT CUSHION, REAR LH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71849A

CAP, SEAT ADJUSTER COVER, LH

71849D

CAP, SEAT ADJUSTER COVER, LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72054C

LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH

72057G

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH NO.1

72057H

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH NO.2

72124C

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128G

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72134A

BRACKET, FRONT INNER SEAT TRACK UPPER RAIL, LH

72138A

COVER, REAR SEAT TRACK, LH

72138M

COVER, SEAT TRACK BRACKET, OUTER REAR LH

72158A

COVER, REAR SEAT TRACK BRACKET, INNER LH

72170

TRACK ASSY, REAR SEAT, OUTER LH

72190

TRACK ASSY, REAR SEAT INNER, LH

72210F

CABLE ASSY, SEAT TRACK CONTROL

72308C

LINK SUB-ASSY, RECLINING CONTROL, LH NO.1

72308D

LINK SUB-ASSY, RECLINING CONTROL, LH NO.2

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72552E

COVER, RECLINING HINGE, LH

72598C

BEZEL, RECLINING REMOTE CONTROL, LH

72616A

COVER, REAR SEAT BACK LOCK STRIKER, LH

72619

COVER, REAR SEAT BACK LOCK STRIKER

72704A

CABLE, REAR SEAT RECLINING CONTROL

72928

COVER, REAR SEAT CUSHION UNDER, LH

72996A

COVER, REAR SEAT BACK

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79136B

PAD, NO.1 SEAT CUSHION, LH

79185

PAD, NO.1 SEAT BACK, LH

79687

CLIP

8202

переход к группе запчастей

87501F

CONTROL SUB-ASSY, SEAT HEATER, LH

9011910990

Крепеж

90119C0063

Крепеж

90167C0001

Крепеж

90178C0054

Крепеж

9017908053

Крепеж

9046710167

Крепеж

9155201225

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

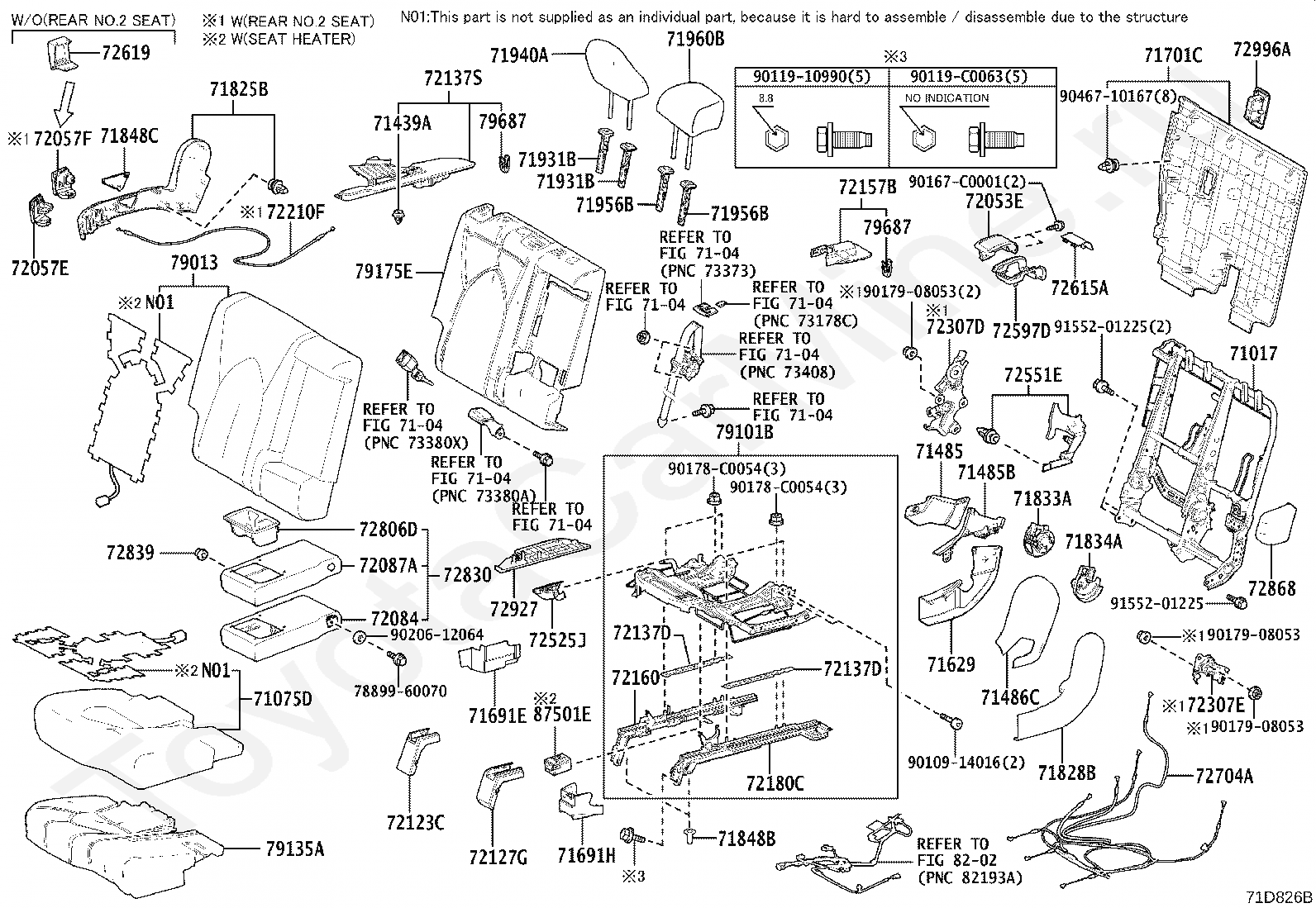

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

7104

переход к группе запчастей

71075D

COVER SUB-ASSY, REAR SEAT CUSHION, RH

71439A

CLIP

71485

COVER, REAR SEAT HINGE

71485B

COVER, REAR SEAT HINGE

71486C

COVER, REAR SEAT HINGE, LH

71629

COVER, REAR SEAT CUSHION HINGE

71691E

COVER, REAR SEAT CUSHION HINGE, NO.1

71691H

COVER, REAR SEAT CUSHION HINGE, NO.2

71701C

BOARD SUB-ASSY, REAR SEAT BACK, RH

71825B

MOULDING, REAR SEAT CUSHION, RH

71828B

MOULDING, REAR SEAT CUSHION, REAR RH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71848B

CAP, SEAT ADJUSTER COVER, RH

71848C

CAP, SEAT ADJUSTER COVER, RH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71956B

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72053E

LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH

72057E

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1

72057F

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.2

72084

PAD SUB-ASSY, REAR SEAT CENTER ARMREST, NO.2

72087A

COVER SUB-ASSY, REAR SEAT CENTER ARMREST

72123C

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127G

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137D

COVER, REAR SEAT TRACK, RH

72137S

COVER, SEAT TRACK BRACKET, OUTER REAR RH

72157B

COVER, REAR SEAT TRACK BRACKET, INNER RH

72160

TRACK ASSY, REAR SEAT, OUTER RH

72180C

TRACK ASSY, REAR SEAT, INNER RH

72210F

CABLE ASSY, SEAT TRACK CONTROL

72307D

LINK SUB-ASSY, RECLINING CONTROL, RH NO.1

72307E

LINK SUB-ASSY, RECLINING CONTROL, RH NO.2

72525J

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551E

COVER, RECLINING HINGE, RH

72597D

BEZEL, RECLINING REMOTE CONTROL, RH

72615A

COVER, REAR SEAT BACK LOCK STRIKER, RH

72619

COVER, REAR SEAT BACK LOCK STRIKER

72704A

CABLE, REAR SEAT RECLINING CONTROL

72806D

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72830

ARMREST ASSY, REAR SEAT, CENTER

72839

SHIM, REAR SEAT ARMREST HINGE

72868

COVER, CENTER ARMREST HINGE, RH

72927

COVER, REAR SEAT CUSHION UNDER, RH

72996A

COVER, REAR SEAT BACK

7889960070

Крепеж

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79101B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79135A

PAD, NO.1 SEAT CUSHION, RH

79175E

PAD, NO.1 SEAT BACK, RH

79687

CLIP

8202

переход к группе запчастей

87501E

CONTROL SUB-ASSY, SEAT HEATER, RH

9010914016

Крепеж

9011910990

Крепеж

90119C0063

Крепеж

90167C0001

Крепеж

90178C0054

Крепеж

9017908053

Крепеж

9020612064

Крепеж

9046710167

Крепеж

9155201225

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

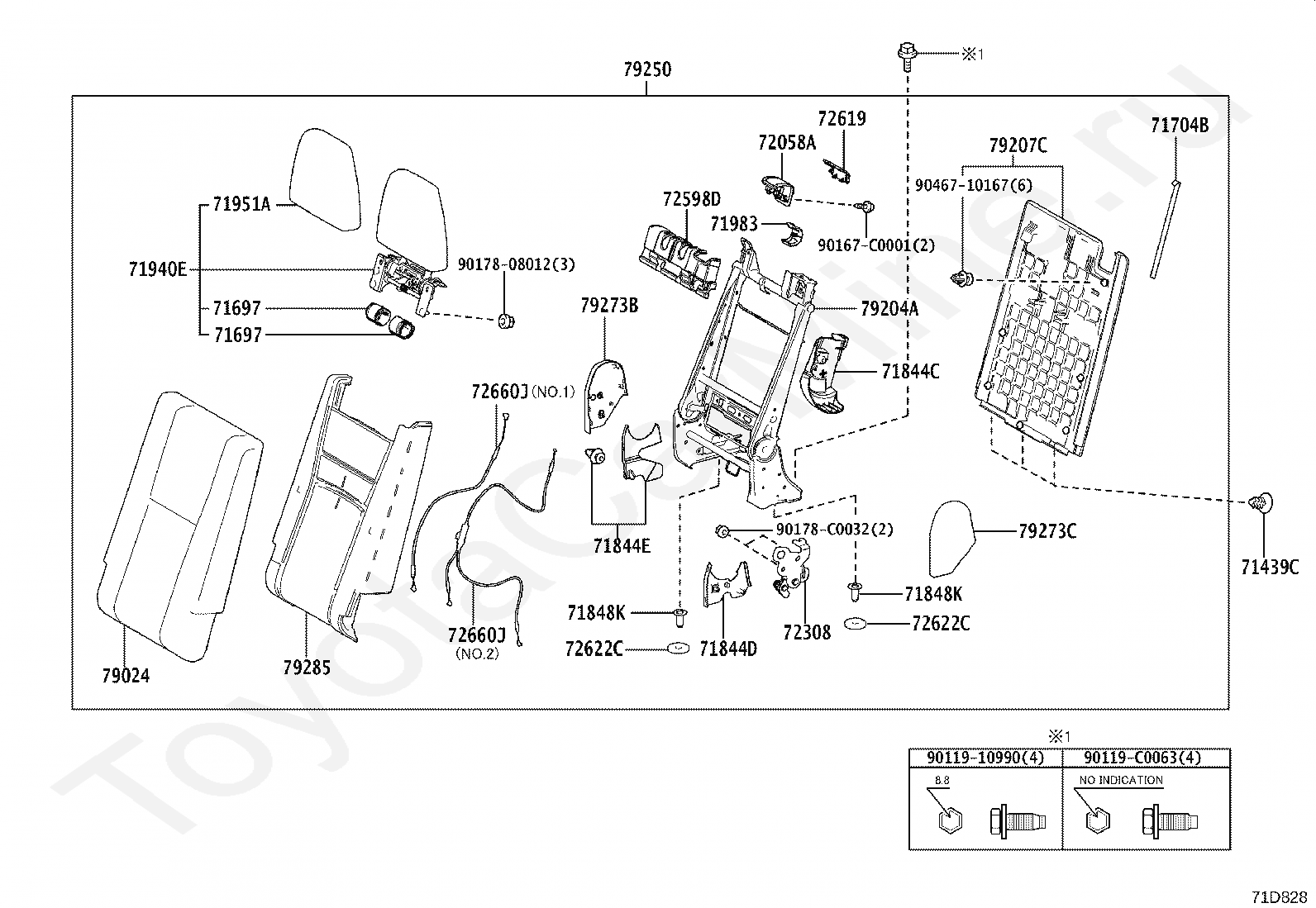

Код

Описание

71439C

CLIP

71697

PROTECTOR, REAR SEAT BACK EDGE

71704B

BAND SUB-ASSY, REAR SIDE SEAT, NO.2

71844C

COVER, REAR SEAT RECLINING, NO.2 LH

71844D

COVER, REAR SEAT RECLINING, LH (FOR LH SEAT)

71844E

COVER, REAR SEAT RECLINING, RH (FOR LH SEAT)

71848K

CAP, SEAT ADJUSTER COVER

71940E

HEADREST ASSY, NO.2 SEAT

71951A

COVER, REAR SEAT HEADREST

71983

GUIDE, REAR SEAT HEADREST

72058A

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

72308

LINK SUB-ASSY, RECLINING CONTROL, LH

72598D

BEZEL, RECLINING REMOTE CONTROL, LH NO.2

72619

COVER, REAR SEAT BACK LOCK STRIKER

72622C

BUSH, REAR SEAT BACK PROTECTOR SHAFT

72660J

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79207C

BOARD SUB-ASSY, NO.2 SEAT BACK, LH

79250

BACK ASSY, NO.2 SEAT, LH

79273B

COVER, NO.2 SEAT HINGE, NO.3

79273C

COVER, NO.2 SEAT HINGE, NO.4

79285

PAD, NO.2 SEAT BACK, LH

9011910990

Крепеж

90119C0063

Крепеж

90167C0001

Крепеж

9017808012

Крепеж

90178C0032

Крепеж

9046710167

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

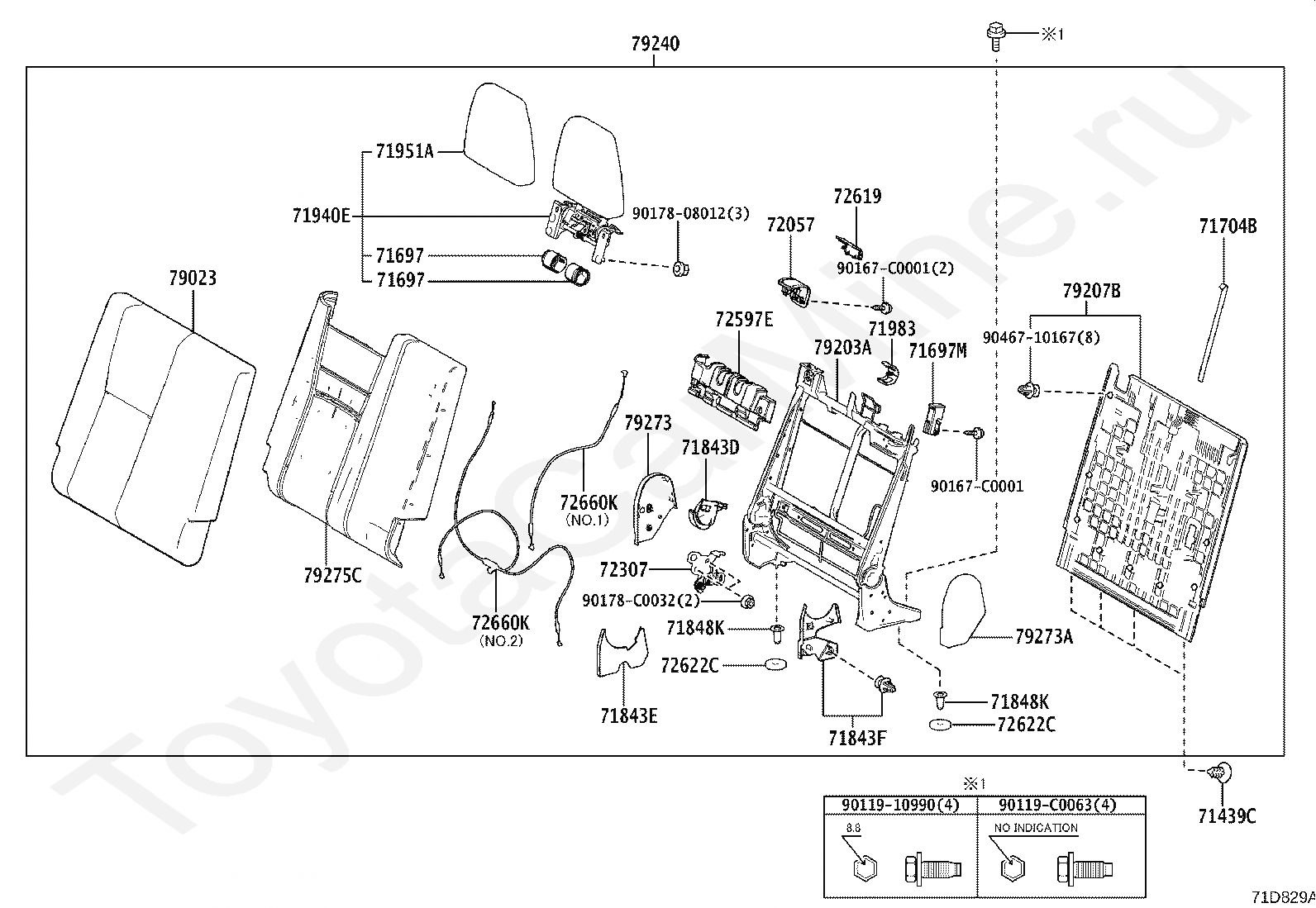

Код

Описание

71439C

CLIP

71697

PROTECTOR, REAR SEAT BACK EDGE

71697M

PROTECTOR, REAR SEAT BACK

71704B

BAND SUB-ASSY, REAR SIDE SEAT, NO.2

71843D

COVER, REAR SEAT RECLINING, NO.2 RH

71843E

COVER, REAR SEAT RECLINING, RH (FOR RH SEAT)

71843F

COVER, REAR SEAT RECLINING, LH (FOR RH SEAT)

71848K

CAP, SEAT ADJUSTER COVER

71940E

HEADREST ASSY, NO.2 SEAT

71951A

COVER, REAR SEAT HEADREST

71983

GUIDE, REAR SEAT HEADREST

72057

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

72307

LINK SUB-ASSY, RECLINING CONTROL, RH

72597E

BEZEL, RECLINING REMOTE CONTROL, RH NO.2

72619

COVER, REAR SEAT BACK LOCK STRIKER

72622C

BUSH, REAR SEAT BACK PROTECTOR SHAFT

72660K

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, RH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79207B

BOARD SUB-ASSY, NO.2 SEAT BACK, RH

79240

BACK ASSY, NO.2 SEAT, RH

79273

COVER, NO.2 SEAT HINGE

79273A

COVER, NO.2 SEAT HINGE, NO.2

79275C

PAD, NO.2 SEAT BACK, RH

9011910990

Крепеж

90119C0063

Крепеж

90167C0001

Крепеж

9017808012

Крепеж

90178C0032

Крепеж

9046710167

Крепеж

+
+
+
+

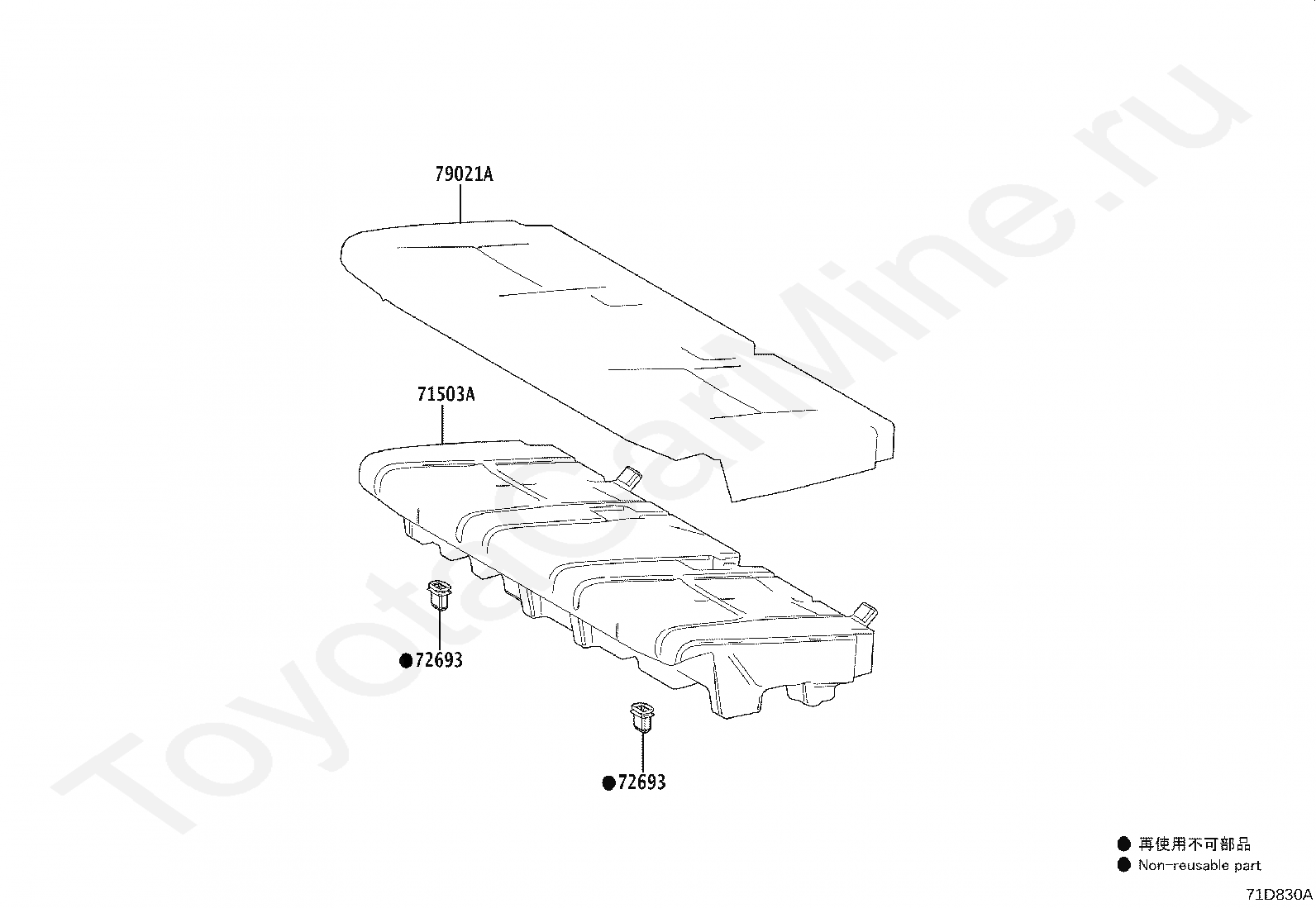

Код

Описание

71503A

PAD SUB-ASSY, REAR SEAT CUSHION

72693

HOOK, REAR SEAT CUSHION LOCK

79021A

COVER SUB-ASSY, NO.2 SEAT CUSHION
