Каталог
ЕвропаМодель
HIGHLANDER/KLUGERДвигатель
2,5 литра, 16 клапанов, DOHCКласс
LIMITED TYPEФрейм
AXUH78Трансмиссия
вариаторОпции
левый руль двигатель с прямым впрыском топлива Европа 755W
Код
Описание
63102A
PANEL SUB-ASSY, WINDSHIELD HEADER
63105A
FRAME SUB-ASSY, BACK DOOR OPENING
63111
PANEL, ROOF
63141G
REINFORCEMENT, ROOF PANEL, NO.1
63142
REINFORCEMENT, ROOF PANEL, NO.2
63143B
REINFORCEMENT, ROOF PANEL, NO.3
63144A
REINFORCEMENT, ROOF PANEL, NO.4
63145A
REINFORCEMENT, ROOF PANEL, NO.5
63146D
REINFORCEMENT, ROOF PANEL, NO.6
63169B
PLATE, ROOF PANEL REINFORCEMENT, RH
63179
PLATE, ROOF PANEL REINFORCEMENT, LH
63185A
BRACKET, ROOF RACK, FRONT RH
63186A
BRACKET, ROOF RACK, FRONT LH
6323048010
Крепеж
90178A0093
Крепеж
9017908247
Крепеж

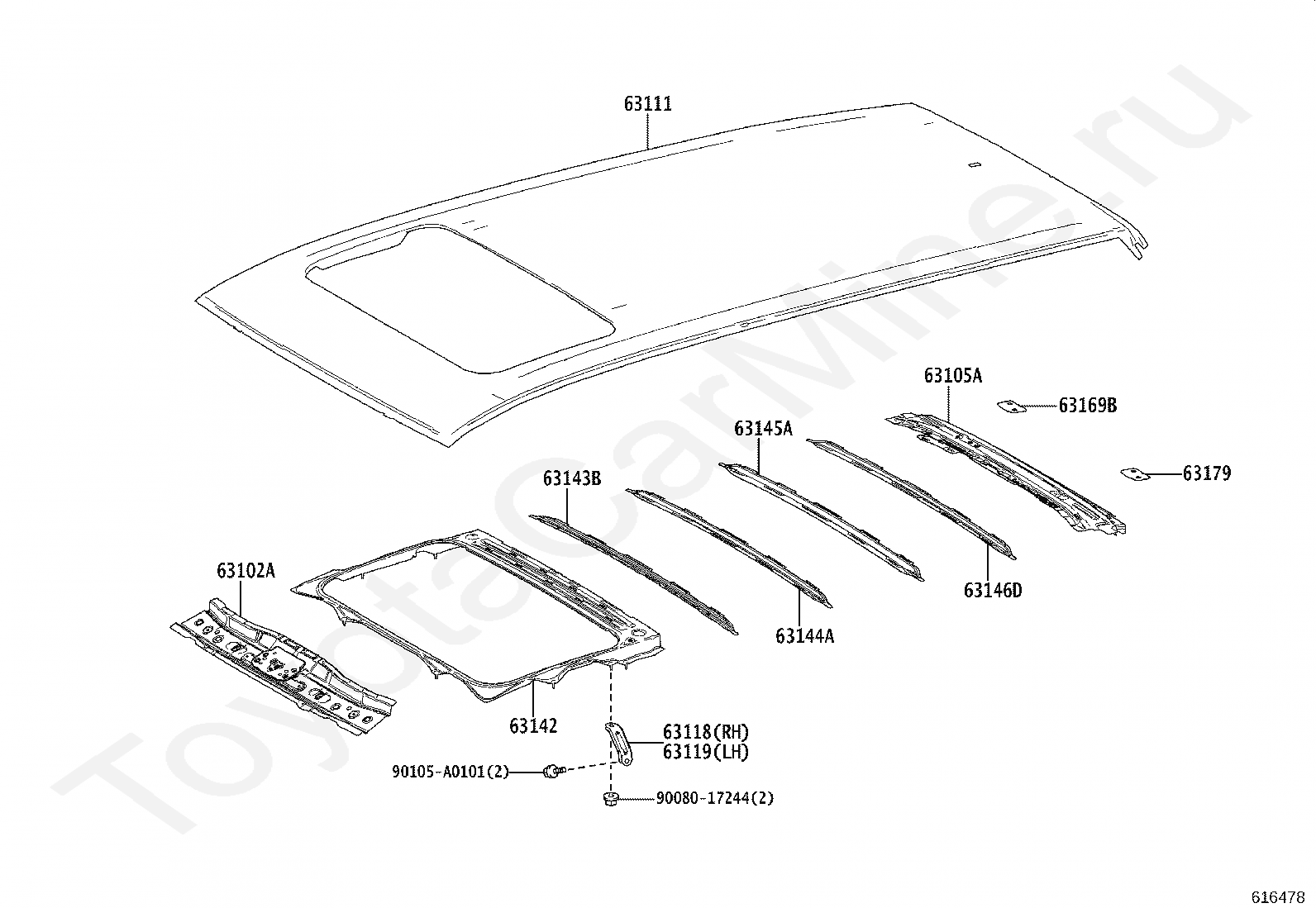

Код
Описание
63102A
PANEL SUB-ASSY, WINDSHIELD HEADER
63105A
FRAME SUB-ASSY, BACK DOOR OPENING
63111
PANEL, ROOF
63118
SUPPORT, ROOF PANEL, RH
63119
SUPPORT, ROOF PANEL, LH
63142
REINFORCEMENT, ROOF PANEL, NO.2
63143B
REINFORCEMENT, ROOF PANEL, NO.3
63144A
REINFORCEMENT, ROOF PANEL, NO.4
63145A
REINFORCEMENT, ROOF PANEL, NO.5
63146D
REINFORCEMENT, ROOF PANEL, NO.6
63169B
PLATE, ROOF PANEL REINFORCEMENT, RH
63179
PLATE, ROOF PANEL REINFORCEMENT, LH
9008017244
Крепеж
90105A0101
Крепеж

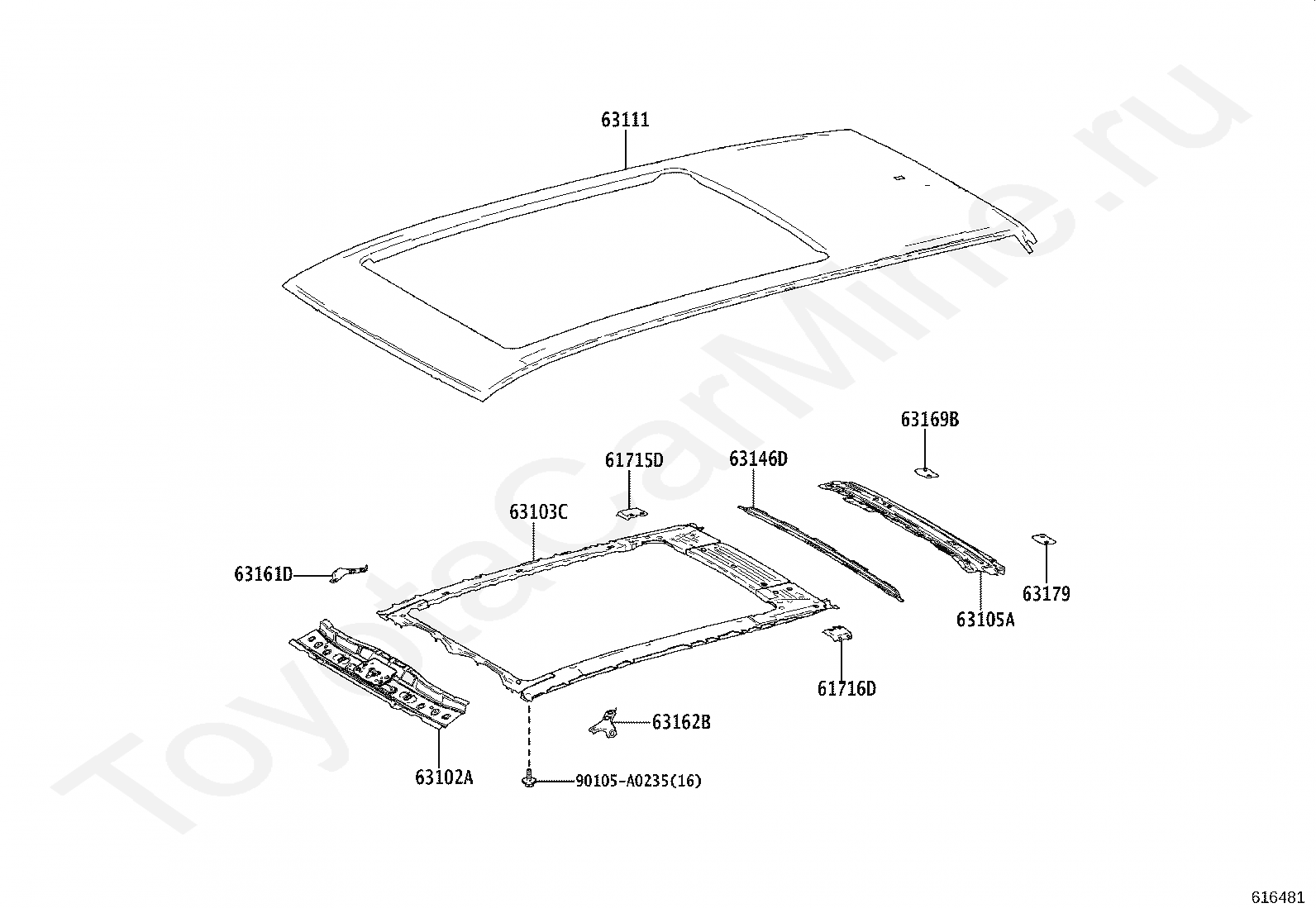

Код
Описание
61715D
EXTENSION, ROOF SIDE, INNER FRONT RH
61716D
EXTENSION, ROOF SIDE, INNER FRONT LH
63102A
PANEL SUB-ASSY, WINDSHIELD HEADER
63103C
REINFORCEMENT SUB-ASSY, ROOF PANEL
63105A
FRAME SUB-ASSY, BACK DOOR OPENING
63111
PANEL, ROOF
63146D
REINFORCEMENT, ROOF PANEL, NO.6
63161D
PLATE, ROOF HEADER PANEL, NO.1
63162B
PLATE, ROOF HEADER PANEL, NO.2
63169B
PLATE, ROOF PANEL REINFORCEMENT, RH
63179
PLATE, ROOF PANEL REINFORCEMENT, LH
90105A0235
Крепеж

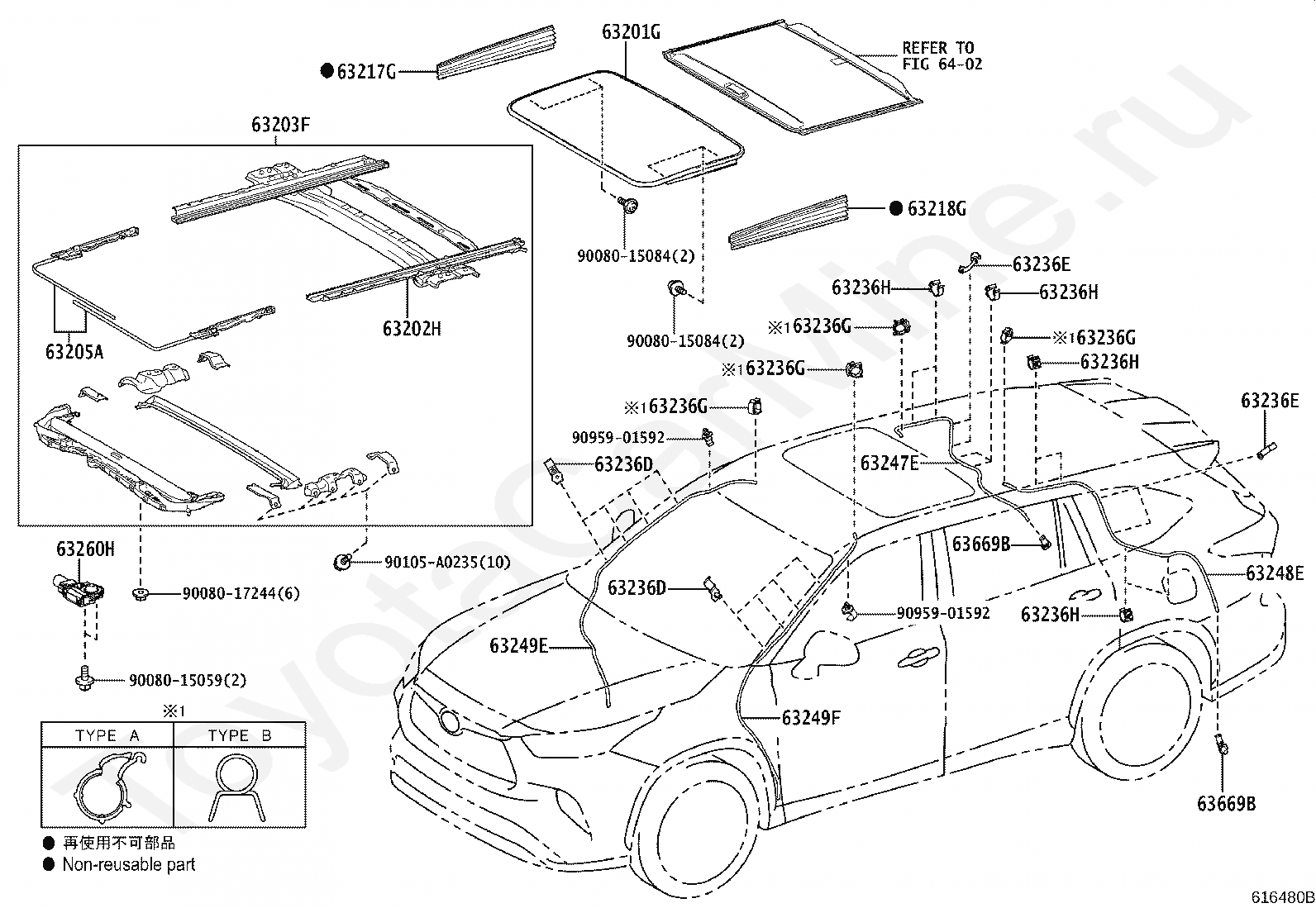

Код
Описание
63201G
GLASS SUB-ASSY, SLIDING ROOF
63202H
RAIL SUB-ASSY, SLIDE ROOF
63203F
HOUSING SUB-ASSY, SLIDING ROOF
63205A
CABLE SUB-ASSY, SLIDING ROOF DRIVE
63217G
GARNISH, SLIDING ROOF SIDE, RH
63218G
GARNISH, SLIDING ROOF SIDE, LH
63236D
CLAMP, SLIDING ROOF DRAIN HOSE
63236E
CLAMP, SLIDING ROOF DRAIN HOSE
63236G
CLAMP, SLIDING ROOF DRAIN HOSE
63236H
CLAMP, SLIDING ROOF DRAIN HOSE
63247E
HOSE, SLIDING ROOF DRAIN, REAR RH
63248E
HOSE, SLIDING ROOF DRAIN, REAR LH
63249E
HOSE, SLIDING ROOF DRAIN
63249F
HOSE, SLIDING ROOF DRAIN
63260H
GEAR ASSY, SLIDING ROOF DRIVE
63669B
GROMMET, SLIDING ROOF DRAIN
6402
переход к группе запчастей
9008015059
Крепеж
9008015084
Крепеж
9008017244
Крепеж
90105A0235
Крепеж
9095901592
Крепеж

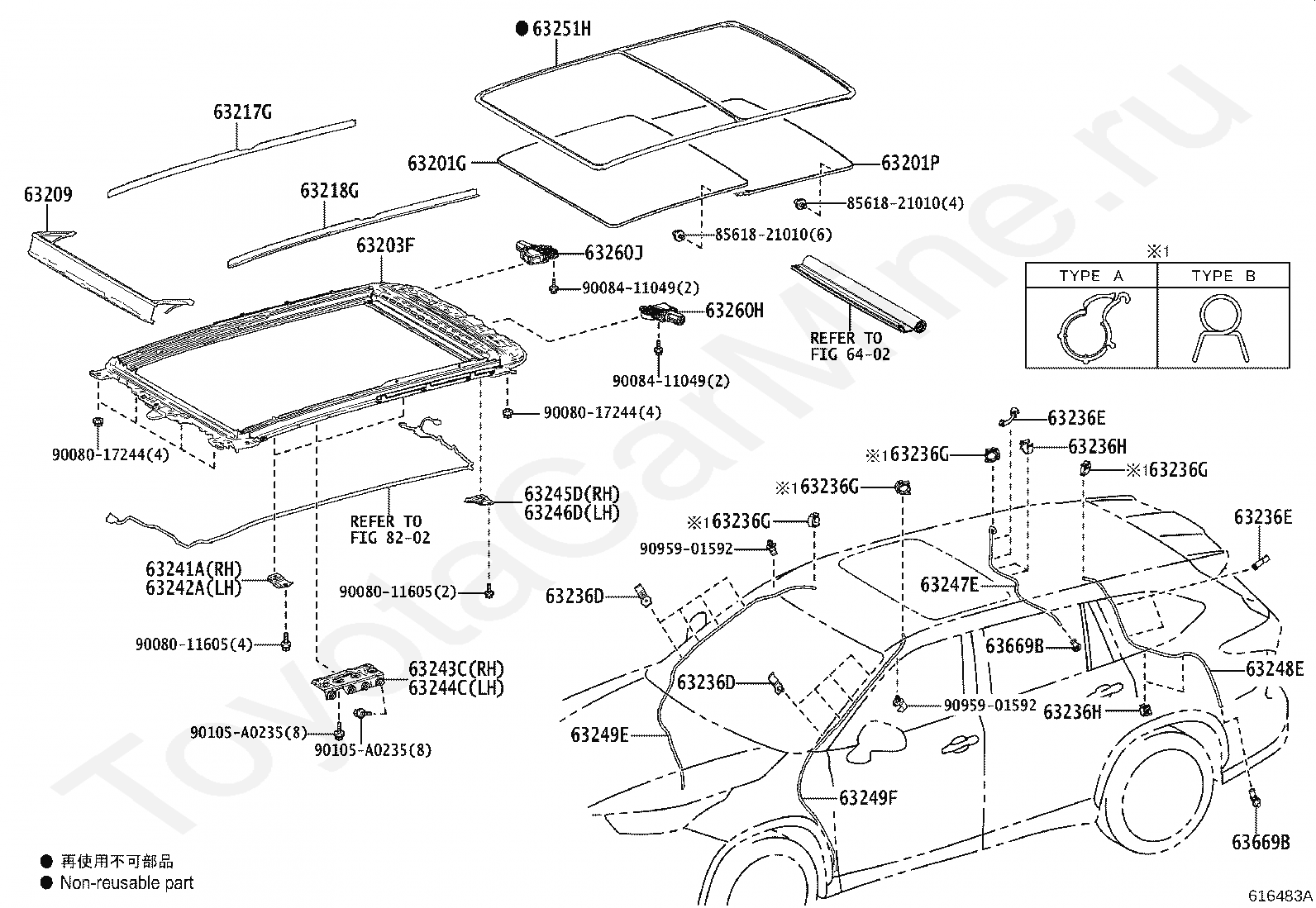

Код
Описание
63201G
GLASS SUB-ASSY, SLIDING ROOF
63201P
GLASS SUB-ASSY, SLIDING ROOF
63203F
HOUSING SUB-ASSY, SLIDING ROOF
63209
PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63217G
GARNISH, SLIDING ROOF SIDE, RH
63218G
GARNISH, SLIDING ROOF SIDE, LH
63236D
CLAMP, SLIDING ROOF DRAIN HOSE
63236E
CLAMP, SLIDING ROOF DRAIN HOSE
63236G
CLAMP, SLIDING ROOF DRAIN HOSE
63236H
CLAMP, SLIDING ROOF DRAIN HOSE
63241A
BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH
63242A
BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH
63243C
BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH
63244C
BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH
63245D
BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH
63246D
BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH
63247E
HOSE, SLIDING ROOF DRAIN, REAR RH
63248E
HOSE, SLIDING ROOF DRAIN, REAR LH
63249E
HOSE, SLIDING ROOF DRAIN
63249F
HOSE, SLIDING ROOF DRAIN
63251H
WEATHERSTRIP, SLIDING ROOF
63260H
GEAR ASSY, SLIDING ROOF DRIVE
63260J
GEAR ASSY, SLIDING ROOF DRIVE
63669B
GROMMET, SLIDING ROOF DRAIN
6402
переход к группе запчастей
8202
переход к группе запчастей
8561821010
Крепеж
9008011605
Крепеж
9008017244
Крепеж
9008411049
Крепеж
90105A0235
Крепеж
9095901592
Крепеж

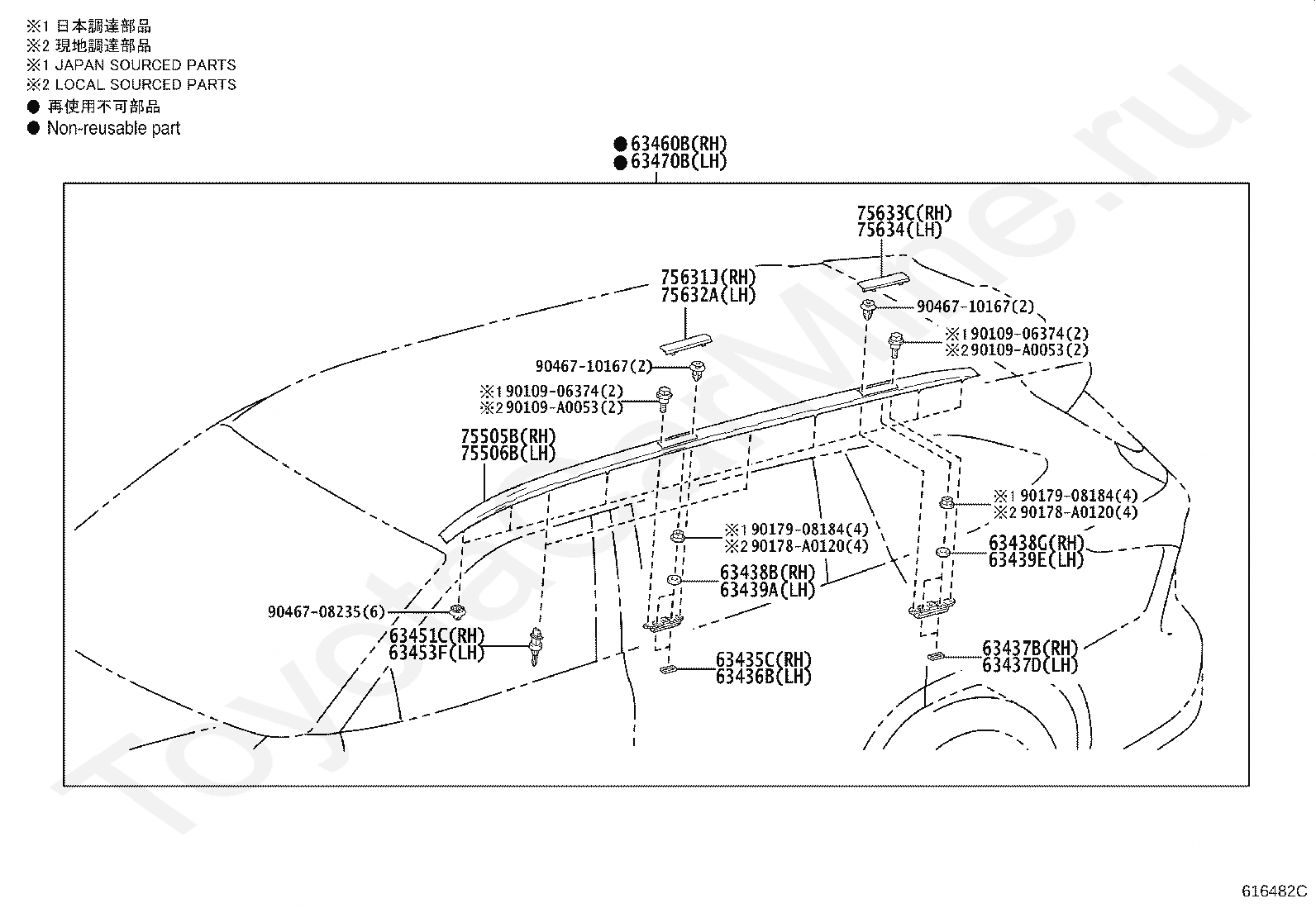

Код
Описание
63435C
SEAL, ROOF CARRIER, NO.1 RH
63436B
SEAL, ROOF CARRIER, NO.1 LH
63437B
SEAL, ROOF CARRIER, NO.2 RH
63437D
SEAL, ROOF CARRIER, NO.2 LH
63438B
SEAL, ROOF CARRIER, NO.3 RH
63438G
SEAL, ROOF CARRIER, NO.4 RH
63439A
SEAL, ROOF CARRIER, NO.3 LH
63439E
SEAL, ROOF CARRIER, NO.4 LH
63451C
RETAINER, ROOF RACK, FRONT RH
63453F
RETAINER, ROOF RACK, FRONT LH
63460B
RACK ASSY, ROOF, RH
63470B
RACK ASSY, ROOF, LH
75505B
GARNISH SUB-ASSY, ROOF SIDE, FRONT RH
75506B
GARNISH SUB-ASSY, ROOF SIDE, FRONT LH
75631J
LID, ROOF SIDE GARNISH, NO.1 RH
75632A
LID, ROOF SIDE GARNISH, NO.1 LH
75633C
LID, ROOF SIDE GARNISH, NO.2 RH
75634
LID, ROOF SIDE GARNISH, NO.2 LH
9010906374
Крепеж
90109A0053
Крепеж
90178A0120
Крепеж
9017908184
Крепеж
9046708235
Крепеж
9046710167
Крепеж
