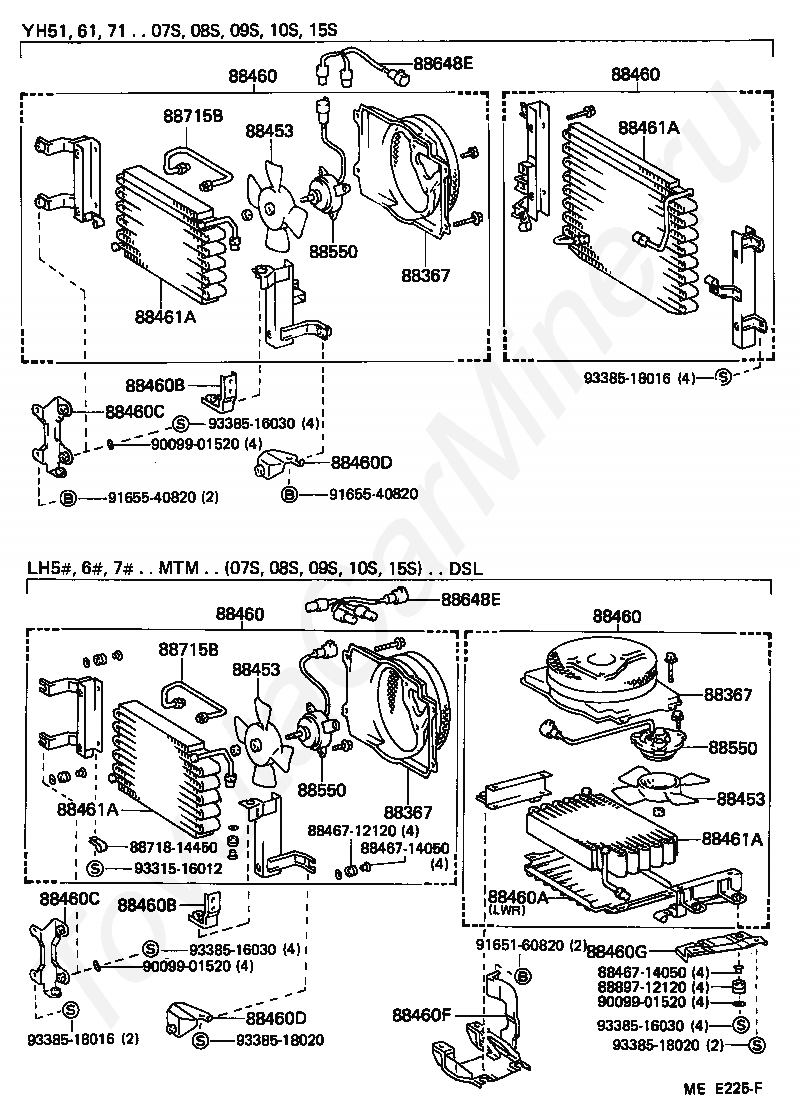

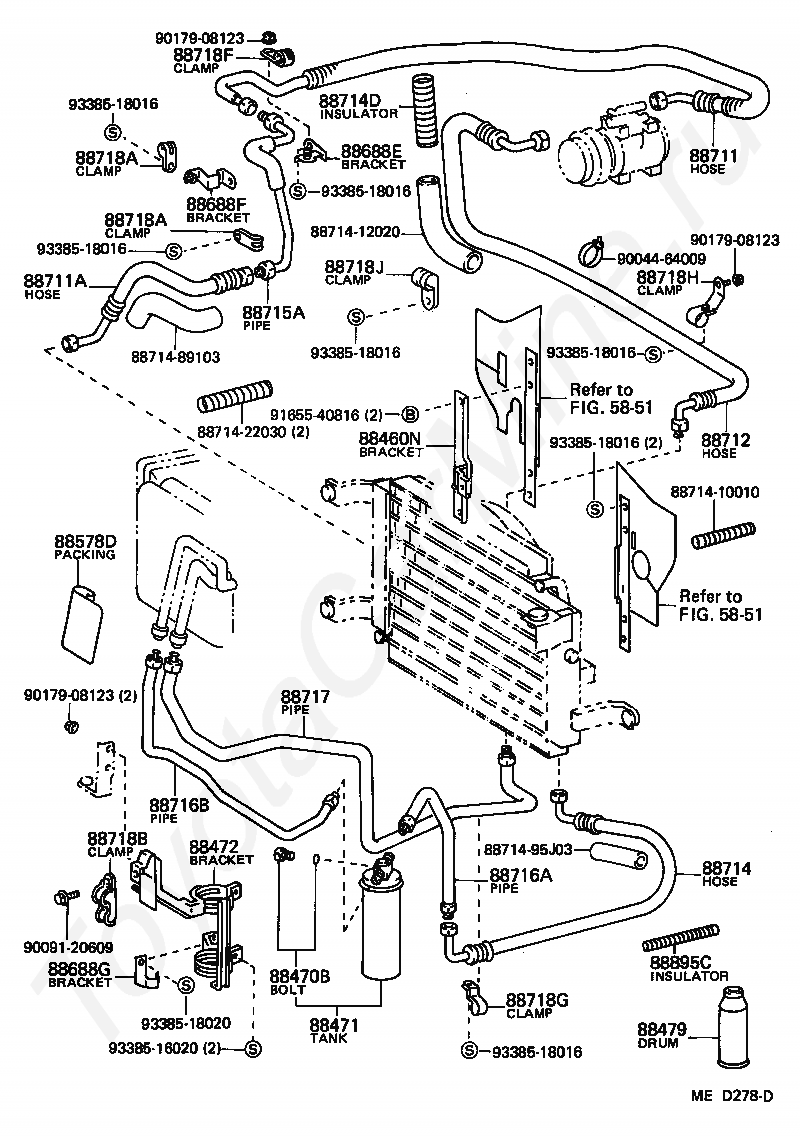

Кондиционер: охлаждающие трубки TOYOTA HIACE VAN,WAGON, 1984/01 - 1987/08, 2,4 литра, дизель, V(MODEL MARK), DELUX SPECIFICATION, LH61V, механика, МКПП, 5 скоростей, на руле

Каталог

Япония

Модель

HIACE VAN,WAGON

Двигатель

2,4 литра, дизель

Кузов

V(MODEL MARK)

Класс

DELUX SPECIFICATION

Фрейм

LH61V

Трансмиссия

механика МКПП, 5 скоростей, на руле

Опции

STANDARD ROOF 5-дверный вэн SIDE GLASS VAN 6-местный ST DSL

Код

Описание

88367

SHROUD, COOLER BLOWER FAN

88453

FAN, COOLING (FOR CONDENSER)

88460

CONDENSER ASSY, COOLER

88460A

COVER, COOLER CONDENSER

88460B

BRACKET, COOLER CONDENSER, NO.1

88460C

BRACKET, COOLER CONDENSER, NO.2

88460D

BRACKET, COOLER CONDENSER, NO.3

88460F

BRACKET, COOLER CONDENSER, NO.4

88461A

CORE, COOLER CONDENSER

8846714050

Крепеж

88550

MOTOR ASSY, BLOWER (FOR CONDENSER)

88648E

WIRING, COOLER

8871814450

Крепеж

8889712120

Крепеж

9009901520

Крепеж

9165160820

Крепеж

9165540820

Крепеж

9331516012

Крепеж

9338516030

Крепеж

9338518016

Крепеж

9338518020

Крепеж

Код

Описание

88367

SHROUD, COOLER BLOWER FAN

88453

FAN, COOLING (FOR CONDENSER)

88460

CONDENSER ASSY, COOLER

88460A

COVER, COOLER CONDENSER

88460B

BRACKET, COOLER CONDENSER, NO.1

88460C

BRACKET, COOLER CONDENSER, NO.2

88460D

BRACKET, COOLER CONDENSER, NO.3

88460F

BRACKET, COOLER CONDENSER, NO.4

88460G

BRACKET, COOLER CONDENSER, NO.5

88461A

CORE, COOLER CONDENSER

8846712120

Крепеж

8846714050

Крепеж

88550

MOTOR ASSY, BLOWER (FOR CONDENSER)

88648E

WIRING, COOLER

88715B

PIPE, COOLER REFRIGERANT DISCHARGE, B

8871814450

Крепеж

8889712120

Крепеж

9009901520

Крепеж

9165160820

Крепеж

9165540820

Крепеж

9331516012

Крепеж

9338516030

Крепеж

9338518016

Крепеж

9338518020

Крепеж

Код

Описание

88367

SHROUD, COOLER BLOWER FAN

88453

FAN, COOLING (FOR CONDENSER)

88460

CONDENSER ASSY, COOLER

88460A

COVER, COOLER CONDENSER

88460B

BRACKET, COOLER CONDENSER, NO.1

88460C

BRACKET, COOLER CONDENSER, NO.2

88460D

BRACKET, COOLER CONDENSER, NO.3

88460F

BRACKET, COOLER CONDENSER, NO.4

88460G

BRACKET, COOLER CONDENSER, NO.5

88460H

BRACKET, COOLER CONDENSER, NO.6

88460J

BRACKET, COOLER CONDENSER, NO.7

88461A

CORE, COOLER CONDENSER

8846714050

Крепеж

88550

MOTOR ASSY, BLOWER (FOR CONDENSER)

88635A

RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)

88648E

WIRING, COOLER

8889712120

Крепеж

9009901520

Крепеж

9338516030

Крепеж

9338518016

Крепеж

9338518020

Крепеж

Код

Описание

88367

SHROUD, COOLER BLOWER FAN

88453

FAN, COOLING (FOR CONDENSER)

88460

CONDENSER ASSY, COOLER

88460A

COVER, COOLER CONDENSER

88460B

BRACKET, COOLER CONDENSER, NO.1

88460C

BRACKET, COOLER CONDENSER, NO.2

88460D

BRACKET, COOLER CONDENSER, NO.3

88460G

BRACKET, COOLER CONDENSER, NO.5

88460H

BRACKET, COOLER CONDENSER, NO.6

88460J

BRACKET, COOLER CONDENSER, NO.7

88461A

CORE, COOLER CONDENSER

88463

BRACKET, COOLER CONDENSER, NO.1

88463A

BRACKET, COOLER CONDENSER, NO.2

8846714050

Крепеж

88470

RECEIVER & DRYER ASSY, COOLER

88470B

BOLT, FUSE

88471

TANK, RECEIVER AIR CONDITIONER

88472

BRACKET, RECEIVER TANK, NO.1

88550

MOTOR ASSY, BLOWER (FOR CONDENSER)

88635A

RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)

88648E

WIRING, COOLER

8871814450

Крепеж

8889712120

Крепеж

9009901520

Крепеж

9017908123

Крепеж

9331516012

Крепеж

9338516030

Крепеж

9338518016

Крепеж

9338518020

Крепеж

Код

Описание

5851

переход к группе запчастей

88460N

BRACKET, COOLER CONDENSER, NO.8

88470B

BOLT, FUSE

88471

TANK, RECEIVER AIR CONDITIONER

88472

BRACKET, RECEIVER TANK, NO.1

88479

FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

88578D

PACKING, COOLER PIPE, NO.1

88688E

BRACKET, COOLER REFRIGERANT HOSE, NO.1

88688F

BRACKET, COOLER REFRIGERANT HOSE, NO.2

88688G

BRACKET, COOLER REFRIGERANT PIPE

88711

HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88711A

HOSE, COOLER REFRIGERANT DISCHARGE, NO.2

88712

HOSE, COOLER REFRIGERANT SUCTION, NO.1

88714

HOSE, COOLER REFRIGERANT LIQUID, NO.1

8871410010

Крепеж

8871412020

Крепеж

8871422030

Крепеж

8871489103

Крепеж

8871495J03

Крепеж

88714D

INSULATOR, COOLER REFRIGERANT HOSE, NO.2

88715A

PIPE, COOLER REFRIGERANT DISCHARGE, A

88716A

PIPE, COOLER REFRIGERANT LIQUID, A

88716B

PIPE, COOLER REFRIGERANT LIQUID, B

88717

PIPE, COOLER REFRIGERANT SUCTION, NO.1

88718A

CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

88718B

CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

88718F

CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)

88718G

CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)

88718H

CLAMP, NO.3(FOR COOLER REFRIGERANT HOSE)

88718J

CLAMP, NO.4(FOR COOLER REFRIGERANT HOSE)

88895C

INSULATOR, HOSE

9004464009

Крепеж

9009120609

Крепеж

9017908123

Крепеж

9165540816

Крепеж

9338516020

Крепеж

9338518016

Крепеж

9338518020

Крепеж

Кондиционер: охлаждающие трубки TOYOTA HIACE VAN,WAGON, 1984/01 - 1987/08, 2,4 литра, дизель, V(MODEL MARK), DELUX SPECIFICATION, LH61V, механика, МКПП, 5 скоростей, на руле
