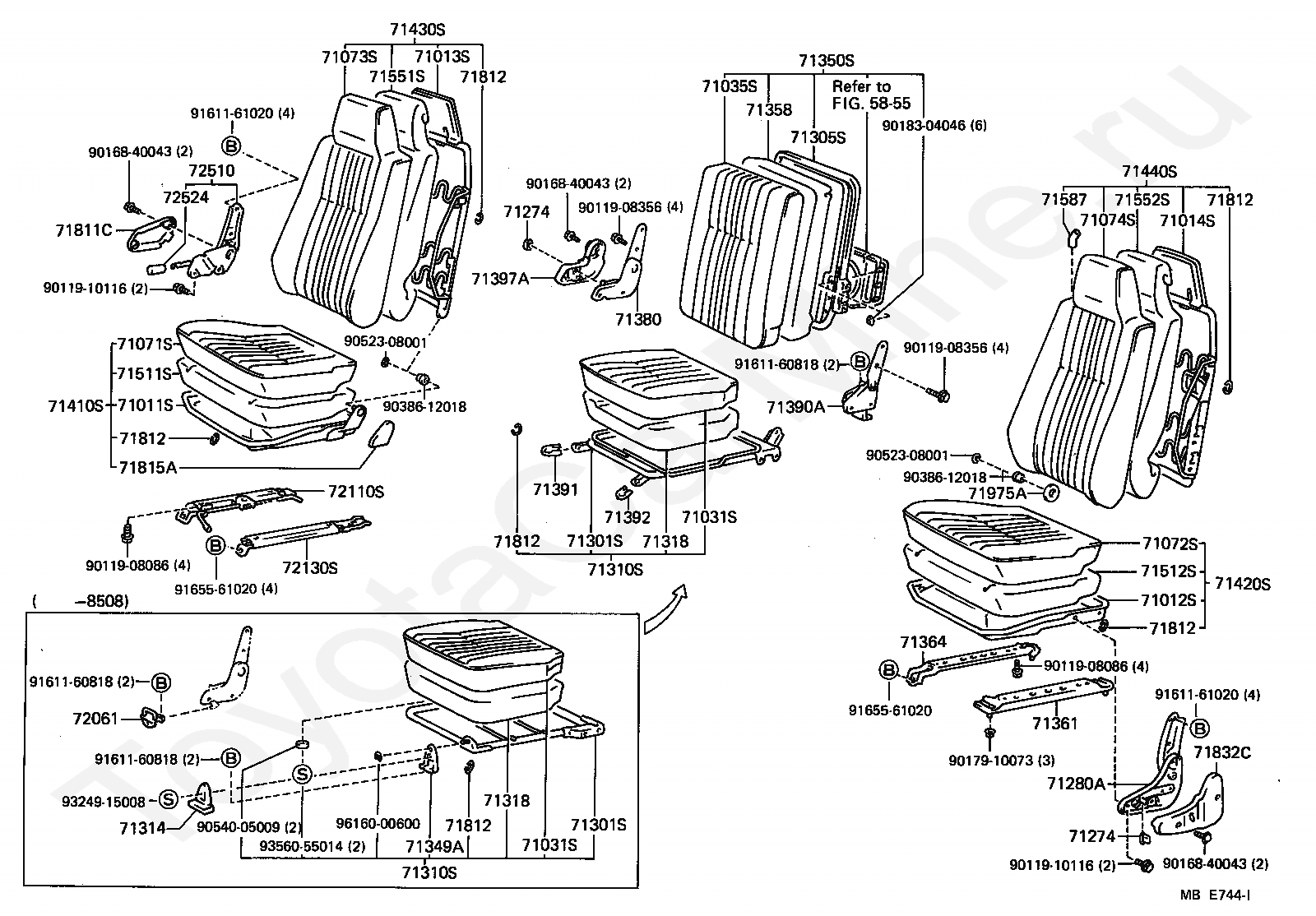

Кресла TOYOTA HIACE VAN,WAGON, 1984/01 - 1987/08, 2,4 литра, дизель, V(MODEL MARK), DELUX SPECIFICATION, LH61V, механика, МКПП, 5 скоростей, на руле

Каталог

Япония

Модель

HIACE VAN,WAGON

Двигатель

2,4 литра, дизель

Кузов

V(MODEL MARK)

Класс

DELUX SPECIFICATION

Фрейм

LH61V

Трансмиссия

механика МКПП, 5 скоростей, на руле

Опции

STANDARD ROOF 5-дверный вэн SIDE GLASS VAN 6-местный ST DSL

Код

Описание

5855

переход к группе запчастей

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71031S

COVER SUB-ASSY, CENTER SEAT CUSHION

71035S

COVER, FRONT SEAT BACK, CENTER

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71274

KNOB, FRONT SEAT HINGE

71280A

HINGE ASSY, FRONT SEAT BACK, LH

71301S

FRAME SUB-ASSY, CENTER SEAT CUSHION

71305S

FRAME SUB-ASSY, CENTER SEAT BACK

71310S

CUSHION ASSY, FRONT SEAT, CENTER

71314

COVER, CENTER SEAT BRACKET

71318

PAD, CENTER SEAT CUSHION

71349A

BRACKET, WALK THROUGH, NO.1

71350S

BACK ASSY, FRONT SEAT, CENTER

71358

PAD, CENTER SEAT BACK

71361

BRACKET, FRONT SEAT SET, NO.1

71364

BRACKET, FRONT SEAT SET, NO.4

71380

HINGE ASSY, CENTER SEAT, RH

71390A

HINGE ASSY, CENTER SEAT, LH

71391

COVER, CENTER SEAT CUSHION BRACKET, RH

71392

COVER, CENTER SEAT CUSHION BRACKET, LH

71397A

COVER, CENTER SEAT HINGE

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71811C

COVER, RECLINING ADJUSTER, RH

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71815A

COVER, FRONT SEAT CUSHION HINGE, RH

71832C

COVER, FRONT LH SEAT HINGE

71975A

WASHER, PLATE

72061

STRIKER SUB-ASSY, CENTER SEAT LOCK

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72130S

TRACK ASSY, RH SEAT, INNER (FOR SEPARATE SEAT)

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72524

HANDLE, RECLINING ADJUSTER RELEASE

9011908086

Крепеж

9011908356

Крепеж

9011910116

Крепеж

9016840043

Крепеж

9017910073

Крепеж

9018304046

Крепеж

9038612018

Крепеж

9052308001

Крепеж

9054005009

Крепеж

9161160818

Крепеж

9161161020

Крепеж

9165561020

Крепеж

9324915008

Крепеж

9356055014

Крепеж

9616000600

Крепеж

Код

Описание

5855

переход к группе запчастей

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71031S

COVER SUB-ASSY, CENTER SEAT CUSHION

71035S

COVER, FRONT SEAT BACK, CENTER

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71274

KNOB, FRONT SEAT HINGE

71280A

HINGE ASSY, FRONT SEAT BACK, LH

71301S

FRAME SUB-ASSY, CENTER SEAT CUSHION

71305S

FRAME SUB-ASSY, CENTER SEAT BACK

71310S

CUSHION ASSY, FRONT SEAT, CENTER

71314

COVER, CENTER SEAT BRACKET

71318

PAD, CENTER SEAT CUSHION

71349A

BRACKET, WALK THROUGH, NO.1

71350S

BACK ASSY, FRONT SEAT, CENTER

71358

PAD, CENTER SEAT BACK

71361

BRACKET, FRONT SEAT SET, NO.1

71364

BRACKET, FRONT SEAT SET, NO.4

71380

HINGE ASSY, CENTER SEAT, RH

71390A

HINGE ASSY, CENTER SEAT, LH

71391

COVER, CENTER SEAT CUSHION BRACKET, RH

71392

COVER, CENTER SEAT CUSHION BRACKET, LH

71397A

COVER, CENTER SEAT HINGE

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71811C

COVER, RECLINING ADJUSTER, RH

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71815A

COVER, FRONT SEAT CUSHION HINGE, RH

71832C

COVER, FRONT LH SEAT HINGE

71975A

WASHER, PLATE

72061

STRIKER SUB-ASSY, CENTER SEAT LOCK

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72130S

TRACK ASSY, RH SEAT, INNER (FOR SEPARATE SEAT)

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72524

HANDLE, RECLINING ADJUSTER RELEASE

9011908086

Крепеж

9011908356

Крепеж

9011910116

Крепеж

9016840043

Крепеж

9017910073

Крепеж

9018304046

Крепеж

9038612018

Крепеж

9052308001

Крепеж

9054005009

Крепеж

9161160818

Крепеж

9161161020

Крепеж

9165561020

Крепеж

9324915008

Крепеж

9356055014

Крепеж

9616000600

Крепеж

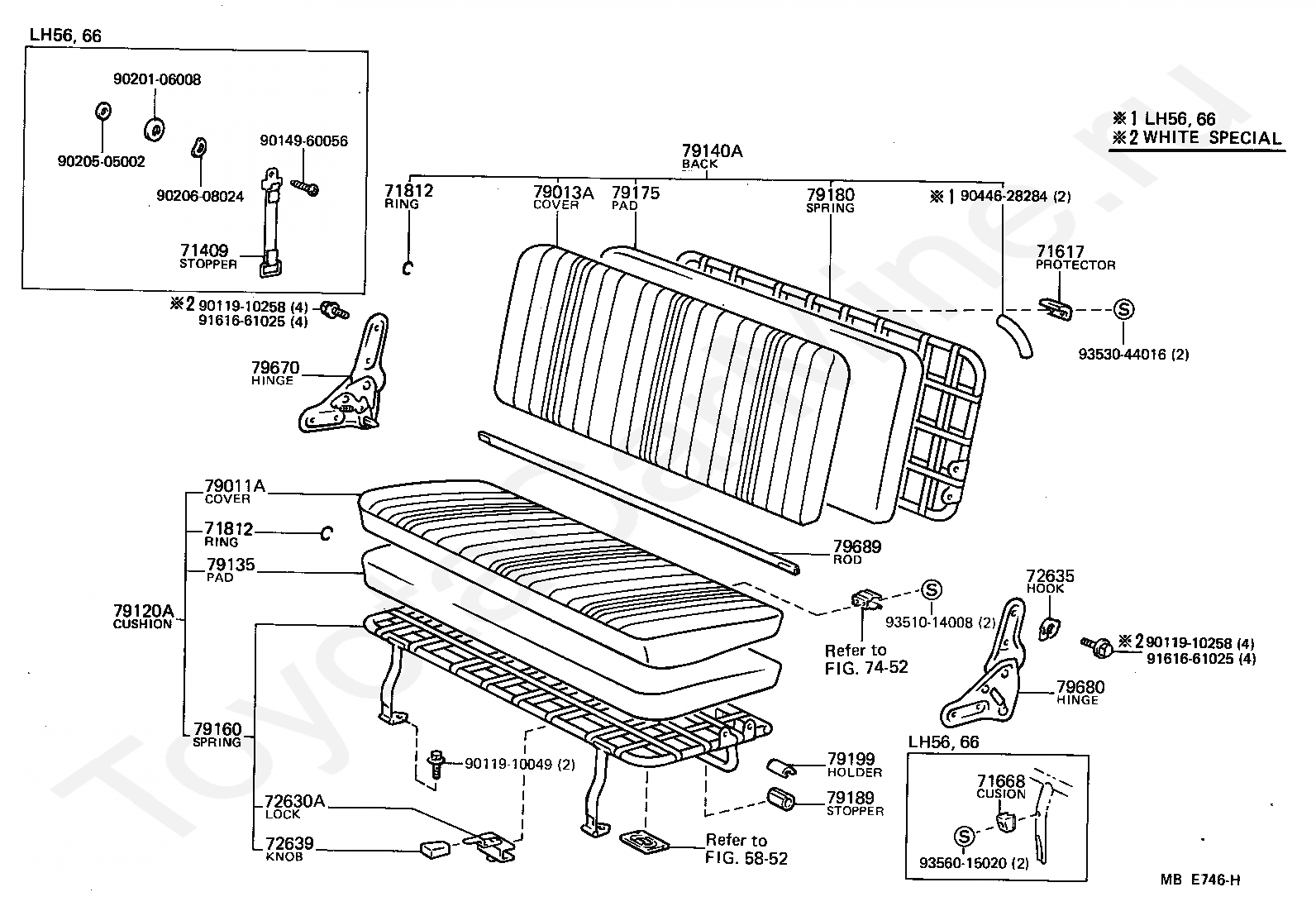

Код

Описание

5852

переход к группе запчастей

71409

STOPPER SUB-ASSY, REAR SEAT BACK

71617

PROTECTOR, REAR SEAT BACK

71668

CUSHION, REAR NO.3 SEAT

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

72630A

LOCK ASSY, REAR NO.1 SEAT

72635

HOOK, REAR SEAT BACK LOCK

72639

KNOB, REAR SEAT LOCK

7452

переход к группе запчастей

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79120A

CUSHION ASSY, NO.1 SEAT

79135

PAD, NO.1 SEAT CUSHION

79140A

BACK ASSY, NO.1 SEAT

79160

SPRING ASSY, NO.1 SEAT CUSHION

79175

PAD, NO.1 SEAT BACK

79180

SPRING ASSY, NO.1 SEAT BACK

79189

STOPPER, NO.1 SEAT LEG

79199

HOLDER, NO.1 SEAT LEG STOPPER

79670

HINGE ASSY, NO.1 SEAT, RH

79680

HINGE ASSY, NO.1 SEAT, LH

79689

ROD, REAR SEAT HINGE CONNECTOR

9011910049

Крепеж

9011910258

Крепеж

9014960056

Крепеж

9020106008

Крепеж

9020505002

Крепеж

9020608024

Крепеж

9044628284

Крепеж

9161661025

Крепеж

9351014008

Крепеж

9353044016

Крепеж

9356015020

Крепеж

Кресла TOYOTA HIACE VAN,WAGON, 1984/01 - 1987/08, 2,4 литра, дизель, V(MODEL MARK), DELUX SPECIFICATION, LH61V, механика, МКПП, 5 скоростей, на руле
