Каталог
ЯпонияМодель
HIACE VAN,WAGONДвигатель
2,4 литра, дизельКузов
V(MODEL MARK)Класс
DELUX SPECIFICATIONФрейм
LH61VТрансмиссия
механика МКПП, 5 скоростей, на рулеОпции
STANDARD ROOF 5-дверный вэн SIDE GLASS VAN 6-местный ST DSL

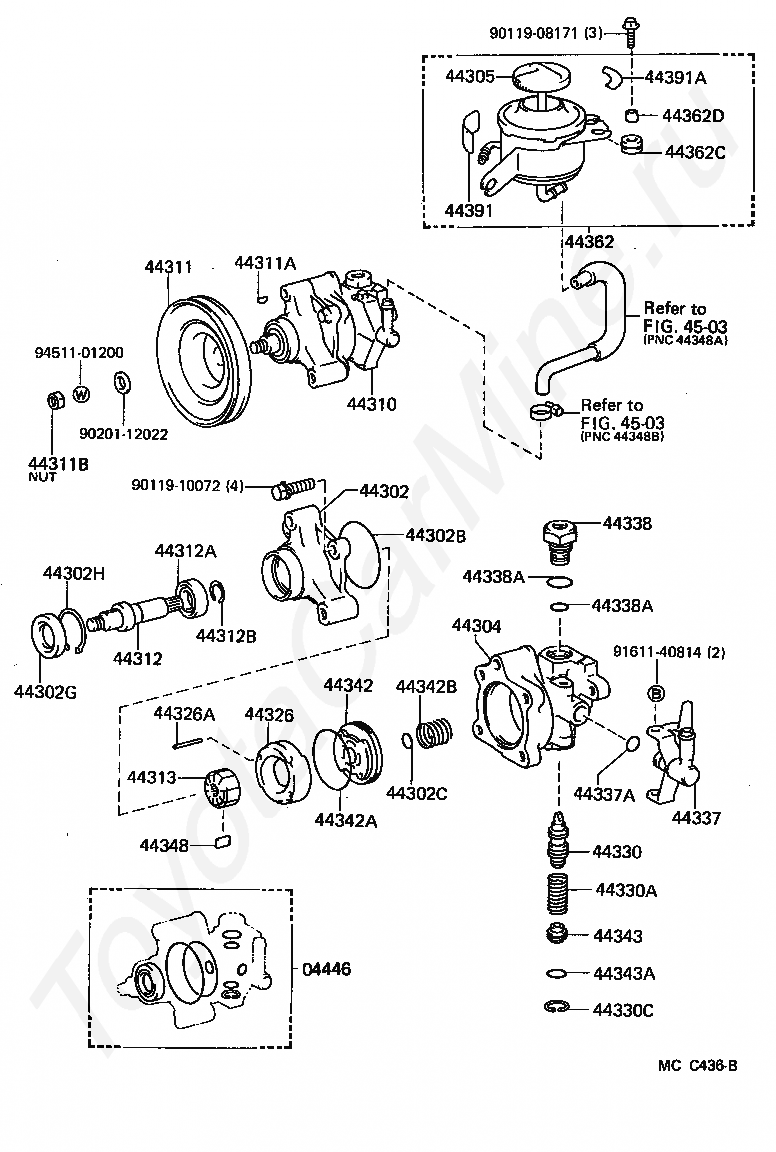

Код
Описание
04446
GASKET KIT, POWER STEERING PUMP
44302
HOUSING SUB-ASSY, VANE PUMP, FRONT
44302A
SEAL, OIL, NO.1(FOR VANE PUMP HOUSING)
44302B
RING, O, NO.1(FOR VANE PUMP HOUSING)
44302J
BUSH(FOR VANE PUMP HOUSING)
44303
SHAFT SUB-ASSY, W/ROTOR
44304
HOUSING SUB-ASSY, VANE PUMP, REAR
44305
CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44310
PUMP ASSY, VANE
44311
PULLEY, VANE PUMP
44311A
KEY, VANE PUMP PULLEY
44311B
NUT(FOR VANE PUMP PULLEY)
44325
RING, FIXED(FOR VANE PUMP)
44329
BOLT, VANE PUMP FRONT HOUSING & REAR HOUSING SET
44329A
RING, O(FOR VANE PUMP HOUSING SET BOLT)
44330
VALVE ASSY, FLOW CONTROL
44330A
SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44330C
RING, SNAP(FOR FLOW CONTROL VALVE)
44337
UNION, POWER STEERING SUCTION PORT
44337A
RING, O(FOR POWER STEERING SUCTION PORT)
44338
UNION, PRESSURE PORT
44338A
RING, O(FOR PRESSURE PORT UNION)
44338B
SEAT, UNION(FOR PRESSURE PORT UNION)
44341
PLATE, VANE PUMP SIDE, FRONT
44342
PLATE, VANE PUMP SIDE, REAR
44343
SEAT, FLOW CONTROL SPRING
44343A
RING, O(FOR FLOW CONTROL SPRING SEAT)
44344
SEAT, SPRING(FOR VANE PUMP)
44345
SLIPPER, VANE PUMP
44345A
SPRING, COMPRESSION(FOR VANE PUMP SLIPPER)
44362
RESERVOIR, OIL(FOR VANE PUMP)
44362C
CUSHION(FOR VANE PUMP OIL RESERVOIR)
44362D
SPACER(FOR VANE PUMP OIL RESERVOIR)
44391
PLATE, POWER STEERING OIL RESERVOIR CAUTION
44391A
PLATE, OIL RESERVOIR CAUTION
4503
переход к группе запчастей
9011908171
Крепеж
9020112022
Крепеж
9161161014
Крепеж
9451101200
Крепеж
9451201000
Крепеж

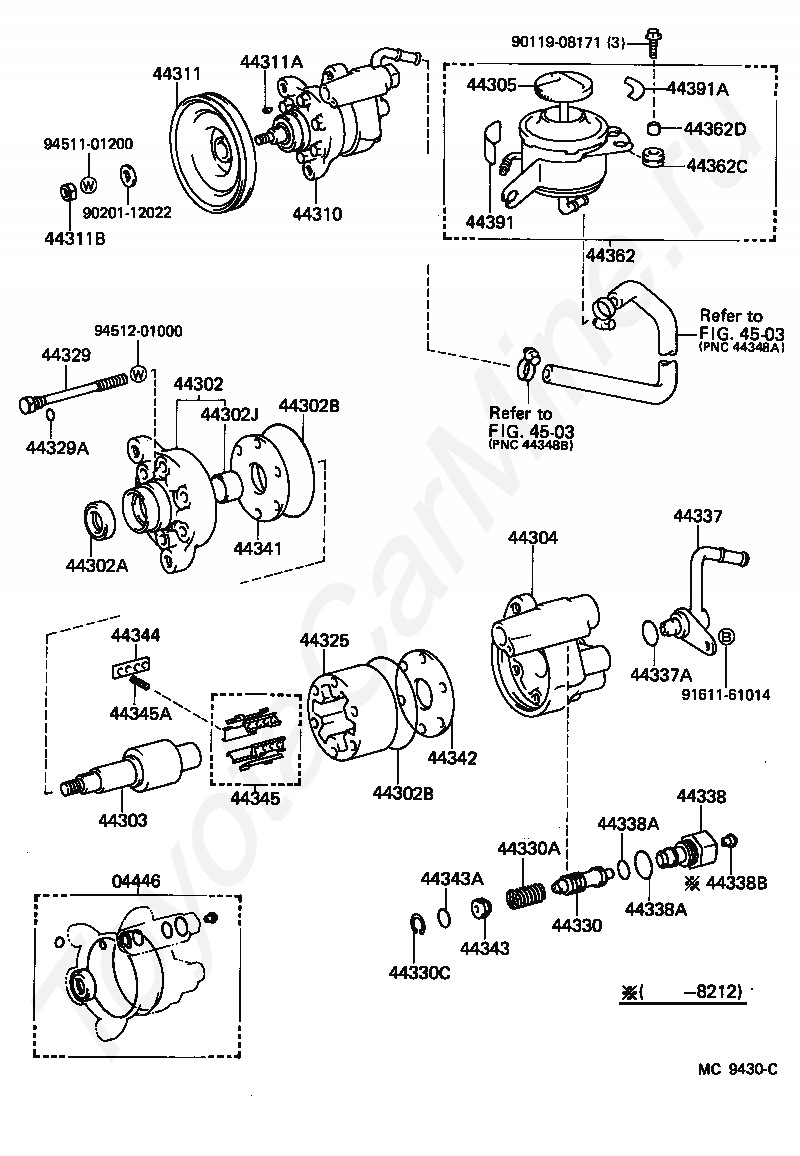

Код
Описание
04446
GASKET KIT, POWER STEERING PUMP
44302
HOUSING SUB-ASSY, VANE PUMP, FRONT
44302B
RING, O, NO.1(FOR VANE PUMP HOUSING)
44302C
RING, O, NO.2(FOR VANE PUMP HOUSING)
44302G
SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44302H
RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
44304
HOUSING SUB-ASSY, VANE PUMP, REAR
44305
CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44310
PUMP ASSY, VANE
44311
PULLEY, VANE PUMP
44311A
KEY, VANE PUMP PULLEY
44311B
NUT(FOR VANE PUMP PULLEY)
44312
SHAFT, VANE PUMP
44312A
BEARING(FOR VANE PUMP SHAFT)
44312B
RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313
ROTOR, VANE PUMP
44326
RING, CAM(FOR VANE PUMP)
44326A
PIN, STRAIGHT(FOR VANE PUMP CAM RING)
44330
VALVE ASSY, FLOW CONTROL
44330A
SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44330C
RING, SNAP(FOR FLOW CONTROL VALVE)
44337
UNION, POWER STEERING SUCTION PORT
44337A
RING, O(FOR POWER STEERING SUCTION PORT)
44338
UNION, PRESSURE PORT
44338A
RING, O(FOR PRESSURE PORT UNION)
44342
PLATE, VANE PUMP SIDE, REAR
44342A
RING, O(FOR VANE PUMP SIDE PLATE REAR)
44342B
SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)
44343
SEAT, FLOW CONTROL SPRING
44343A
RING, O(FOR FLOW CONTROL SPRING SEAT)
44348
PLATE, VANE PUMP
44362
RESERVOIR, OIL(FOR VANE PUMP)
44362C
CUSHION(FOR VANE PUMP OIL RESERVOIR)
44362D
SPACER(FOR VANE PUMP OIL RESERVOIR)
44391
PLATE, POWER STEERING OIL RESERVOIR CAUTION
44391A
PLATE, OIL RESERVOIR CAUTION
4503
переход к группе запчастей
9011908171
Крепеж
9011910072
Крепеж
9020112022
Крепеж
9161140814
Крепеж
9451101200
Крепеж
