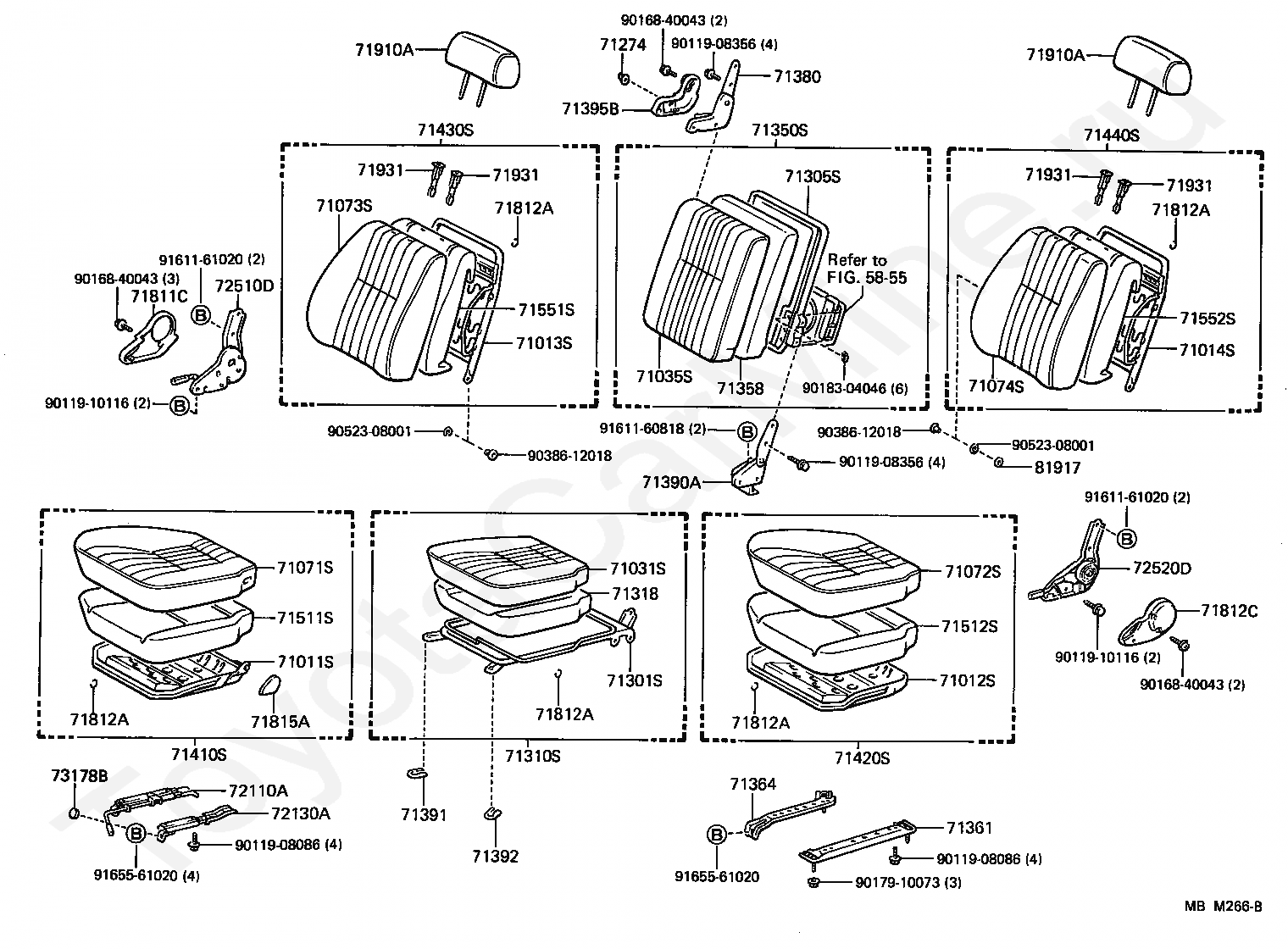

Кресла TOYOTA HIACE VAN,WAGON, 1987/08 - 1989/08, 2,4 литра, дизель, V(MODEL MARK), GL SPECIFICATION, LH51V, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

HIACE VAN,WAGON

Двигатель

2,4 литра, дизель

Кузов

V(MODEL MARK)

Класс

GL SPECIFICATION

Фрейм

LH51V

Трансмиссия

механика МКПП, 5 скоростей

Опции

STANDARD ROOF 4-дверный вэн SIDE GLASS VAN 5-местный ST DSL

Код

Описание

5855

переход к группе запчастей

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71031S

COVER SUB-ASSY, CENTER SEAT CUSHION

71035S

COVER, FRONT SEAT BACK, CENTER

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71274

KNOB, FRONT SEAT HINGE

71301S

FRAME SUB-ASSY, CENTER SEAT CUSHION

71305S

FRAME SUB-ASSY, CENTER SEAT BACK

71310S

CUSHION ASSY, FRONT SEAT, CENTER

71318

PAD, CENTER SEAT CUSHION

71350S

BACK ASSY, FRONT SEAT, CENTER

71358

PAD, CENTER SEAT BACK

71361

BRACKET, FRONT SEAT SET, NO.1

71364

BRACKET, FRONT SEAT SET, NO.4

71380

HINGE ASSY, CENTER SEAT, RH

71390A

HINGE ASSY, CENTER SEAT, LH

71391

COVER, CENTER SEAT CUSHION BRACKET, RH

71392

COVER, CENTER SEAT CUSHION BRACKET, LH

71395B

COVER, CENTER SEAT HINGE, RH

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71812C

COVER, RECLINING ADJUSTER, LH

71815A

COVER, FRONT SEAT CUSHION HINGE, RH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72510D

ADJUSTER ASSY, RECLINING SEAT, OUTER RH

72520D

ADJUSTER ASSY, RECLINING SEAT, OUTER LH

73178B

CAP, SEAT BELT ANCHOR COVER

81917

WASHER, LEATHER

9011908086

Крепеж

9011908356

Крепеж

9011910116

Крепеж

9016840043

Крепеж

9017910073

Крепеж

9018304046

Крепеж

9038612018

Крепеж

9052308001

Крепеж

9161160818

Крепеж

9161161020

Крепеж

9165561020

Крепеж

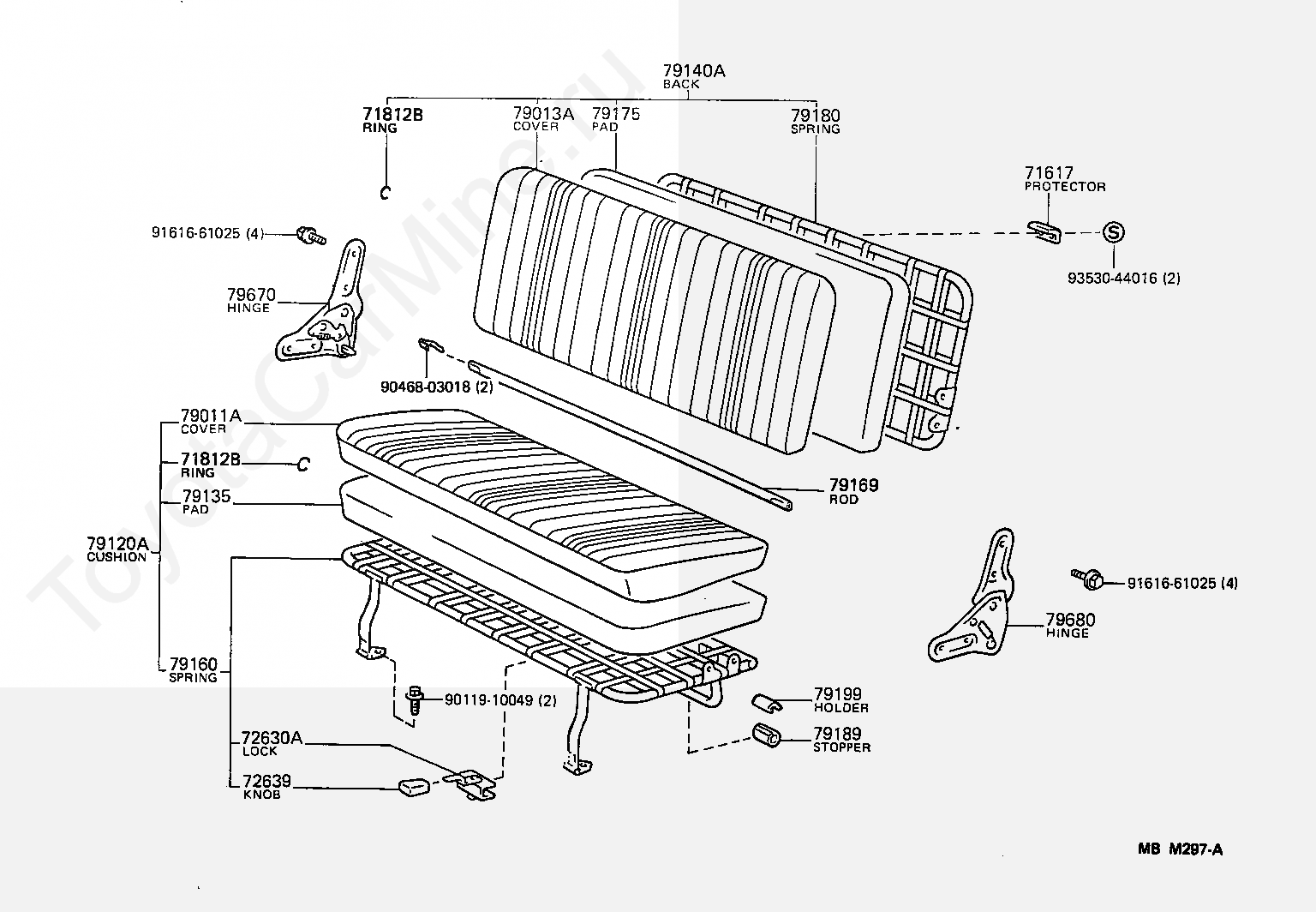

Код

Описание

71617

PROTECTOR, REAR SEAT BACK

71812B

CLIP(FOR REAR SEAT CUSHION COVER)

72630A

LOCK ASSY, REAR NO.1 SEAT

72639

KNOB, REAR SEAT LOCK

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79120A

CUSHION ASSY, NO.1 SEAT

79135

PAD, NO.1 SEAT CUSHION

79140A

BACK ASSY, NO.1 SEAT

79160

SPRING ASSY, NO.1 SEAT CUSHION

79169

ROD, REAR SEAT HINGE CONNECTOR

79175

PAD, NO.1 SEAT BACK

79180

SPRING ASSY, NO.1 SEAT BACK

79189

STOPPER, NO.1 SEAT LEG

79199

HOLDER, NO.1 SEAT LEG STOPPER

79670

HINGE ASSY, NO.1 SEAT, RH

79680

HINGE ASSY, NO.1 SEAT, LH

9011910049

Крепеж

9046803018

Крепеж

9161661025

Крепеж

9353044016

Крепеж

Кресла TOYOTA HIACE VAN,WAGON, 1987/08 - 1989/08, 2,4 литра, дизель, V(MODEL MARK), GL SPECIFICATION, LH51V, механика, МКПП, 5 скоростей
