Каталог
ЕвропаМодель
HIACE VAN,COMMUTERДвигатель
1,8 литраКузов
V(MODEL MARK)Класс
STANDARD TYPEФрейм
YH50Трансмиссия
механика МКПП, 4 ступени, на рулеОпции
правый руль STANDARD ROOF 4-дверный вэн SIDE GLASS VAN 03S GEN
Код
Описание

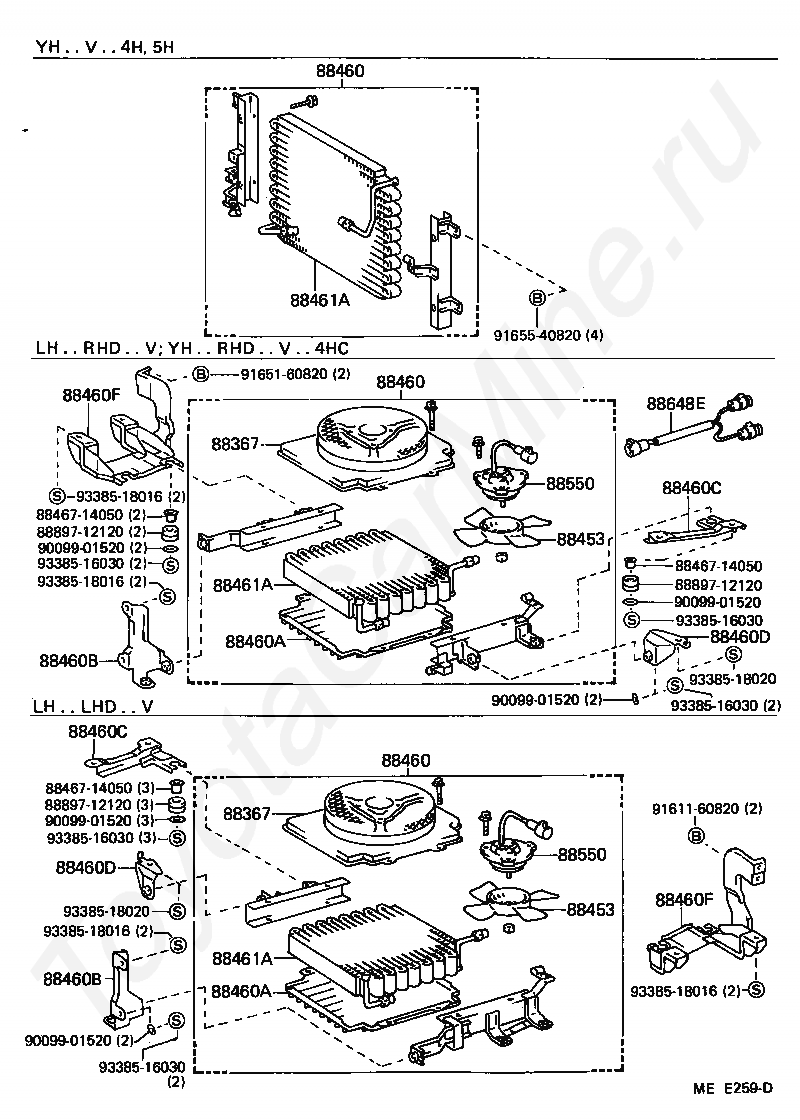

88367
SHROUD, COOLER BLOWER FAN
88453
FAN, COOLING (FOR CONDENSER)
88460
CONDENSER ASSY, COOLER
88460A
COVER, COOLER CONDENSER
88460B
BRACKET, COOLER CONDENSER, NO.1
88460C
BRACKET, COOLER CONDENSER, NO.2
88460D
BRACKET, COOLER CONDENSER, NO.3
88460F
BRACKET, COOLER CONDENSER, NO.4
88461A
CORE, COOLER CONDENSER
8846714050
Крепеж
88550
MOTOR ASSY, BLOWER (FOR CONDENSER)
88648E
WIRING, COOLER
8889712120
Крепеж
9009901520
Крепеж
9161160820
Крепеж
9165160820
Крепеж
9165540820
Крепеж
9338516030
Крепеж
9338518016
Крепеж
9338518020
Крепеж
Код
Описание

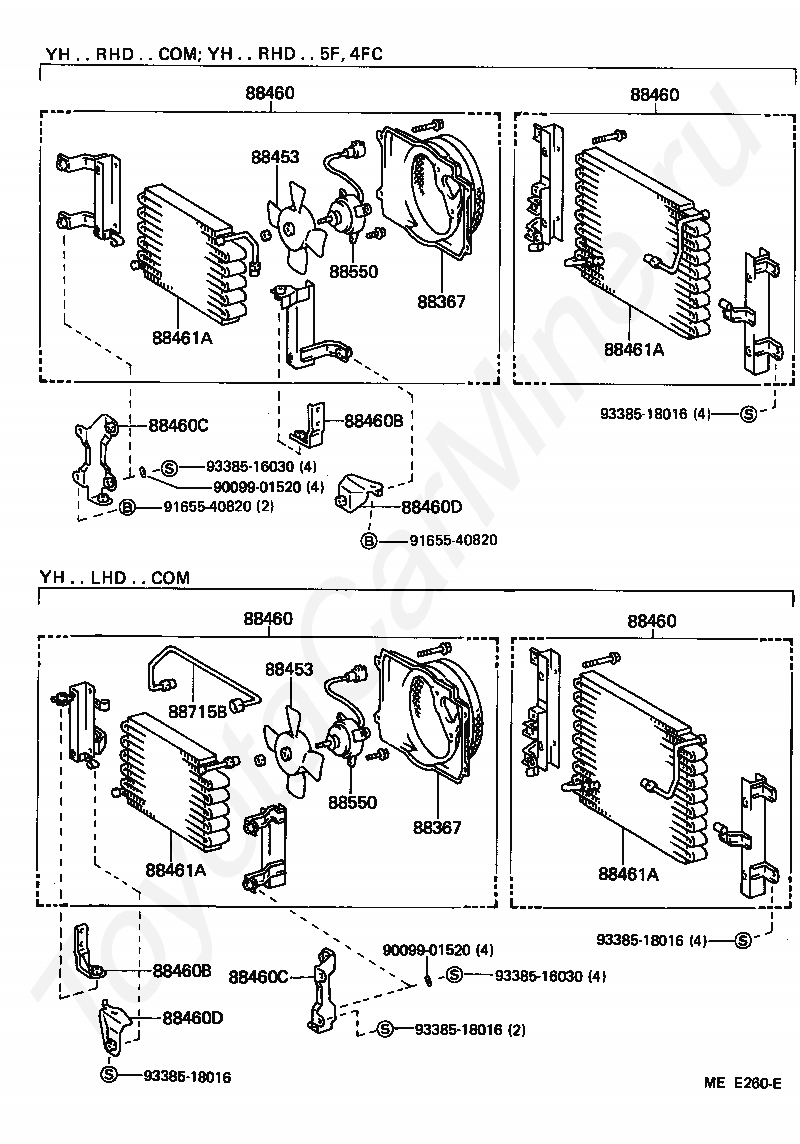

88367
SHROUD, COOLER BLOWER FAN
88453
FAN, COOLING (FOR CONDENSER)
88460
CONDENSER ASSY, COOLER
88460B
BRACKET, COOLER CONDENSER, NO.1
88460C
BRACKET, COOLER CONDENSER, NO.2
88460D
BRACKET, COOLER CONDENSER, NO.3
88461A
CORE, COOLER CONDENSER
88550
MOTOR ASSY, BLOWER (FOR CONDENSER)
88715B
PIPE, COOLER REFRIGERANT DISCHARGE, B
9009901520
Крепеж
9165540820
Крепеж
9338516030
Крепеж
9338518016
Крепеж
Код
Описание

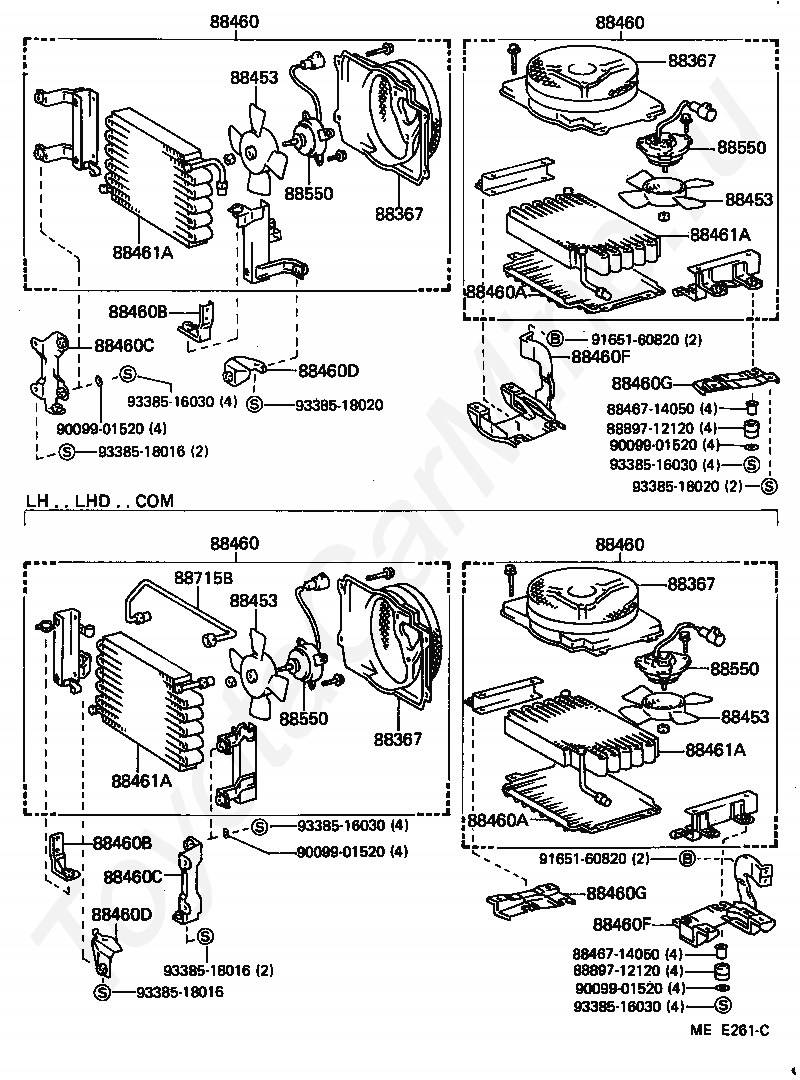

88367
SHROUD, COOLER BLOWER FAN
88453
FAN, COOLING (FOR CONDENSER)
88460
CONDENSER ASSY, COOLER
88460A
COVER, COOLER CONDENSER
88460B
BRACKET, COOLER CONDENSER, NO.1
88460C
BRACKET, COOLER CONDENSER, NO.2
88460D
BRACKET, COOLER CONDENSER, NO.3
88460F
BRACKET, COOLER CONDENSER, NO.4
88460G
BRACKET, COOLER CONDENSER, NO.5
88461A
CORE, COOLER CONDENSER
8846714050
Крепеж
88550
MOTOR ASSY, BLOWER (FOR CONDENSER)
88715B
PIPE, COOLER REFRIGERANT DISCHARGE, B
8889712120
Крепеж
9009901520
Крепеж
9165160820
Крепеж
9338516030
Крепеж
9338518016
Крепеж
9338518020
Крепеж
Код
Описание

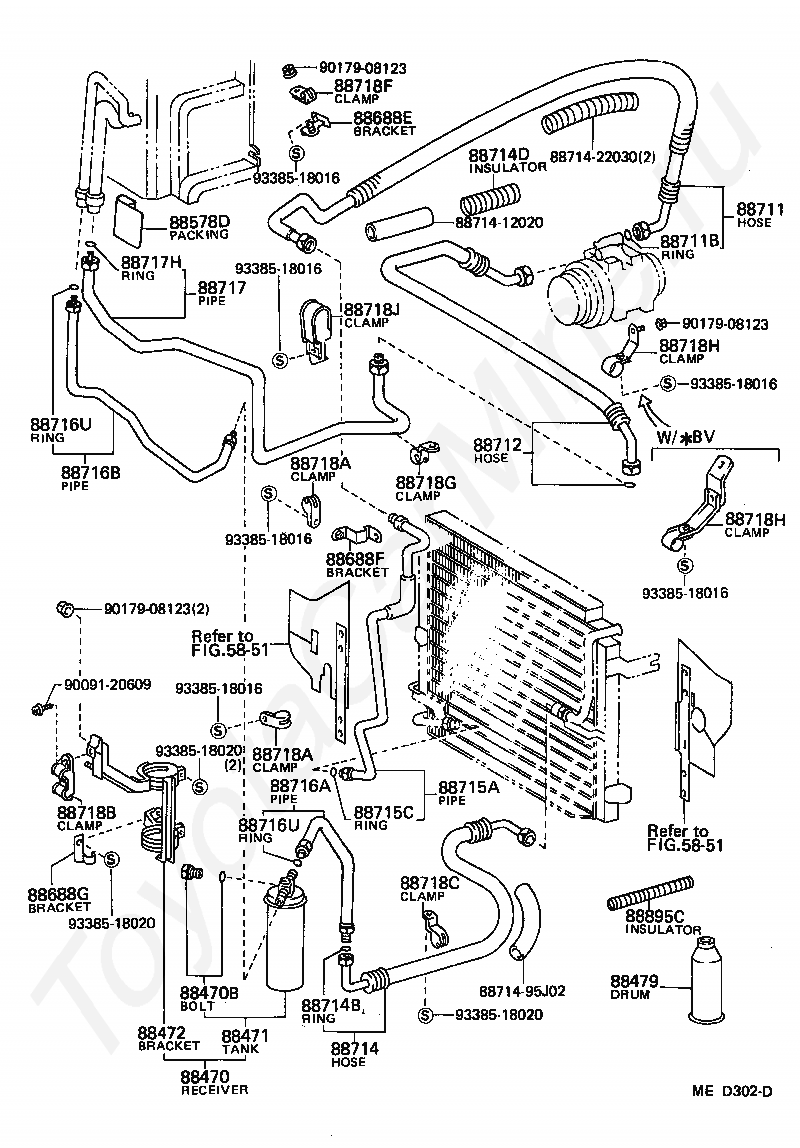

5851
переход к группе запчастей
88470
RECEIVER & DRYER ASSY, COOLER
88470B
BOLT, FUSE
88471
TANK, RECEIVER AIR CONDITIONER
88472
BRACKET, RECEIVER TANK, NO.1
88479
FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88578D
PACKING, COOLER PIPE, NO.1
88688E
BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688F
BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688G
BRACKET, COOLER REFRIGERANT PIPE
88711
HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711B
RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
88712
HOSE, COOLER REFRIGERANT SUCTION, NO.1
88714
HOSE, COOLER REFRIGERANT LIQUID, NO.1
8871412020
Крепеж
8871422030
Крепеж
8871495J02
Крепеж
88714B
RING, O(FOR COOLER REFRIGERANT LIQUID HOSE)
88714D
INSULATOR, COOLER REFRIGERANT HOSE, NO.2
88715A
PIPE, COOLER REFRIGERANT DISCHARGE, A
88715C
RING, O(FOR COOLER REFRIGERANT DISCHARGE PIPE)
88716A
PIPE, COOLER REFRIGERANT LIQUID, A
88716B
PIPE, COOLER REFRIGERANT LIQUID, B
88716U
RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88717
PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717H
RING, O(FOR COOLER REFRIGERANT SUCTION PIPE)
88718A
CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B
CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C
CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718F
CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88718G
CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)
88718H
CLAMP, NO.3(FOR COOLER REFRIGERANT HOSE)
88718J
CLAMP, NO.4(FOR COOLER REFRIGERANT HOSE)
88895C
INSULATOR, HOSE
9009120609
Крепеж
9017908123
Крепеж
9338518016
Крепеж
9338518020
Крепеж
