Боковая панель кузова TOYOTA HIACE VAN,COMMUTER, 1982/12 - 1986/08, 1,8 литра, V(MODEL MARK), STANDARD TYPE, YH50, механика, МКПП, 4 ступени, на руле

Каталог

Европа

Модель

HIACE VAN,COMMUTER

Двигатель

1,8 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

YH50

Трансмиссия

механика МКПП, 4 ступени, на руле

Опции

правый руль STANDARD ROOF 4-дверный вэн SIDE GLASS VAN 03S GEN

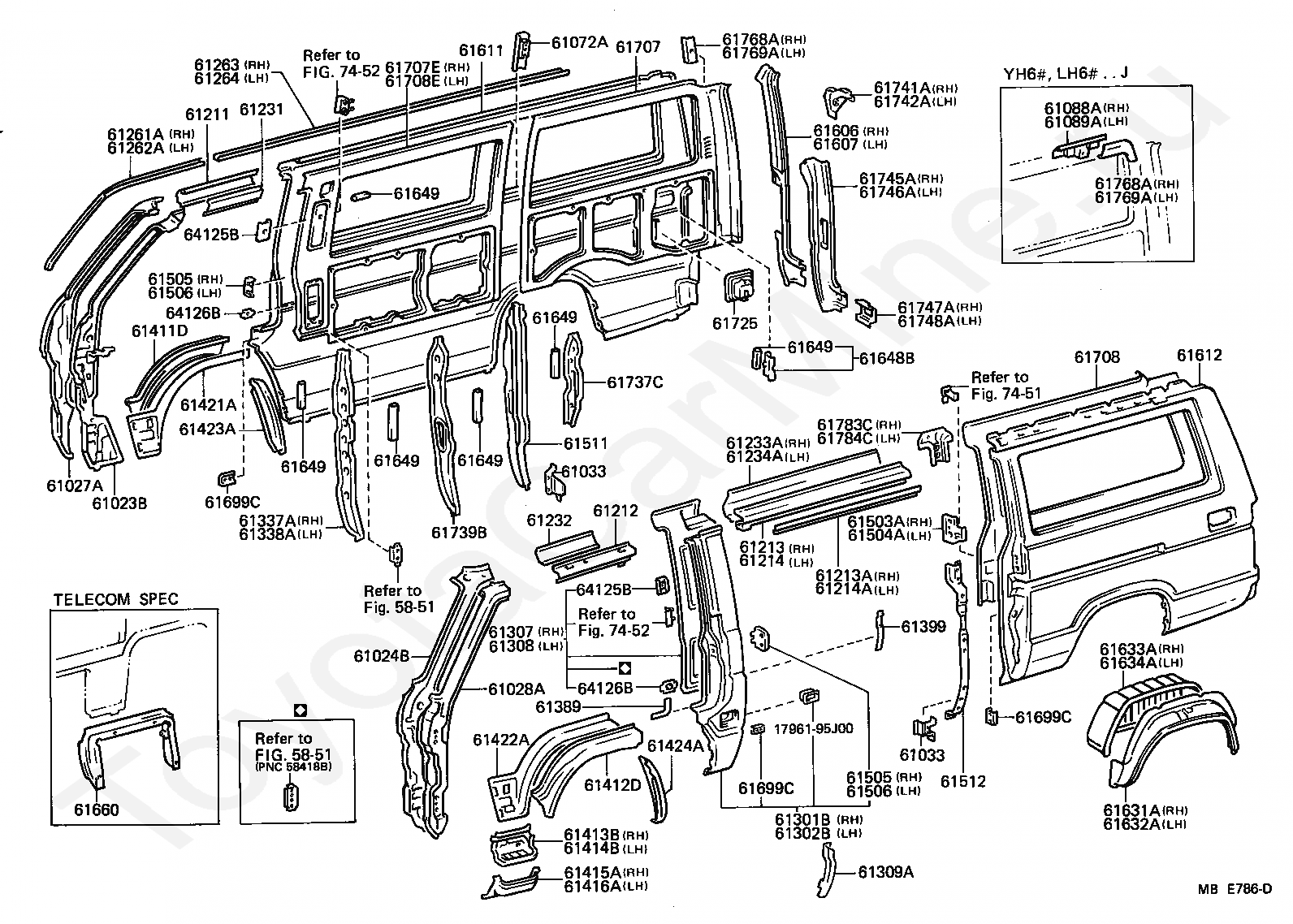

Код

Описание

1796195J00

Крепеж

5851

переход к группе запчастей

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61027A

PILLAR SUB-ASSY, FRONT BODY, OUTER RH

61028A

PILLAR SUB-ASSY, FRONT BODY, OUTER LH

61033

EXTENSION SUB-ASSY, QUARTER LOCK PILLAR

61072A

REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, NO.1 UPPER

61088A

REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR STAY, NO.2 RH

61089A

REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR STAY, NO.2 LH

61211

RAIL, ROOF SIDE, OUTER RH

61212

RAIL, ROOF SIDE, OUTER LH

61213

RAIL, ROOF SIDE, OUTER REAR RH

61213A

RETAINER, SLIDE DOOR WEATHERSTRIP, RH

61214

RAIL, ROOF SIDE, OUTER REAR LH

61214A

RETAINER, SLIDE DOOR WEATHERSTRIP, LH

61231

RAIL, ROOF SIDE, INNER RH

61232

RAIL, ROOF SIDE, INNER LH

61233A

RAIL, ROOF SIDE, INNER NO.2 RH

61234A

RAIL, ROOF SIDE, INNER NO.2 LH

61261A

CHANNEL, ROOF DRIP SIDE, FRONT RH

61262A

CHANNEL, ROOF DRIP SIDE, FRONT LH

61263

CHANNEL, ROOF DRIP, REAR RH

61264

CHANNEL, ROOF DRIP, REAR LH

61301B

PILLAR, CENTER BODY, OUTER RH

61302B

PILLAR, CENTER BODY, OUTER LH

61307

PILLAR SUB-ASSY, CENTER BODY, INNER RH

61308

PILLAR SUB-ASSY, CENTER BODY, INNER LH

61309A

SEAL SUB-ASSY, CENTER BODY PILLAR

61337A

REINFORCEMENT, CENTER BODY PILLAR, INNER RH

61338A

REINFORCEMENT, CENTER BODY PILLAR, INNER LH

61389

PATCH, CENTER BODY PILLAR, OUTER

61399

PATCH, CENTER BODY PILLAR, OUTER NO.2

61411D

PANEL, FENDER, OUTER RH

61412D

PANEL, FENDER, OUTER LH

61413B

PANEL, FRONT STEP, RH

61414B

PANEL, FRONT STEP, LH

61415A

PANEL, FRONT STEP, UNDER, RH

61416A

PANEL, FRONT STEP UNDER, LH

61421A

PANEL, FENDER, INNER RH

61422A

PANEL, FENDER, INNER LH

61423A

PANEL, FENDER, INNER LOWER RH

61424A

PANEL, FENDER, INNER LOWER LH

61503A

REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH

61504A

REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH

61505

REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH

61506

REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH

61511

PILLAR, QUARTER LOCK, RH

61512

PILLAR, QUARTER LOCK, LH

61606

FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH

61607

FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH

61611

PANEL, QUARTER, RH

61612

PANEL, QUARTER, LH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61648B

BRACKET, QUARTER PANEL PAD

61649

PAD, QUARTER PANEL, OUTER

61660

EXTENSION ASSY, QUARTER OUTER PANEL

61699C

RETAINER, COURTESY SWITCH

61707

PANEL SUB-ASSY, QUARTER, INNER RH

61707E

EXTENSION, QUARTER INNER PANEL, RH

61708

PANEL SUB-ASSY, QUARTER, INNER LH

61708E

EXTENSION, QUARTER INNER PANEL, LH

61725

BOX, FUEL INLET

61737C

REINFORCEMENT, QUARTER, INNER

61739B

REINFORCEMENT, EXTENSION QUARTER INNER PANEL

61741A

REINFORCEMENT, BACK DOOR OPENING, UPPER RH

61742A

REINFORCEMENT, BACK DOOR OPENING, UPPER LH

61745A

REINFORCEMENT, BACK DOOR OPENING, LOWER RH

61746A

REINFORCEMENT, BACK DOOR OPENING, LOWER LH

61747A

EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, RH

61748A

EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, LH

61768A

REINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH

61769A

REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH

61783C

BRACE, QUARTER PANEL, INNER RH

61784C

BRACE, QUARTER PANEL, INNER LH

64125B

ANCHOR, PILLAR SEAT BELT

64126B

ANCHOR, PILLAR SEAT BELT, LOWER

7451

переход к группе запчастей

7452

переход к группе запчастей

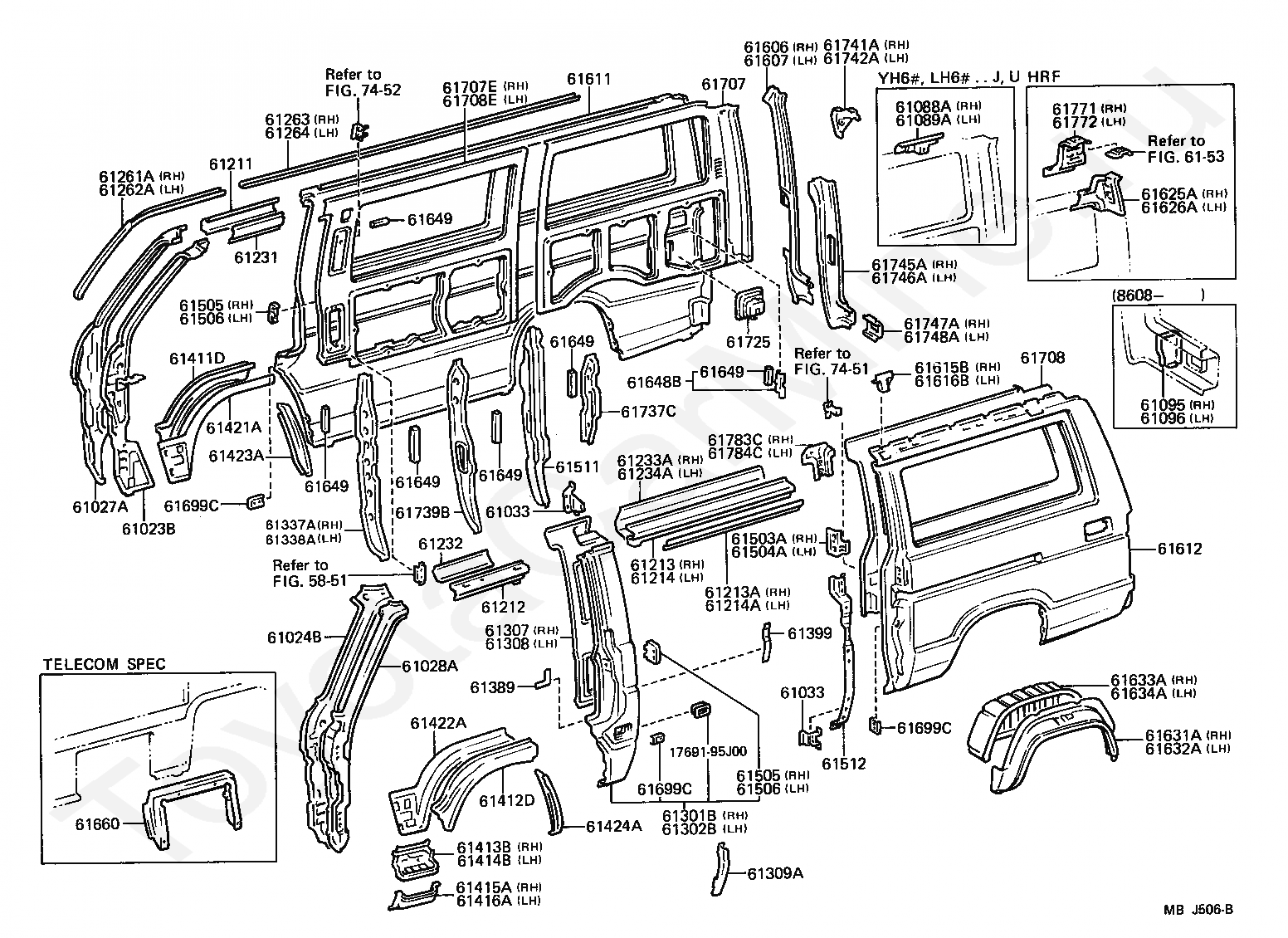

Код

Описание

1769195J00

Крепеж

5851

переход к группе запчастей

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61027A

PILLAR SUB-ASSY, FRONT BODY, OUTER RH

61028A

PILLAR SUB-ASSY, FRONT BODY, OUTER LH

61033

EXTENSION SUB-ASSY, QUARTER LOCK PILLAR

61088A

REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR STAY, NO.2 RH

61089A

REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR STAY, NO.2 LH

61095

PLATE SUB-ASSY, BACK DOOR OPENING, LOWER RH

61096

PLATE SUB-ASSY, BACK DOOR OPENING, LOWER LH

61211

RAIL, ROOF SIDE, OUTER RH

61212

RAIL, ROOF SIDE, OUTER LH

61213

RAIL, ROOF SIDE, OUTER REAR RH

61213A

RETAINER, SLIDE DOOR WEATHERSTRIP, RH

61214

RAIL, ROOF SIDE, OUTER REAR LH

61214A

RETAINER, SLIDE DOOR WEATHERSTRIP, LH

61231

RAIL, ROOF SIDE, INNER RH

61232

RAIL, ROOF SIDE, INNER LH

61233A

RAIL, ROOF SIDE, INNER NO.2 RH

61234A

RAIL, ROOF SIDE, INNER NO.2 LH

61261A

CHANNEL, ROOF DRIP SIDE, FRONT RH

61262A

CHANNEL, ROOF DRIP SIDE, FRONT LH

61263

CHANNEL, ROOF DRIP, REAR RH

61264

CHANNEL, ROOF DRIP, REAR LH

61301B

PILLAR, CENTER BODY, OUTER RH

61302B

PILLAR, CENTER BODY, OUTER LH

61307

PILLAR SUB-ASSY, CENTER BODY, INNER RH

61308

PILLAR SUB-ASSY, CENTER BODY, INNER LH

61309A

SEAL SUB-ASSY, CENTER BODY PILLAR

61337A

REINFORCEMENT, CENTER BODY PILLAR, INNER RH

61338A

REINFORCEMENT, CENTER BODY PILLAR, INNER LH

61389

PATCH, CENTER BODY PILLAR, OUTER

61399

PATCH, CENTER BODY PILLAR, OUTER NO.2

61411D

PANEL, FENDER, OUTER RH

61412D

PANEL, FENDER, OUTER LH

61413B

PANEL, FRONT STEP, RH

61414B

PANEL, FRONT STEP, LH

61415A

PANEL, FRONT STEP, UNDER, RH

61416A

PANEL, FRONT STEP UNDER, LH

61421A

PANEL, FENDER, INNER RH

61422A

PANEL, FENDER, INNER LH

61423A

PANEL, FENDER, INNER LOWER RH

61424A

PANEL, FENDER, INNER LOWER LH

61503A

REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH

61504A

REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH

61505

REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH

61506

REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH

61511

PILLAR, QUARTER LOCK, RH

61512

PILLAR, QUARTER LOCK, LH

6153

переход к группе запчастей

61606

FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH

61607

FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH

61611

PANEL, QUARTER, RH

61612

PANEL, QUARTER, LH

61615B

REINFORCEMENT, QUARTER PANEL, OUTER FRONT

61616B

REINFORCEMENT, QUARTER PANEL, OUTER REAR

61625A

EXTENSION SUB-ASSY, QUARTER PANEL, RH

61626A

EXTENSION SUB-ASSY, QUARTER PANEL, LH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61648B

BRACKET, QUARTER PANEL PAD

61649

PAD, QUARTER PANEL, OUTER

61660

EXTENSION ASSY, QUARTER OUTER PANEL

61699C

RETAINER, COURTESY SWITCH

61707

PANEL SUB-ASSY, QUARTER, INNER RH

61707E

EXTENSION, QUARTER INNER PANEL, RH

61708

PANEL SUB-ASSY, QUARTER, INNER LH

61708E

EXTENSION, QUARTER INNER PANEL, LH

61725

BOX, FUEL INLET

61737C

REINFORCEMENT, QUARTER, INNER

61739B

REINFORCEMENT, EXTENSION QUARTER INNER PANEL

61741A

REINFORCEMENT, BACK DOOR OPENING, UPPER RH

61742A

REINFORCEMENT, BACK DOOR OPENING, UPPER LH

61745A

REINFORCEMENT, BACK DOOR OPENING, LOWER RH

61746A

REINFORCEMENT, BACK DOOR OPENING, LOWER LH

61747A

EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, RH

61748A

EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, LH

61771

PATCH, BACK DOOR OPENING, UPPER RH

61772

PATCH, BACK DOOR OPENING, UPPER LH

61783C

BRACE, QUARTER PANEL, INNER RH

61784C

BRACE, QUARTER PANEL, INNER LH

7451

переход к группе запчастей

7452

переход к группе запчастей

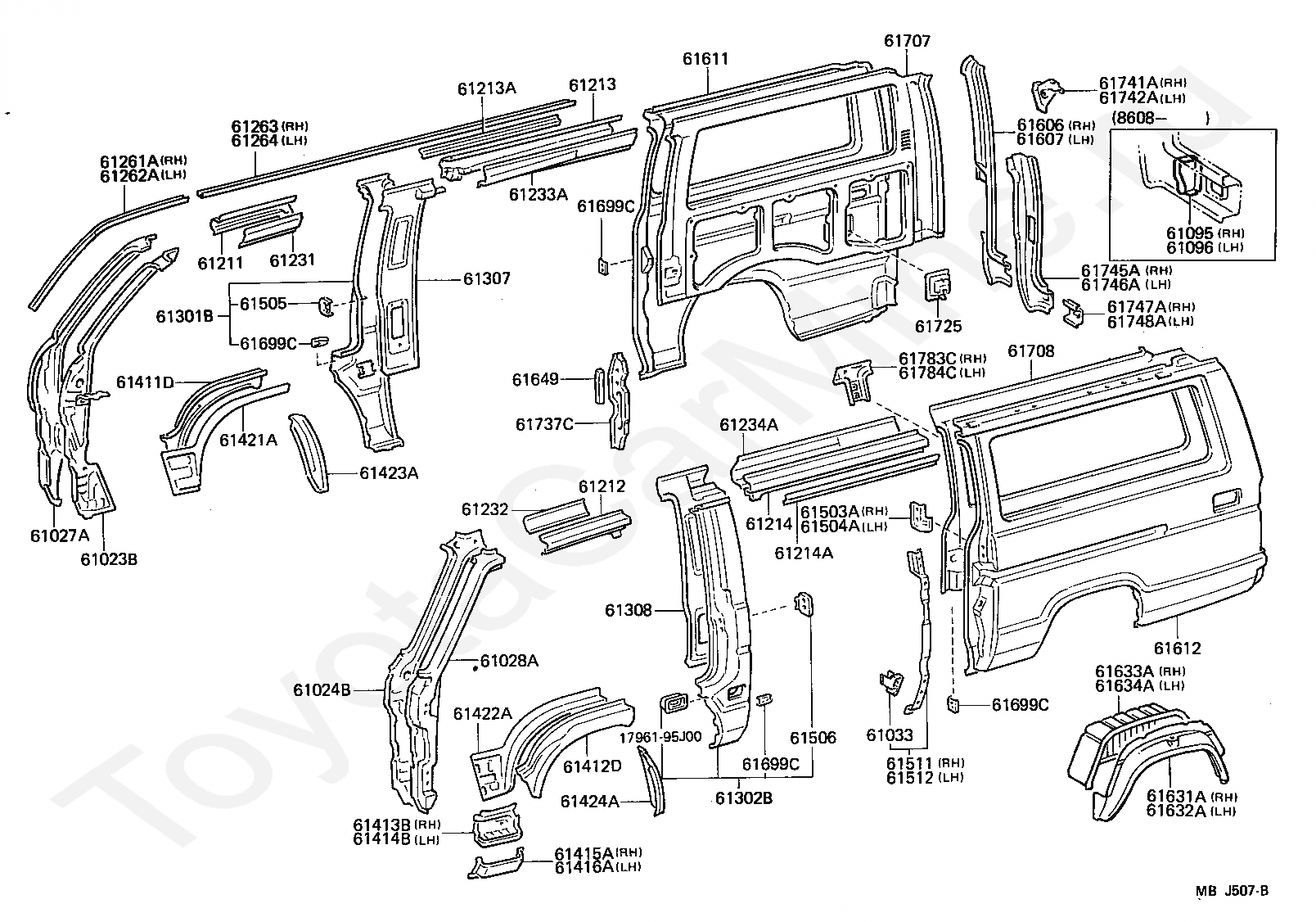

Код

Описание

1796195J00

Крепеж

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61027A

PILLAR SUB-ASSY, FRONT BODY, OUTER RH

61028A

PILLAR SUB-ASSY, FRONT BODY, OUTER LH

61033

EXTENSION SUB-ASSY, QUARTER LOCK PILLAR

61095

PLATE SUB-ASSY, BACK DOOR OPENING, LOWER RH

61096

PLATE SUB-ASSY, BACK DOOR OPENING, LOWER LH

61211

RAIL, ROOF SIDE, OUTER RH

61212

RAIL, ROOF SIDE, OUTER LH

61213

RAIL, ROOF SIDE, OUTER REAR RH

61213A

RETAINER, SLIDE DOOR WEATHERSTRIP, RH

61214

RAIL, ROOF SIDE, OUTER REAR LH

61214A

RETAINER, SLIDE DOOR WEATHERSTRIP, LH

61231

RAIL, ROOF SIDE, INNER RH

61232

RAIL, ROOF SIDE, INNER LH

61233A

RAIL, ROOF SIDE, INNER NO.2 RH

61234A

RAIL, ROOF SIDE, INNER NO.2 LH

61261A

CHANNEL, ROOF DRIP SIDE, FRONT RH

61262A

CHANNEL, ROOF DRIP SIDE, FRONT LH

61263

CHANNEL, ROOF DRIP, REAR RH

61264

CHANNEL, ROOF DRIP, REAR LH

61301B

PILLAR, CENTER BODY, OUTER RH

61302B

PILLAR, CENTER BODY, OUTER LH

61307

PILLAR SUB-ASSY, CENTER BODY, INNER RH

61308

PILLAR SUB-ASSY, CENTER BODY, INNER LH

61411D

PANEL, FENDER, OUTER RH

61412D

PANEL, FENDER, OUTER LH

61413B

PANEL, FRONT STEP, RH

61414B

PANEL, FRONT STEP, LH

61415A

PANEL, FRONT STEP, UNDER, RH

61416A

PANEL, FRONT STEP UNDER, LH

61421A

PANEL, FENDER, INNER RH

61422A

PANEL, FENDER, INNER LH

61423A

PANEL, FENDER, INNER LOWER RH

61424A

PANEL, FENDER, INNER LOWER LH

61503A

REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH

61504A

REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH

61505

REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH

61506

REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH

61511

PILLAR, QUARTER LOCK, RH

61512

PILLAR, QUARTER LOCK, LH

61606

FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH

61607

FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH

61611

PANEL, QUARTER, RH

61612

PANEL, QUARTER, LH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61649

PAD, QUARTER PANEL, OUTER

61699C

RETAINER, COURTESY SWITCH

61707

PANEL SUB-ASSY, QUARTER, INNER RH

61708

PANEL SUB-ASSY, QUARTER, INNER LH

61725

BOX, FUEL INLET

61737C

REINFORCEMENT, QUARTER, INNER

61741A

REINFORCEMENT, BACK DOOR OPENING, UPPER RH

61742A

REINFORCEMENT, BACK DOOR OPENING, UPPER LH

61745A

REINFORCEMENT, BACK DOOR OPENING, LOWER RH

61746A

REINFORCEMENT, BACK DOOR OPENING, LOWER LH

61747A

EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, RH

61748A

EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, LH

61783C

BRACE, QUARTER PANEL, INNER RH

61784C

BRACE, QUARTER PANEL, INNER LH

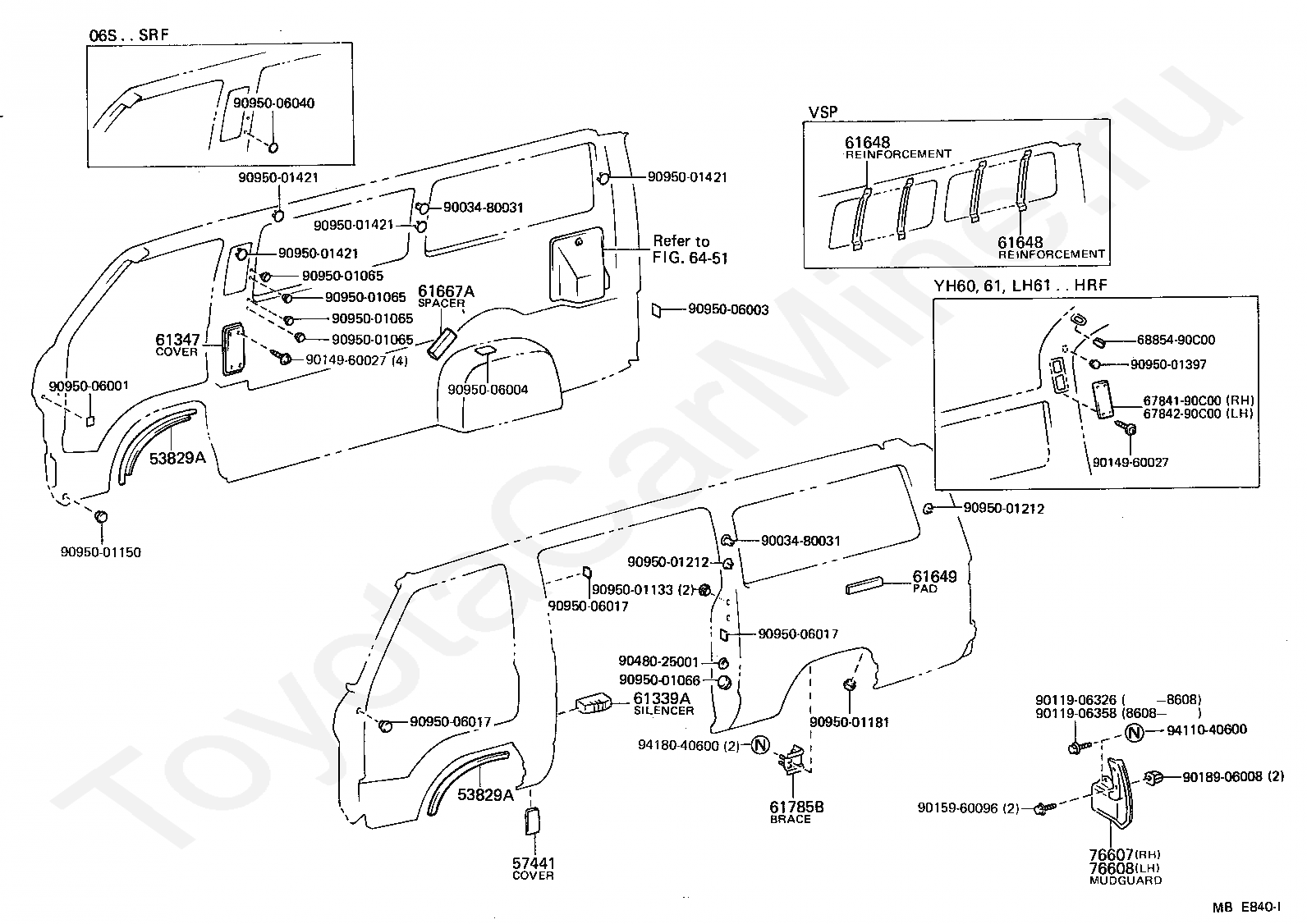

Код

Описание

53829A

PROTECTOR, FRONT FENDER, LOWER

57441

COVER, PLATE FLOOR SIDE RAIL

61339A

SILENCER, PILLAR INNER

61347

COVER, CENTER BODY PILLAR

61648

REINFORCEMENT, SIDE WINDOW

61649

PAD, QUARTER PANEL, OUTER

61667A

SPACER QUARTER PANEL, NO.1

61785B

BRACE, QUARTER PANEL OUTER

6451

переход к группе запчастей

6784190C00

Крепеж

6784290C00

Крепеж

6885490C00

Крепеж

76607

MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

76608

MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

9003480031

Крепеж

9011906326

Крепеж

9011906358

Крепеж

9014960027

Крепеж

9015960096

Крепеж

9018906008

Крепеж

9048025001

Крепеж

9095001065

Крепеж

9095001066

Крепеж

9095001133

Крепеж

9095001150

Крепеж

9095001181

Крепеж

9095001212

Крепеж

9095001397

Крепеж

9095001421

Крепеж

9095006001

Крепеж

9095006003

Крепеж

9095006004

Крепеж

9095006017

Крепеж

9095006040

Крепеж

9411040600

Крепеж

9418040600

Крепеж

Боковая панель кузова TOYOTA HIACE VAN,COMMUTER, 1982/12 - 1986/08, 1,8 литра, V(MODEL MARK), STANDARD TYPE, YH50, механика, МКПП, 4 ступени, на руле

Товар добавлен в корзину!

Заполните форму
