Каталог
ЕвропаМодель
HIACE VAN,COMMUTERДвигатель
1,8 литраКузов
V(MODEL MARK)Класс
STANDARD TYPEФрейм
YH50Трансмиссия
механика МКПП, 4 ступени, на рулеОпции
правый руль STANDARD ROOF 4-дверный вэн SIDE GLASS VAN 03S GEN

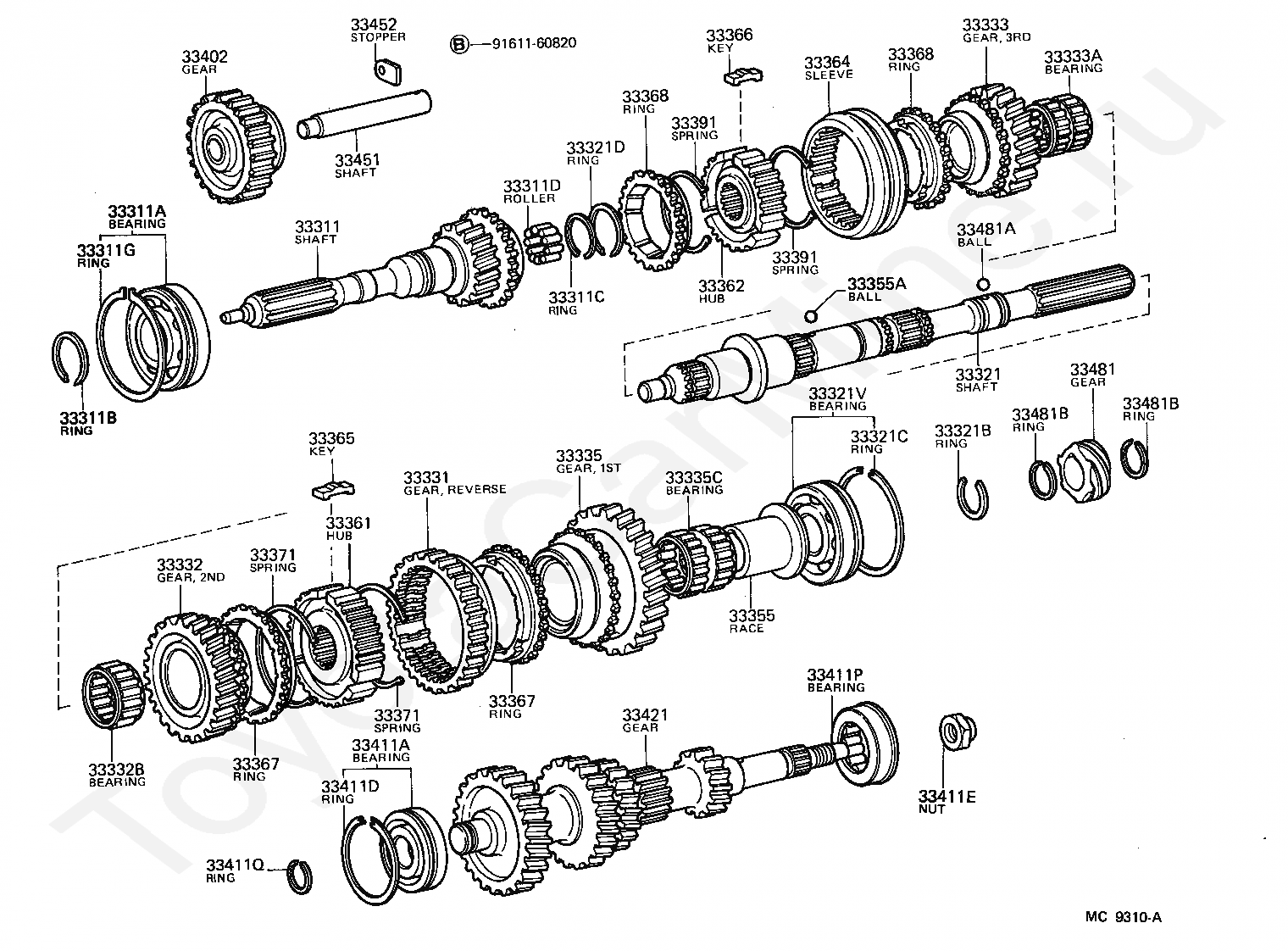

Код
Описание
33311
SHAFT, INPUT
33311A
BEARING (FOR INPUT SHAFT FRONT)
33311B
RING, SHAFT SNAP (FOR FRONT BEARING)
33311C
RING, HOLE SNAP (FOR NEEDLE ROLLER)
33311D
BEARING, INPUT SHAFT
33311G
RING, SHAFT SNAP (FOR FRONT BEARING)
33321
SHAFT, OUTPUT
33321B
RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321C
RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321D
RING, SHAFT SNAP (FOR CLUTCH HUB SET)
33321V
BEARING (FOR OUTPUT SHAFT CENTER)
33331
GEAR, REVERSE
33332
GEAR, 2ND
33332B
BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333
GEAR, 3RD
33333A
BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335
GEAR, 1ST
33335C
BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33355
RACE, 1ST GEAR BEARING INNER
33355A
KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33361
HUB, TRANSMISSION CLUTCH, NO.1
33362
HUB, TRANSMISSION CLUTCH, NO.2
33364
SLEEVE, TRANSMISSION HUB, NO.2
33365
KEY, SYNCHROMESH SHIFTING, NO.1
33366
KEY, SYNCHROMESH SHIFTING, NO.2
33367
RING, SYNCHRONIZER, NO.1
33368
RING, SYNCHRONIZER, NO.2
33371
SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391
SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402
GEAR SUB-ASSY, REVERSE IDLER
33411A
BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411D
RING, COUNTER GEAR FRONT BEARING SNAP, NO.1
33411E
NUT(FOR COUNTER GEAR SHAFT)
33411P
BEARING, COUNTER SHAFT CENTER
33411Q
RING, COUNTER GEAR FRONT BEARING SNAP, NO.2
33421
GEAR, COUNTER
33451
SHAFT, REVERSE IDLER GEAR
33452
STOPPER, REVERSE IDLER GEAR SHAFT
33481
GEAR, SPEEDOMETER DRIVE (MTM)
33481A
KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481B
RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
9161160820
Крепеж

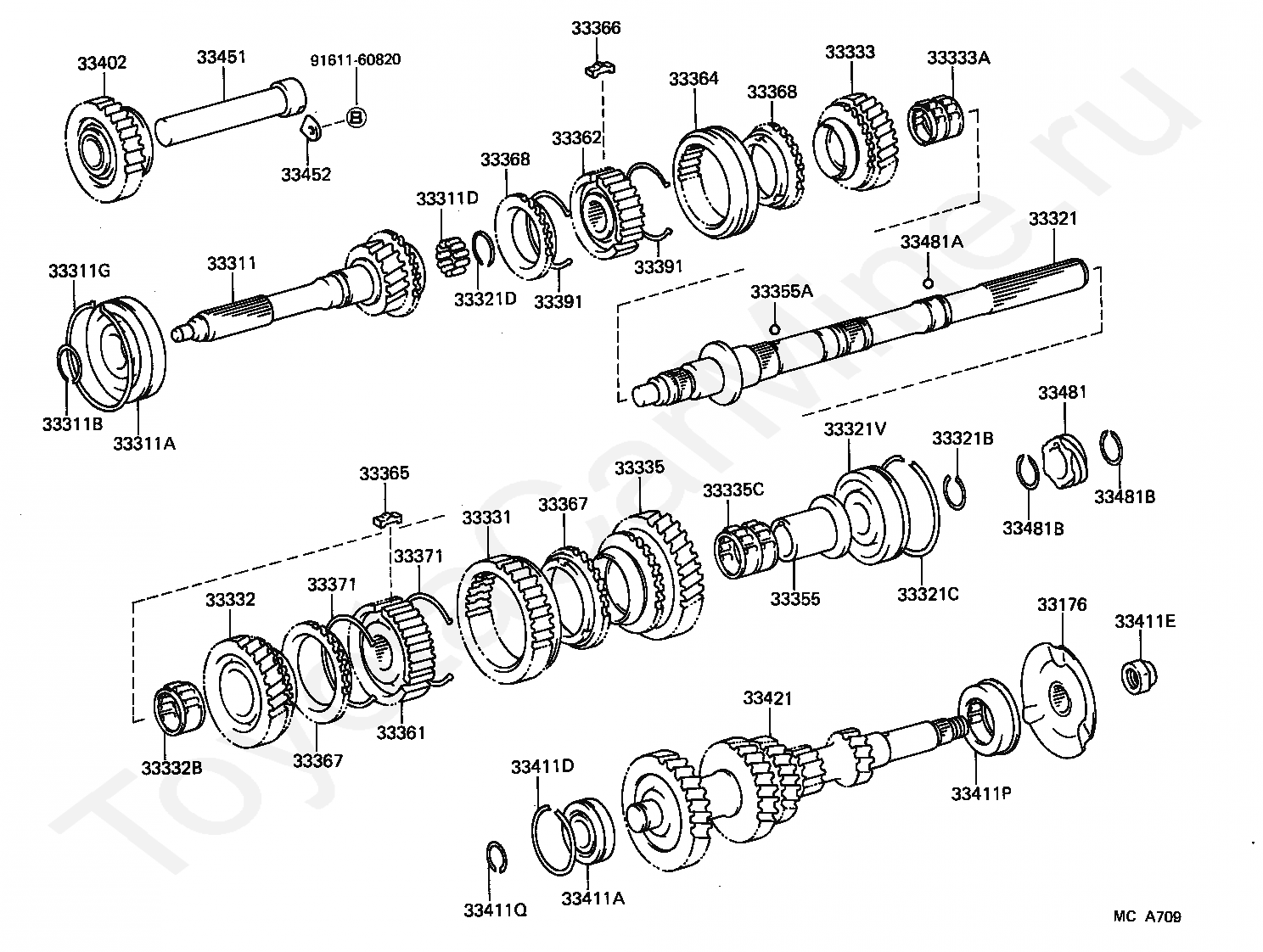

Код
Описание
33176
SEPARATOR, MANUAL TRANSMISSION OIL, NO.1
33311
SHAFT, INPUT
33311A
BEARING (FOR INPUT SHAFT FRONT)
33311B
RING, SHAFT SNAP (FOR FRONT BEARING)
33311D
BEARING, INPUT SHAFT
33311G
RING, SHAFT SNAP (FOR FRONT BEARING)
33321
SHAFT, OUTPUT
33321B
RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321C
RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321D
RING, SHAFT SNAP (FOR CLUTCH HUB SET)
33321V
BEARING (FOR OUTPUT SHAFT CENTER)
33331
GEAR, REVERSE
33332
GEAR, 2ND
33332B
BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333
GEAR, 3RD
33333A
BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335
GEAR, 1ST
33335C
BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33355
RACE, 1ST GEAR BEARING INNER
33355A
KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33361
HUB, TRANSMISSION CLUTCH, NO.1
33362
HUB, TRANSMISSION CLUTCH, NO.2
33364
SLEEVE, TRANSMISSION HUB, NO.2
33365
KEY, SYNCHROMESH SHIFTING, NO.1
33366
KEY, SYNCHROMESH SHIFTING, NO.2
33367
RING, SYNCHRONIZER, NO.1
33368
RING, SYNCHRONIZER, NO.2
33371
SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391
SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402
GEAR SUB-ASSY, REVERSE IDLER
33411A
BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411D
RING, COUNTER GEAR FRONT BEARING SNAP, NO.1
33411E
NUT(FOR COUNTER GEAR SHAFT)
33411P
BEARING, COUNTER SHAFT CENTER
33411Q
RING, COUNTER GEAR FRONT BEARING SNAP, NO.2
33421
GEAR, COUNTER
33451
SHAFT, REVERSE IDLER GEAR
33452
STOPPER, REVERSE IDLER GEAR SHAFT
33481
GEAR, SPEEDOMETER DRIVE (MTM)
33481A
KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481B
RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
9161160820
Крепеж
