Каталог
ЕвропаМодель
HIACE VAN,COMMUTERДвигатель
2 литраКузов
V(MODEL MARK)Класс
STANDARD TYPEФрейм
RZH112Трансмиссия
МКПП, 5 скоростейОпции
правый руль STANDARD ROOF 4 двери SEPARATE SEAT 03S GEN CBR

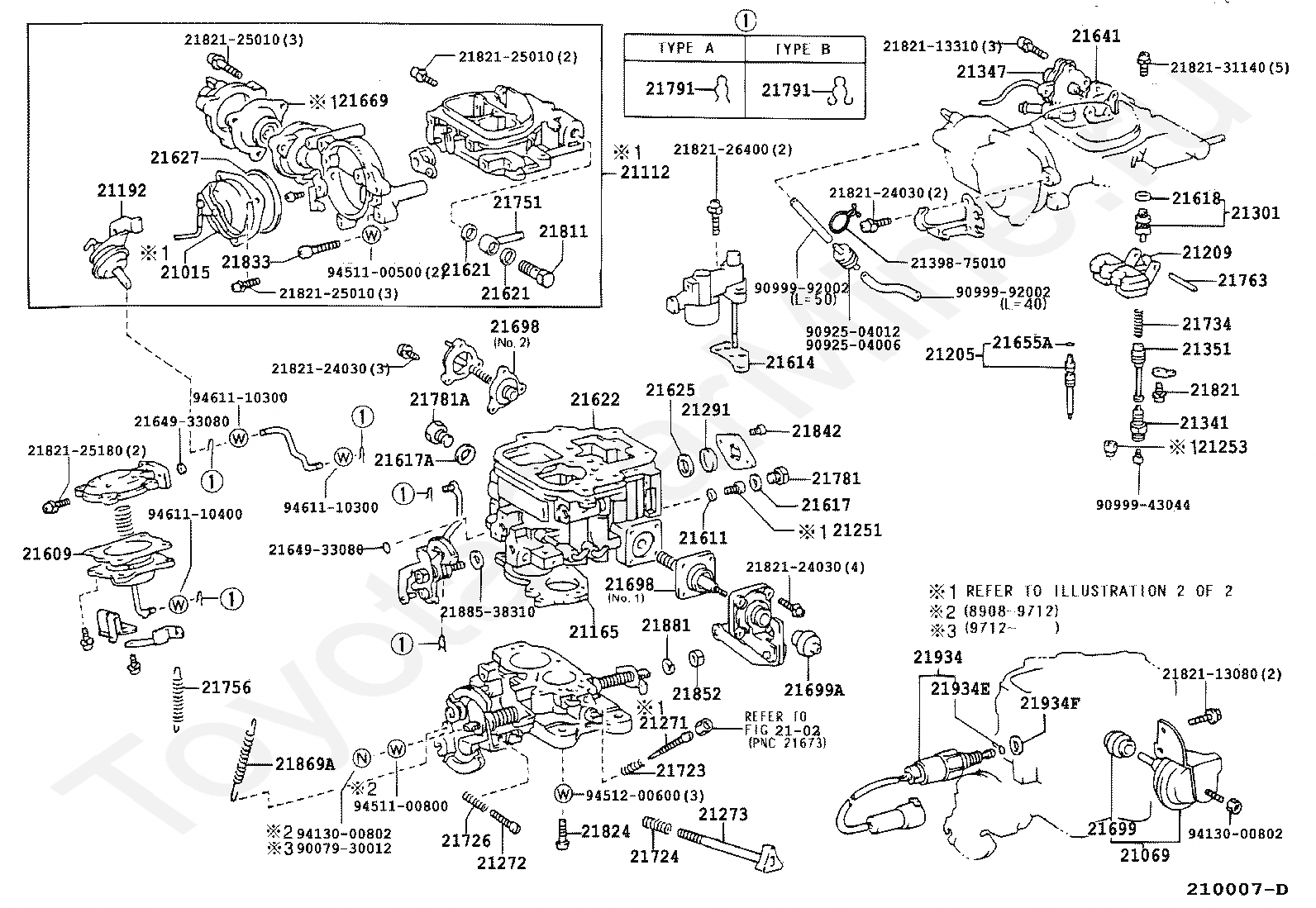

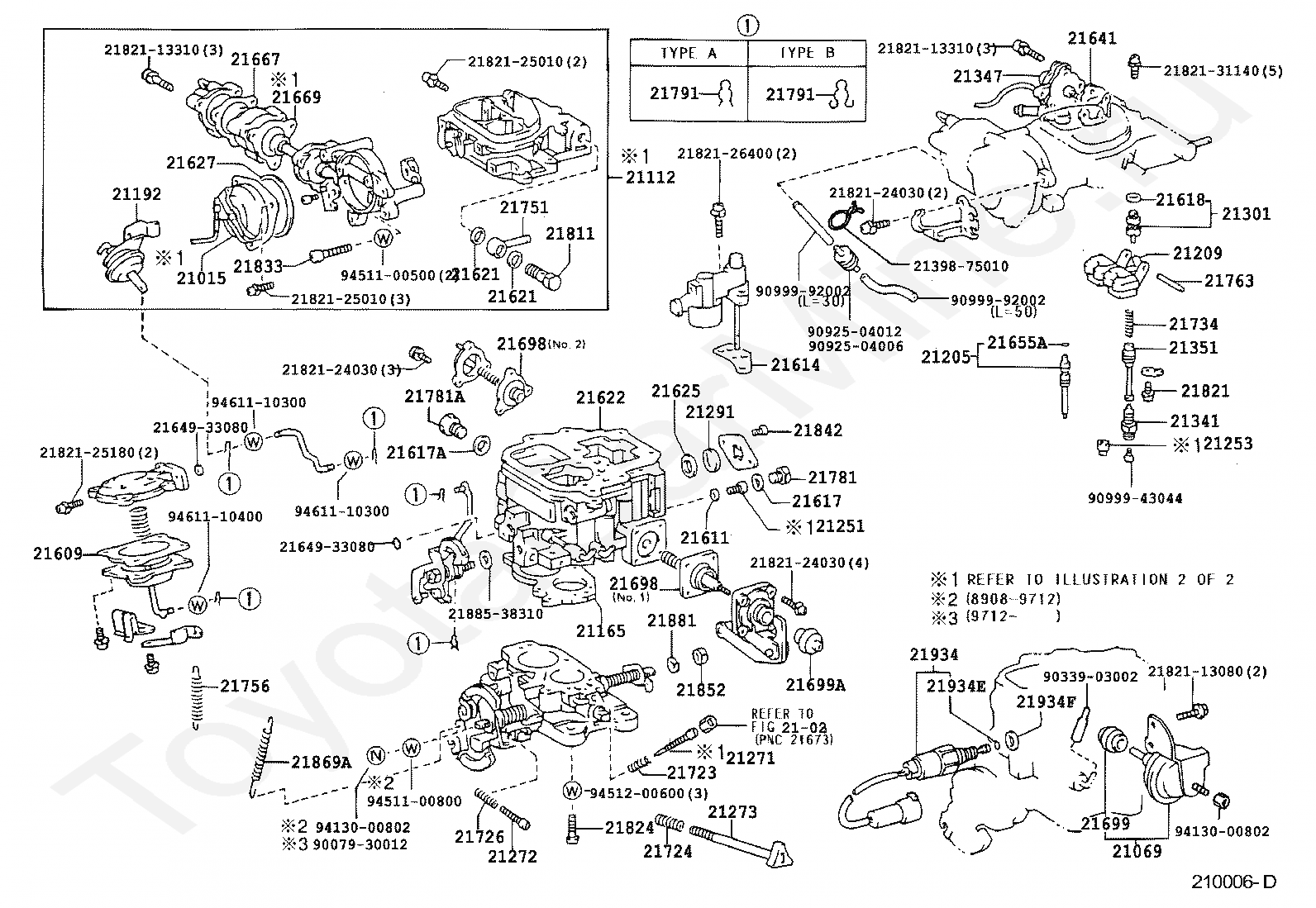

Код
Описание
21015
HOUSING SUB-ASSY, COIL
2102
переход к группе запчастей
21069
DASH POT SUB-ASSY
21112
HORN, AIR
21165
INSULATOR
21192
BREAKER
21205
JET SUB-ASSY, SLOW
21209
FLOAT SUB-ASSY
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21291
GLASS, LEVEL GAGE
21301
VALVE SUB-ASSY, NEEDLE
21341
VALVE, POWER
21347
VALVE, SOLENOID
21351
PISTON, POWER
2139875010
Крепеж
21609
DIAPHRAGM SUB-ASSY
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21617A
GASKET, MAIN PASSAGE PLUG, NO.2
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21625
GASKET, LEVEL GAGE
21627
GASKET, COIL HOUSING
21641
GASKET(FOR THERMOSTATIC VALVE COVER)
2164933080
Крепеж
21655A
RING, O(FOR SLOW JET)
21667
DIAPHRAGM
21669
DIAPHRAGM
21698
DIAPHRAGM
21699
BOOT(FOR PUMP PLUNGER)
21699A
BOOT(FOR ACCELERATION PUMP)
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21734
SPRING, POWER PISTON
21751
UNION, NIPPLE
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781A
PLUG, MAIN PASSAGE, NO.2(FOR CARBURETOR JET)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21811
BOLT, UNION NIPPLE
21821
SCREW, 2ND THROTTLE VALVE SET
2182113080
Крепеж
2182113310
Крепеж
2182124030
Крепеж
2182125010
Крепеж
2182125180
Крепеж
2182126400
Крепеж
2182131140
Крепеж
21824
SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852
NUT, THROTTLE LEVER SET
21869A
SPRING(FOR THROTTLE)
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
2188538310
Крепеж
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9007930012
Крепеж
9033903002
Крепеж
9092504006
Крепеж
9092504012
Крепеж
9099943044
Крепеж
9099992002
Крепеж
9413000802
Крепеж
9451100500
Крепеж
9451100800
Крепеж
9451200600
Крепеж
9461110300
Крепеж
9461110400
Крепеж
Код
Описание
21015
HOUSING SUB-ASSY, COIL
2102
переход к группе запчастей
21069
DASH POT SUB-ASSY
21112
HORN, AIR
21165
INSULATOR
21192
BREAKER
21205
JET SUB-ASSY, SLOW
21209
FLOAT SUB-ASSY
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21291
GLASS, LEVEL GAGE
21301
VALVE SUB-ASSY, NEEDLE
21341
VALVE, POWER
21347
VALVE, SOLENOID
21351
PISTON, POWER
2139875010
Крепеж
21609
DIAPHRAGM SUB-ASSY
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21617A
GASKET, MAIN PASSAGE PLUG, NO.2
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21625
GASKET, LEVEL GAGE
21627
GASKET, COIL HOUSING
21641
GASKET(FOR THERMOSTATIC VALVE COVER)
2164933080
Крепеж
21655A
RING, O(FOR SLOW JET)
21669
DIAPHRAGM
21698
DIAPHRAGM
21699
BOOT(FOR PUMP PLUNGER)
21699A
BOOT(FOR ACCELERATION PUMP)
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21734
SPRING, POWER PISTON
21751
UNION, NIPPLE
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781A
PLUG, MAIN PASSAGE, NO.2(FOR CARBURETOR JET)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21811
BOLT, UNION NIPPLE
21821
SCREW, 2ND THROTTLE VALVE SET
2182113080
Крепеж
2182113310
Крепеж
2182124030
Крепеж
2182125010
Крепеж
2182125180
Крепеж
2182126400
Крепеж
2182131140
Крепеж
21824
SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852
NUT, THROTTLE LEVER SET
21869A
SPRING(FOR THROTTLE)
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
2188538310
Крепеж
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
9007930012
Крепеж
9092504006
Крепеж
9092504012
Крепеж
9099943044
Крепеж
9099992002
Крепеж
9413000802
Крепеж
9451100500
Крепеж
9451100800
Крепеж
9451200600
Крепеж
9461110300
Крепеж
9461110400
Крепеж
