Кресла TOYOTA HIACE VAN,COMMUTER, 1993/08 - 1995/08, 2,4 литра, EFI, V(MODEL MARK), DELUX SPECIFICATION, RZH103, МКПП, 5 скоростей

Каталог

Европа

Модель

HIACE VAN,COMMUTER

Двигатель

2,4 литра, EFI

Кузов

V(MODEL MARK)

Класс

DELUX SPECIFICATION

Фрейм

RZH103

Трансмиссия

МКПП, 5 скоростей

Опции

левый руль 4 двери боковое стекло 9-местный ФРГ

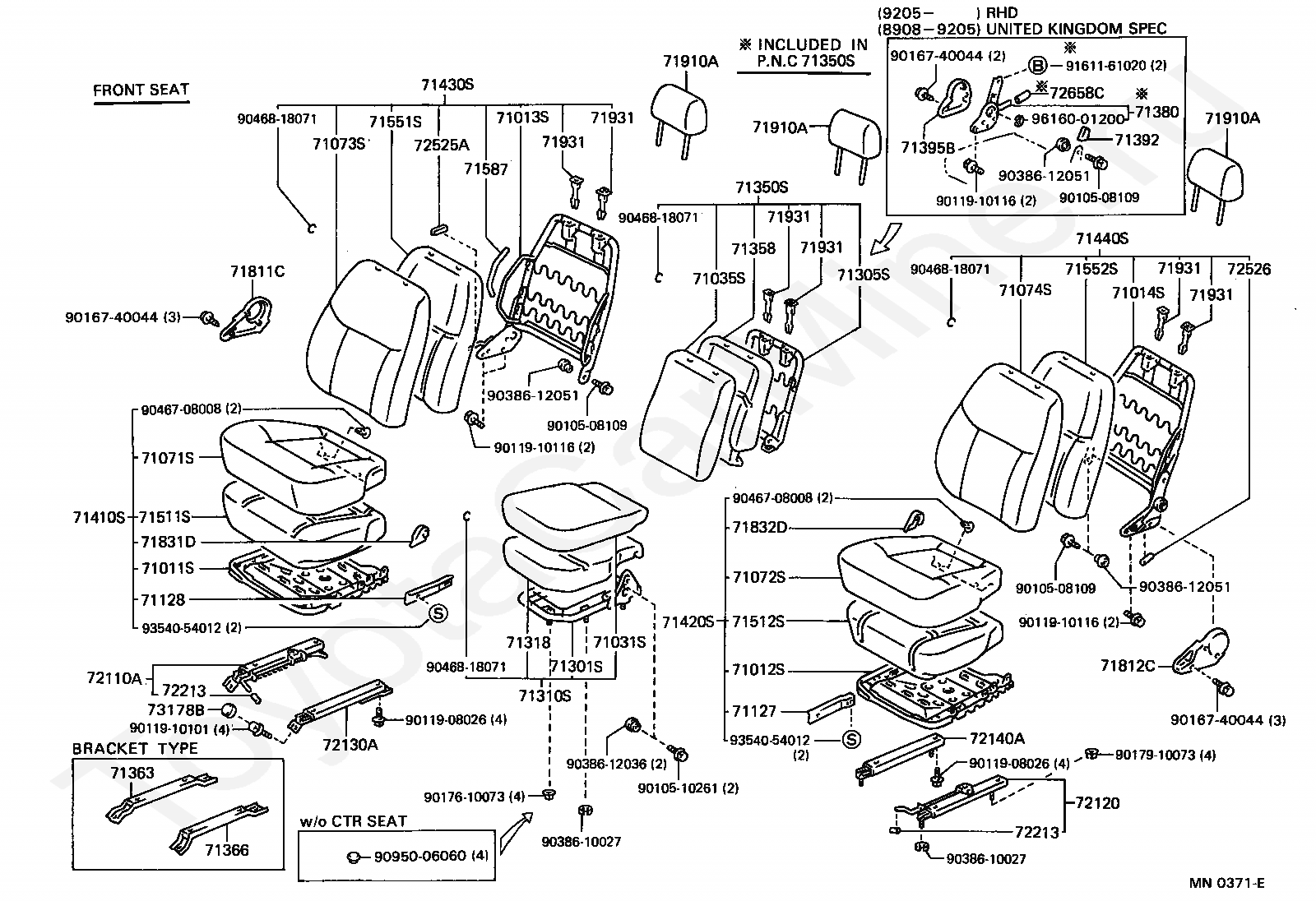

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71031S

COVER SUB-ASSY, CENTER SEAT CUSHION

71035S

COVER, FRONT SEAT BACK, CENTER

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71127

PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE RH

71128

PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH

71301S

FRAME SUB-ASSY, CENTER SEAT CUSHION

71305S

FRAME SUB-ASSY, CENTER SEAT BACK

71310S

CUSHION ASSY, FRONT SEAT, CENTER

71318

PAD, CENTER SEAT CUSHION

71350S

BACK ASSY, FRONT SEAT, CENTER

71358

PAD, CENTER SEAT BACK

71363

BRACKET, FRONT SEAT SET, NO.3

71366

BRACKET, FRONT SEAT SET, NO.6

71380

HINGE ASSY, CENTER SEAT, RH

71392

COVER, CENTER SEAT CUSHION BRACKET, LH

71395B

COVER, CENTER SEAT HINGE, RH

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71811C

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72658C

KNOB, FRONT SEAT LOCK HANDLE

73178B

CAP, SEAT BELT ANCHOR COVER

9010508109

Крепеж

9010510261

Крепеж

9011908026

Крепеж

9011910101

Крепеж

9011910116

Крепеж

9016740044

Крепеж

9017610073

Крепеж

9017910073

Крепеж

9038610027

Крепеж

9038612036

Крепеж

9038612051

Крепеж

9046708008

Крепеж

9046818071

Крепеж

9095006060

Крепеж

9161161020

Крепеж

9354054012

Крепеж

9616001200

Крепеж

Код

Описание

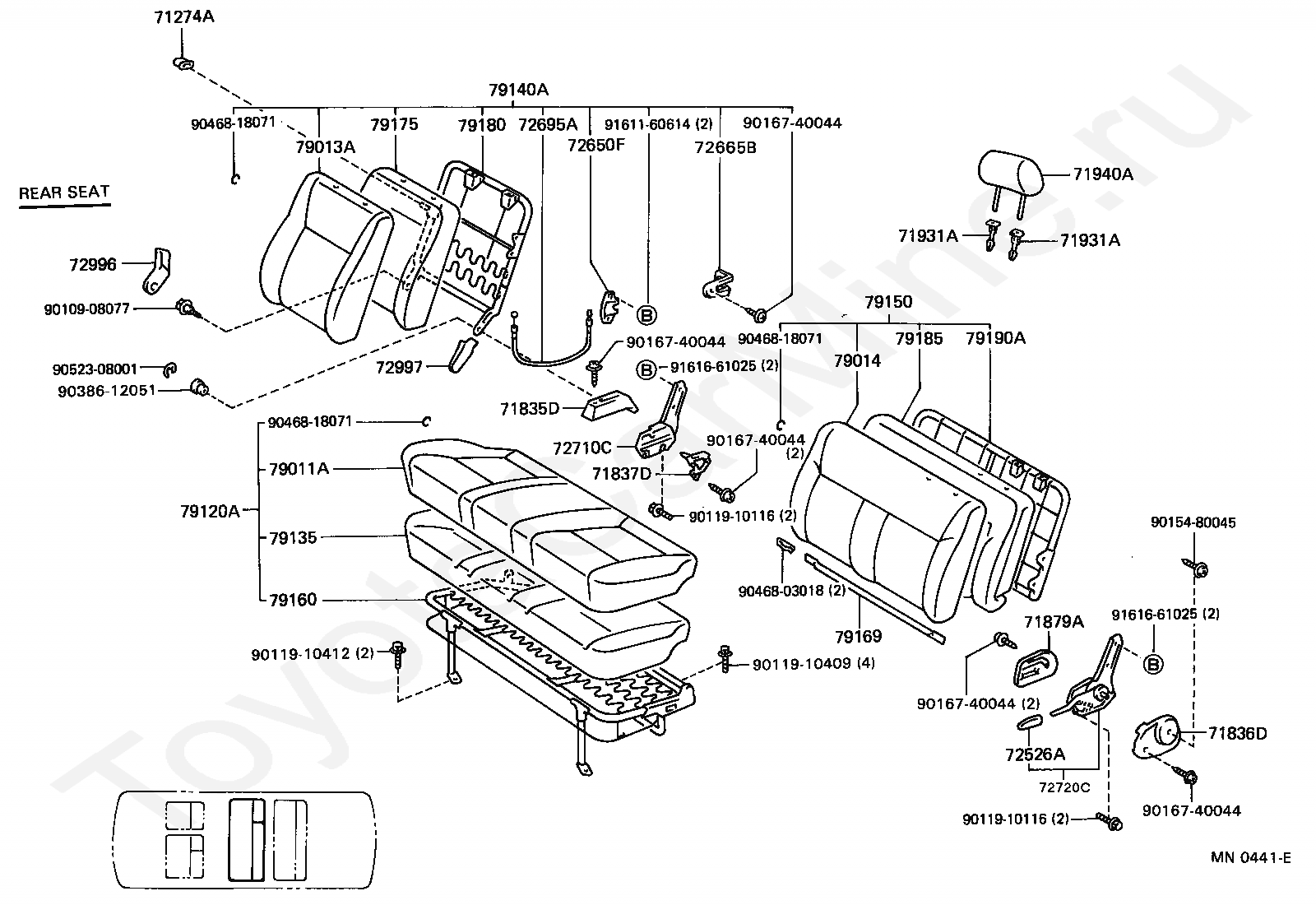

71274A

KNOB, REAR SEAT HINGE

71835D

COVER, REAR SEAT RECLINING, LOWER RH

71836D

COVER, REAR SEAT RECLINING, LOWER LH

71837D

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72650F

LOCK ASSY, REAR SEAT, RH

72665B

COVER, REAR SEAT BACK LOCK

72695A

CABLE, REAR SEAT LOCK CONTROL

72710C

ADJUSTER ASSY, NO.1 SEAT RECLINING, RH

72720C

ADJUSTER ASSY, NO.1 SEAT RECLINING, LH

72996

COVER, REAR SEAT BACK, RH

72997

COVER, REAR SEAT BACK, LH

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79120A

CUSHION ASSY, NO.1 SEAT

79135

PAD, NO.1 SEAT CUSHION

79140A

BACK ASSY, NO.1 SEAT

79150

BACK ASSY, NO.1 SEAT, LH

79160

SPRING ASSY, NO.1 SEAT CUSHION

79169

ROD, REAR SEAT HINGE CONNECTOR

79175

PAD, NO.1 SEAT BACK

79180

SPRING ASSY, NO.1 SEAT BACK

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

9010908077

Крепеж

9011910116

Крепеж

9011910409

Крепеж

9011910412

Крепеж

9015480045

Крепеж

9016740044

Крепеж

9038612051

Крепеж

9046803018

Крепеж

9046818071

Крепеж

9052308001

Крепеж

9161160614

Крепеж

9161661025

Крепеж

Код

Описание

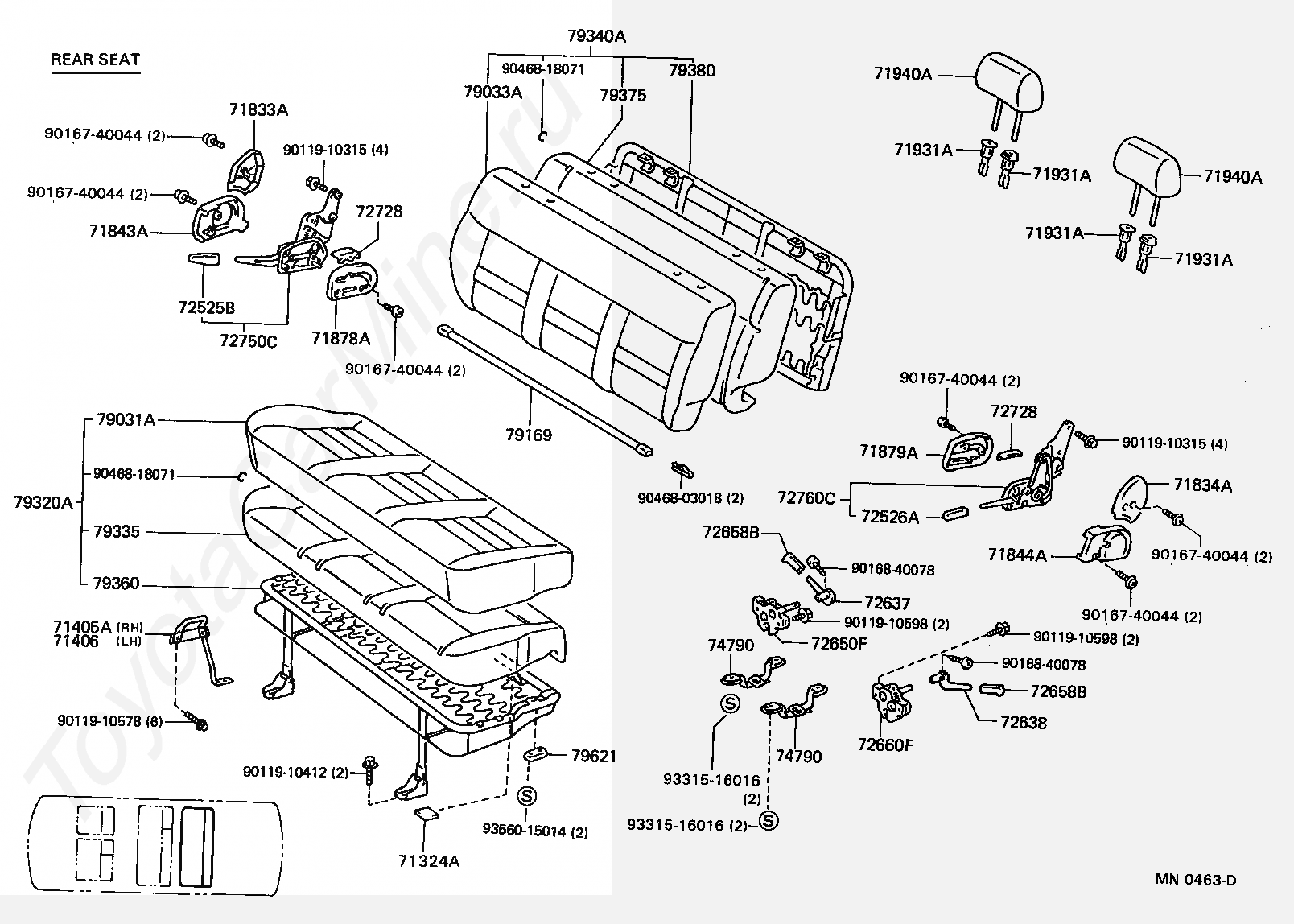

71324A

CUSHION, REAR SEAT

71405A

STRIKER SUB-ASSY, REAR SEAT LOCK, RH

71406

STRIKER SUB-ASSY, REAR SEAT LOCK, LH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72637

LEVER, REAR SEAT BACK ROD CONTROL, INNER

72638

HANDLE, REAR SEAT LOCK, LH

72650F

LOCK ASSY, REAR SEAT, RH

72658B

KNOB, REAR SEAT LOCK HANDLE

72660F

LOCK ASSY, REAR SEAT, LH

72728

PROTECTOR, REAR SEAT RECLINING, INNER RH

72750C

ADJUSTER ASSY, NO.3 SEAT RECLINING, RH

72760C

ADJUSTER ASSY, NO.3 SEAT RECLINING, LH

74790

HOLDER ASSY, WARNING REFLECTOR

79031A

COVER SUB-ASSY, NO.3 SEAT CUSHION

79033A

COVER SUB-ASSY, NO.3 SEAT BACK

79169

ROD, REAR SEAT HINGE CONNECTOR

79320A

CUSHION ASSY, NO.3 SEAT

79335

PAD, NO.3 SEAT CUSHION

79340A

BACK ASSY, NO.3 SEAT

79360

SPRING ASSY, NO.3 SEAT CUSHION

79375

PAD, NO.3 SEAT BACK

79380

SPRING ASSY, NO.3 SEAT BACK

79621

STOPPER, NO.2 SEAT CUSHION

9011910315

Крепеж

9011910412

Крепеж

9011910578

Крепеж

9011910598

Крепеж

9016740044

Крепеж

9016840078

Крепеж

9046803018

Крепеж

9046818071

Крепеж

9331516016

Крепеж

9356015014

Крепеж
