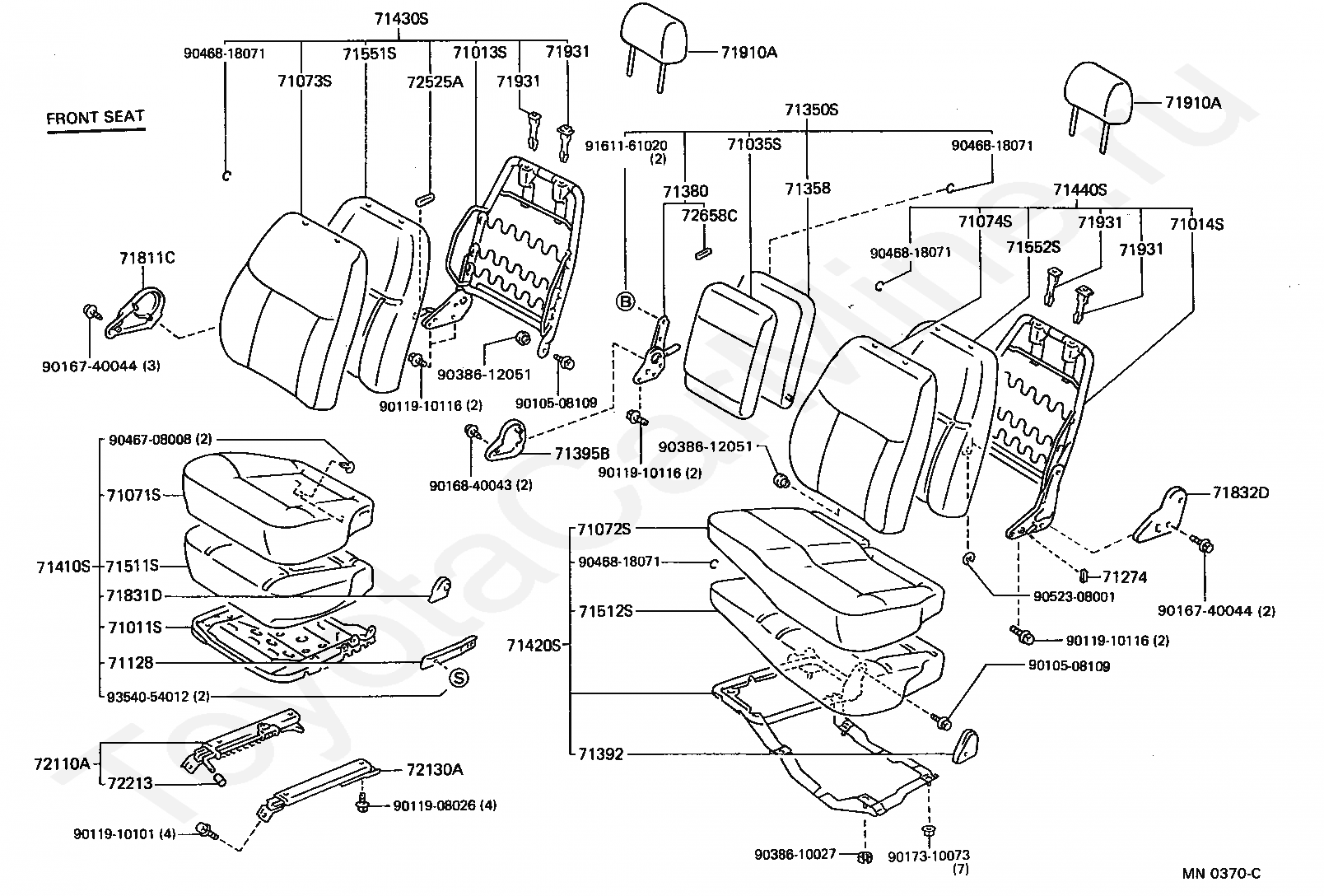

Кресла TOYOTA HIACE VAN,COMMUTER, 1989/08 - 1995/08, 2,4 литра, дизель, V(MODEL MARK), STANDARD TYPE, LH102, МКПП, 5 скоростей

Каталог

Европа

Модель

HIACE VAN,COMMUTER

Двигатель

2,4 литра, дизель

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

LH102

Трансмиссия

МКПП, 5 скоростей

Опции

правый руль 4 двери SEPARATE SEAT 3-местный Европа

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71035S

COVER, FRONT SEAT BACK, CENTER

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71128

PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH

71274

KNOB, FRONT SEAT HINGE

71350S

BACK ASSY, FRONT SEAT, CENTER

71358

PAD, CENTER SEAT BACK

71380

HINGE ASSY, CENTER SEAT, RH

71392

COVER, CENTER SEAT CUSHION BRACKET, LH

71395B

COVER, CENTER SEAT HINGE, RH

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72658C

KNOB, FRONT SEAT LOCK HANDLE

9010508109

Крепеж

9011908026

Крепеж

9011910101

Крепеж

9011910116

Крепеж

9016740044

Крепеж

9016840043

Крепеж

9017310073

Крепеж

9038610027

Крепеж

9038612051

Крепеж

9046708008

Крепеж

9046818071

Крепеж

9052308001

Крепеж

9161161020

Крепеж

9354054012

Крепеж

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71031S

COVER SUB-ASSY, CENTER SEAT CUSHION

71035S

COVER, FRONT SEAT BACK, CENTER

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71127

PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE RH

71128

PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH

71301S

FRAME SUB-ASSY, CENTER SEAT CUSHION

71305S

FRAME SUB-ASSY, CENTER SEAT BACK

71310S

CUSHION ASSY, FRONT SEAT, CENTER

71318

PAD, CENTER SEAT CUSHION

71350S

BACK ASSY, FRONT SEAT, CENTER

71358

PAD, CENTER SEAT BACK

71363

BRACKET, FRONT SEAT SET, NO.3

71366

BRACKET, FRONT SEAT SET, NO.6

71380

HINGE ASSY, CENTER SEAT, RH

71392

COVER, CENTER SEAT CUSHION BRACKET, LH

71395B

COVER, CENTER SEAT HINGE, RH

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71811C

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72658C

KNOB, FRONT SEAT LOCK HANDLE

73178B

CAP, SEAT BELT ANCHOR COVER

9010508109

Крепеж

9010510261

Крепеж

9011908026

Крепеж

9011910101

Крепеж

9011910116

Крепеж

9016740044

Крепеж

9017610073

Крепеж

9017910073

Крепеж

9038610027

Крепеж

9038612036

Крепеж

9038612051

Крепеж

9046708008

Крепеж

9046818071

Крепеж

9095006060

Крепеж

9161161020

Крепеж

9354054012

Крепеж

9616001200

Крепеж

Кресла TOYOTA HIACE VAN,COMMUTER, 1989/08 - 1995/08, 2,4 литра, дизель, V(MODEL MARK), STANDARD TYPE, LH102, МКПП, 5 скоростей
