Каталог
ЕвропаМодель
HIACE VAN,COMMUTERДвигатель
2,4 литра, дизельКузов
V(MODEL MARK)Класс
STANDARD TYPEФрейм
LH102Трансмиссия
МКПП, 5 скоростейОпции
левый руль STANDARD ROOF 4 двери SEPARATE SEAT 03S GEN DSL

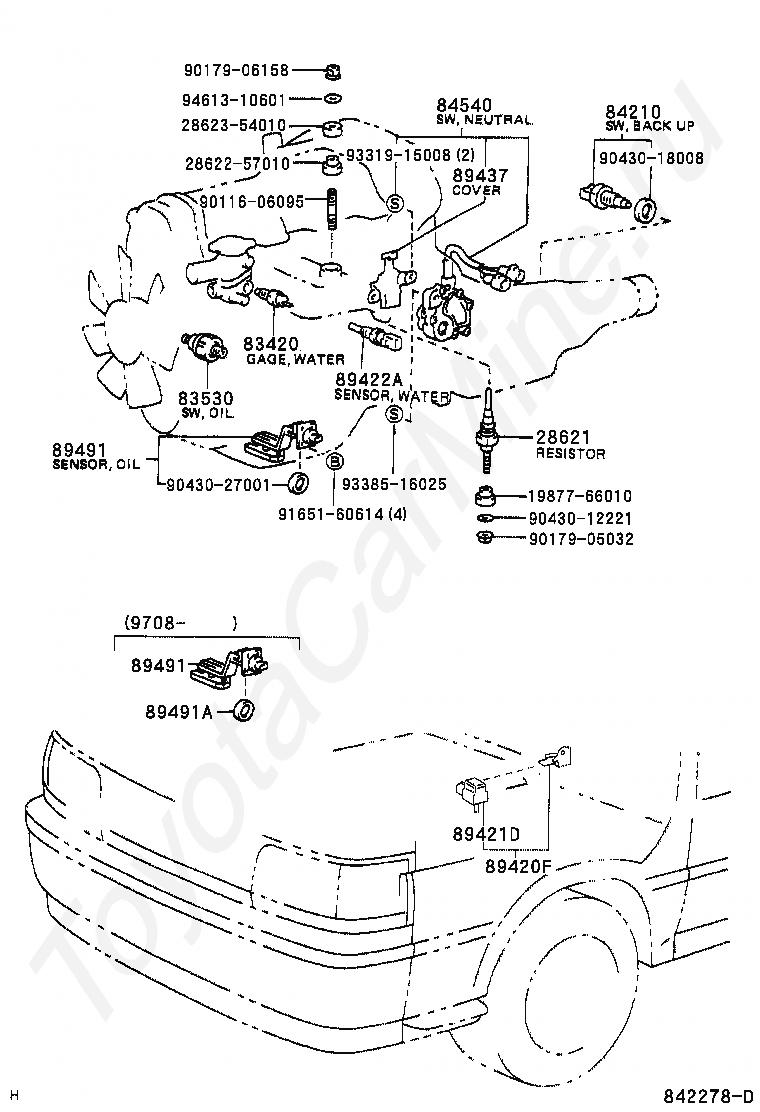

Код
Описание
1987766010
Крепеж
28621
RESISTOR, GLOW PLUG
2862257010
Крепеж
2862354010
Крепеж
83420
GAGE ASSY, WATER TEMPERATURE SENDER
83530
SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210
SWITCH ASSY, BACK-UP LAMP
84540
SWITCH ASSY, NEUTRAL START
89420F
SENSOR ASSY, VACUUM
89421D
SENSOR, TURBO PRESSURE
89422A
SENSOR, WATER TEMPERATURE
89437
COVER, SENSOR
89491
SENSOR, ENGINE OIL LEVEL
89491A
GASKET, ENGINE OIL LEVEL SENSOR
9011606095
Крепеж
9017905032
Крепеж
9017906158
Крепеж
9043012221
Крепеж
9043018008
Крепеж
9043027001
Крепеж
9165160614
Крепеж
9331915008
Крепеж
9338516025
Крепеж
9461310601
Крепеж

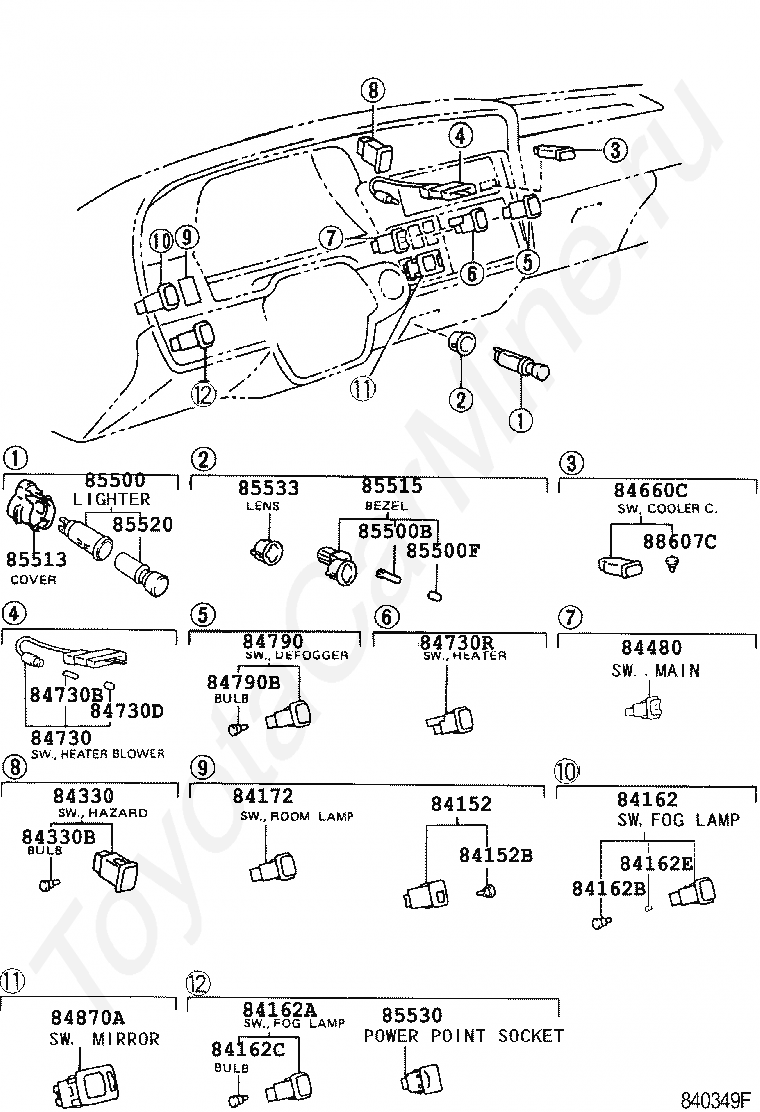

Код
Описание
84152
SWITCH, HEADLAMP LEVELING
84152B
BULB (FOR HEADLAMP LEVELING SWITCH)
84162
SWITCH, FRONT FOG LAMP
84162A
SWITCH, REAR FOG LAMP
84162B
BULB, FOG LAMP SWITCH
84162C
BULB (FOR REAR FOG LAMP SWITCH)
84162E
CAP, FOG LAMP BULB
84172
SWITCH, ROOM LAMP
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84330B
BULB, HAZARD WARNING SIGNAL SWITCH
84480
SWITCH ASSY, MAIN
84660C
SWITCH, COOLER
84730
SWITCH ASSY, HEATER BLOWER
84730B
BULB, HEATER BLOWER SWITCH
84730D
CAP, HEATER BLOWER SWITCH BULB
84730R
SWITCH ASSY, HEATER BLOWER
84790
SWITCH ASSY, REAR WINDOW DEFOGGER
84790B
BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84870A
SWITCH ASSY, OUTER MIRROR
85500
LIGHTER ASSY, CIGARETTE
85500B
BULB, CIGARETTE LIGHTER
85500F
CAP, CIGARETTE LIGHTER BULB
85513
COVER, CIGARETTE LIGHTER
85515
STAY, CIGARETTE LIGHTER BEZEL
85520
KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85530
SOCKET ASSY, POWER OUTLET, NO.1
85533
LENS, CIGARETTE LIGHTER INDICATOR
88607C
LAMP SUB-ASSY, INDICATOR
Код
Описание

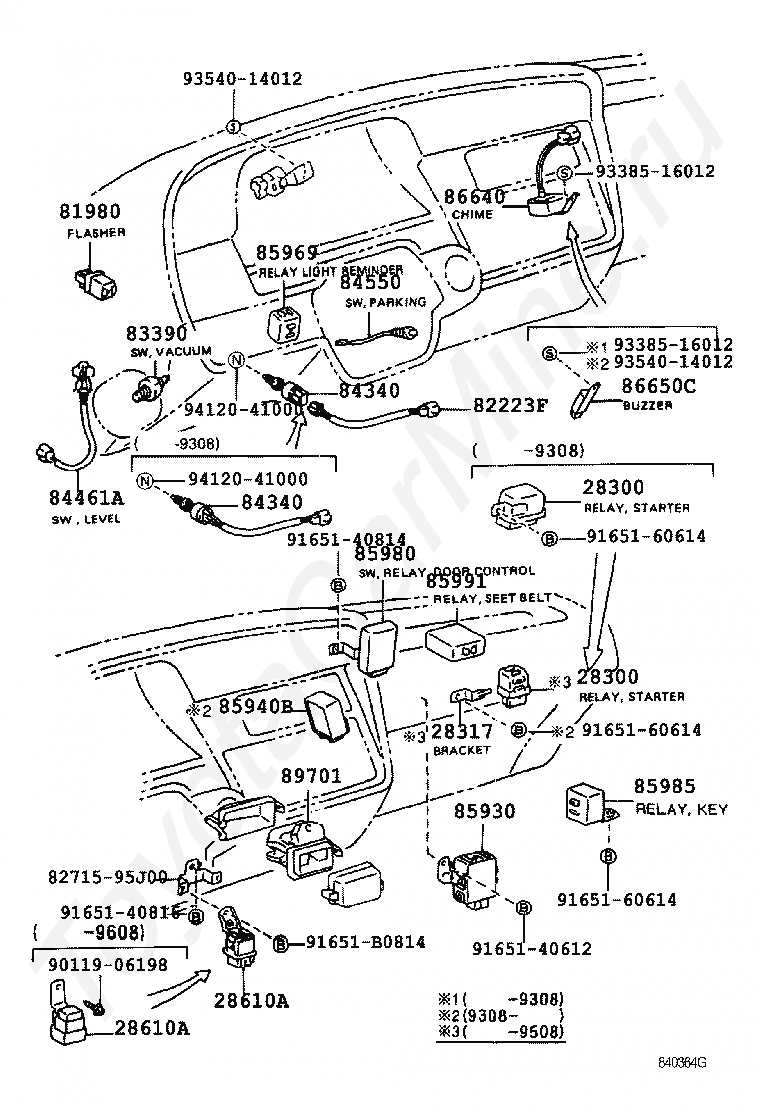

28300
RELAY ASSY, STARTER
28317
BRACKET, STARTER RELAY
28610A
RELAY ASSY, GLOW PLUG(SUB)
81980
FLASHER ASSY, TURN SIGNAL
82223F
WIRE, SWITCH
8271595J00
Крепеж
83390
SWITCH ASSY, VACUUM WARNING
84340
SWITCH ASSY, STOP LAMP
84461A
SWITCH, BRAKE RESERVOIR LEVEL WARNING
84550
SWITCH ASSY, PARKING BRAKE
85930
RELAY ASSY, POWER WINDOW
85940B
RELAY ASSY, REAR WIPER
85969
RELAY, LIGHT REMINDER
85980
RELAY ASSY, DOOR CONTROL
85985
RELAY, KEY REMINDER
85991
RELAY, SEAT BELT WARNING
86640
CHIME ASSY
86650C
BUZZER ASSY, SEDIMENTER WARNING
89701
BLOCK SUB-ASSY, ABS RELAY
9011906198
Крепеж
9165140612
Крепеж
9165140814
Крепеж
9165140816
Крепеж
9165160614
Крепеж
91651B0814
Крепеж
9338516012
Крепеж
9354014012
Крепеж
9412041000
Крепеж
Код
Описание

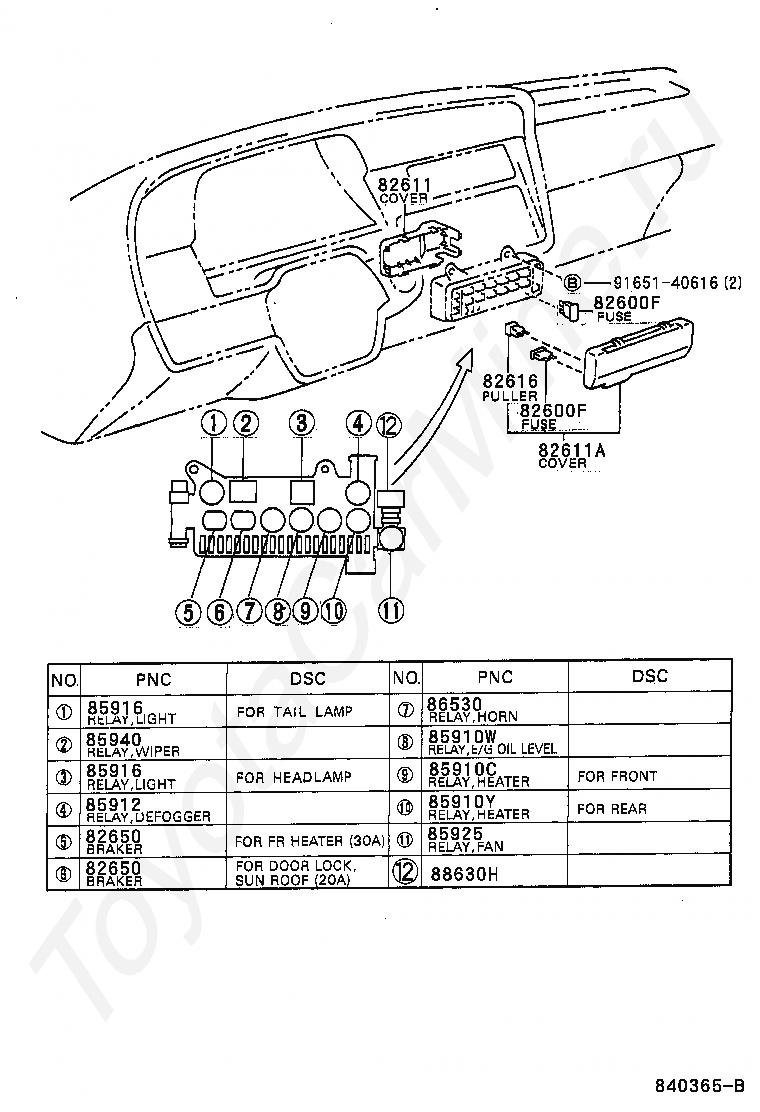

82600F
FUSE, FUSE BLOCK
82611
COVER, FUSE BLOCK
82611A
COVER, FUSE BLOCK, NO.2
82616
PULLER, FUSE
82650
BREAKER ASSY, WIRING CIRCUIT, NO.1
85910C
RELAY ASSY (FOR HEATER BLOWER MOTOR)
85910W
RELAY, OIL LEVEL
85910Y
RELAY, REAR HEATER
85912
RELAY, DEFOGGER
85916
RELAY, LIGHT CONTROL
85925
RELAY, RADIATOR FAN
85940
RELAY ASSY, WINDSHIELD WIPER
86530
RELAY ASSY, HORN
88630H
RELAY ASSY, COOLER
9165140616
Крепеж

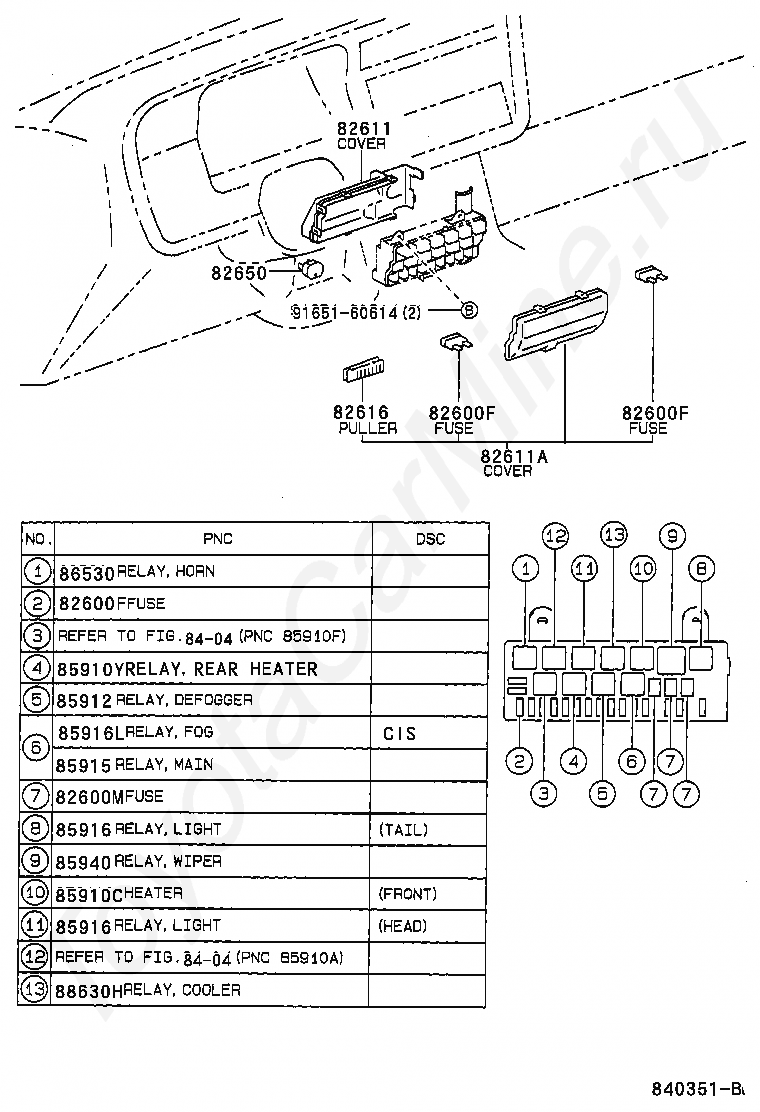

Код
Описание
82600F
FUSE, FUSE BLOCK
82600M
FUSE, MEDIUM CURRENT
82611
COVER, FUSE BLOCK
82611A
COVER, FUSE BLOCK, NO.2
82616
PULLER, FUSE
82650
BREAKER ASSY, WIRING CIRCUIT, NO.1
8404
переход к группе запчастей
85910C
RELAY ASSY (FOR HEATER BLOWER MOTOR)
85910Y
RELAY, REAR HEATER
85912
RELAY, DEFOGGER
85915
RELAY, MAIN
85916
RELAY, LIGHT CONTROL
85916L
RELAY, REAR FOG LAMP
85940
RELAY ASSY, WINDSHIELD WIPER
86530
RELAY ASSY, HORN
88630H
RELAY ASSY, COOLER
9165160614
Крепеж

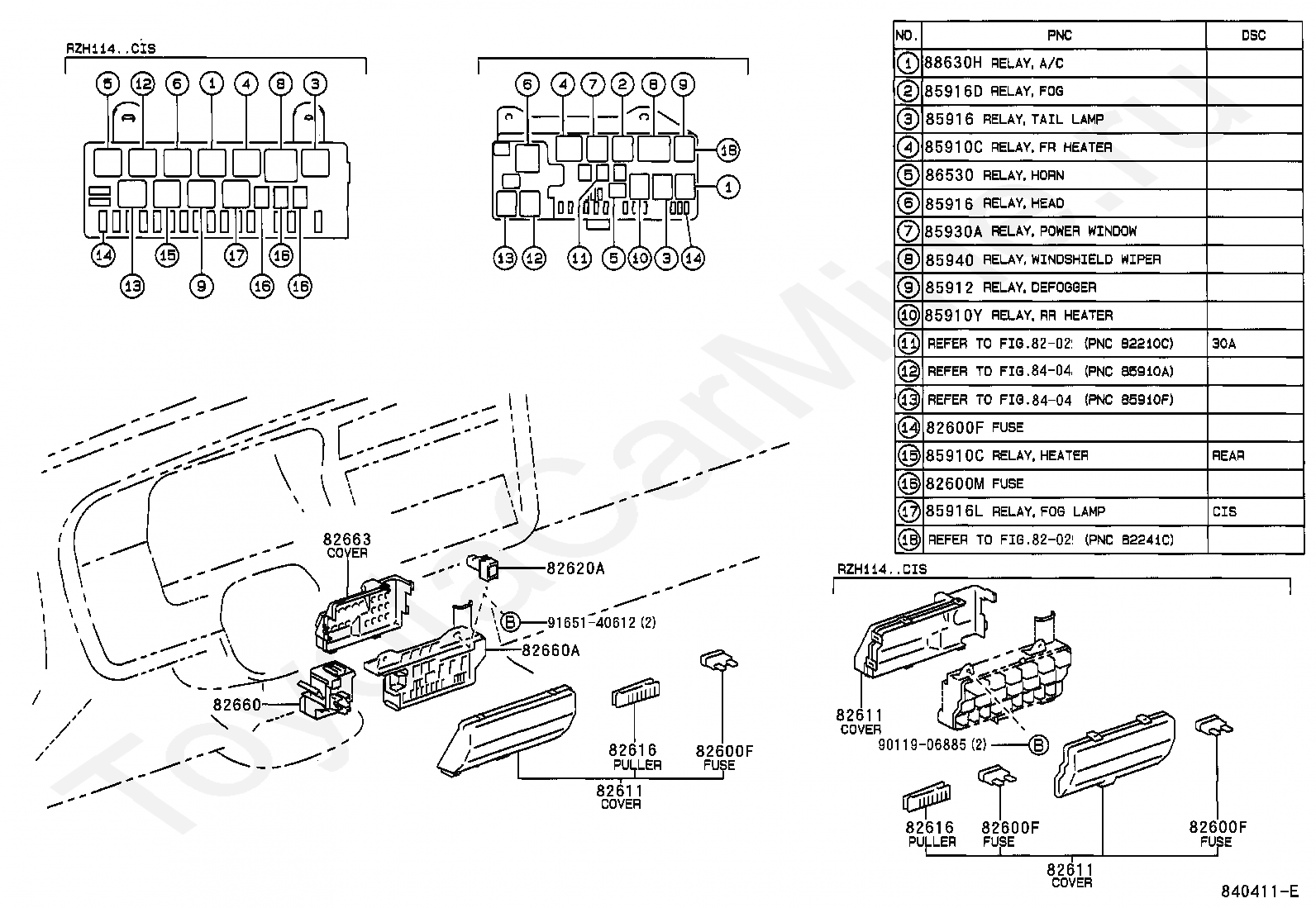

Код
Описание
8202
переход к группе запчастей
82600F
FUSE, FUSE BLOCK
82600M
FUSE, MEDIUM CURRENT
82611
COVER, FUSE BLOCK
82616
PULLER, FUSE
82620A
BLOCK ASSY, FUSIBLE LINK
82660
BLOCK ASSY, RELAY, ENGINE ROOM
82660A
BLOCK ASSY, RELAY, COWL SIDE
82663
COVER, RELAY BLOCK, LOWER
8404
переход к группе запчастей
85910C
RELAY ASSY (FOR HEATER BLOWER MOTOR)
85910Y
RELAY, REAR HEATER
85912
RELAY, DEFOGGER
85916
RELAY, LIGHT CONTROL
85916D
RELAY, FOG LAMP
85916L
RELAY, REAR FOG LAMP
85930A
RELAY ASSY, POWER WINDOW, NO.1
85940
RELAY ASSY, WINDSHIELD WIPER
86530
RELAY ASSY, HORN
88630H
RELAY ASSY, COOLER
9011906885
Крепеж
9165140612
Крепеж

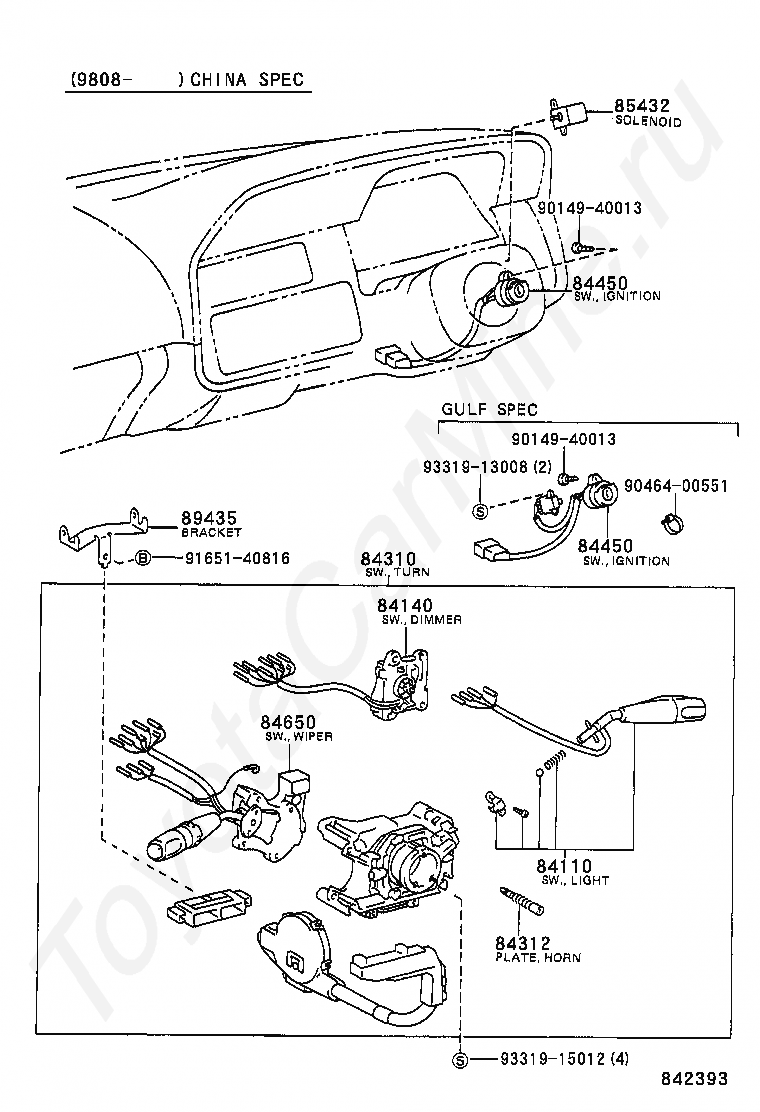

Код
Описание
84110
SWITCH ASSY, LIGHT CONTROL, NO.1
84140
SWITCH ASSY, HEADLAMP DIMMER
84310
SWITCH ASSY, TURN SIGNAL
84312
PLATE, HORN CONTACT
84450
SWITCH ASSY, IGNITION OR STARTER
84650
SWITCH ASSY, WINDSHIELD WIPER
85432
SOLENOID, KEY INTER LOCK
89435
BRACKET, CONNECTOR COVER
9014940013
Крепеж
9046400551
Крепеж
9165140816
Крепеж
9331913008
Крепеж
9331915012
Крепеж

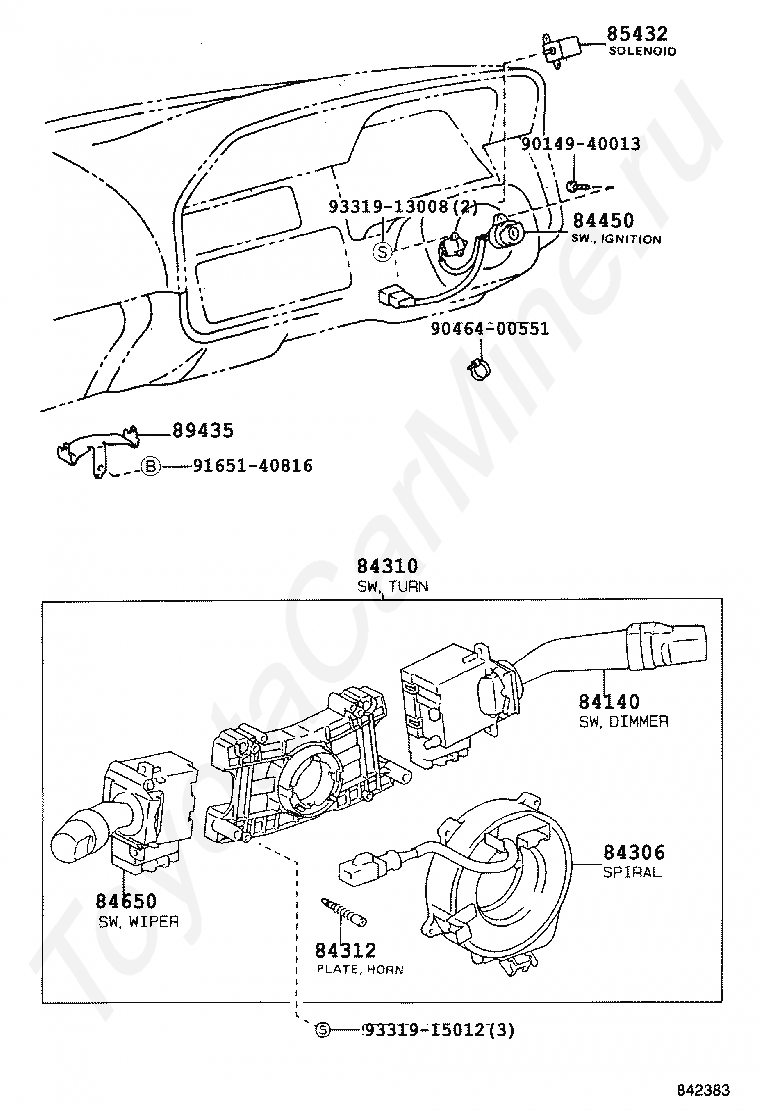

Код
Описание
84140
SWITCH ASSY, HEADLAMP DIMMER
84306
CABLE SUB-ASSY, SPIRAL
84310
SWITCH ASSY, TURN SIGNAL
84312
PLATE, HORN CONTACT
84450
SWITCH ASSY, IGNITION OR STARTER
84650
SWITCH ASSY, WINDSHIELD WIPER
85432
SOLENOID, KEY INTER LOCK
89435
BRACKET, CONNECTOR COVER
9014940013
Крепеж
9046400551
Крепеж
9165140816
Крепеж
9331913008
Крепеж
9331915012
Крепеж
Код
Описание

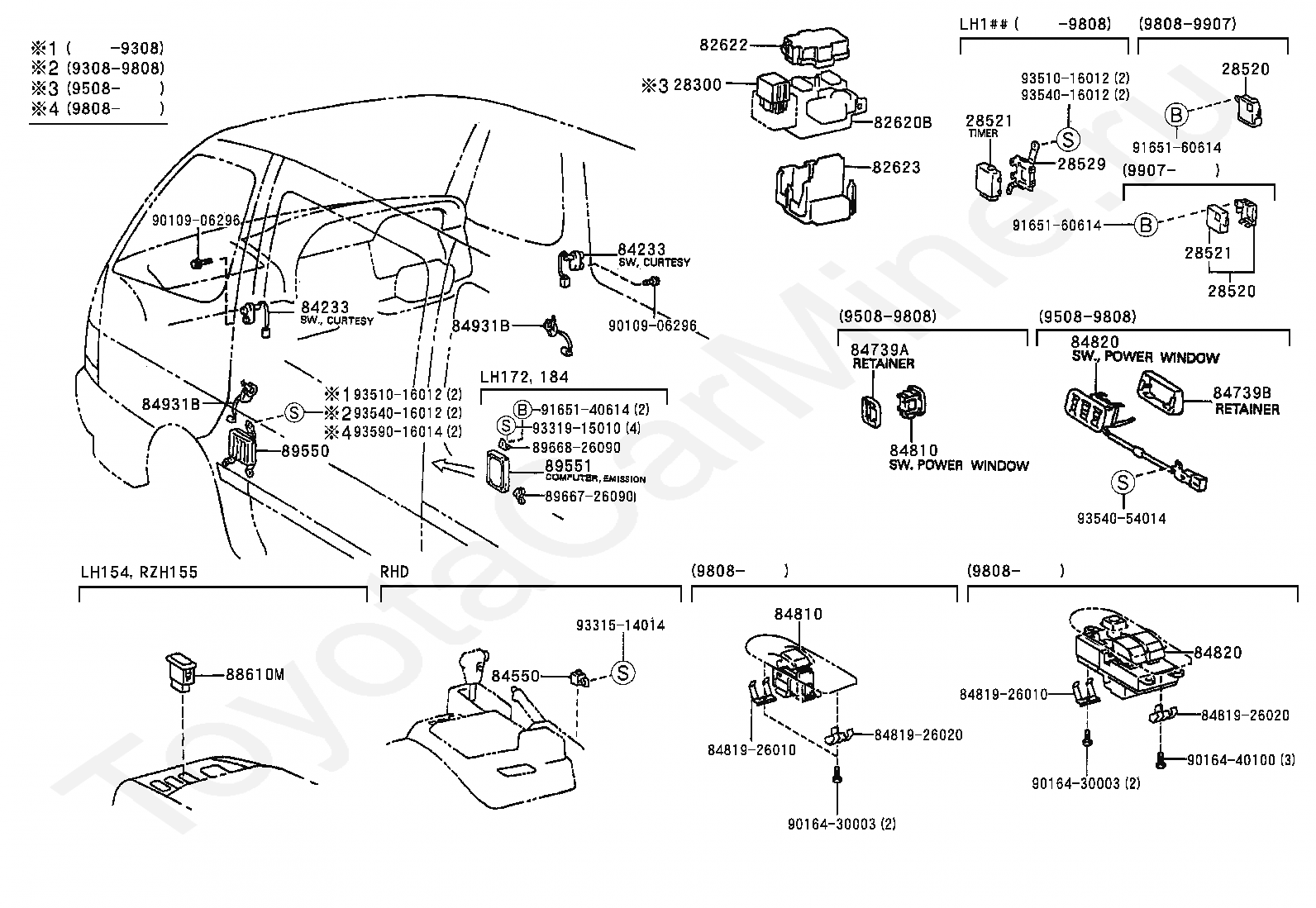

28300
RELAY ASSY, STARTER
28520
TIMER ASSY, PREHEATING
28521
TIMER, PREHEATING
28529
BRACKET, PREHEATING TIMER, NO.1
82620B
BLOCK ASSY, FUSIBLE LINK
82622
COVER, FUSIBLE LINK, UPPER
82623
COVER, FUSIBLE LINK, LOWER
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84550
SWITCH ASSY, PARKING BRAKE
84739A
RETAINER, SWITCH
84739B
RETAINER, SWITCH
84810
SWITCH ASSY, POWER WINDOW REGULATOR
8481926010
Крепеж
8481926020
Крепеж
84820
MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84931B
SWITCH, DOOR CONTROL
88610M
SWITCH ASSY, COOLER CONTROL
89550
COMPUTER ASSY, EMISSION CONTROL
89551
COMPUTER, EMISSION CONTROL
8966726090
Крепеж
8966826090
Крепеж
9010906296
Крепеж
9016430003
Крепеж
9016440100
Крепеж
9165140614
Крепеж
9165160614
Крепеж
9331514014
Крепеж
9331915010
Крепеж
9351016012
Крепеж
9354016012
Крепеж
9354054014
Крепеж
9359016014
Крепеж

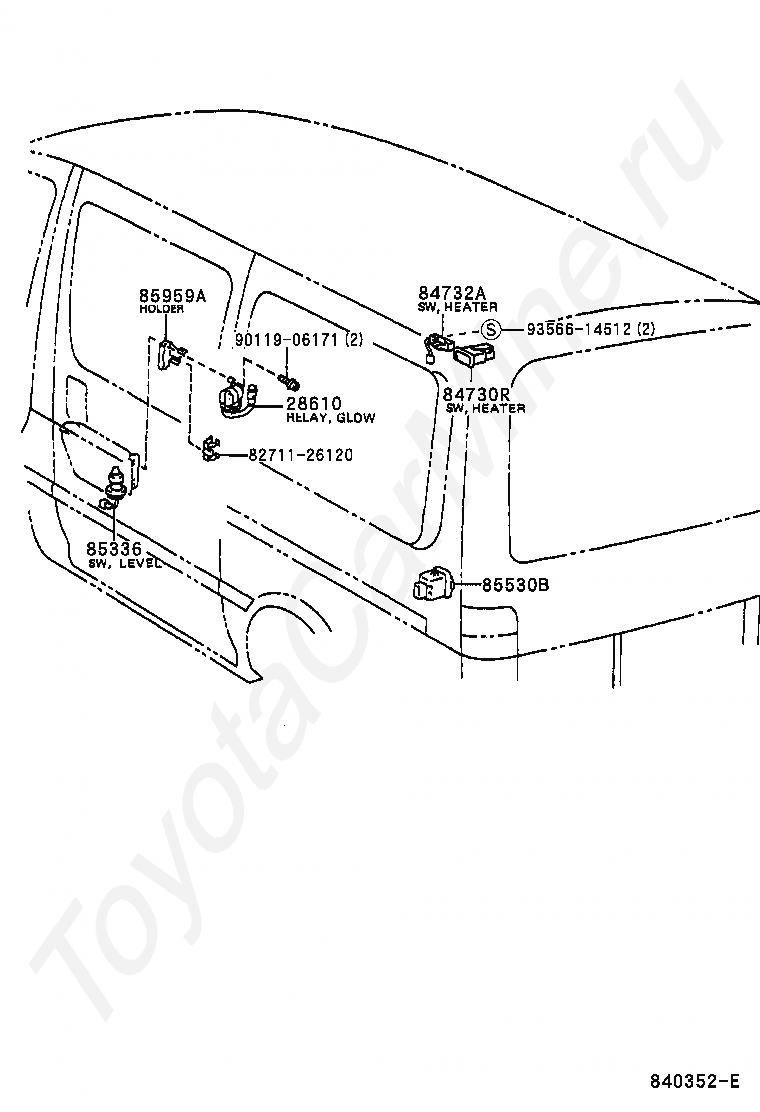

Код
Описание
28610
RELAY ASSY, INTAKE HEATER OR GLOW PLUG
8271126120
Крепеж
84730R
SWITCH ASSY, HEATER BLOWER
84732A
SWITCH, REAR HEATER BLOWER
85336
SWITCH ASSY, RESERVE TANK LEVEL WARNING
85530B
SOCKET ASSY, POWER OUTLET, REAR NO.1
85959A
HOLDER, RELAY
9011906171
Крепеж
9356614512
Крепеж
Код
Описание

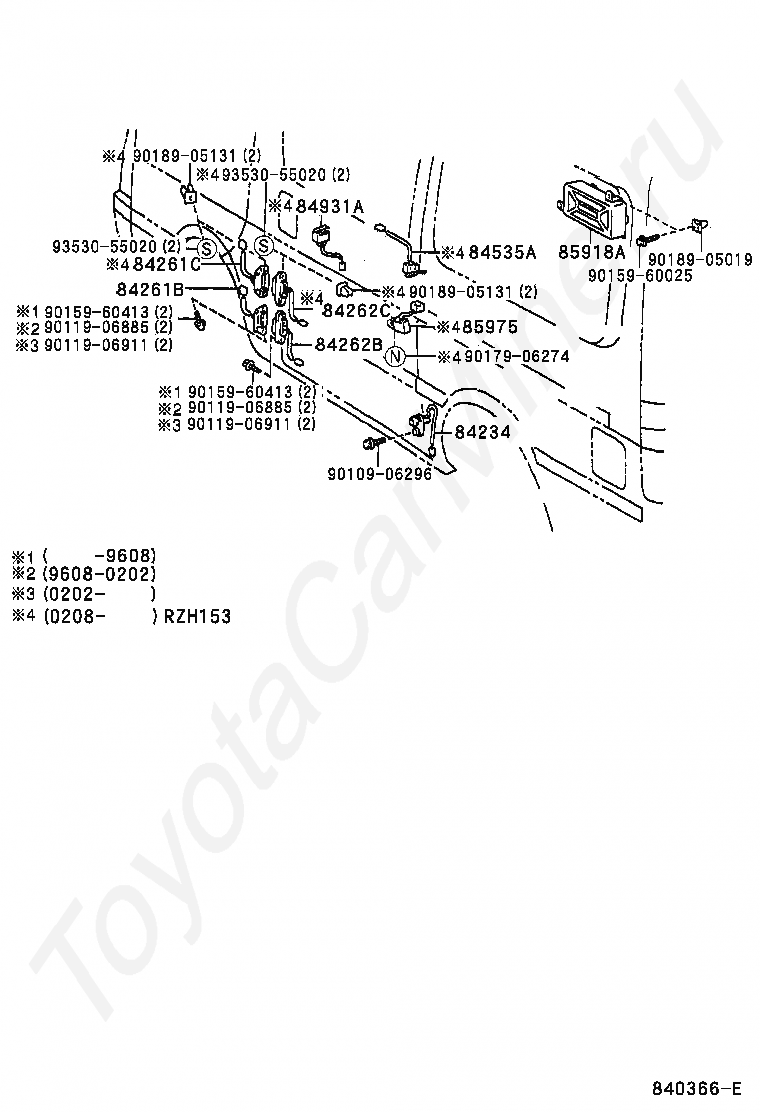

84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84261B
JUNCTION, SLIDE DOOR CONTROL,MALE
84261C
JUNCTION, SLIDE DOOR CONTROL,MALE NO.1
84262B
JUNCTION, SLIDE DOOR CONTROL, FEMALE
84262C
JUNCTION, SLIDE DOOR CONTROL, FEMALE, NO.1
84535A
SWITCH, DOOR LOCK
84931A
SWITCH, AUTOMATIC DOOR CONTROL
85918A
RELAY, DOOR CONTROL
85975
RELAY, SLIDE DOOR CLOSER
9010906296
Крепеж
9011906885
Крепеж
9011906911
Крепеж
9015960025
Крепеж
9015960413
Крепеж
9017906274
Крепеж
9018905019
Крепеж
9018905131
Крепеж
9353055020
Крепеж

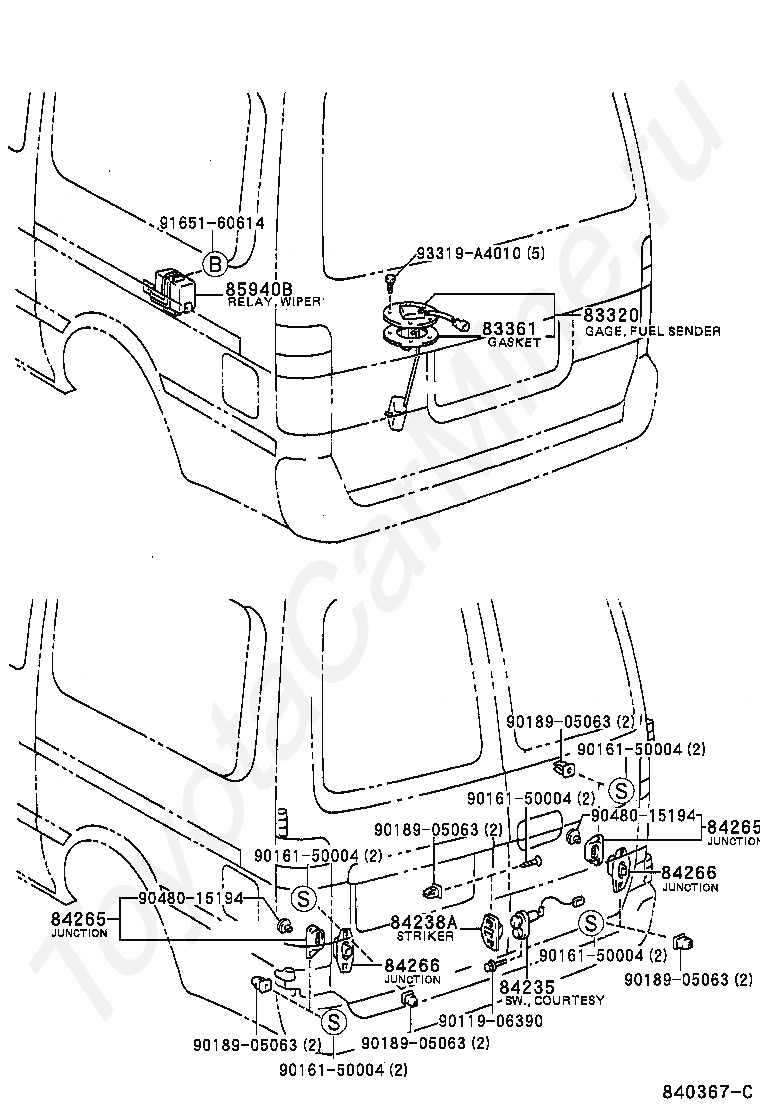

Код
Описание
83320
GAGE ASSY, FUEL SENDER
83361
GASKET, FUEL SENDER GAGE
84235
SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)
84238A
STRIKER, COURTESY LAMP SWITCH
84265
JUNCTION, BACK DOOR MALE
84266
JUNCTION, BACK DOOR FEMALE
85940B
RELAY ASSY, REAR WIPER
9011906390
Крепеж
9016150004
Крепеж
9018905063
Крепеж
9048015194
Крепеж
9165160614
Крепеж
93319A4010
Крепеж
