Каталог
ЕвропаМодель
HIACE VAN,COMMUTERДвигатель
2,4 литра, дизельКузов
V(MODEL MARK)Класс
STANDARD TYPEФрейм
LH102Трансмиссия
МКПП, 5 скоростейОпции
левый руль STANDARD ROOF 4 двери SEPARATE SEAT 03S GEN DSL

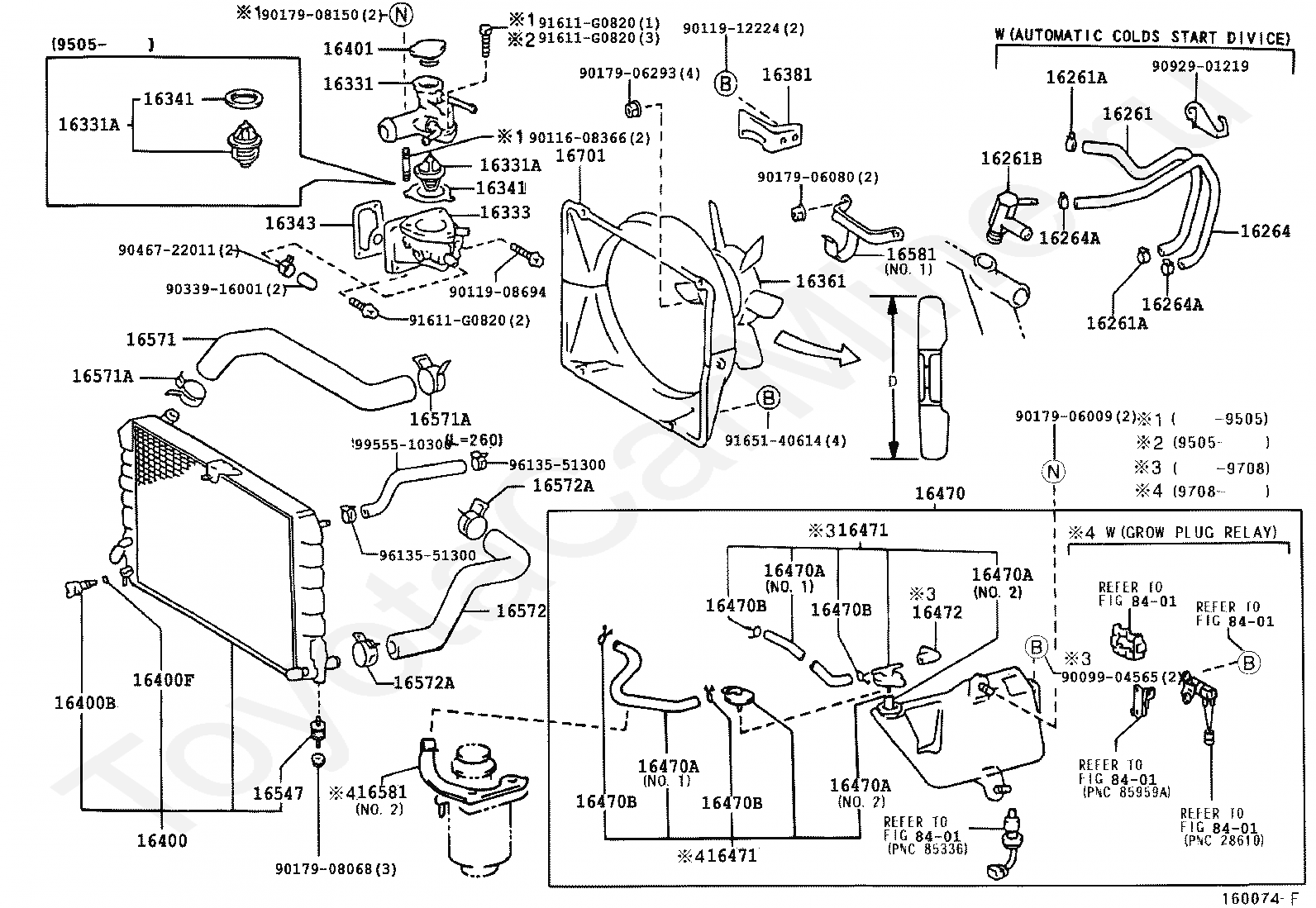

Код
Описание
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261B
UNION(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16331
OUTLET, WATER
16331A
THERMOSTAT
16333
HOUSING, WATER OUTLET
16341
GASKET, WATER OUTLET
16343
GASKET, WATER OUTLET HOUSING
16361
FAN
16381
BAR, FAN BELT ADJUSTING
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16401
CAP SUB-ASSY, RADIATOR
16470
TANK ASSY, RADIATOR RESERVE
16470A
HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471
CAP SUB-ASSY, RESERVE TANK
16472
HOSE, BREATHER
16547
BUSH, RADIATOR SUPPORT, NO.1
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16581
CLAMP, HOSE(FOR WATER HOSE)
16701
SHROUD SUB-ASSY, FAN
8401
переход к группе запчастей
9009904565
Крепеж
9011608366
Крепеж
9011908694
Крепеж
9011912224
Крепеж
9017906009
Крепеж
9017906080
Крепеж
9017906293
Крепеж
9017908068
Крепеж
9017908150
Крепеж
9033916001
Крепеж
9046722011
Крепеж
9092901219
Крепеж
91611G0820
Крепеж
9165140614
Крепеж
9613551300
Крепеж
9955510300
Крепеж

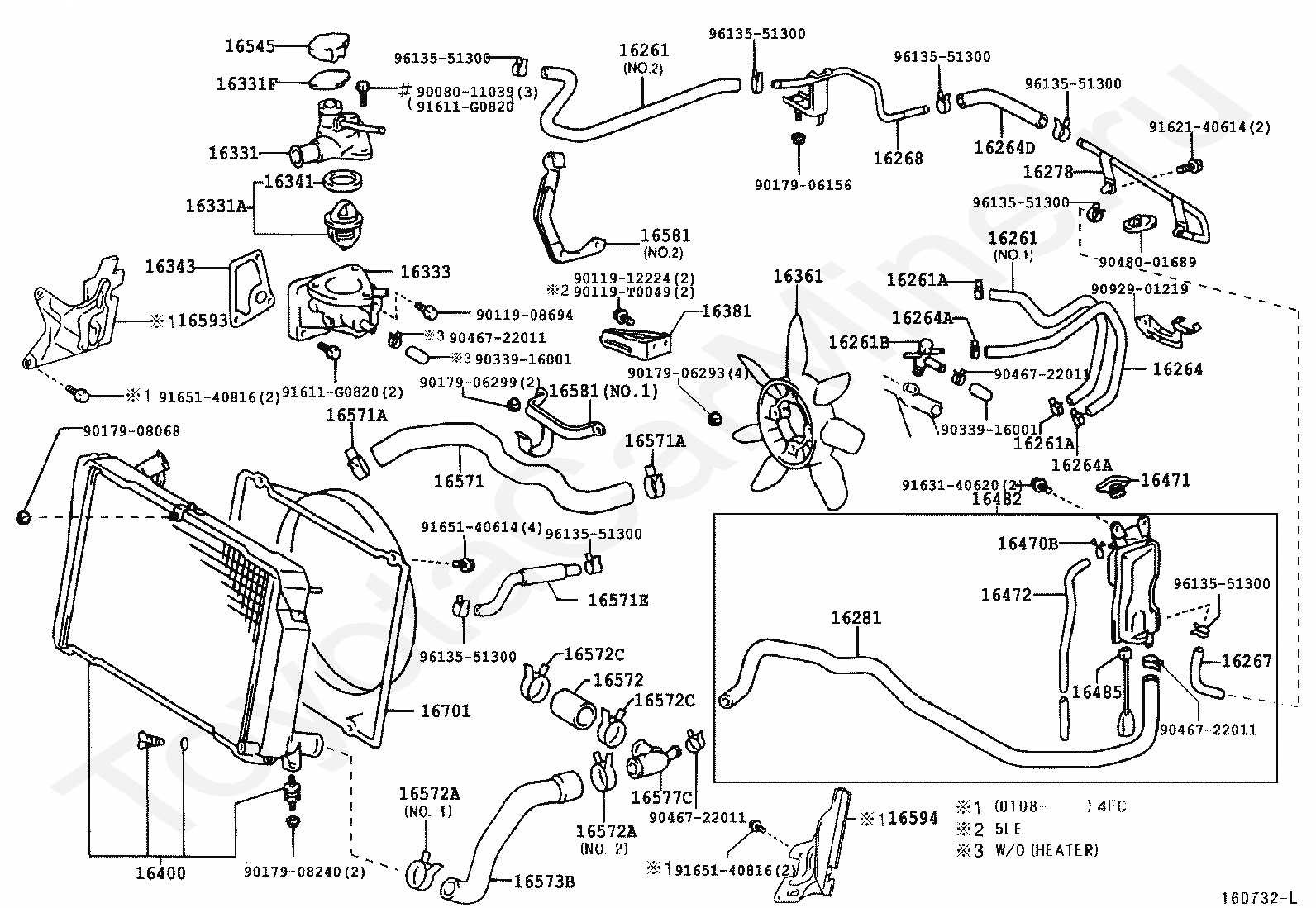

Код
Описание
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261B
UNION(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264D
HOSE, WATER BY-PASS, NO.2
16267
HOSE, WATER BY-PASS, NO.3
16268
PIPE, WATER BY-PASS, NO.1
16278
PIPE, WATER BY-PASS, NO.2
16281
HOSE, WATER BY-PASS, NO.4
16331
OUTLET, WATER
16331A
THERMOSTAT
16331F
CAP SUB-ASSY(FOR WATER OUTLET)
16333
HOUSING, WATER OUTLET
16341
GASKET, WATER OUTLET
16343
GASKET, WATER OUTLET HOUSING
16361
FAN
16381
BAR, FAN BELT ADJUSTING
16400
RADIATOR ASSY
16470B
CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471
CAP SUB-ASSY, RESERVE TANK
16472
HOSE, BREATHER
16482
TANK SUB-ASSY, RADIATOR RESERVE
16485
SWITCH ASSY, LEVEL WARNING
16545
COVER, RADIATOR CAP
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571E
HOSE, WATER
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572C
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
16573B
HOSE, RADIATOR, NO.3
16577C
PIPE, RADIATOR
16581
CLAMP, HOSE(FOR WATER HOSE)
16593
GUIDE, RADIATOR AIR, NO.1
16594
GUIDE, RADIATOR AIR, NO.2
16701
SHROUD SUB-ASSY, FAN
9008011039
Крепеж
9011908694
Крепеж
9011912224
Крепеж
90119T0049
Крепеж
9017906156
Крепеж
9017906293
Крепеж
9017906299
Крепеж
9017908068
Крепеж
9017908240
Крепеж
9033916001
Крепеж
9046722011
Крепеж
9048001689
Крепеж
9092901219
Крепеж
91611G0820
Крепеж
9162140614
Крепеж
9163140620
Крепеж
9165140614
Крепеж
9165140816
Крепеж
9613551300
Крепеж

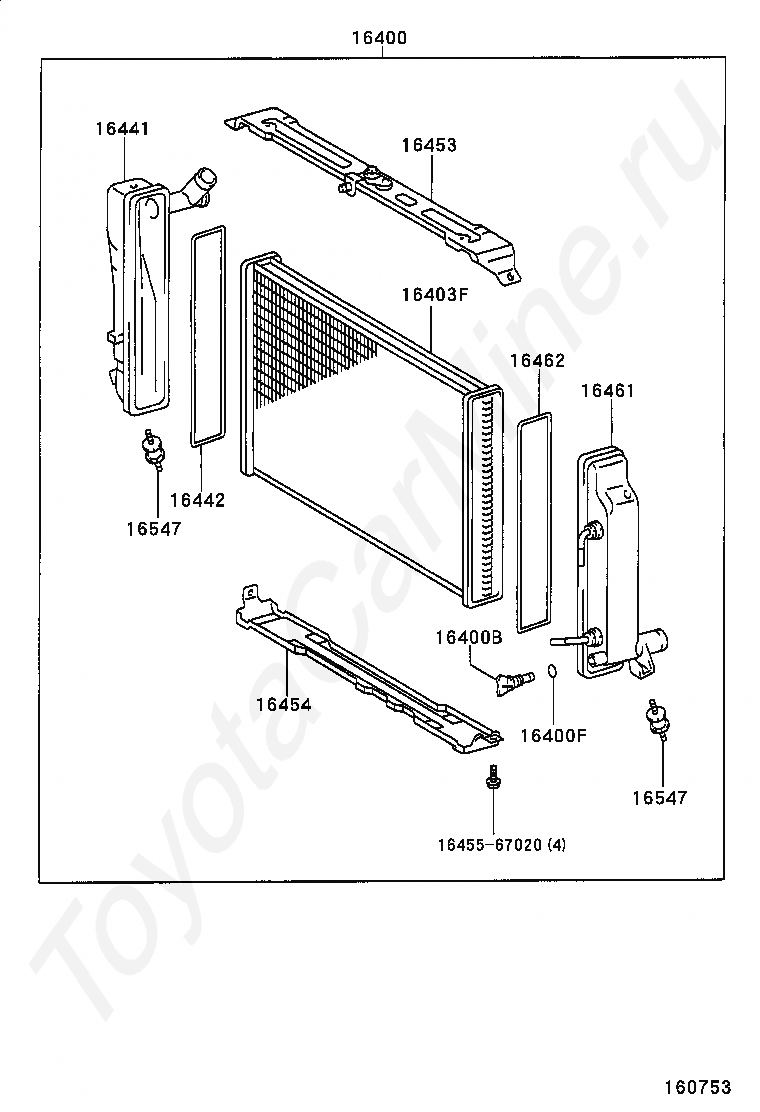

Код
Описание
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16403F
CORE SUB-ASSY, RADIATOR
16441
TANK, RADIATOR, UPPER
16442
RING, O(FOR RADIATOR UPPER TANK)
16453
PLATE, RADIATOR SIDE
16454
PLATE, RADIATOR SIDE
1645567020
Крепеж
16461
TANK, RADIATOR, LOWER
16462
RING, O(FOR RADIATOR LOWER TANK)
16547
BUSH, RADIATOR SUPPORT, NO.1
