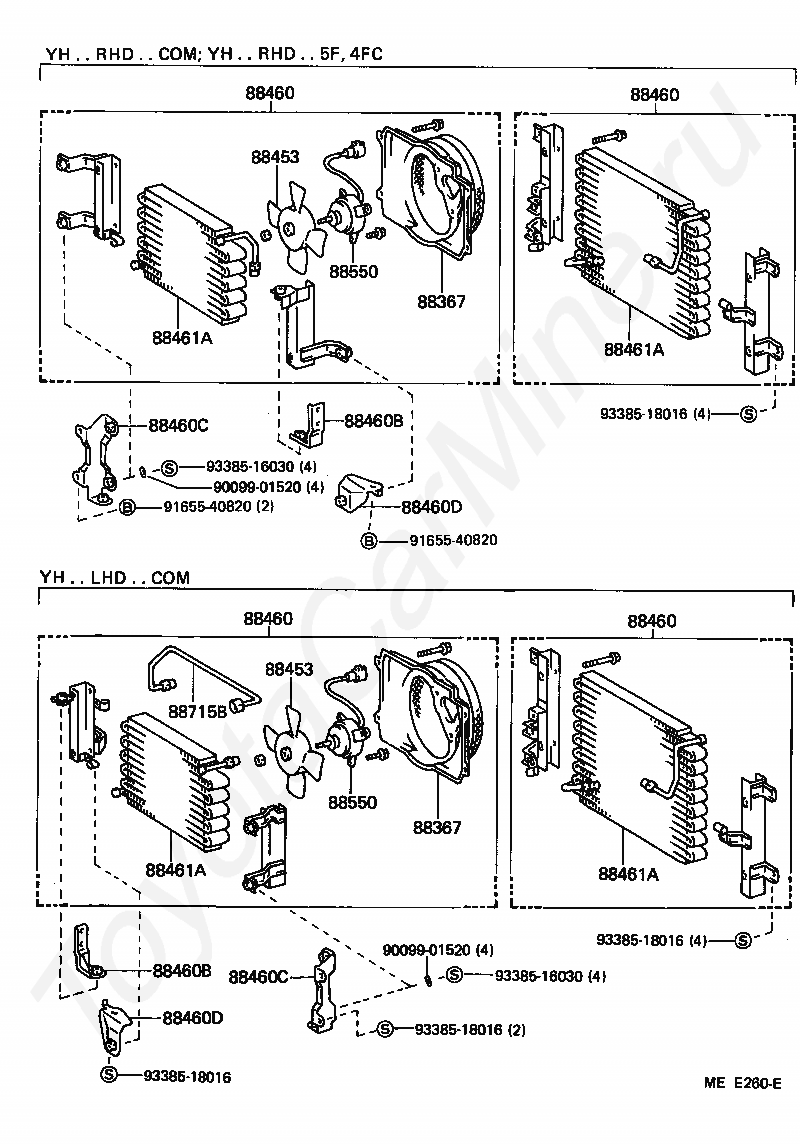

Кондиционер: охлаждающие трубки TOYOTA HIACE VAN,COMMUTER, 1986/12 - 1987/08, 2,2 литра, V(MODEL MARK), STANDARD TYPE, YH66, механика, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

HIACE VAN,COMMUTER

Двигатель

2,2 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

YH66

Трансмиссия

механика МКПП, 5 скоростей

Опции

левый руль STANDARD ROOF 4-дверный вэн SIDE GLASS VAN R EUR N1

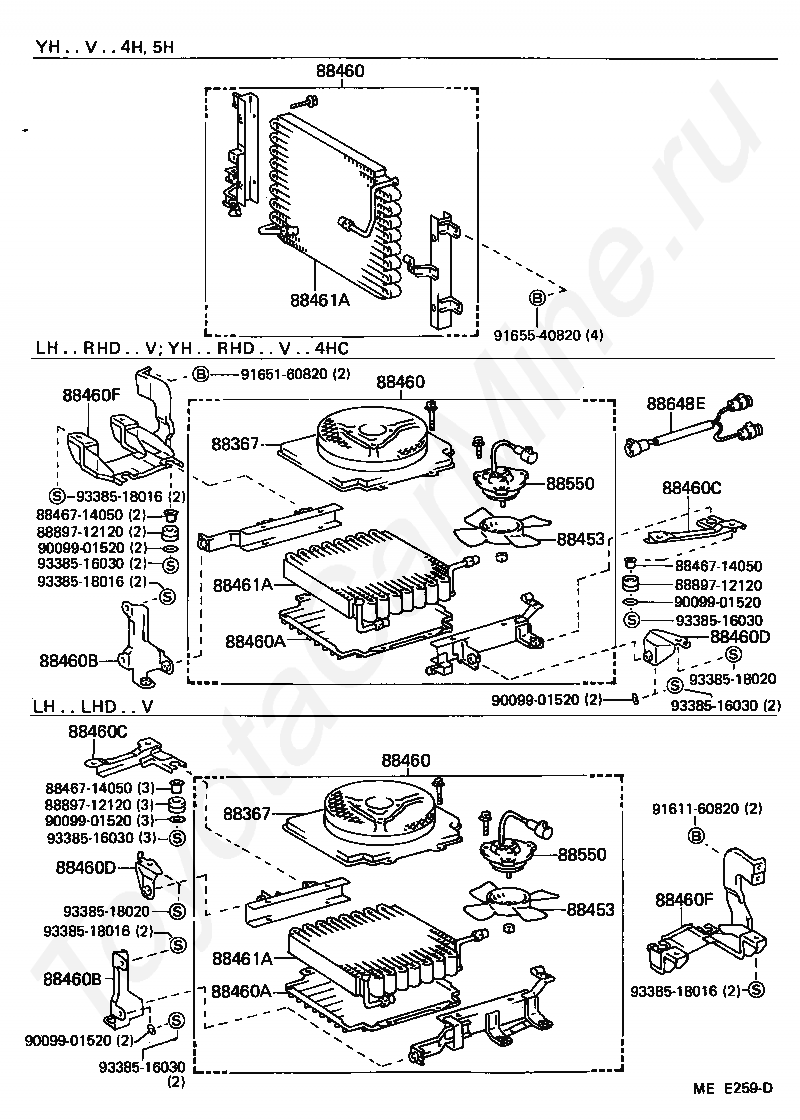

Код

Описание

88367

SHROUD, COOLER BLOWER FAN

88453

FAN, COOLING (FOR CONDENSER)

88460

CONDENSER ASSY, COOLER

88460A

COVER, COOLER CONDENSER

88460B

BRACKET, COOLER CONDENSER, NO.1

88460C

BRACKET, COOLER CONDENSER, NO.2

88460D

BRACKET, COOLER CONDENSER, NO.3

88460F

BRACKET, COOLER CONDENSER, NO.4

88461A

CORE, COOLER CONDENSER

8846714050

Крепеж

88550

MOTOR ASSY, BLOWER (FOR CONDENSER)

88648E

WIRING, COOLER

8889712120

Крепеж

9009901520

Крепеж

9161160820

Крепеж

9165160820

Крепеж

9165540820

Крепеж

9338516030

Крепеж

9338518016

Крепеж

9338518020

Крепеж

Код

Описание

88367

SHROUD, COOLER BLOWER FAN

88453

FAN, COOLING (FOR CONDENSER)

88460

CONDENSER ASSY, COOLER

88460B

BRACKET, COOLER CONDENSER, NO.1

88460C

BRACKET, COOLER CONDENSER, NO.2

88460D

BRACKET, COOLER CONDENSER, NO.3

88461A

CORE, COOLER CONDENSER

88550

MOTOR ASSY, BLOWER (FOR CONDENSER)

88715B

PIPE, COOLER REFRIGERANT DISCHARGE, B

9009901520

Крепеж

9165540820

Крепеж

9338516030

Крепеж

9338518016

Крепеж

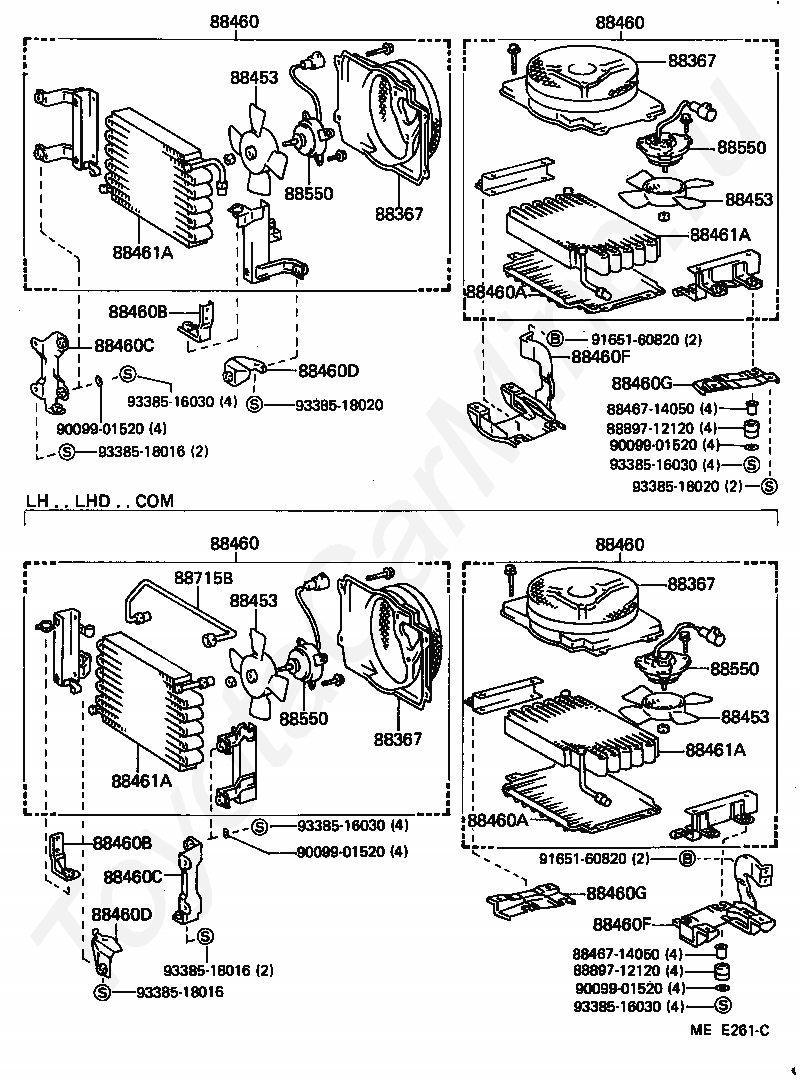

Код

Описание

88367

SHROUD, COOLER BLOWER FAN

88453

FAN, COOLING (FOR CONDENSER)

88460

CONDENSER ASSY, COOLER

88460A

COVER, COOLER CONDENSER

88460B

BRACKET, COOLER CONDENSER, NO.1

88460C

BRACKET, COOLER CONDENSER, NO.2

88460D

BRACKET, COOLER CONDENSER, NO.3

88460F

BRACKET, COOLER CONDENSER, NO.4

88460G

BRACKET, COOLER CONDENSER, NO.5

88461A

CORE, COOLER CONDENSER

8846714050

Крепеж

88550

MOTOR ASSY, BLOWER (FOR CONDENSER)

88715B

PIPE, COOLER REFRIGERANT DISCHARGE, B

8889712120

Крепеж

9009901520

Крепеж

9165160820

Крепеж

9338516030

Крепеж

9338518016

Крепеж

9338518020

Крепеж

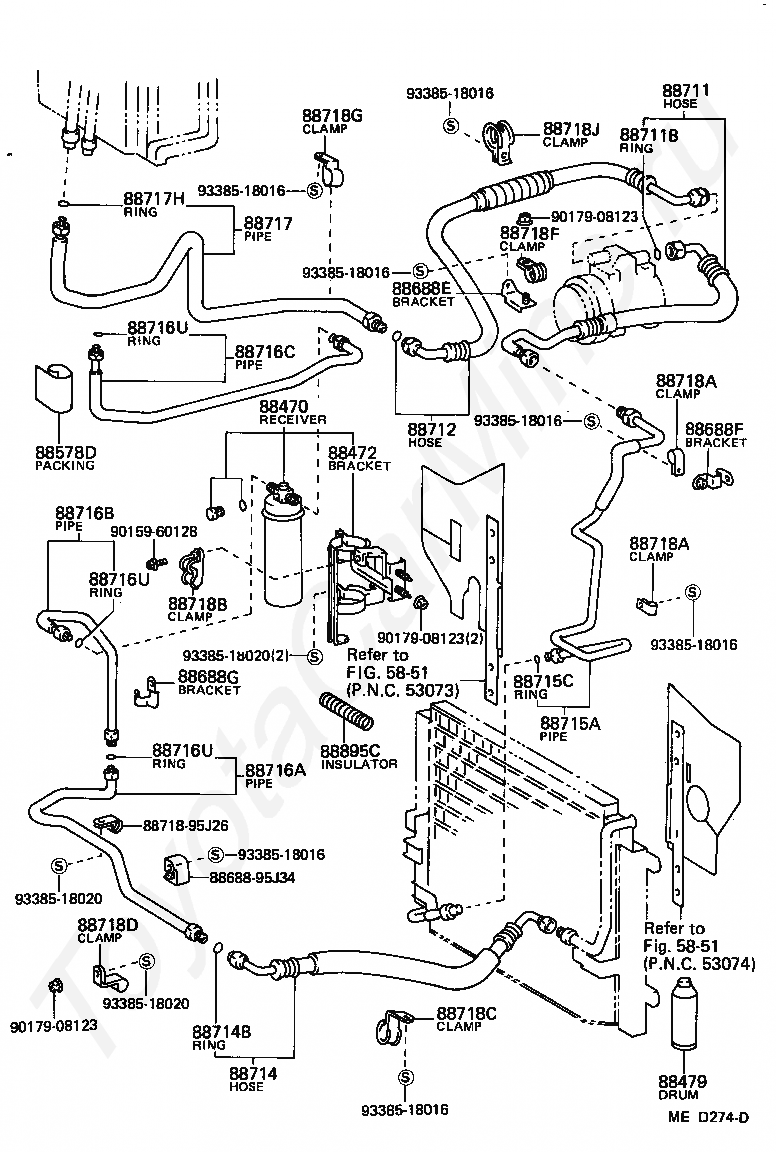

Код

Описание

5851

переход к группе запчастей

88470

RECEIVER & DRYER ASSY, COOLER

88472

BRACKET, RECEIVER TANK, NO.1

88479

FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

88578D

PACKING, COOLER PIPE, NO.1

8868895J34

Крепеж

88688E

BRACKET, COOLER REFRIGERANT HOSE, NO.1

88688F

BRACKET, COOLER REFRIGERANT HOSE, NO.2

88688G

BRACKET, COOLER REFRIGERANT PIPE

88711

HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88711B

RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)

88712

HOSE, COOLER REFRIGERANT SUCTION, NO.1

88714

HOSE, COOLER REFRIGERANT LIQUID, NO.1

88714B

RING, O(FOR COOLER REFRIGERANT LIQUID HOSE)

88715A

PIPE, COOLER REFRIGERANT DISCHARGE, A

88715C

RING, O(FOR COOLER REFRIGERANT DISCHARGE PIPE)

88716A

PIPE, COOLER REFRIGERANT LIQUID, A

88716B

PIPE, COOLER REFRIGERANT LIQUID, B

88716C

PIPE, COOLER REFRIGERANT LIQUID, C

88716U

RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

88717

PIPE, COOLER REFRIGERANT SUCTION, NO.1

88717H

RING, O(FOR COOLER REFRIGERANT SUCTION PIPE)

8871895J26

Крепеж

88718A

CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

88718B

CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

88718C

CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

88718D

CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)

88718F

CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)

88718G

CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)

88718J

CLAMP, NO.4(FOR COOLER REFRIGERANT HOSE)

88895C

INSULATOR, HOSE

9015960128

Крепеж

9017908123

Крепеж

9338518016

Крепеж

9338518020

Крепеж

Кондиционер: охлаждающие трубки TOYOTA HIACE VAN,COMMUTER, 1986/12 - 1987/08, 2,2 литра, V(MODEL MARK), STANDARD TYPE, YH66, механика, МКПП, 5 скоростей
