Каталог
Ближний ВостокМодель
HIACE VAN,COMMUTERДвигатель
2,2 литраКузов
V(MODEL MARK)Класс
STANDARD TYPEФрейм
YH66Трансмиссия
механика МКПП, 5 скоростейОпции
левый руль STANDARD ROOF 4-дверный вэн SIDE GLASS VAN R EUR N1

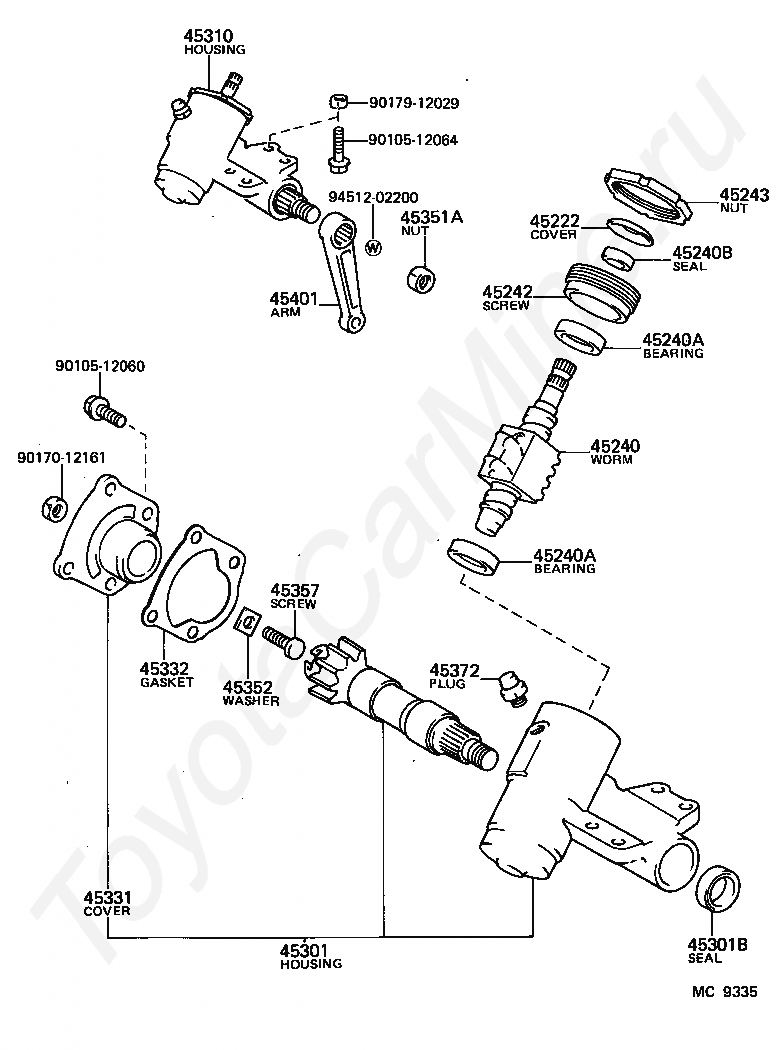

Код
Описание
45222
COVER, STEERING GEAR DUST
45240
WORM ASSY, STEERING
45240A
BEARING(FOR STEERING WORM)
45240B
SEAL, OIL(FOR STEERING WORM)
45242
SCREW, WORM BEARING ADJUSTING
45243
NUT, WORM BEARING ADJUSTING SCREW LOCK
45301
HOUSING SUB-ASSY, STEERING GEAR
45301B
SEAL, OIL(FOR SECTOR SHAFT)
45310
HOUSING ASSY, STEERING GEAR
45331
COVER, SECTOR SHAFT END
45332
GASKET, SECTOR SHAFT END COVER
45351A
NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45352
WASHER, SECTOR SHAFT THRUST
45357
SCREW, SECTOR SHAFT ADJUSTING
45372
PLUG, STEERING GEAR HOUSING OIL
45401
ARM SUB-ASSY, PITMAN
9010512060
Крепеж
9010512064
Крепеж
9017012161
Крепеж
9017912029
Крепеж
9451202200
Крепеж

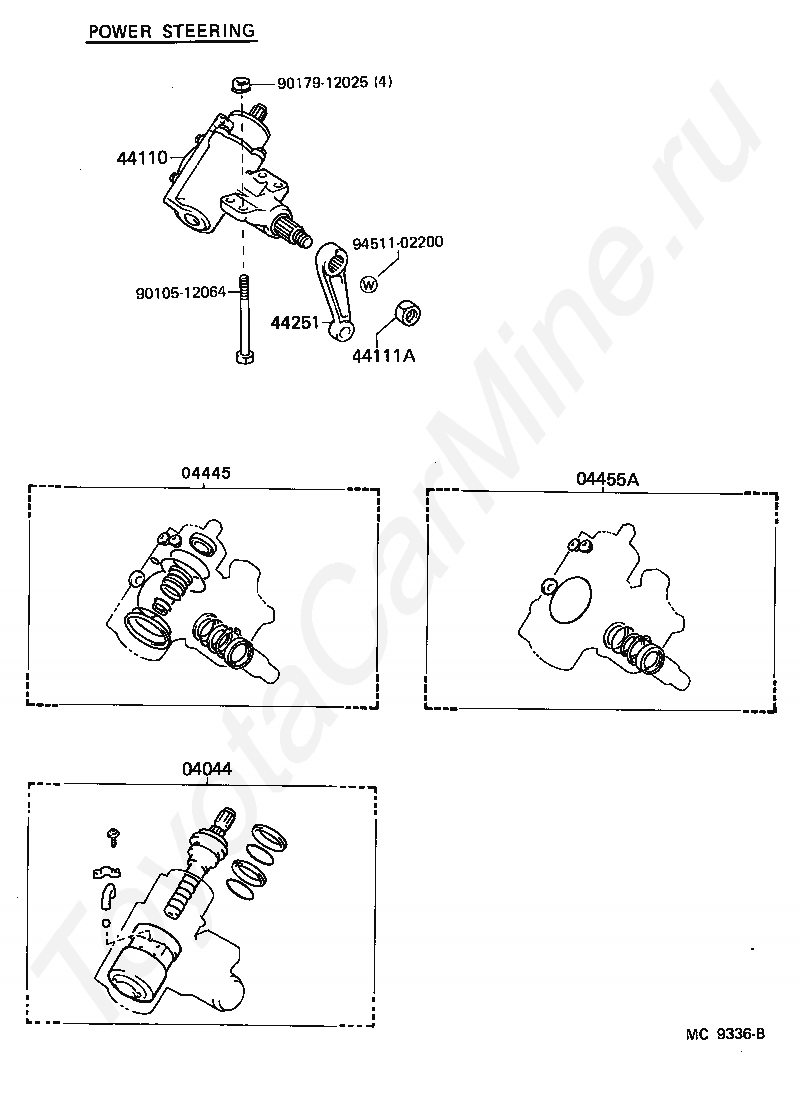

Код
Описание
04044
WARM KIT, POWER STEERING
04445
GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)
04455A
GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE
44110
GEAR ASSY, POWER STEERING
44111A
NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)
44251
ARM, PITMAN
9010512064
Крепеж
9017912025
Крепеж
9451102200
Крепеж

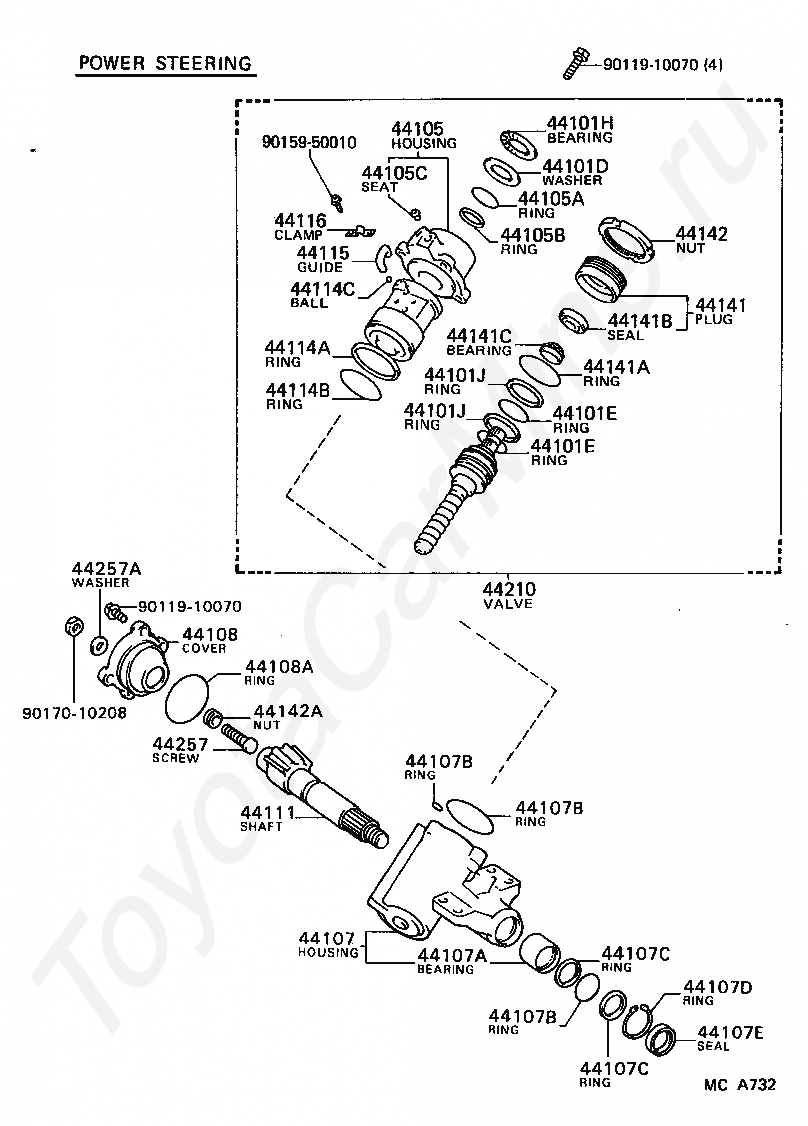

Код
Описание
44101D
WASHER, PLATE(FOR STEERING WORM)
44101E
RING, O(FOR STEERING WORM)
44101H
BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM)
44101J
RING(FOR STEERING WORM)
44105
HOUSING SUB-ASSY, VALVE
44105A
RING, O(FOR VALVE HOUSING)
44105B
RING(FOR VALVE HOUSING)
44105C
SEAT, UNION(FOR VALVE BODY HOUSING)
44107
HOUSING SUB-ASSY, POWER STEERING GEAR
44107A
BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)
44107B
RING, O(FOR POWER STEERING GEAR HOUSING)
44107C
RING(FOR POWER STEERING GEAR HOUSING)
44107D
RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)
44107E
SEAL, OIL(FOR POWER STEERING GEAR HOUSING)
44108
COVER SUB-ASSY, SIDE
44108A
RING, O(FOR SIDE COVER)
44111
SHAFT, CROSS
44114A
RING(FOR POWER PISTON NUT)
44114B
RING, O(FOR POWER PISTON NUT)
44114C
BALL(FOR POWER PISTON NUT)
44115
GUIDE, BALL
44116
CLAMP, BALL GUIDE
44141
PLUG, ADJUSTER
44141A
RING, O(FOR ADJUSTER PLUG)
44141B
SEAL, OIL(FOR ADJUSTER PLUG)
44141C
BEARING(FOR ADJUSTER PLUG)
44142
NUT, LOCK
44142A
NUT, LOCK, NO.1
44210
VALVE ASSY, POWER STEERING CONTROL
44257
SCREW, CROSS SHAFT ADJUSTING
44257A
WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW)
9011910070
Крепеж
9015950010
Крепеж
9017010208
Крепеж

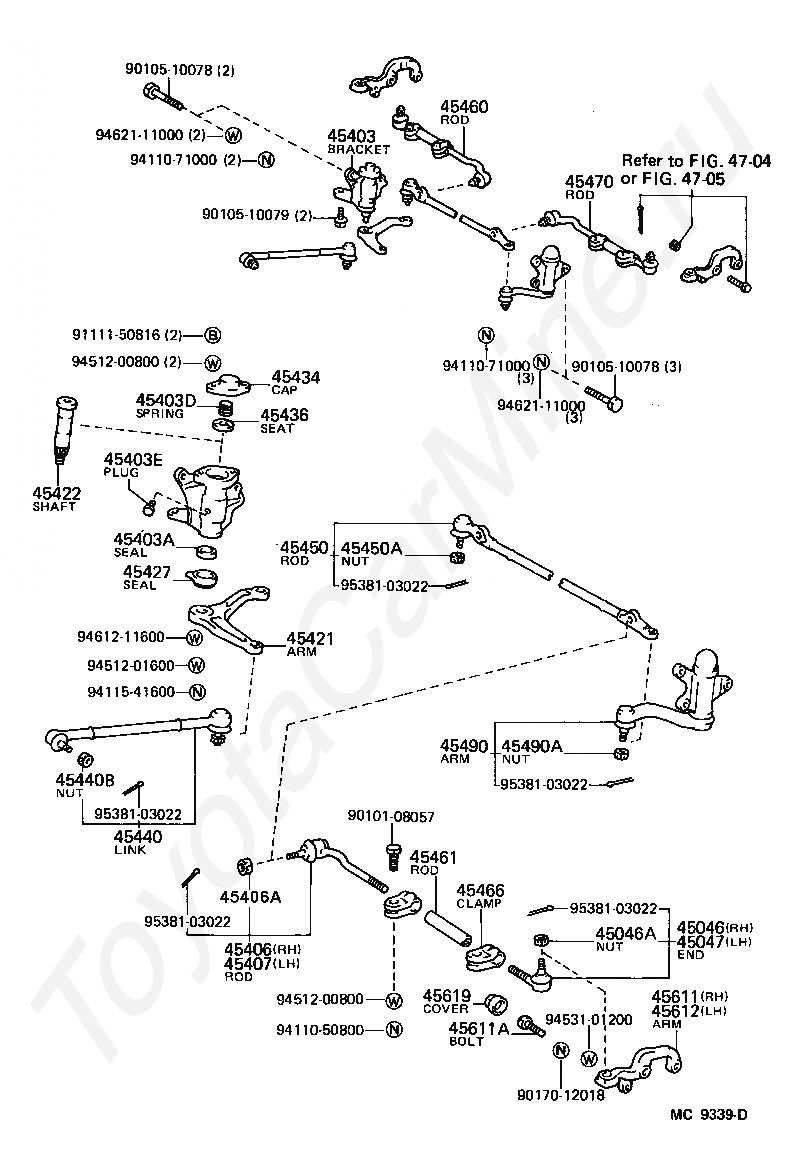

Код
Описание
45046
END SUB-ASSY, TIE ROD, RH
45046A
NUT, CASTLE(FOR TIE ROD END)
45047
END SUB-ASSY, TIE ROD, LH
45403
BRACKET SUB-ASSY, CENTER ARM
45403A
SEAL, OIL(FOR CENTER ARM BRACKET)
45403D
SPRING, COMPRESSION(FOR CENTER ARM SHAFT SET)
45403E
PLUG, W/HEAD TAPER SCREW(FOR CENTER ARM SHAFT)
45406
ROD SUB-ASSY, TIE, RH
45406A
NUT, CASTLE(FOR TIE ROD)
45407
ROD SUB-ASSY, TIE, LH
45421
ARM, STEERING CENTER
45422
SHAFT, CENTER ARM
45427
SEAL, CENTER ARM DUST, LOWER
45434
CAP, CENTER ARM BRACKET
45436
SEAT, CENTER ARM SHAFT
45440
LINK ASSY, STEERING DRAG
45440B
NUT, CASTLE(FOR STEERING DRAG LINK)
45450
ROD ASSY, STEERING RELAY
45450A
NUT, CASTLE(FOR RELAY ROD)
45460
ROD ASSY, TIE, RH
45461
ROD, STEERING TIE
45466
CLAMP, TIE ROD END
45470
ROD ASSY, TIE, LH
45490
ARM ASSY, STEERING IDLER
45490A
NUT, CASTLE(FOR IDLER ARM)
45611
ARM, STEERING KNUCKLE, RH
45611A
BOLT, KNUCKLE STOPPER
45612
ARM, STEERING KNUCKLE, LH
45619
COVER, KNUCKLE STOPPER
4704
переход к группе запчастей
4705
переход к группе запчастей
9010108057
Крепеж
9010510078
Крепеж
9010510079
Крепеж
9017012018
Крепеж
9111150816
Крепеж
9411050800
Крепеж
9411071000
Крепеж
9411541600
Крепеж
9451200800
Крепеж
9451201600
Крепеж
9453101200
Крепеж
9461211600
Крепеж
9462111000
Крепеж
9538103022
Крепеж

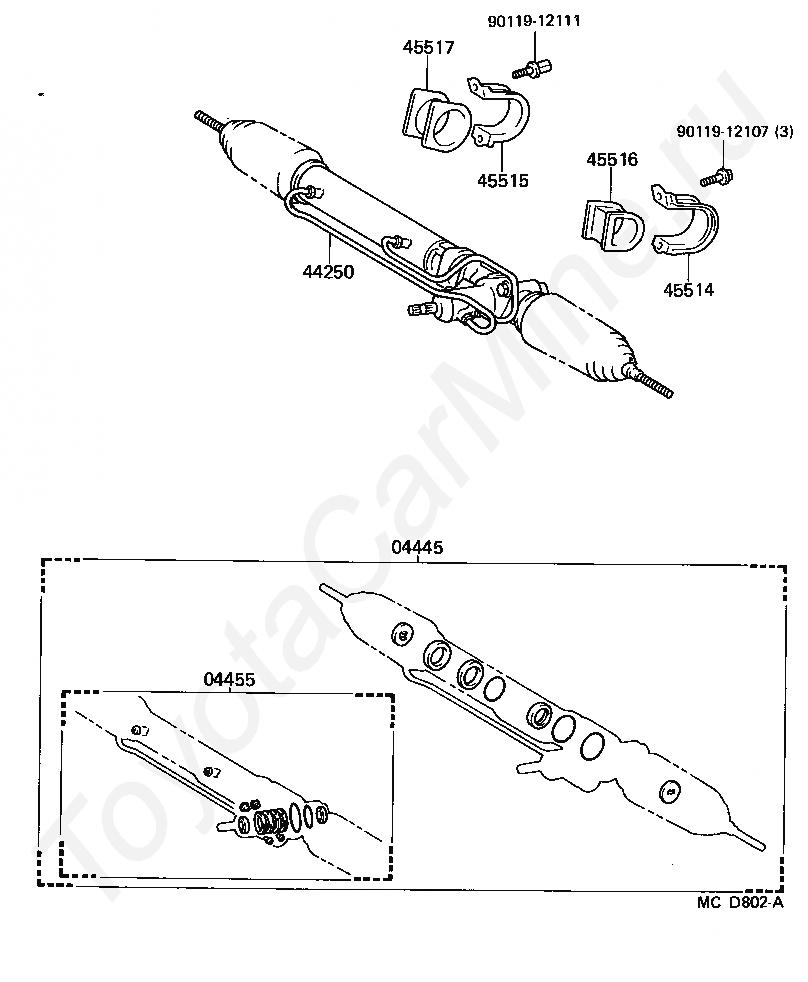

Код
Описание
04445
GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)
04455
GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
44250
GEAR ASSY, POWER STEERING(FOR RACK & PINION)
45514
BRACKET, STEERING RACK HOUSING, NO.1
45515
BRACKET, STEERING RACK HOUSING, NO.2
45516
GROMMET, STEERING RACK HOUSING, NO.1
45517
GROMMET, STEERING RACK HOUSING, NO.2
9011912107
Крепеж
9011912111
Крепеж

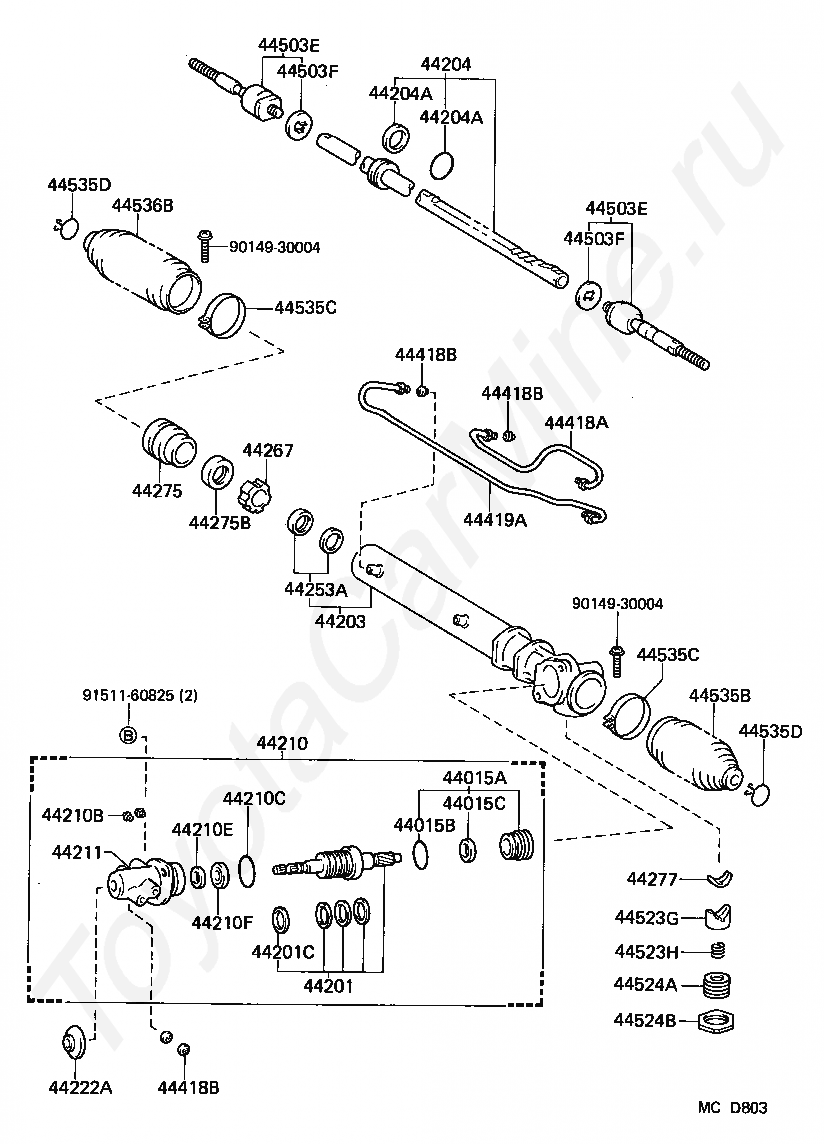

Код
Описание
44015A
NUT SUB-ASSY, BEARING GUIDE
44015B
RING, O(FOR BEARING GUIDE NUT)
44015C
SEAL, OIL(FOR BEARING GUIDE NUT)
44201
VALVE SUB-ASSY, POWER STEERING CONTROL
44201C
RING(FOR POWER STEERING CONTROL VALVE)
44203
HOUSING SUB-ASSY, POWER STEERING RACK
44204
RACK SUB-ASSY, POWER STEERING
44204A
RING(FOR RACK STEERING PISTON)
44210
VALVE ASSY, POWER STEERING CONTROL
44210B
SEAT, UNION(FOR POWER STEERING CONTROL VALVE)
44210C
RING, O(FOR POWER STEERING CONTROL VALVE)
44210E
SEAL, OIL(FOR POWER STEERING CONTROL VALVE)
44210F
BEARING(FOR POWER STEERING CONTROL VALVE)
44211
HOUSING, CONTROL VALVE
44222A
COVER, DUST(FOR POWER STEERING GEAR)
44253A
SEAL, OIL(FOR POWER STEERING RACK HOUSING)
44267
GUIDE, RACK END
44275
STOPPER, CYLINDER END
44275B
SEAL, OIL(FOR CYLINDER END STOPPER)
44277
SEAT, RACK GUIDE
44418A
TUBE, STEERING RIGHT TURN PRESSURE
44418B
SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)
44419A
TUBE, STEERING LEFT TURN PRESSURE
44503E
END SUB-ASSY, STEERING RACK(FOR POWER STEERING)
44503F
WASHER, CLAW(FOR POWER STEERING RACK END)
44523G
GUIDE, RACK(FOR POWER STEERING)
44523H
SPRING(FOR POWER STEERING RACK GUIDE)
44524A
CAP, RACK GUIDE SPRING(FOR POWER STEERING)
44524B
NUT(FOR POWER STEERING RACK GUIDE CAP)
44535B
BOOT, STEERING RACK NO.1(FOR POWER STEERING)
44535C
CLAMP(FOR POWER STEERING RACK BOOT)
44535D
CLIP(FOR POWER STEERING RACK BOOT)
44536B
BOOT, STEERING RACK NO.2(FOR POWER STEERING)
9014930004
Крепеж
9151160825
Крепеж

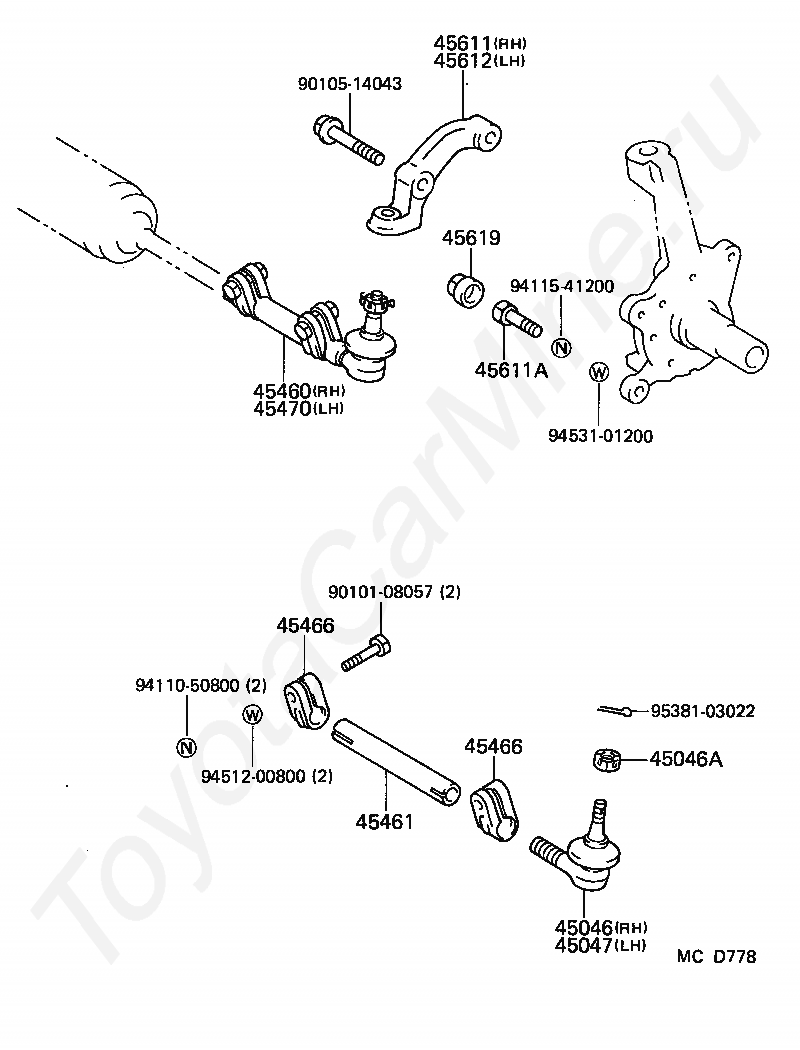

Код
Описание
45046
END SUB-ASSY, TIE ROD, RH
45046A
NUT, CASTLE(FOR TIE ROD END)
45047
END SUB-ASSY, TIE ROD, LH
45460
ROD ASSY, TIE, RH
45461
ROD, STEERING TIE
45466
CLAMP, TIE ROD END
45470
ROD ASSY, TIE, LH
45611
ARM, STEERING KNUCKLE, RH
45611A
BOLT, KNUCKLE STOPPER
45612
ARM, STEERING KNUCKLE, LH
45619
COVER, KNUCKLE STOPPER
9010108057
Крепеж
9010514043
Крепеж
9411050800
Крепеж
9411541200
Крепеж
9451200800
Крепеж
9453101200
Крепеж
9538103022
Крепеж
