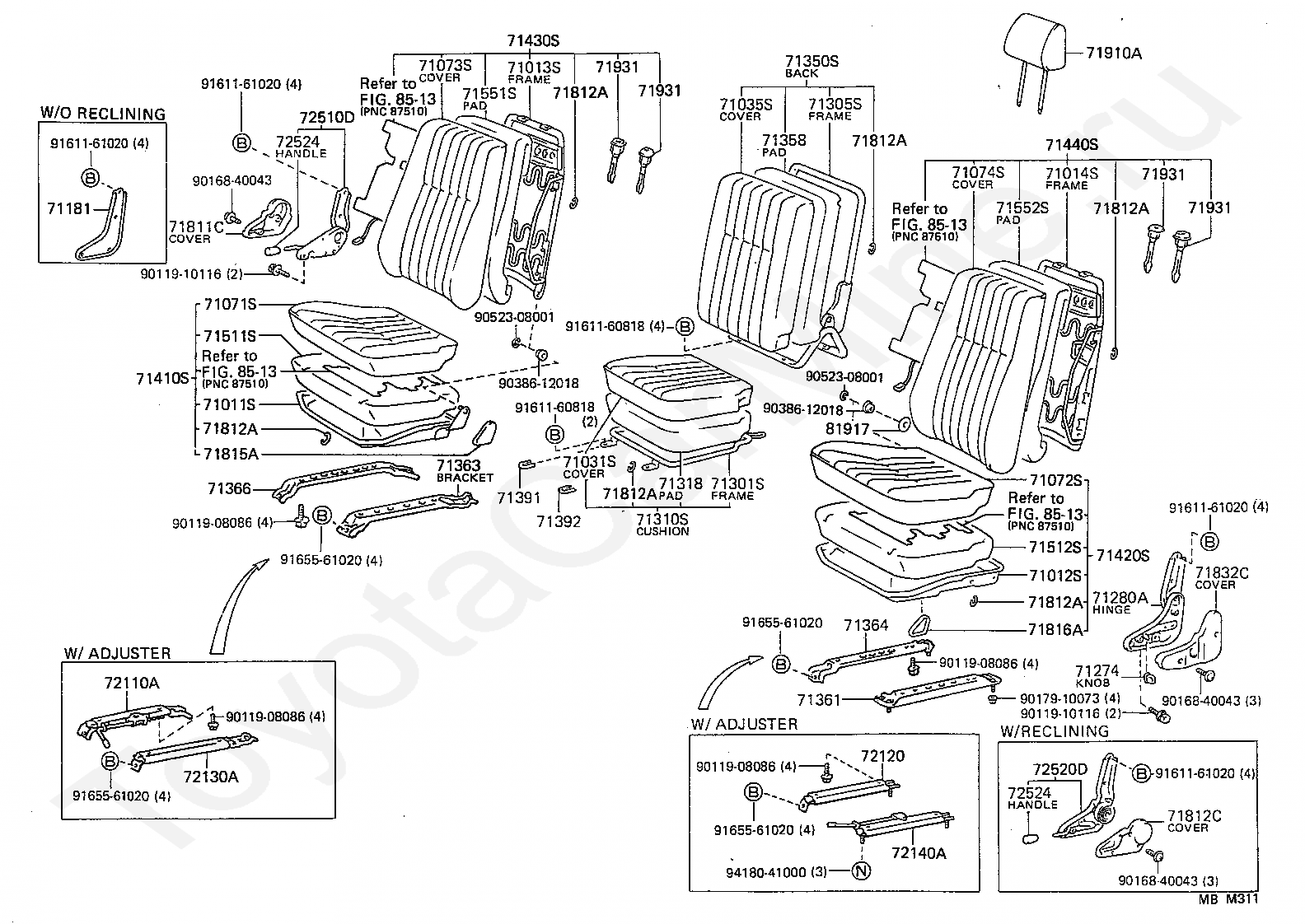

Кресла TOYOTA HIACE VAN,COMMUTER, 1987/08 - 1989/08, 2 литра, V(MODEL MARK), STANDARD TYPE, YH61, механика, МКПП, 5 скоростей, на руле

Каталог

Европа

Модель

HIACE VAN,COMMUTER

Двигатель

2 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

YH61

Трансмиссия

механика МКПП, 5 скоростей, на руле

Опции

левый руль 5-дверный вэн ROUTE VAN (SIDE PANEL VAN) 3-местный

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71031S

COVER SUB-ASSY, CENTER SEAT CUSHION

71035S

COVER, FRONT SEAT BACK, CENTER

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71181

SUPPORT, FRONT SEAT BACK, RH

71274

KNOB, FRONT SEAT HINGE

71280A

HINGE ASSY, FRONT SEAT BACK, LH

71301S

FRAME SUB-ASSY, CENTER SEAT CUSHION

71305S

FRAME SUB-ASSY, CENTER SEAT BACK

71310S

CUSHION ASSY, FRONT SEAT, CENTER

71318

PAD, CENTER SEAT CUSHION

71350S

BACK ASSY, FRONT SEAT, CENTER

71358

PAD, CENTER SEAT BACK

71361

BRACKET, FRONT SEAT SET, NO.1

71363

BRACKET, FRONT SEAT SET, NO.3

71364

BRACKET, FRONT SEAT SET, NO.4

71366

BRACKET, FRONT SEAT SET, NO.6

71391

COVER, CENTER SEAT CUSHION BRACKET, RH

71392

COVER, CENTER SEAT CUSHION BRACKET, LH

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

71812A

RING, HOG, SMALL (FOR FRONT SEAT)

71812C

COVER, RECLINING ADJUSTER, LH

71815A

COVER, FRONT SEAT CUSHION HINGE, RH

71816A

COVER, FRONT SEAT CUSHION HINGE, LH

71832C

COVER, FRONT LH SEAT HINGE

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72510D

ADJUSTER ASSY, RECLINING SEAT, OUTER RH

72520D

ADJUSTER ASSY, RECLINING SEAT, OUTER LH

72524

HANDLE, RECLINING ADJUSTER RELEASE

81917

WASHER, LEATHER

8513

переход к группе запчастей

9011908086

Крепеж

9011910116

Крепеж

9016840043

Крепеж

9017910073

Крепеж

9038612018

Крепеж

9052308001

Крепеж

9161160818

Крепеж

9161161020

Крепеж

9165561020

Крепеж

9418041000

Крепеж
