Каталог
ЯпонияМодель
HIACE TRUCKДвигатель
2,4 литра, дизельФрейм
LH85Трансмиссия
механика МКПП, 5 скоростейОпции
BOARDING DECK HIGH FLAT DECK OPENING ON THREE SIDES SINGAPORE TAXI COMPLETED VEHICLE

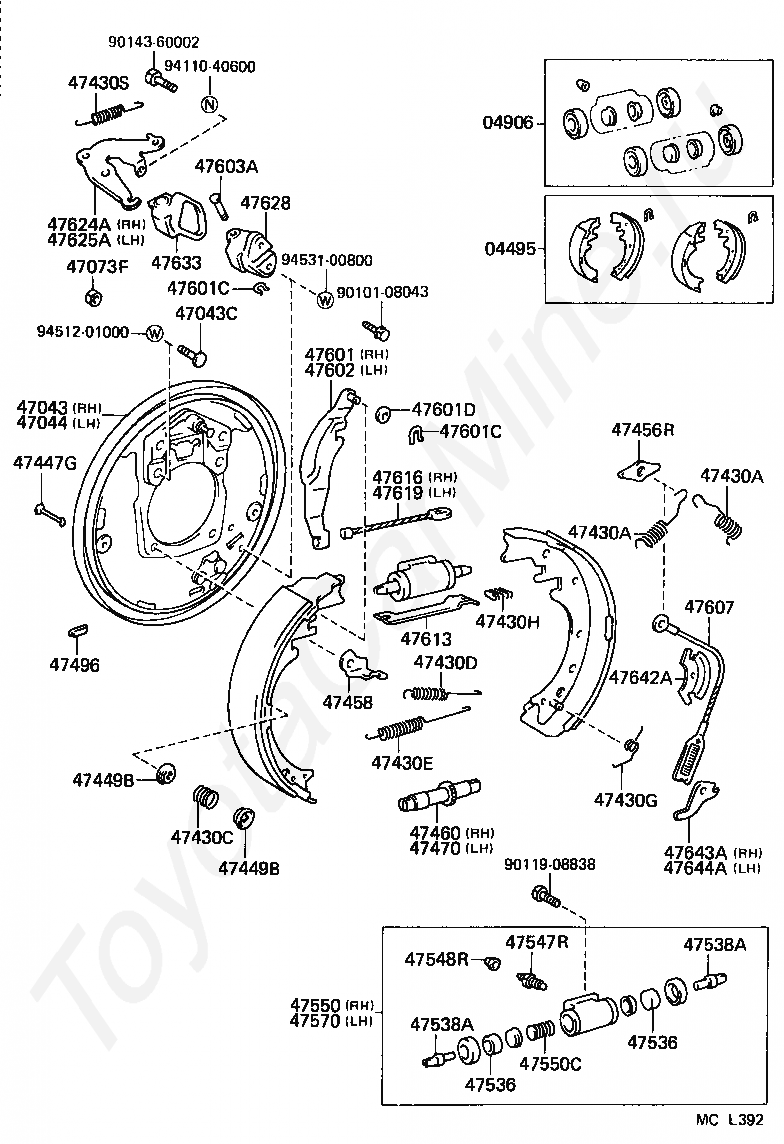

Код
Описание
04495
SHOE KIT, REAR BRAKE
04906
CUP KIT, REAR WHEEL CYLINDER
47043
PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043C
BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044
PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47073F
NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47430A
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430C
SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430D
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430E
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430G
SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
47430H
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47430S
SPRING, TENSION(FOR PARKING BRAKE SHOE STRUT)
47447G
PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449B
CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47456R
PLATE, REAR BRAKE SHOE GUIDE
47458
BRACKET, REAR BRAKE SHOE RETURN SPRING
47460
ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47470
ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47496
PLUG, HOLE(FOR REAR BRAKE)
47536
PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47538A
LINK, WHEEL CYLINDER CONNECTING
47547R
PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548R
CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550
CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550C
SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47570
CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601
LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601C
WASHER, C(FOR REAR BRAKE)
47601D
WASHER, WAVE(FOR REAR BRAKE)
47602
LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47603A
PIN, W/HOLE(FOR REAR BRAKE)
47607
CABLE SUB-ASSY, REAR BEAKE AUTOMATIC ADJUST
47613
STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)
47616
WIRE, PARKING BRAKE, RH
47619
WIRE, PARKING BRAKE, LH
47624A
CRANK, PARKING BRAKE BELL, RH
47625A
CRANK, PARKING BRAKE BELL, LH
47628
BRACKET, REAR BRAKE BELLCRANK
47633
BOOT, PARKING BRAKE BELLCRANK
47642A
GUIDE, REAR BRAKE AUTOMATIC ADJUST CABLE
47643A
LEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47644A
LEVER, REAR BRAKE AUTOMATIC ADJUST, LH
9010108043
Крепеж
9011908838
Крепеж
9014360002
Крепеж
9411040600
Крепеж
9451201000
Крепеж
9453100800
Крепеж

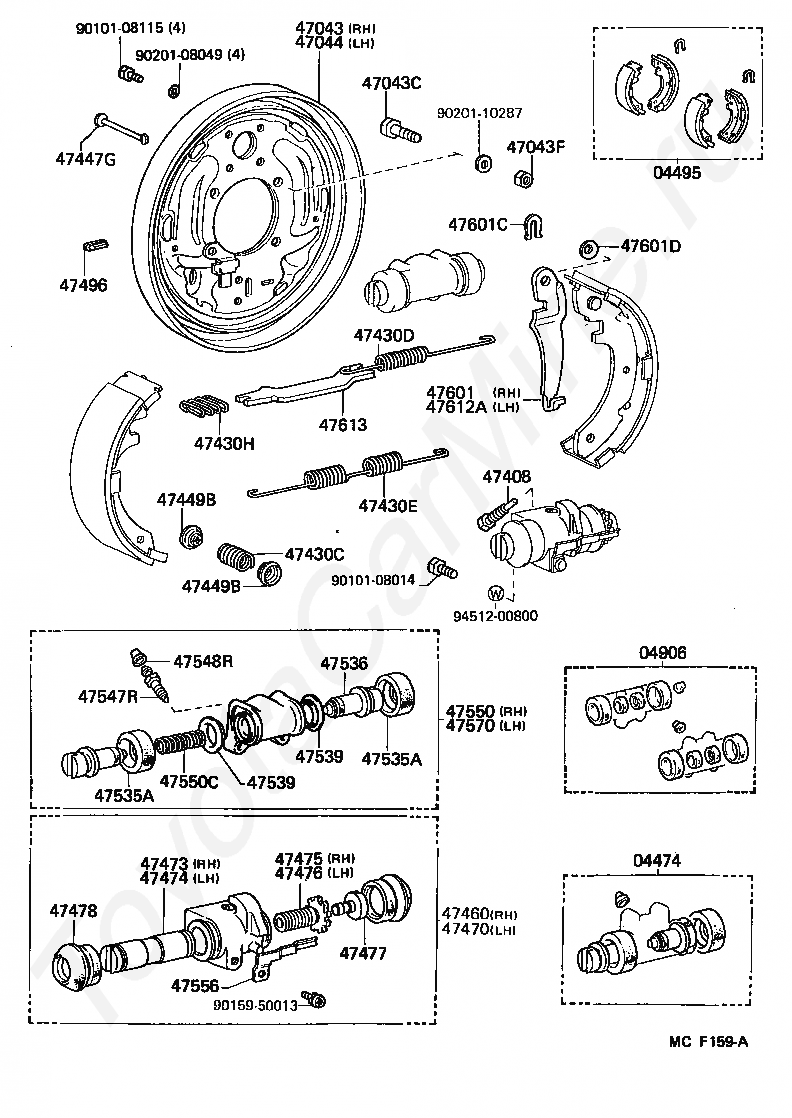

Код
Описание
04474
CYLINDER KIT, REAR WHEEL
04495
SHOE KIT, REAR BRAKE
04906
CUP KIT, REAR WHEEL CYLINDER
47043
PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043C
BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47043F
NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044
PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47408
BOLT SUB-ASSY, RETRACTING SPRING CLAMP
47430C
SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430D
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430E
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430H
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47447G
PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449B
CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47460
ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47470
ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47473
NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
47474
NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47475
BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)
47476
BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47477
PIECE, SHOE SUPPORT (FOR REAR BRAKE)
47478
BOOT, ADJUSTER CYLINDER(FOR REAR BRAKE)
47496
PLUG, HOLE(FOR REAR BRAKE)
47535A
BOOT, REAR WHEEL CYLINDER
47536
PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47539
RETAINER, WHEEL CYLINDER BOOT
47547R
PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548R
CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550
CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550C
SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47556
SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
47570
CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601
LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601C
WASHER, C(FOR REAR BRAKE)
47601D
WASHER, WAVE(FOR REAR BRAKE)
47612A
LEVER, PARKING BRAKE SHOE, LH
47613
STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)
9010108014
Крепеж
9010108115
Крепеж
9015950013
Крепеж
9020108049
Крепеж
9020110287
Крепеж
9451200800
Крепеж

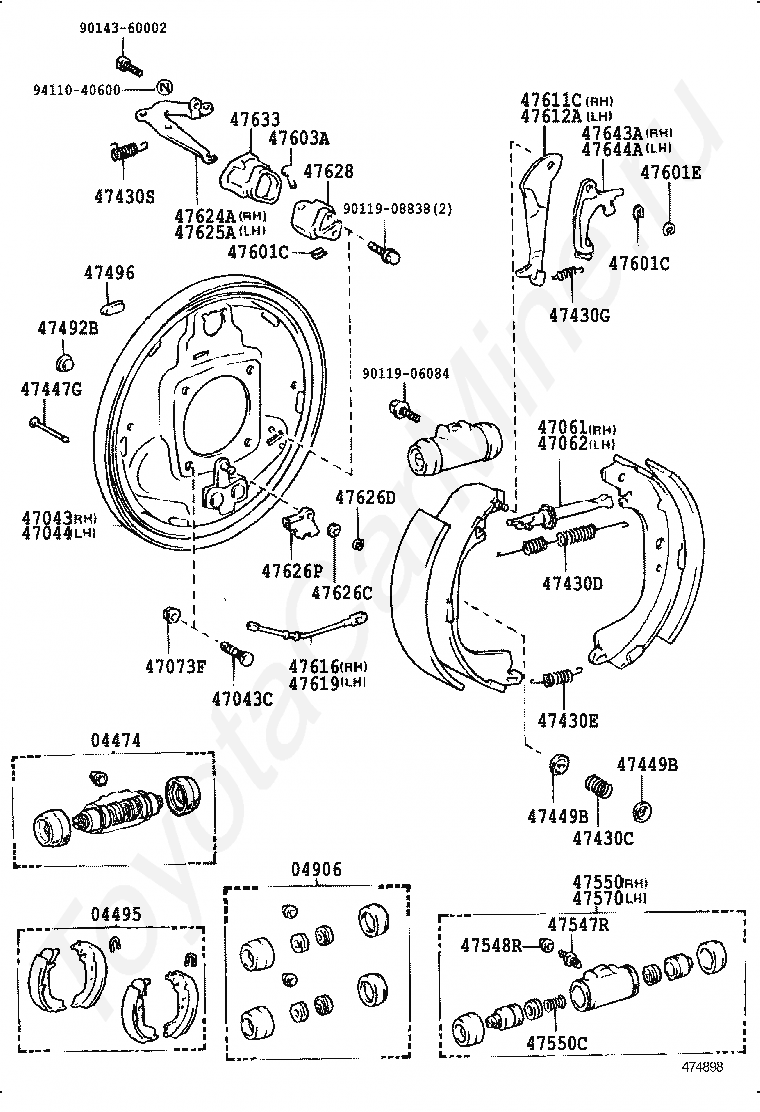

Код
Описание
04474
CYLINDER KIT, REAR WHEEL
04495
SHOE KIT, REAR BRAKE
04906
CUP KIT, REAR WHEEL CYLINDER
47043
PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043C
BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044
PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47061
STRUT SET, PARKING BRAKE SHOE, RH
47062
STRUT SET, PARKING BRAKE SHOE, LH
47073F
NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47430C
SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430D
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430E
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430G
SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
47430S
SPRING, TENSION(FOR PARKING BRAKE SHOE STRUT)
47447G
PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449B
CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47492B
PLUG, SHOE INSPECTION(FOR REAR BRAKE)
47496
PLUG, HOLE(FOR REAR BRAKE)
47547R
PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548R
CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550
CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550C
SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47570
CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601C
WASHER, C(FOR REAR BRAKE)
47601E
RING, E(FOR REAR BRAKE)
47603A
PIN, W/HOLE(FOR REAR BRAKE)
47611C
LEVER, PARKING BRAKE SHOE, RH
47612A
LEVER, PARKING BRAKE SHOE, LH
47616
WIRE, PARKING BRAKE, RH
47619
WIRE, PARKING BRAKE, LH
47624A
CRANK, PARKING BRAKE BELL, RH
47625A
CRANK, PARKING BRAKE BELL, LH
47626C
WASHER, WAVE
47626D
RING, E(FOR PARKING BRAKE SEGMENTAL PULLEY)
47626P
PULLEY, PARKING BRAKE SEGMENTAL
47628
BRACKET, REAR BRAKE BELLCRANK
47633
BOOT, PARKING BRAKE BELLCRANK
47643A
LEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47644A
LEVER, REAR BRAKE AUTOMATIC ADJUST, LH
9011906084
Крепеж
9011908838
Крепеж
9014360002
Крепеж
9411040600
Крепеж
