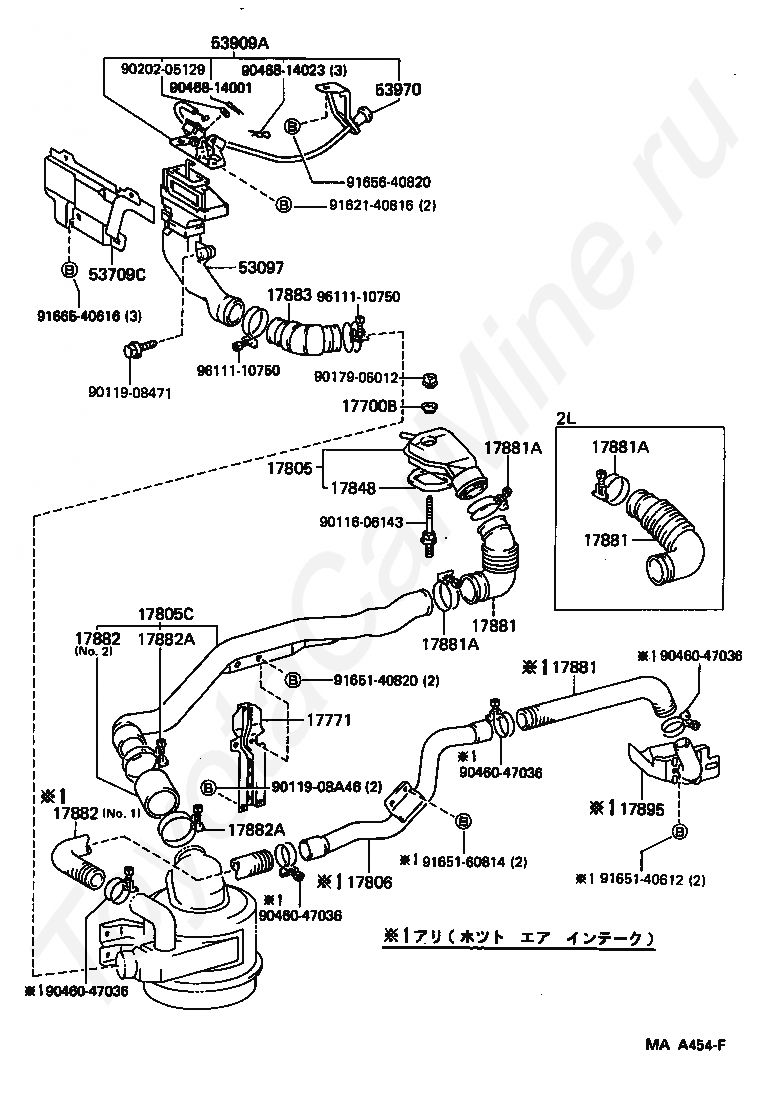

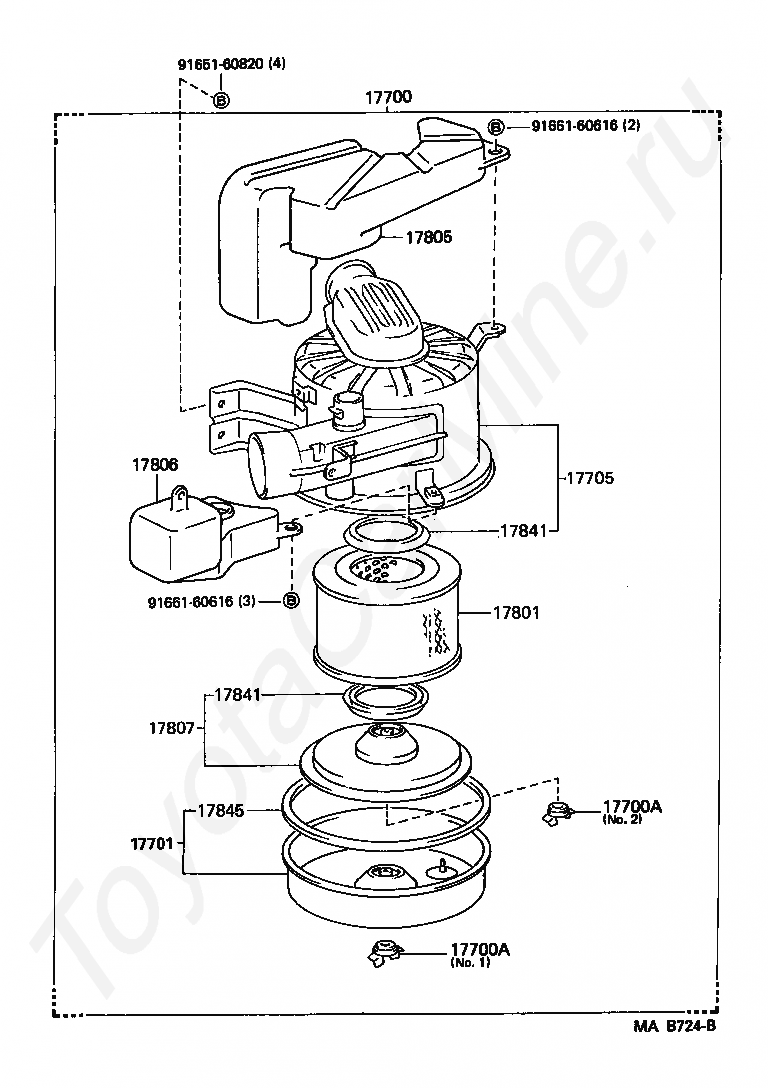

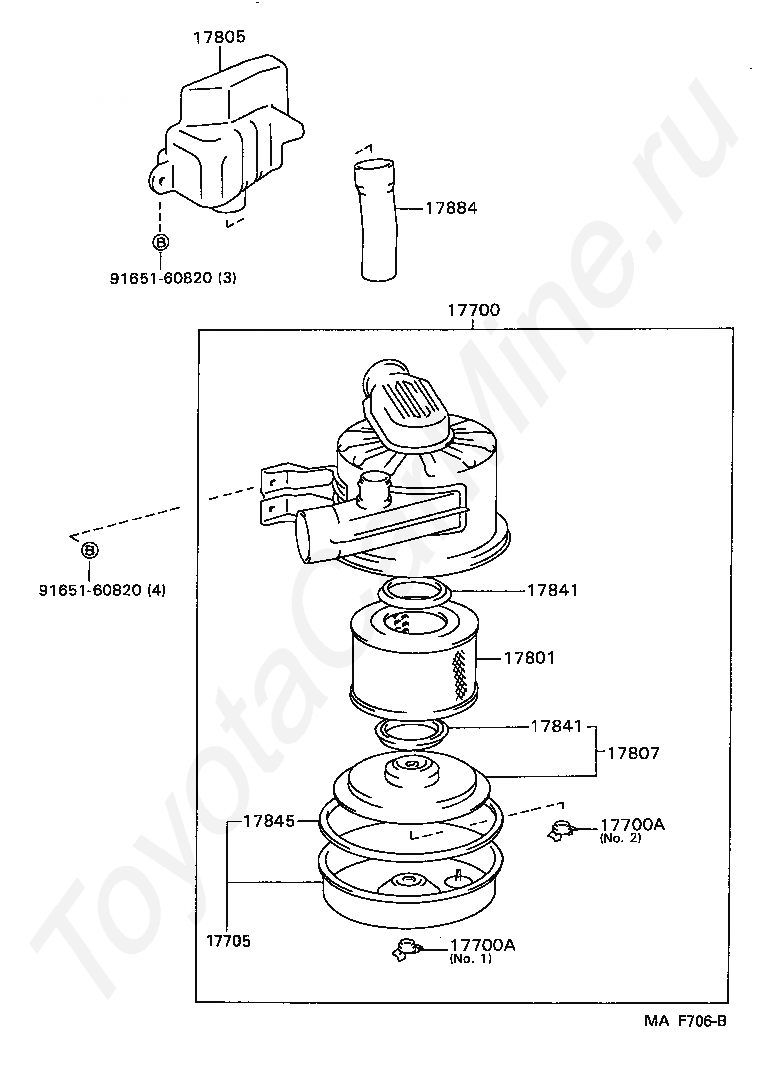

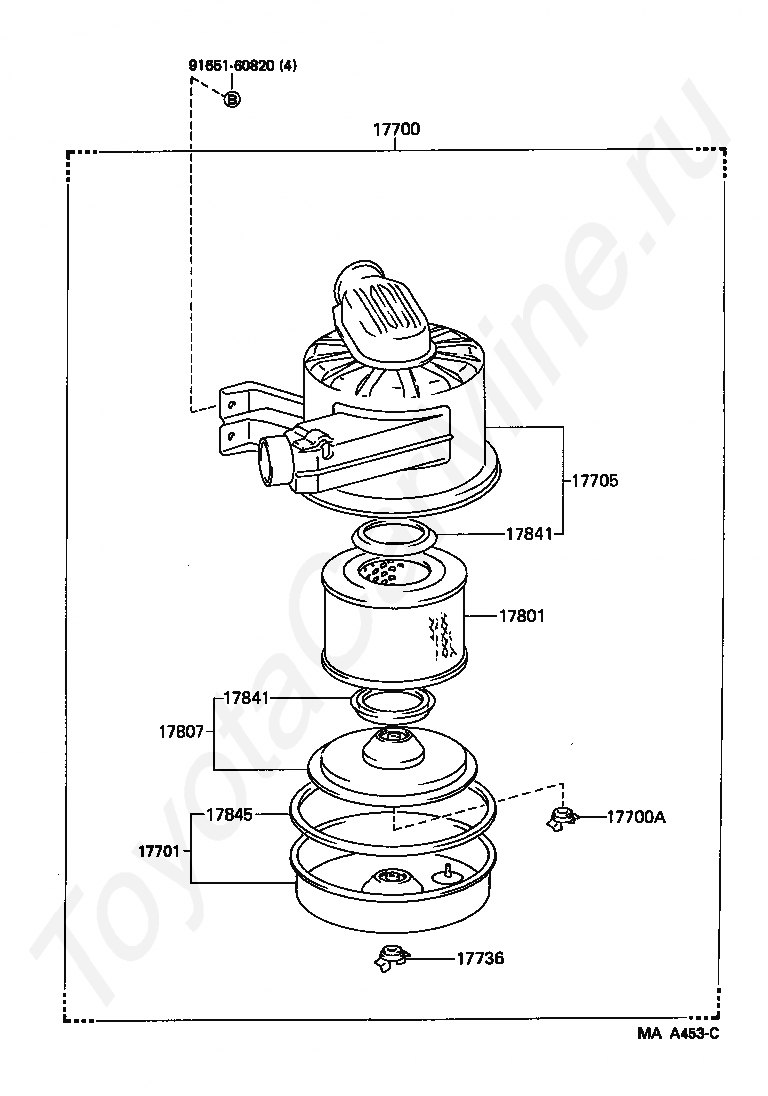

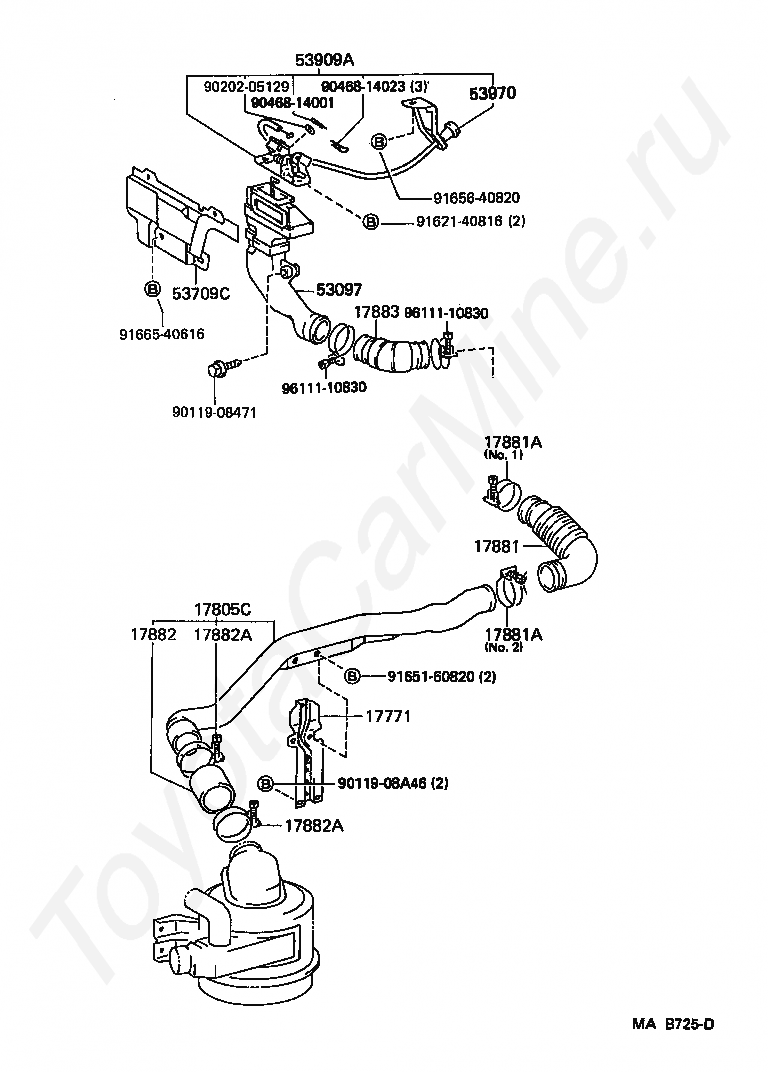

Воздушный фильтр TOYOTA HIACE TRUCK, 1987/10 - 1995/05, 2,4 литра, дизель, LH85, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

HIACE TRUCK

Двигатель

2,4 литра, дизель

Фрейм

LH85

Трансмиссия

механика МКПП, 5 скоростей

Опции

BOARDING DECK HIGH FLAT DECK OPENING ON THREE SIDES SINGAPORE TAXI COMPLETED VEHICLE

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17701

CASE SUB-ASSY, AIR CLEANER

17705

CAP SUB-ASSY, AIR CLEANER

17736

NUT, AIR CLEANER CASE

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17807

PLATE SUB-ASSY, AIR CLEANER FILTER SET

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

9165160820

Крепеж

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17701

CASE SUB-ASSY, AIR CLEANER

17705

CAP SUB-ASSY, AIR CLEANER

17736

NUT, AIR CLEANER CASE

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17807

PLATE SUB-ASSY, AIR CLEANER FILTER SET

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

9165160820

Крепеж

Код

Описание

17700B

WASHER, SEAL(FOR AIR CLEANER)

17771

BRACKET, AIR CLEANER INLET DUCT

17805

CONNECTOR SUB-ASSY, INTAKE AIR

17805C

PIPE SUB-ASSY, AIR CLEANER, NO.1

17806

PIPE SUB-ASSY, AIR CLEANER, NO.2

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17883

HOSE, AIR CLEANER, NO.3

17895

SHROUD, HOT AIR

53097

INLET SUB-ASSY

53709C

COVER SUB-ASSY, AIR CLEANER INLET

53909A

BRACKET SUB-ASSY, AIR CLEANER SHUTTER, NO.1

53970

CABLE ASSY, AIR CLEANER INLET SHUTTER CONTROL

9011606143

Крепеж

9011908471

Крепеж

9011908A46

Крепеж

9017906012

Крепеж

9020205129

Крепеж

9046047036

Крепеж

9046814001

Крепеж

9046814023

Крепеж

9162140816

Крепеж

9165140612

Крепеж

9165140820

Крепеж

9165160814

Крепеж

9165640820

Крепеж

9166540616

Крепеж

9611110750

Крепеж

Код

Описание

17700B

WASHER, SEAL(FOR AIR CLEANER)

17771

BRACKET, AIR CLEANER INLET DUCT

17805

CONNECTOR SUB-ASSY, INTAKE AIR

17805C

PIPE SUB-ASSY, AIR CLEANER, NO.1

17806

PIPE SUB-ASSY, AIR CLEANER, NO.2

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17883

HOSE, AIR CLEANER, NO.3

17895

SHROUD, HOT AIR

53097

INLET SUB-ASSY

53709C

COVER SUB-ASSY, AIR CLEANER INLET

53909A

BRACKET SUB-ASSY, AIR CLEANER SHUTTER, NO.1

53970

CABLE ASSY, AIR CLEANER INLET SHUTTER CONTROL

9011606143

Крепеж

9011908471

Крепеж

9011908A46

Крепеж

9017906012

Крепеж

9020205129

Крепеж

9046047036

Крепеж

9046814001

Крепеж

9046814023

Крепеж

9162140816

Крепеж

9165140612

Крепеж

9165140820

Крепеж

9165160814

Крепеж

9165640820

Крепеж

9166540616

Крепеж

9611110750

Крепеж

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17701

CASE SUB-ASSY, AIR CLEANER

17705

CAP SUB-ASSY, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17805

CONNECTOR SUB-ASSY, INTAKE AIR

17806

PIPE SUB-ASSY, AIR CLEANER, NO.2

17807

PLATE SUB-ASSY, AIR CLEANER FILTER SET

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

9165160820

Крепеж

9166160616

Крепеж

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17705

CAP SUB-ASSY, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17805

CONNECTOR SUB-ASSY, INTAKE AIR

17807

PLATE SUB-ASSY, AIR CLEANER FILTER SET

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

17884

HOSE, AIR CLEANER, NO.4

9165160820

Крепеж

Код

Описание

17771

BRACKET, AIR CLEANER INLET DUCT

17805C

PIPE SUB-ASSY, AIR CLEANER, NO.1

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17883

HOSE, AIR CLEANER, NO.3

53097

INLET SUB-ASSY

53709C

COVER SUB-ASSY, AIR CLEANER INLET

53909A

BRACKET SUB-ASSY, AIR CLEANER SHUTTER, NO.1

53970

CABLE ASSY, AIR CLEANER INLET SHUTTER CONTROL

9011908471

Крепеж

9011908A46

Крепеж

9020205129

Крепеж

9046814001

Крепеж

9046814023

Крепеж

9162140816

Крепеж

9165160820

Крепеж

9165640820

Крепеж

9166540616

Крепеж

9611110830

Крепеж

Воздушный фильтр TOYOTA HIACE TRUCK, 1987/10 - 1995/05, 2,4 литра, дизель, LH85, механика, МКПП, 5 скоростей
