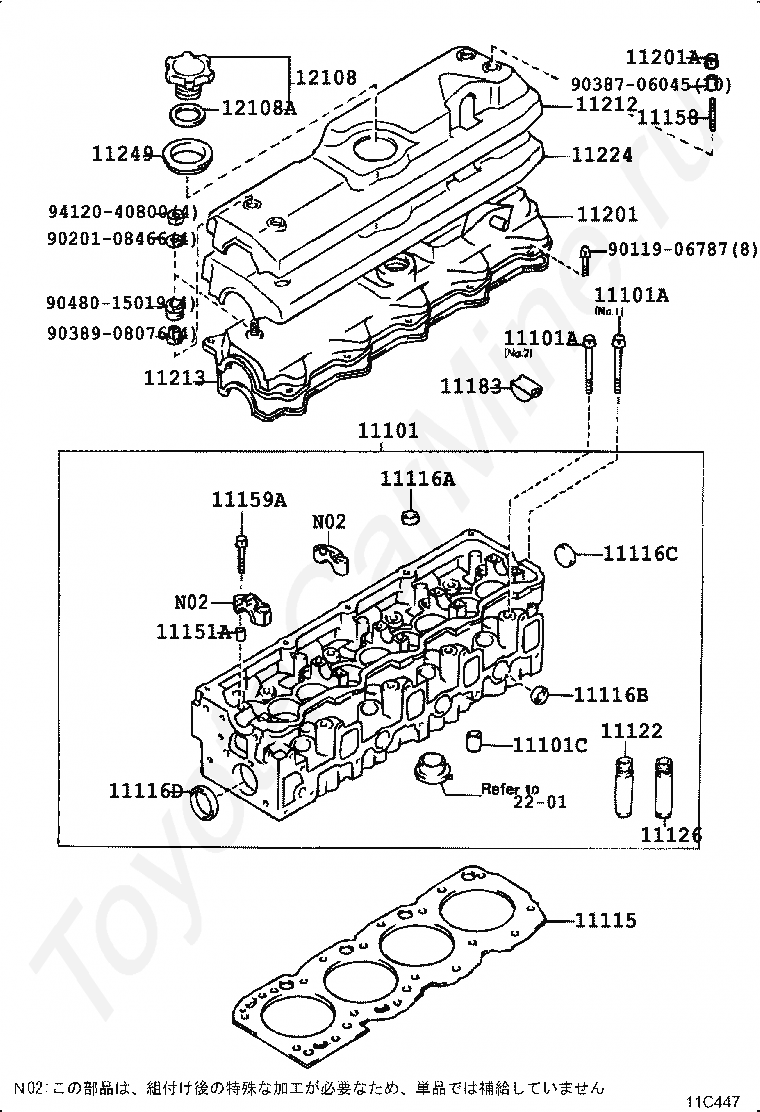

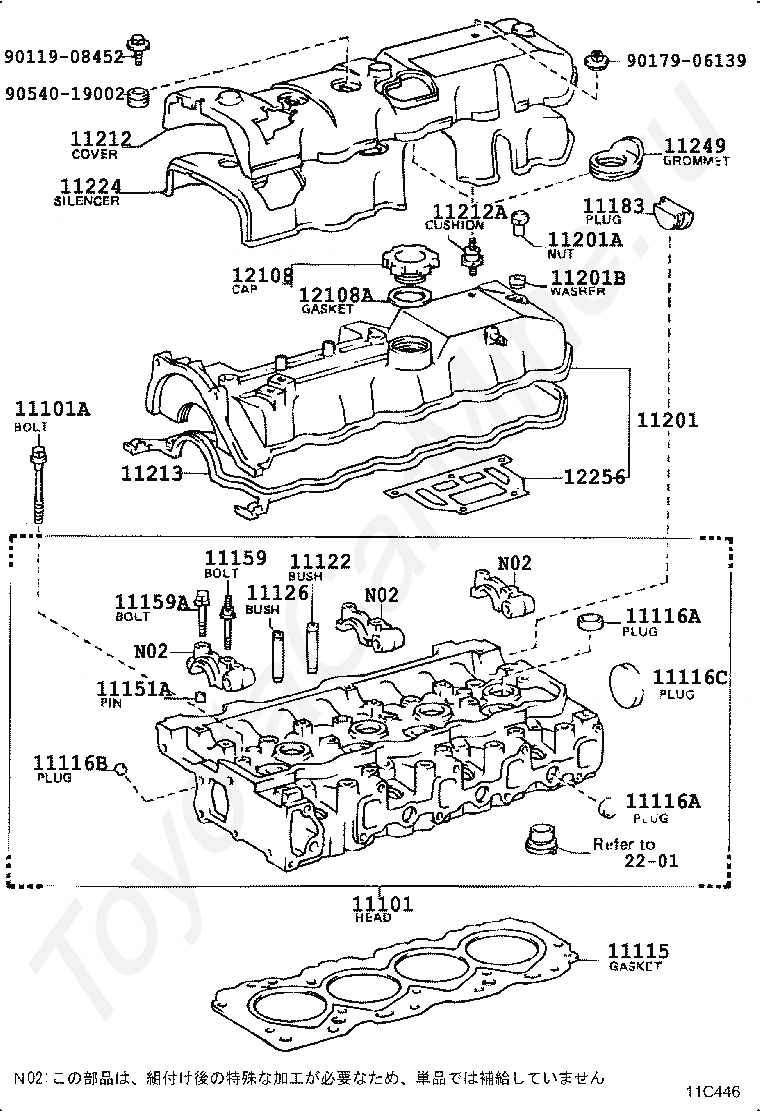

Головка блока цилиндров TOYOTA HIACE TRUCK, 1987/10 - 1995/05, 2,4 литра, дизель, LH85, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

HIACE TRUCK

Двигатель

2,4 литра, дизель

Фрейм

LH85

Трансмиссия

механика МКПП, 5 скоростей

Опции

BOARDING DECK HIGH FLAT DECK OPENING ON THREE SIDES SINGAPORE TAXI COMPLETED VEHICLE

Код

Описание

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11115

GASKET, CYLINDER HEAD

11116A

PLUG, TIGHT, NO.1

11116B

PLUG, TIGHT, NO.2

11116C

PLUG, TIGHT, NO.3

11122

BUSH, INTAKE VALVE GUIDE

11126

BUSH, EXHAUST VALVE GUIDE

11151A

PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

11159

BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)

11159A

BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

11183

PLUG, SEMICIRCULAR

11201

COVER SUB-ASSY, CYLINDER HEAD

11201A

NUT, CAP(FOR CYLINDER HEAD COVER)

11201B

WASHER, SEAL(FOR CYLINDER HEAD COVER)

11212

COVER, CYLINDER HEAD, NO.2

11212A

CUSHION, CYLINDER HEAD COVER

11213

GASKET, CYLINDER HEAD COVER

11224

SILENCER, CYLINDER HEAD COVER

11249

GROMMET, CYLINDER HEAD COVER

12108

CAP SUB-ASSY, OIL FILLER

12108A

GASKET(FOR OIL FILLER CAP)

12256

GASKET, VENTILATION BAFFLE

2201

переход к группе запчастей

9011908452

Крепеж

9017906139

Крепеж

9054019002

Крепеж

Код

Описание

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11115

GASKET, CYLINDER HEAD

11116A

PLUG, TIGHT, NO.1

11116B

PLUG, TIGHT, NO.2

11116C

PLUG, TIGHT, NO.3

11122

BUSH, INTAKE VALVE GUIDE

11126

BUSH, EXHAUST VALVE GUIDE

11151A

PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

11159

BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)

11159A

BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

11183

PLUG, SEMICIRCULAR

11201

COVER SUB-ASSY, CYLINDER HEAD

11201A

NUT, CAP(FOR CYLINDER HEAD COVER)

11201B

WASHER, SEAL(FOR CYLINDER HEAD COVER)

11212

COVER, CYLINDER HEAD, NO.2

11212A

CUSHION, CYLINDER HEAD COVER

11213

GASKET, CYLINDER HEAD COVER

11224

SILENCER, CYLINDER HEAD COVER

11249

GROMMET, CYLINDER HEAD COVER

12108

CAP SUB-ASSY, OIL FILLER

12108A

GASKET(FOR OIL FILLER CAP)

12256

GASKET, VENTILATION BAFFLE

2201

переход к группе запчастей

9011908452

Крепеж

9017906139

Крепеж

9054019002

Крепеж

Код

Описание

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11101C

TUBE(FOR CYLINDER HEAD)

11115

GASKET, CYLINDER HEAD

11116A

PLUG, TIGHT, NO.1

11116B

PLUG, TIGHT, NO.2

11116C

PLUG, TIGHT, NO.3

11116D

PLUG, TIGHT, NO.4

11122

BUSH, INTAKE VALVE GUIDE

11126

BUSH, EXHAUST VALVE GUIDE

11151A

PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

11158

BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)

11159A

BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

11183

PLUG, SEMICIRCULAR

11201

COVER SUB-ASSY, CYLINDER HEAD

11201A

NUT, CAP(FOR CYLINDER HEAD COVER)

11212

COVER, CYLINDER HEAD, NO.2

11213

GASKET, CYLINDER HEAD COVER

11224

SILENCER, CYLINDER HEAD COVER

11249

GROMMET, CYLINDER HEAD COVER

12108

CAP SUB-ASSY, OIL FILLER

12108A

GASKET(FOR OIL FILLER CAP)

2201

переход к группе запчастей

9011906787

Крепеж

9020108466

Крепеж

9038706045

Крепеж

9038908076

Крепеж

9048015019

Крепеж

9412040800

Крепеж

Головка блока цилиндров TOYOTA HIACE TRUCK, 1987/10 - 1995/05, 2,4 литра, дизель, LH85, механика, МКПП, 5 скоростей
