Каталог
ЯпонияМодель
HIACE/REGIUSACEДвигатель
3 литра, турбо-дизельКузов
V1 SPECIFICATION: VAN (STANDARD)Класс
DELUX SPECIFICATIONФрейм
KDH206Трансмиссия
МКПП, 5 скоростейОпции
STANDARD ROOF 4 двери SEPARATE SEAT 3-местный CBU 4WD 602W
Код
Описание
1702
переход к группе запчастей

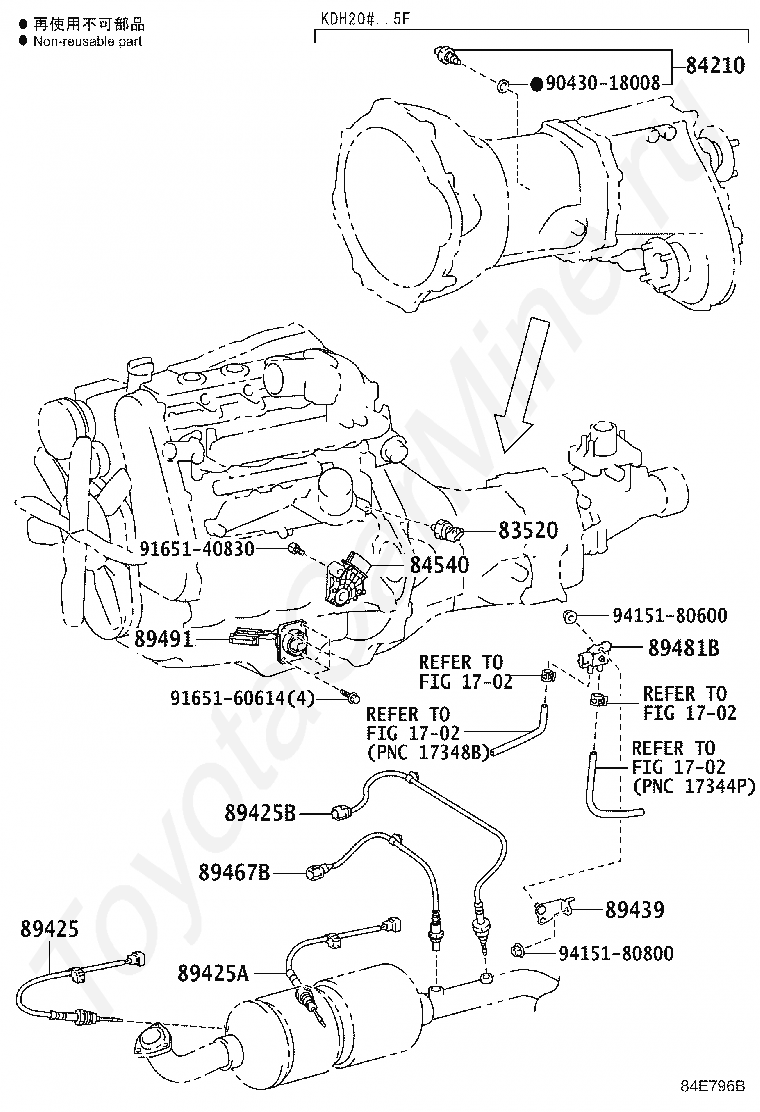

83520
GAGE ASSY,OIL PRESSURE SENDER
84210
SWITCH ASSY, BACK-UP LAMP
84540
SWITCH ASSY, NEUTRAL START
89425
SENSOR, EXHAUST GAS TEMPERATURE
89425A
SENSOR, EXHAUST GAS TEMPERATURE, NO.2
89425B
SENSOR, EXHAUST GAS TEMPERATURE, NO.3
89439
BRACKET, SENSOR
89467B
SENSOR, AIR FUEL RATIO
89481B
SENSOR, DIFFERENTIAL PRESSURE
89491
SENSOR, ENGINE OIL LEVEL
9043018008
Крепеж
9165140830
Крепеж
9165160614
Крепеж
9415180600
Крепеж
9415180800
Крепеж
Код
Описание
1603
переход к группе запчастей

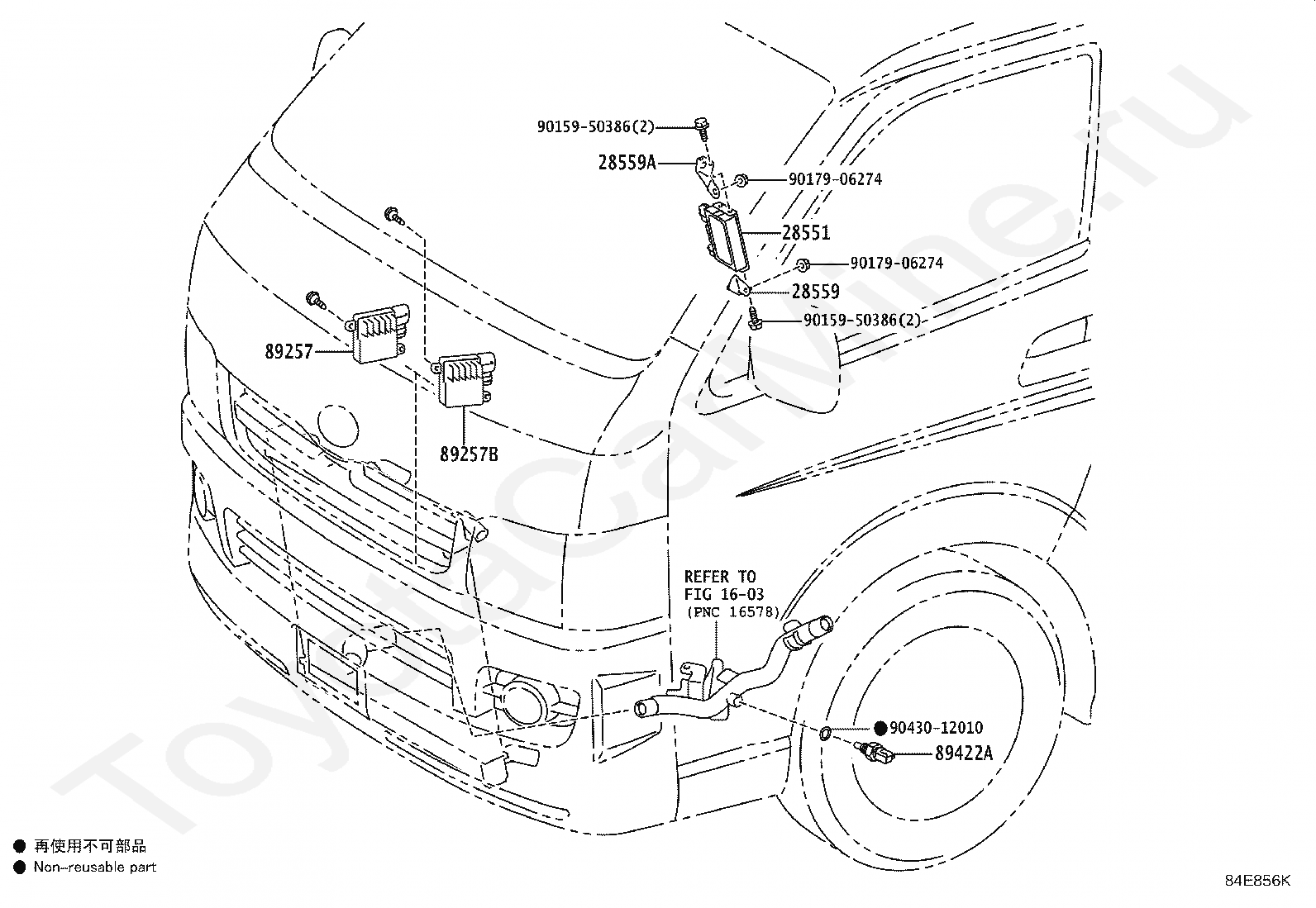

28551
CONTROLLER, GLOW PLUG
28559
BRACKET, GLOW PLUG CONTROLLER, NO.1
28559A
BRACKET, GLOW PLUG CONTROLLER, NO.2
89257
COMPUTER, COOLING FAN
89257B
COMPUTER, COOLING FAN, NO.2
89422A
SENSOR, WATER TEMPERATURE
9015950386
Крепеж
9017906274
Крепеж
9043012010
Крепеж
Код
Описание

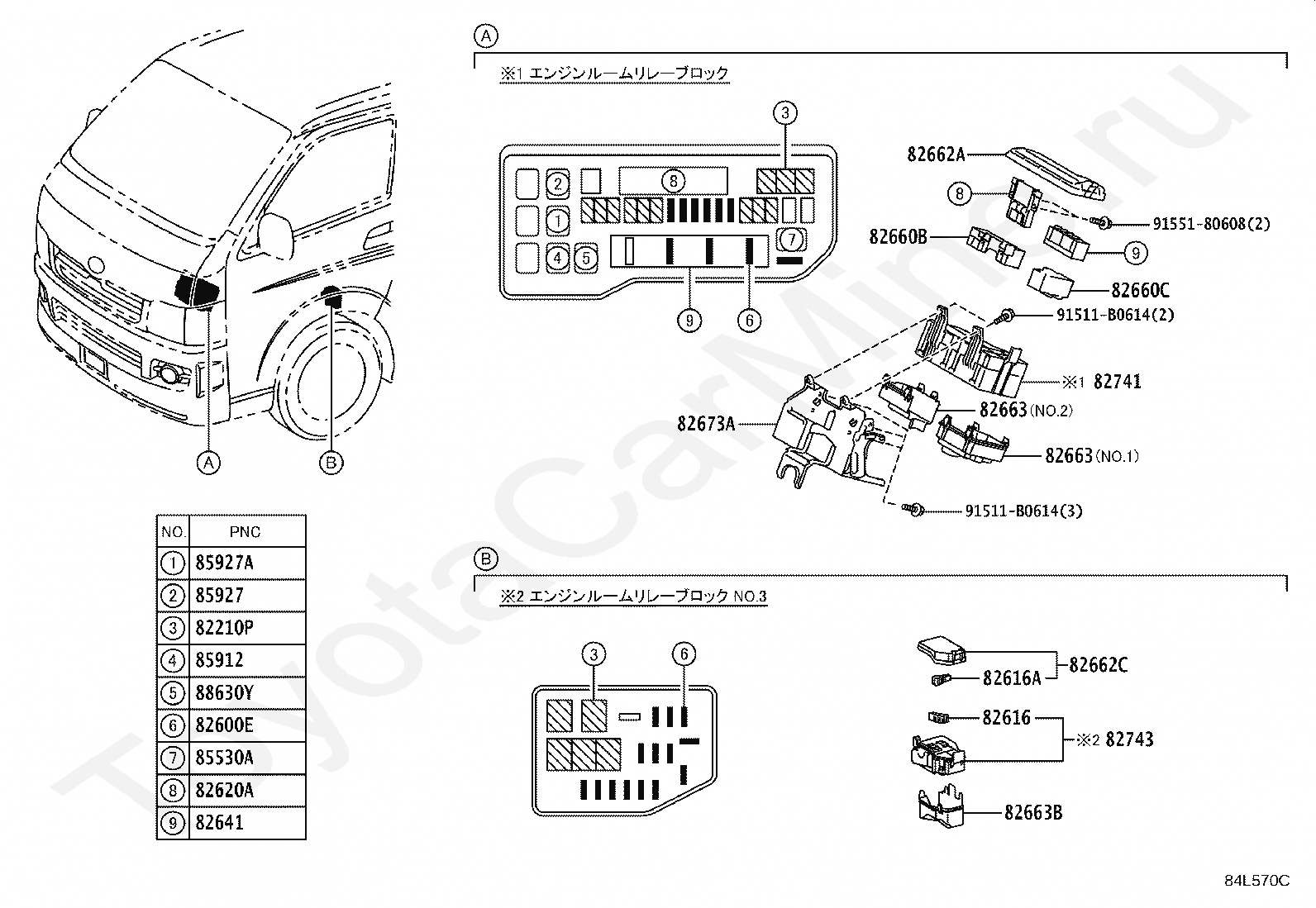

82210P
ENGINE ROOM FUSIBLE LINK
82600E
ENGINE ROOM FUSE
82616
PULLER, FUSE
82616A
PULLER, FUSE, NO.2
82620A
BLOCK ASSY, FUSIBLE LINK
82641
RELAY, INTEGRATION NO.1
82660B
BLOCK ASSY, RELAY
82660C
BLOCK ASSY, RELAY
82662A
COVER, RELAY BLOCK, UPPER, NO.1
82662C
COVER, RELAY BLOCK, UPPER, NO.3
82663
COVER, RELAY BLOCK, LOWER
82663B
COVER, RELAY BLOCK, LOWER, NO.3
82673A
BRACKET, JUNCTION BLOCK
82741
BLOCK, ENGINE ROOM RELAY
82743
BLOCK, ENGINE ROOM RELAY, NO.3
85530A
RELAY, POWER OUTLET SOCKET
85912
RELAY, DEFOGGER
85927
RELAY, COOLING FAN
85927A
RELAY, COOLING FAN, NO.2
88630Y
RELAY, REAR COOLER
91511B0614
Крепеж
9155180608
Крепеж
Код
Описание

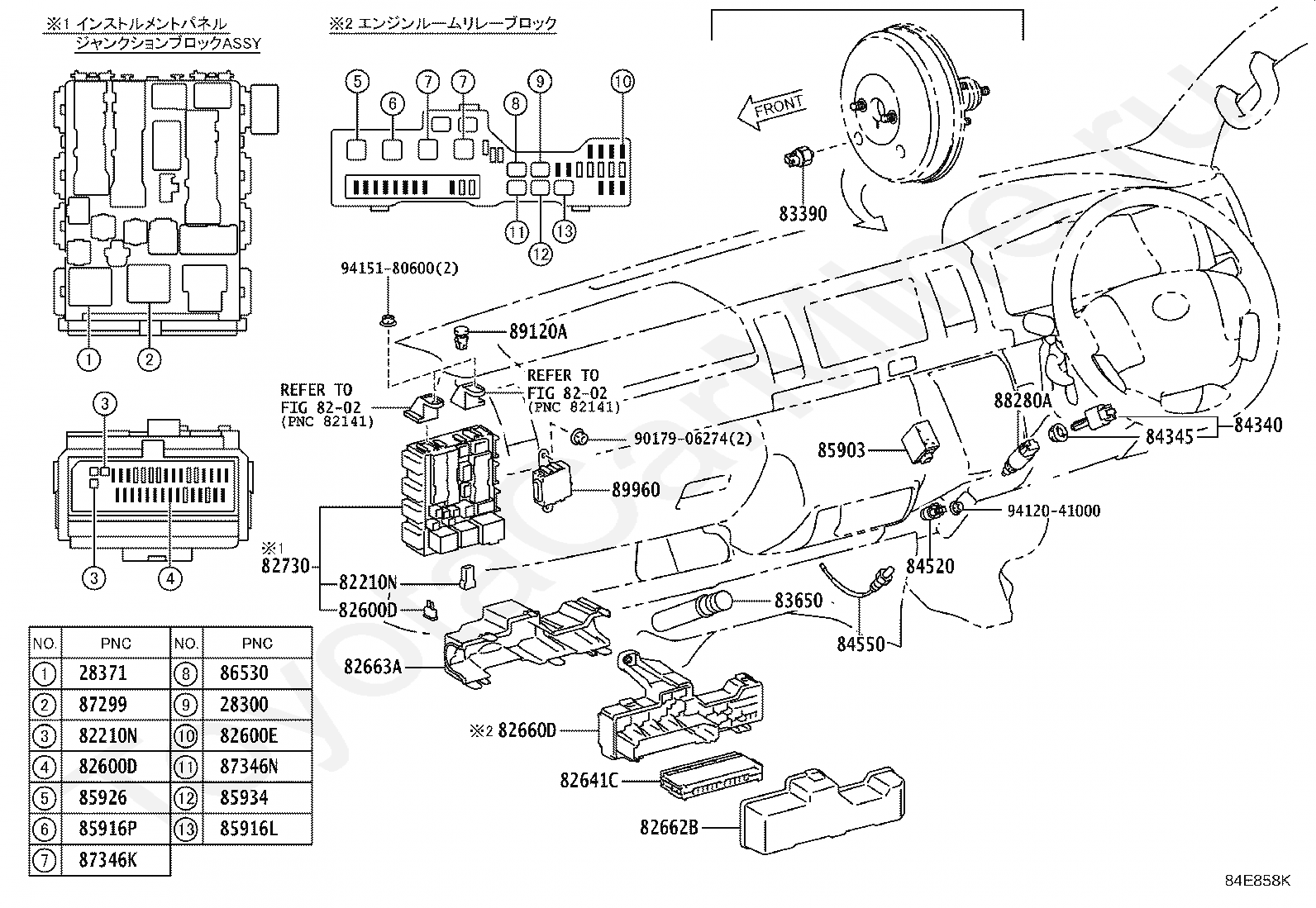

28300
RELAY ASSY, STARTER
28371
RELAY, IGNITION, NO.1
8202
переход к группе запчастей
82210N
INSTRUMENT PANEL FUSIBLE LINK
82600D
INSTRUMENT PANEL FUSE
82600E
ENGINE ROOM FUSE
82641C
RELAY, INTEGRATION NO.2
82660D
BLOCK ASSY, RELAY
82662B
COVER, RELAY BLOCK, UPPER, NO.2
82663A
COVER, RELAY BLOCK, LOWER, NO.2
82730
BLOCK ASSY, INSTRUMENT PANEL JUNCTION
83390
SWITCH ASSY, VACUUM WARNING
83650
FUSEE
84340
SWITCH ASSY, STOP LAMP
84345
ADJUSTER, STOP LAMP SWITCH MOUNTING
84520
SWITCH ASSY, CLUTCH START
84550
SWITCH ASSY, PARKING BRAKE
85903
COMPUTER SUB-ASSY, SHIFT LOCK CONTROL
85916L
RELAY, REAR FOG LAMP
85916P
RELAY, HEADLAMP
85926
RELAY, HEADLAMP DIMMER
85934
RELAY, MAGNET-CLUTCH
86530
RELAY ASSY, HORN
87299
RELAY, HEATER
87346K
RELAY, PTC HEATER
87346N
RELAY, HOT GAS MAGNET VALVE
88280A
SWITCH ASSY, CLUTCH
89120A
SENSOR, AUTOMATIC LIGHT CONTROL
89960
COMPUTER ASSY, HEADLAMP LEVELING
9017906274
Крепеж
9412041000
Крепеж
9415180600
Крепеж
Код
Описание
8410
переход к группе запчастей

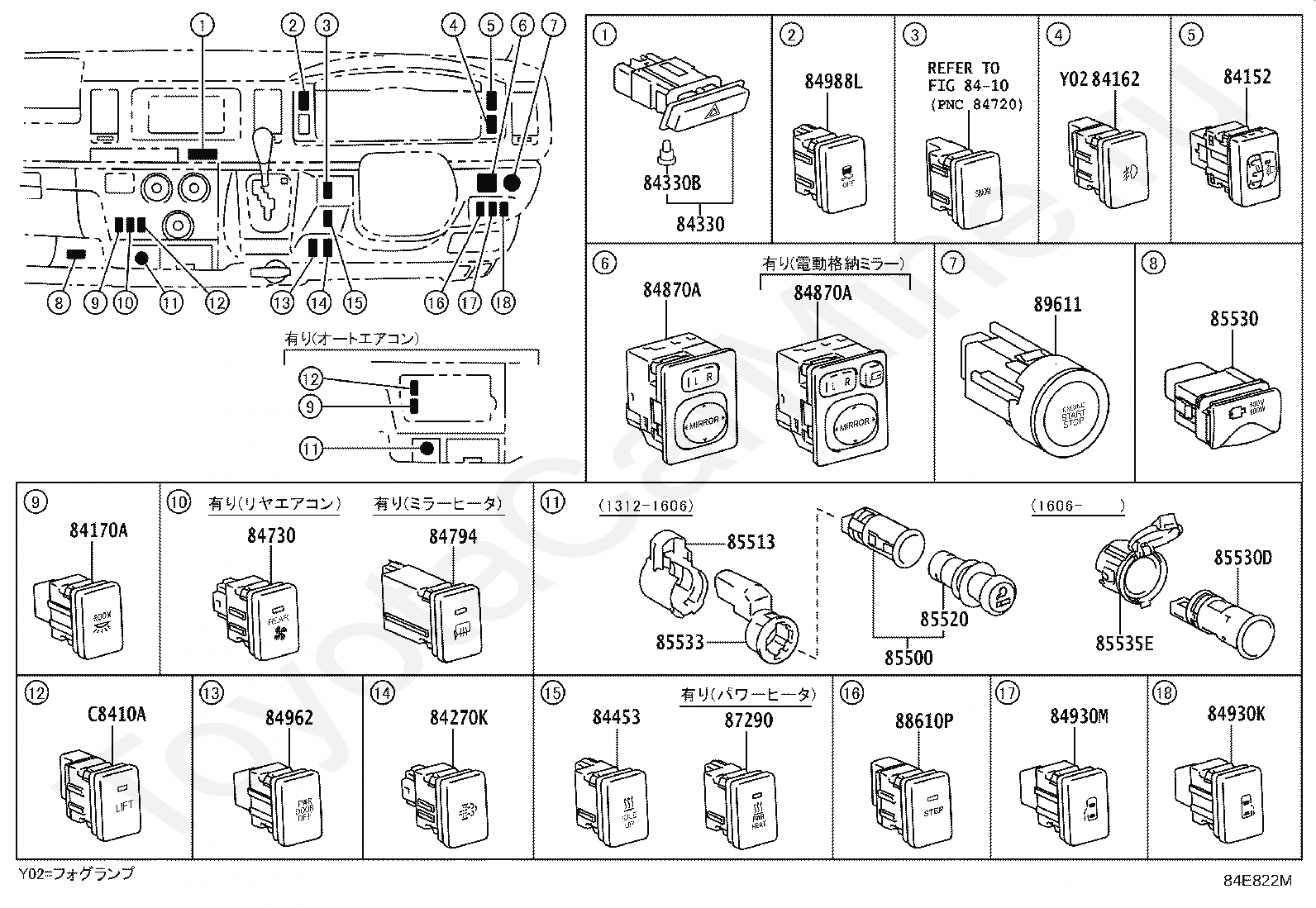

84152
SWITCH, HEADLAMP LEVELING
84162
SWITCH, FRONT FOG LAMP
84170A
SWITCH ASSY, ROOM LAMP NO.1
84270K
SWITCH ASSY, DPR
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84330B
BULB, HAZARD WARNING SIGNAL SWITCH
84453
SWITCH, IDLE UP
84730
SWITCH ASSY, HEATER BLOWER
84794
SWITCH, FR WIPER DEICER
84870A
SWITCH ASSY, OUTER MIRROR
84930K
SWITCH ASSY, AUTO SLIDE DOOR CONTROL
84930M
SWITCH ASSY, AUTO SLIDE DOOR CONTROL
84962
SWITCH, POWER SLIDE DOOR MAIN
84988L
SWITCH, VSC OFF
85500
LIGHTER ASSY, CIGARETTE
85513
COVER, CIGARETTE LIGHTER
85520
KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85530
SOCKET ASSY, POWER OUTLET, NO.1
85530D
SOCKET ASSY, POWER OUTLET, NO.2
85533
LENS, CIGARETTE LIGHTER INDICATOR
85535E
COVER, POWER OUTLET SOCKET, NO.2
87290
SWITCH ASSY, HEATER
88610P
SWITCH ASSY, CONTROL
89611
SWITCH, PUSH START
C8410A
SWITCH ASSY, POWER LIFT CONTROL
Код
Описание
4501
переход к группе запчастей
84052
SWITCH ASSY, UN-LOCK WARNING
84140
SWITCH ASSY, HEADLAMP DIMMER
84244B
SWITCH, STEERING PAD, RH
84247A
SWITCH, STEERING PAD, LH
84250A
SWITCH ASSY, STEERING PAD
84306
CABLE SUB-ASSY, SPIRAL
84307
CABLE SUB-ASSY, SPIRAL W/SENSOR
84450
SWITCH ASSY, IGNITION OR STARTER
84650D
SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL)
85432
SOLENOID, KEY INTER LOCK
89245B
SENSOR, STEERING
9015950199
Крепеж
9016840129
Крепеж
9046400551
Крепеж
Код
Описание
28850
SENSOR ASSY, BATTERY CURRENT
28865
SENSOR, BATTERY THERMOMETER
6758
переход к группе запчастей
8202
переход к группе запчастей
82351B
WIRE,COURTESY LAMP
82618
FUSE, FUSE BLOCK
83320
GAGE ASSY, FUEL SENDER
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84261B
JUNCTION, SLIDE DOOR CONTROL,MALE
84262B
JUNCTION, SLIDE DOOR CONTROL, FEMALE
84535C
SWITCH, DOOR LOCK, RH
84535D
SWITCH, DOOR LOCK, LH
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84820
MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84931D
SWITCH, SLIDE DOOR CONTROL
84931G
SWITCH, SLIDE DOOR CONTROL, RH
84931H
SWITCH, SLIDE DOOR CONTROL, LH
85530B
SOCKET ASSY, POWER OUTLET, REAR NO.1
85918B
RELAY, DOOR CONTROL, RH
85918C
RELAY, DOOR CONTROL, LH
85971A
RELAY, DOOR OPENING
85975B
RELAY, SLIDE DOOR CLOSER, RH
85975C
RELAY, SLIDE DOOR CLOSER, LH
85976
RELAY, BACK DOOR CLOSER
85980
RELAY ASSY, DOOR CONTROL
86210A
INVERTER ASSY, VOLTAGE
89439D
BRACKET, SENSOR, NO.1
89439J
BRACKET, SENSOR, NO.2
89463A
SENSOR, NITROGEN OXIDES
9011906779
Крепеж
9011906A06
Крепеж
9016440103
Крепеж
9016660004
Крепеж
9018906018
Крепеж
9155180610
Крепеж
91631B0614
Крепеж
9167380820
Крепеж
9359016014
Крепеж
9415180600
Крепеж
9415180800
Крепеж
