Задние амортизаторы TOYOTA HIACE/REGIUSACE, 2003/08 - 2004/08, 2 литра, 16 клапанов DOHC, EFI, V2 SPECIFICATION: VAN (SUPER-, SINGLE-, JUST-LOW), DELUX SPECIFICATION, TRH112, АКПП, 4 ступени

Каталог

Япония

Модель

HIACE/REGIUSACE

Двигатель

2 литра, 16 клапанов DOHC, EFI

Кузов

V2 SPECIFICATION: VAN (SUPER-, SINGLE-, JUST-LOW)

Класс

DELUX SPECIFICATION

Фрейм

TRH112

Трансмиссия

АКПП, 4 ступени

Опции

STANDARD ROOF 4 двери боковое стекло 6-местный 1000KEFI 2WD

Код

Описание

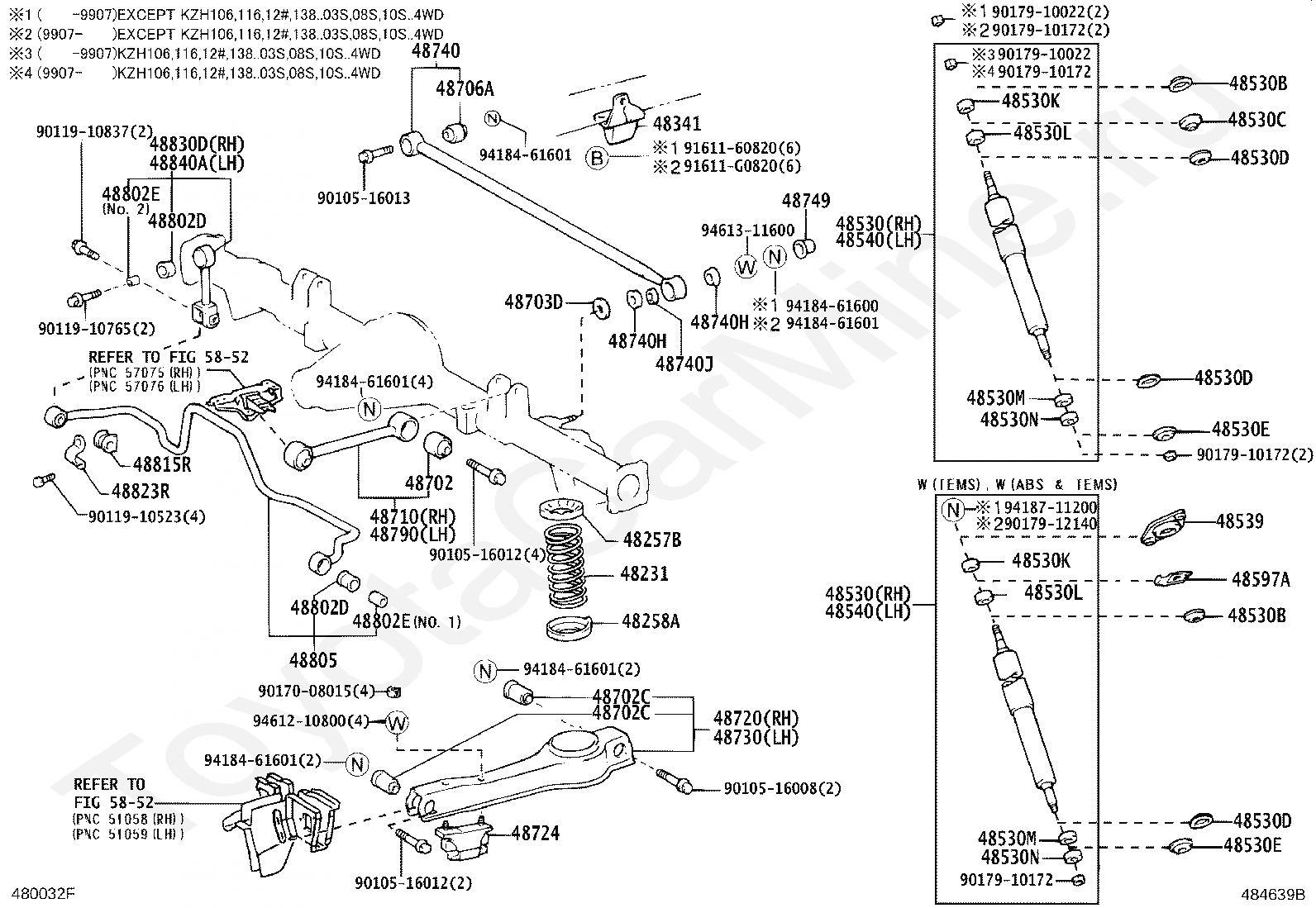

48231

SPRING, COIL, REAR

48257B

INSULATOR, REAR COIL SPRING, UPPER

48258A

INSULATOR, REAR COIL SPRING, LOWER

48341

BUMPER, REAR SPRING

48530

ABSORBER ASSY, SHOCK, REAR RH

48530B

WASHER, REAR SHOCK ABSORBER CUSHION, NO.1

48530C

WASHER, REAR SHOCK ABSORBER CUSHION, NO.2

48530D

WASHER, REAR SHOCK ABSORBER CUSHION, NO.3

48530E

WASHER, REAR SHOCK ABSORBER CUSHION, NO.4

48530K

CUSHION, REAR SHOCK ABSORBER, NO.2

48530L

CUSHION, REAR SHOCK ABSORBER, NO.3

48530M

CUSHION, REAR SHOCK ABSORBER, NO.4

48530N

CUSHION, REAR SHOCK ABSORBER, NO.5

48539

BRACKET, ACTUATOR SUPPORT, RR

48540

ABSORBER ASSY, SHOCK, REAR LH

48597A

RETAINER, REAR SHOCK ABSORBER CUSHION

48702

BUSH SUB-ASSY, UPPER CONTROL ARM

48702C

BUSH SUB-ASSY, LOWER CONTROL ARM

48703D

WASHER(FOR REAR SUSPENSION ARM)

48706A

BUSH SUB-ASSY, REAR LATERAL CONTROL ROD

48710

ARM ASSY, UPPER CONTROL

48720

ARM ASSY, LOWER CONTROL, RH

48724

DAMPER, LWR CONTROL ARM DYNAMIC

48730

ARM ASSY, LOWER CONTROL, LH

48740

ROD ASSY, REAR LATERAL CONTROL

48740H

BUSH, NO.1(FOR REAR LATERAL CONTROL ROD)

48740J

BUSH, NO.2(FOR REAR LATERAL CONTROL ROD)

48749

COVER, LATERAL CONTROL ROD NUT

48790

ARM ASSY, UPPER CONTROL, REAR LH

48802D

BUSH, STABILIZER LINK

48802E

SPACER(FOR REAR STABILIZER BAR)

48805

BAR SUB-ASSY, REAR STABILIZER

48815R

BUSH, STABILIZER(FOR REAR)

48823R

COVER, STABILIZER LINK(FOR REAR)

48830D

LINK ASSY, REAR STABILIZER, RH

48840A

LINK ASSY, REAR STABILIZER, LH

5852

переход к группе запчастей

9010516008

Крепеж

9010516012

Крепеж

9010516013

Крепеж

9011910523

Крепеж

9011910765

Крепеж

9011910837

Крепеж

9017008015

Крепеж

9017910022

Крепеж

9017910172

Крепеж

9017912140

Крепеж

9161160820

Крепеж

91611G0820

Крепеж

9418461600

Крепеж

9418461601

Крепеж

9418711200

Крепеж

9461210800

Крепеж

9461311600

Крепеж

Код

Описание

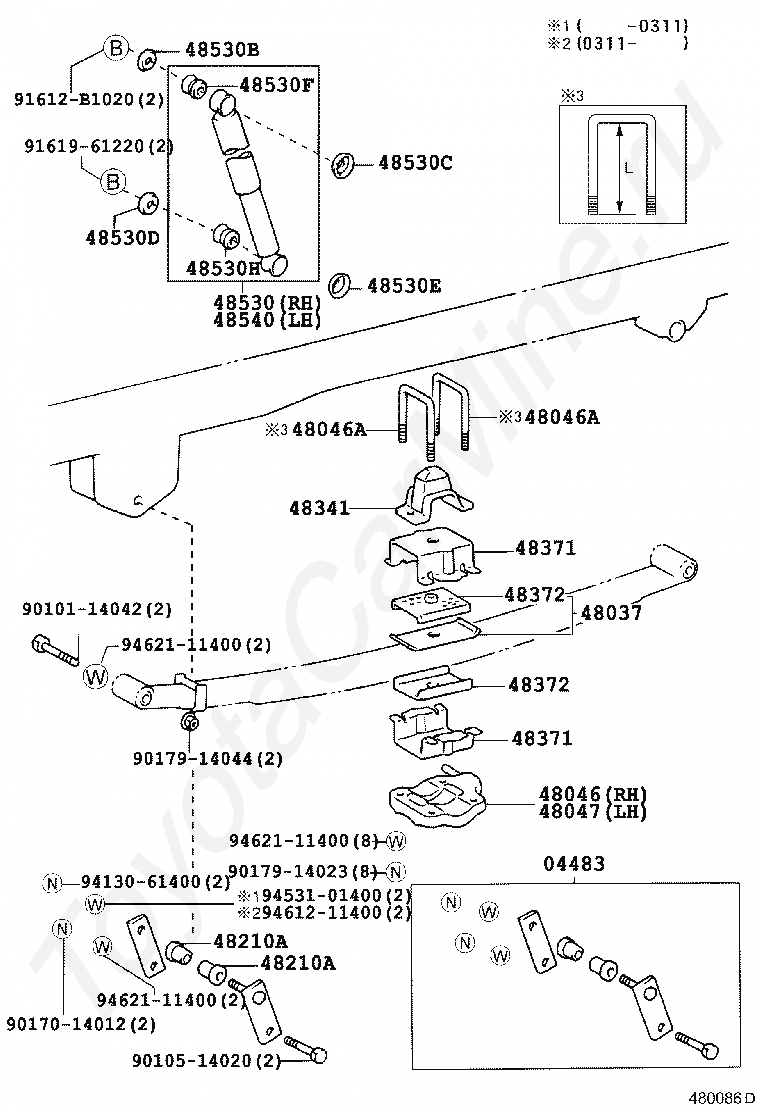

04483

SHACKLE KIT, REAR SPRING

48037

SPACER SUB-ASSY, REAR SPRING

48046

SEAT SUB-ASSY, SPRING U BOLT, RH

48046A

BOLT, U(FOR REAR SPRING)

48047

SEAT SUB-ASSY, SPRING U BOLT, LH

48210A

BUSH(FOR REAR SPRING SHACKLE UPPER)

48341

BUMPER, REAR SPRING

48371

RETAINER, REAR SPRING PAD

48372

PAD, REAR SPRING

48530

ABSORBER ASSY, SHOCK, REAR RH

48530B

WASHER, REAR SHOCK ABSORBER CUSHION, NO.1

48530C

WASHER, REAR SHOCK ABSORBER CUSHION, NO.2

48530D

WASHER, REAR SHOCK ABSORBER CUSHION, NO.3

48530E

WASHER, REAR SHOCK ABSORBER CUSHION, NO.4

48530F

RETAINER, SHOCK ABSORBER CUSHION(FOR REAR)

48530H

BUSH, REAR SHOCK ABSORBER

48540

ABSORBER ASSY, SHOCK, REAR LH

9010114042

Крепеж

9010514020

Крепеж

9017014012

Крепеж

9017914023

Крепеж

9017914044

Крепеж

91612B1020

Крепеж

9161961220

Крепеж

9413061400

Крепеж

9453101400

Крепеж

9461211400

Крепеж

9462111400

Крепеж

Код

Описание

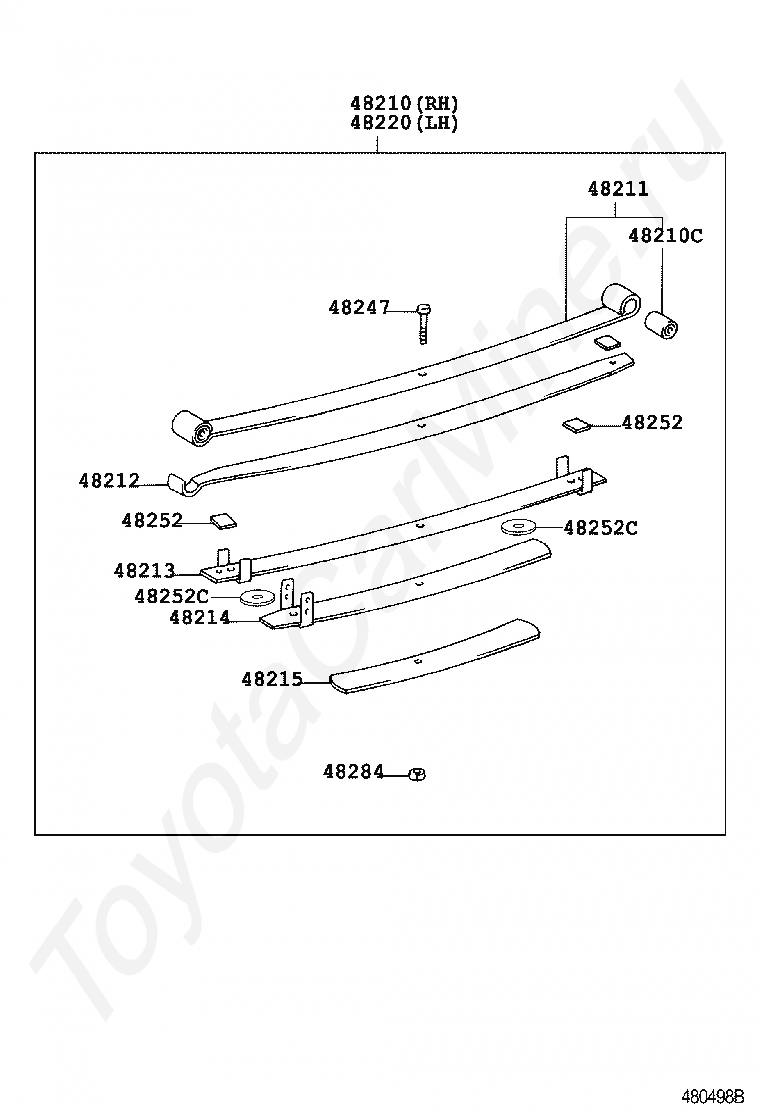

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48252

SILENCER, REAR SPRING

48252C

SILENCER, REAR SPRING, NO.2

48284

NUT, REAR SPRING CENTER BOLT

Задние амортизаторы TOYOTA HIACE/REGIUSACE, 2003/08 - 2004/08, 2 литра, 16 клапанов DOHC, EFI, V2 SPECIFICATION: VAN (SUPER-, SINGLE-, JUST-LOW), DELUX SPECIFICATION, TRH112, АКПП, 4 ступени
