Задняя панель пола TOYOTA HIACE/REGIUSACE, 2017/12 - 2025, 2,8 литра, турбо-дизель, V2 SPECIFICATION: VAN (SUPER-, SINGLE-, JUST-LOW), DELUX SPECIFICATION, GDH201, АКПП, 6 скоростей

Каталог

Япония

Модель

HIACE/REGIUSACE

Двигатель

2,8 литра, турбо-дизель

Кузов

V2 SPECIFICATION: VAN (SUPER-, SINGLE-, JUST-LOW)

Класс

DELUX SPECIFICATION

Фрейм

GDH201

Трансмиссия

АКПП, 6 скоростей

Опции

STANDARD ROOF 5 дверей боковое стекло 6-местный CBU 2WD 602W

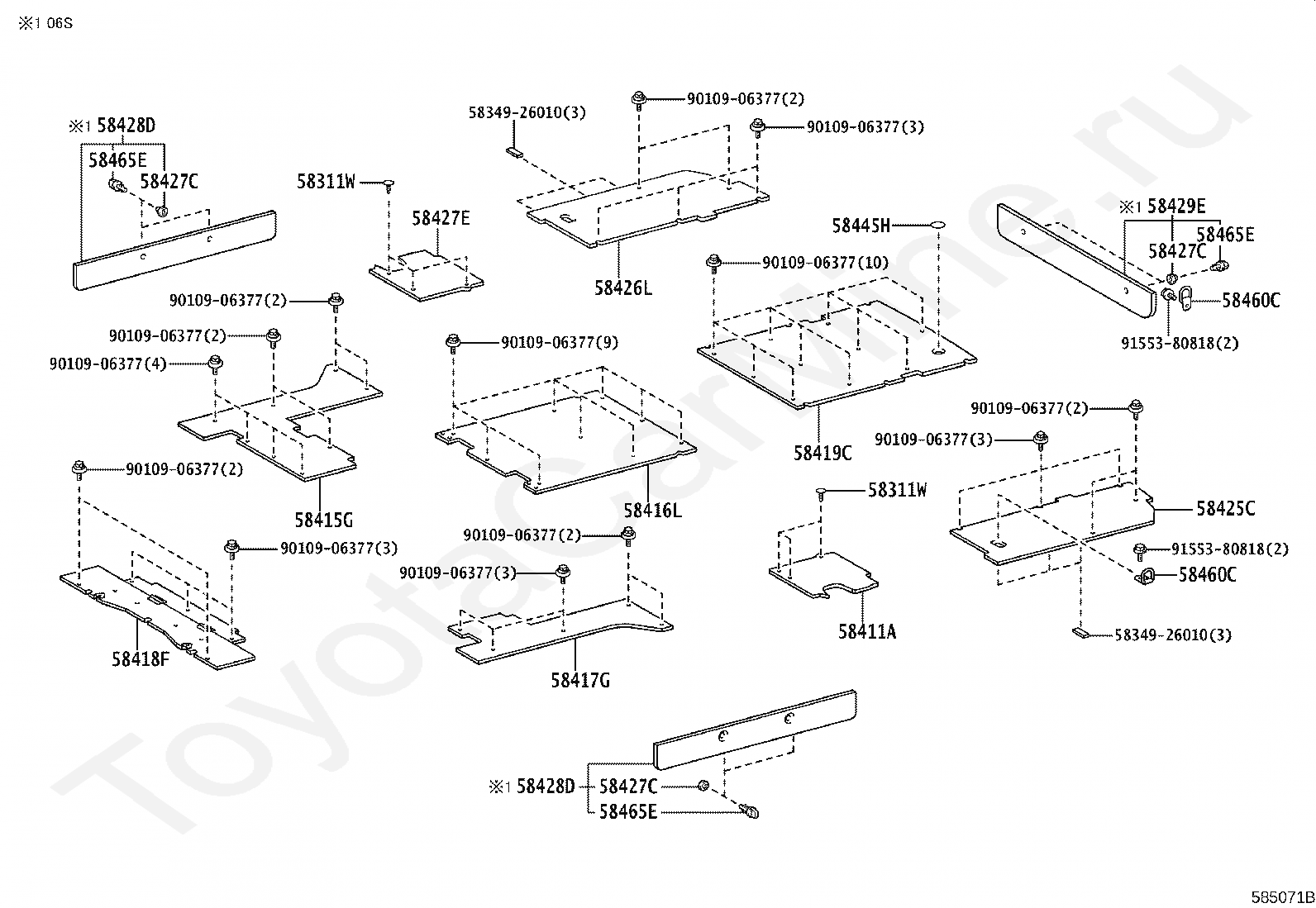

Код

Описание

58311W

CLIP(FOR REAR FLOOR)

5834926010

Крепеж

58411A

BOARD, DECK, NO.1

58415G

BOARD, REAR FLOOR, NO.1

58416L

BOARD, REAR FLOOR, NO.2

58417G

BOARD, REAR FLOOR, NO.3

58418F

BOARD, REAR FLOOR, NO.4

58419C

BOARD, REAR FLOOR, NO.5

58425C

BOARD, REAR FLOOR, NO.6

58426L

BOARD, REAR FLOOR, NO.7

58427C

SPACER, REAR FLOOR BOARD

58427E

BOARD, REAR FLOOR, NO.8

58428D

BOARD, REAR FLOOR, NO.9

58429E

BOARD, REAR FLOOR, NO.10

58445H

BOARD, REAR FLOOR, NO.11

58460C

STRIKER ASSY, LUGGAGE HOLD BELT

58465E

HANDLE, DECK BOARD

9010906377

Крепеж

9155380818

Крепеж

Код

Описание

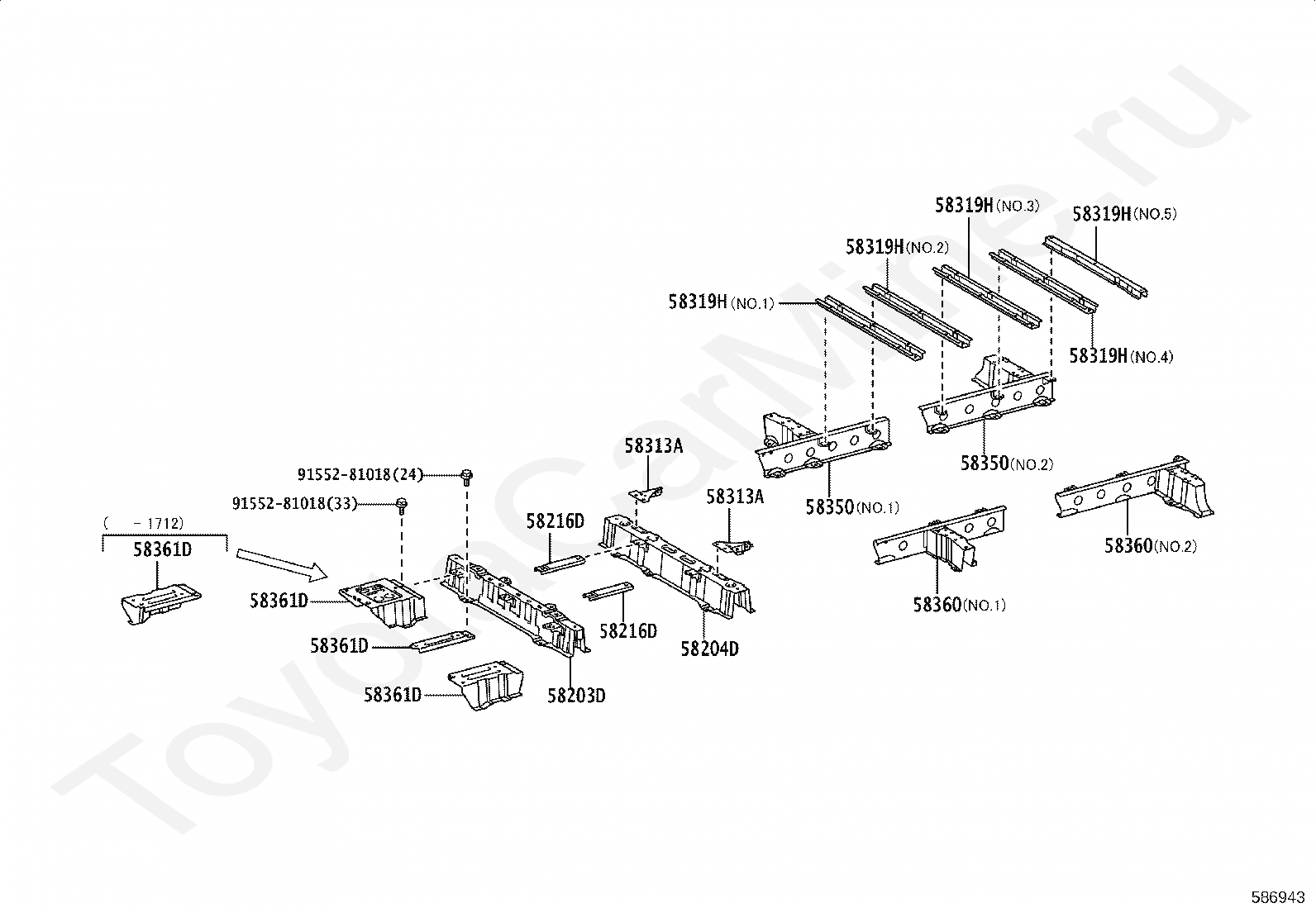

58203D

BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH

58204D

BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

58216D

BRACKET, REAR SEAT MOUNTING, LH

58313A

EXTENSION, REAR FLOOR FRONT PANEL

58319H

PLATE, SUB FLOOR

58350

REINFORCEMENT ASSY, REAR FLOOR PANEL, RH

58360

REINFORCEMENT ASSY, REAR FLOOR PANEL, LH

58361D

REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH

9155281018

Крепеж

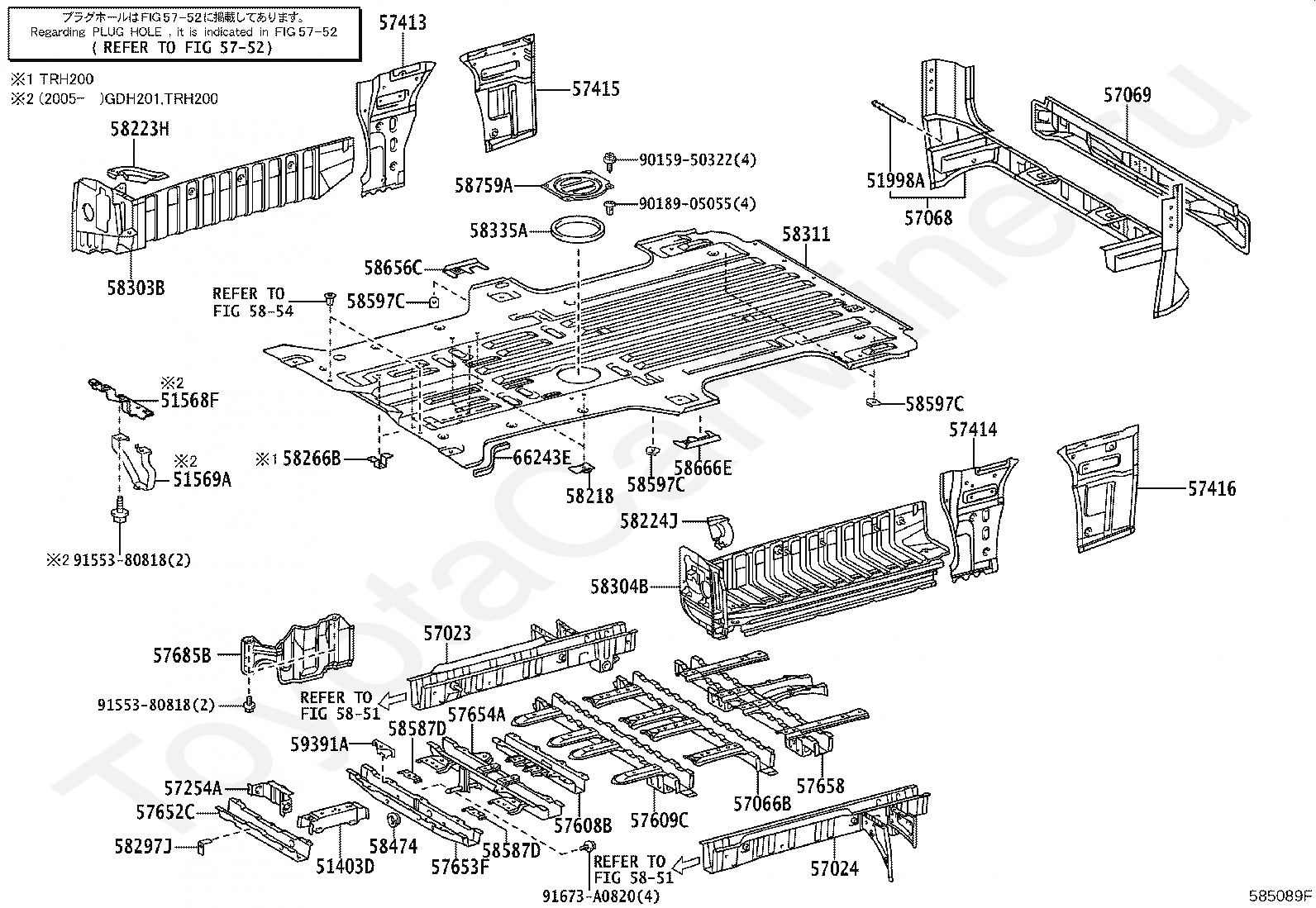

Код

Описание

51403D

BRACKET SUB-ASSY, ENGINE REAR MOUNTING

51568F

BRACKET, PROPELLER SHAFT GUARD

51569A

GUARD, PROPELLER SHAFT

51998A

HANGER, EXHAUST PIPE SUPPORT, NO.6

57023

MEMBER SUB-ASSY, REAR SIDE, RH

57024

MEMBER SUB-ASSY, REAR SIDE, LH

57066B

MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6

57068

MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

57069

MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

57254A

REINFORCEMENT, ENGINE REAR MOUNTING MEMBER

57413

RAIL, FLOOR SIDE, CENTER RH

57414

RAIL, FLOOR SIDE, CENTER LH

57415

RAIL, FLOOR SIDE, REAR RH

57416

RAIL, FLOOR SIDE, REAR LH

5752

переход к группе запчастей

57608B

MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

57609C

MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

57652C

MEMBER, REAR FLOOR CROSS, NO.1

57653F

MEMBER, REAR FLOOR CROSS, NO.2

57654A

MEMBER, REAR FLOOR CROSS, NO.3

57658

MEMBER, REAR FLOOR CROSS, NO.7

57685B

GUARD, FUEL TANK

58218

PLATE, SEAT FLOOR PANEL

58223H

REINFORCEMENT, FLOOR PANEL SIDE, RH

58224J

REINFORCEMENT, FLOOR PANEL SIDE, LH

58266B

BRACKET, FUEL TUBE CLAMP

58297J

RETAINER, FLOOR CLAMP

58303B

STEP SUB-ASSY, REAR FLOOR, RH

58304B

STEP SUB-ASSY, REAR FLOOR, LH

58311

PAN, REAR FLOOR

58335A

SEAL, REAR FLOOR SIDE SERVICE HOLE COVER

58474

COVER, INSPECTION HOLE

5851

переход к группе запчастей

5854

переход к группе запчастей

58587D

PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1

58597C

PLATE, SEAT TRACK SET

58656C

PLATE, REAR FLOOR, CENTER LOWER NO.2 RH

58666E

PLATE, REAR FLOOR, CENTER LOWER NO.2 LH

58759A

COVER, FUEL TANK INSPECTION HOLE

59391A

RETAINER, REAR FLOOR, NO.1

66243E

PROTECTOR, REAR BODY, NO.1

9015950322

Крепеж

9018905055

Крепеж

9155380818

Крепеж

91673A0820

Крепеж

Задняя панель пола TOYOTA HIACE/REGIUSACE, 2017/12 - 2025, 2,8 литра, турбо-дизель, V2 SPECIFICATION: VAN (SUPER-, SINGLE-, JUST-LOW), DELUX SPECIFICATION, GDH201, АКПП, 6 скоростей
