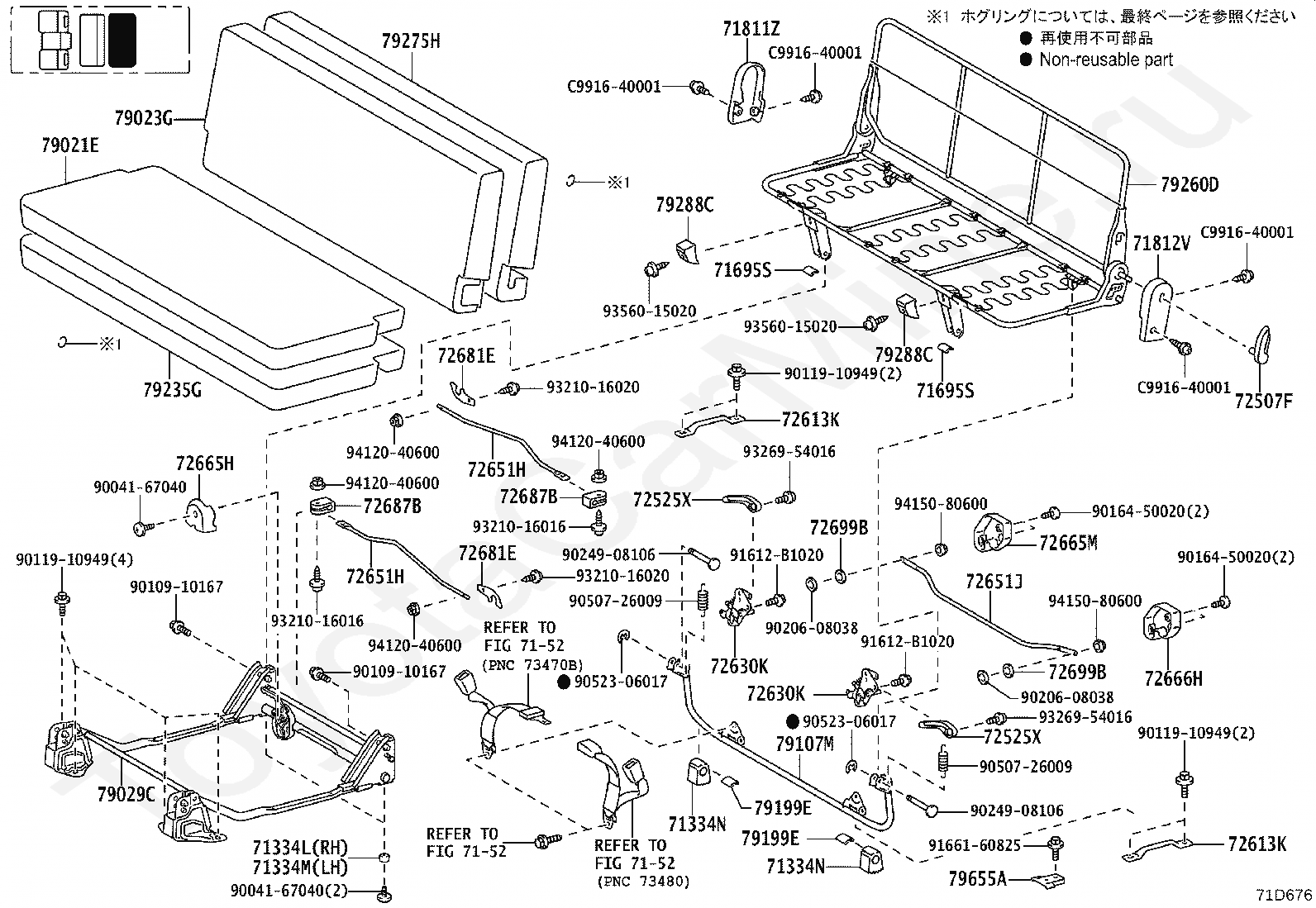

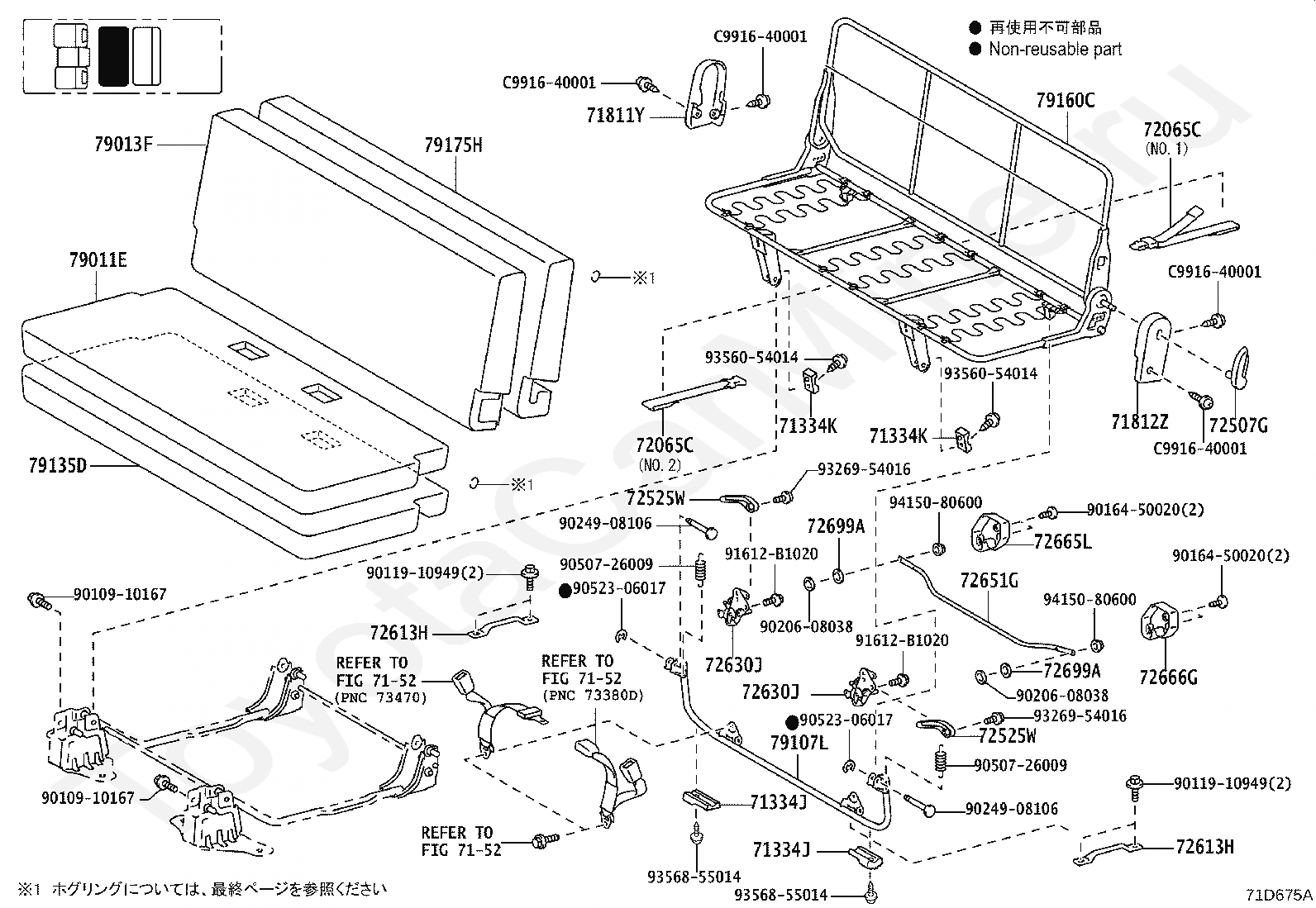

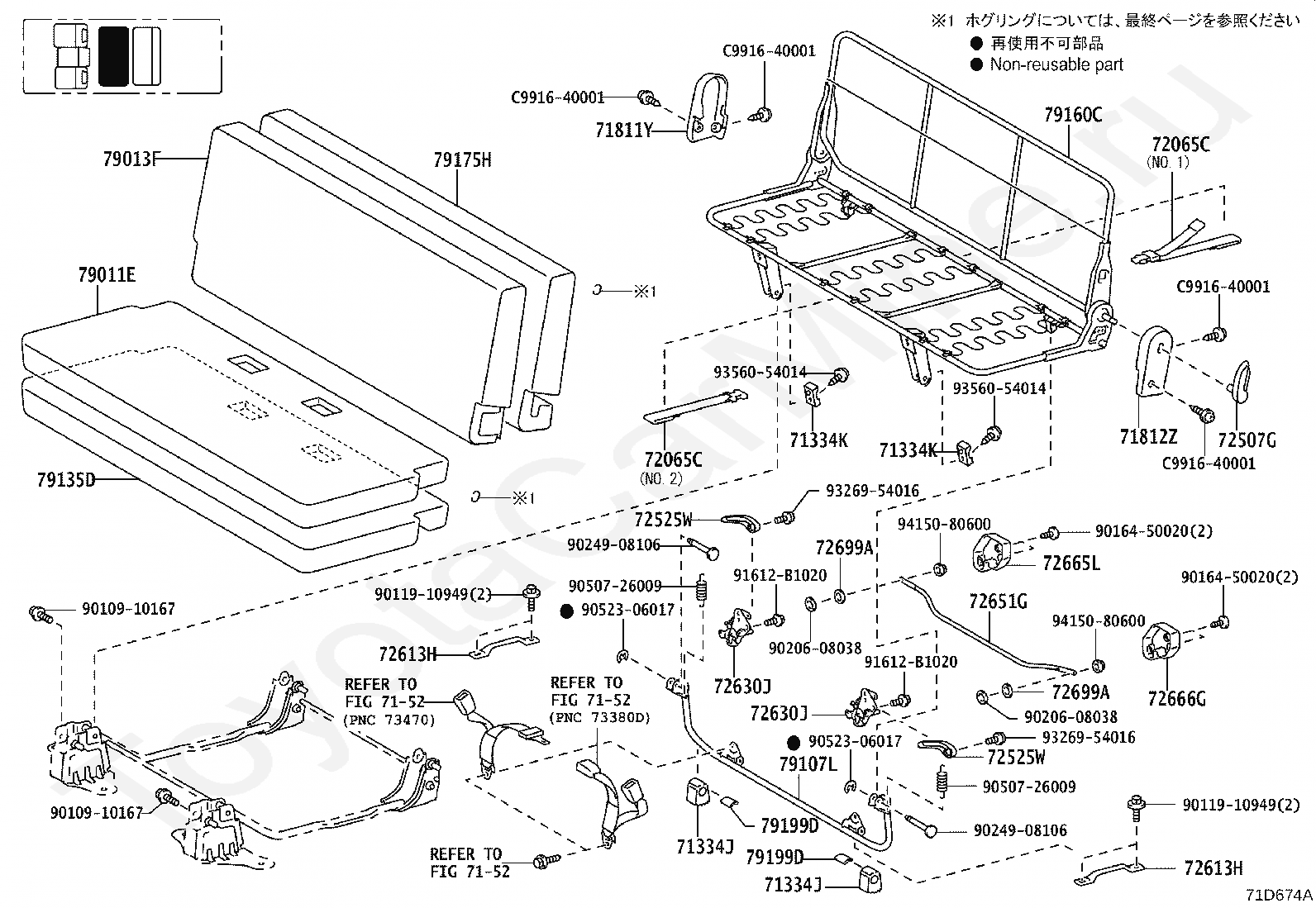

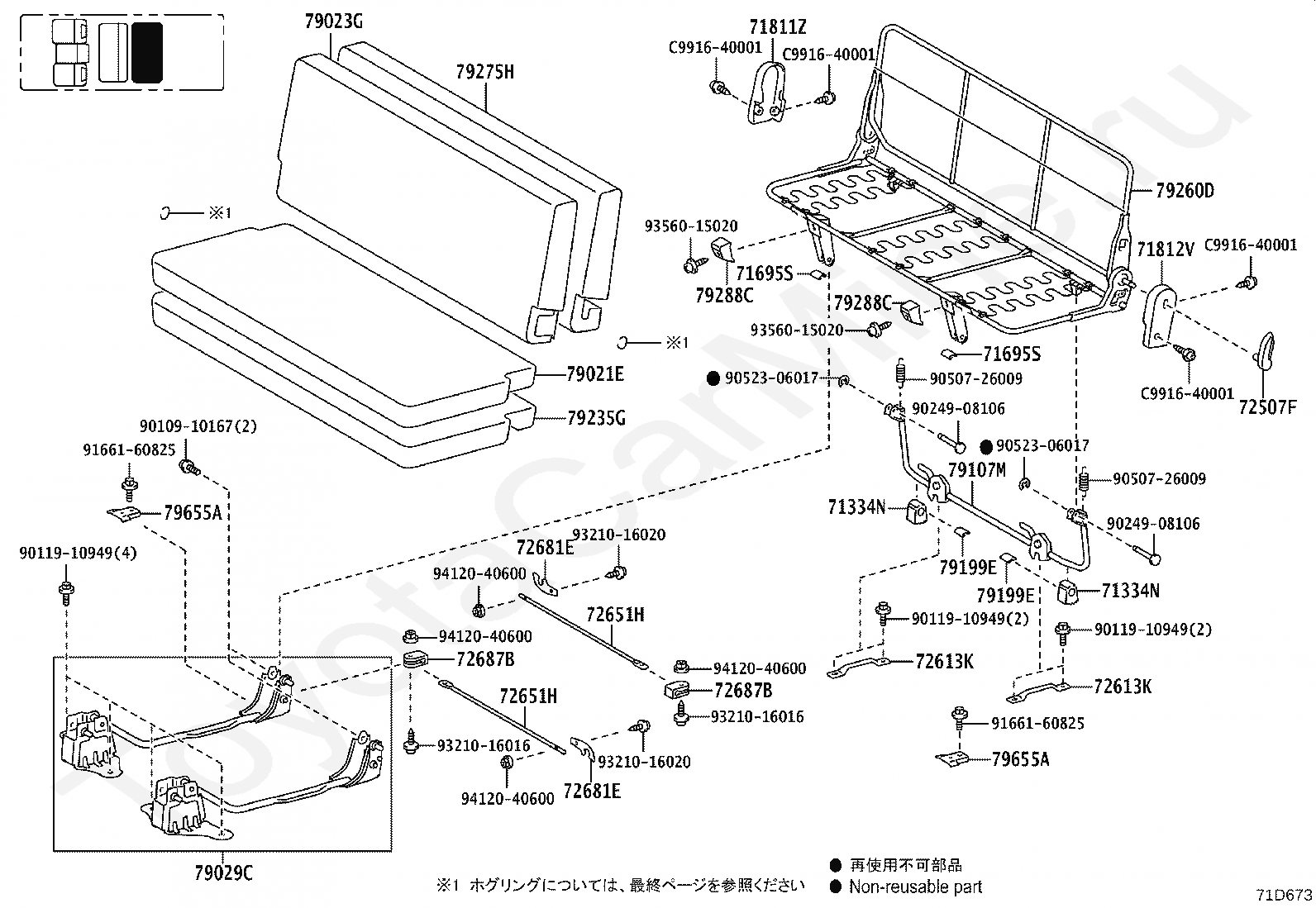

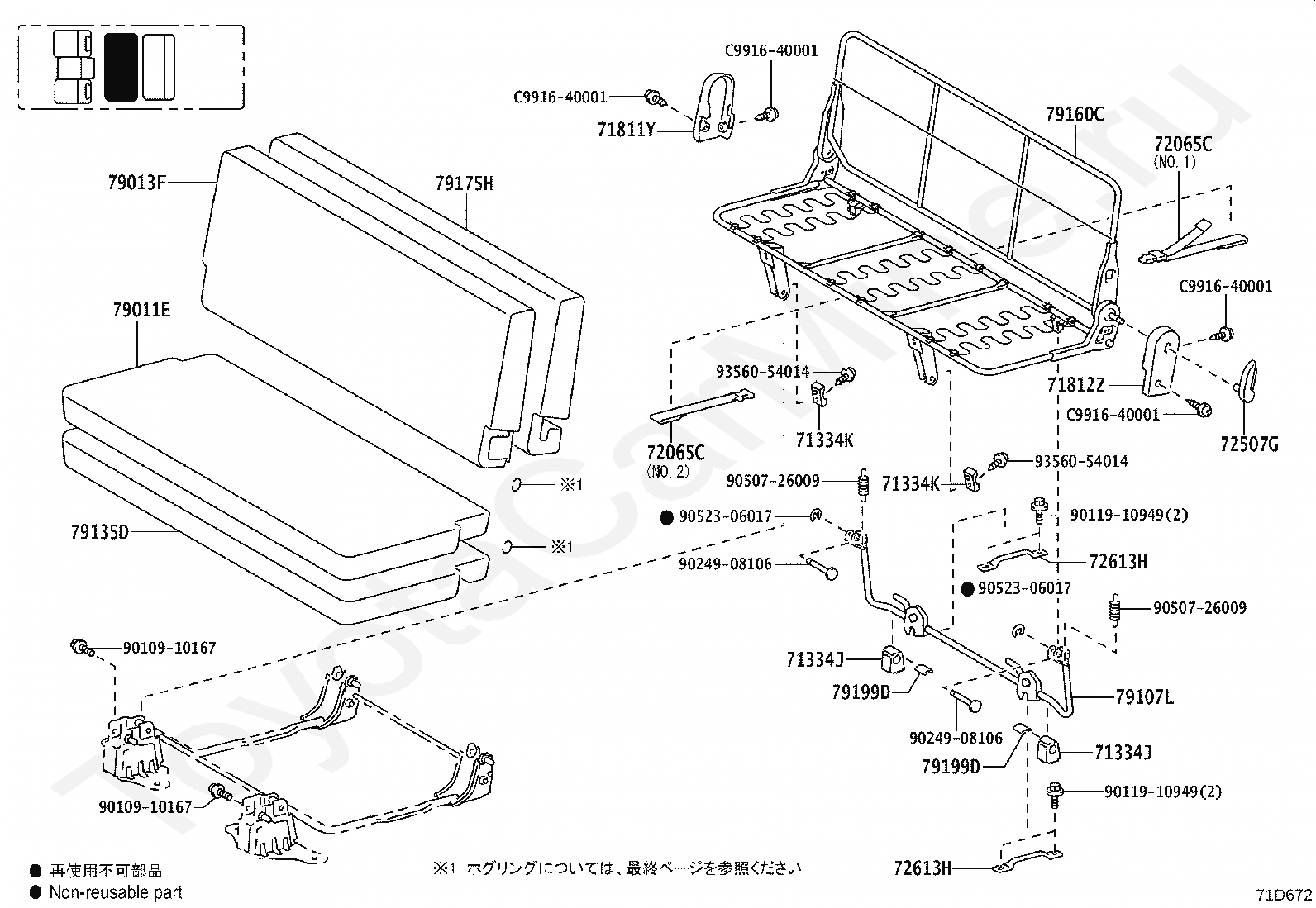

REAR SEAT & SEAT TRACK TOYOTA HIACE/REGIUSACE, 2013/12 - 2025, 3 литра, турбо-дизель, V1 SPECIFICATION: VAN (STANDARD), DELUX SPECIFICATION, KDH206, АКПП, 4 ступени

Каталог

Япония

Модель

HIACE/REGIUSACE

Двигатель

3 литра, турбо-дизель

Кузов

V1 SPECIFICATION: VAN (STANDARD)

Класс

DELUX SPECIFICATION

Фрейм

KDH206

Трансмиссия

АКПП, 4 ступени

Опции

STANDARD ROOF 4 двери боковое стекло 9-местный CBU 4WD 602W

Код

Описание

71334J

STOPPER, REAR SEAT LEG

71334K

STOPPER, REAR SEAT LEG, NO.2

71811Y

COVER, RECLINING ADJUSTER, RH

71812Z

COVER, RECLINING ADJUSTER, LH

72065C

BELT SUB-ASSY, REAR SEAT HOOK

72507G

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72613H

STRIKER, REAR SEAT LOCK

79011E

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013F

COVER SUB-ASSY, NO.1 SEAT BACK

79107L

LEG SUB-ASSY, NO.1 SEAT, REAR

79135D

PAD, NO.1 SEAT CUSHION

79160C

SPRING ASSY, NO.1 SEAT CUSHION

79175H

PAD, NO.1 SEAT BACK

79199D

HOLDER, NO.1 SEAT LEG STOPPER

9010910167

Крепеж

9011910949

Крепеж

9024908106

Крепеж

9050726009

Крепеж

9052306017

Крепеж

9356054014

Крепеж

C991640001

Крепеж

Код

Описание

71334N

STOPPER, REAR SEAT LEG, NO.2

71695S

PROTECTOR, REAR SEAT, NO.1

71811Z

SHIELD, REAR SEAT CUSHION, RH

71812V

SHIELD, REAR SEAT CUSHION, LH

72507F

HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE

72613K

STRIKER, REAR SEAT LOCK, NO.2

72651H

ROD, REAR SEAT LOCK, NO.2

72681E

HOOK, REAR SEAT

72687B

BRACKET, REAR SEAT HOOK

79021E

COVER SUB-ASSY, NO.2 SEAT CUSHION

79023G

COVER SUB-ASSY, NO.2 SEAT BACK

79029C

STAY SUB-ASSY, NO.2 SEAT

79107M

LEG SUB-ASSY, NO.2 SEAT, REAR

79199E

HOLDER, NO.2 SEAT LEG STOPPER

79235G

PAD, NO.2 SEAT CUSHION

79260D

SPRING ASSY, NO.2 SEAT

79275H

PAD, NO.2 SEAT BACK

79288C

STOPPER, NO.2 SEAT CUSHION

79655A

STRIKER, NO.2 SEAT LEG

9010910167

Крепеж

9011910949

Крепеж

9024908106

Крепеж

9050726009

Крепеж

9052306017

Крепеж

9166160825

Крепеж

9321016016

Крепеж

9321016020

Крепеж

9356015020

Крепеж

9412040600

Крепеж

C991640001

Крепеж

Код

Описание

71334J

STOPPER, REAR SEAT LEG

71334K

STOPPER, REAR SEAT LEG, NO.2

7152

переход к группе запчастей

71811Y

COVER, RECLINING ADJUSTER, RH

71812Z

COVER, RECLINING ADJUSTER, LH

72065C

BELT SUB-ASSY, REAR SEAT HOOK

72507G

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72525W

HANDLE, RECLINING ADJUSTER RELEASE, NO.1

72613H

STRIKER, REAR SEAT LOCK

72630J

LOCK ASSY, REAR NO.1 SEAT

72651G

ROD, REAR SEAT LOCK, NO.1

72665L

COVER, REAR SEAT BACK LOCK, RH

72666G

COVER, REAR SEAT BACK LOCK, LH

72699A

PLATE, REAR SEAT LOCK RELEASE, NO.1

79011E

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013F

COVER SUB-ASSY, NO.1 SEAT BACK

79107L

LEG SUB-ASSY, NO.1 SEAT, REAR

79135D

PAD, NO.1 SEAT CUSHION

79160C

SPRING ASSY, NO.1 SEAT CUSHION

79175H

PAD, NO.1 SEAT BACK

79199D

HOLDER, NO.1 SEAT LEG STOPPER

9010910167

Крепеж

9011910949

Крепеж

9016450020

Крепеж

9020608038

Крепеж

9024908106

Крепеж

9050726009

Крепеж

9052306017

Крепеж

91612B1020

Крепеж

9326954016

Крепеж

9356054014

Крепеж

9415080600

Крепеж

C991640001

Крепеж

Код

Описание

71334J

STOPPER, REAR SEAT LEG

71334K

STOPPER, REAR SEAT LEG, NO.2

7152

переход к группе запчастей

71811Y

COVER, RECLINING ADJUSTER, RH

71812Z

COVER, RECLINING ADJUSTER, LH

72065C

BELT SUB-ASSY, REAR SEAT HOOK

72507G

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72525W

HANDLE, RECLINING ADJUSTER RELEASE, NO.1

72613H

STRIKER, REAR SEAT LOCK

72630J

LOCK ASSY, REAR NO.1 SEAT

72651G

ROD, REAR SEAT LOCK, NO.1

72665L

COVER, REAR SEAT BACK LOCK, RH

72666G

COVER, REAR SEAT BACK LOCK, LH

72699A

PLATE, REAR SEAT LOCK RELEASE, NO.1

79011E

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013F

COVER SUB-ASSY, NO.1 SEAT BACK

79107L

LEG SUB-ASSY, NO.1 SEAT, REAR

79135D

PAD, NO.1 SEAT CUSHION

79160C

SPRING ASSY, NO.1 SEAT CUSHION

79175H

PAD, NO.1 SEAT BACK

9010910167

Крепеж

9011910949

Крепеж

9016450020

Крепеж

9020608038

Крепеж

9024908106

Крепеж

9050726009

Крепеж

9052306017

Крепеж

91612B1020

Крепеж

9326954016

Крепеж

9356054014

Крепеж

9356855014

Крепеж

9415080600

Крепеж

C991640001

Крепеж

Код

Описание

71334L

STOPPER, REAR SEAT LEG, RH

71334M

STOPPER, REAR SEAT LEG, LH

71334N

STOPPER, REAR SEAT LEG, NO.2

7152

переход к группе запчастей

71695S

PROTECTOR, REAR SEAT, NO.1

71811Z

SHIELD, REAR SEAT CUSHION, RH

71812V

SHIELD, REAR SEAT CUSHION, LH

72507F

HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE

72525X

HANDLE, RECLINING ADJUSTER RELEASE, NO.2

72613K

STRIKER, REAR SEAT LOCK, NO.2

72630K

LOCK ASSY, REAR NO.2 SEAT

72651H

ROD, REAR SEAT LOCK, NO.2

72651J

ROD, REAR SEAT LOCK, NO.3

72665H

COVER, REAR SEAT BACK LOCK

72665M

COVER, REAR SEAT BACK LOCK, RH NO.2

72666H

COVER, REAR SEAT BACK LOCK, LH NO.2

72681E

HOOK, REAR SEAT

72687B

BRACKET, REAR SEAT HOOK

72699B

PLATE, REAR SEAT LOCK RELEASE, NO.2

79021E

COVER SUB-ASSY, NO.2 SEAT CUSHION

79023G

COVER SUB-ASSY, NO.2 SEAT BACK

79029C

STAY SUB-ASSY, NO.2 SEAT

79107M

LEG SUB-ASSY, NO.2 SEAT, REAR

79199E

HOLDER, NO.2 SEAT LEG STOPPER

79235G

PAD, NO.2 SEAT CUSHION

79260D

SPRING ASSY, NO.2 SEAT

79275H

PAD, NO.2 SEAT BACK

79288C

STOPPER, NO.2 SEAT CUSHION

79655A

STRIKER, NO.2 SEAT LEG

9004167040

Крепеж

9010910167

Крепеж

9011910949

Крепеж

9016450020

Крепеж

9020608038

Крепеж

9024908106

Крепеж

9050726009

Крепеж

9052306017

Крепеж

91612B1020

Крепеж

9166160825

Крепеж

9321016016

Крепеж

9321016020

Крепеж

9326954016

Крепеж

9356015020

Крепеж

9412040600

Крепеж

9415080600

Крепеж

C991640001

Крепеж

Код

Описание

7114930050

Крепеж

7129226010

Крепеж

9046816019

Крепеж

9046818008

Крепеж

REAR SEAT & SEAT TRACK TOYOTA HIACE/REGIUSACE, 2013/12 - 2025, 3 литра, турбо-дизель, V1 SPECIFICATION: VAN (STANDARD), DELUX SPECIFICATION, KDH206, АКПП, 4 ступени
