Каталог
ЕвропаМодель
HIACEДвигатель
2 литраКузов
MINIBUS (COMMUTER)Фрейм
RH32Трансмиссия
МКПП, 4 ступени, на рулеОпции
правый руль 15-местный GEN CBU

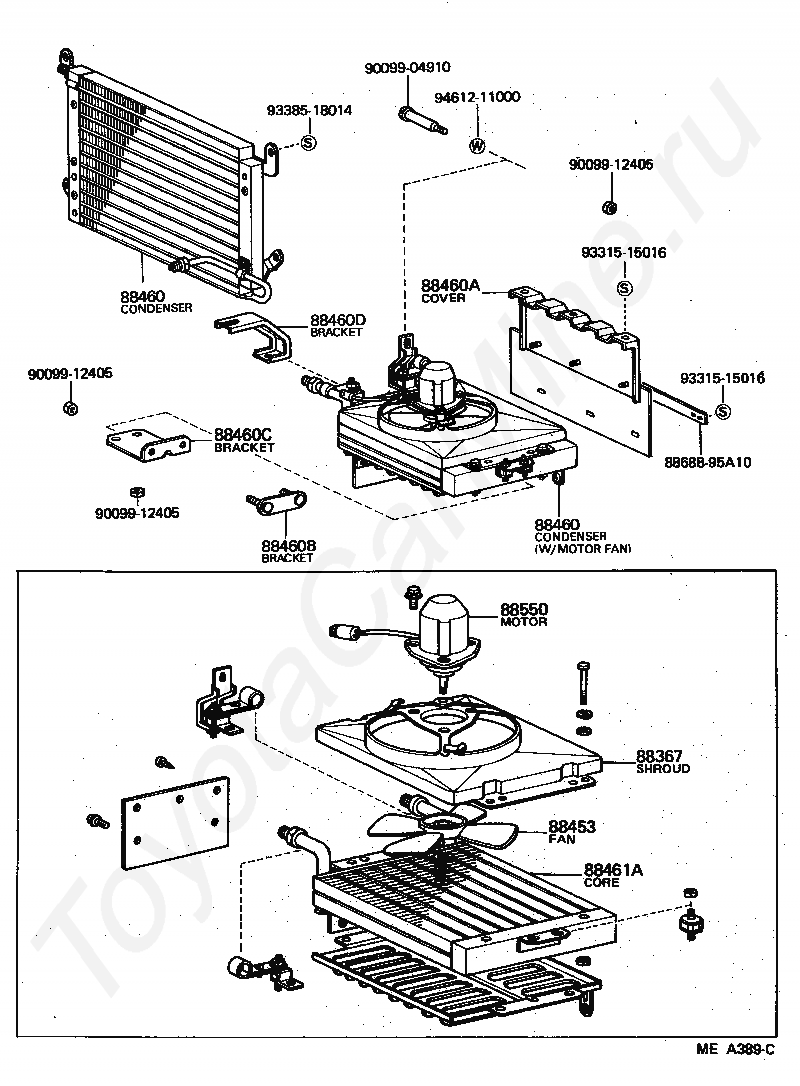

Код
Описание
88367
SHROUD, COOLER BLOWER FAN
88453
FAN, COOLING (FOR CONDENSER)
88460
CONDENSER ASSY, COOLER
88460A
COVER, COOLER CONDENSER
88460B
BRACKET, COOLER CONDENSER, NO.1
88460C
BRACKET, COOLER CONDENSER, NO.2
88460D
BRACKET, COOLER CONDENSER, NO.3
88461A
CORE, COOLER CONDENSER
88550
MOTOR ASSY, BLOWER (FOR CONDENSER)
8868895A10
Крепеж
9009904910
Крепеж
9009912405
Крепеж
9331515016
Крепеж
9338518014
Крепеж
9461211000
Крепеж
Код
Описание
88367
SHROUD, COOLER BLOWER FAN
88453
FAN, COOLING (FOR CONDENSER)
88460
CONDENSER ASSY, COOLER
88460A
COVER, COOLER CONDENSER
88460B
BRACKET, COOLER CONDENSER, NO.1
88460C
BRACKET, COOLER CONDENSER, NO.2
88460D
BRACKET, COOLER CONDENSER, NO.3
88461A
CORE, COOLER CONDENSER
88550
MOTOR ASSY, BLOWER (FOR CONDENSER)
8868895A10
Крепеж
9009904910
Крепеж
9009912405
Крепеж
9331515016
Крепеж
9338518014
Крепеж
9461211000
Крепеж

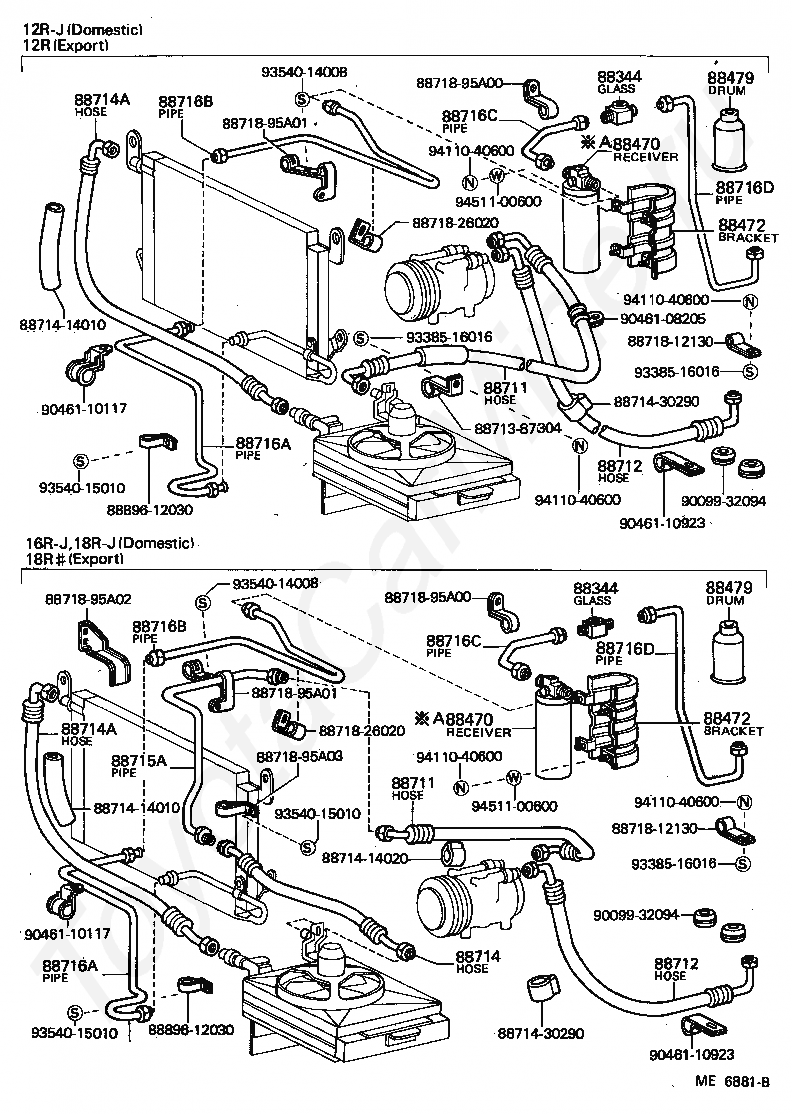

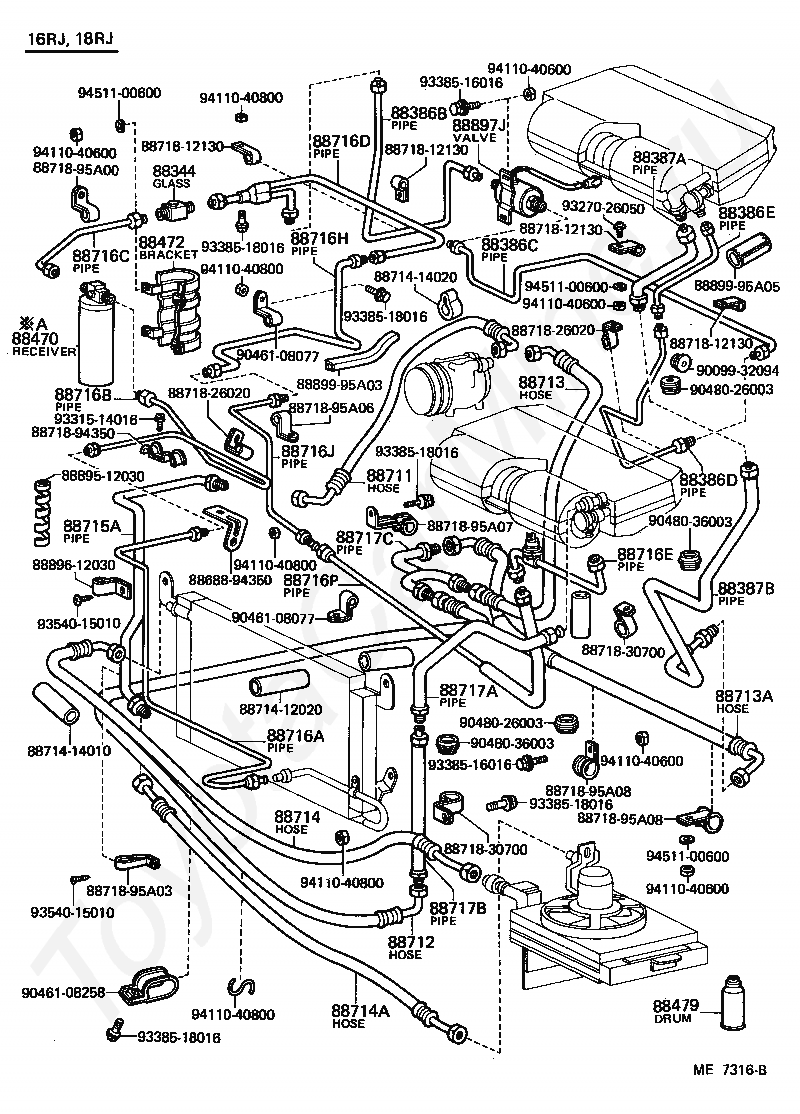

Код
Описание
88344
GLASS SUB-ASSY, SIGHT
88386B
PIPE, REAR COOLER REFRIGERANT LIQUID, B
88386C
PIPE, REAR COOLER REFRIGERANT LIQUID, C
88386D
PIPE, REAR COOLER REFRIGERANT LIQUID, D
88386E
PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT)
88387A
PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNIT)
88387B
PIPE, REAR COOLER REFRIGERANT SUCTION, B
88470
RECEIVER & DRYER ASSY, COOLER
88472
BRACKET, RECEIVER TANK, NO.1
88479
FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
8868894350
Крепеж
88711
HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88712
HOSE, COOLER REFRIGERANT SUCTION, NO.1
88713
HOSE, COOLER REFRIGERANT SUCTION, NO.2
88713A
HOSE, COOLER REFRIGERANT SUCTION, NO.3
88714
HOSE, COOLER REFRIGERANT LIQUID, NO.1
8871412020
Крепеж
8871414010
Крепеж
8871414020
Крепеж
88714A
HOSE, COOLER REFRIGERANT LIQUID, NO.2
88715A
PIPE, COOLER REFRIGERANT DISCHARGE, A
88716A
PIPE, COOLER REFRIGERANT LIQUID, A
88716B
PIPE, COOLER REFRIGERANT LIQUID, B
88716C
PIPE, COOLER REFRIGERANT LIQUID, C
88716D
PIPE, COOLER REFRIGERANT LIQUID, D
88716E
PIPE, COOLER REFRIGERANT LIQUID, E
88716H
PIPE, COOLER REFRIGERANT LIQUID, H
88716J
PIPE, COOLER REFRIGERANT LIQUID, J
88716P
PIPE, COOLER REFRIGERANT LIQUID, P
88717A
PIPE, COOLER REFRIGERANT SUCTION, A
88717B
PIPE, COOLER REFRIGERANT SUCTION, B
88717C
PIPE, COOLER REFRIGERANT SUCTION, C
8871812130
Крепеж
8871826020
Крепеж
8871830700
Крепеж
8871894350
Крепеж
8871895A00
Крепеж
8871895A03
Крепеж
8871895A06
Крепеж
8871895A07
Крепеж
8871895A08
Крепеж
8889512030
Крепеж
8889612030
Крепеж
88897J
VALVE, COOLER MAGNET
8889995A03
Крепеж
8889995A05
Крепеж
9009932094
Крепеж
9046108077
Крепеж
9046108258
Крепеж
9048026003
Крепеж
9048036003
Крепеж
9327026050
Крепеж
9331514016
Крепеж
9338516016
Крепеж
9338518016
Крепеж
9354015010
Крепеж
9411040600
Крепеж
9411040800
Крепеж
9451100600
Крепеж

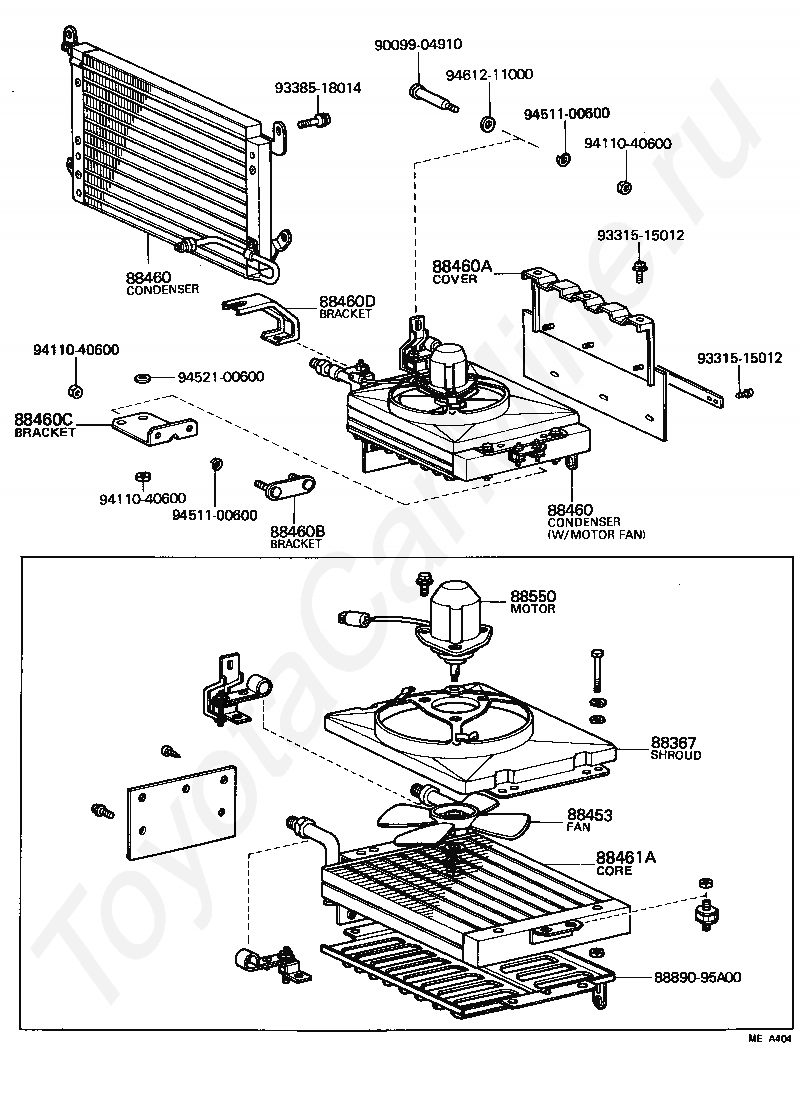

Код
Описание
88367
SHROUD, COOLER BLOWER FAN
88453
FAN, COOLING (FOR CONDENSER)
88460
CONDENSER ASSY, COOLER
88460A
COVER, COOLER CONDENSER
88460B
BRACKET, COOLER CONDENSER, NO.1
88460C
BRACKET, COOLER CONDENSER, NO.2
88460D
BRACKET, COOLER CONDENSER, NO.3
88461A
CORE, COOLER CONDENSER
88550
MOTOR ASSY, BLOWER (FOR CONDENSER)
8889095A00
Крепеж
9009904910
Крепеж
9331515012
Крепеж
9338518014
Крепеж
9411040600
Крепеж
9451100600
Крепеж
9452100600
Крепеж
9461211000
Крепеж
Код
Описание
88344
GLASS SUB-ASSY, SIGHT
88470
RECEIVER & DRYER ASSY, COOLER
88472
BRACKET, RECEIVER TANK, NO.1
88479
FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88711
HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88712
HOSE, COOLER REFRIGERANT SUCTION, NO.1
8871387304
Крепеж
88714
HOSE, COOLER REFRIGERANT LIQUID, NO.1
8871414010
Крепеж
8871414020
Крепеж
8871430290
Крепеж
88714A
HOSE, COOLER REFRIGERANT LIQUID, NO.2
88715A
PIPE, COOLER REFRIGERANT DISCHARGE, A
88716A
PIPE, COOLER REFRIGERANT LIQUID, A
88716B
PIPE, COOLER REFRIGERANT LIQUID, B
88716C
PIPE, COOLER REFRIGERANT LIQUID, C
88716D
PIPE, COOLER REFRIGERANT LIQUID, D
8871812130
Крепеж
8871826020
Крепеж
8871895A00
Крепеж
8871895A01
Крепеж
8871895A02
Крепеж
8871895A03
Крепеж
8889612030
Крепеж
9009932094
Крепеж
9046108205
Крепеж
9046110117
Крепеж
9046110923
Крепеж
9338516016
Крепеж
9354014008
Крепеж
9354015010
Крепеж
9411040600
Крепеж
9451100600
Крепеж

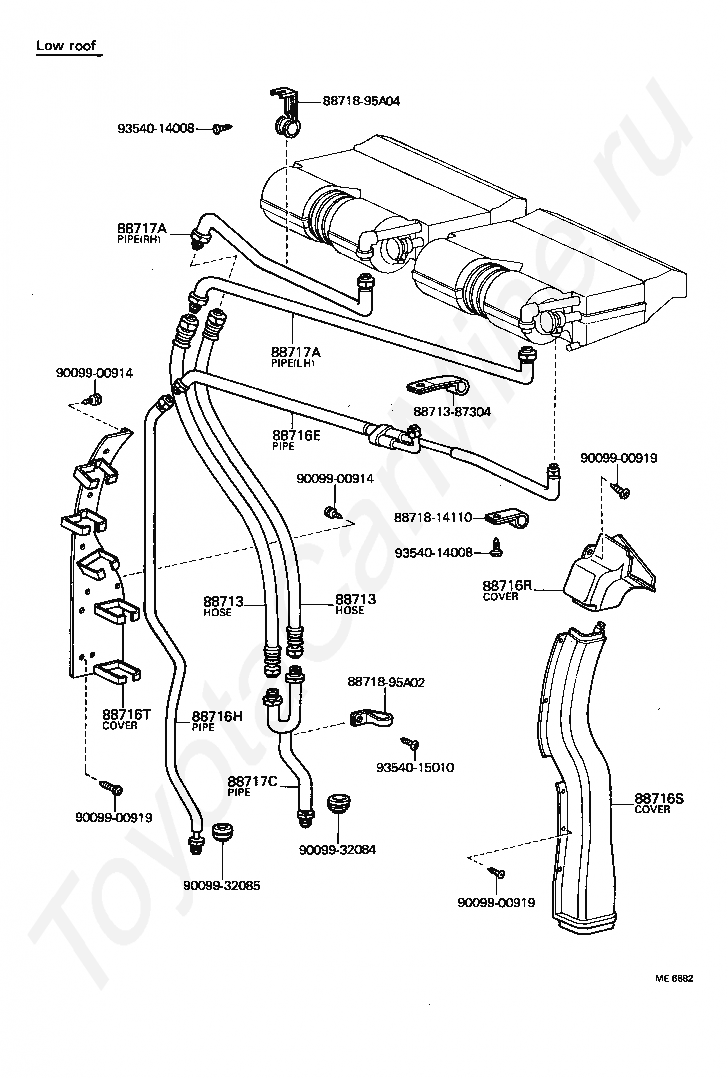

Код
Описание
88713
HOSE, COOLER REFRIGERANT SUCTION, NO.2
8871387304
Крепеж
88716E
PIPE, COOLER REFRIGERANT LIQUID, E
88716H
PIPE, COOLER REFRIGERANT LIQUID, H
88716R
COVER, PIPE OR HOSE, NO.1
88716S
COVER, PIPE OR HOSE, NO.2
88716T
COVER, PIPE OR HOSE, NO.3
88717A
PIPE, COOLER REFRIGERANT SUCTION, A
88717C
PIPE, COOLER REFRIGERANT SUCTION, C
8871814110
Крепеж
8871895A02
Крепеж
8871895A04
Крепеж
9009900914
Крепеж
9009900919
Крепеж
9009932084
Крепеж
9009932085
Крепеж
9354014008
Крепеж
9354015010
Крепеж

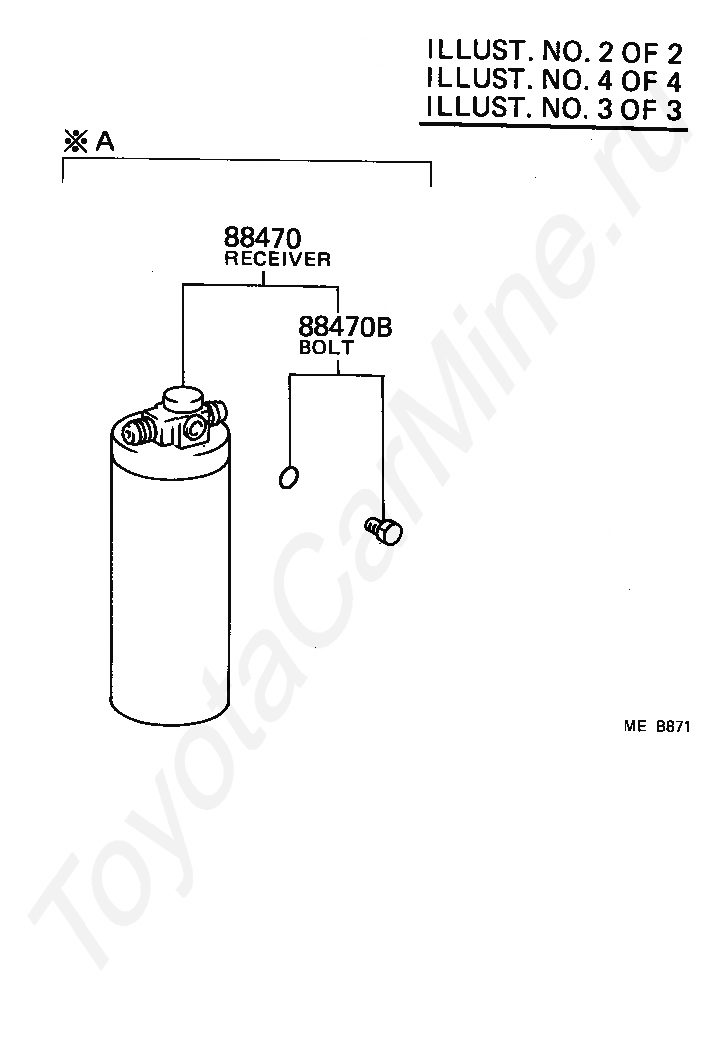

Код
Описание
88470
RECEIVER & DRYER ASSY, COOLER
88470B
BOLT, FUSE
