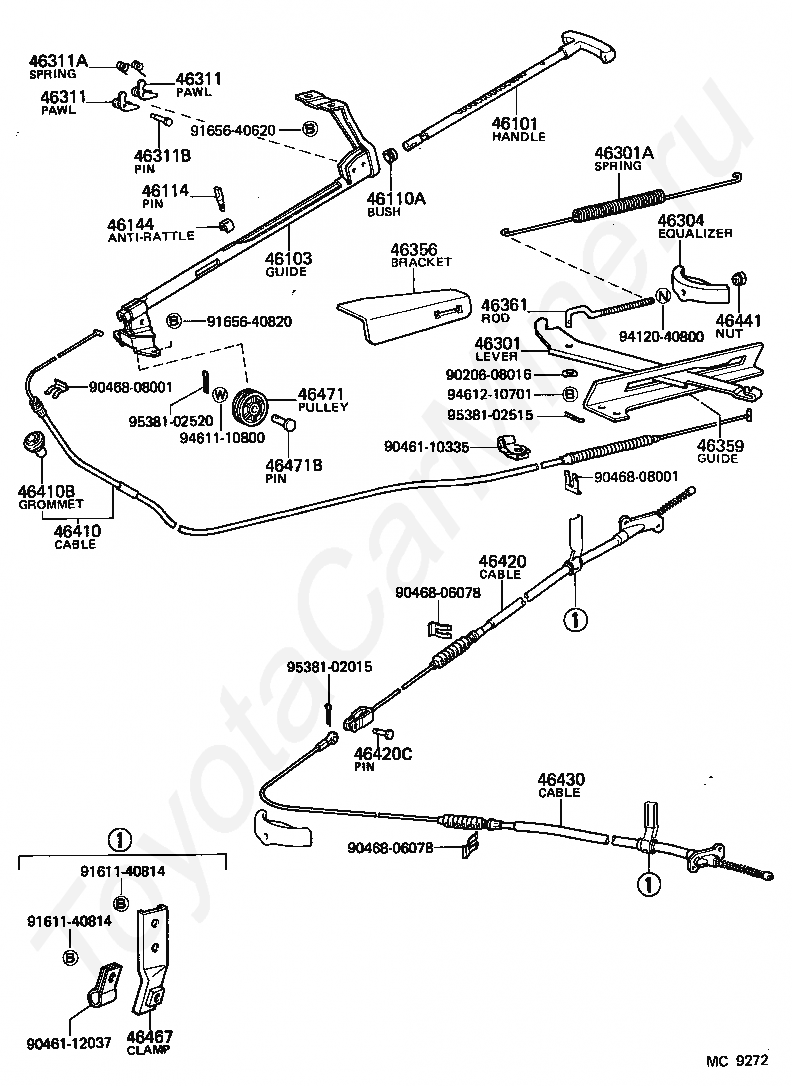

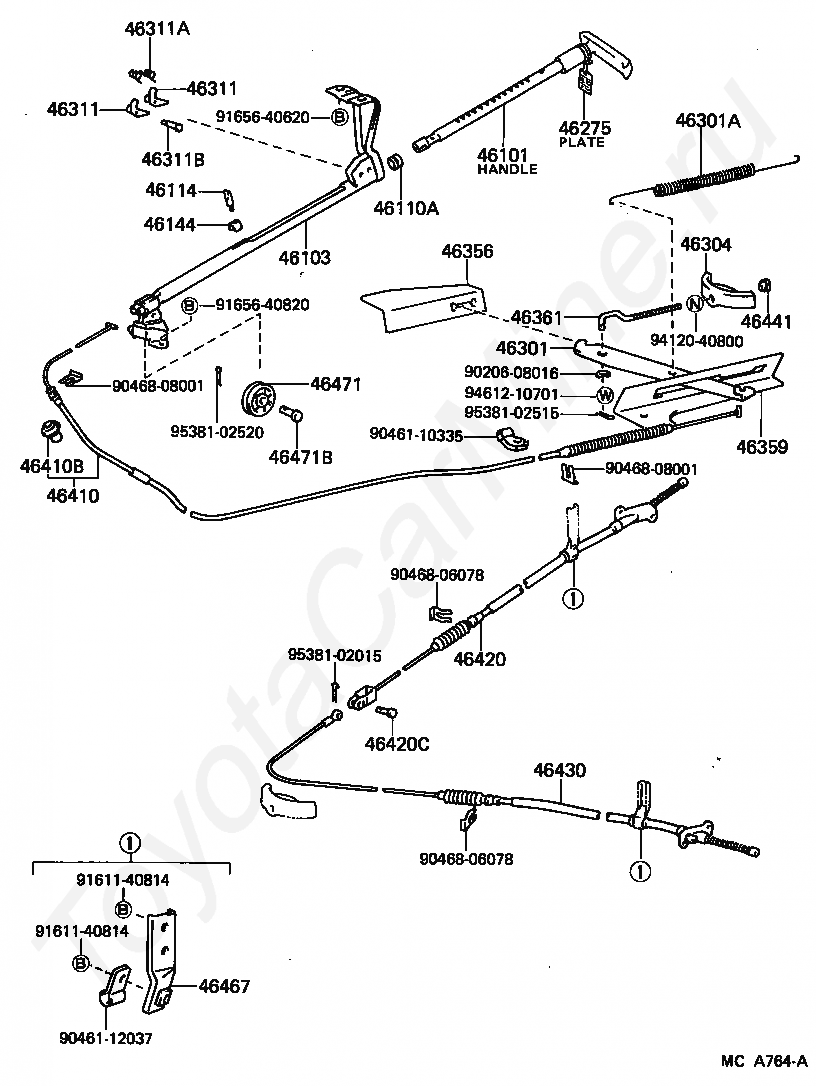

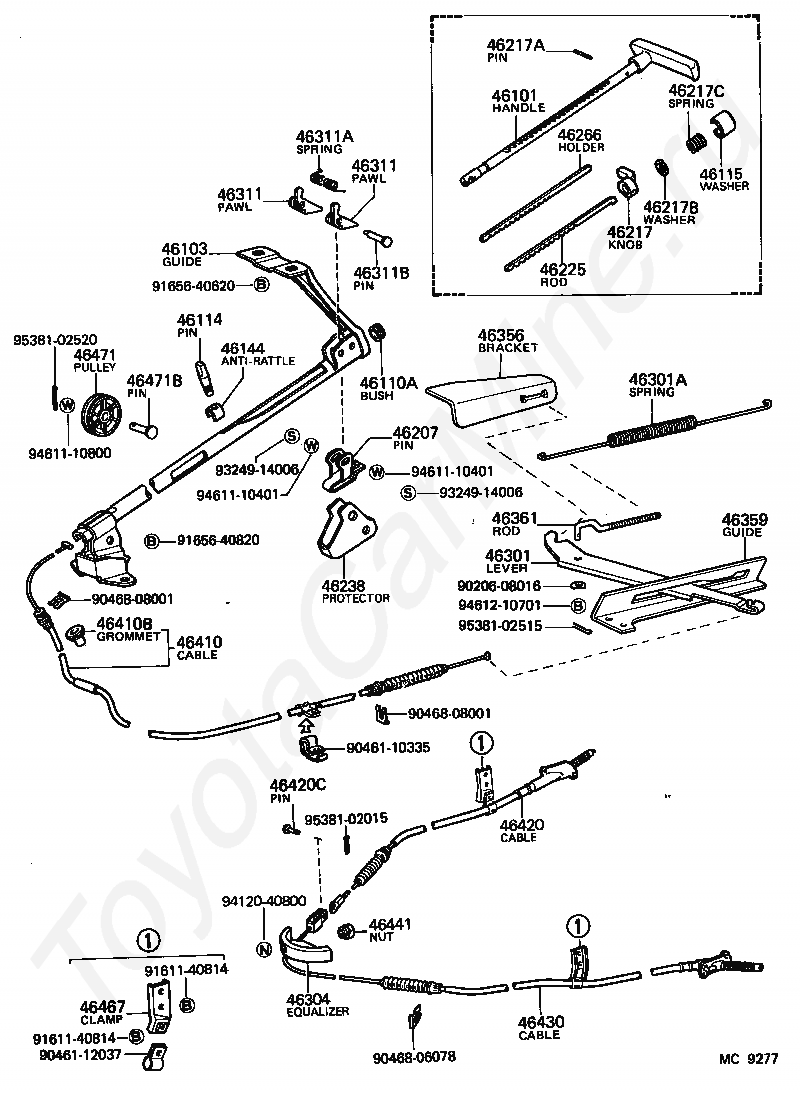

Ручной тормоз TOYOTA HIACE, 1982/11 - 1985/07, 1,6 литра, DOUBLE CAB TRUCK, RH11, МКПП, 4 ступени, на руле

Каталог

Европа

Модель

HIACE

Двигатель

1,6 литра

Кузов

DOUBLE CAB TRUCK

Фрейм

RH11

Трансмиссия

МКПП, 4 ступени, на руле

Опции

правый руль 6-местный Австралия COMPLETED VEHICLE

Код

Описание

46101

HANDLE SUB-ASSY, PARKING BRAKE CONTROL

46103

GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

46110A

BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

46114

PIN, PARKING BRAKE PLUNGER

46144

ANTI-RATTLE, PARKING BRAKE PLUNGER

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46301A

SPRING, TENSION(FOR INTERMEDIATE LEVER)

46304

EQUALIZER SUB-ASSY, PARKING BRAKE

46311

PAWL, PARKING BRAKE

46311A

SPRING(FOR PARKING BRAKE PAWL)

46311B

PIN, PARKING BRAKE PAWL PIVOT

46356

BRACKET, EQUALIZER SUPPORT

46359

GUIDE, PARKING BRAKE INTERMEDIATE LEVER

46361

ROD, PARKING BRAKE PULL

46410

CABLE ASSY, PARKING BRAKE, NO.1

46410B

GROMMET(FOR PARKING BRAKE FRONT CABLE)

46420

CABLE ASSY, PARKING BRAKE, NO.2

46420C

PIN, W/HOLE(FOR PARKING BRAKE CABLE)

46430

CABLE ASSY, PARKING BRAKE, NO.3

46441

NUT, WIRE ADJUSTING, NO.1

46467

CLAMP, CABLE

46471

PULLEY, WIRE

46471B

PIN, W/HOLE(FOR WIRE PULLEY SET)

9020608016

Крепеж

9046110335

Крепеж

9046112037

Крепеж

9046806078

Крепеж

9046808001

Крепеж

9161140814

Крепеж

9165640620

Крепеж

9165640820

Крепеж

9412040800

Крепеж

9461110800

Крепеж

9461210701

Крепеж

9538102015

Крепеж

9538102515

Крепеж

9538102520

Крепеж

Код

Описание

46101

HANDLE SUB-ASSY, PARKING BRAKE CONTROL

46103

GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

46110A

BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

46114

PIN, PARKING BRAKE PLUNGER

46115

WASHER, PARKING BRAKE PLUNGER

46144

ANTI-RATTLE, PARKING BRAKE PLUNGER

46207

PIN SUB-ASSY, PLUNGER LOCK

46217

KNOB, PARKING BRAKE RELEASE ROD

46217A

PIN, SLOTTED SPRING(FOR PARKING BRAKE RELEASE ROD KNOB)

46217B

WASHER, PLATE(FOR PARKING BRAKE RELEASE ROD KNOB)

46217C

SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE ROD KNOB)

46225

ROD, PARKING BRAKE PAWL RELEASE

46238

PROTECTOR, PLUNGER LOCK PIN

46266

HOLDER, PLUNGER LOCK PIN

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46301A

SPRING, TENSION(FOR INTERMEDIATE LEVER)

46304

EQUALIZER SUB-ASSY, PARKING BRAKE

46311

PAWL, PARKING BRAKE

46311A

SPRING(FOR PARKING BRAKE PAWL)

46311B

PIN, PARKING BRAKE PAWL PIVOT

46356

BRACKET, EQUALIZER SUPPORT

46359

GUIDE, PARKING BRAKE INTERMEDIATE LEVER

46361

ROD, PARKING BRAKE PULL

46410

CABLE ASSY, PARKING BRAKE, NO.1

46410B

GROMMET(FOR PARKING BRAKE FRONT CABLE)

46420

CABLE ASSY, PARKING BRAKE, NO.2

46420C

PIN, W/HOLE(FOR PARKING BRAKE CABLE)

46430

CABLE ASSY, PARKING BRAKE, NO.3

46441

NUT, WIRE ADJUSTING, NO.1

46467

CLAMP, CABLE

46471

PULLEY, WIRE

46471B

PIN, W/HOLE(FOR WIRE PULLEY SET)

9020608016

Крепеж

9046110335

Крепеж

9046112037

Крепеж

9046806078

Крепеж

9046808001

Крепеж

9161140814

Крепеж

9165640620

Крепеж

9165640820

Крепеж

9324914006

Крепеж

9412040800

Крепеж

9461110401

Крепеж

9461110800

Крепеж

9461210701

Крепеж

9538102515

Крепеж

9538102520

Крепеж

9538112015

Крепеж

Код

Описание

46101

HANDLE SUB-ASSY, PARKING BRAKE CONTROL

46103

GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

46110A

BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

46114

PIN, PARKING BRAKE PLUNGER

46115

WASHER, PARKING BRAKE PLUNGER

46144

ANTI-RATTLE, PARKING BRAKE PLUNGER

46207

PIN SUB-ASSY, PLUNGER LOCK

46217

KNOB, PARKING BRAKE RELEASE ROD

46217A

PIN, SLOTTED SPRING(FOR PARKING BRAKE RELEASE ROD KNOB)

46217B

WASHER, PLATE(FOR PARKING BRAKE RELEASE ROD KNOB)

46217C

SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE ROD KNOB)

46225

ROD, PARKING BRAKE PAWL RELEASE

46238

PROTECTOR, PLUNGER LOCK PIN

46266

HOLDER, PLUNGER LOCK PIN

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46301A

SPRING, TENSION(FOR INTERMEDIATE LEVER)

46304

EQUALIZER SUB-ASSY, PARKING BRAKE

46311

PAWL, PARKING BRAKE

46311A

SPRING(FOR PARKING BRAKE PAWL)

46311B

PIN, PARKING BRAKE PAWL PIVOT

46356

BRACKET, EQUALIZER SUPPORT

46359

GUIDE, PARKING BRAKE INTERMEDIATE LEVER

46361

ROD, PARKING BRAKE PULL

46410

CABLE ASSY, PARKING BRAKE, NO.1

46410B

GROMMET(FOR PARKING BRAKE FRONT CABLE)

46420

CABLE ASSY, PARKING BRAKE, NO.2

46420C

PIN, W/HOLE(FOR PARKING BRAKE CABLE)

46430

CABLE ASSY, PARKING BRAKE, NO.3

46441

NUT, WIRE ADJUSTING, NO.1

46467

CLAMP, CABLE

46471

PULLEY, WIRE

46471B

PIN, W/HOLE(FOR WIRE PULLEY SET)

9020608016

Крепеж

9046110335

Крепеж

9046112037

Крепеж

9046806078

Крепеж

9046808001

Крепеж

9161140814

Крепеж

9165640620

Крепеж

9165640820

Крепеж

9324914006

Крепеж

9412040800

Крепеж

9461110401

Крепеж

9461110800

Крепеж

9461210701

Крепеж

9538102515

Крепеж

9538102520

Крепеж

9538112015

Крепеж

Код

Описание

46101

HANDLE SUB-ASSY, PARKING BRAKE CONTROL

46103

GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

46110A

BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

46114

PIN, PARKING BRAKE PLUNGER

46144

ANTI-RATTLE, PARKING BRAKE PLUNGER

46275

PLATE, PARKING BRAKE RELEASE CAUTION

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46301A

SPRING, TENSION(FOR INTERMEDIATE LEVER)

46304

EQUALIZER SUB-ASSY, PARKING BRAKE

46311

PAWL, PARKING BRAKE

46311A

SPRING(FOR PARKING BRAKE PAWL)

46311B

PIN, PARKING BRAKE PAWL PIVOT

46356

BRACKET, EQUALIZER SUPPORT

46359

GUIDE, PARKING BRAKE INTERMEDIATE LEVER

46361

ROD, PARKING BRAKE PULL

46410

CABLE ASSY, PARKING BRAKE, NO.1

46410B

GROMMET(FOR PARKING BRAKE FRONT CABLE)

46420

CABLE ASSY, PARKING BRAKE, NO.2

46420C

PIN, W/HOLE(FOR PARKING BRAKE CABLE)

46430

CABLE ASSY, PARKING BRAKE, NO.3

46441

NUT, WIRE ADJUSTING, NO.1

46467

CLAMP, CABLE

46471

PULLEY, WIRE

46471B

PIN, W/HOLE(FOR WIRE PULLEY SET)

9020608016

Крепеж

9046110335

Крепеж

9046112037

Крепеж

9046806078

Крепеж

9046808001

Крепеж

9161140814

Крепеж

9165640620

Крепеж

9165640820

Крепеж

9412040800

Крепеж

9461210701

Крепеж

9538102015

Крепеж

9538102515

Крепеж

9538102520

Крепеж

Код

Описание

46101

HANDLE SUB-ASSY, PARKING BRAKE CONTROL

46103

GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

46110A

BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

46114

PIN, PARKING BRAKE PLUNGER

46144

ANTI-RATTLE, PARKING BRAKE PLUNGER

46275

PLATE, PARKING BRAKE RELEASE CAUTION

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46301A

SPRING, TENSION(FOR INTERMEDIATE LEVER)

46304

EQUALIZER SUB-ASSY, PARKING BRAKE

46311

PAWL, PARKING BRAKE

46311A

SPRING(FOR PARKING BRAKE PAWL)

46311B

PIN, PARKING BRAKE PAWL PIVOT

46356

BRACKET, EQUALIZER SUPPORT

46359

GUIDE, PARKING BRAKE INTERMEDIATE LEVER

46361

ROD, PARKING BRAKE PULL

46410

CABLE ASSY, PARKING BRAKE, NO.1

46410B

GROMMET(FOR PARKING BRAKE FRONT CABLE)

46420

CABLE ASSY, PARKING BRAKE, NO.2

46420C

PIN, W/HOLE(FOR PARKING BRAKE CABLE)

46430

CABLE ASSY, PARKING BRAKE, NO.3

46441

NUT, WIRE ADJUSTING, NO.1

46467

CLAMP, CABLE

46471

PULLEY, WIRE

46471B

PIN, W/HOLE(FOR WIRE PULLEY SET)

9020608016

Крепеж

9046110335

Крепеж

9046112037

Крепеж

9046806078

Крепеж

9046808001

Крепеж

9161140814

Крепеж

9165640620

Крепеж

9165640820

Крепеж

9412040800

Крепеж

9461210701

Крепеж

9538102015

Крепеж

9538102515

Крепеж

9538102520

Крепеж

Ручной тормоз TOYOTA HIACE, 1982/11 - 1985/07, 1,6 литра, DOUBLE CAB TRUCK, RH11, МКПП, 4 ступени, на руле
