Задняя панель пола TOYOTA HIACE, 2014/07 - 2025, 3 литра, турбо-дизель, COMMUTER, STANDARD TYPE, KDH223, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

HIACE

Двигатель

3 литра, турбо-дизель

Кузов

COMMUTER

Класс

STANDARD TYPE

Фрейм

KDH223

Трансмиссия

МКПП, 5 скоростей

Опции

левый руль высокая крыша 4 двери боковое стекло 12S GEN DCR 602W

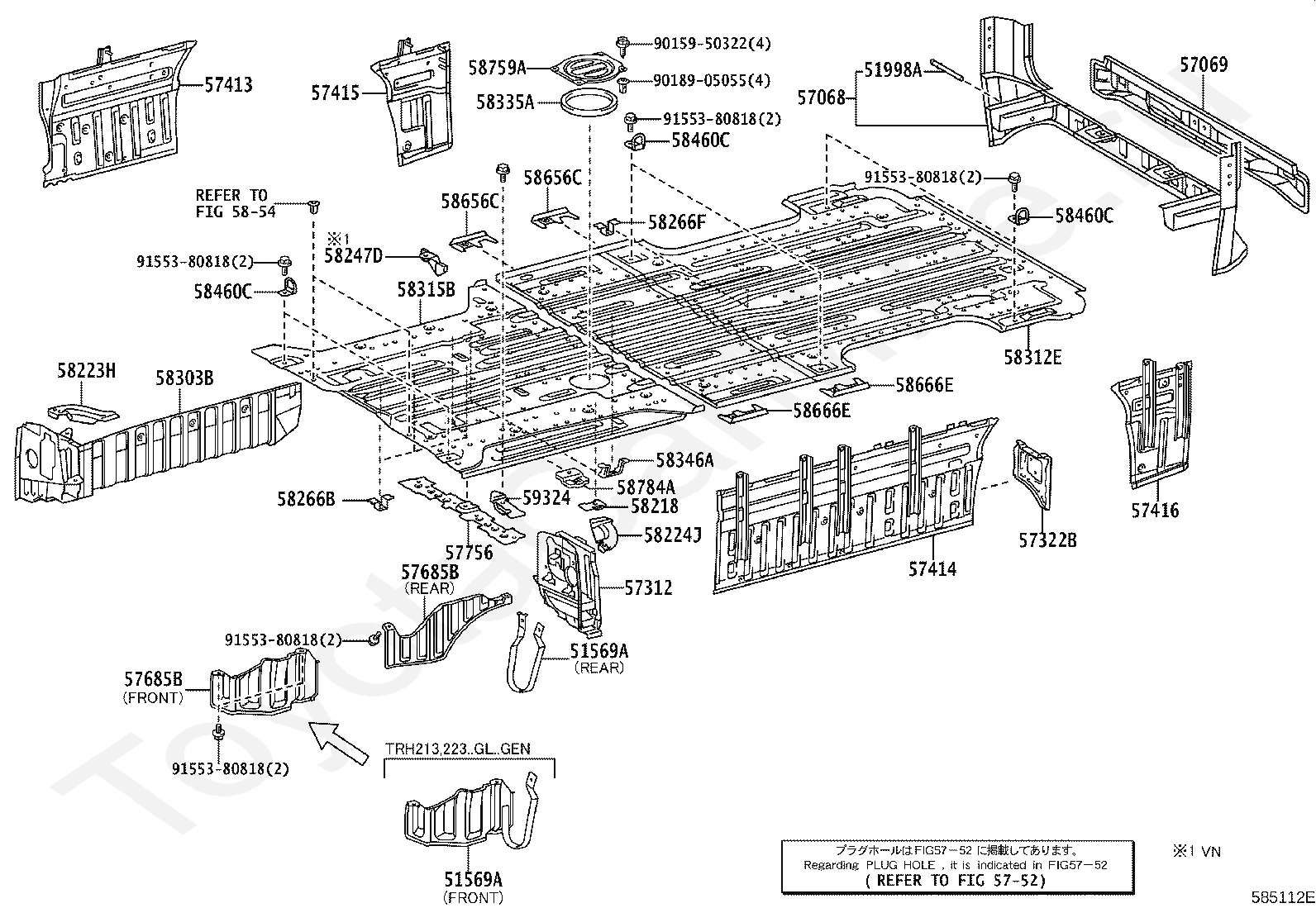

Код

Описание

51569A

GUARD, PROPELLER SHAFT

51998A

HANGER, EXHAUST PIPE SUPPORT, NO.6

57068

MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

57069

MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

57312

OUTRIGGER, NO.1 LH

57322B

OUTRIGGER, NO.5, LH

57413

RAIL, FLOOR SIDE, CENTER RH

57414

RAIL, FLOOR SIDE, CENTER LH

57415

RAIL, FLOOR SIDE, REAR RH

57416

RAIL, FLOOR SIDE, REAR LH

5752

переход к группе запчастей

57685B

GUARD, FUEL TANK

57756

PLATE, REAR FLOOR NO.2 CROSSMEMBER

58218

PLATE, SEAT FLOOR PANEL

58223H

REINFORCEMENT, FLOOR PANEL SIDE, RH

58224J

REINFORCEMENT, FLOOR PANEL SIDE, LH

58247D

BRACKET, REAR SEAT HINGE, OUTER RH

58266B

BRACKET, FUEL TUBE CLAMP

58266F

BRACKET, FUEL TUBE CLAMP, REAR

58303B

STEP SUB-ASSY, REAR FLOOR, RH

58312E

PANEL, REAR FLOOR, REAR

58315B

PANEL, REAR FLOOR, FRONT

58335A

SEAL, REAR FLOOR SIDE SERVICE HOLE COVER

58346A

BRACKET, REAR FLOOR HEAT INSULATOR, NO.2

58460C

STRIKER ASSY, LUGGAGE HOLD BELT

5854

переход к группе запчастей

58656C

PLATE, REAR FLOOR, CENTER LOWER NO.2 RH

58666E

PLATE, REAR FLOOR, CENTER LOWER NO.2 LH

58759A

COVER, FUEL TANK INSPECTION HOLE

58784A

SUPPORT, TOOL BAG

59324

BASE, SUB FLOOR LEG, NO.2

9015950322

Крепеж

9018905055

Крепеж

9155380818

Крепеж

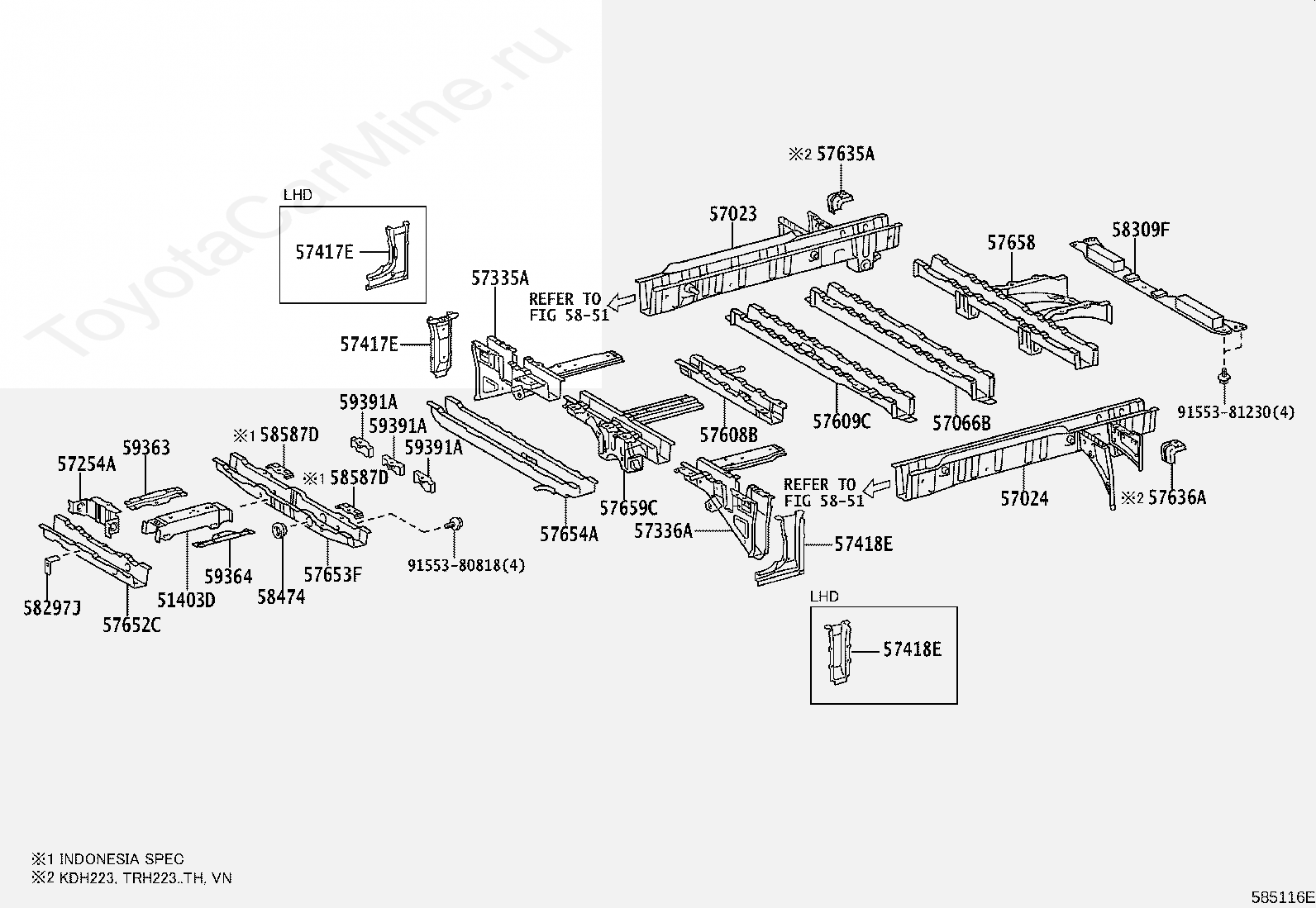

Код

Описание

51403D

BRACKET SUB-ASSY, ENGINE REAR MOUNTING

57023

MEMBER SUB-ASSY, REAR SIDE, RH

57024

MEMBER SUB-ASSY, REAR SIDE, LH

57066B

MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6

57254A

REINFORCEMENT, ENGINE REAR MOUNTING MEMBER

57335A

OUTRIGGER, NO.2 FRONT RH

57336A

OUTRIGGER, NO.2 FRONT LH

57417E

REINFORCEMENT, FLOOR SIDE, INNER RH

57418E

REINFORCEMENT, FLOOR SIDE, INNER LH

57608B

MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

57609C

MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

57635A

REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH

57636A

REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH

57652C

MEMBER, REAR FLOOR CROSS, NO.1

57653F

MEMBER, REAR FLOOR CROSS, NO.2

57654A

MEMBER, REAR FLOOR CROSS, NO.3

57658

MEMBER, REAR FLOOR CROSS, NO.7

57659C

MEMBER, REAR FLOOR CROSS, NO.8

58297J

RETAINER, FLOOR CLAMP

58309F

BALANCER SUB-ASSY, REAR FLOOR

58474

COVER, INSPECTION HOLE

5851

переход к группе запчастей

58587D

PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1

59363

RETAINER, REAR SEAT, NO.1 C

59364

RETAINER, REAR SEAT, NO.1 D

59391A

RETAINER, REAR FLOOR, NO.1

9155380818

Крепеж

9155381230

Крепеж

Задняя панель пола TOYOTA HIACE, 2014/07 - 2025, 3 литра, турбо-дизель, COMMUTER, STANDARD TYPE, KDH223, МКПП, 5 скоростей
