Кресла TOYOTA HIACE, 2006/10 - 2013/12, 3 литра, турбо-дизель, V(MODEL MARK), STANDARD TYPE, KDH201, МКПП, 5 скоростей

Каталог

Америка

Модель

HIACE

Двигатель

3 литра, турбо-дизель

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

KDH201

Трансмиссия

МКПП, 5 скоростей

Опции

правый руль STANDARD ROOF 5 дверей SEPARATE SEAT 06S GEN DCR 286W

Код

Описание

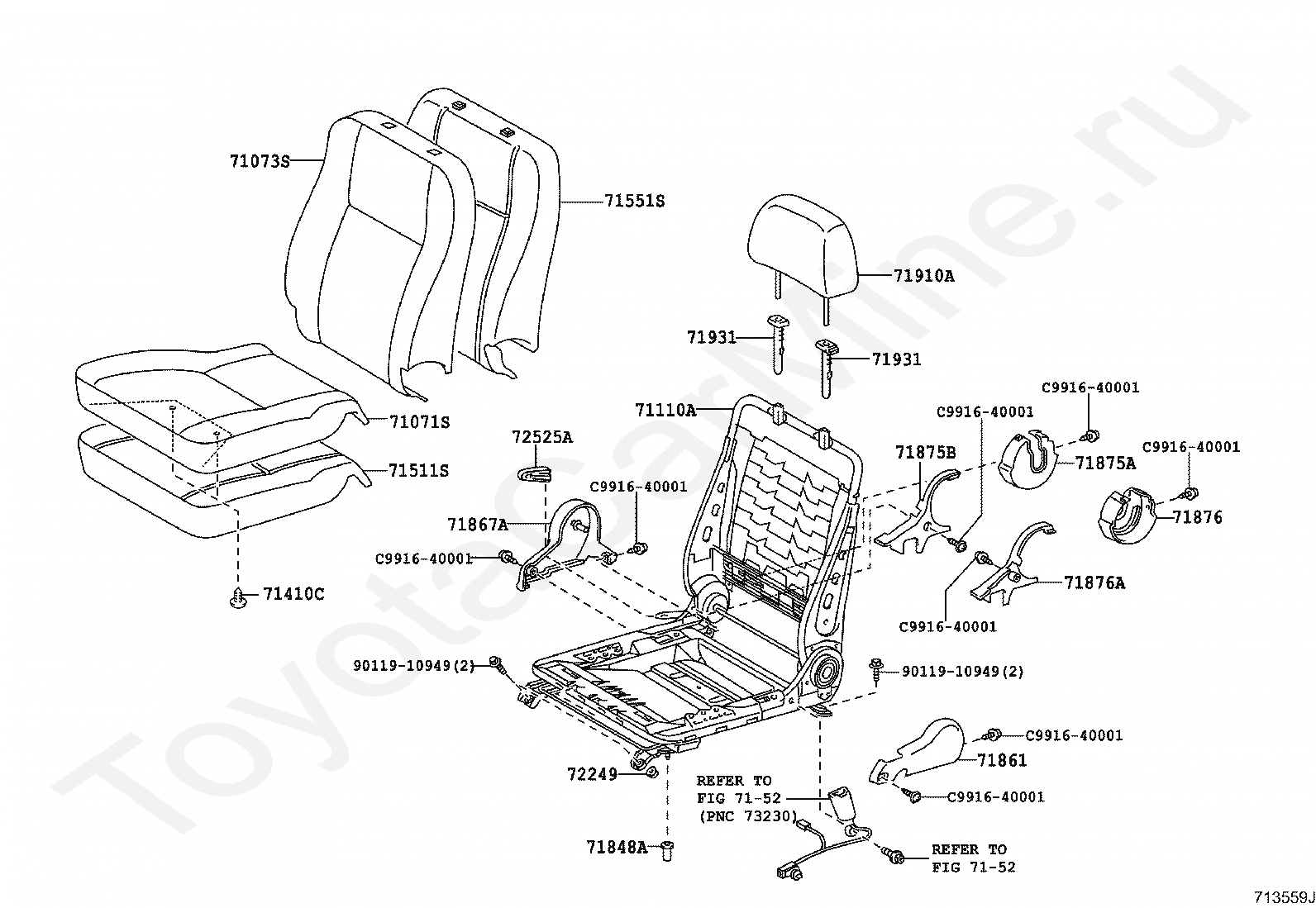

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71130

LEG ASSY, FRONT SEAT, RH

71410C

CLIP(FOR FRONT SEAT CUSHION)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72249

GUIDE, SEAT TRACK LOCKING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

9011910949

Крепеж

C991640001

Крепеж

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71410C

CLIP(FOR FRONT SEAT CUSHION)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72249

GUIDE, SEAT TRACK LOCKING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

9011910949

Крепеж

C991640001

Крепеж

Код

Описание

58801D

BOX ASSY, CONSOLE

58839C

COVER, FRONT SEAT BACK CONTROL PANEL HOLE

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71035S

COVER, FRONT SEAT BACK, CENTER

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71127A

PLATE, FR0NT SEAT CUSHION COVER SET

71149C

COVER, FRONT SEAT LEG, LH (FOR LH SEAT)

71365S

PAD, CENTER SEAT BACK

71389

SPACER, CENTER SEAT HINGE

71395B

COVER, CENTER SEAT HINGE, RH

71396B

COVER, CENTER SEAT HINGE, LH

71398H

COVER, CENTER SEAT HINGE, UPPER LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71788B

WASHER, FRONT SEAT BACK BOARD SETTING

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876C

COVER, RECLINING ADJUSTER INSIDE, LH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72526E

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270226100

Крепеж

7270226110

Крепеж

7270226120

Крепеж

72848A

CAP, SEAT ARMREST, NO.1

72881

SUPPORT, REAR SEAT CENTER ARMREST, RH

72881A

SUPPORT, REAR SEAT CENTER ARMREST, LH

78631

TABLE, FRONT SEAT SIDE

7889952030

Крепеж

9010510261

Крепеж

9011910949

Крепеж

9015940082

Крепеж

9038612036

Крепеж

9324914008

Крепеж

9324954006

Крепеж

9326954016

Крепеж

9356054012

Крепеж

C991640001

Крепеж

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71410C

CLIP(FOR FRONT SEAT CUSHION)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876C

COVER, RECLINING ADJUSTER INSIDE, LH

72249

GUIDE, SEAT TRACK LOCKING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910949

Крепеж

C991640001

Крепеж

Код

Описание

71334A

STOPPER, REAR SEAT LEG

71811C

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

72507A

HANDLE SUB-ASSY, RECLINING RELEASE

72613B

STRIKER, REAR SEAT LOCK

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79107A

LEG SUB-ASSY, NO.1 SEAT, REAR

79135

PAD, NO.1 SEAT CUSHION

79160

SPRING ASSY, NO.1 SEAT CUSHION

79175

PAD, NO.1 SEAT BACK

79199

HOLDER, NO.1 SEAT LEG STOPPER

9011910949

Крепеж

9024908106

Крепеж

9050726009

Крепеж

9616000600

Крепеж

C991640001

Крепеж

Код

Описание

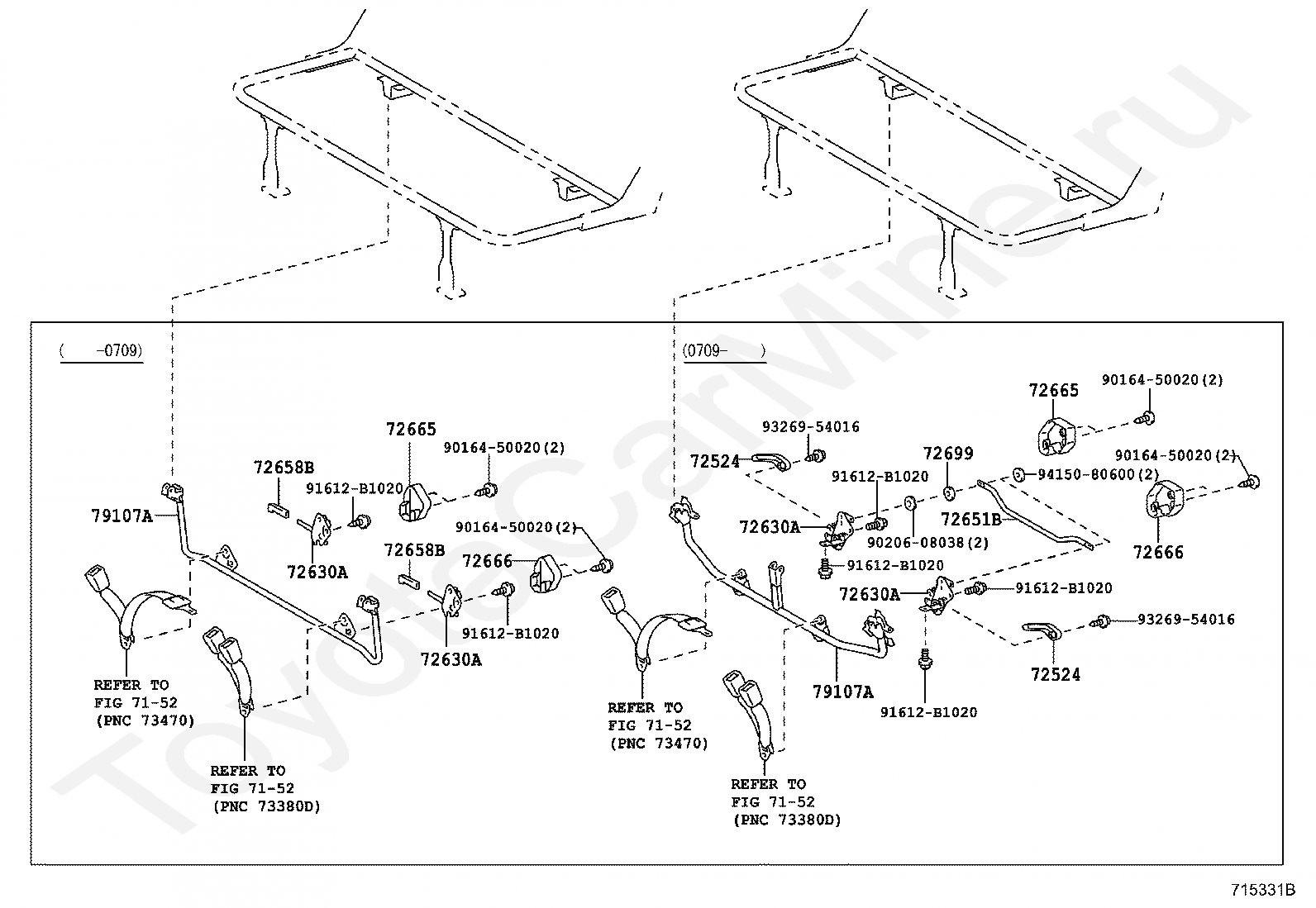

7152

переход к группе запчастей

72524

HANDLE, RECLINING ADJUSTER RELEASE

72630A

LOCK ASSY, REAR NO.1 SEAT

72651B

ROD, REAR SEAT LOCK

72658B

KNOB, REAR SEAT LOCK HANDLE

72665

COVER, REAR SEAT BACK LOCK, RH

72666

COVER, REAR SEAT BACK LOCK, LH

72699

PLATE, REAR SEAT LOCK RELEASE

79107A

LEG SUB-ASSY, NO.1 SEAT, REAR

9016450020

Крепеж

9020608038

Крепеж

91612B1020

Крепеж

9326954016

Крепеж

9415080600

Крепеж

Код

Описание

71331A

PIN, REAR SEAT HINGE

71334A

STOPPER, REAR SEAT LEG

71461

SPRING, REAR SEAT CUSHION

7152

переход к группе запчастей

71693

COVER, REAR SEAT CUSHION HINGE, LOWER RH

71811C

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71867C

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71868C

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

7218926030

Крепеж

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72507B

HANDLE SUB-ASSY, RECLINING RELEASE, RH

72507C

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72524

HANDLE, RECLINING ADJUSTER RELEASE

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72592C

RING, SHAFT SNAP

72613B

STRIKER, REAR SEAT LOCK

72620B

CABLE ASSY, REAR NO.1 SEAT LOCK

72620C

CABLE ASSY, REAR NO.1 SEAT LOCK

72630A

LOCK ASSY, REAR NO.1 SEAT

72651B

ROD, REAR SEAT LOCK

72658B

KNOB, REAR SEAT LOCK HANDLE

72665

COVER, REAR SEAT BACK LOCK, RH

72666

COVER, REAR SEAT BACK LOCK, LH

72699

PLATE, REAR SEAT LOCK RELEASE

7270226140

Крепеж

72927B

COVER, REAR SEAT CUSHION UNDER

72996

COVER, REAR SEAT BACK, RH

72997

COVER, REAR SEAT BACK, LH

74790

HOLDER ASSY, WARNING REFLECTOR

74790A

HOLDER ASSY, WARNING REFLECTOR

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79105A

LEG SUB-ASSY, NO.1 SEAT

79107A

LEG SUB-ASSY, NO.1 SEAT, REAR

79127

BRACKET, NO.1 SEAT LEG, LOWER

79135

PAD, NO.1 SEAT CUSHION

79160

SPRING ASSY, NO.1 SEAT CUSHION

79175

PAD, NO.1 SEAT BACK

79180

SPRING ASSY, NO.1 SEAT BACK

79199

HOLDER, NO.1 SEAT LEG STOPPER

79391

SPRING, REAR SEAT CUSHION

79956B

COVER, REAR SEAT LEG SIDE, RH

9011910949

Крепеж

9011911029

Крепеж

9011911038

Крепеж

9011912135

Крепеж

9016450020

Крепеж

9016750044

Крепеж

9016840011

Крепеж

9020608038

Крепеж

9020610011

Крепеж

9046313003

Крепеж

91612B1020

Крепеж

9324056010

Крепеж

9326954016

Крепеж

9356054014

Крепеж

9415080600

Крепеж

9616000800

Крепеж

C991640001

Крепеж

Кресла TOYOTA HIACE, 2006/10 - 2013/12, 3 литра, турбо-дизель, V(MODEL MARK), STANDARD TYPE, KDH201, МКПП, 5 скоростей
