Каталог
Ближний ВостокМодель
HIACEДвигатель
2,5 литра, турбо-дизельКузов
V(MODEL MARK)Класс
STANDARD TYPEФрейм
KDH200Трансмиссия
МКПП, 5 скоростейОпции
правый руль STANDARD ROOF 5 дверей SEPARATE SEAT 03S GEN DCR 286W
Код
Описание
1701
переход к группе запчастей
1702
переход к группе запчастей

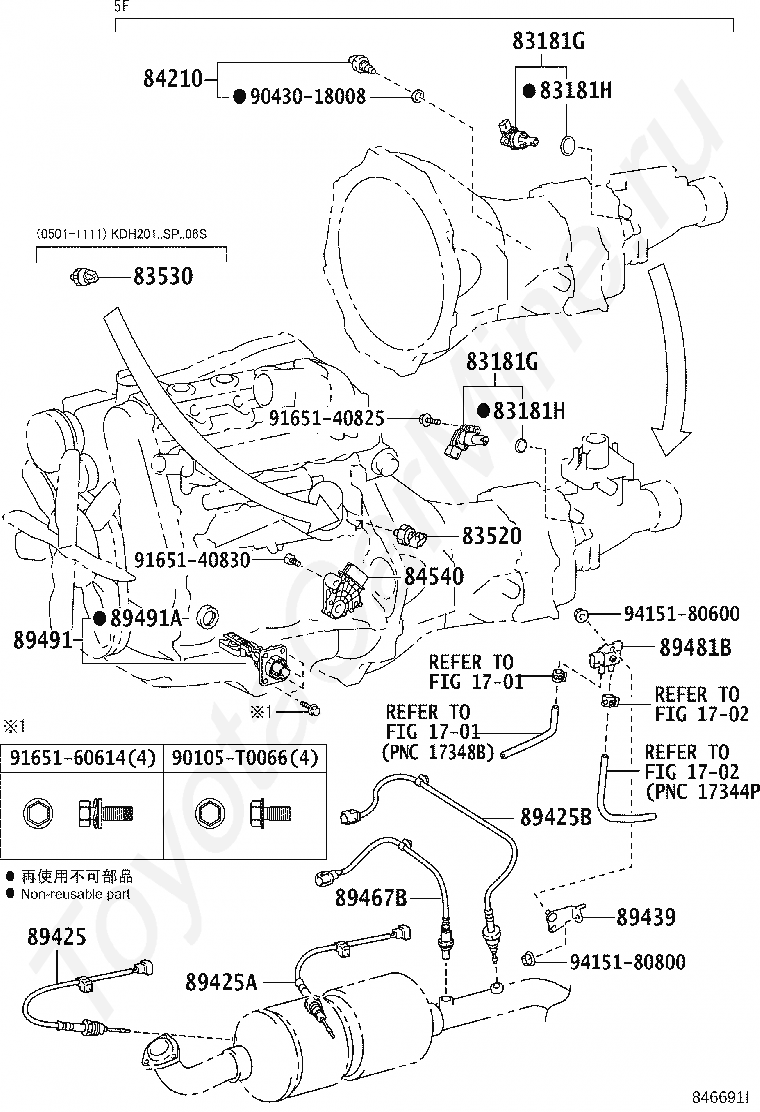

83181G
SENSOR, SPEEDOMETER
83181H
RING, O (FOR SPEEDOMETER SENSOR)
83520
GAGE ASSY,OIL PRESSURE SENDER
83530
SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210
SWITCH ASSY, BACK-UP LAMP
84540
SWITCH ASSY, NEUTRAL START
89425
SENSOR, EXHAUST GAS TEMPERATURE
89425A
SENSOR, EXHAUST GAS TEMPERATURE, NO.2
89425B
SENSOR, EXHAUST GAS TEMPERATURE, NO.3
89439
BRACKET, SENSOR
89467B
SENSOR, AIR FUEL RATIO
89481B
SENSOR, DIFFERENTIAL PRESSURE
89491
SENSOR, ENGINE OIL LEVEL
89491A
GASKET, ENGINE OIL LEVEL SENSOR
90105T0066
Крепеж
9043018008
Крепеж
9165140825
Крепеж
9165140830
Крепеж
9165160614
Крепеж
9415180600
Крепеж
9415180800
Крепеж
Код
Описание
1603
переход к группе запчастей

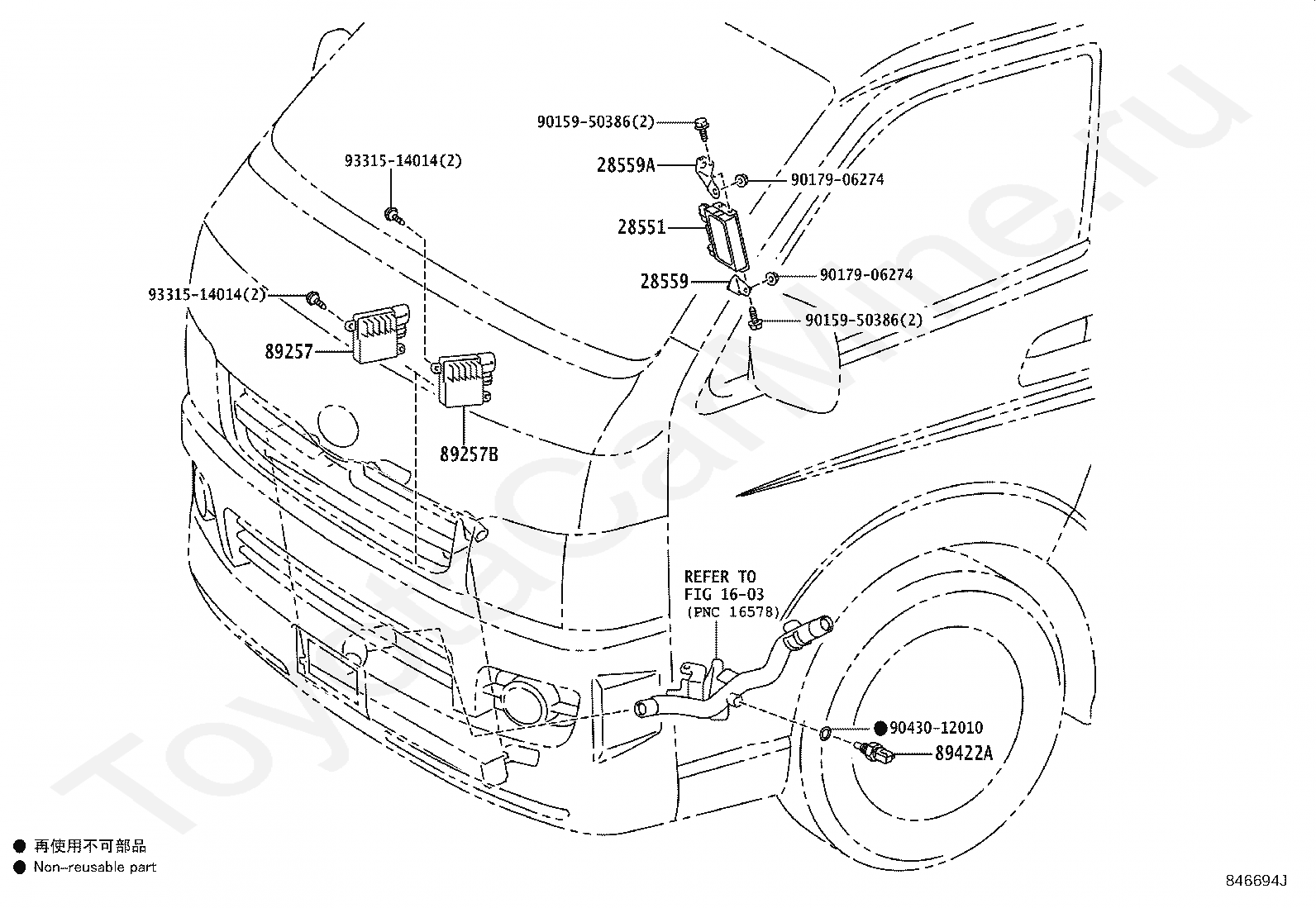

28551
CONTROLLER, GLOW PLUG
28559
BRACKET, GLOW PLUG CONTROLLER, NO.1
28559A
BRACKET, GLOW PLUG CONTROLLER, NO.2
89257
COMPUTER, COOLING FAN
89257B
COMPUTER, COOLING FAN, NO.2
89422A
SENSOR, WATER TEMPERATURE
9015950386
Крепеж
9017906274
Крепеж
9043012010
Крепеж
9331514014
Крепеж
Код
Описание

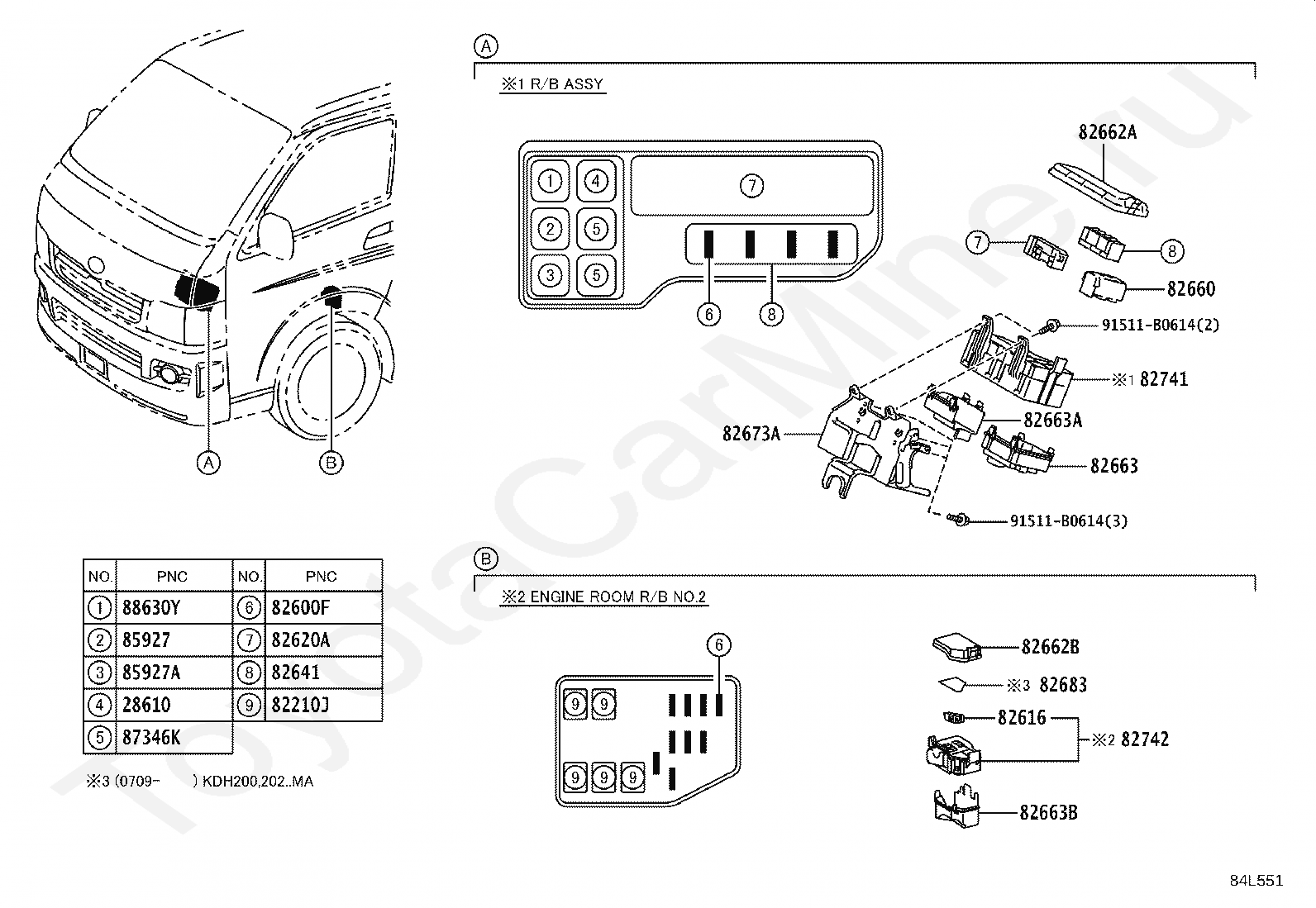

28610
RELAY ASSY, INTAKE HEATER OR GLOW PLUG
82210J
FUSIBLE LINK
82600F
FUSE, FUSE BLOCK
82616
PULLER, FUSE
82620A
BLOCK ASSY, FUSIBLE LINK
82641
RELAY, INTEGRATION NO.1
82660
BLOCK ASSY, RELAY, ENGINE ROOM
82662A
COVER, RELAY BLOCK, UPPER, NO.1
82662B
COVER, RELAY BLOCK, UPPER, NO.2
82663
COVER, RELAY BLOCK, LOWER
82663A
COVER, RELAY BLOCK, LOWER, NO.2
82663B
COVER, RELAY BLOCK, LOWER, NO.3
82673A
BRACKET, JUNCTION BLOCK
82683
PLATE, FUSE BLOCK CAUTION
82741
BLOCK, ENGINE ROOM RELAY
82742
BLOCK, ENGINE ROOM RELAY, NO.2
85927
RELAY, COOLING FAN
85927A
RELAY, COOLING FAN, NO.2
87346K
RELAY, PTC HEATER
88630Y
RELAY, REAR COOLER
91511B0614
Крепеж
Код
Описание

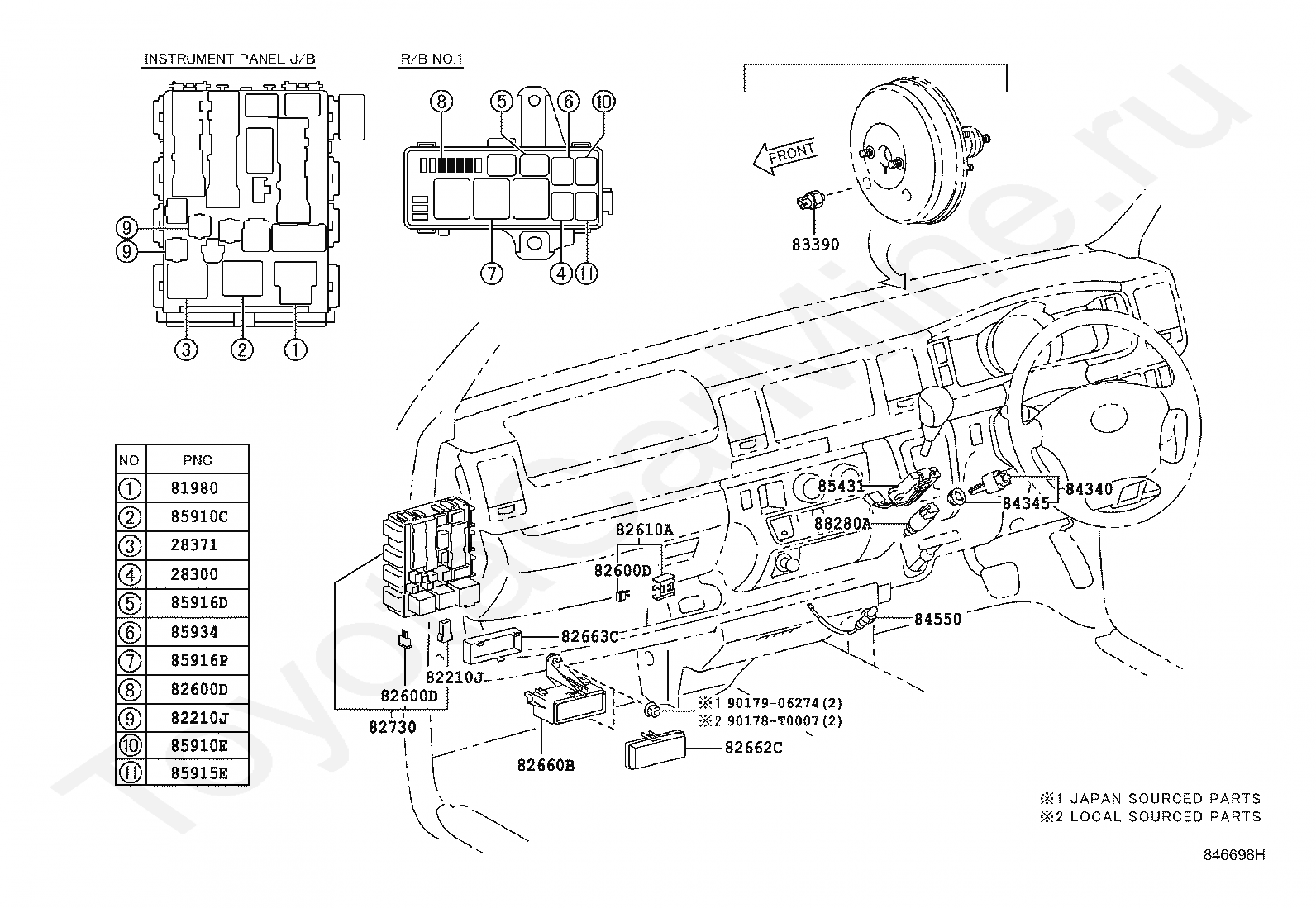

28300
RELAY ASSY, STARTER
28371
RELAY, IGNITION, NO.1
81980
FLASHER ASSY, TURN SIGNAL
82210J
FUSIBLE LINK
82600D
INSTRUMENT PANEL FUSE
82610A
BLOCK ASSY, FUSE
82660B
BLOCK ASSY, RELAY
82662C
COVER, RELAY BLOCK, UPPER, NO.3
82663C
COVER, RELAY BLOCK LOWER, NO.4
82730
BLOCK ASSY, INSTRUMENT PANEL JUNCTION
83390
SWITCH ASSY, VACUUM WARNING
84340
SWITCH ASSY, STOP LAMP
84345
ADJUSTER, STOP LAMP SWITCH MOUNTING
84550
SWITCH ASSY, PARKING BRAKE
85431
SOLENOID, SHIFT LOCK
85910C
RELAY ASSY (FOR HEATER BLOWER MOTOR)
85910E
RELAY, INJECTOR
85915E
RELAY
85916D
RELAY, FOG LAMP
85916P
RELAY, HEADLAMP
85934
RELAY, MAGNET-CLUTCH
88280A
SWITCH ASSY, CLUTCH
90178T0007
Крепеж
9017906274
Крепеж
Код
Описание
8302
переход к группе запчастей

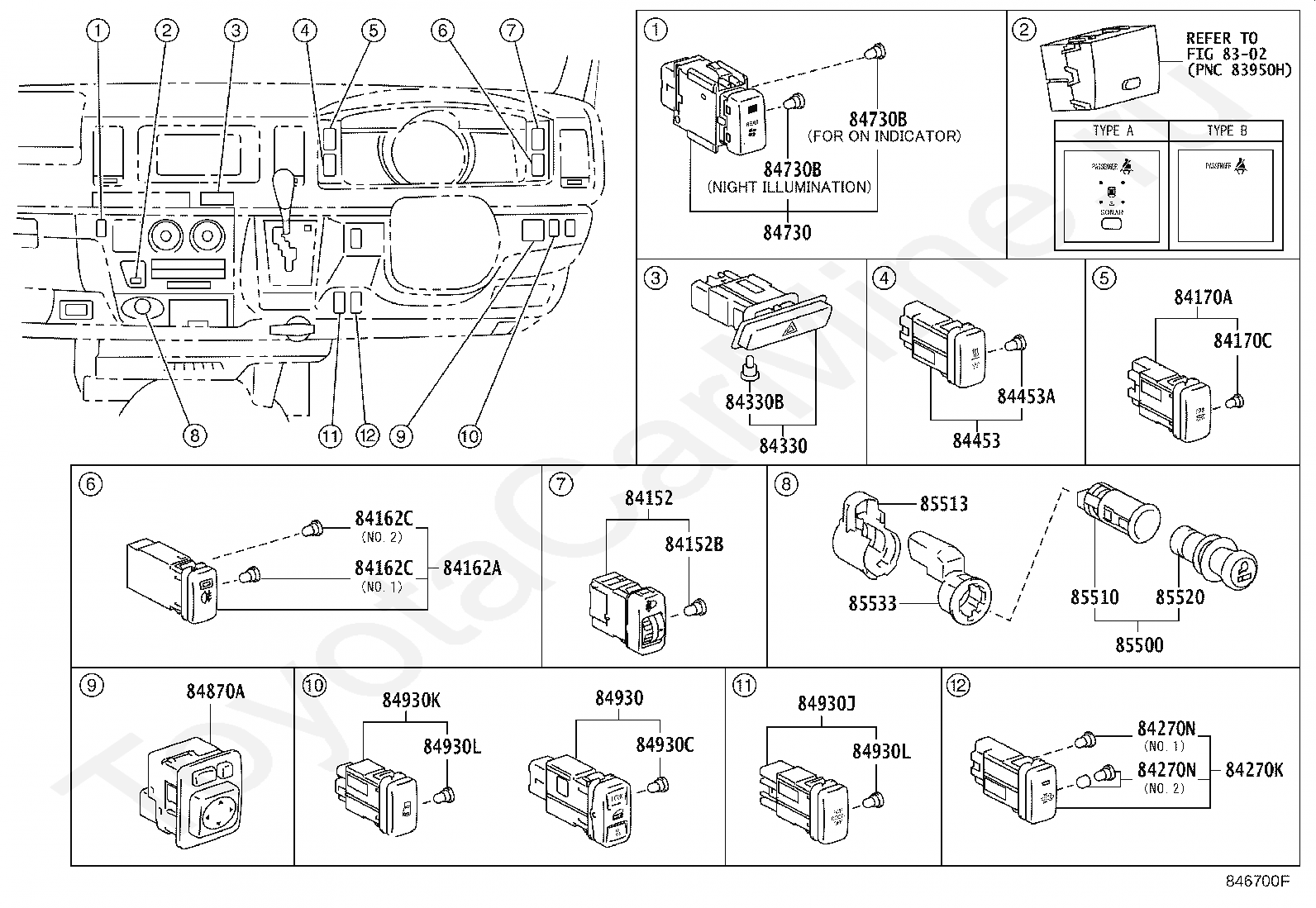

84152
SWITCH, HEADLAMP LEVELING
84152B
BULB (FOR HEADLAMP LEVELING SWITCH)
84162A
SWITCH, REAR FOG LAMP
84162C
BULB (FOR REAR FOG LAMP SWITCH)
84170A
SWITCH ASSY, ROOM LAMP NO.1
84170C
BULB,ROOM LAMP SWITCH
84270K
SWITCH ASSY, DPR
84270N
BULB, DPR SWICH ASSY
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84330B
BULB, HAZARD WARNING SIGNAL SWITCH
84453
SWITCH, IDLE UP
84453A
BULB, IDLE UP SWITCH
84730
SWITCH ASSY, HEATER BLOWER
84730B
BULB, HEATER BLOWER SWITCH
84870A
SWITCH ASSY, OUTER MIRROR
84930
SWITCH ASSY, DOOR CONTROL
84930C
BULB(FOR DOOR CONTROL SWITCH)
84930J
SWITCH ASSY, AUTO SLIDE DOOR MAIN
84930K
SWITCH ASSY, AUTO SLIDE DOOR CONTROL
84930L
BULB, AUTO SLIDE DOOR CONTROL SWITCH
85500
LIGHTER ASSY, CIGARETTE
85510
SOCKET & RETAINER ASSY, CIGARLIGHTER
85513
COVER, CIGARETTE LIGHTER
85520
KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85533
LENS, CIGARETTE LIGHTER INDICATOR
Код
Описание
4501
переход к группе запчастей

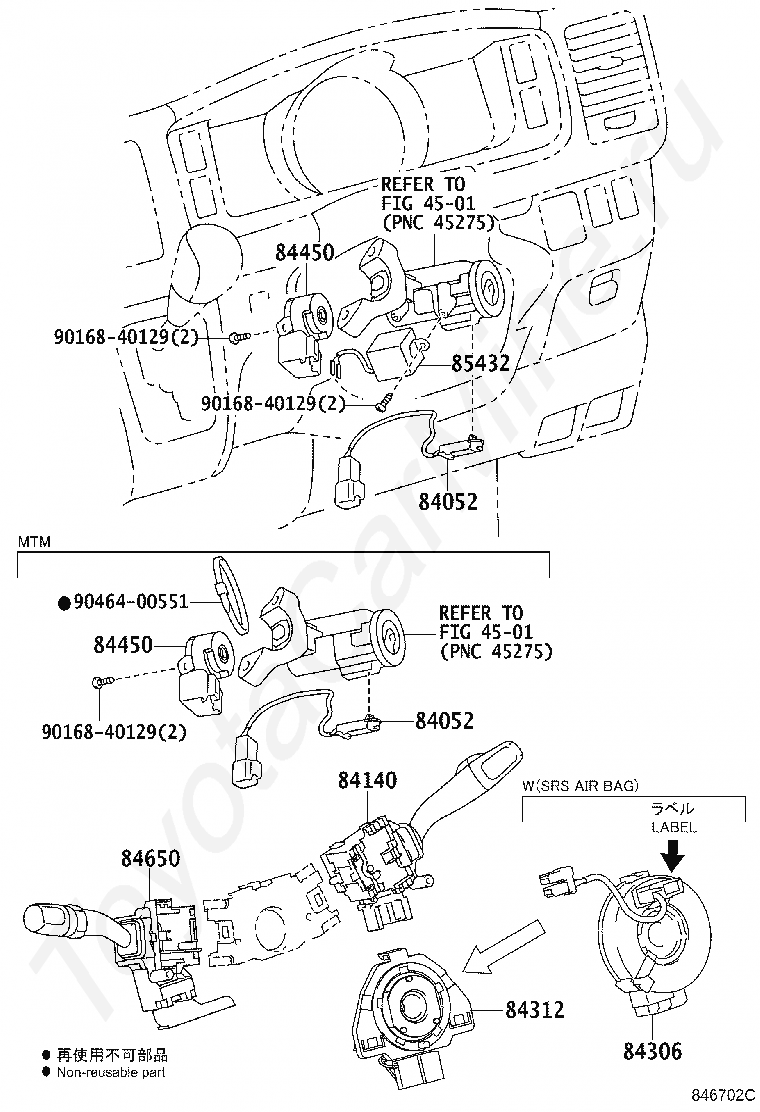

84052
SWITCH ASSY, UN-LOCK WARNING
84140
SWITCH ASSY, HEADLAMP DIMMER
84306
CABLE SUB-ASSY, SPIRAL
84312
PLATE, HORN CONTACT
84450
SWITCH ASSY, IGNITION OR STARTER
84650
SWITCH ASSY, WINDSHIELD WIPER
85432
SOLENOID, KEY INTER LOCK
9016840129
Крепеж
9046400551
Крепеж
Код
Описание

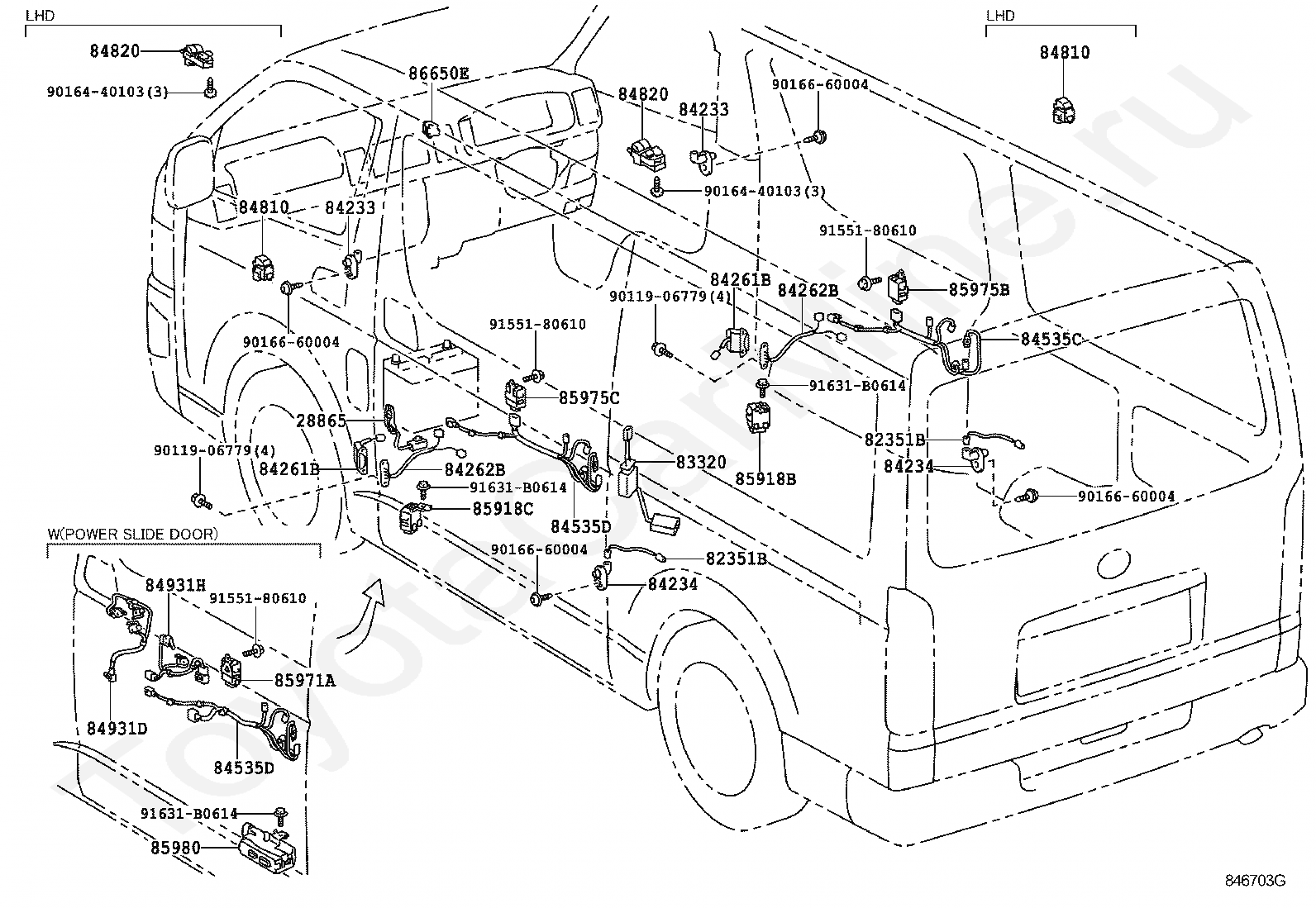

28865
SENSOR, BATTERY THERMOMETER
82351B
WIRE,COURTESY LAMP
83320
GAGE ASSY, FUEL SENDER
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84261B
JUNCTION, SLIDE DOOR CONTROL,MALE
84262B
JUNCTION, SLIDE DOOR CONTROL, FEMALE
84535C
SWITCH, DOOR LOCK, RH
84535D
SWITCH, DOOR LOCK, LH
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84820
MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84931D
SWITCH, SLIDE DOOR CONTROL
84931H
SWITCH, SLIDE DOOR CONTROL, LH
85918B
RELAY, DOOR CONTROL, RH
85918C
RELAY, DOOR CONTROL, LH
85971A
RELAY, DOOR OPENING
85975B
RELAY, SLIDE DOOR CLOSER, RH
85975C
RELAY, SLIDE DOOR CLOSER, LH
85980
RELAY ASSY, DOOR CONTROL
86650E
BUZZER ASSY
9011906779
Крепеж
9016440103
Крепеж
9016660004
Крепеж
9155180610
Крепеж
91631B0614
Крепеж
