Кресла TOYOTA HIACE, 2005/01 - 2013/12, 2,5 литра, турбо-дизель, V(MODEL MARK), STANDARD TYPE, KDH200, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

HIACE

Двигатель

2,5 литра, турбо-дизель

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

KDH200

Трансмиссия

МКПП, 5 скоростей

Опции

правый руль STANDARD ROOF 5 дверей SEPARATE SEAT 03S GEN DCR 286W

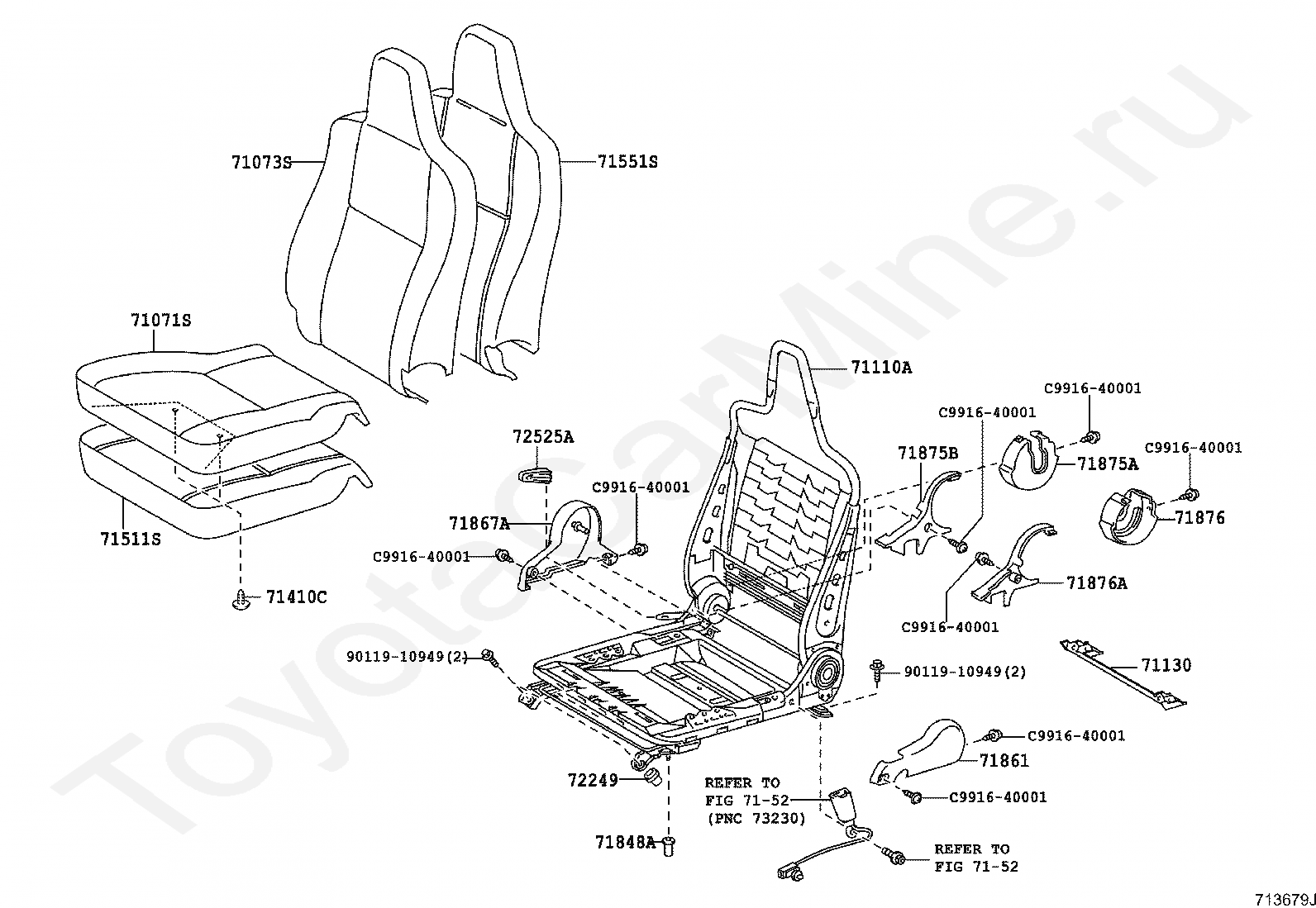

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71130

LEG ASSY, FRONT SEAT, RH

71410C

CLIP(FOR FRONT SEAT CUSHION)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72249

GUIDE, SEAT TRACK LOCKING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

9011910949

Крепеж

C991640001

Крепеж

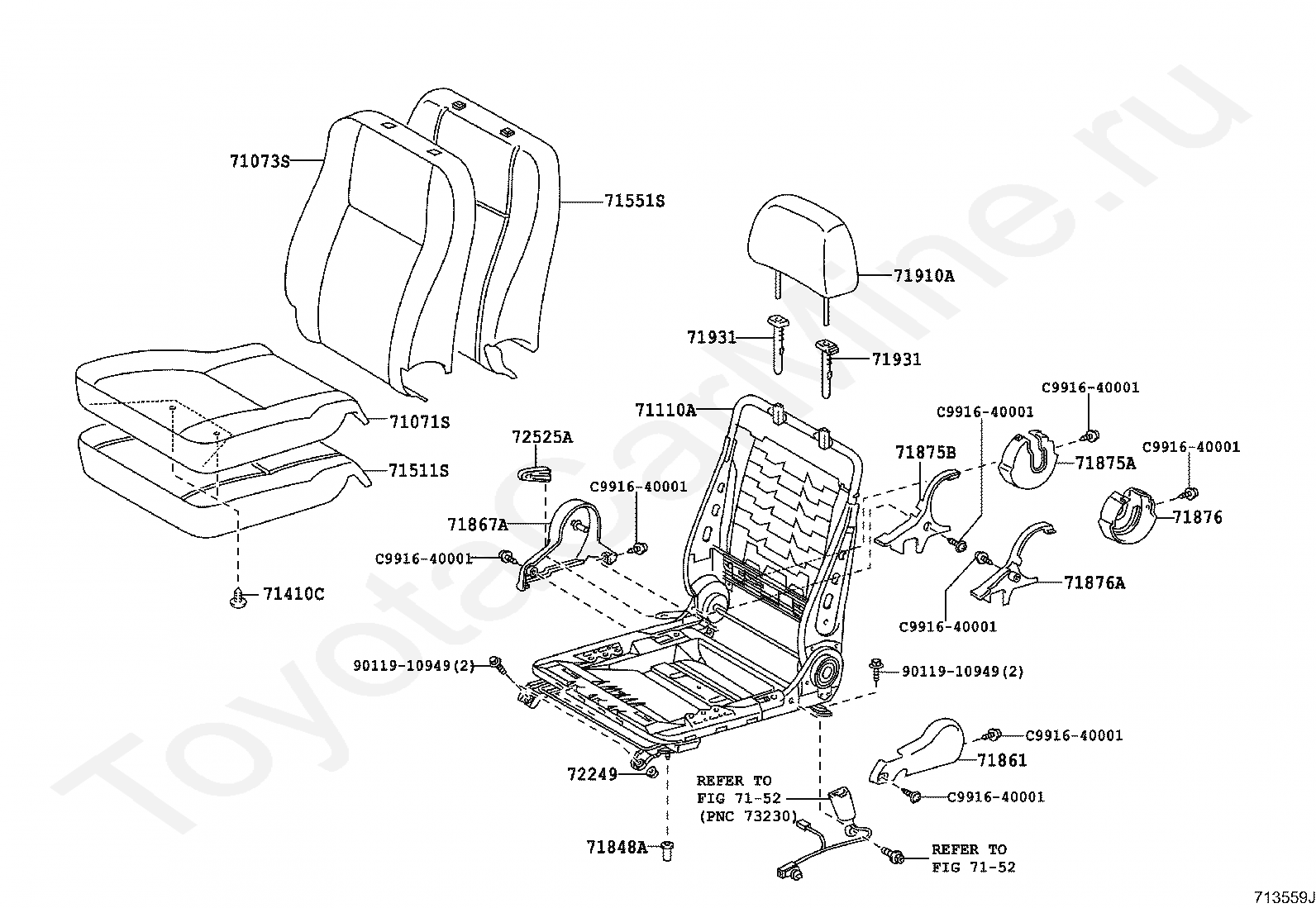

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71410C

CLIP(FOR FRONT SEAT CUSHION)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72249

GUIDE, SEAT TRACK LOCKING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

9011910949

Крепеж

C991640001

Крепеж

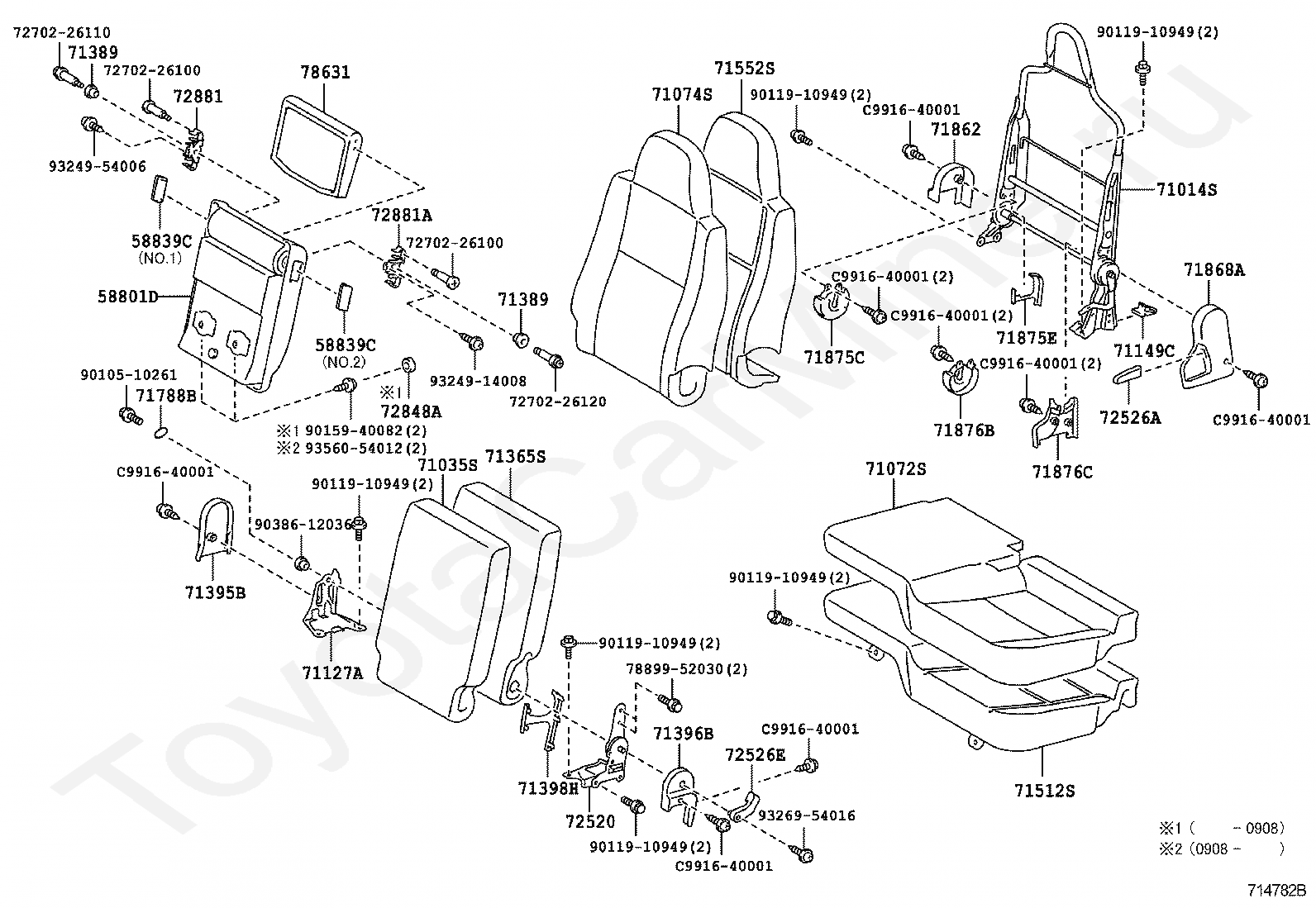

Код

Описание

58801D

BOX ASSY, CONSOLE

58839C

COVER, FRONT SEAT BACK CONTROL PANEL HOLE

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71035S

COVER, FRONT SEAT BACK, CENTER

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71127A

PLATE, FR0NT SEAT CUSHION COVER SET

71149C

COVER, FRONT SEAT LEG, LH (FOR LH SEAT)

71365S

PAD, CENTER SEAT BACK

71389

SPACER, CENTER SEAT HINGE

71395B

COVER, CENTER SEAT HINGE, RH

71396B

COVER, CENTER SEAT HINGE, LH

71398H

COVER, CENTER SEAT HINGE, UPPER LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71788B

WASHER, FRONT SEAT BACK BOARD SETTING

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72526E

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270226100

Крепеж

7270226110

Крепеж

7270226120

Крепеж

72848A

CAP, SEAT ARMREST, NO.1

72881

SUPPORT, REAR SEAT CENTER ARMREST, RH

72881A

SUPPORT, REAR SEAT CENTER ARMREST, LH

78631

TABLE, FRONT SEAT SIDE

7889952030

Крепеж

9010510261

Крепеж

9011910949

Крепеж

9015940082

Крепеж

9038612036

Крепеж

9324914008

Крепеж

9324954006

Крепеж

9326954016

Крепеж

C991640001

Крепеж

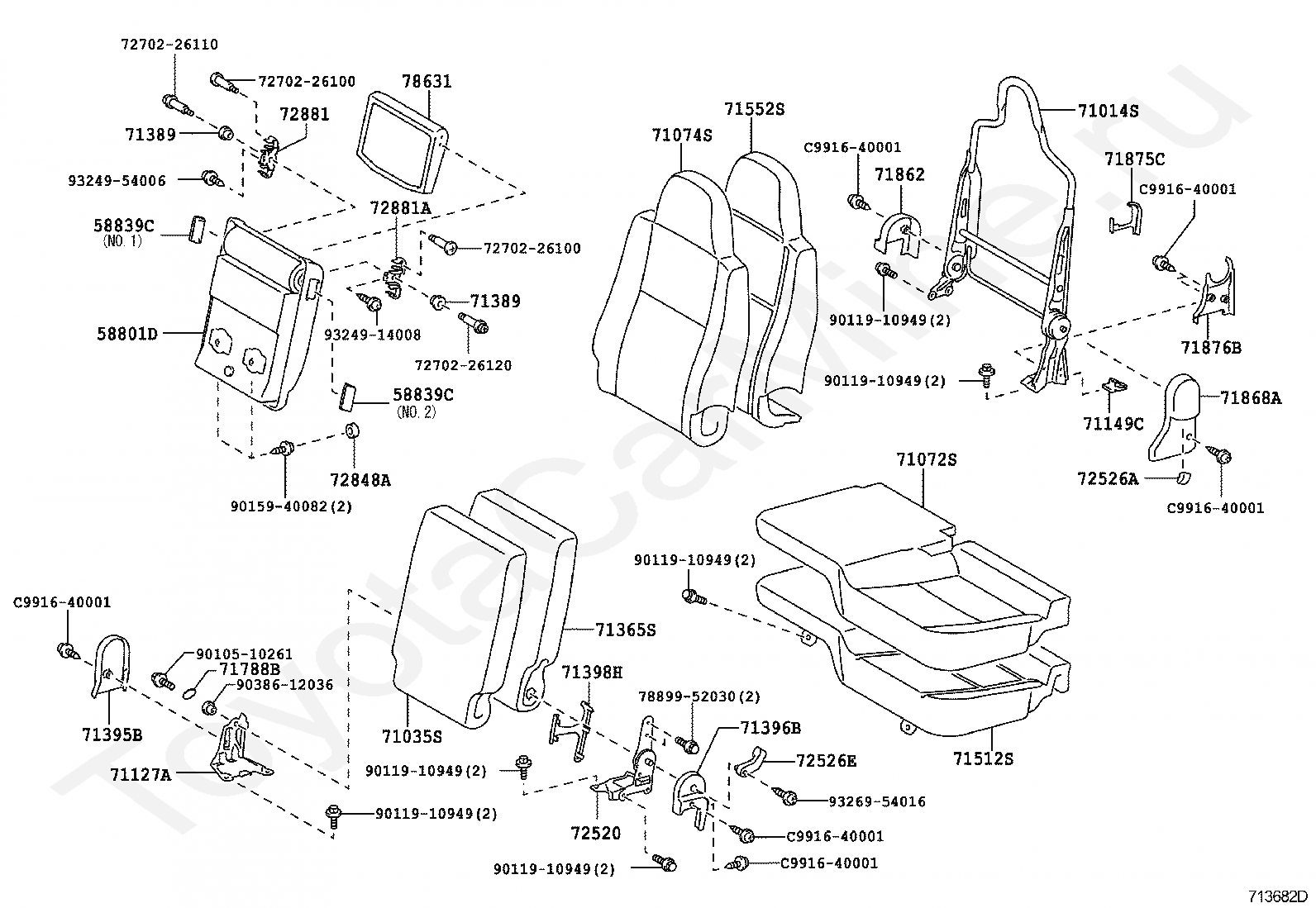

Код

Описание

58801D

BOX ASSY, CONSOLE

58839C

COVER, FRONT SEAT BACK CONTROL PANEL HOLE

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71035S

COVER, FRONT SEAT BACK, CENTER

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71127A

PLATE, FR0NT SEAT CUSHION COVER SET

71149C

COVER, FRONT SEAT LEG, LH (FOR LH SEAT)

71365S

PAD, CENTER SEAT BACK

71389

SPACER, CENTER SEAT HINGE

71395B

COVER, CENTER SEAT HINGE, RH

71396B

COVER, CENTER SEAT HINGE, LH

71398H

COVER, CENTER SEAT HINGE, UPPER LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71788B

WASHER, FRONT SEAT BACK BOARD SETTING

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876C

COVER, RECLINING ADJUSTER INSIDE, LH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72526E

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270226100

Крепеж

7270226110

Крепеж

7270226120

Крепеж

72848A

CAP, SEAT ARMREST, NO.1

72881

SUPPORT, REAR SEAT CENTER ARMREST, RH

72881A

SUPPORT, REAR SEAT CENTER ARMREST, LH

78631

TABLE, FRONT SEAT SIDE

7889952030

Крепеж

9010510261

Крепеж

9011910949

Крепеж

9015940082

Крепеж

9038612036

Крепеж

9324914008

Крепеж

9324954006

Крепеж

9326954016

Крепеж

9356054012

Крепеж

C991640001

Крепеж

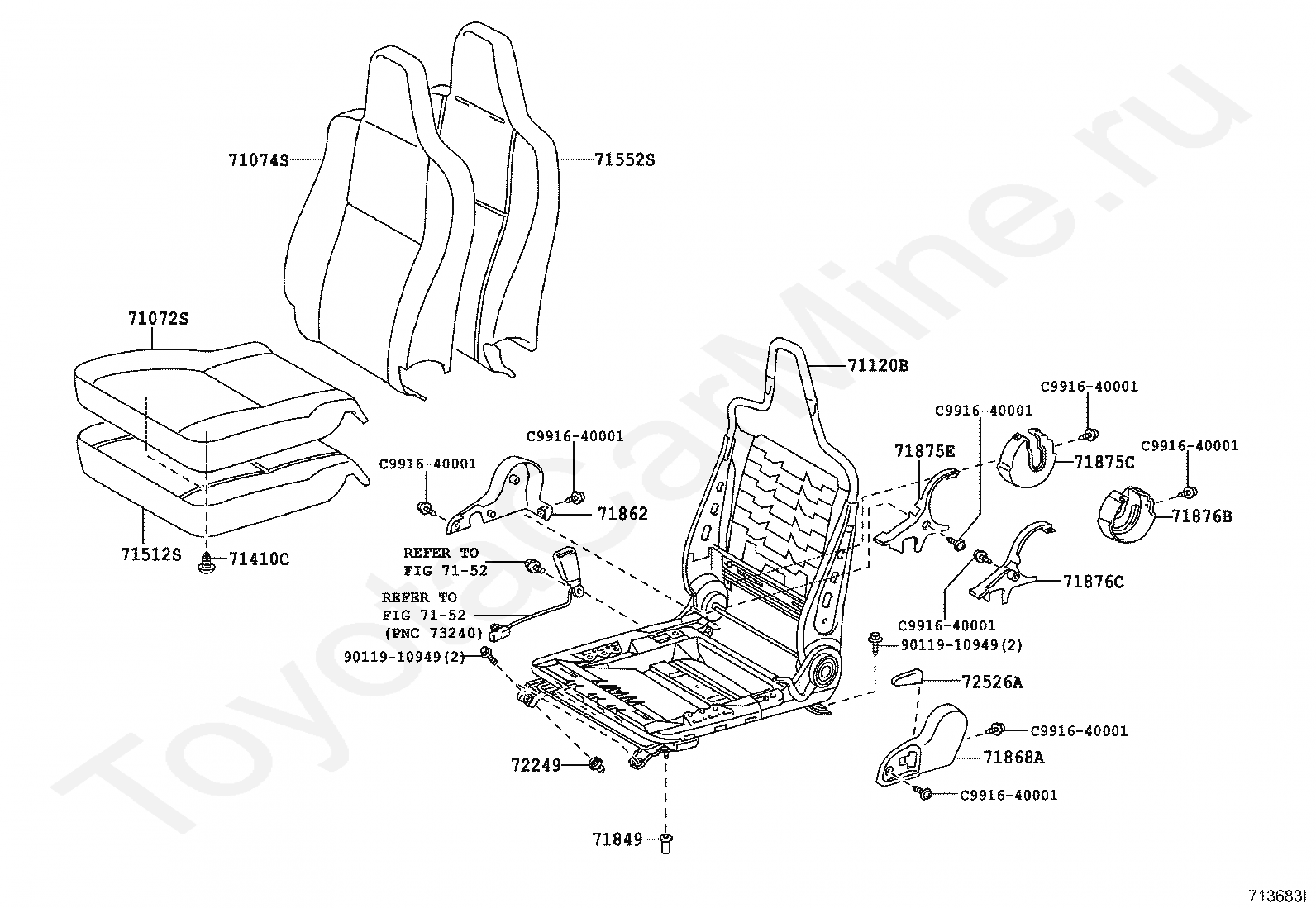

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71410C

CLIP(FOR FRONT SEAT CUSHION)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876C

COVER, RECLINING ADJUSTER INSIDE, LH

72249

GUIDE, SEAT TRACK LOCKING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910949

Крепеж

C991640001

Крепеж

Кресла TOYOTA HIACE, 2005/01 - 2013/12, 2,5 литра, турбо-дизель, V(MODEL MARK), STANDARD TYPE, KDH200, МКПП, 5 скоростей
