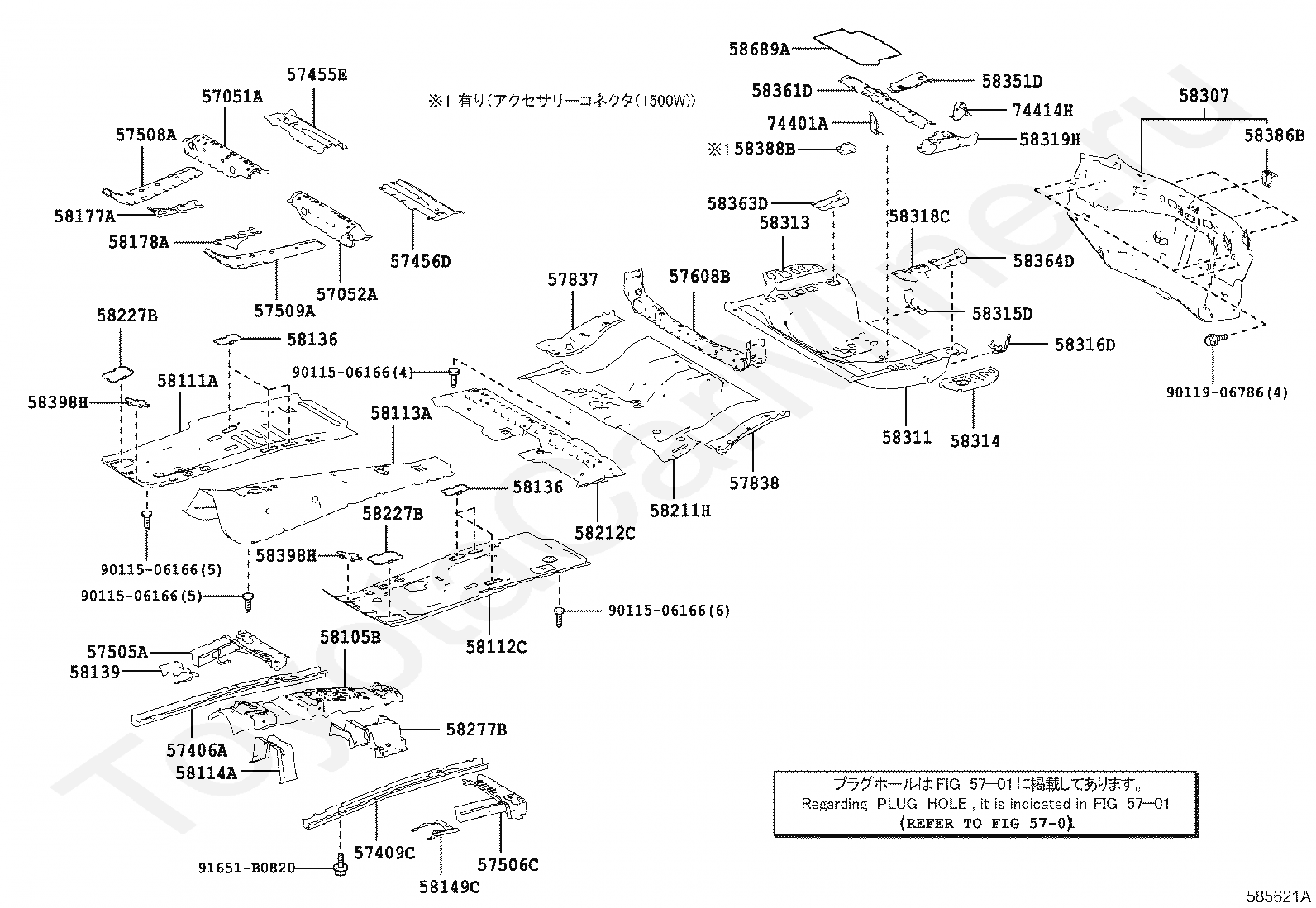

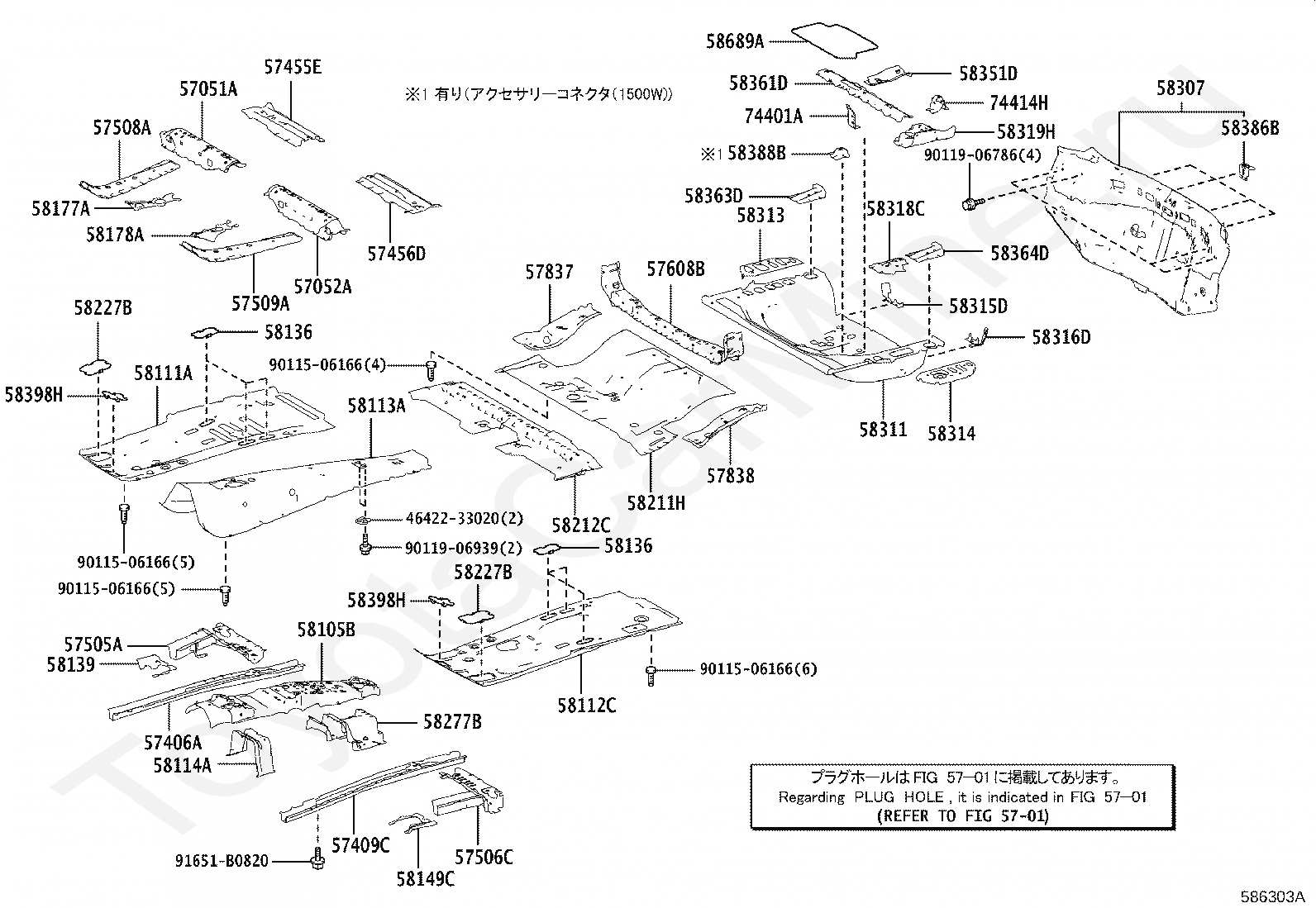

FLOOR PAN & LOWER BACK PANEL TOYOTA HARRIER/HYBRID, 2014/01 - 2025, 2,5 литра, 16 клапанов DOHC, EFI, фургон, ELEGANCE TYPE, AVU65, вариатор

Каталог

Япония

Модель

HARRIER/HYBRID

Двигатель

2,5 литра, 16 клапанов DOHC, EFI

Кузов

фургон

Класс

ELEGANCE TYPE

Фрейм

AVU65

Трансмиссия

вариатор

Опции

5-местный HIGH EFFICIENCY TWIN CAM 577W

Код

Описание

5701

переход к группе запчастей

57051A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57406A

MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

57409C

MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

57455E

PLATE, FRONT FLOOR CROSS MEMBER, NO.3 RH

57456D

PLATE, FRONT FLOOR CROSS MEMBER, NO.3 LH

57505A

REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

57506C

REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH

57508A

REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

57509A

REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

57608B

MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

57837

REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3

57838

REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4

58105B

PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

58111A

PAN, FRONT FLOOR, RH

58112C

PAN, FRONT FLOOR, LH

58113A

PANEL, FRONT FLOOR, CENTER

58114A

REINFORCEMENT, FRONT FLOOR PANEL

58136

COVER, FRONT FLOOR HOLE

58139

COVER, FRONT FLOOR SIDE, REAR

58149C

PLATE, FRONT FLOOR SIDE, REAR LH

58177A

EXTENSION, FRONT FLOOR PANEL, RH

58178A

EXTENSION, FRONT FLOOR PANEL, LH

58211H

PAN, CENTER FLOOR

58212C

PAN, CENTER FLOOR, FRONT

58227B

PLATE, FRONT FLOOR PANEL SIDE, RH

58277B

REINFORCEMENT, DRIVE SHAFT CENTER SUPPORT

58307

PANEL SUB-ASSY, BODY LOWER BACK

58311

PAN, REAR FLOOR

58313

PANEL, REAR FLOOR SIDE, RH

58314

PANEL, REAR FLOOR SIDE, LH

58315D

EXTENSION, REAR FLOOR PAN, RH

58316D

EXTENSION, REAR FLOOR PAN, LH

58318C

BRACKET, REAR FLOOR CROSSMEMBER

58319H

PLATE, SUB FLOOR

58351D

REINFORCEMENT, REAR FLOOR PANEL

58361D

REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH

58363D

REINFORCEMENT, REAR FLOOR PANEL, NO.2 RH

58364D

REINFORCEMENT, REAR FLOOR PANEL, NO.2 LH

58386B

BRACKET, REAR BUMPER COVER, NO.2

58388B

BRACKET, PLATE REAR FLOOR

58398H

COVER, FLOOR UNDER, NO.1

58689A

WEIGHT, REAR FLOOR

74401A

BRACKET SUB-ASSY, BATTERY, FRONT

74414H

PANEL, BATTERY CARRIER, REAR

9011506166

Крепеж

9011906786

Крепеж

91651B0820

Крепеж

Код

Описание

4642233020

Крепеж

5701

переход к группе запчастей

57051A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57406A

MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

57409C

MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

57455E

PLATE, FRONT FLOOR CROSS MEMBER, NO.3 RH

57456D

PLATE, FRONT FLOOR CROSS MEMBER, NO.3 LH

57505A

REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

57506C

REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH

57508A

REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

57509A

REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

57608B

MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

57837

REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3

57838

REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4

58105B

PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

58111A

PAN, FRONT FLOOR, RH

58112C

PAN, FRONT FLOOR, LH

58113A

PANEL, FRONT FLOOR, CENTER

58114A

REINFORCEMENT, FRONT FLOOR PANEL

58136

COVER, FRONT FLOOR HOLE

58139

COVER, FRONT FLOOR SIDE, REAR

58149C

PLATE, FRONT FLOOR SIDE, REAR LH

58177A

EXTENSION, FRONT FLOOR PANEL, RH

58178A

EXTENSION, FRONT FLOOR PANEL, LH

58211H

PAN, CENTER FLOOR

58212C

PAN, CENTER FLOOR, FRONT

58227B

PLATE, FRONT FLOOR PANEL SIDE, RH

58277B

REINFORCEMENT, DRIVE SHAFT CENTER SUPPORT

58307

PANEL SUB-ASSY, BODY LOWER BACK

58311

PAN, REAR FLOOR

58313

PANEL, REAR FLOOR SIDE, RH

58314

PANEL, REAR FLOOR SIDE, LH

58315D

EXTENSION, REAR FLOOR PAN, RH

58316D

EXTENSION, REAR FLOOR PAN, LH

58318C

BRACKET, REAR FLOOR CROSSMEMBER

58319H

PLATE, SUB FLOOR

58351D

REINFORCEMENT, REAR FLOOR PANEL

58361D

REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH

58363D

REINFORCEMENT, REAR FLOOR PANEL, NO.2 RH

58364D

REINFORCEMENT, REAR FLOOR PANEL, NO.2 LH

58386B

BRACKET, REAR BUMPER COVER, NO.2

58388B

BRACKET, PLATE REAR FLOOR

58398H

COVER, FLOOR UNDER, NO.1

58689A

WEIGHT, REAR FLOOR

74401A

BRACKET SUB-ASSY, BATTERY, FRONT

74414H

PANEL, BATTERY CARRIER, REAR

9011506166

Крепеж

9011906786

Крепеж

9011906939

Крепеж

91651B0820

Крепеж

FLOOR PAN & LOWER BACK PANEL TOYOTA HARRIER/HYBRID, 2014/01 - 2025, 2,5 литра, 16 клапанов DOHC, EFI, фургон, ELEGANCE TYPE, AVU65, вариатор
