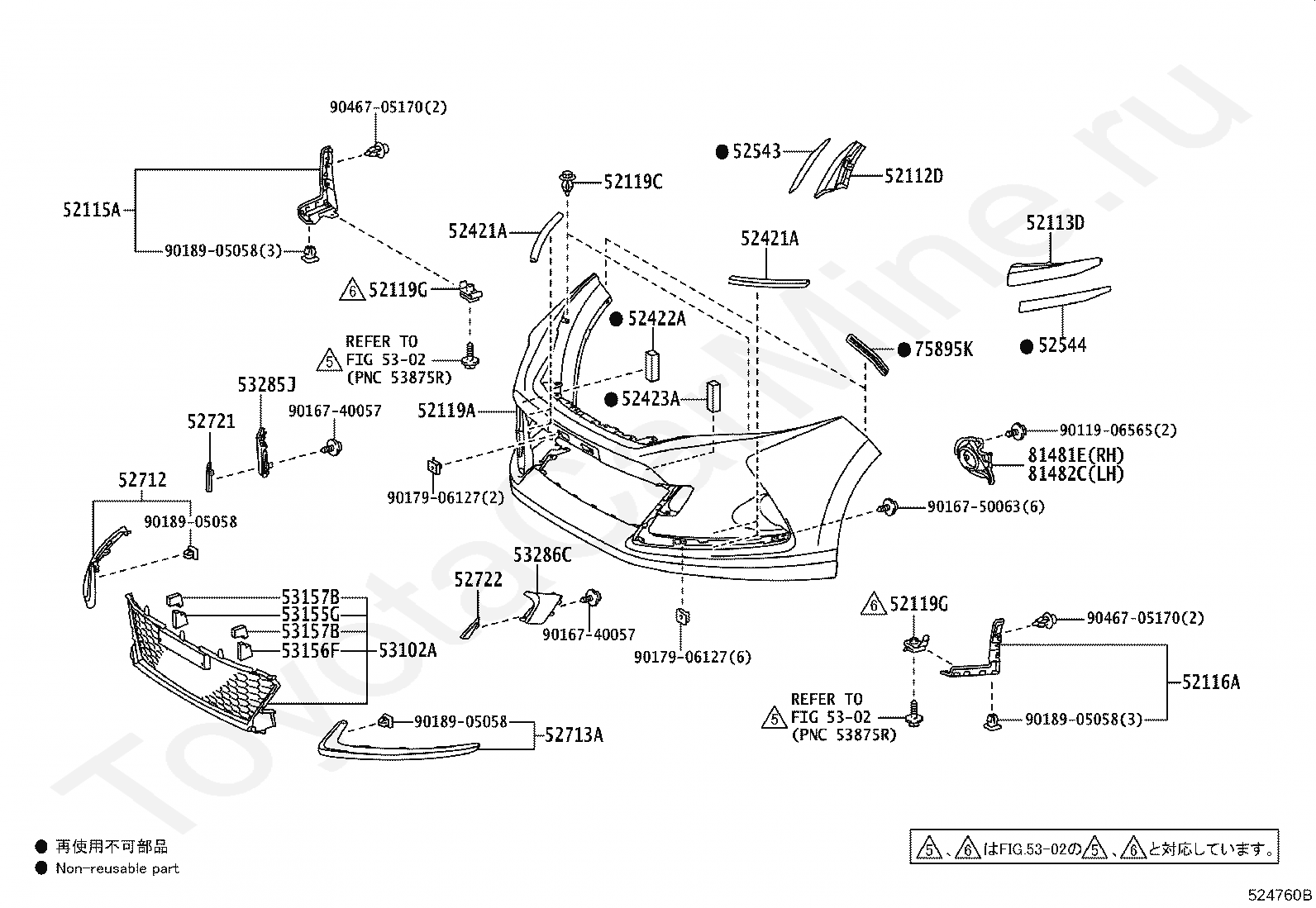

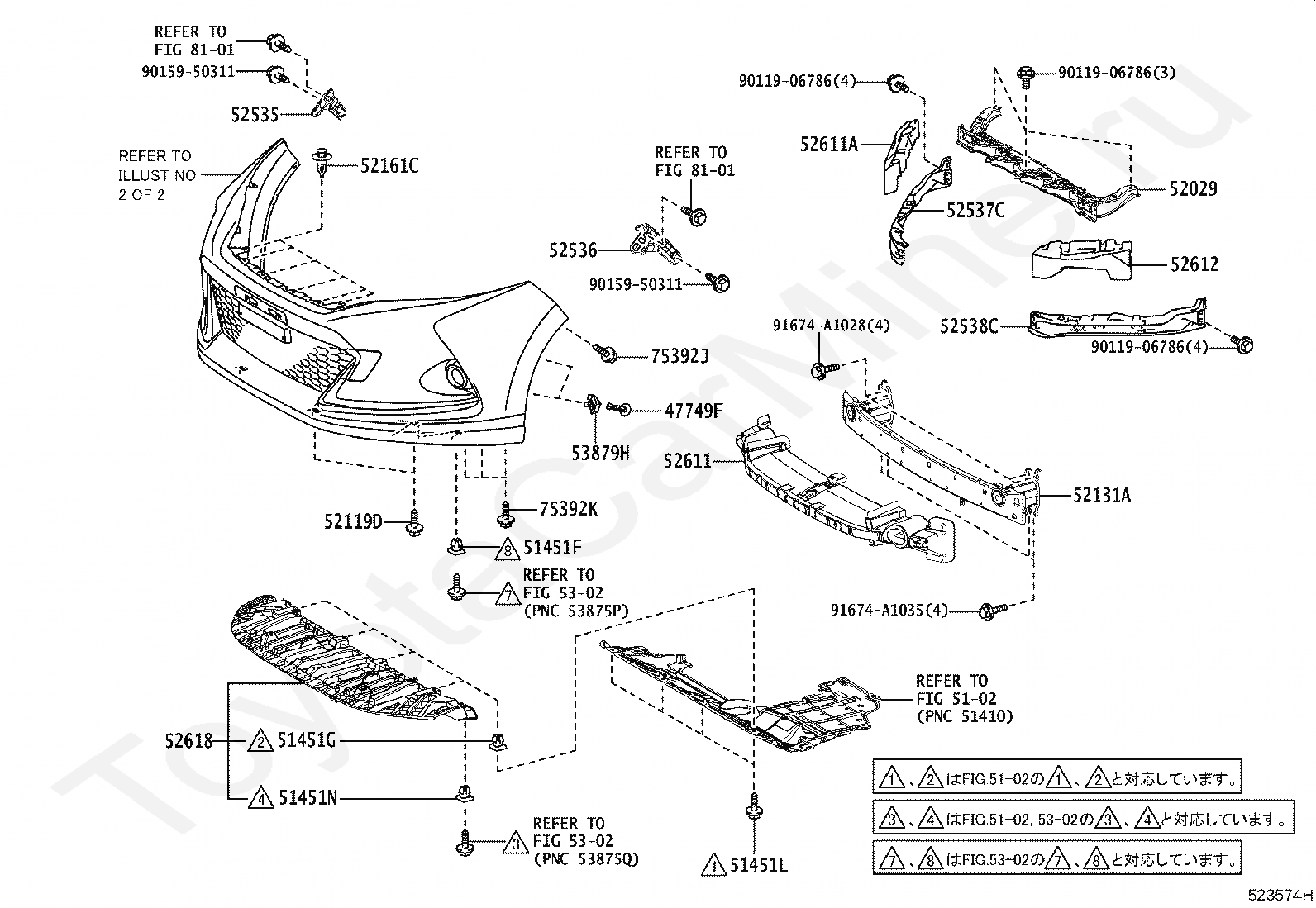

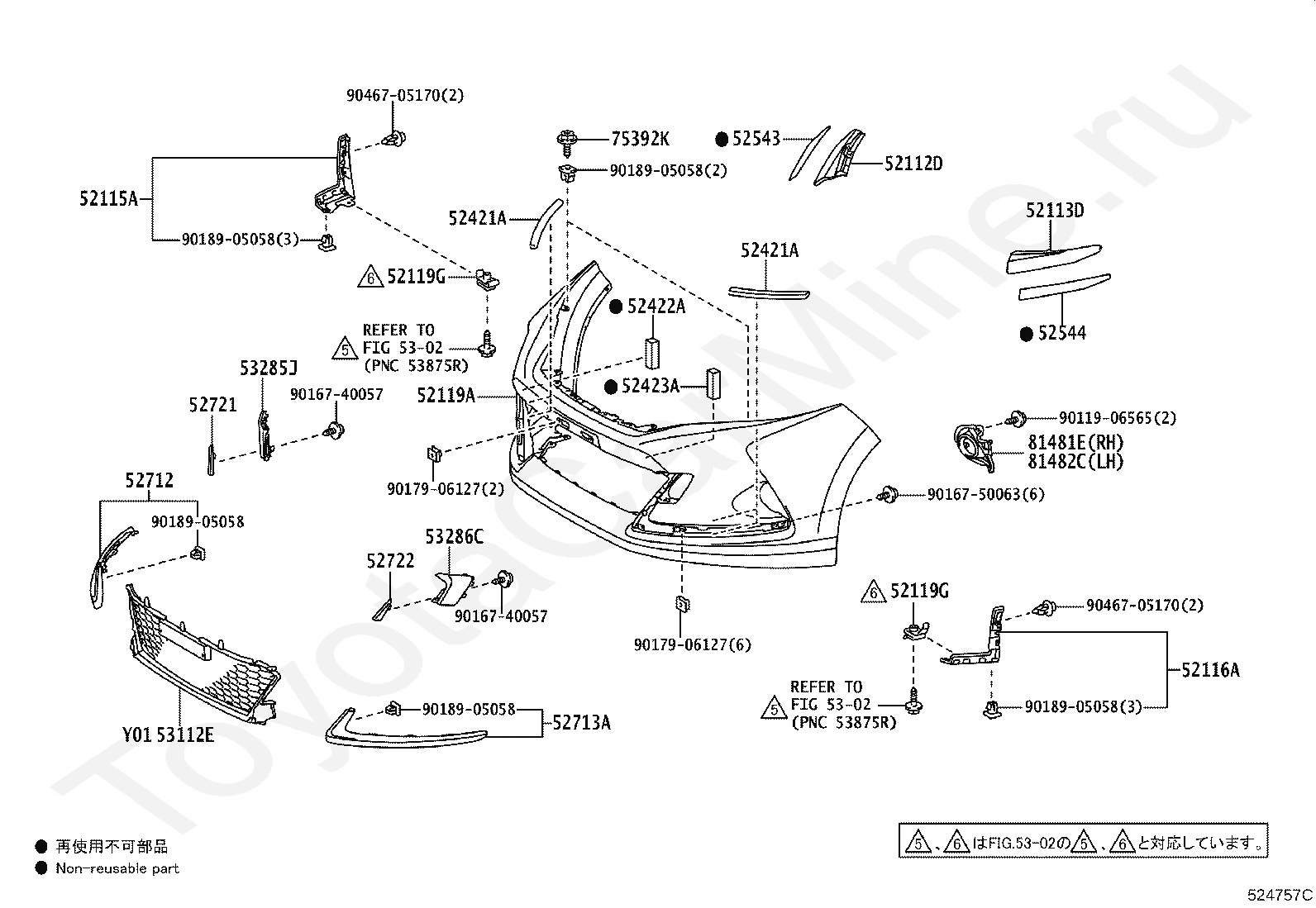

Передний бампер TOYOTA HARRIER/HYBRID, 2017/05 - 2020/05, 2 литра, 16 клапанов, DOHC, EFI, фургон, ELEGANCE TYPE, ZSU60, вариатор

Каталог

Япония

Модель

HARRIER/HYBRID

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

фургон

Класс

ELEGANCE TYPE

Фрейм

ZSU60

Трансмиссия

вариатор

Опции

5-местный HIGH EFFICIENCY TWIN CAM (VALVEMATIC) 726W

Код

Описание

47749F

CLIP, PIN HOLD

5102

переход к группе запчастей

51451F

GROMMET, NO.1

51451G

GROMMET, NO.2

51451L

BOLT, NO.1

51451N

GROMMET, NO.3

52029

REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

52119D

SCREW, NO.1

52119G

CLIP, NO.1

52131A

REINFORCEMENT, FRONT BUMPER

52161C

PIECE, FRONT BUMPER

52535

RETAINER, FRONT BUMPER SIDE, RH

52536

RETAINER, FRONT BUMPER SIDE, LH

52537C

RETAINER, FRONT BUMPER SIDE, NO.2 RH

52538C

RETAINER, FRONT BUMPER SIDE, NO.2 LH

52611

ABSORBER, FRONT BUMPER ENERGY

52611A

ABSORBER, FRONT BUMPER ENERGY, RH

52612

ABSORBER, FRONT BUMPER ENERGY, LH

52618

ABSORBER, FRONT BUMPER, LOWER

5302

переход к группе запчастей

53879H

RETAINER, FRONT FENDER LINER

75392J

RETAINER, OUTSIDE MOULDING

8101

переход к группе запчастей

9011906786

Крепеж

9015950311

Крепеж

91674A1028

Крепеж

Код

Описание

52119A

COVER, FRONT BUMPER

52411

GUARD, FRONT BUMPER

52421A

PAD, FRONT BUMPER

53112E

GRILLE, RADIATOR, LOWER NO.1

53285J

COVER, FRONT BUMPER ARM HOLE, RH

53286C

COVER, FRONT BUMPER ARM HOLE, LH

81481E

COVER, FOG LAMP, RH

81482C

COVER, FOG LAMP, LH

8417

переход к группе запчастей

9011906565

Крепеж

9016750063

Крепеж

9017906127

Крепеж

9046707220

Крепеж

Код

Описание

47749F

CLIP, PIN HOLD

5102

переход к группе запчастей

51451F

GROMMET, NO.1

51451G

GROMMET, NO.2

51451L

BOLT, NO.1

51451N

GROMMET, NO.3

52029

REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

52119D

SCREW, NO.1

52131A

REINFORCEMENT, FRONT BUMPER

52161C

PIECE, FRONT BUMPER

52535

RETAINER, FRONT BUMPER SIDE, RH

52536

RETAINER, FRONT BUMPER SIDE, LH

52537C

RETAINER, FRONT BUMPER SIDE, NO.2 RH

52538C

RETAINER, FRONT BUMPER SIDE, NO.2 LH

52611

ABSORBER, FRONT BUMPER ENERGY

52611A

ABSORBER, FRONT BUMPER ENERGY, RH

52612

ABSORBER, FRONT BUMPER ENERGY, LH

52618

ABSORBER, FRONT BUMPER, LOWER

5302

переход к группе запчастей

53879H

RETAINER, FRONT FENDER LINER

75392J

RETAINER, OUTSIDE MOULDING

75392K

RETAINER, OUTSIDE MOULDING, NO.2

8101

переход к группе запчастей

9011906786

Крепеж

9015950311

Крепеж

91674A1028

Крепеж

Код

Описание

52112D

EXTENSION, FRONT BUMPER, RH

52113D

EXTENSION, FRONT BUMPER, LH

52115A

SUPPORT, FRONT BUMPER SIDE, RH

52116A

SUPPORT, FRONT BUMPER SIDE, LH

52119A

COVER, FRONT BUMPER

52119G

CLIP, NO.1

52421A

PAD, FRONT BUMPER

52422A

PAD, FRONT BUMPER, RH

52423A

PAD, FRONT BUMPER, LH

52543

SEAL, FRONT BUMPER SIDE, RH

52544

SEAL, FRONT BUMPER SIDE, LH

52712

MOULDING, FRONT BUMPER SIDE, RH

52713A

MOULDING, FRONT BUMPER SIDE, LH

52721

MOULDING, FRONT BUMPER EXTENSION, RH

52722

MOULDING, FRONT BUMPER EXTENSION, LH

5302

переход к группе запчастей

53112E

GRILLE, RADIATOR, LOWER NO.1

53285J

COVER, FRONT BUMPER ARM HOLE, RH

53286C

COVER, FRONT BUMPER ARM HOLE, LH

75392K

RETAINER, OUTSIDE MOULDING, NO.2

81481E

COVER, FOG LAMP, RH

81482C

COVER, FOG LAMP, LH

9011906565

Крепеж

9016740057

Крепеж

9016750063

Крепеж

9017906127

Крепеж

9018905058

Крепеж

9046705170

Крепеж

Код

Описание

47749F

CLIP, PIN HOLD

5102

переход к группе запчастей

51451F

GROMMET, NO.1

51451G

GROMMET, NO.2

51451L

BOLT, NO.1

51451N

GROMMET, NO.3

52029

REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

52119D

SCREW, NO.1

52119G

CLIP, NO.1

52131A

REINFORCEMENT, FRONT BUMPER

52161C

PIECE, FRONT BUMPER

52411

GUARD, FRONT BUMPER

52535

RETAINER, FRONT BUMPER SIDE, RH

52536

RETAINER, FRONT BUMPER SIDE, LH

52537C

RETAINER, FRONT BUMPER SIDE, NO.2 RH

52538C

RETAINER, FRONT BUMPER SIDE, NO.2 LH

52611

ABSORBER, FRONT BUMPER ENERGY

52611A

ABSORBER, FRONT BUMPER ENERGY, RH

52612

ABSORBER, FRONT BUMPER ENERGY, LH

52618

ABSORBER, FRONT BUMPER, LOWER

52711

MOULDING, FRONT BUMPER

5302

переход к группе запчастей

53879H

RETAINER, FRONT FENDER LINER

75392J

RETAINER, OUTSIDE MOULDING

75392P

RETAINER, OUTSIDE MOULDING, NO.3

8101

переход к группе запчастей

9011906565

Крепеж

9011906786

Крепеж

9015950311

Крепеж

9017906127

Крепеж

9046707220

Крепеж

91674A1028

Крепеж

91674A1035

Крепеж

Код

Описание

52119A

COVER, FRONT BUMPER

52125A

BRACKET, FOG LAMP MOUNTING, RH

52126D

BRACKET, FOG LAMP MOUNTING, LH

52127D

COVER, FRONT BUMPER HOLE, RH

52128B

COVER, FRONT BUMPER HOLE, LH

53112E

GRILLE, RADIATOR, LOWER NO.1

53285J

COVER, FRONT BUMPER ARM HOLE, RH

53286C

COVER, FRONT BUMPER ARM HOLE, LH

75392K

RETAINER, OUTSIDE MOULDING, NO.2

8417

переход к группе запчастей

89C48D

RETAINER, ULTRASONIC SENSOR, FRONT CORNER

9011906565

Крепеж

9016750063

Крепеж

9017906127

Крепеж

9046707220

Крепеж

Код

Описание

47749F

CLIP, PIN HOLD

5102

переход к группе запчастей

51451F

GROMMET, NO.1

51451G

GROMMET, NO.2

51451L

BOLT, NO.1

51451N

GROMMET, NO.3

52029

REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

52119D

SCREW, NO.1

52131A

REINFORCEMENT, FRONT BUMPER

52161C

PIECE, FRONT BUMPER

52535

RETAINER, FRONT BUMPER SIDE, RH

52536

RETAINER, FRONT BUMPER SIDE, LH

52537C

RETAINER, FRONT BUMPER SIDE, NO.2 RH

52538C

RETAINER, FRONT BUMPER SIDE, NO.2 LH

52611

ABSORBER, FRONT BUMPER ENERGY

52611A

ABSORBER, FRONT BUMPER ENERGY, RH

52612

ABSORBER, FRONT BUMPER ENERGY, LH

52618

ABSORBER, FRONT BUMPER, LOWER

5302

переход к группе запчастей

53879H

RETAINER, FRONT FENDER LINER

75392J

RETAINER, OUTSIDE MOULDING

75392K

RETAINER, OUTSIDE MOULDING, NO.2

8101

переход к группе запчастей

9011906786

Крепеж

9015950311

Крепеж

91674A1028

Крепеж

91674A1035

Крепеж

Код

Описание

52112D

EXTENSION, FRONT BUMPER, RH

52113D

EXTENSION, FRONT BUMPER, LH

52115A

SUPPORT, FRONT BUMPER SIDE, RH

52116A

SUPPORT, FRONT BUMPER SIDE, LH

52119A

COVER, FRONT BUMPER

52119C

CLIP, FRONT BUMPER COVER

52119G

CLIP, NO.1

52421A

PAD, FRONT BUMPER

52422A

PAD, FRONT BUMPER, RH

52423A

PAD, FRONT BUMPER, LH

52543

SEAL, FRONT BUMPER SIDE, RH

52544

SEAL, FRONT BUMPER SIDE, LH

52712

MOULDING, FRONT BUMPER SIDE, RH

52713A

MOULDING, FRONT BUMPER SIDE, LH

52721

MOULDING, FRONT BUMPER EXTENSION, RH

52722

MOULDING, FRONT BUMPER EXTENSION, LH

5302

переход к группе запчастей

53102A

GRILLE SUB-ASSY, RADIATOR, LWR

53155G

SEAL, RADIATOR GRILLE

53156F

SEAL, RADIATOR GRILLE, NO.2

53157B

SEAL, RADIATOR GRILLE, NO.3

53285J

COVER, FRONT BUMPER ARM HOLE, RH

53286C

COVER, FRONT BUMPER ARM HOLE, LH

75895K

TAPE, MOULDING, NO.1

81481E

COVER, FOG LAMP, RH

81482C

COVER, FOG LAMP, LH

9011906565

Крепеж

9016740057

Крепеж

9016750063

Крепеж

9017906127

Крепеж

9018905058

Крепеж

9046705170

Крепеж

Передний бампер TOYOTA HARRIER/HYBRID, 2017/05 - 2020/05, 2 литра, 16 клапанов, DOHC, EFI, фургон, ELEGANCE TYPE, ZSU60, вариатор
