Каталог
ЯпонияМодель
HARRIER HVДвигатель
3,3 литра, 24 клапана, DOHC, EFIКузов
фургонФрейм
MHU38Опции
309W
Код
Описание

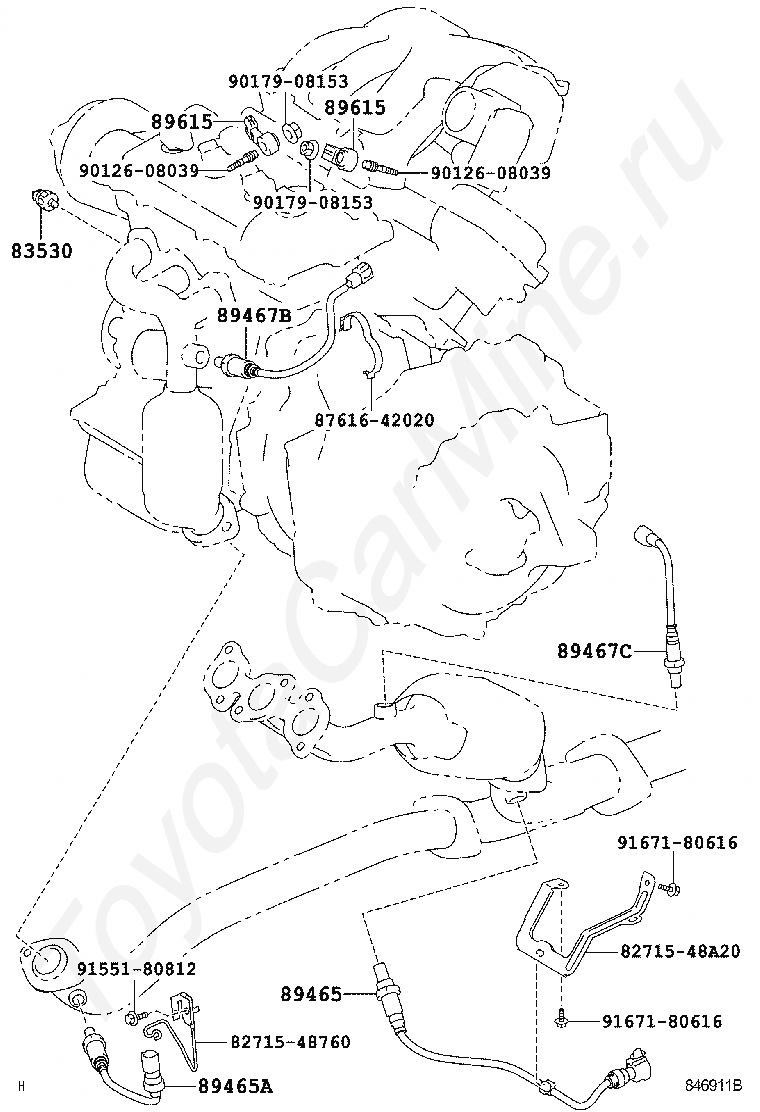

8271548760
Крепеж
8271548A20
Крепеж
83530
SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
8761642020
Крепеж
89465
SENSOR, OXYGEN
89465A
SENSOR, OXYGEN NO.2
89467B
SENSOR, AIR FUEL RATIO
89467C
SENSOR, AIR FUEL RATIO, NO.2
89615
SENSOR, KNOCK CONTROL
9012608039
Крепеж
9017908153
Крепеж
9155180812
Крепеж
9167180616
Крепеж
Код
Описание

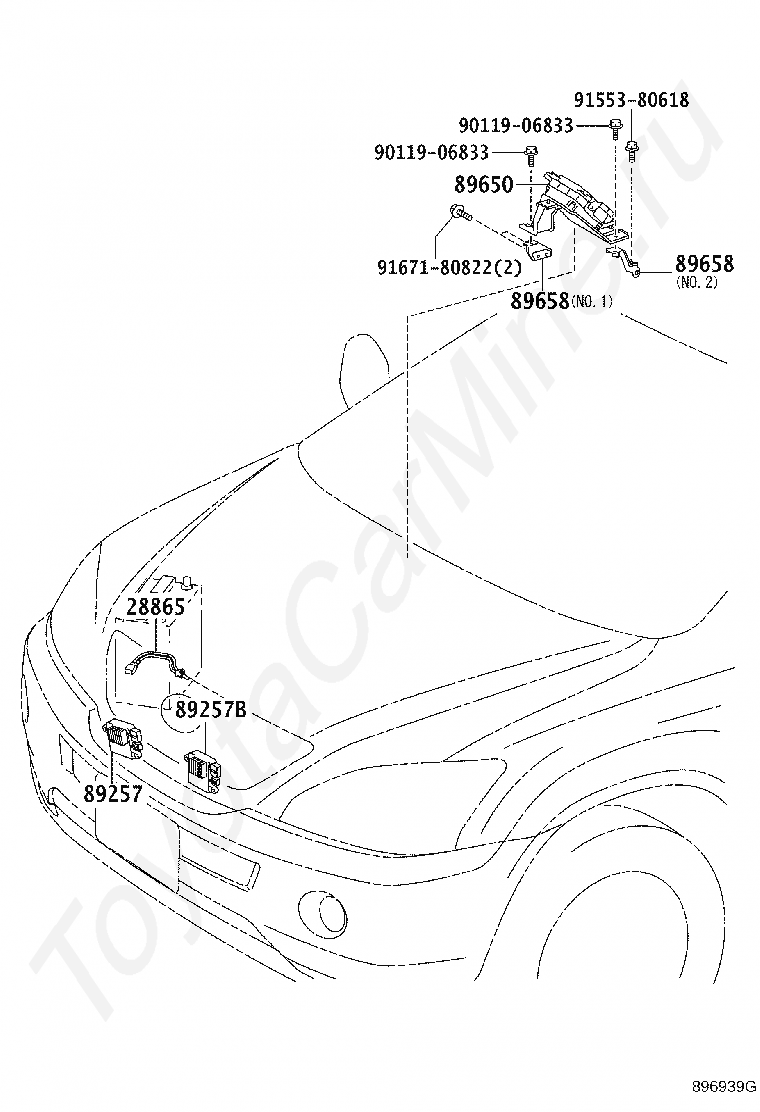

28865
SENSOR, BATTERY THERMOMETER
89257
COMPUTER, COOLING FAN
89257B
COMPUTER, COOLING FAN, NO.2
89650
COMPUTER ASSY, POWER STEERING
89658
BRACKET, POWER STEERING COMPUTER
9011906833
Крепеж
9155380618
Крепеж
9167180822
Крепеж
Код
Описание

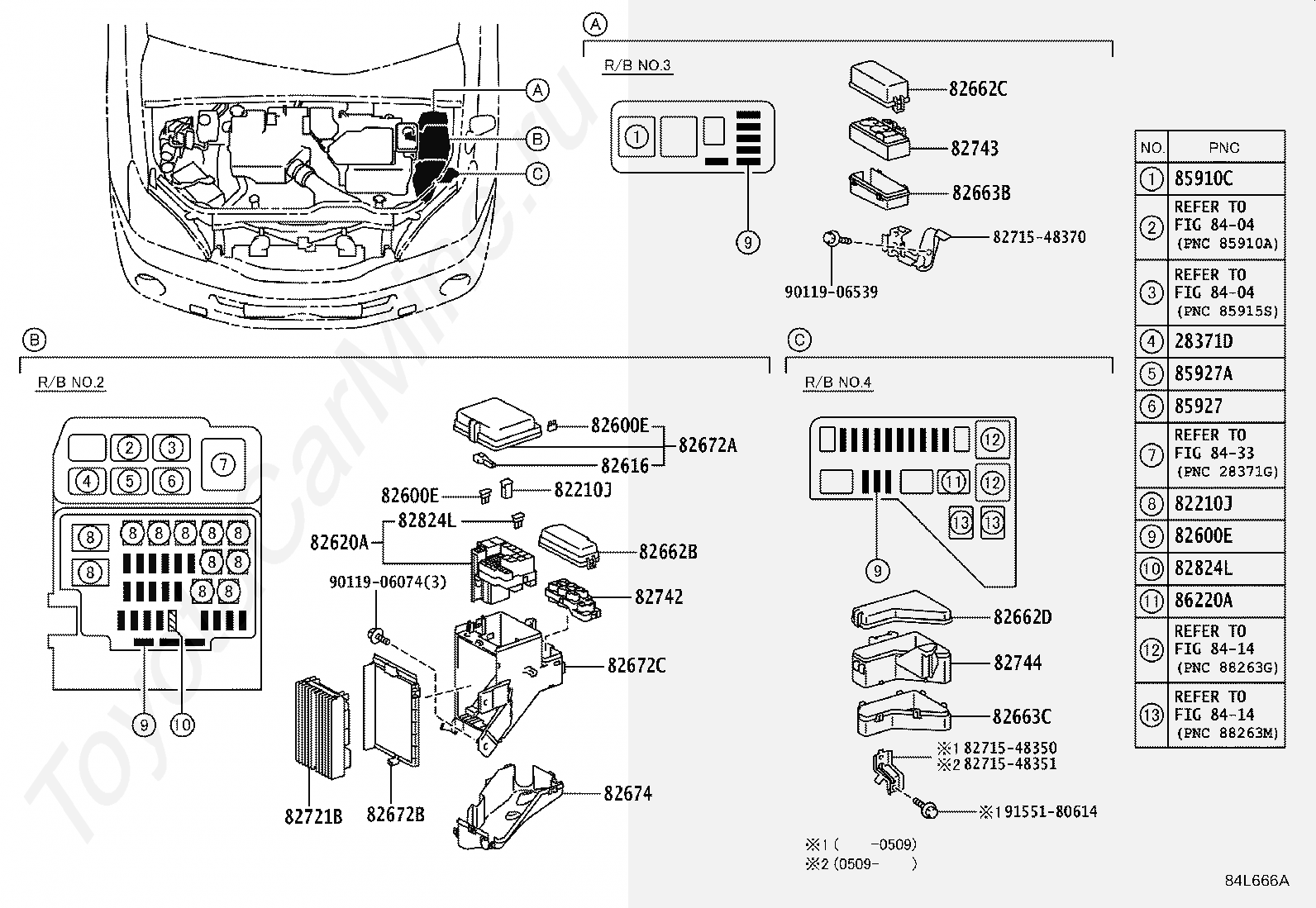

28371D
RELAY, IGNITION, NO.3
82210J
FUSIBLE LINK
82600E
ENGINE ROOM FUSE
82616
PULLER, FUSE
82620A
BLOCK ASSY, FUSIBLE LINK
82662B
COVER, RELAY BLOCK, UPPER, NO.2
82662C
COVER, RELAY BLOCK, UPPER, NO.3
82662D
COVER, RELAY BLOCK, UPPER, NO.4
82663B
COVER, RELAY BLOCK, LOWER, NO.3
82663C
COVER, RELAY BLOCK LOWER, NO.4
82672A
COVER, JUNCTION BLOCK
82672B
COVER, JUNCTION BLOCK
82672C
COVER, JUNCTION BLOCK
82674
COVER, JUNCTION BLOCK LOWER
8271548350
Крепеж
8271548351
Крепеж
8271548370
Крепеж
82721B
BLOCK, ENGINE ROOM JUNCTION
82742
BLOCK, ENGINE ROOM RELAY, NO.2
82743
BLOCK, ENGINE ROOM RELAY, NO.3
82744
BLOCK, ENGINE ROOM RELAY, NO.4
82824L
PIN, SHORT
8404
переход к группе запчастей
8414
переход к группе запчастей
8433
переход к группе запчастей
85910C
RELAY ASSY (FOR HEATER BLOWER MOTOR)
85927
RELAY, COOLING FAN
85927A
RELAY, COOLING FAN, NO.2
86220A
RELAY, INVERTER
9011906074
Крепеж
9011906539
Крепеж
9155180614
Крепеж
Код
Описание

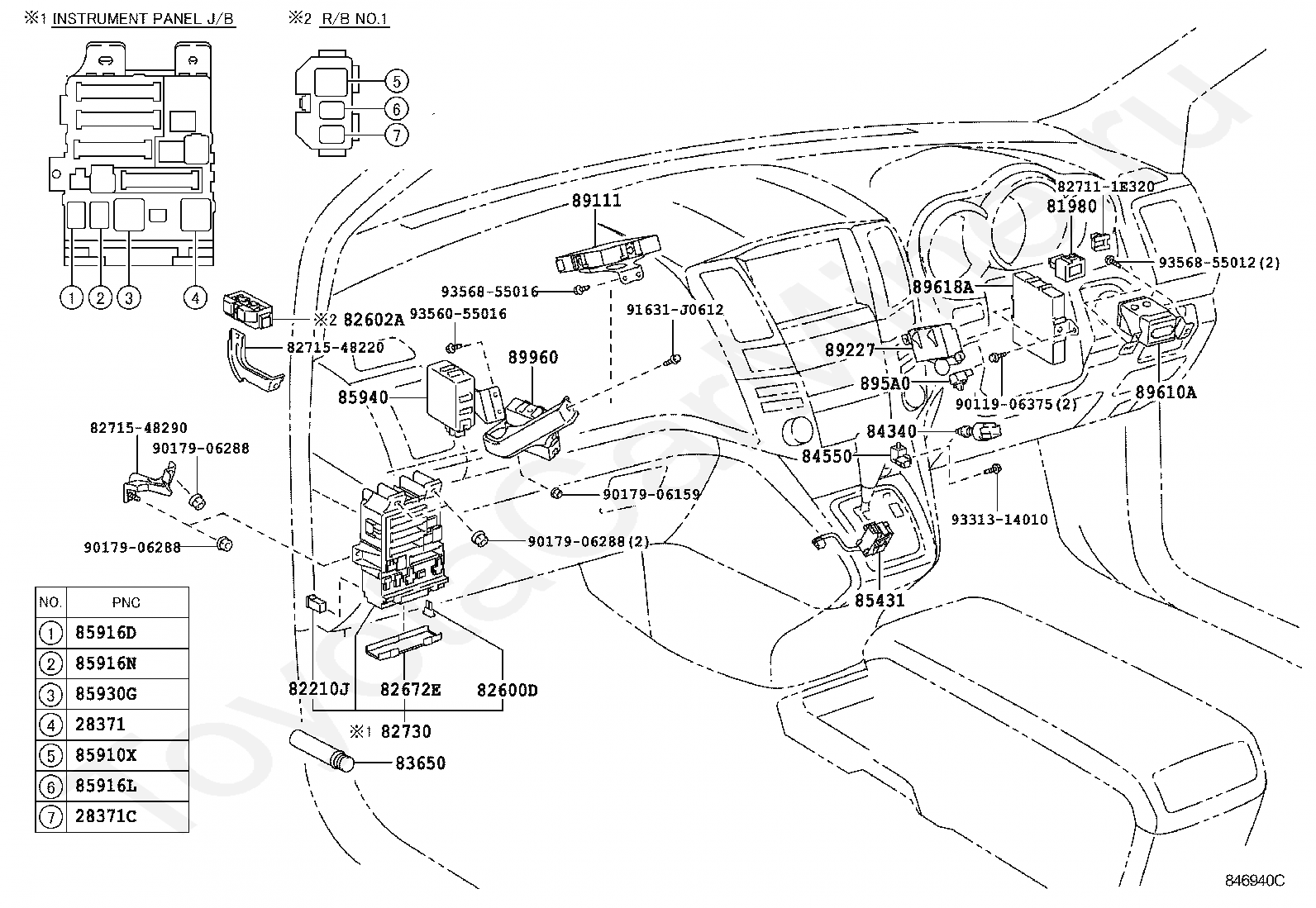

28371
RELAY, IGNITION, NO.1
28371C
RELAY, IGNITION, NO.2
81980
FLASHER ASSY, TURN SIGNAL
82210J
FUSIBLE LINK
82600D
INSTRUMENT PANEL FUSE
82602A
BLOCK SUB-ASSY, RELAY
82672E
COVER, JUNCTION BLOCK
827111E320
Крепеж
8271548220
Крепеж
8271548290
Крепеж
82730
BLOCK ASSY, INSTRUMENT PANEL JUNCTION
83650
FUSEE
84340
SWITCH ASSY, STOP LAMP
84550
SWITCH ASSY, PARKING BRAKE
85431
SOLENOID, SHIFT LOCK
85910X
RELAY, HEATER MIRROR
85916D
RELAY, FOG LAMP
85916L
RELAY, REAR FOG LAMP
85916N
RELAY, TAIL LAMP
85930G
RELAY, ACC
85940
RELAY ASSY, WINDSHIELD WIPER
89111
COMPUTER, NETWORK GATEWAY
89227
COMPUTER, MULTIPLEX TILT & TELESCOPIC
895A0
RELAY ASSY, STOP LAMP CONTROL
89610A
HOLDER ASSY, ELECTRICAL KEY
89618A
COMPUTER, POWER SOURCE CONTROL
89960
COMPUTER ASSY, HEADLAMP LEVELING
9011906375
Крепеж
9017906159
Крепеж
9017906288
Крепеж
91631J0612
Крепеж
9331314010
Крепеж
9356055016
Крепеж
9356855012
Крепеж
9356855016
Крепеж
Код
Описание

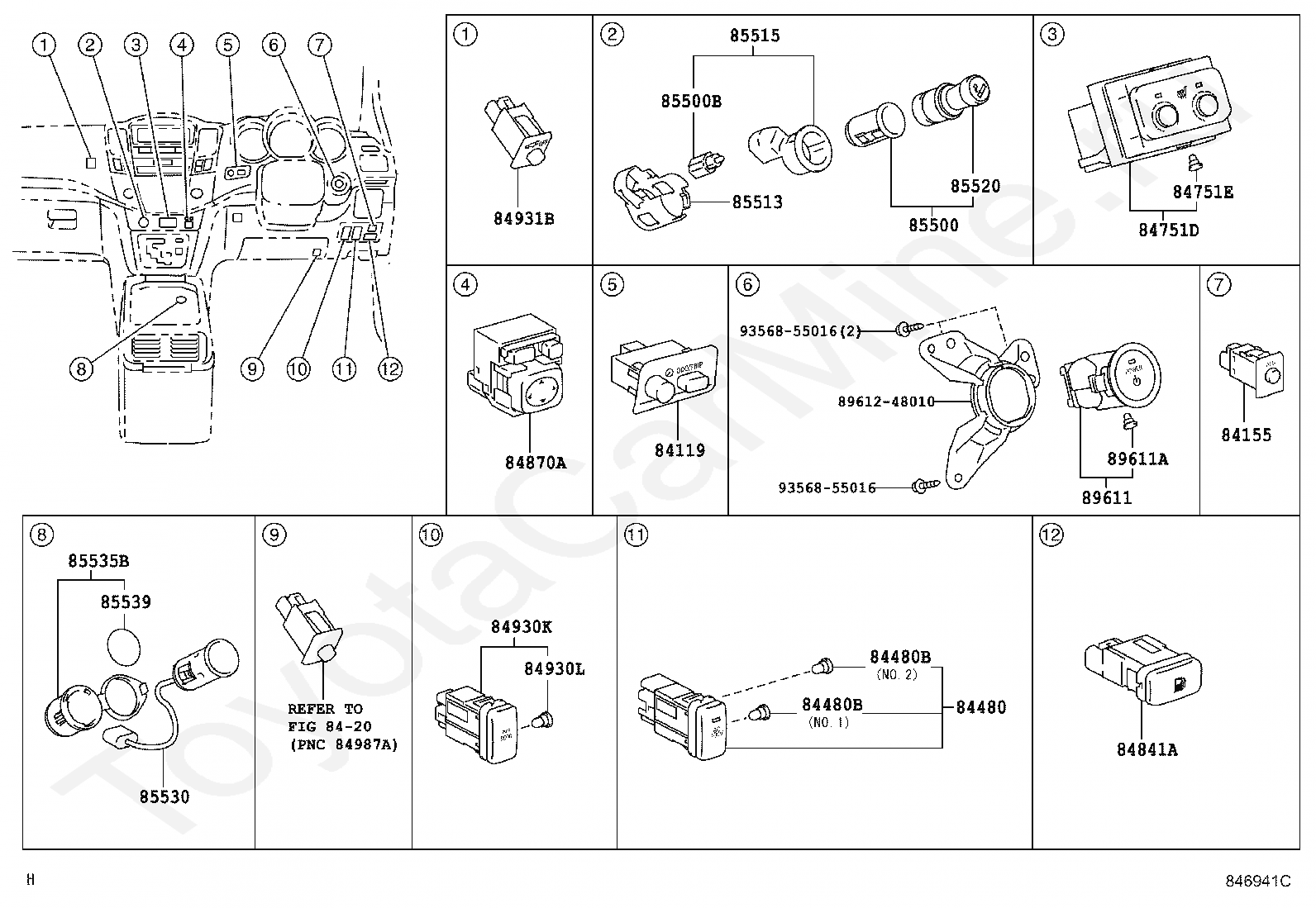

84119
RHEOSTAT, LIGHT CONTROL
84155
SWITCH, HEADLAMP SWIVEL MAIN
8420
переход к группе запчастей
84480
SWITCH ASSY, MAIN
84480B
BULB, MAIN SWITCH ASSY
84751D
SWITCH, SEAT HEATER(FRONT)
84751E
BULB, SEAT HEATER SWITCH(FRONT)
84841A
SWITCH, FUEL LID OPENER
84870A
SWITCH ASSY, OUTER MIRROR
84930K
SWITCH ASSY, AUTO SLIDE DOOR CONTROL
84930L
BULB, AUTO SLIDE DOOR CONTROL SWITCH
84931B
SWITCH, DOOR CONTROL
85500
LIGHTER ASSY, CIGARETTE
85500B
BULB, CIGARETTE LIGHTER
85513
COVER, CIGARETTE LIGHTER
85515
STAY, CIGARETTE LIGHTER BEZEL
85520
KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85530
SOCKET ASSY, POWER OUTLET, NO.1
85535B
COVER, POWER OUTLET SOCKET, NO.1
85539
LABEL, POWER OUTLET NOTICE
89611
SWITCH, PUSH START
89611A
BULB, PUSH START SWITCH
8961248010
Крепеж
9356855016
Крепеж
Код
Описание

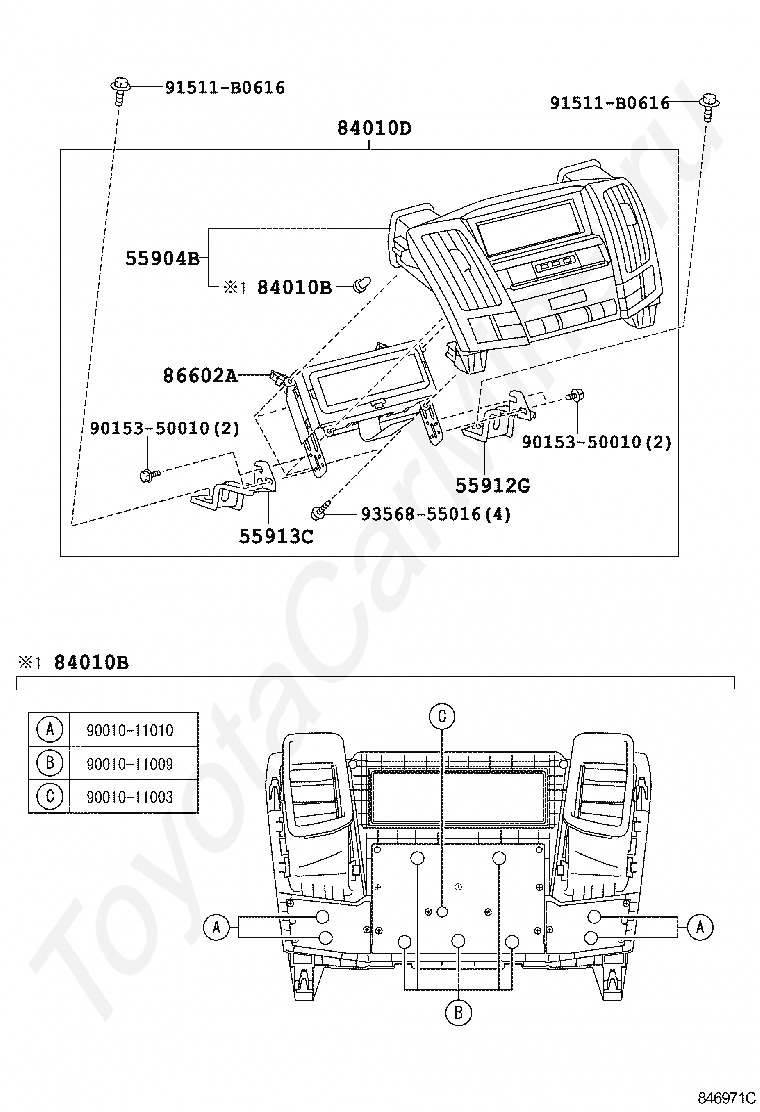

55904B
HOUSING SUB-ASSY, HEATER CONTROL
55912G
BRACKET, HEATER CONTROL BASE, RH
55913C
BRACKET, HEATER CONTROL BASE, LH
84010B
BULB, INTEGRATION CONTROL & PANEL
84010D
CONTROL & PANEL ASSY, INTEGRATION
86602A
DISPLAY SUB-ASSY, MULTI INFORMATION
9015350010
Крепеж
91511B0616
Крепеж
9356855016
Крепеж
Код
Описание

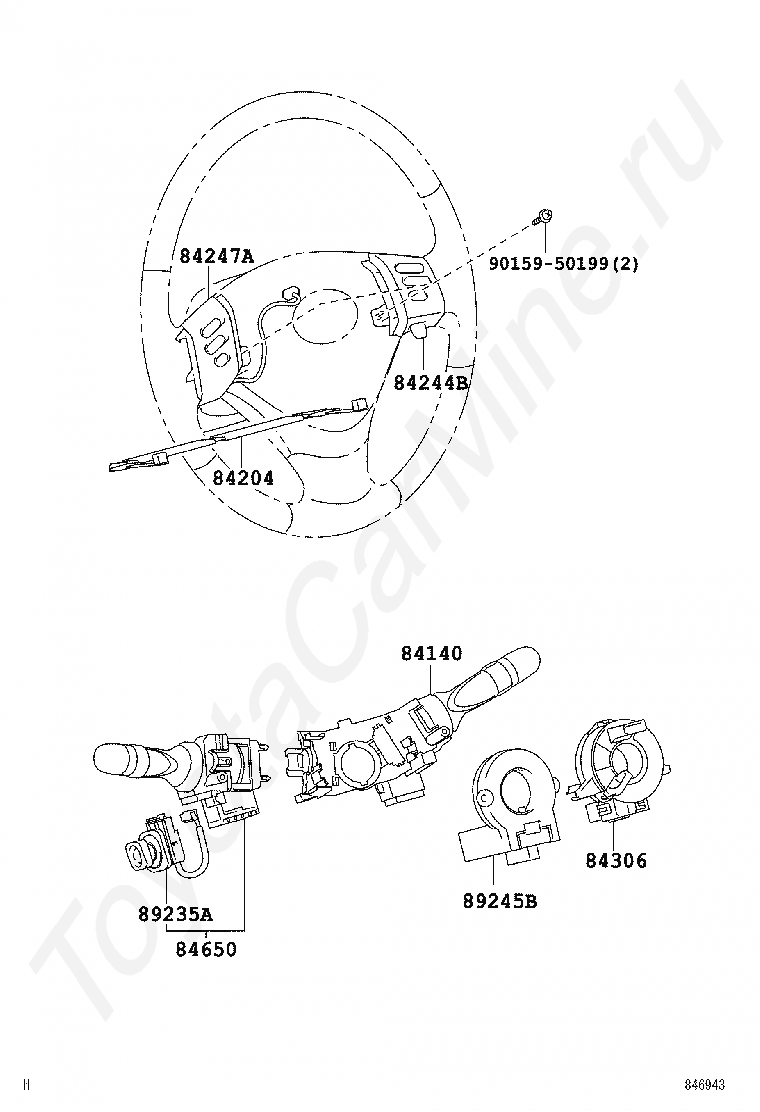

84140
SWITCH ASSY, HEADLAMP DIMMER
84204
CABLE SUB-ASSY, STEERING PAD SWITCH
84244B
SWITCH, STEERING PAD, RH
84247A
SWITCH, STEERING PAD, LH
84306
CABLE SUB-ASSY, SPIRAL
84650
SWITCH ASSY, WINDSHIELD WIPER
89235A
SWITCH, TILT & TELESCOPIC
89245B
SENSOR, STEERING
9015950199
Крепеж
Код
Описание

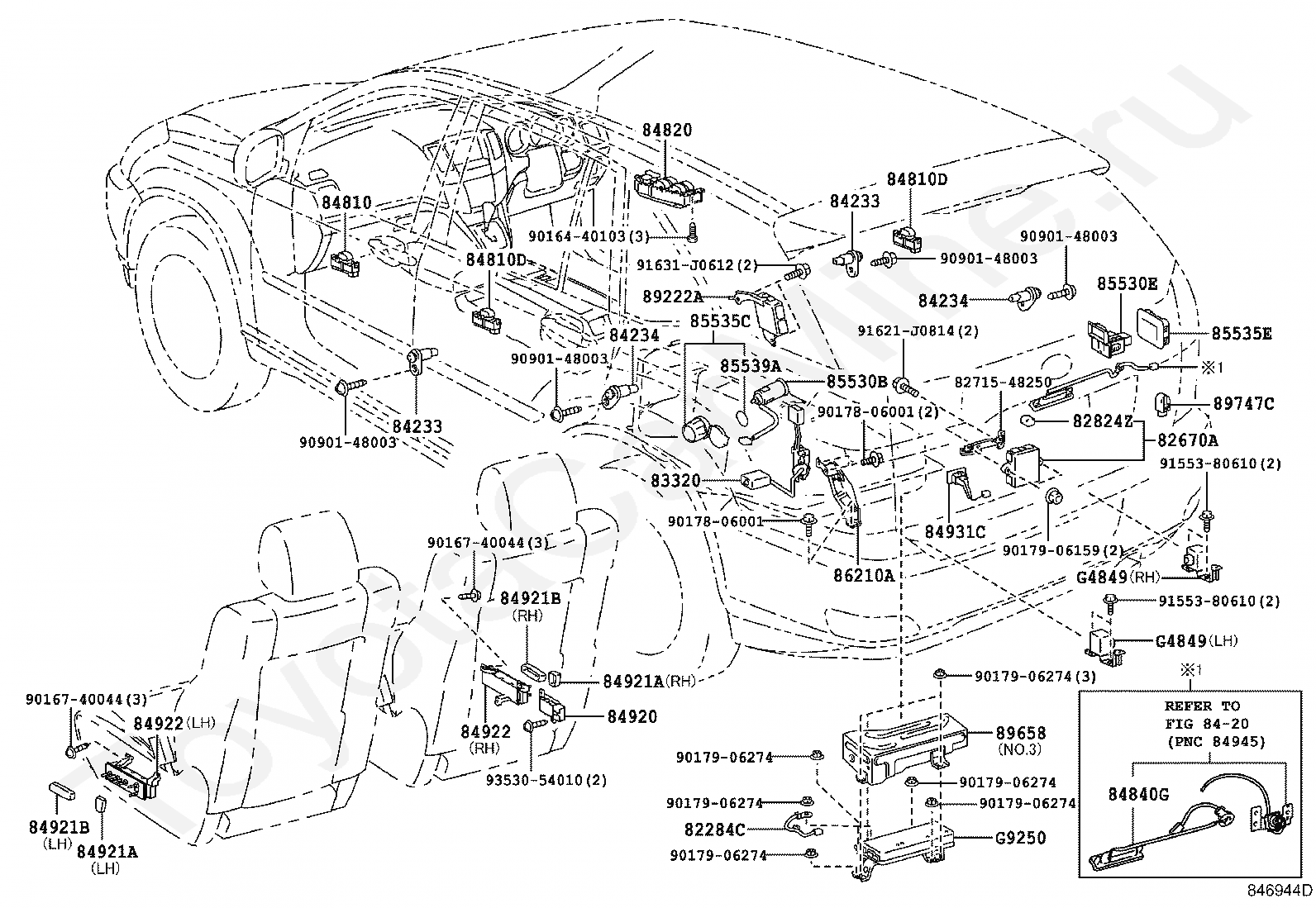

82284C
WIRE, EARTH
82670A
BLOCK ASSY, JUNCTION, NO.1
8271548250
Крепеж
82824Z
PIN, SHORT
83320
GAGE ASSY, FUEL SENDER
8420
переход к группе запчастей
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84810D
SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84820
MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84840G
SWITCH ASSY, BACK DOOR OPENER
84920
SWITCH ASSY, POWER SEAT
84921A
KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921B
KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84922
SWITCH, FRONT POWER SEAT
84931C
SWITCH, BACK DOOR CONTROL
85530B
SOCKET ASSY, POWER OUTLET, REAR NO.1
85530E
SOCKET ASSY, POWER OUTLET, NO.3
85535C
COVER, POWER OUTLET SOCKET, REAR
85535E
COVER, POWER OUTLET SOCKET, NO.2
85539A
LABEL, POWER OUTLET NOTICE, REAR
86210A
INVERTER ASSY, VOLTAGE
89222A
COMPUTER, MULTIPLEX NETWORK DOOR
89658
BRACKET, POWER STEERING COMPUTER
89747C
BUZZER, POWER SLIDE BACK DOOR WARNING
9016440103
Крепеж
9016740044
Крепеж
9017806001
Крепеж
9017906159
Крепеж
9017906274
Крепеж
9090148003
Крепеж
9155380610
Крепеж
91621J0814
Крепеж
91631J0612
Крепеж
9353054010
Крепеж
G4849
SENSOR, REAR CIRCUIT BREAKER
G9250
CONVERTER ASSY, POWER STEERING
