Каталог
ЯпонияМодель
HARRIER HVДвигатель
3,3 литра, 24 клапана, DOHC, EFIКузов
фургонФрейм
MHU38Опции
309W

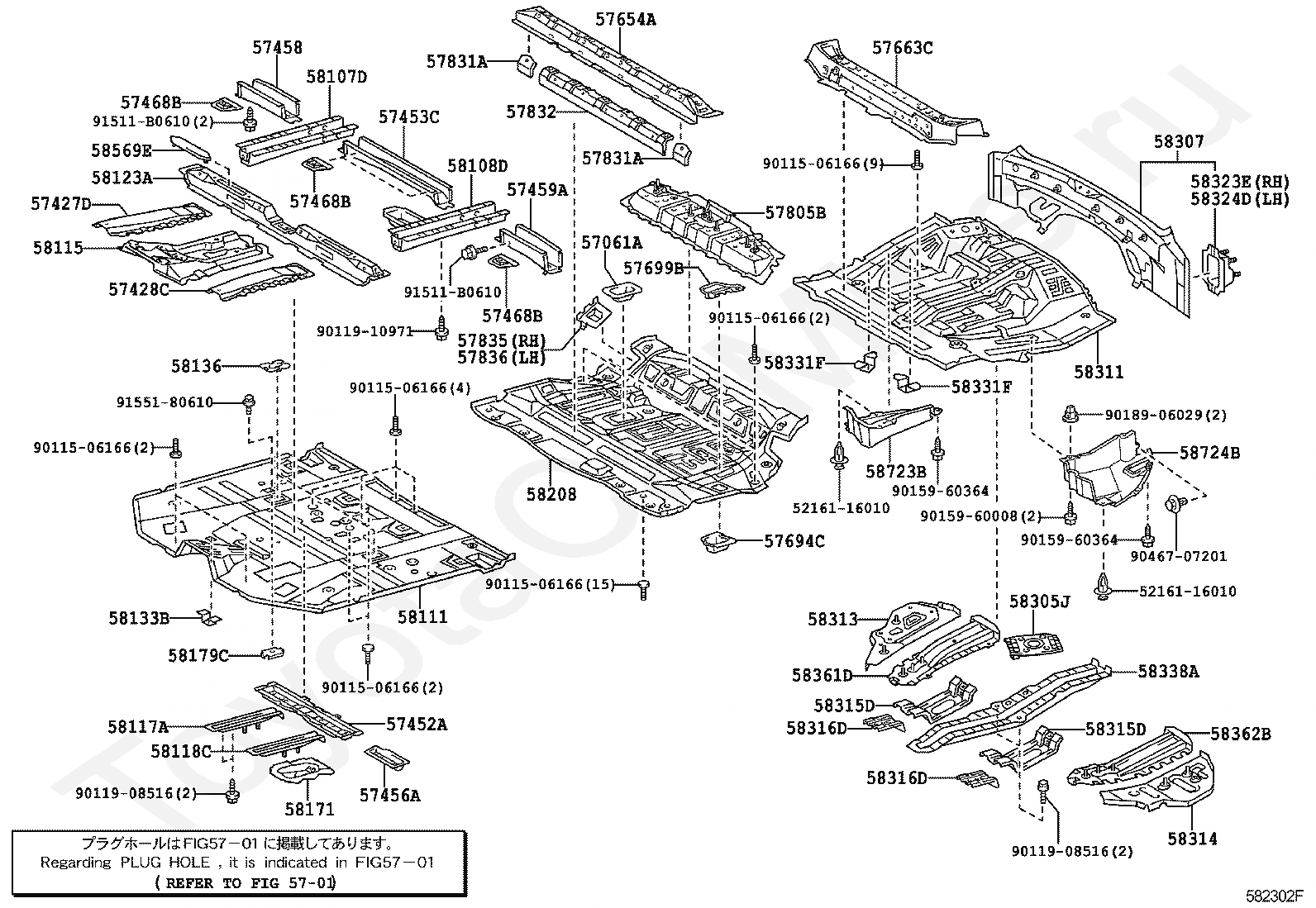

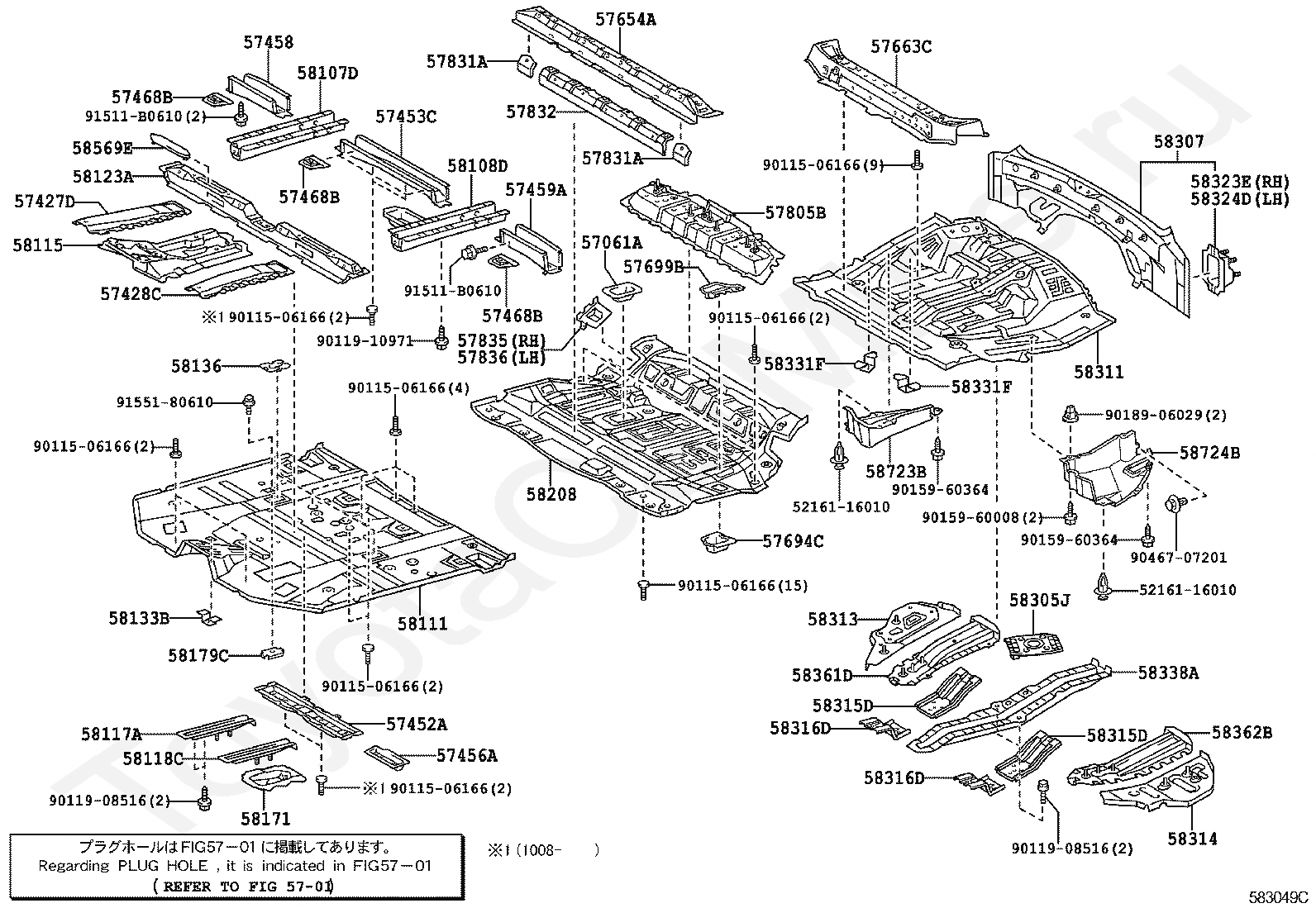

Код
Описание
5216116010
Крепеж
5701
переход к группе запчастей
57061A
BRACKET SUB-ASSY, FUEL TANK MOUNTING, FRONT
57427D
REINFORCEMENT, FRONT FLOOR, NO.3 RH
57428C
REINFORCEMENT, FRONT FLOOR, NO.3 LH
57452A
MEMBER, FRONT FLOOR CROSS, NO.2
57453C
MEMBER, FRONT FLOOR CROSS SIDE, RH
57456A
GUSSET, FRONT FLOOR CROSSMEMBER, LH
57458
MEMBER, FRONT FLOOR CROSS, NO.1
57459A
MEMBER, FRONT FLOOR CROSS, NO.2
57468B
BRACKET, FRONT SEAT, REAR
57654A
MEMBER, REAR FLOOR CROSS, NO.3
57663C
MEMBER, REAR FLOOR CROSS, CENTER
57694C
REINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH
57699B
REINFORCE, FUEL TANK MOUNTING BRACKET, NO.3
57805B
REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57831A
REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832
REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57835
REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57836
REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
58107D
REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH
58108D
REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH
58111
PAN, FRONT FLOOR
58115
REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58117A
REINFORCEMENT, FRONT FLOOR SIDE, RH
58118C
REINFORCEMENT, FRONT FLOOR SIDE, LH
58123A
SUPPORT, SHIFT & SELECT LEVER
58133B
BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58136
COVER, FRONT FLOOR HOLE
58171
REINFORCEMENT, PARKING BRAKE BASE
58179C
BRACKET, CLAMP FLOOR
58208
PAN, CENTER FLOOR
58305J
BRACKET, SPARE WHEEL CARRIER
58307
PANEL SUB-ASSY, BODY LOWER BACK
58311
PAN, REAR FLOOR
58313
PANEL, REAR FLOOR SIDE, RH
58314
PANEL, REAR FLOOR SIDE, LH
58315D
EXTENSION, REAR FLOOR PAN, RH
58316D
EXTENSION, REAR FLOOR PAN, LH
58323E
REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324D
REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58331F
BRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58338A
REINFORCEMENT, REAR FLOOR PAN, NO.2
58361D
REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH
58362B
REINFORCEMENT, REAR FLOOR PANEL, NO.1 LH
58569E
COVER, FRONT FLOOR CAUTION PLATE
58723B
PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1
58724B
PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2
9011506166
Крепеж
9011908516
Крепеж
9011910971
Крепеж
9015960008
Крепеж
9015960364
Крепеж
9018906029
Крепеж
9046707201
Крепеж
91511B0610
Крепеж
9155180610
Крепеж
