Каталог
Ближний ВостокМодель
HARRIER HEV (CHINA)Двигатель
2500CC 16-VALVE DOHCФрейм
AXUH80Трансмиссия
вариаторОпции
левый руль METERS 829W

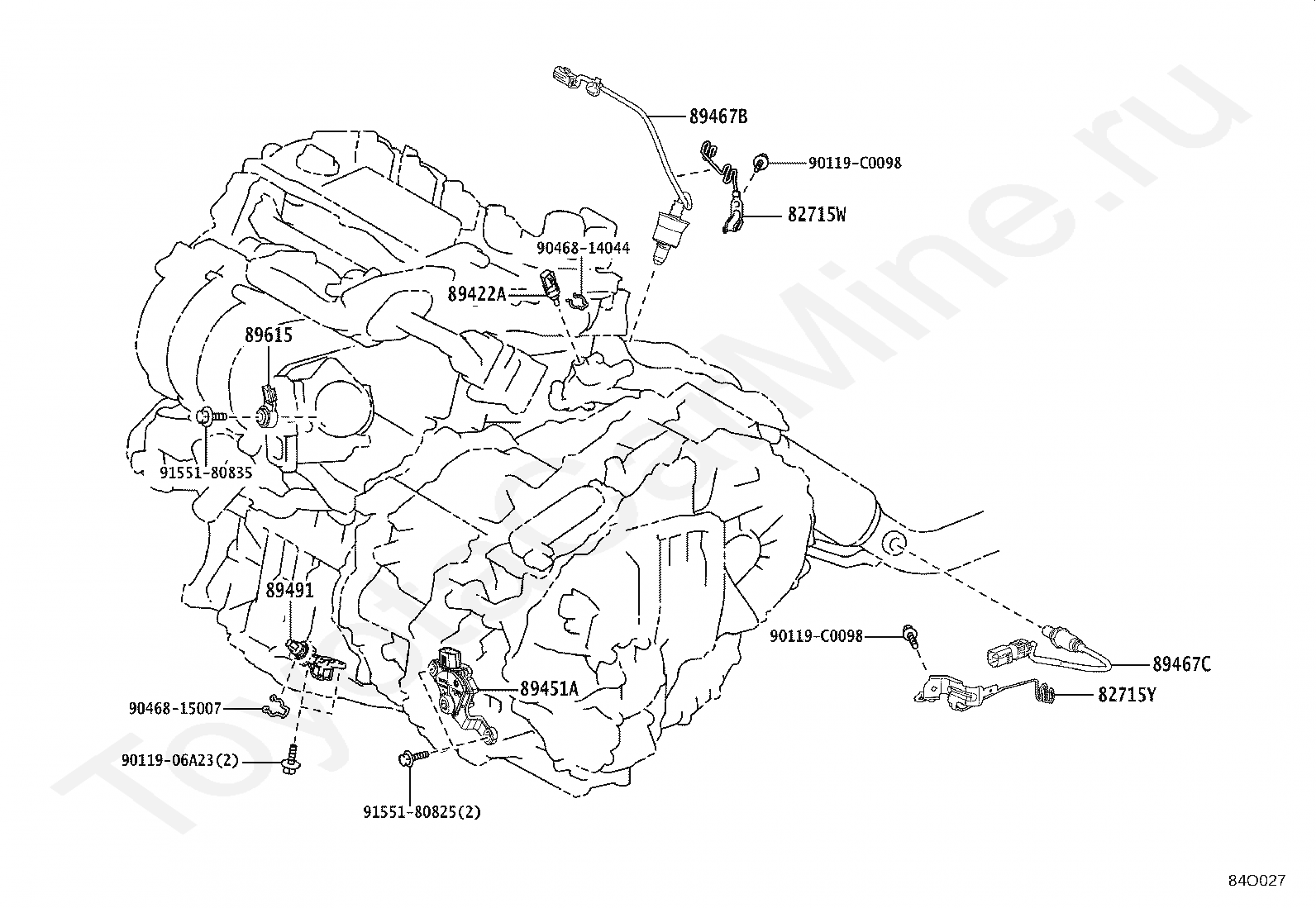

Код
Описание
82715W
BRACKET, WIRING HARNESS CLAMP
82715Y
BRACKET, WIRING HARNESS CLAMP, NO.3
89422A
SENSOR, WATER TEMPERATURE
89451A
SENSOR, SHIFT LEVER POSITION
89467B
SENSOR, AIR FUEL RATIO
89467C
SENSOR, AIR FUEL RATIO, NO.2
89491
SENSOR, ENGINE OIL LEVEL
89615
SENSOR, KNOCK CONTROL
9011906A23
Крепеж
90119C0098
Крепеж
9046814044
Крепеж
9046815007
Крепеж
9155180825
Крепеж
9155180835
Крепеж

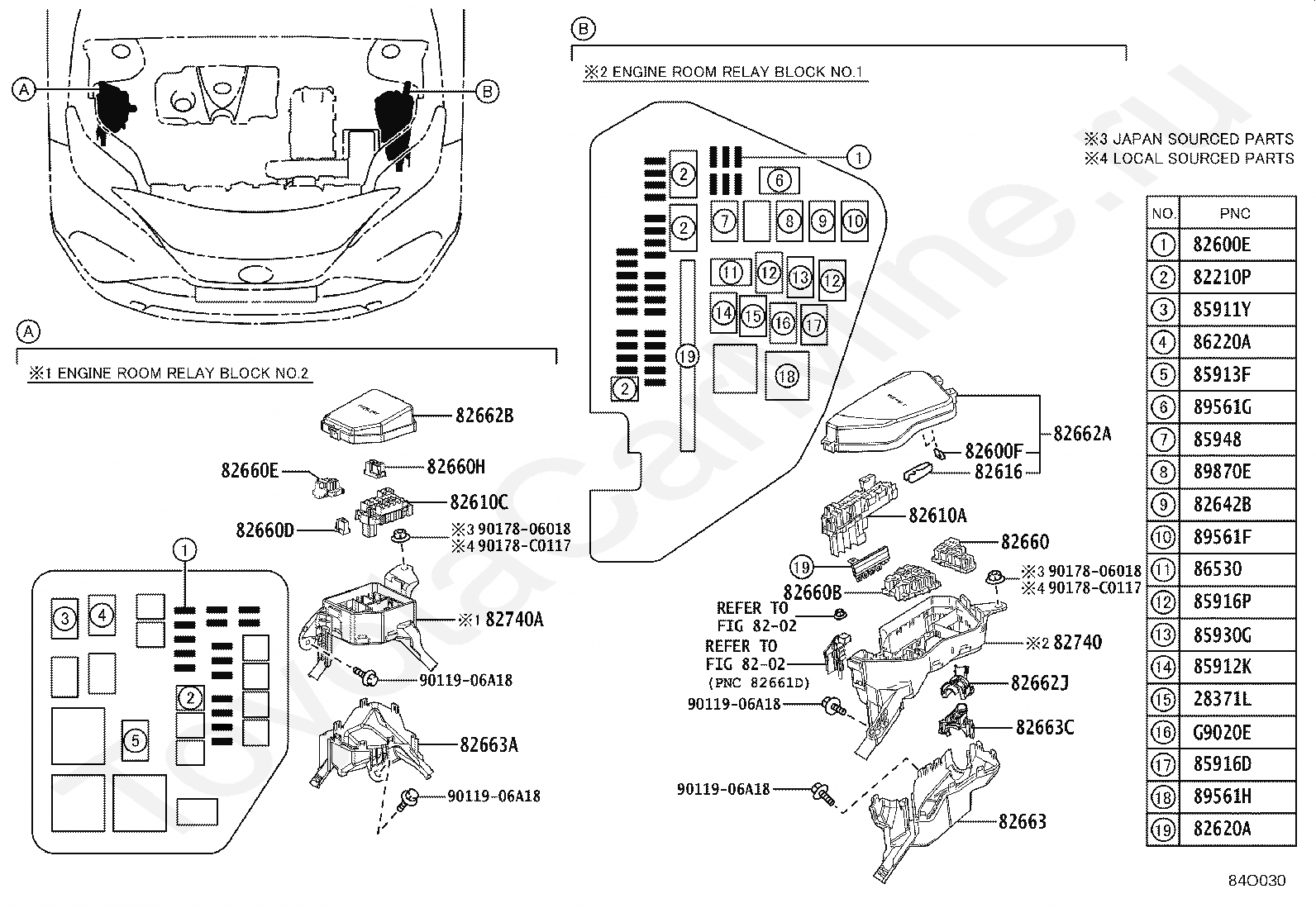

Код
Описание
28371L
RELAY, IGP
8202
переход к группе запчастей
82210P
ENGINE ROOM FUSIBLE LINK
82600E
ENGINE ROOM FUSE
82600F
FUSE, FUSE BLOCK
82610A
BLOCK ASSY, FUSE
82610C
BLOCK ASSY, FUSE
82616
PULLER, FUSE
82620A
BLOCK ASSY, FUSIBLE LINK
82642B
RELAY, DAY TIME RUNNING LIGHT, NO.1
82660
BLOCK ASSY, RELAY, ENGINE ROOM
82660B
BLOCK ASSY, RELAY
82660D
BLOCK ASSY, RELAY
82660E
BLOCK ASSY, RELAY
82660H
BLOCK ASSY, RELAY
82662A
COVER, RELAY BLOCK, UPPER, NO.1
82662B
COVER, RELAY BLOCK, UPPER, NO.2
82662J
COVER, RELAY BLOCK, UPPER, NO.5
82663
COVER, RELAY BLOCK, LOWER
82663A
COVER, RELAY BLOCK, LOWER, NO.2
82663C
COVER, RELAY BLOCK LOWER, NO.4
82740
BLOCK ASSY, ENGINE ROOM RELAY
82740A
BLOCK ASSY, ENGINE ROOM RELAY, NO.2
85911Y
RELAY, FRONT SEAT HEATER
85912K
RELAY, VVT
85913F
RELAY, STEERING HEATER
85916D
RELAY, FOG LAMP
85916P
RELAY, HEADLAMP
85930G
RELAY, ACC
85948
RELAY, WINDSHIELD WIPER
86220A
RELAY, INVERTER
86530
RELAY ASSY, HORN
89561F
RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1
89561G
RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2
89561H
RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3
89870E
RELAY, ELECTRONIC DRIVER UNIT
9011906A18
Крепеж
9017806018
Крепеж
90178C0117
Крепеж
G9020E
RELAY, HYBRID WATER PUMP

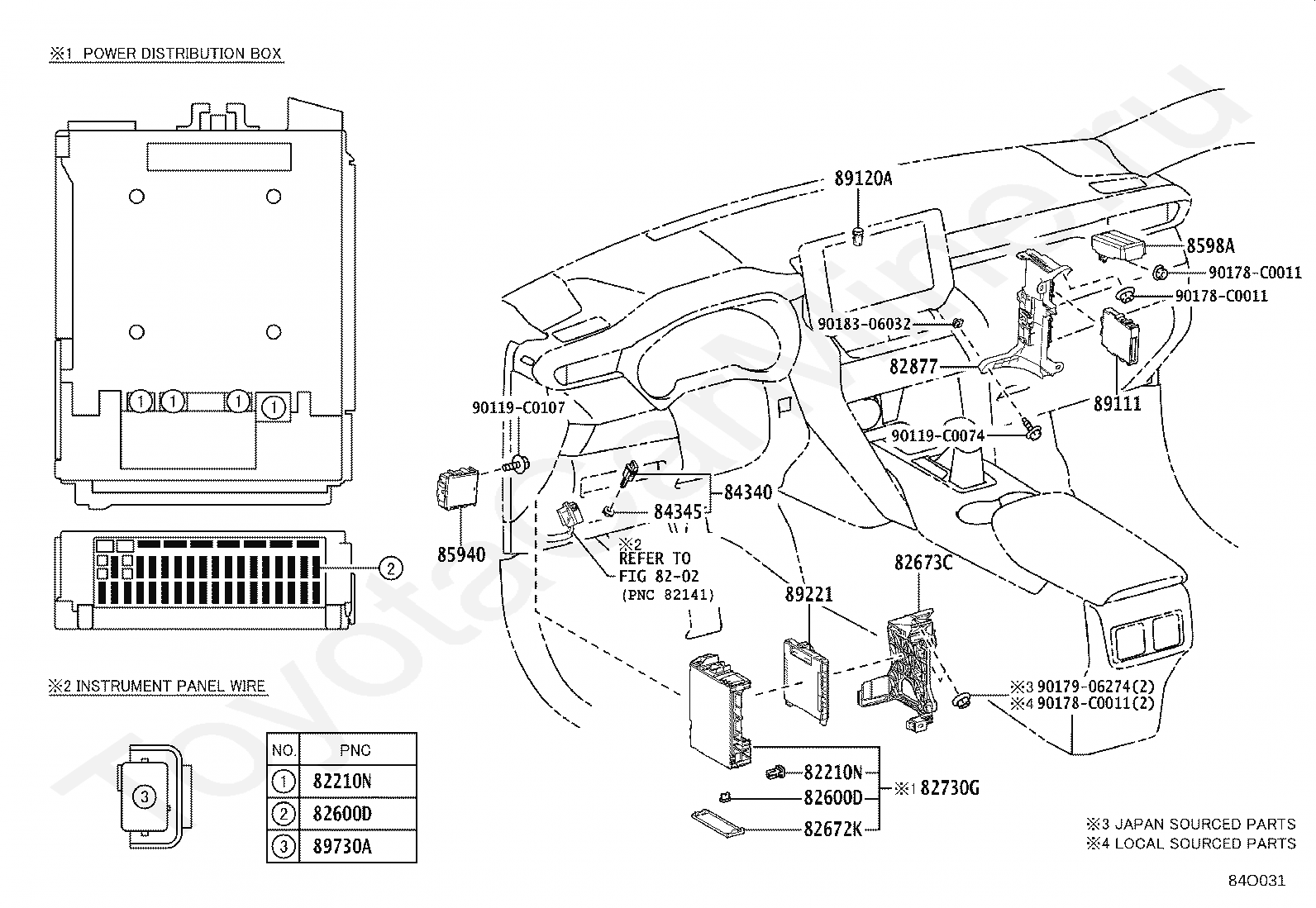

Код
Описание
8202
переход к группе запчастей
82210N
INSTRUMENT PANEL FUSIBLE LINK
82600D
INSTRUMENT PANEL FUSE
82672K
COVER, POWER DISTRIBUTION BOX
82673C
BRACKET, JUNCTION BLOCK
82730G
BOX ASSY, POWER DISTRIBUTION
82877
BOX, COMPUTER INTEGRATION, RH
84340
SWITCH ASSY, STOP LAMP
84345
ADJUSTER, STOP LAMP SWITCH MOUNTING
85940
RELAY ASSY, WINDSHIELD WIPER
8598A
BATTERY, DOOR CONTROL
89111
COMPUTER, NETWORK GATEWAY
89120A
SENSOR, AUTOMATIC LIGHT CONTROL
89221
COMPUTER, MULTIPLEX NETWORK BODY
89730A
RELAY(FOR SECURITY WARNING)
90119C0074
Крепеж
90119C0107
Крепеж
90178C0011
Крепеж
9017906274
Крепеж
9018306032
Крепеж

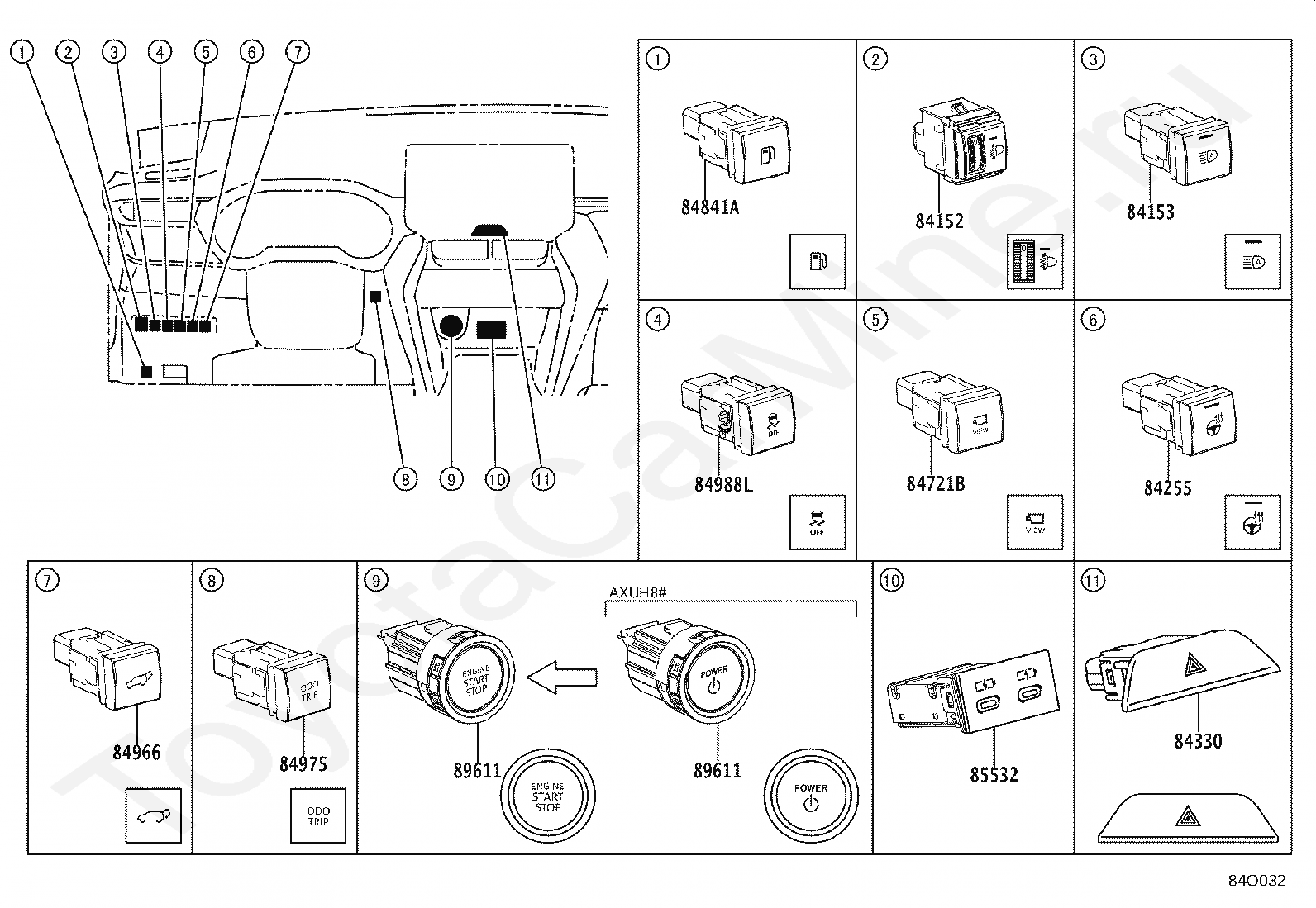

Код
Описание
84152
SWITCH, HEADLAMP LEVELING
84153
SWITCH, AUTO HIGH BEAM
84255
SWITCH, STEERING HEATER
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84721B
SWITCH, PANORAMIC VIEW MONITOR
84841A
SWITCH, FUEL LID OPENER
84966
SWITCH, POWER BACK DOOR CONTROL
84975
SWITCH, TRIP
84988L
SWITCH, VSC OFF
85532
SOCKET, USB CHARGER
89611
SWITCH, PUSH START

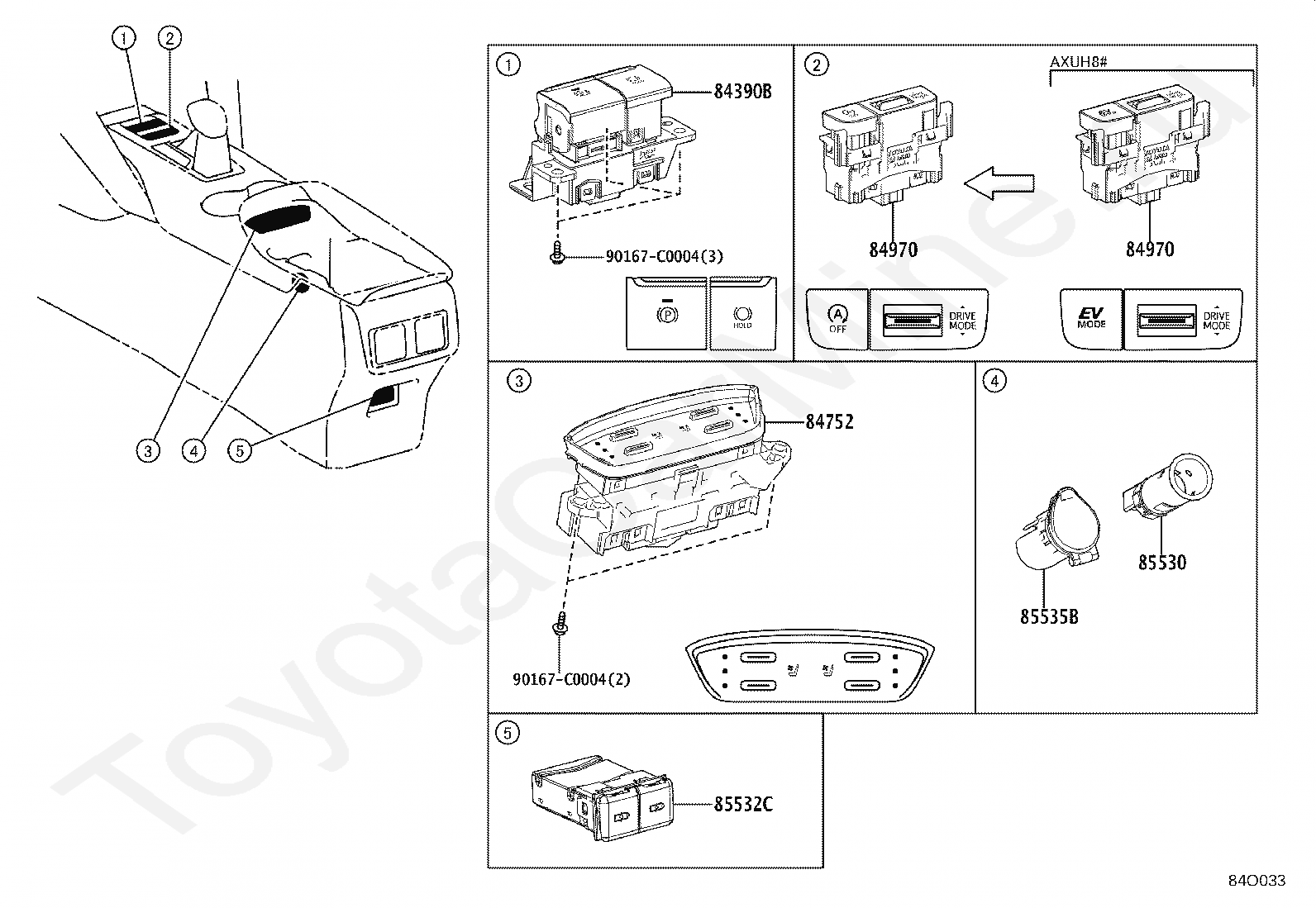

Код
Описание
84390B
SWITCH ASSY, ELECTRIC PARKING BRAKE
84752
SWITCH, REFRESHING SEAT
84970
SWITCH ASSY, COMBINATION
85530
SOCKET ASSY, POWER OUTLET, NO.1
85532C
SOCKET, USB CHARGER, NO.2
85535B
COVER, POWER OUTLET SOCKET, NO.1
90167C0004
Крепеж

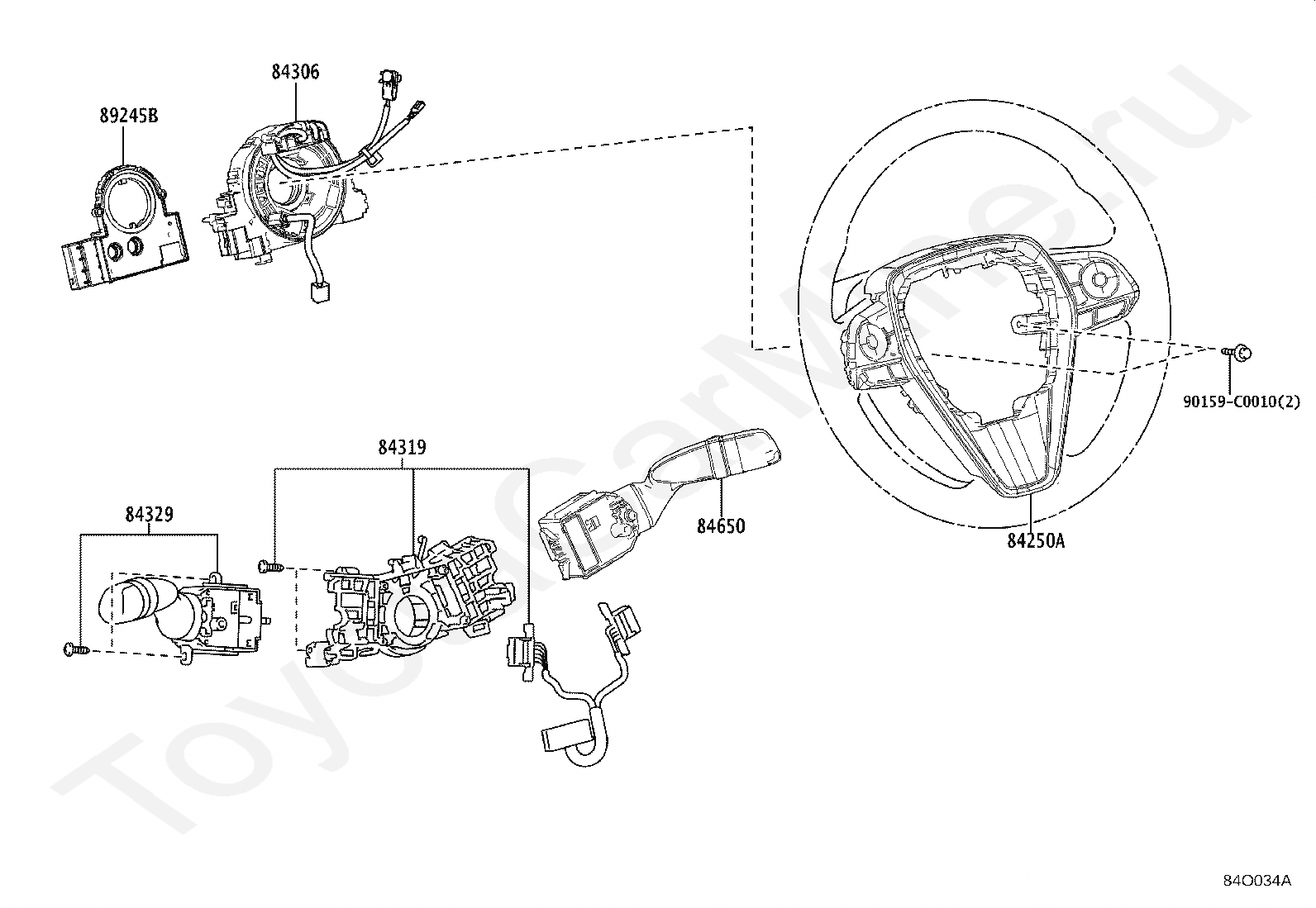

Код
Описание
84250A
SWITCH ASSY, STEERING PAD
84306
CABLE SUB-ASSY, SPIRAL
84319
HOUSING, STEERING WHEEL SWITCH
84329
SWITCH, TURN SIGNAL
84650
SWITCH ASSY, WINDSHIELD WIPER
89245B
SENSOR, STEERING
90159C0010
Крепеж

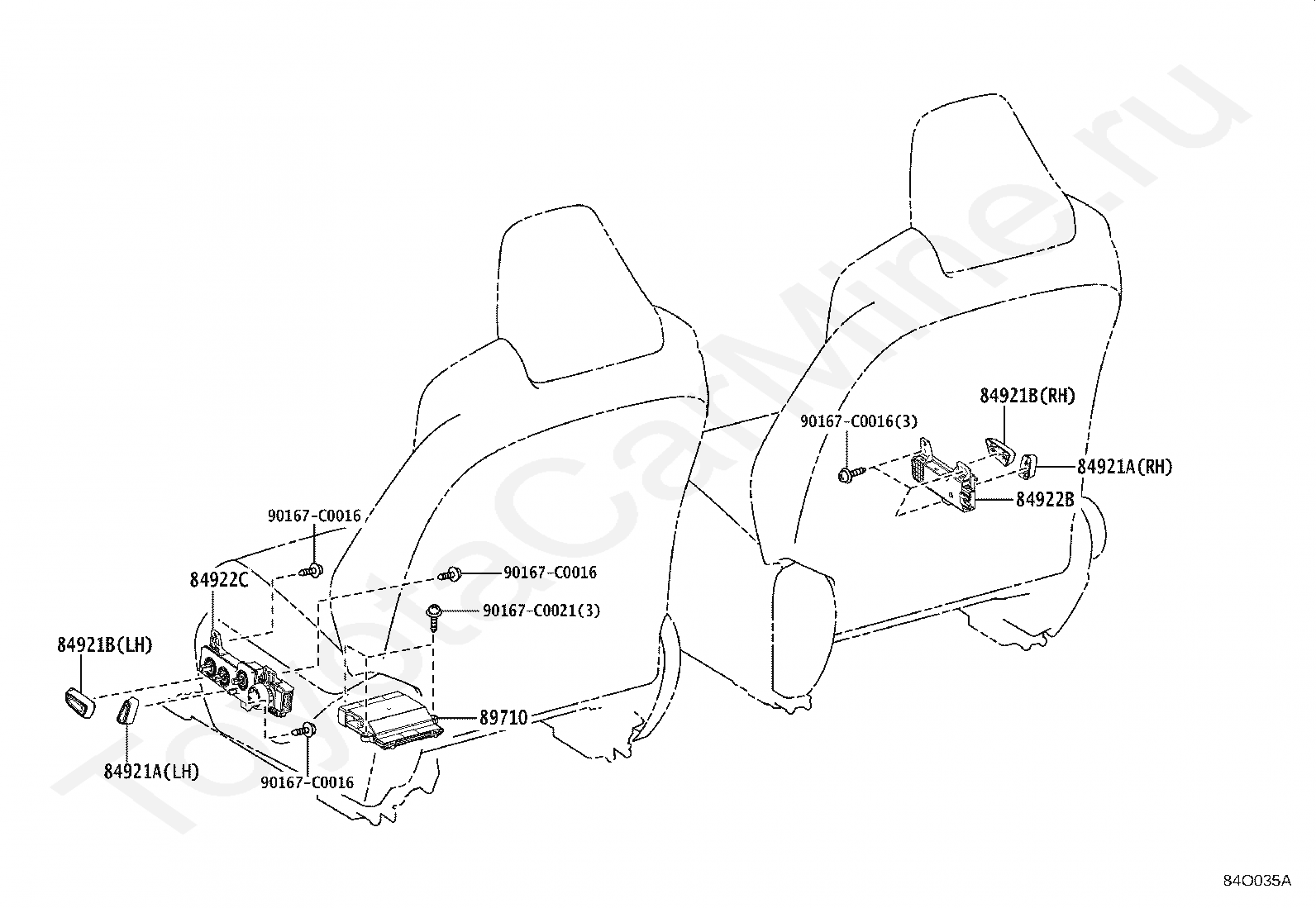

Код
Описание
84921A
KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921B
KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84922B
SWITCH, FRONT POWER SEAT, RH
84922C
SWITCH, FRONT POWER SEAT, LH
89710
COMPUTER ASSY, POSITION CONTROL
90167C0016
Крепеж
90167C0021
Крепеж

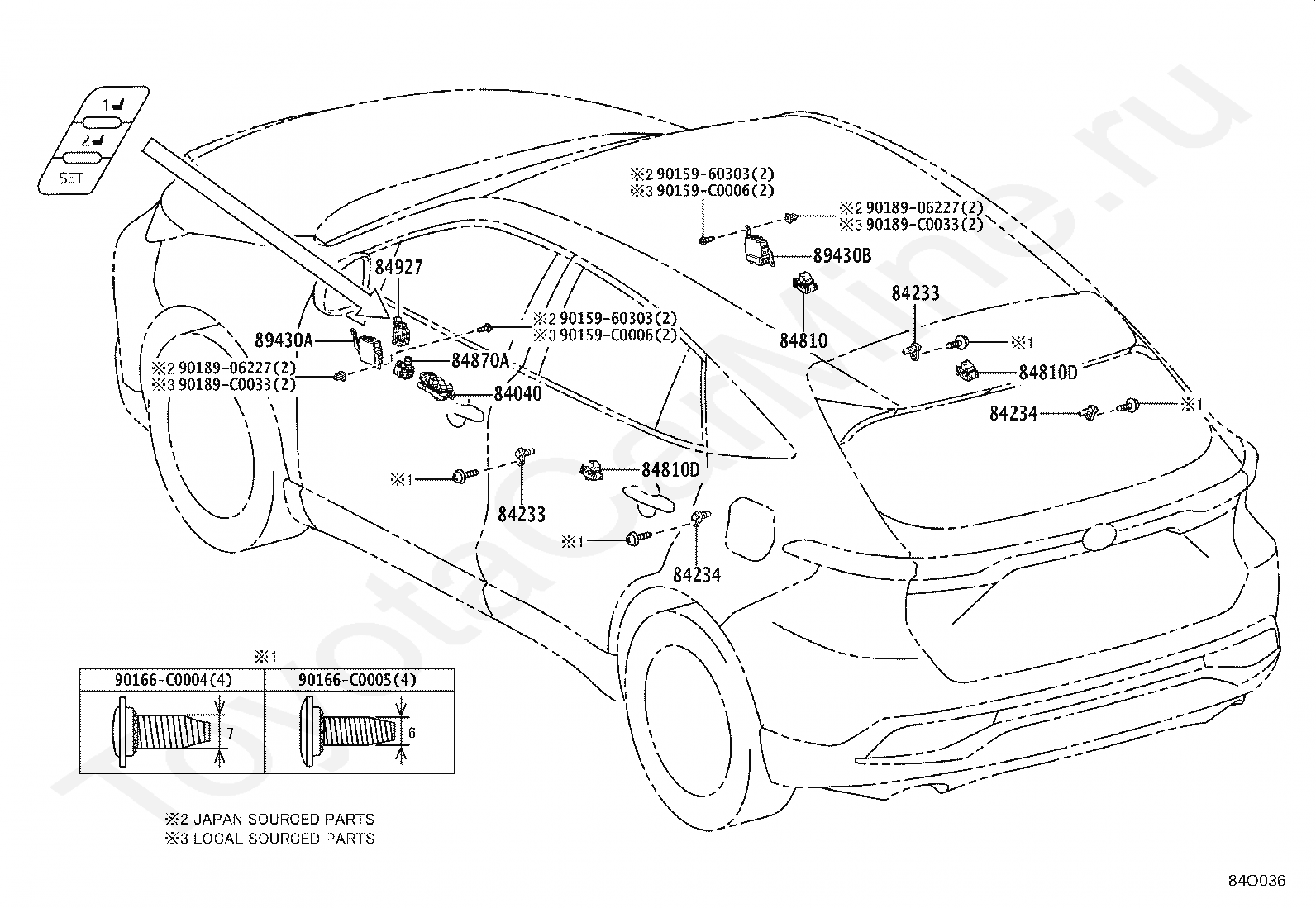

Код
Описание
84040
MASTER SWITCH ASSY,MULTIPLEX NETWORK
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84810D
SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84870A
SWITCH ASSY, OUTER MIRROR
84927
SWITCH, SEAT MEMORY
89430A
COMPUTER ASSY, OUTER MIRROR CONTROL, LH
89430B
COMPUTER ASSY, OUTER MIRROR CONTROL, RH
9015960303
Крепеж
90159C0006
Крепеж
90166C0004
Крепеж
90166C0005
Крепеж
9018906227
Крепеж
90189C0033
Крепеж

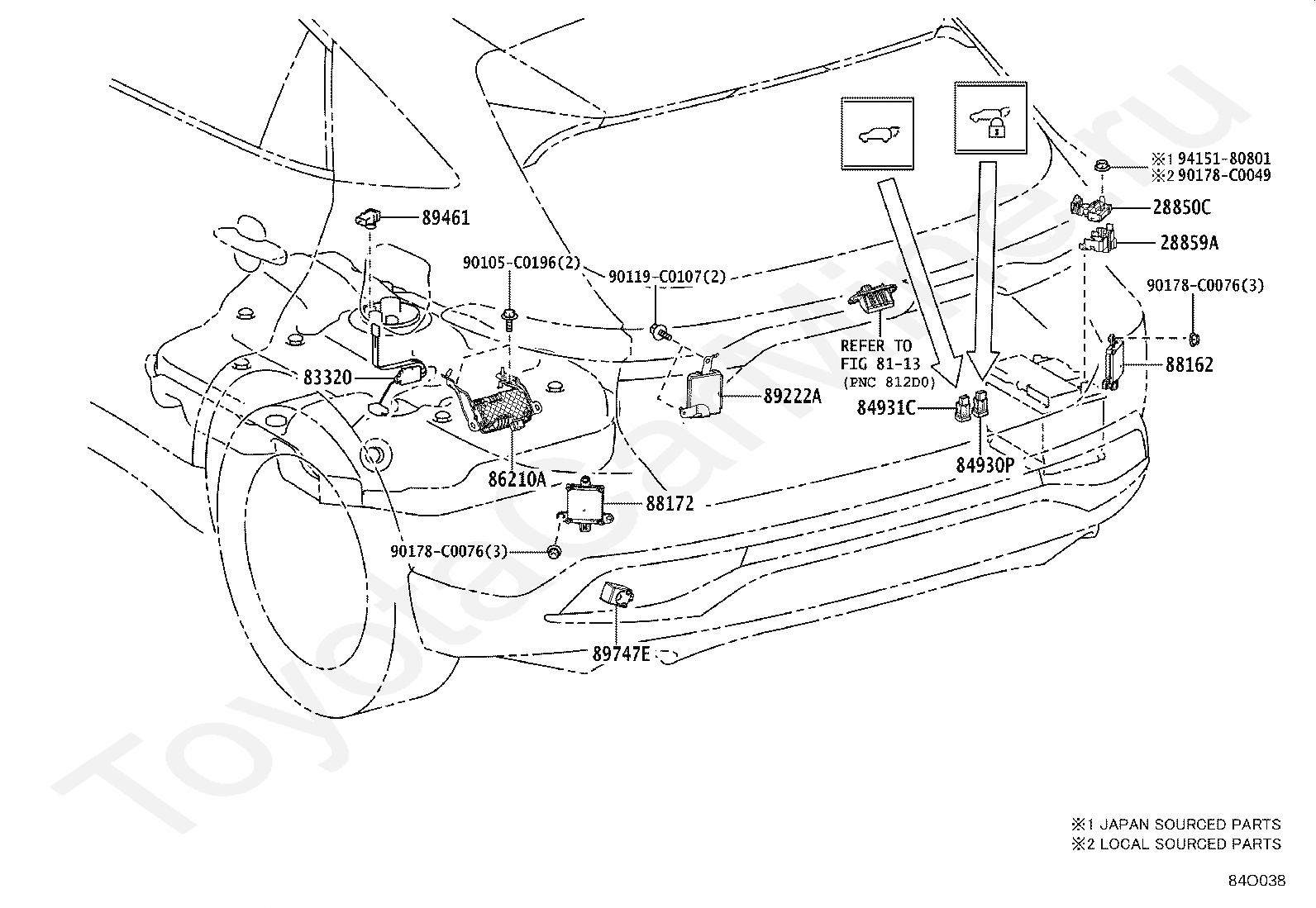

Код
Описание
28850C
SENSOR ASSY, BATTERY STATE
28859A
HOLDER, BATTERY CURRENT SENSOR
8113
переход к группе запчастей
83320
GAGE ASSY, FUEL SENDER
84930P
SWITCH ASSY, DOOR CONTROL
84931C
SWITCH, BACK DOOR CONTROL
86210A
INVERTER ASSY, VOLTAGE
88162
SENSOR, BLIND SPOT MONITOR, RH
88172
SENSOR, BLIND SPOT MONITOR, LH
89222A
COMPUTER, MULTIPLEX NETWORK DOOR
89461
SENSOR, VAPOR PRESSURE
89747E
BUZZER, POWER BACK DOOR WARNING
90105C0196
Крепеж
90119C0107
Крепеж
90178C0049
Крепеж
90178C0076
Крепеж
9415180801
Крепеж

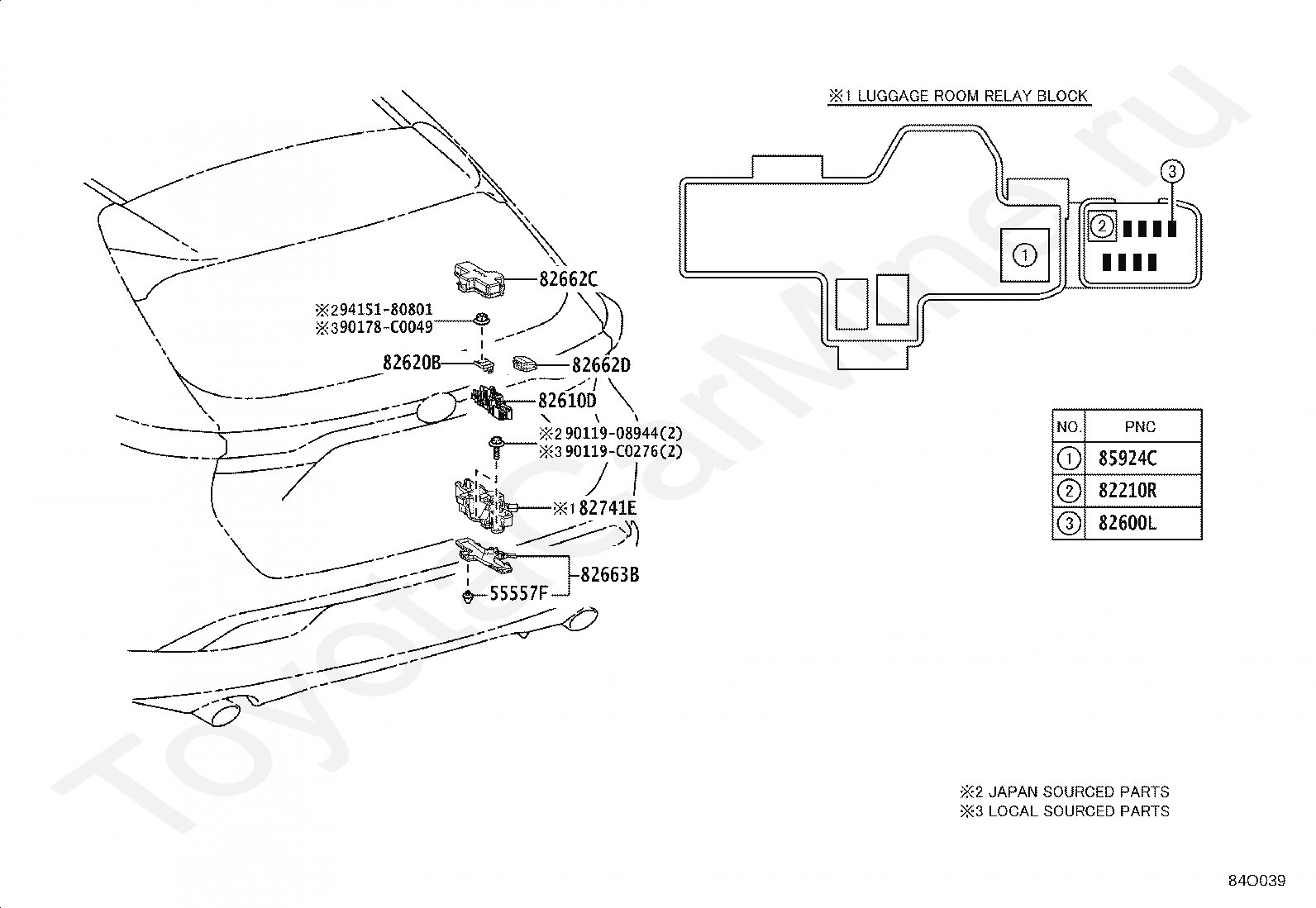

Код
Описание
55557F
CUSHION, RELAY BLOCK
82210R
LUGGAGE ROOM FUSIBLE LINK
82600L
LUGGAGE ROOM FUSE
82610D
BLOCK ASSY, FUSE
82620B
BLOCK ASSY, FUSIBLE LINK
82662C
COVER, RELAY BLOCK, UPPER, NO.3
82662D
COVER, RELAY BLOCK, UPPER, NO.4
82663B
COVER, RELAY BLOCK, LOWER, NO.3
82741E
BLOCK, LUGGAGE ROOM RELAY, NO.1
85924C
RELAY, IGCT
9011908944
Крепеж
90119C0276
Крепеж
90178C0049
Крепеж
9415180801
Крепеж
