Передние кресла TOYOTA HARRIER HEV (CHINA), 2021/11 - 2025, 2500CC 16-VALVE DOHC, AXUH80, вариатор

Каталог

Ближний Восток

Модель

HARRIER HEV (CHINA)

Двигатель

2500CC 16-VALVE DOHC

Фрейм

AXUH80

Трансмиссия

вариатор

Опции

левый руль METERS 829W

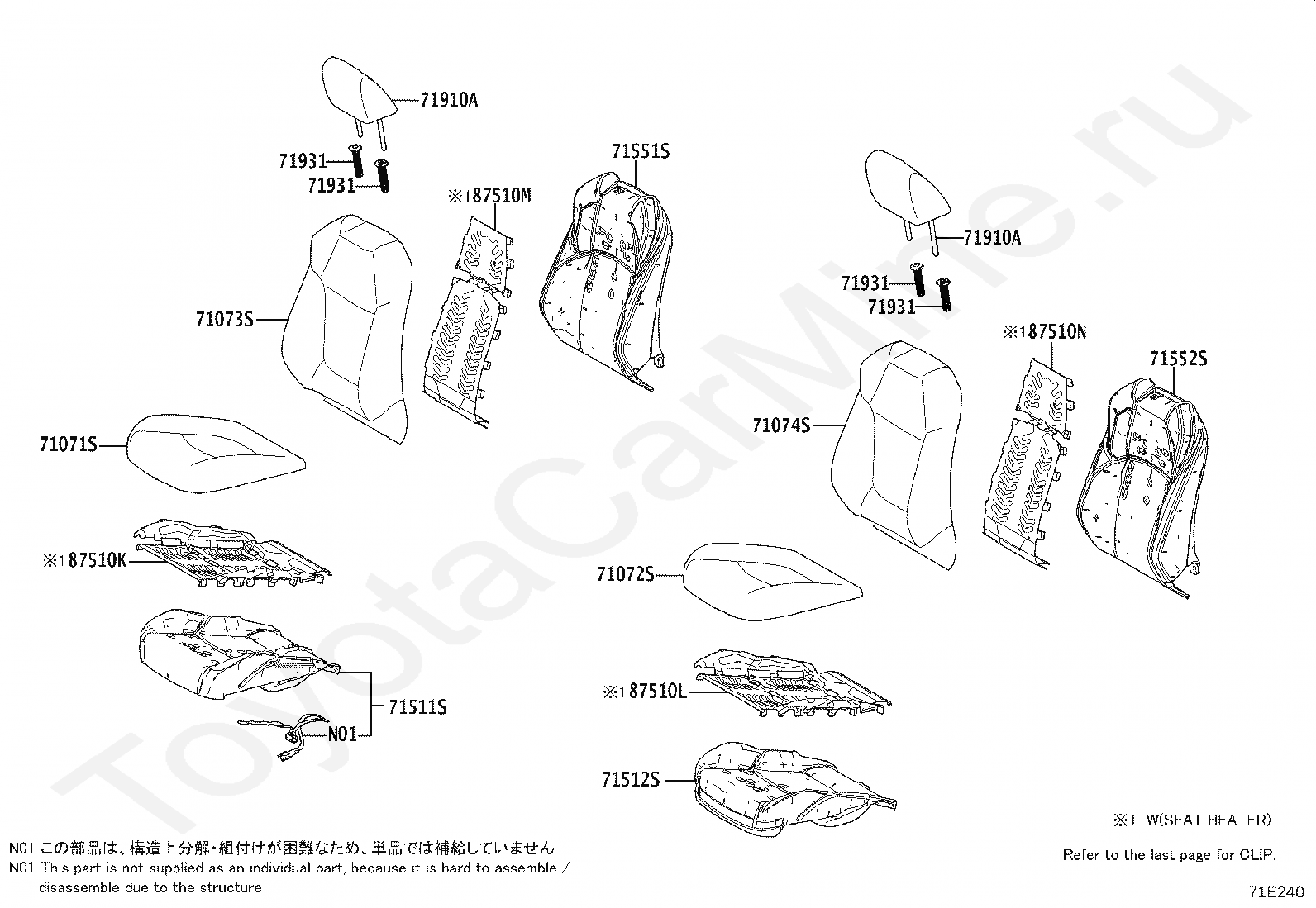

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

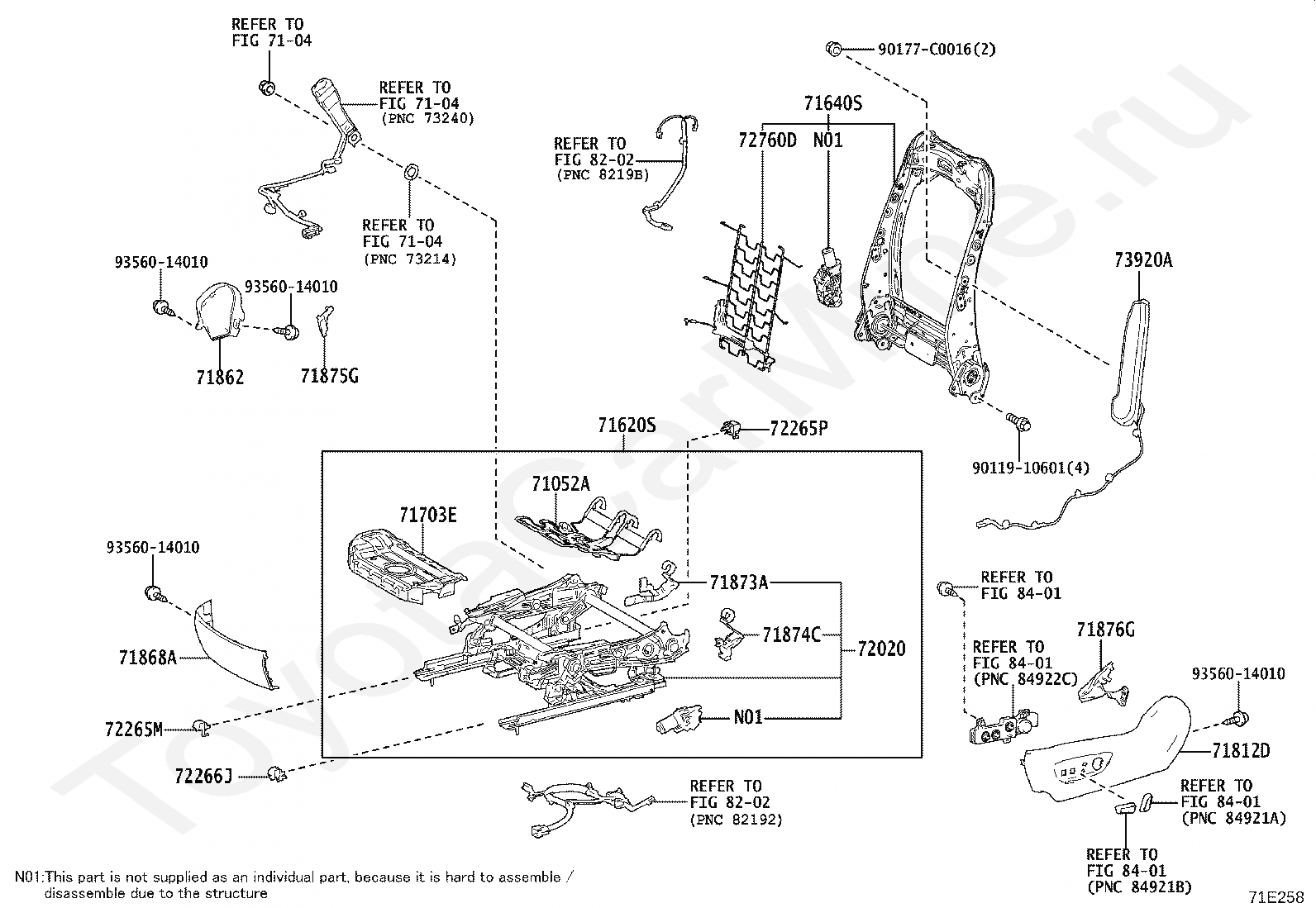

Код

Описание

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71703E

PANEL SUB-ASSY, FRONT SEAT CUSHION, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874C

SHIELD, FRONT SEAT CUSHION, LOWER

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

72020

ADJUSTER ASSY, FRONT SEAT, LH

72265M

COVER, SEAT TRACK UPPER RAIL, RH

72265P

COVER, SEAT TRACK UPPER RAIL, RH

72266J

COVER, SEAT TRACK UPPER RAIL, LH

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

8401

переход к группе запчастей

9011910601

Крепеж

90177C0016

Крепеж

9356014010

Крепеж

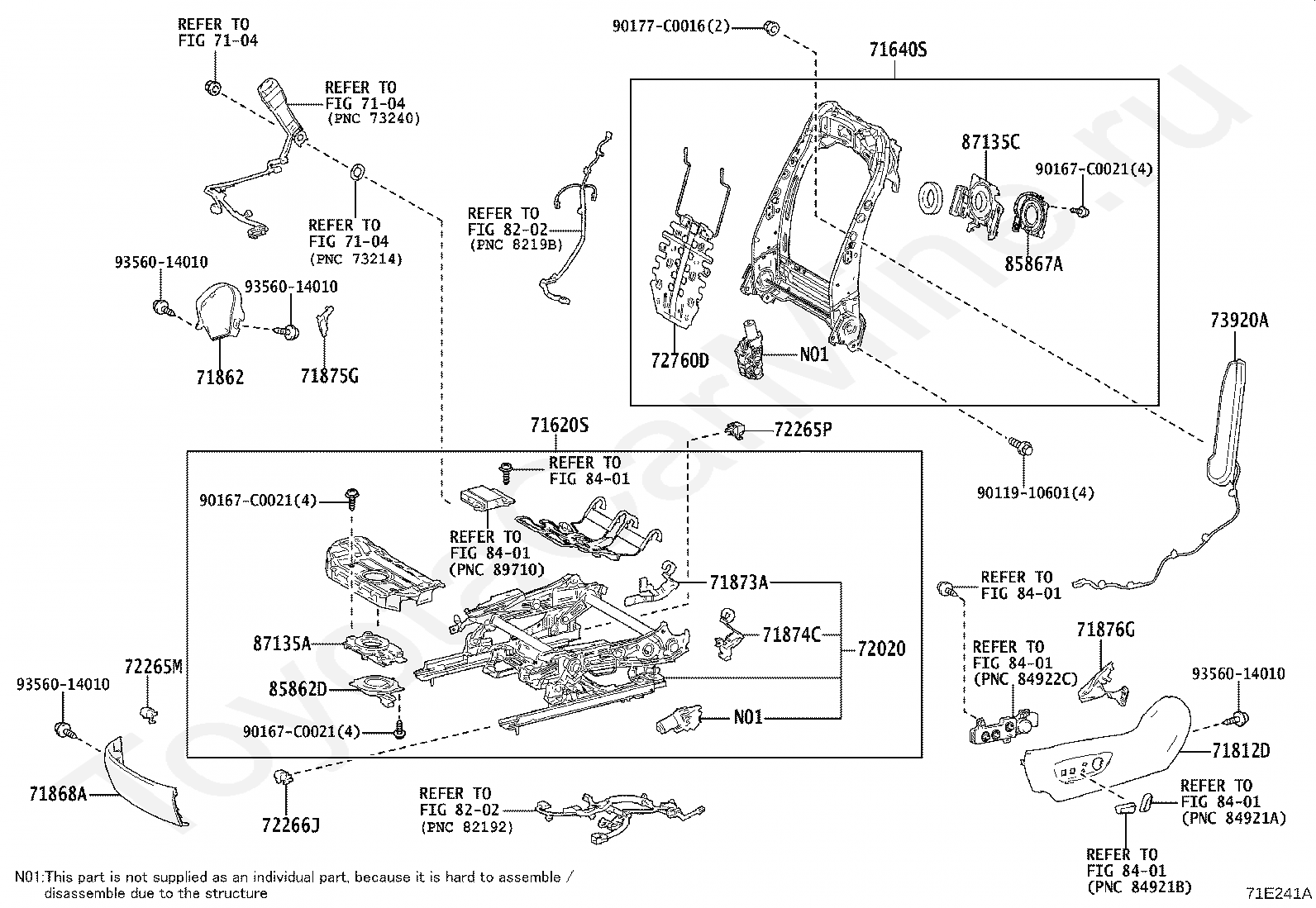

Код

Описание

7104

переход к группе запчастей

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874C

SHIELD, FRONT SEAT CUSHION, LOWER

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

72020

ADJUSTER ASSY, FRONT SEAT, LH

72265M

COVER, SEAT TRACK UPPER RAIL, RH

72265P

COVER, SEAT TRACK UPPER RAIL, RH

72266J

COVER, SEAT TRACK UPPER RAIL, LH

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

8401

переход к группе запчастей

85862D

BLOWER, SEAT CUSHION CLIMATE CONTROL, LH

85867A

BLOWER, SEAT BACK CLIMATE CONTROL, LH

87135A

ADAPTER, BLOWER FAN, LH(FOR SEAT CUSHION)

87135C

ADAPTER, BLOWER FAN, LH(FOR SEAT BACK)

9011910601

Крепеж

90167C0021

Крепеж

90177C0016

Крепеж

9356014010

Крепеж

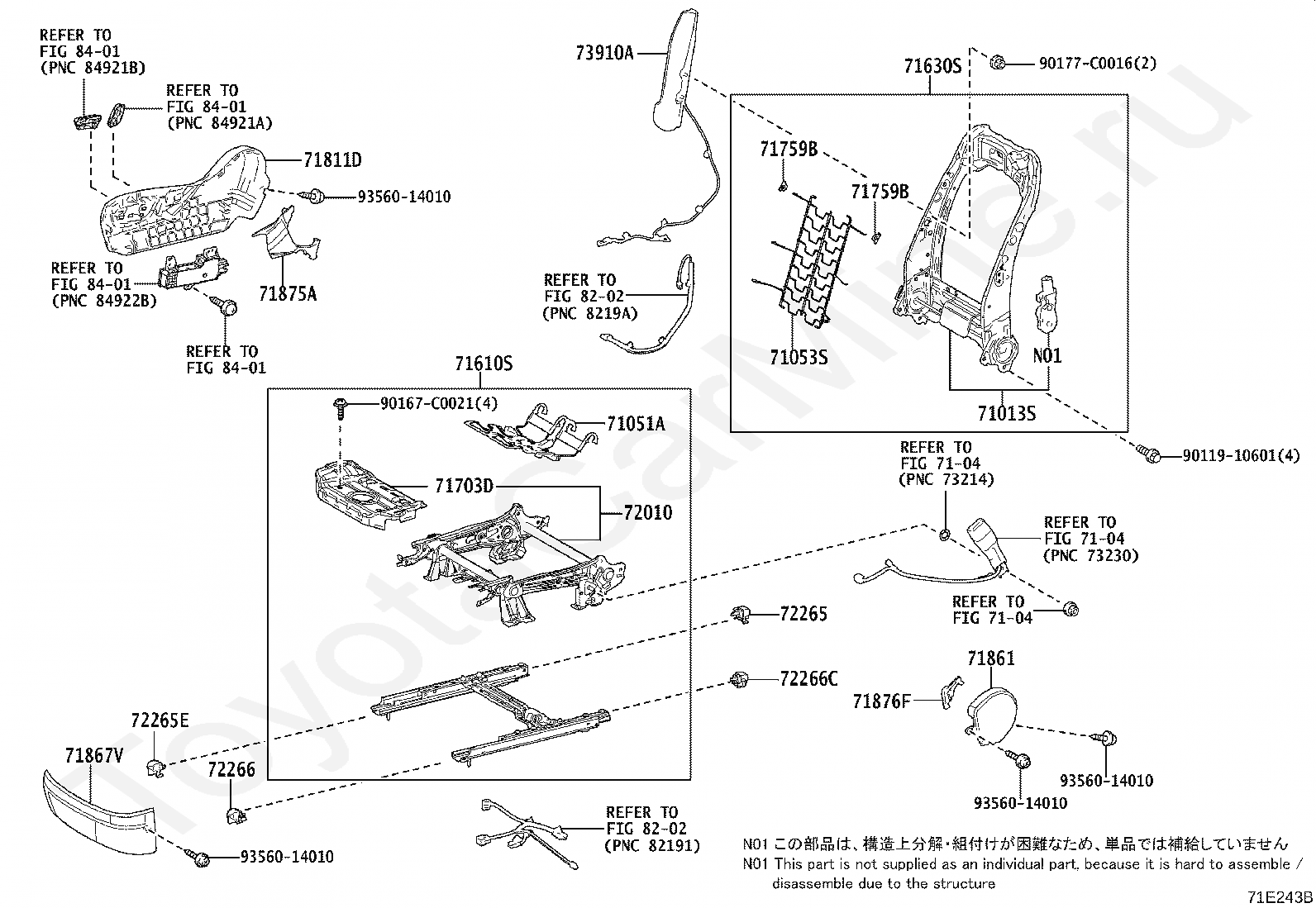

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71703D

PANEL SUB-ASSY, FRONT SEAT CUSHION, RH

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867V

SHIELD, FRONT SEAT CUSHION, FRONT RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

72010

ADJUSTER ASSY, FRONT SEAT, RH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72265E

COVER, SEAT TRACK UPPER RAIL, RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72266C

COVER, SEAT TRACK UPPER RAIL, LH

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

8401

переход к группе запчастей

9011910601

Крепеж

90167C0021

Крепеж

90177C0016

Крепеж

9356014010

Крепеж

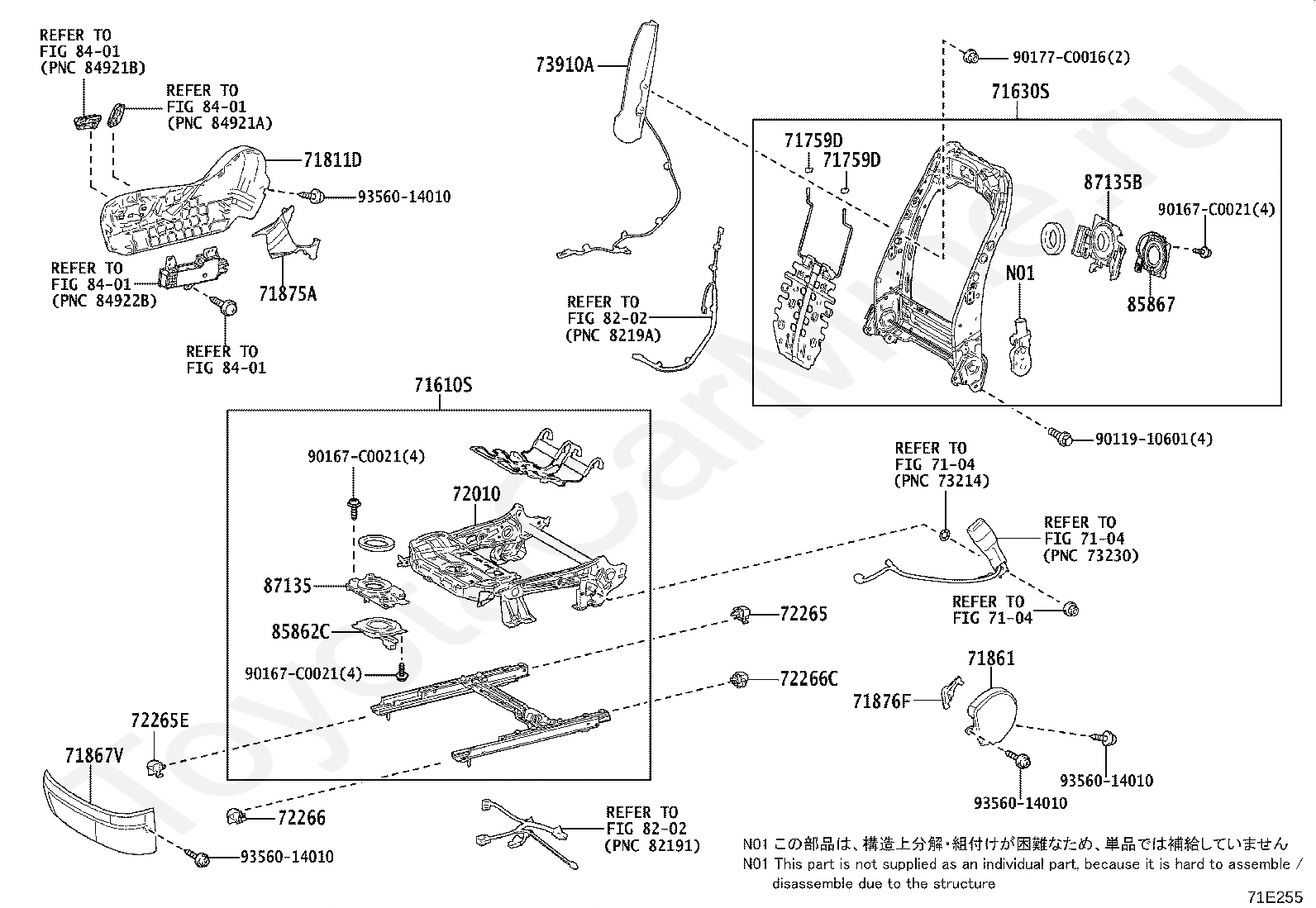

Код

Описание

7104

переход к группе запчастей

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71759D

HOOK, FRONT SEAT BACK, NO.2

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867V

SHIELD, FRONT SEAT CUSHION, FRONT RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

72010

ADJUSTER ASSY, FRONT SEAT, RH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72265E

COVER, SEAT TRACK UPPER RAIL, RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72266C

COVER, SEAT TRACK UPPER RAIL, LH

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

8401

переход к группе запчастей

85862C

BLOWER, SEAT CUSHION CLIMATE CONTROL, RH

85867

BLOWER, SEAT BACK CLIMATE CONTROL, RH

87135

ADAPTER, BLOWER FAN, RH(FOR SEAT CUSHION)

87135B

ADAPTER, BLOWER FAN, RH(FOR SEAT BACK)

9011910601

Крепеж

90167C0021

Крепеж

90177C0016

Крепеж

9356014010

Крепеж

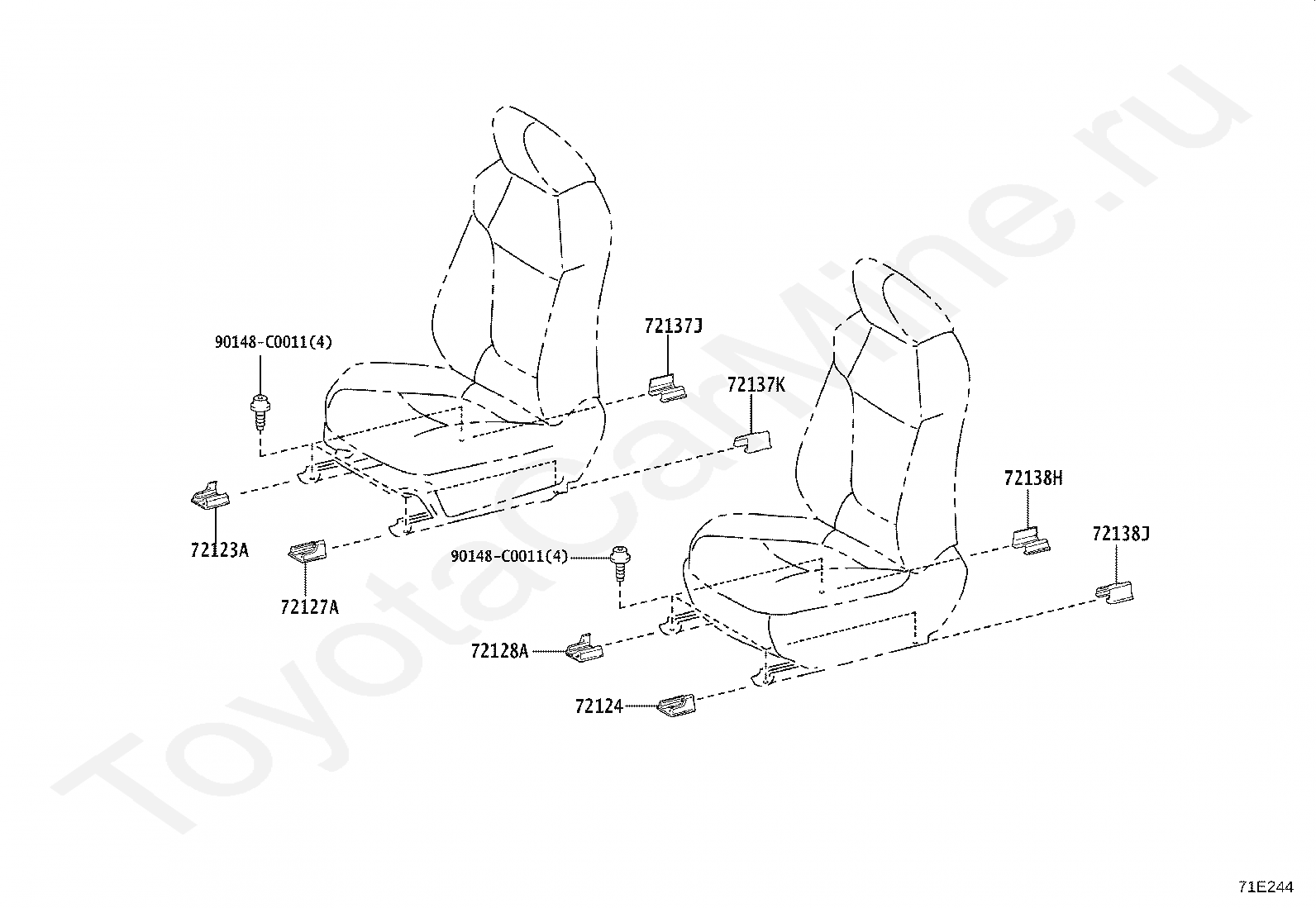

Код

Описание

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72137K

COVER, FRONT SEAT TRACK, RH REAR INNER

72138H

COVER, FRONT SEAT TRACK, LH REAR INNER

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

90148C0011

Крепеж

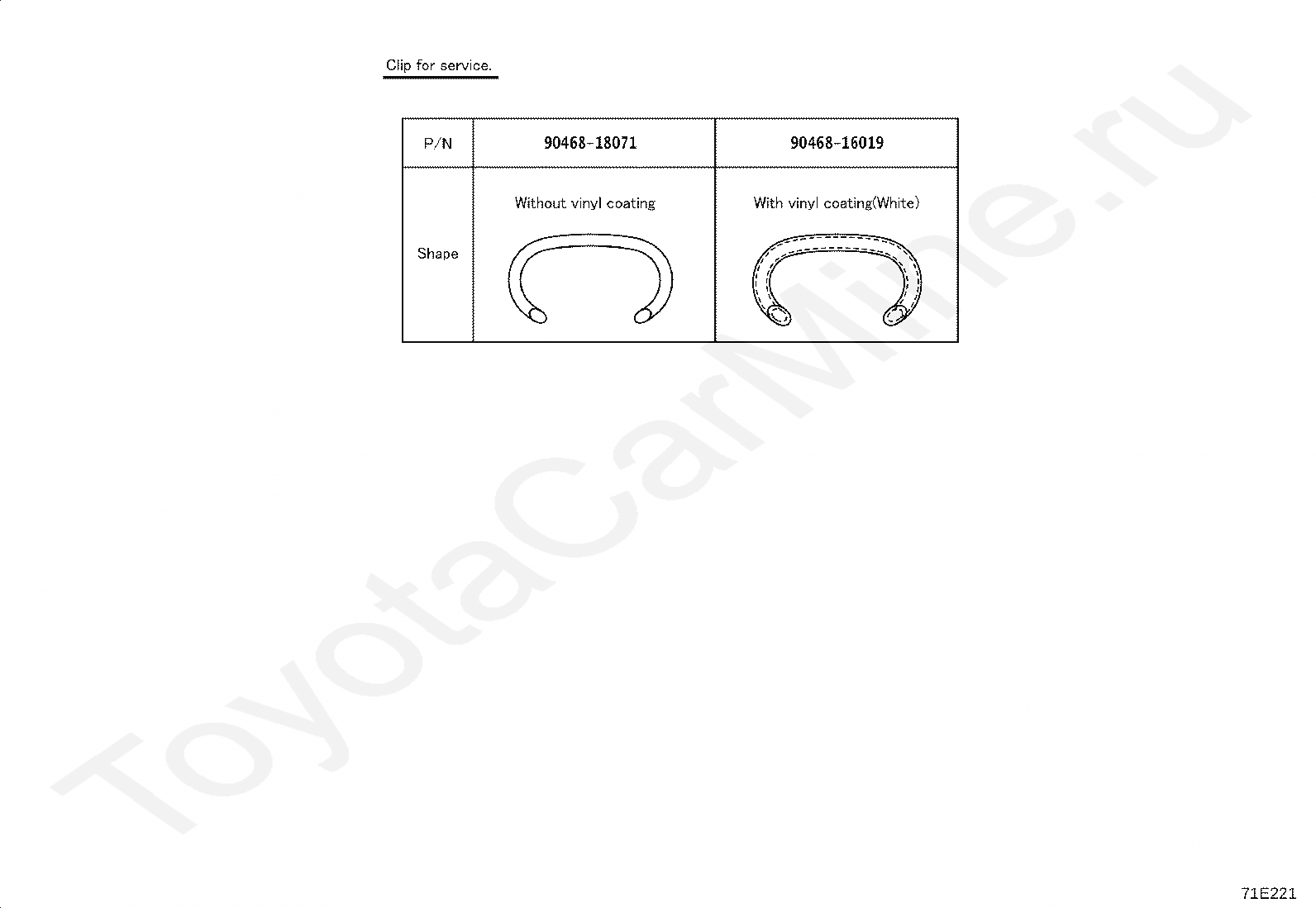

Код

Описание

9046816019

Крепеж

9046818071

Крепеж

Передние кресла TOYOTA HARRIER HEV (CHINA), 2021/11 - 2025, 2500CC 16-VALVE DOHC, AXUH80, вариатор
