Боковая панель кузова TOYOTA HARRIER HEV (CHINA), 2021/11 - 2025, 2500CC 16-VALVE DOHC, AXUH80, вариатор

Каталог

Ближний Восток

Модель

HARRIER HEV (CHINA)

Двигатель

2500CC 16-VALVE DOHC

Фрейм

AXUH80

Трансмиссия

вариатор

Опции

левый руль METERS 829W

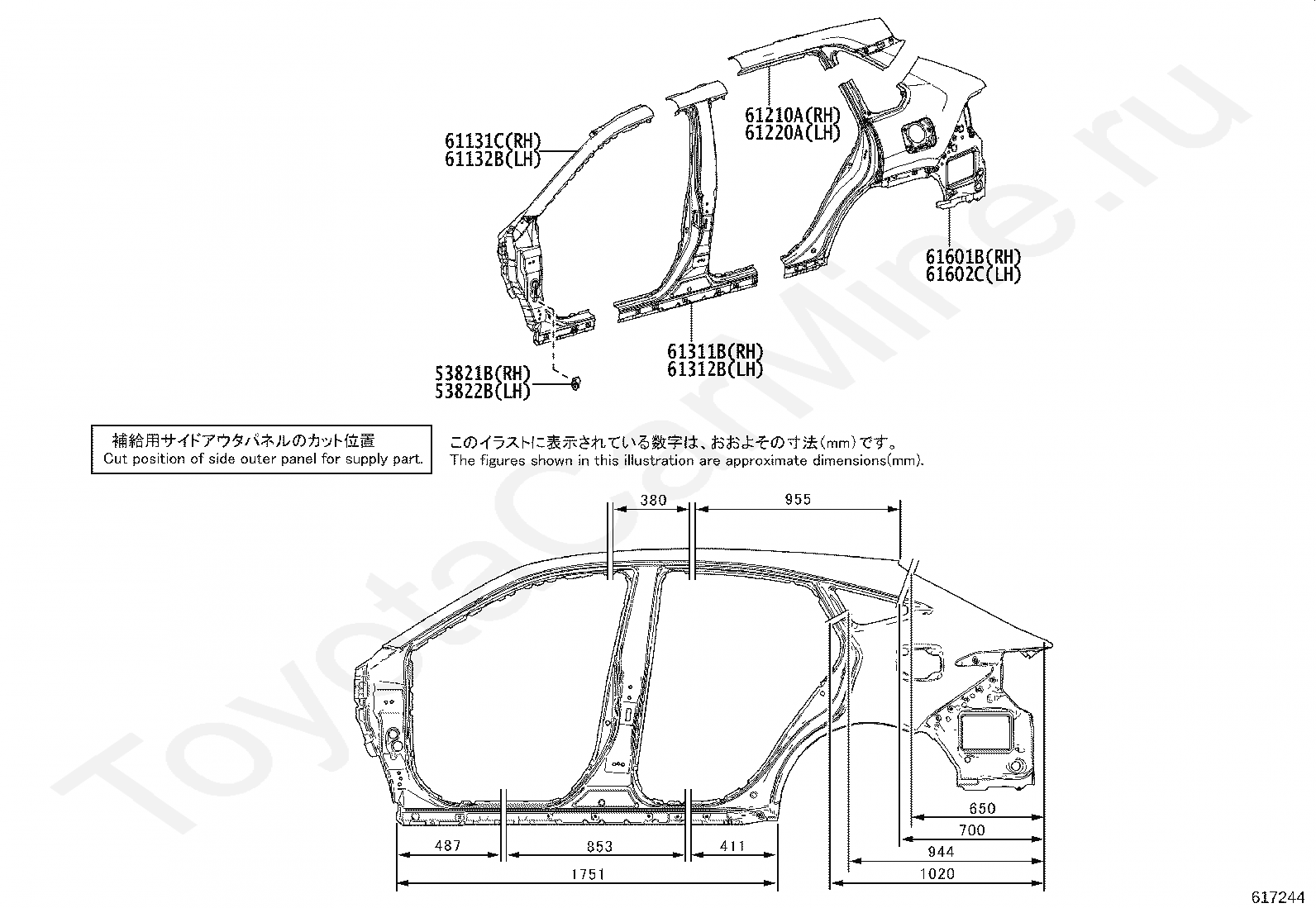

Код

Описание

53821B

BRACKET, FRONT FENDER, REAR RH

53822B

BRACKET, FRONT FENDER, REAR LH

61131C

PILLAR, FRONT BODY, OUTER RH

61132B

PILLAR, FRONT BODY, OUTER LH

61210A

RAIL ASSY, ROOF SIDE, RH

61220A

RAIL ASSY, ROOF SIDE, LH

61311B

PILLAR, CENTER BODY, OUTER RH

61312B

PILLAR, CENTER BODY, OUTER LH

61601B

PANEL SUB-ASSY, QUARTER, RH

61602C

PANEL SUB-ASSY, QUARTER, LH

Код

Описание

5701

переход к группе запчастей

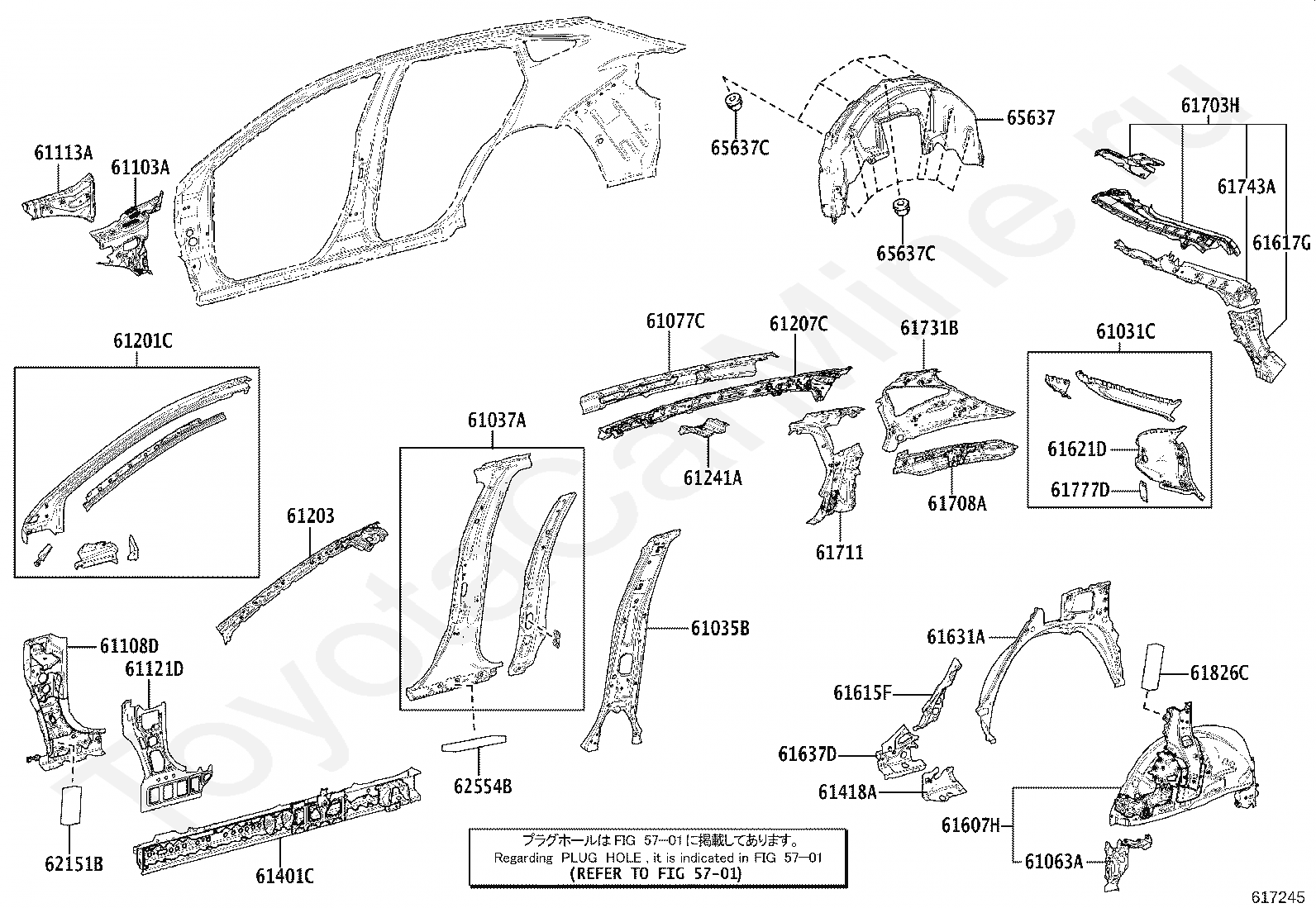

61031C

EXTENSION SUB-ASSY, QUARTER PANEL, REAR RH

61035B

PILLAR SUB-ASSY, NO.4 INNER, RH

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61063A

EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 RH

61077C

RAIL SUB-ASSY, NO.1 UPPER OUTER, RH

61103A

REINFORCEMENT SUB-ASSY, COWL SIDE, RH

61108D

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

61113A

PANEL, SIDE, OUTER NO.2 RH

61121D

PANEL, COWL SIDE, RH

61201C

RAIL SUB-ASSY, ROOF SIDE, OUTER RH

61203

RAIL SUB-ASSY, ROOF SIDE, INNER RH

61207C

RAIL SUB-ASSY, ROOF SIDE, INNER NO.2 RH

61241A

GUSSET, ROOF SIDE RAIL, REAR RH

61401C

PANEL SUB-ASSY, ROCKER, OUTER RH

61418A

REINFORCEMENT, ROCKER PANEL, RH

61607H

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH

61615F

REINFORCEMENT, QUARTER PANEL, OUTER RH

61617G

PANEL, QUARTER, INNER REAR RH

61621D

TROUGH, BACK DOOR OPENING, RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61637D

REINFORCEMENT, QUARTER, INNER RH

61703H

REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH

61708A

REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, RH

61711

PANEL, ROOF SIDE, OUTER RH

61731B

PANEL, ROOF SIDE, INNER RH

61743A

REINFORCEMENT, BACK DOOR OPENING SIDE, RH

61777D

RETAINER, BACK DOOR SIDE STOPPER, RH

61826C

PAD, NOISE SHUTTER, NO.3

62151B

PAD, COWL SIDE SILENCER

62554B

PAD, PILLAR, NO.4

65637

LINER, REAR WHEEL HOUSE, RH

65637C

CLIP, REAR WHEEL HOUSE LINER

Код

Описание

5701

переход к группе запчастей

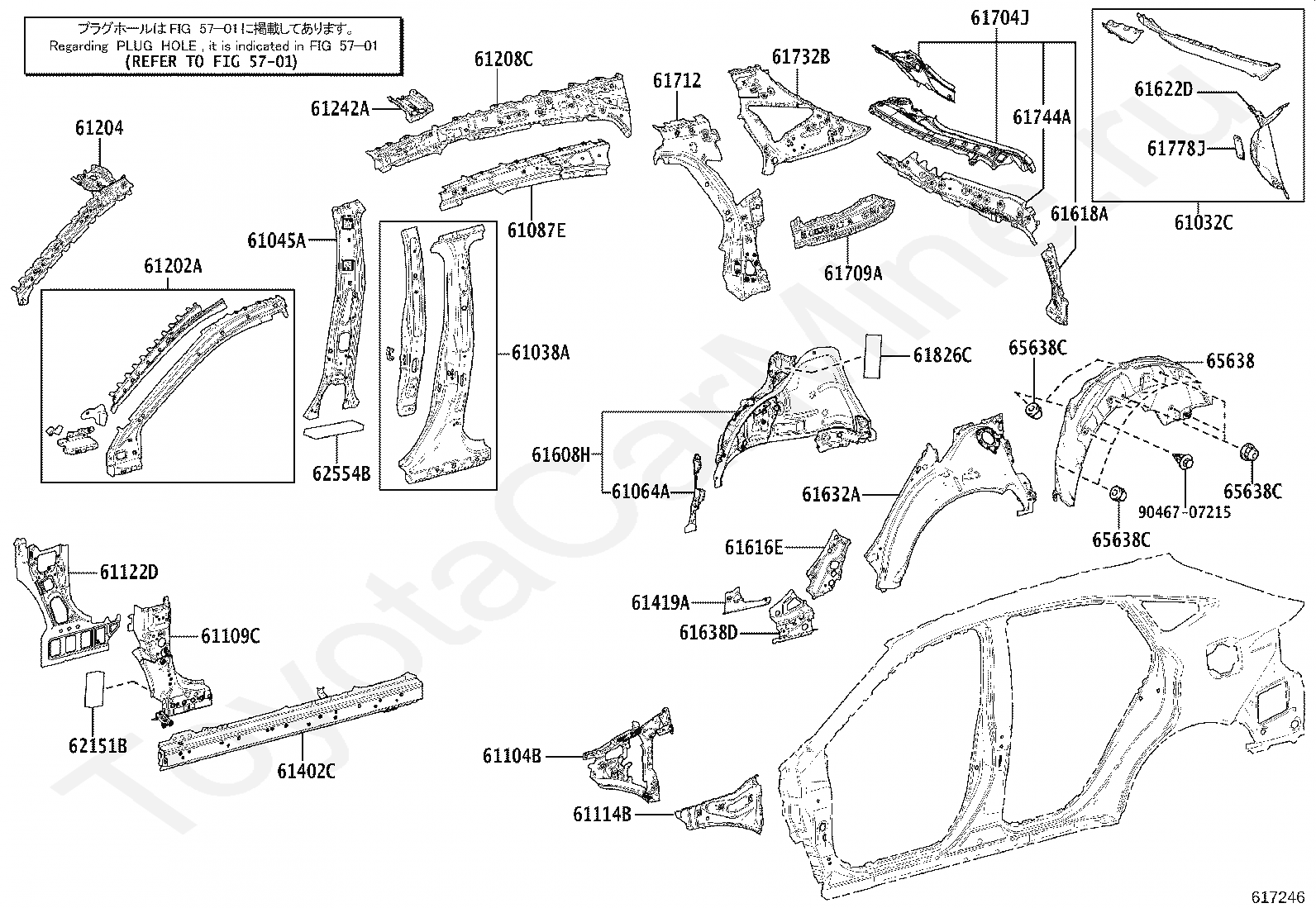

61032C

EXTENSION SUB-ASSY, QUARTER PANEL, REAR LH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61045A

PILLAR SUB-ASSY, NO.4 INNER, LH

61064A

EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 LH

61087E

RAIL SUB-ASSY, NO.1 UPPER OUTER, LH

61104B

REINFORCEMENT SUB-ASSY, COWL SIDE, LH

61109C

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH

61114B

PANEL, SIDE, OUTER NO.2 LH

61122D

PANEL, COWL SIDE, LH

61202A

RAIL SUB-ASSY, ROOF SIDE, OUTER LH

61204

RAIL SUB-ASSY, ROOF SIDE, INNER LH

61208C

RAIL SUB-ASSY, ROOF SIDE, INNER NO.2 LH

61242A

GUSSET, ROOF SIDE RAIL, REAR LH

61402C

PANEL SUB-ASSY, ROCKER, OUTER LH

61419A

REINFORCEMENT, ROCKER PANEL, LH

61608H

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH

61616E

REINFORCEMENT, QUARTER PANEL, OUTER LH

61618A

PANEL, QUARTER, INNER REAR LH

61622D

TROUGH, BACK DOOR OPENING, LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61638D

REINFORCEMENT, QUARTER, INNER LH

61704J

REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH

61709A

REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, LH

61712

PANEL, ROOF SIDE, OUTER LH

61732B

PANEL, ROOF SIDE, INNER LH

61744A

REINFORCEMENT, BACK DOOR OPENING SIDE, LH

61778J

RETAINER, BACK DOOR SIDE STOPPER, LH

61826C

PAD, NOISE SHUTTER, NO.3

62151B

PAD, COWL SIDE SILENCER

62554B

PAD, PILLAR, NO.4

65638

LINER, REAR WHEEL HOUSE, LH

65638C

CLIP, REAR WHEEL HOUSE LINER

9046707215

Крепеж
