Фары TOYOTA HARRIER, 2003/02 - 2006/01, 2,4 литра, 16 клапанов DOHC, EFI, фургон, ACU30

Каталог

Япония

Модель

HARRIER

Двигатель

2,4 литра, 16 клапанов DOHC, EFI

Кузов

фургон

Фрейм

ACU30

Опции

235W

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
+
+
+
+
+
+
+
+
+
+
+

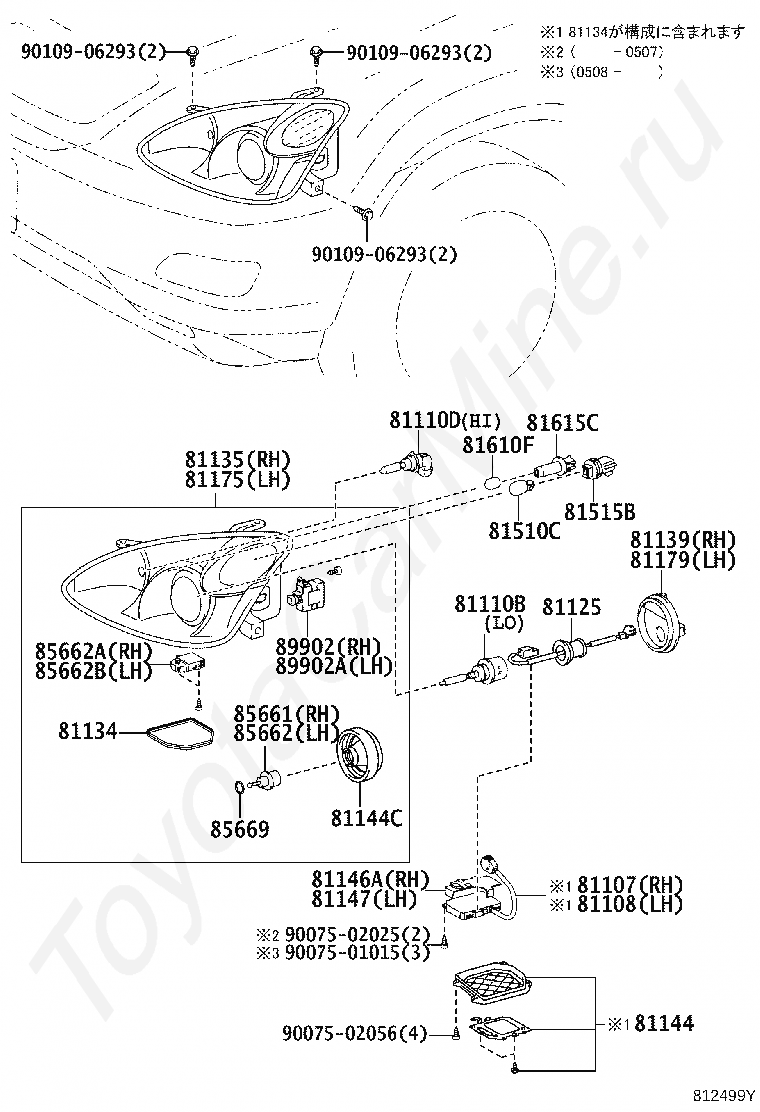

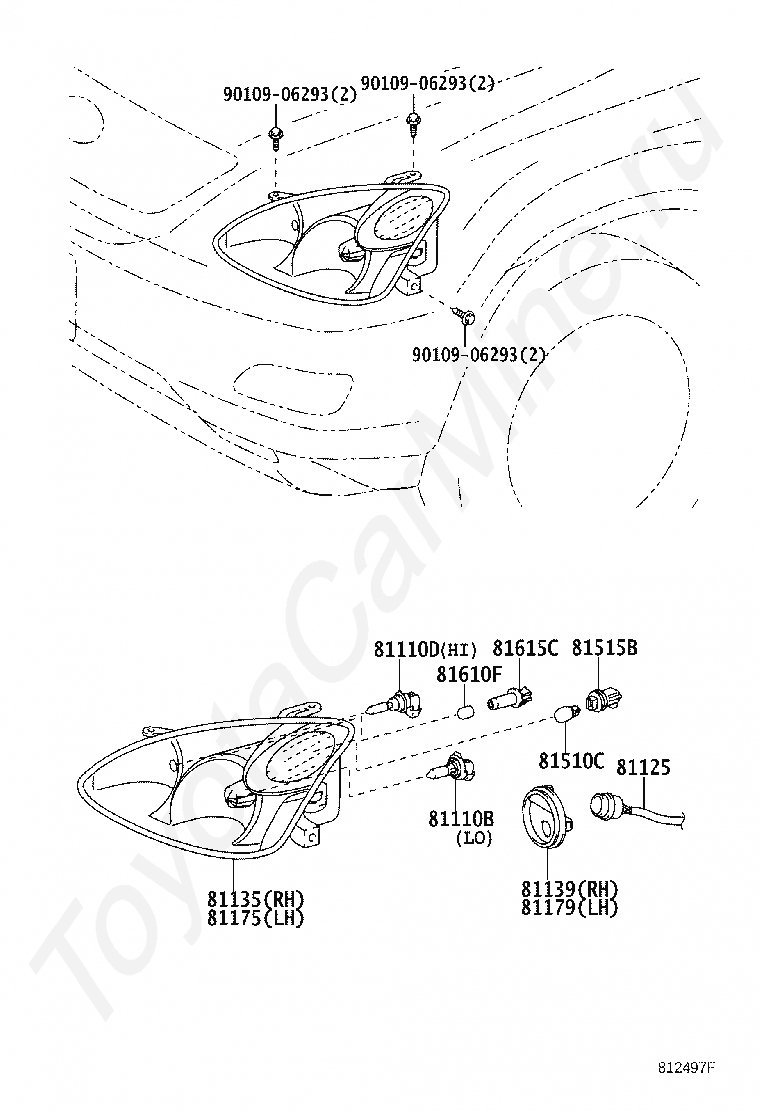

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81125

CORD, HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

81139

COVER, HEADLAMP SOCKET

81175

UNIT ASSY, HEADLAMP, LH

81179

COVER, HEADLAMP SOCKET

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615C

SOCKET & WIRE, CLEARANCE LAMP

9010906293

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

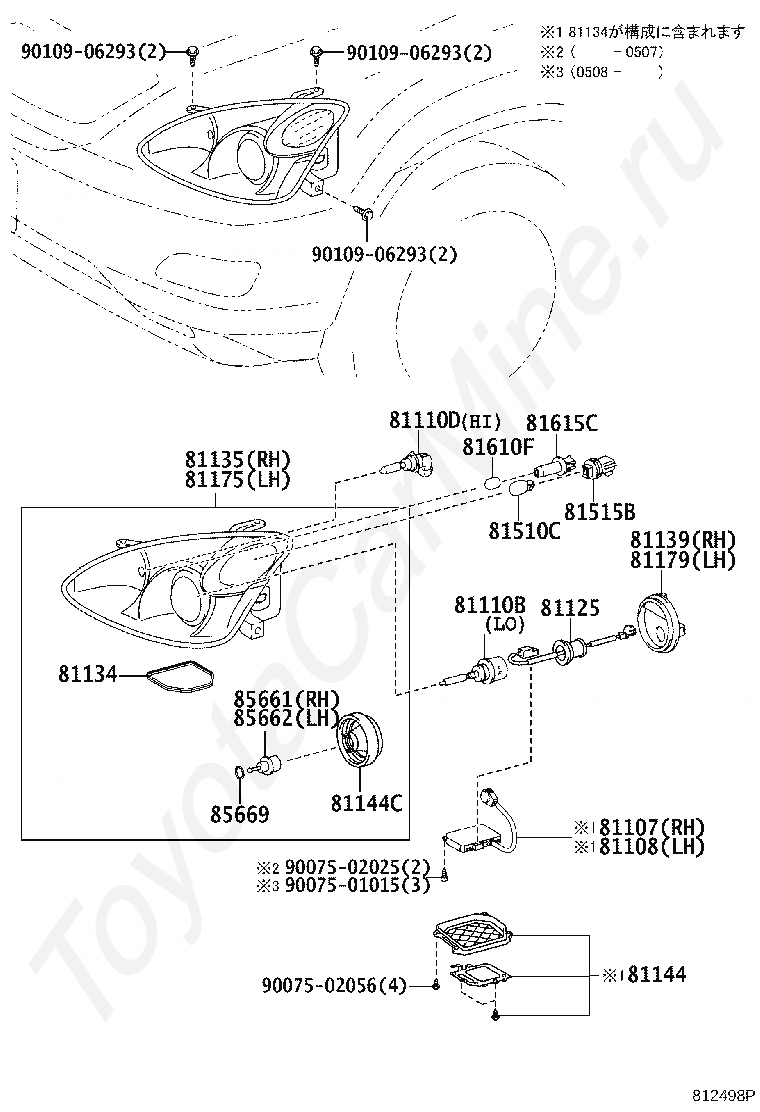

Код

Описание

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81125

CORD, HEADLAMP

81134

GASKET, HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

81139

COVER, HEADLAMP SOCKET

81144

COVER, HEADLAMP, NO.1

81144C

COVER, HEADLAMP SOCKET

81175

UNIT ASSY, HEADLAMP, LH

81179

COVER, HEADLAMP SOCKET

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615C

SOCKET & WIRE, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007501015

Крепеж

9007502025

Крепеж

9007502056

Крепеж

9010906293

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

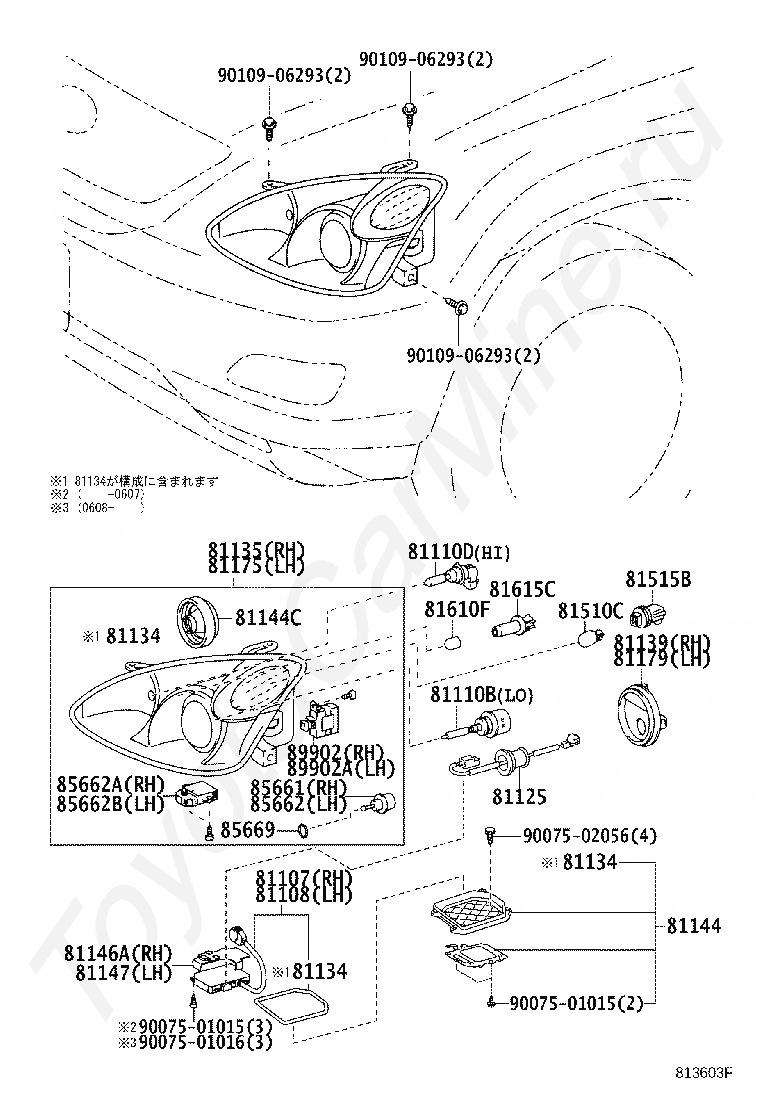

Код

Описание

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81125

CORD, HEADLAMP

81134

GASKET, HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

81139

COVER, HEADLAMP SOCKET

81144

COVER, HEADLAMP, NO.1

81144C

COVER, HEADLAMP SOCKET

81146A

FITTING, HEADLAMP, RH

81147

FITTING, HEADLAMP, LH

81175

UNIT ASSY, HEADLAMP, LH

81179

COVER, HEADLAMP SOCKET

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615C

SOCKET & WIRE, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85662A

MOTOR, LIGHT REFLECTOR, RH

85662B

MOTER, LIGHT REFLECTOR, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

89902

COMPUTER SUB-ASSY, HEADLAMP SWIVEL, RH

89902A

COMPUTER SUB-ASSY, HEADLAMP SWIVEL, LH

9007501015

Крепеж

9007502025

Крепеж

9007502056

Крепеж

9010906293

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81125

CORD, HEADLAMP

81134

GASKET, HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

81139

COVER, HEADLAMP SOCKET

81144

COVER, HEADLAMP, NO.1

81144C

COVER, HEADLAMP SOCKET

81175

UNIT ASSY, HEADLAMP, LH

81179

COVER, HEADLAMP SOCKET

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615C

SOCKET & WIRE, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007501015

Крепеж

9007501016

Крепеж

9007502056

Крепеж

9010906293

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81125

CORD, HEADLAMP

81134

GASKET, HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

81139

COVER, HEADLAMP SOCKET

81144

COVER, HEADLAMP, NO.1

81144C

COVER, HEADLAMP SOCKET

81146A

FITTING, HEADLAMP, RH

81147

FITTING, HEADLAMP, LH

81175

UNIT ASSY, HEADLAMP, LH

81179

COVER, HEADLAMP SOCKET

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615C

SOCKET & WIRE, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85662A

MOTOR, LIGHT REFLECTOR, RH

85662B

MOTER, LIGHT REFLECTOR, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

89902

COMPUTER SUB-ASSY, HEADLAMP SWIVEL, RH

89902A

COMPUTER SUB-ASSY, HEADLAMP SWIVEL, LH

9007501015

Крепеж

9007501016

Крепеж

9007502056

Крепеж

9010906293

Крепеж

+
+
+
+
+
+
+
+
+
+

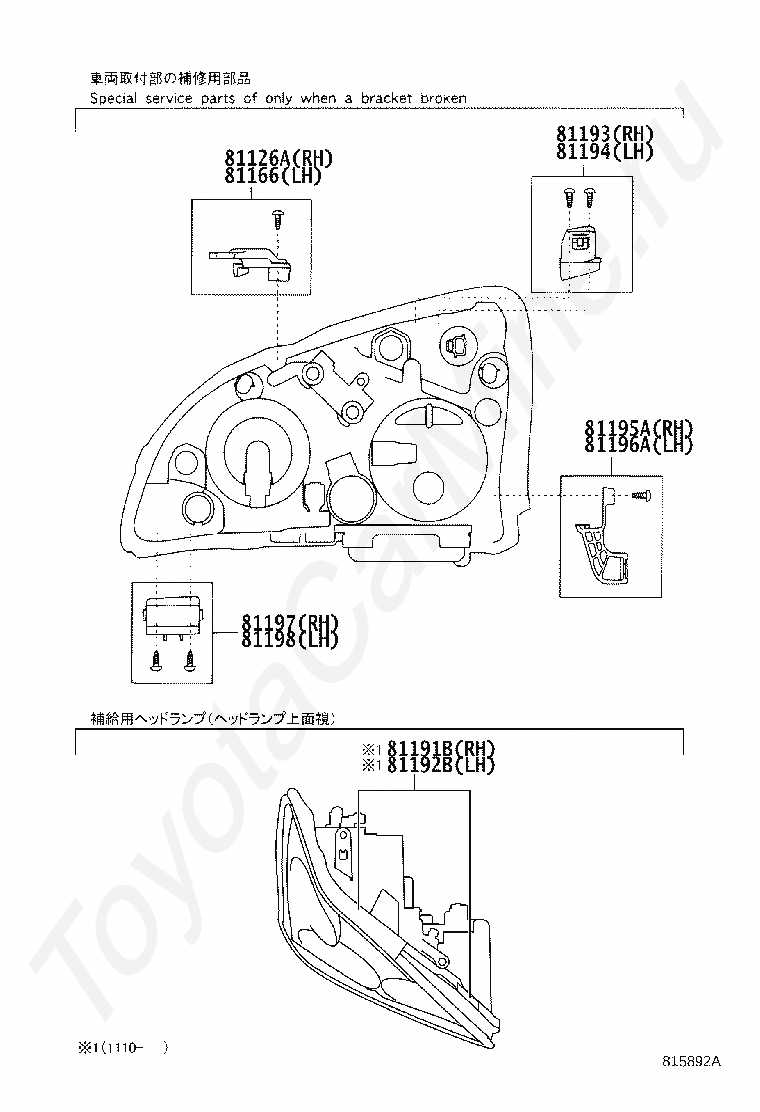

Код

Описание

81126A

PLATE, HEADLAMP, RH

81166

PLATE, HEADLAMP, LH

81191B

TAPE, HEADLAMP, RH

81192B

TAPE, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81197

BRACKET, HEADLAMP, LOWER RH

81198

BRACKET, HEADLAMP, LWR LH
