Каталог
ЯпонияМодель
HARRIERДвигатель
3 литра, 24 клапана DOHC, EFIКузов
фургонФрейм
MCU10Опции

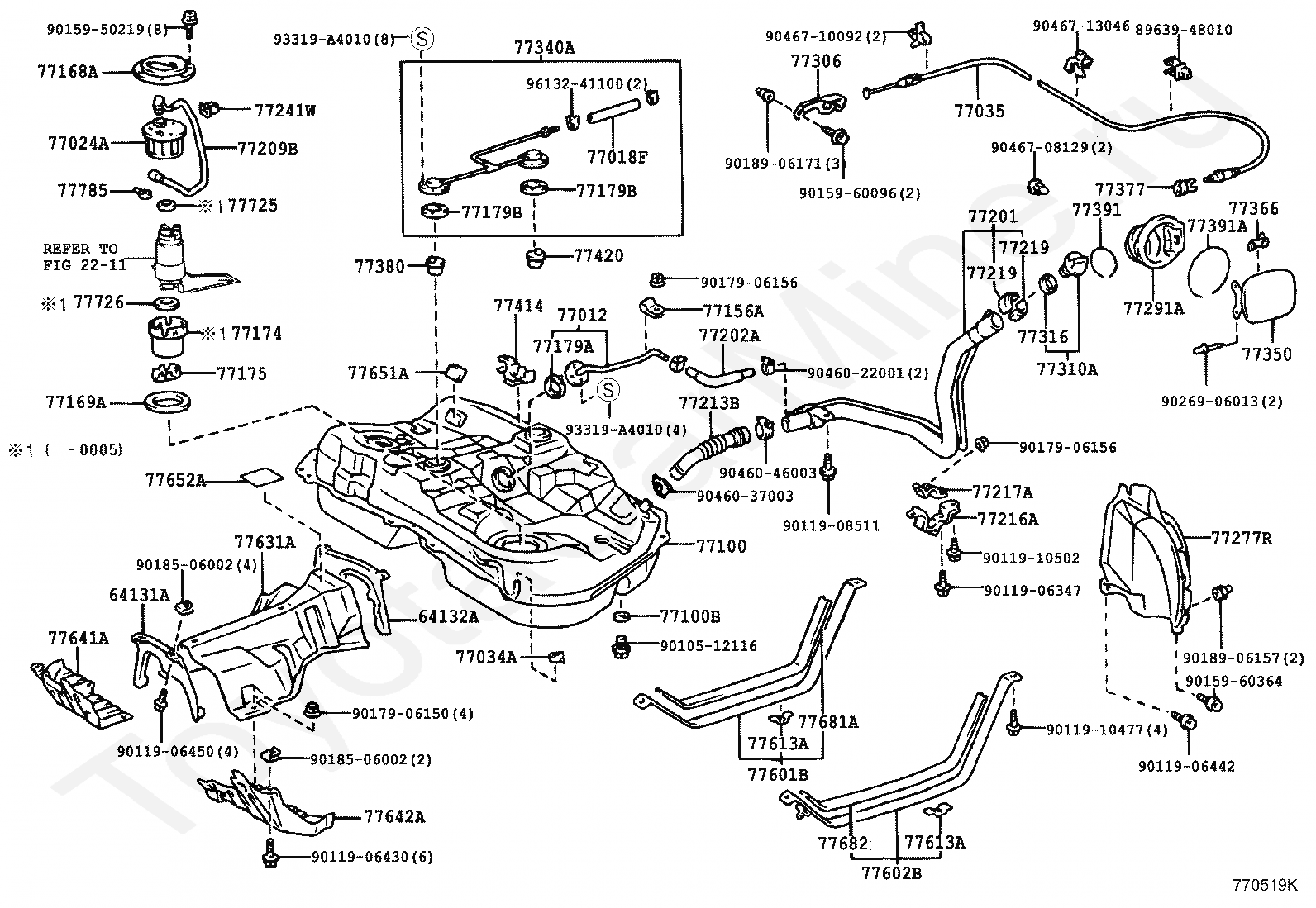

Код
Описание
2211
переход к группе запчастей
64131A
BRACKET, FUEL TANK PROTECTOR, UPPER NO.1
64132A
BRACKET, FUEL TANK PROTECTOR, UPPER NO.2
77012
TUBE SUB-ASSY, FUEL TANK BREATHER
77018F
HOSE, FUEL TANK EVAPORATION VENT
77024A
PLATE SUB-ASSY, FUEL SUCTION
77034A
CRIP (FOR FUEL TANK FILLER PIPE)
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100
TANK ASSY, FUEL
77100B
GASKET(FOR FUEL TANK)
77156A
PLATE, BREATHER TUBE SUPPORT, NO.2
77168A
PLATE, FUEL TANK VENT TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77174
SUPPORT, FUEL SUCTION, NO.1
77175
SUPPORT, FUEL SUCTION, NO.2
77179A
GASKET, FUEL TANK BREATHER TUBE
77179B
GASKET, FUEL TANK EVAPORATION VENT TUBE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77202A
HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77209B
TUBE SUB-ASSY, FUEL PUMP
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77219
COVER, FUEL TANK FILLER PIPE
77241W
CLIP, TUBE JOINT
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77291A
SHIELD, FUEL TANK FILLER PIPE
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77340A
VALVE ASSY, FUEL CUT OFF W/TUBE
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77380
VALVE ASSY, FUEL CUT OFF
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77414
SUPPORT, FUEL TUBE GROMMET, NO.4
77420
VALVE ASSY, FUEL CUT OFF, NO.2
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77613A
BRACKET, FUEL TANK BAND, NO.1
77631A
PROTECTOR, FUEL TANK, LOWER CENTER
77641A
PROTECTOR, FUEL TANK, NO.1
77642A
PROTECTOR, FUEL TANK, NO.2
77651A
CUSHION, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77681A
SEAT, FUEL TANK BAND
77682
SEAT, FUEL TANK BAND, LH
77725
CUSHION, FUEL FILTER, NO.1
77726
CUSHION, FUEL FILTER, NO.2
77785
HARNESS, FUEL PUMP
8963948010
Крепеж
9010512116
Крепеж
9011906347
Крепеж
9011906430
Крепеж
9011906442
Крепеж
9011906450
Крепеж
9011908511
Крепеж
9011910477
Крепеж
9011910502
Крепеж
9015950219
Крепеж
9015960096
Крепеж
9015960364
Крепеж
9017906150
Крепеж
9017906156
Крепеж
9018506002
Крепеж
9018906157
Крепеж
9018906171
Крепеж
9026906013
Крепеж
9046022001
Крепеж
9046037003
Крепеж
9046046003
Крепеж
9046708129
Крепеж
9046710092
Крепеж
9046713046
Крепеж
93319A4010
Крепеж
9613241100
Крепеж

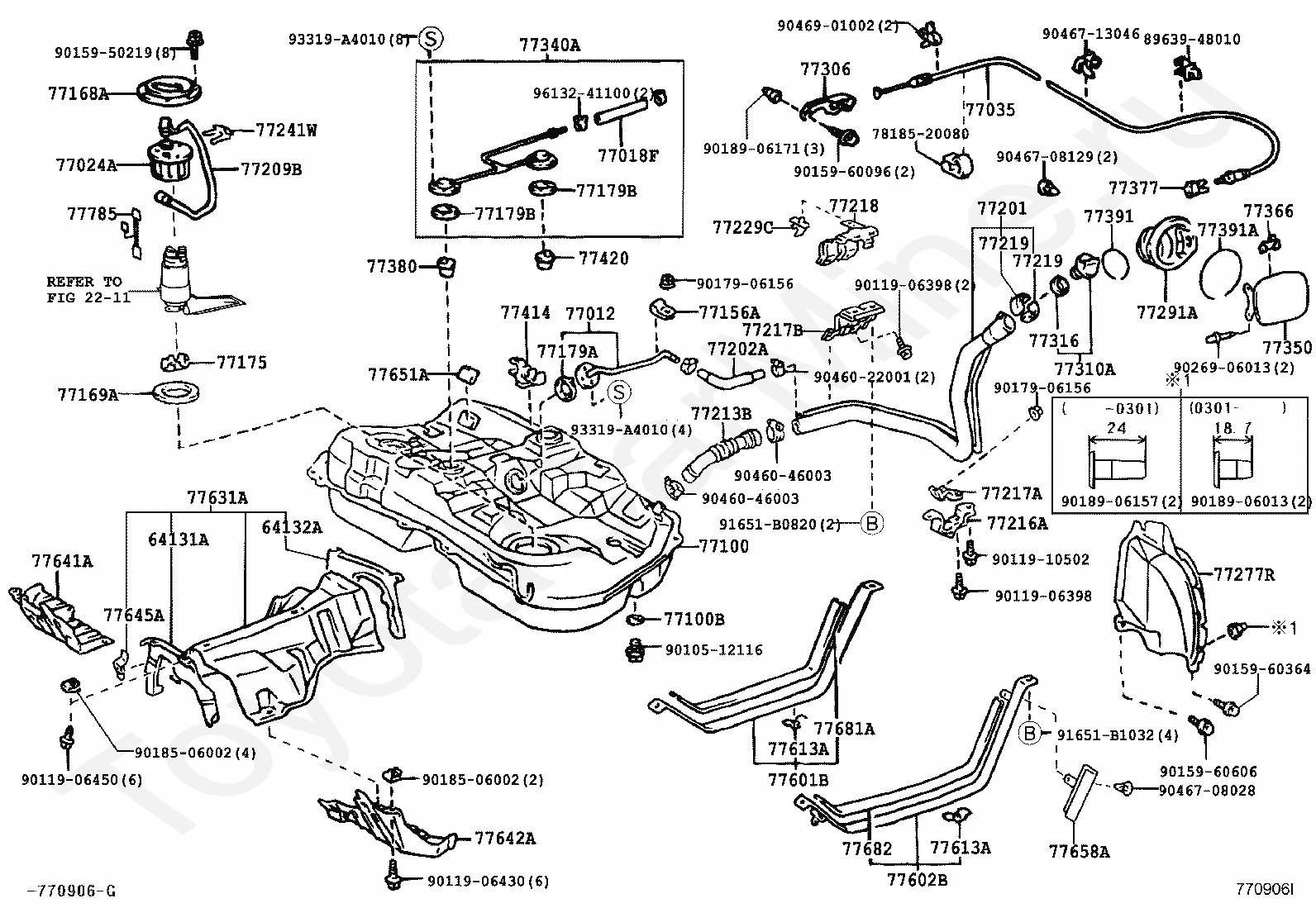

Код
Описание
2211
переход к группе запчастей
64131A
BRACKET, FUEL TANK PROTECTOR, UPPER NO.1
64132A
BRACKET, FUEL TANK PROTECTOR, UPPER NO.2
77012
TUBE SUB-ASSY, FUEL TANK BREATHER
77018F
HOSE, FUEL TANK EVAPORATION VENT
77024A
PLATE SUB-ASSY, FUEL SUCTION
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100
TANK ASSY, FUEL
77100B
GASKET(FOR FUEL TANK)
77156A
PLATE, BREATHER TUBE SUPPORT, NO.2
77168A
PLATE, FUEL TANK VENT TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77175
SUPPORT, FUEL SUCTION, NO.2
77179A
GASKET, FUEL TANK BREATHER TUBE
77179B
GASKET, FUEL TANK EVAPORATION VENT TUBE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77202A
HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77209B
TUBE SUB-ASSY, FUEL PUMP
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217B
HOSE, FUEL TANK INLET
77218
PLATE, FUEL INLET PIPE SET
77219
COVER, FUEL TANK FILLER PIPE
77229C
CLAMP, BREATHER TUBE
77241W
CLIP, TUBE JOINT
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77291A
SHIELD, FUEL TANK FILLER PIPE
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77340A
VALVE ASSY, FUEL CUT OFF W/TUBE
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77380
VALVE ASSY, FUEL CUT OFF
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77414
SUPPORT, FUEL TUBE GROMMET, NO.4
77420
VALVE ASSY, FUEL CUT OFF, NO.2
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77613A
BRACKET, FUEL TANK BAND, NO.1
77631A
PROTECTOR, FUEL TANK, LOWER CENTER
77641A
PROTECTOR, FUEL TANK, NO.1
77642A
PROTECTOR, FUEL TANK, NO.2
77645A
RETAINER, FUEL TANK PROTECTOR
77651A
CUSHION, FUEL TANK, NO.1
77658A
PROTECTOR, FUEL TANK EDGE, NO.1
77681A
SEAT, FUEL TANK BAND
77682
SEAT, FUEL TANK BAND, LH
77785
HARNESS, FUEL PUMP
7818520080
Крепеж
8963948010
Крепеж
9010512116
Крепеж
9011906398
Крепеж
9011906430
Крепеж
9011906450
Крепеж
9011910502
Крепеж
9015950219
Крепеж
9015960096
Крепеж
9015960364
Крепеж
9015960606
Крепеж
9017906156
Крепеж
9018506002
Крепеж
9018906013
Крепеж
9018906157
Крепеж
9018906171
Крепеж
9026906013
Крепеж
9046022001
Крепеж
9046046003
Крепеж
9046708028
Крепеж
9046708129
Крепеж
9046713046
Крепеж
9046901002
Крепеж
91651B0820
Крепеж
91651B1032
Крепеж
93319A4010
Крепеж
9613241100
Крепеж

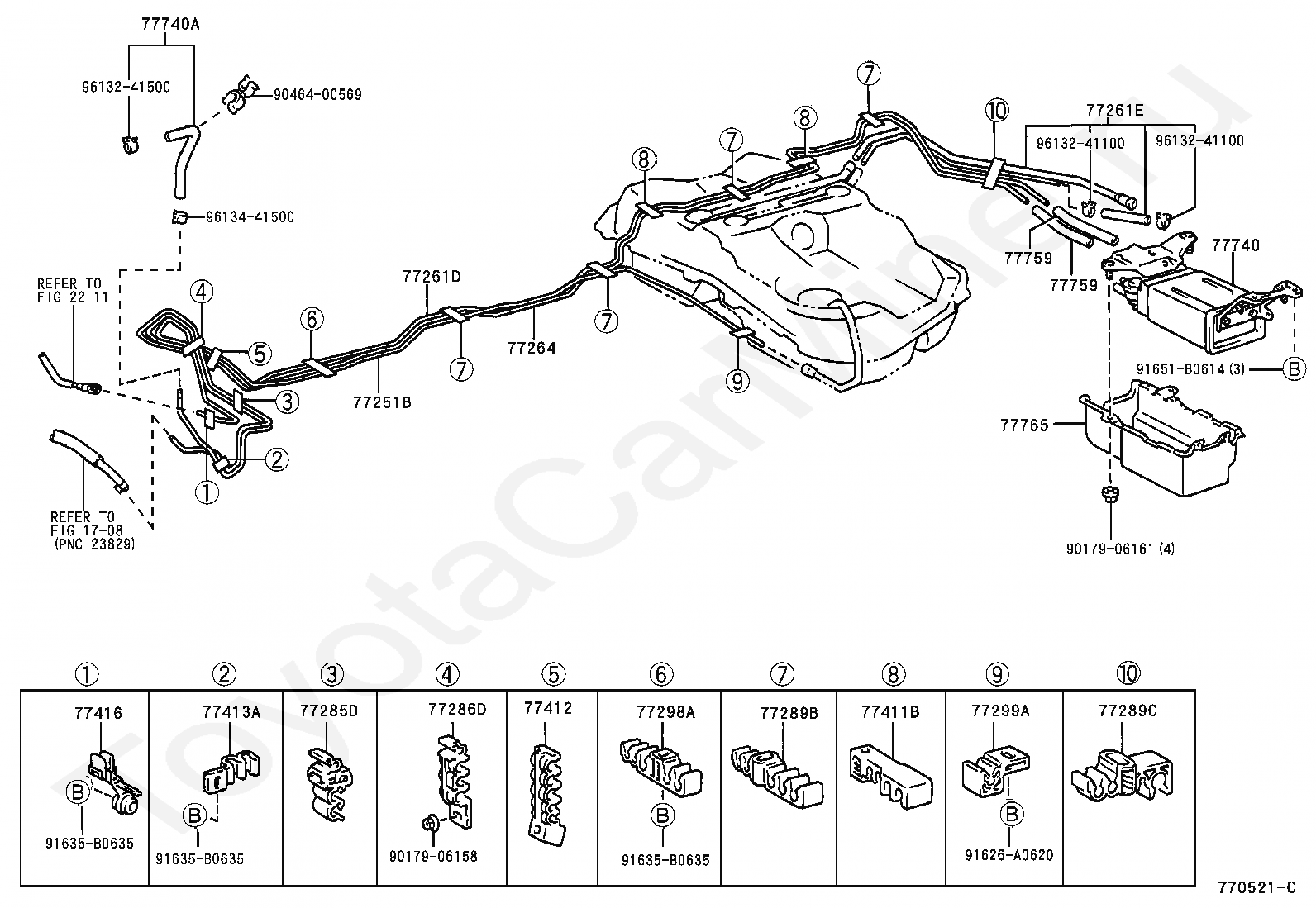

Код
Описание
1708
переход к группе запчастей
2211
переход к группе запчастей
77251B
TUBE, FUEL MAIN
77261D
TUBE, FUEL TANK TO CANISTER
77261E
HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77264
TUBE, CANISTER TO FRONT SIDE MEMBER
77285D
CLAMP, FUEL TUBE, NO.1
77286D
CLAMP, FUEL TUBE, NO.2
77289B
CLAMP, FUEL TUBE, NO.3
77289C
CLAMP, FUEL TUBE, NO.4
77298A
CLAMP, FUEL TUBE, NO.4
77299A
CLAMP, FUEL TUBE, NO.5
77411B
SUPPORT, FUEL TUBE GROMMET, NO.1
77412
SUPPORT, FUEL TUBE GROMMET, NO.2
77413A
SUPPORT, FUEL TUBE GROMMET, NO.3
77416
SUPPORT, FUEL TUBE GROMMET, NO.6
77740
CANISTER ASSY, CHARCOAL
77740A
HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77759
HOSE, CHARCOAL CANISTER
77765
PROTECTOR, CHARCOAL CANISTER
9017906158
Крепеж
9017906161
Крепеж
9046400569
Крепеж
91626A0620
Крепеж
91635B0635
Крепеж
91651B0614
Крепеж
9613241100
Крепеж
9613241500
Крепеж
9613441500
Крепеж

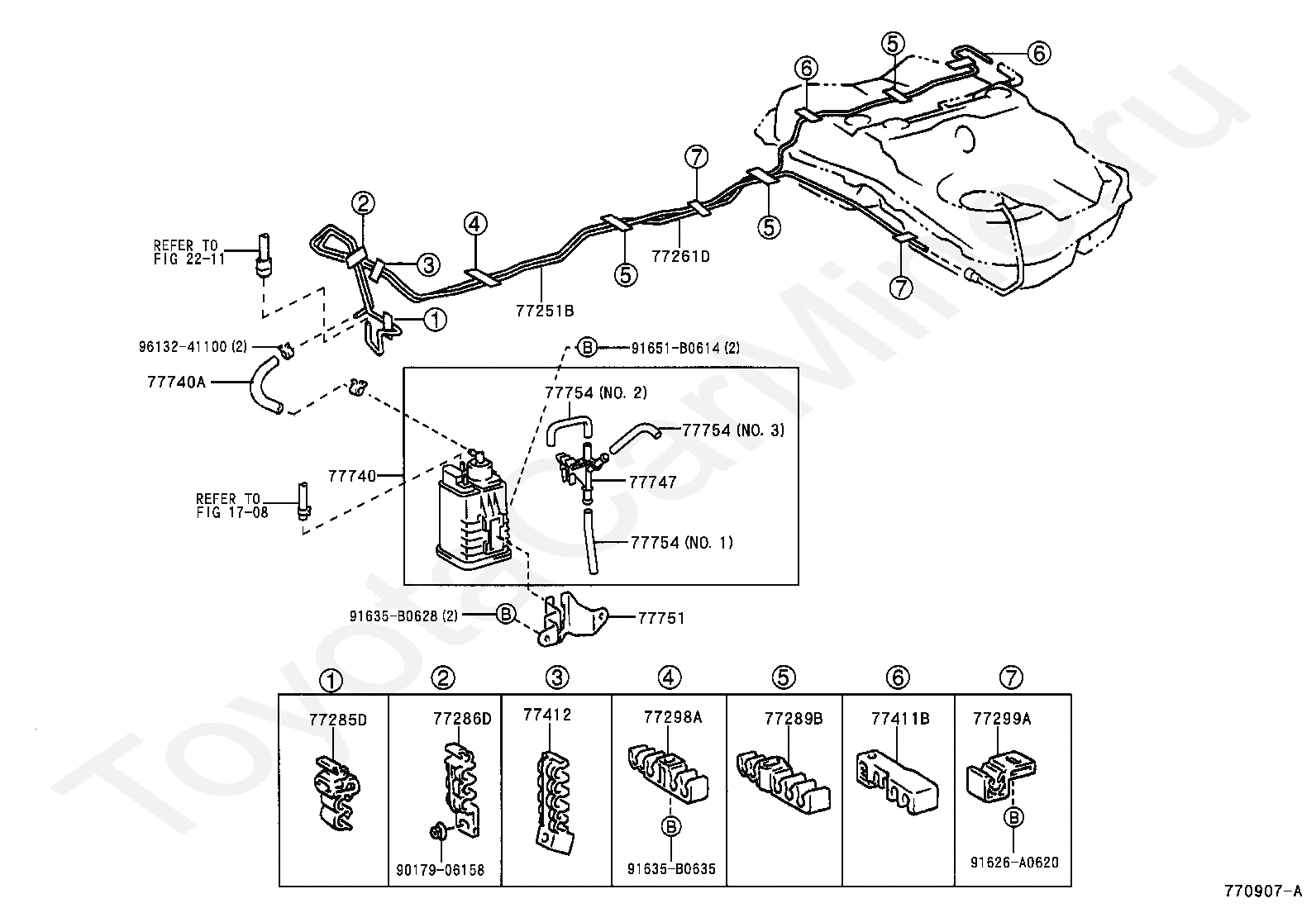

Код
Описание
1708
переход к группе запчастей
2211
переход к группе запчастей
77251B
TUBE, FUEL MAIN
77261D
TUBE, FUEL TANK TO CANISTER
77285D
CLAMP, FUEL TUBE, NO.1
77286D
CLAMP, FUEL TUBE, NO.2
77289B
CLAMP, FUEL TUBE, NO.3
77298A
CLAMP, FUEL TUBE, NO.4
77299A
CLAMP, FUEL TUBE, NO.5
77411B
SUPPORT, FUEL TUBE GROMMET, NO.1
77412
SUPPORT, FUEL TUBE GROMMET, NO.2
77740
CANISTER ASSY, CHARCOAL
77740A
HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77747
PIPE, CHARCOAL CANISTER, NO.1
77751
BRACKET, CHARCOAL CANISTER BASE
77754
HOSE, CHARCOAL CANISTER OUTLET, NO.1
9017906158
Крепеж
91626A0620
Крепеж
91635B0628
Крепеж
91635B0635
Крепеж
91651B0614
Крепеж
9613241100
Крепеж
