Передние кресла TOYOTA HARRIER, 1997/12 - 2003/02, 3 литра, 24 клапана DOHC, EFI, фургон, MCU10

Каталог

Япония

Модель

HARRIER

Двигатель

3 литра, 24 клапана DOHC, EFI

Кузов

фургон

Фрейм

MCU10

Опции

Код

Описание

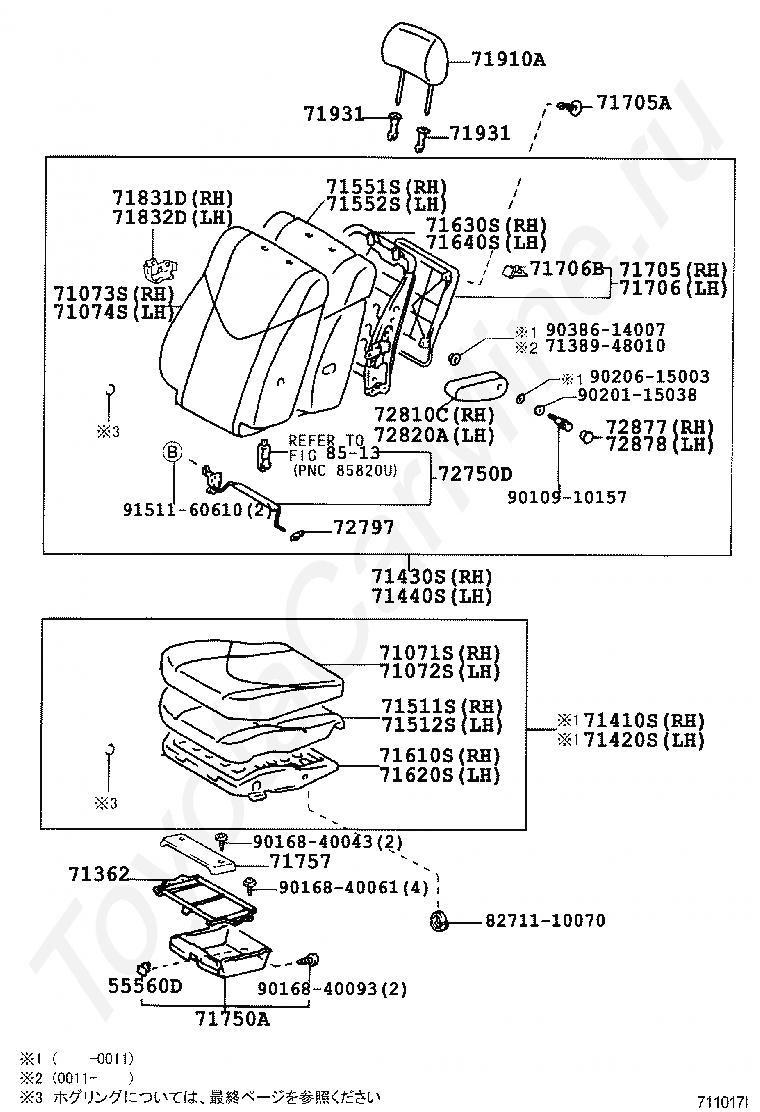

55560D

LOCK ASSY, SEAT UNDER TRAY

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71362

BRACKET, FRONT SEAT SET, NO.2

7138948010

Крепеж

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71705A

CLIP(FOR FRONT SEAT BACK BOARD)

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71706B

CLIP, FRONT SEAT BACK BOARD

71750A

TRAY ASSY, FRONT SEAT UNDER

71757

PLATE, SEAT UNDER TRAY, NO.1

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

72797

SPACER, LUMBAR SUPPORT

72810C

ARMREST ASSY, FRONT SEAT, CENTER

72820A

ARMREST ASSY, SEAT, LH

72877

COVER, SEAT ARMREST, RH

72878

COVER, SEAT ARMREST, LH

8271110070

Крепеж

8513

переход к группе запчастей

9010910157

Крепеж

9016840043

Крепеж

9016840061

Крепеж

9016840093

Крепеж

9020115038

Крепеж

9020615003

Крепеж

9038614007

Крепеж

9151160610

Крепеж

Код

Описание

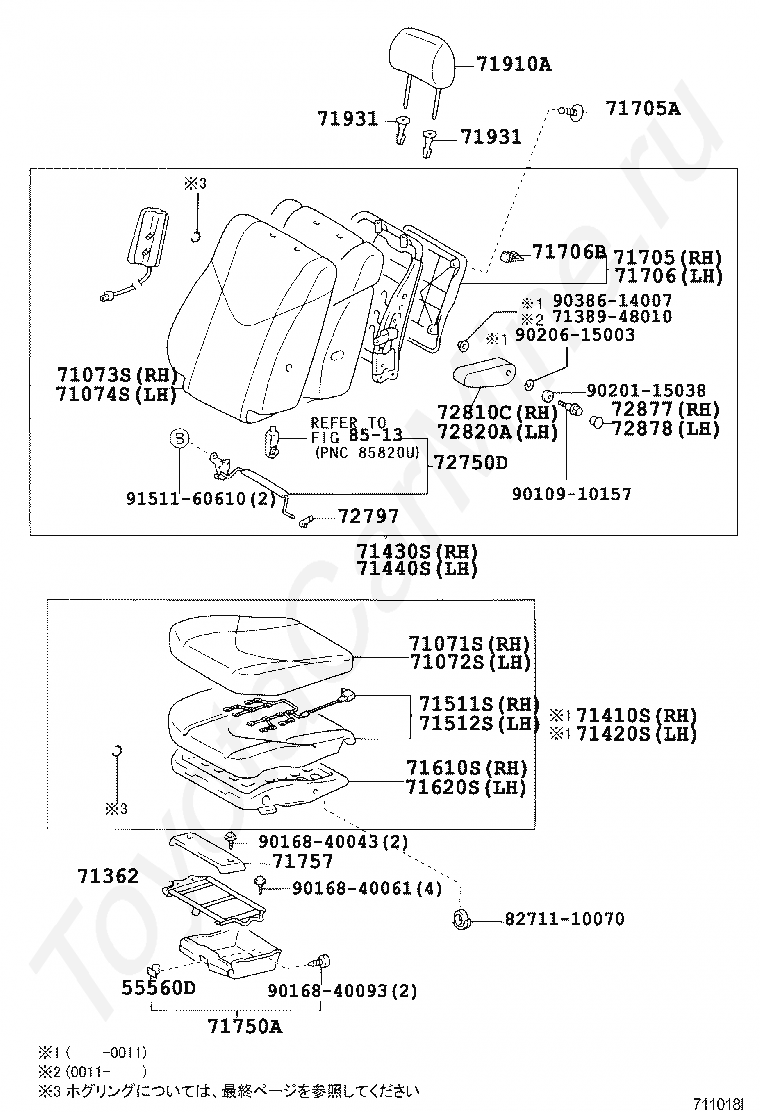

55560D

LOCK ASSY, SEAT UNDER TRAY

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71362

BRACKET, FRONT SEAT SET, NO.2

7138948010

Крепеж

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71705A

CLIP(FOR FRONT SEAT BACK BOARD)

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71706B

CLIP, FRONT SEAT BACK BOARD

71750A

TRAY ASSY, FRONT SEAT UNDER

71757

PLATE, SEAT UNDER TRAY, NO.1

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

72797

SPACER, LUMBAR SUPPORT

72810C

ARMREST ASSY, FRONT SEAT, CENTER

72820A

ARMREST ASSY, SEAT, LH

72877

COVER, SEAT ARMREST, RH

72878

COVER, SEAT ARMREST, LH

8271110070

Крепеж

8513

переход к группе запчастей

9010910157

Крепеж

9016840043

Крепеж

9016840061

Крепеж

9016840093

Крепеж

9020115038

Крепеж

9020615003

Крепеж

9038614007

Крепеж

9151160610

Крепеж

Код

Описание

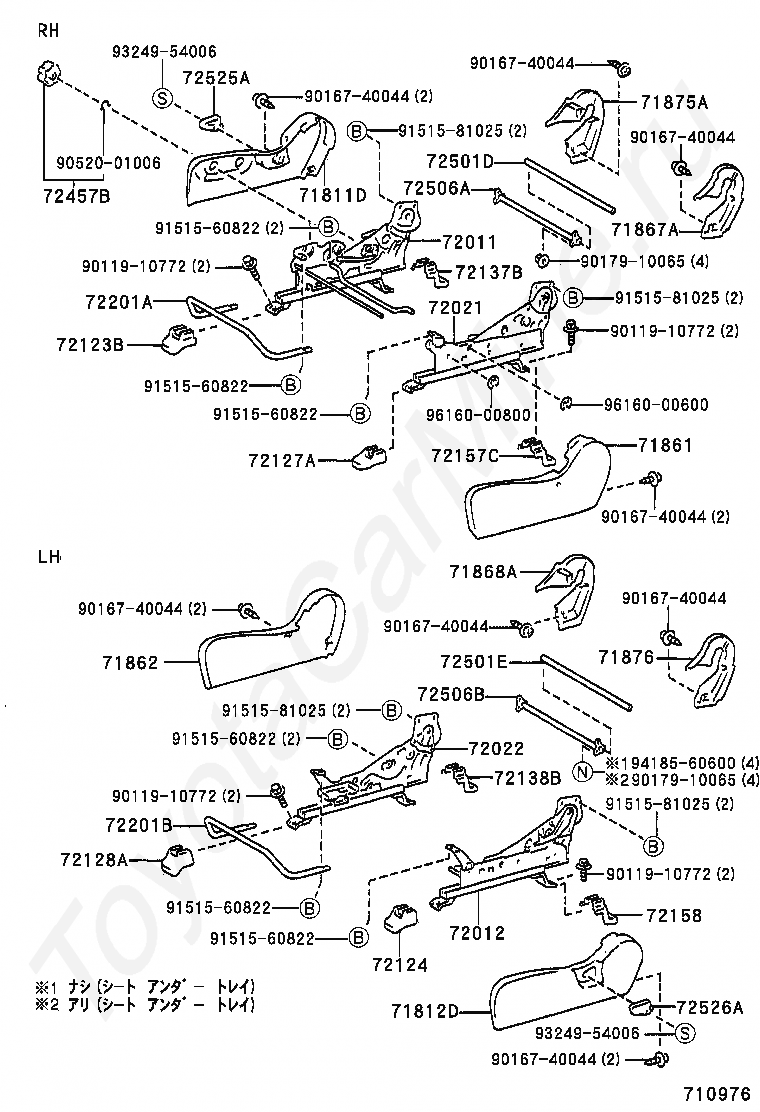

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72012

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72022

ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

72123B

COVER, SEAT TRACK BRACKET, OUTER FRONT

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72157C

COVER, SEAT TRACK BRACKET, INNER RH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72457B

KNOB, VERTICAL SEAT ADJUSTER, RH

72501D

PIPE SUB-ASSY, RECLINING CONNECTING, RH

72501E

PIPE SUB-ASSY, RECLINING CONNECTING, LH

72506A

ROD SUB-ASSY, RECLINING CONNECTING, RH

72506B

ROD SUB-ASSY, RECLINING CONNECTING, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910772

Крепеж

9016740044

Крепеж

9017910065

Крепеж

9052001006

Крепеж

9151560822

Крепеж

9151581025

Крепеж

9324954006

Крепеж

9418560600

Крепеж

9616000600

Крепеж

9616000800

Крепеж

Код

Описание

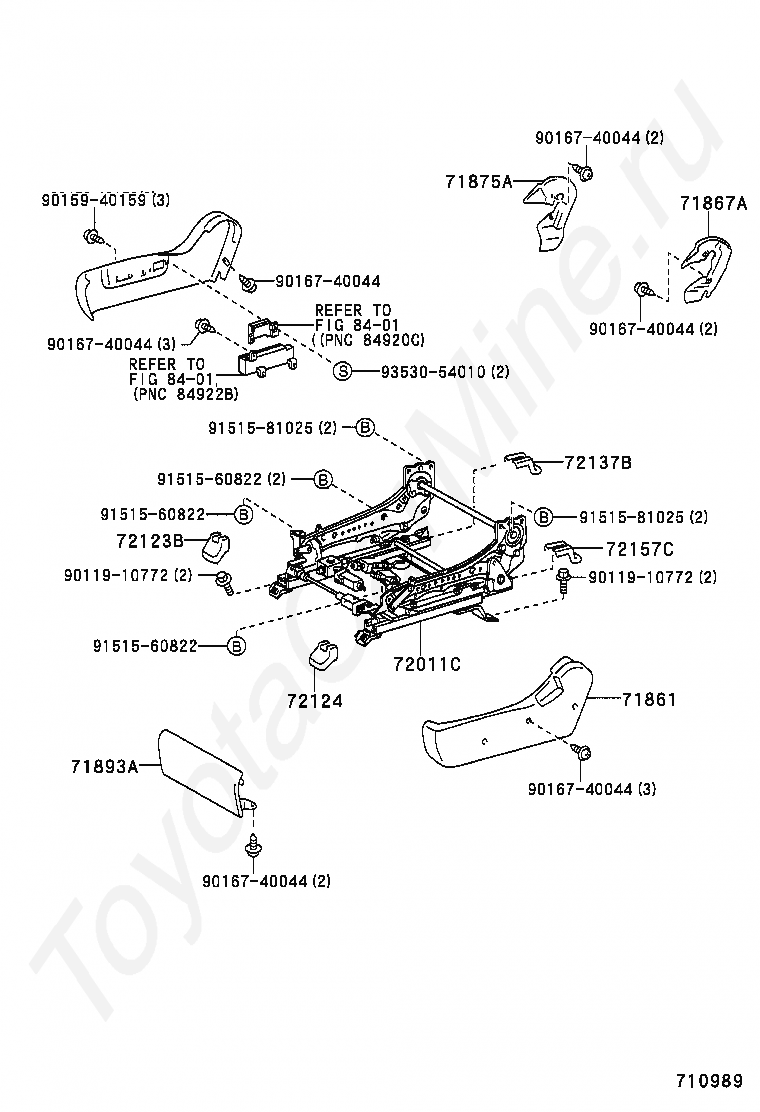

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71893A

SHIELD, POWER ADJUSTER, FRONT RH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72123B

COVER, SEAT TRACK BRACKET, OUTER FRONT

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72137B

COVER, SEAT TRACK, RH

72157C

COVER, SEAT TRACK BRACKET, INNER RH

8401

переход к группе запчастей

9011910772

Крепеж

9015940159

Крепеж

9016740044

Крепеж

9151560822

Крепеж

9151581025

Крепеж

9353054010

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Передние кресла TOYOTA HARRIER, 1997/12 - 2003/02, 3 литра, 24 клапана DOHC, EFI, фургон, MCU10
