Тормозная магистраль TOYOTA HARRIER, 1997/12 - 2003/02, 3 литра, 24 клапана DOHC, EFI, фургон, MCU10

Каталог

Япония

Модель

HARRIER

Двигатель

3 литра, 24 клапана DOHC, EFI

Кузов

фургон

Фрейм

MCU10

Опции

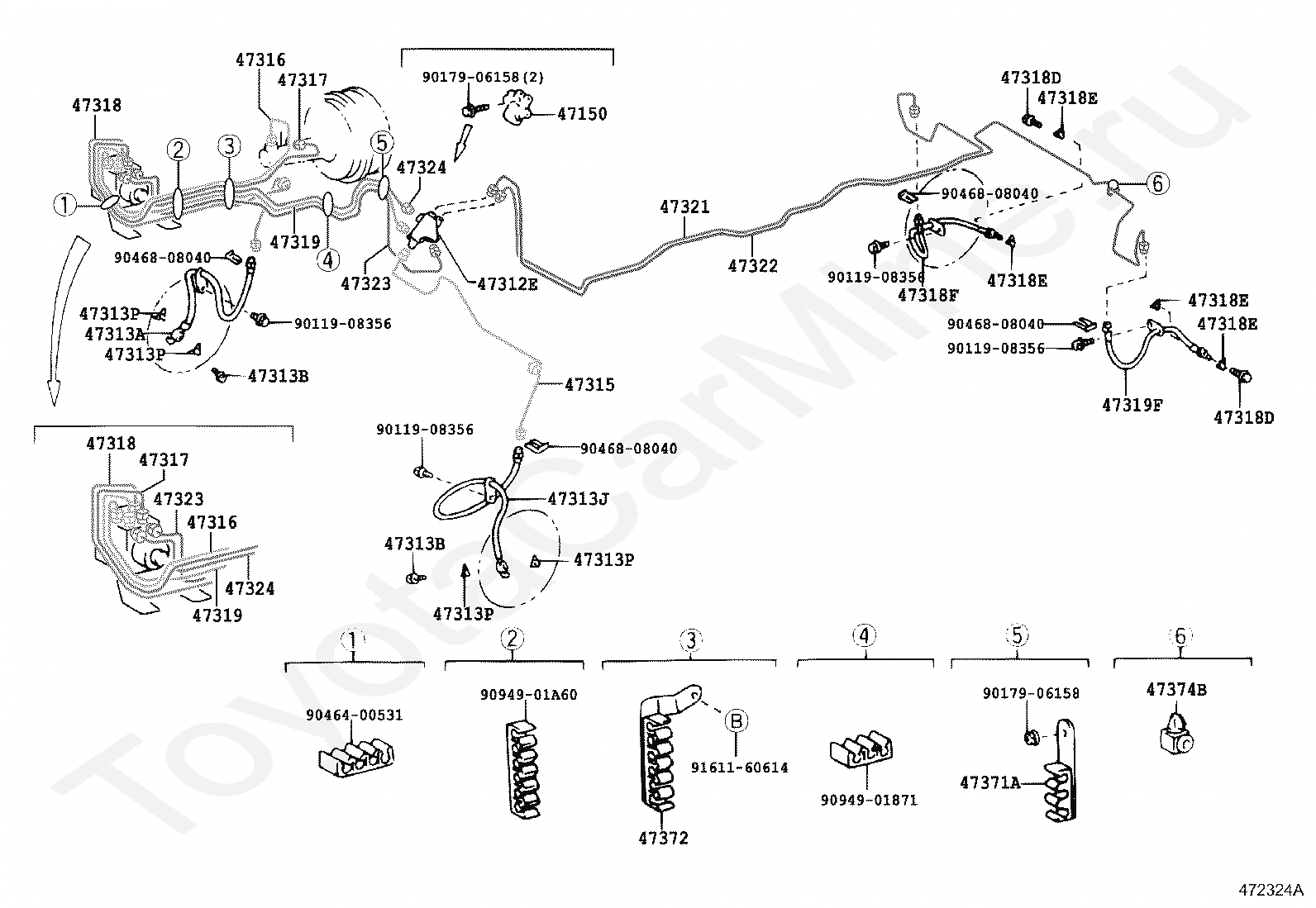

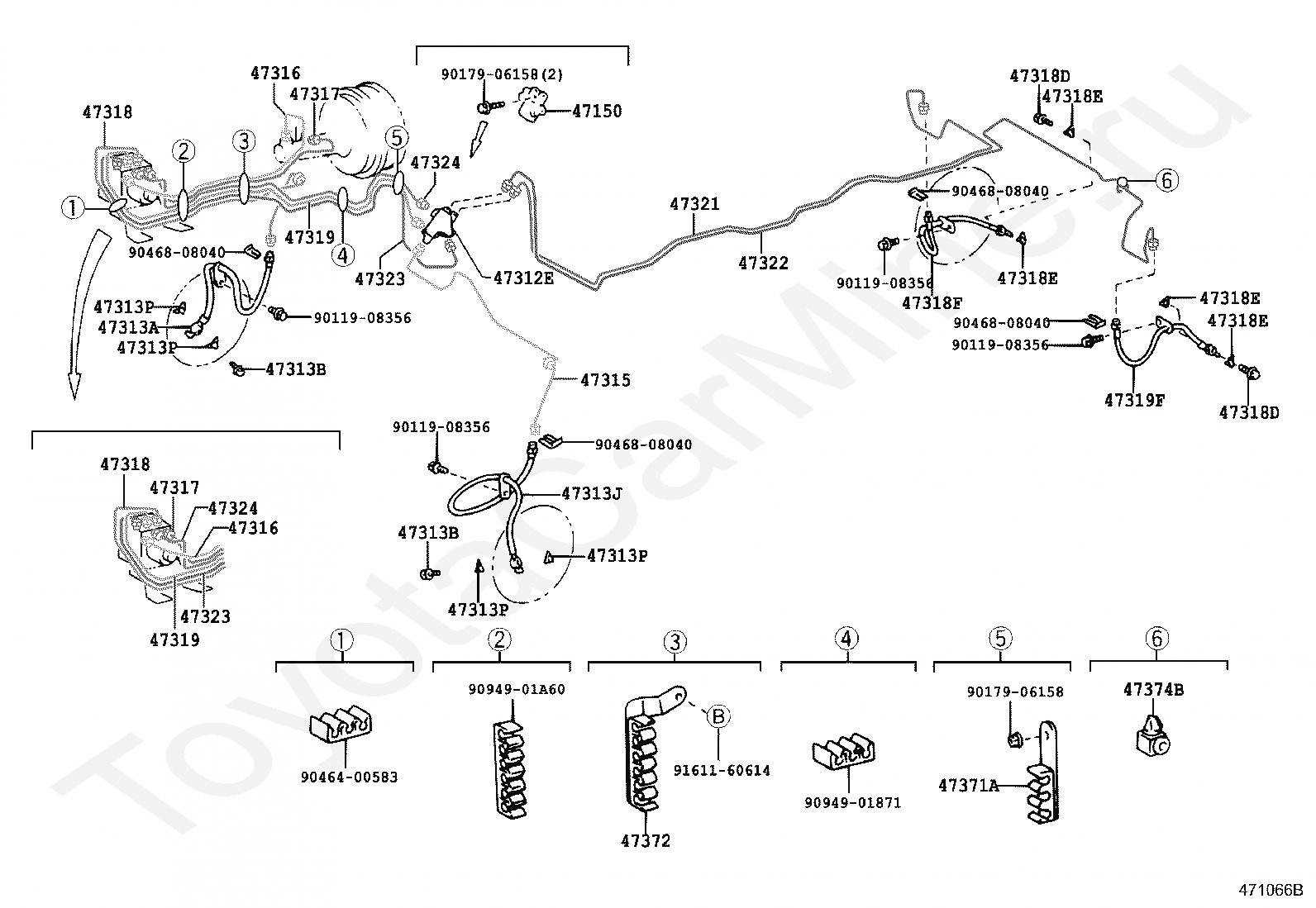

Код

Описание

47150

VALVE ASSY, PROPORTIONING

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47317

TUBE, FRONT BRAKE, NO.7

47318

TUBE, FRONT BRAKE, NO.8

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319

TUBE, FRONT BRAKE, NO.9

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

47374B

CLAMP, BRAKE TUBE, NO.4

9011908356

Крепеж

9017906158

Крепеж

9046400583

Крепеж

9046808040

Крепеж

9094901871

Крепеж

9094901A60

Крепеж

9161160614

Крепеж

Код

Описание

47150

VALVE ASSY, PROPORTIONING

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47317

TUBE, FRONT BRAKE, NO.7

47318

TUBE, FRONT BRAKE, NO.8

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319

TUBE, FRONT BRAKE, NO.9

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

47374B

CLAMP, BRAKE TUBE, NO.4

9011908356

Крепеж

9017906158

Крепеж

9046400531

Крепеж

9046808040

Крепеж

9094901871

Крепеж

9094901A60

Крепеж

9161160614

Крепеж

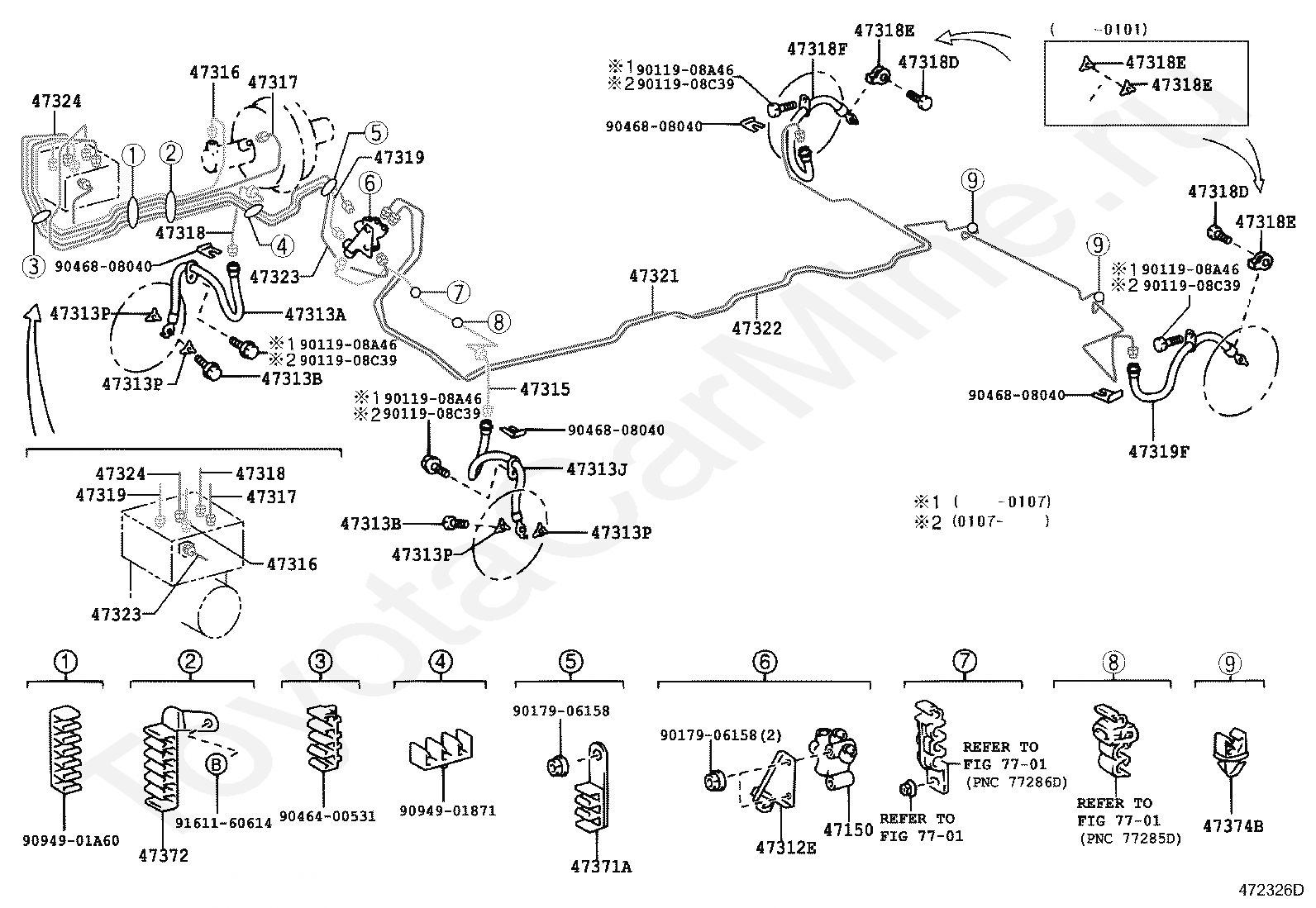

Код

Описание

47150

VALVE ASSY, PROPORTIONING

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47317

TUBE, FRONT BRAKE, NO.7

47318

TUBE, FRONT BRAKE, NO.8

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319

TUBE, FRONT BRAKE, NO.9

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

47374B

CLAMP, BRAKE TUBE, NO.4

7701

переход к группе запчастей

9011908A46

Крепеж

9011908C39

Крепеж

9017906158

Крепеж

9046400531

Крепеж

9046808040

Крепеж

9094901871

Крепеж

9094901A60

Крепеж

9161160614

Крепеж

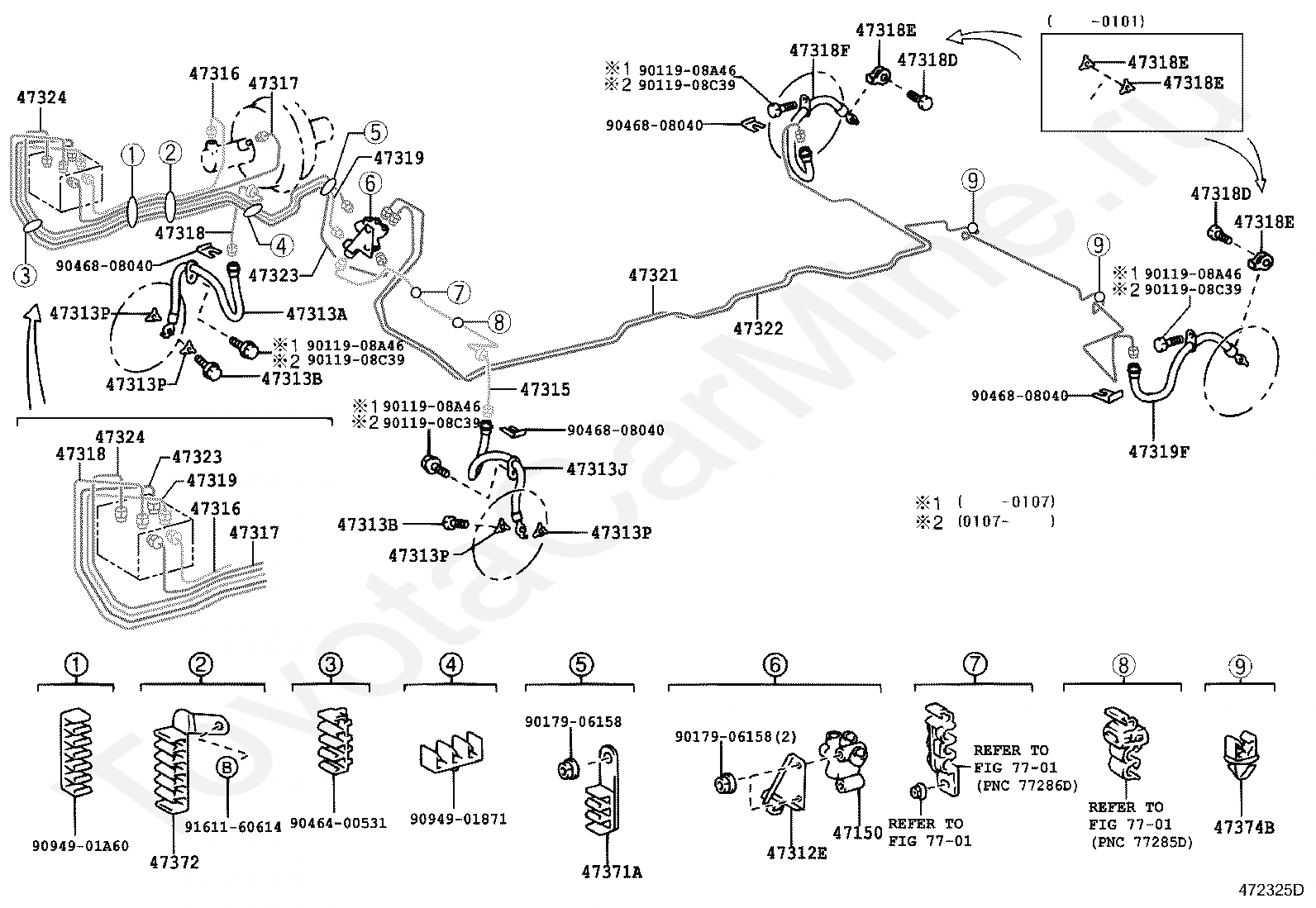

Код

Описание

47150

VALVE ASSY, PROPORTIONING

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47317

TUBE, FRONT BRAKE, NO.7

47318

TUBE, FRONT BRAKE, NO.8

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319

TUBE, FRONT BRAKE, NO.9

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

47374B

CLAMP, BRAKE TUBE, NO.4

7701

переход к группе запчастей

9011908A46

Крепеж

9011908C39

Крепеж

9017906158

Крепеж

9046400531

Крепеж

9046808040

Крепеж

9094901871

Крепеж

9094901A60

Крепеж

9161160614

Крепеж

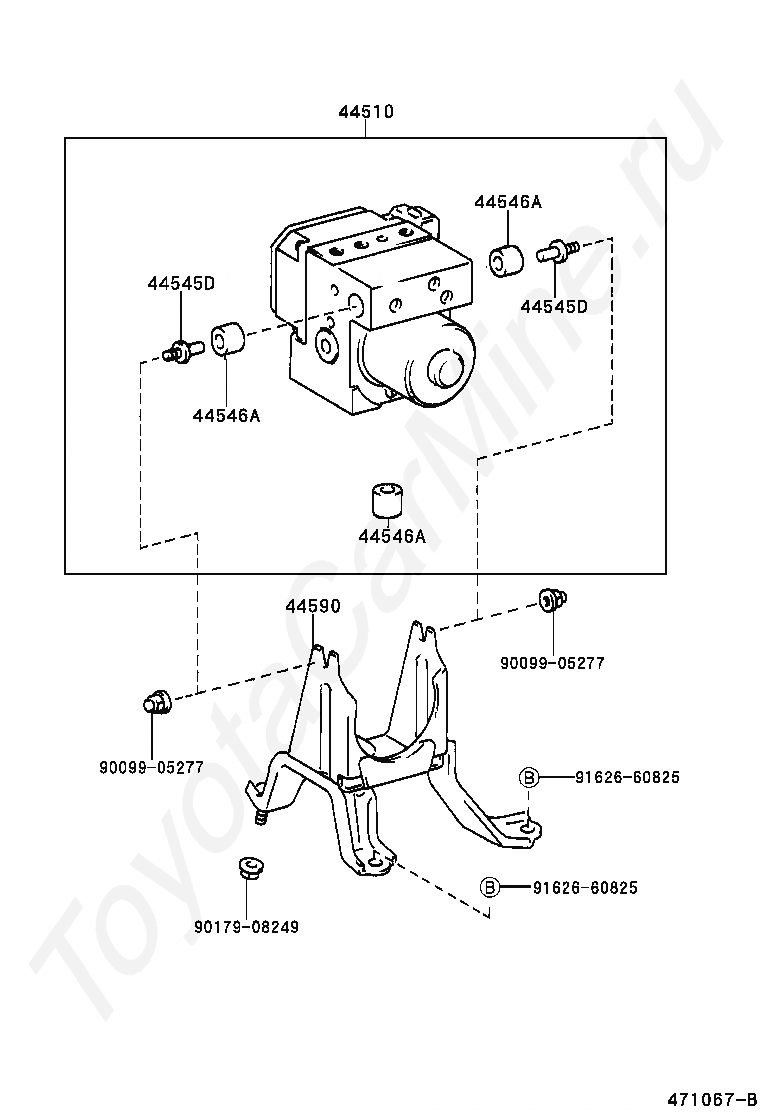

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44590

BRACKET ASSY, BRAKE ACTUATOR

9009905277

Крепеж

9017908249

Крепеж

9162660825

Крепеж

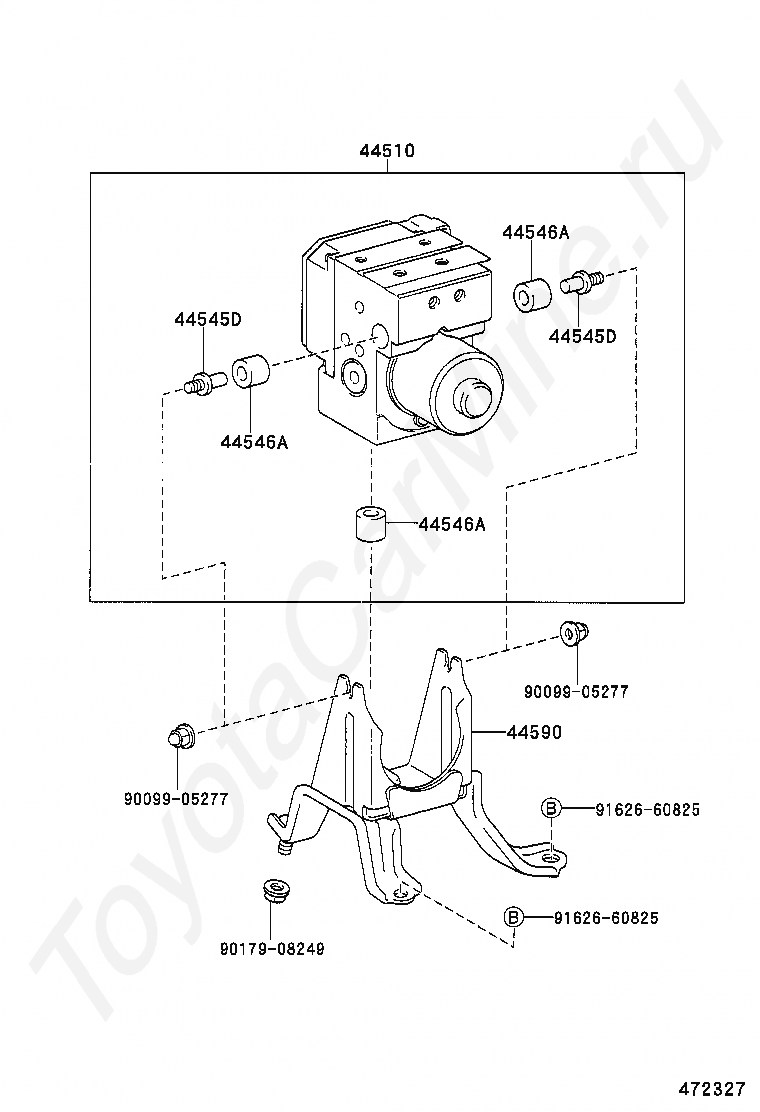

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44590

BRACKET ASSY, BRAKE ACTUATOR

9009905277

Крепеж

9017908249

Крепеж

9162660825

Крепеж

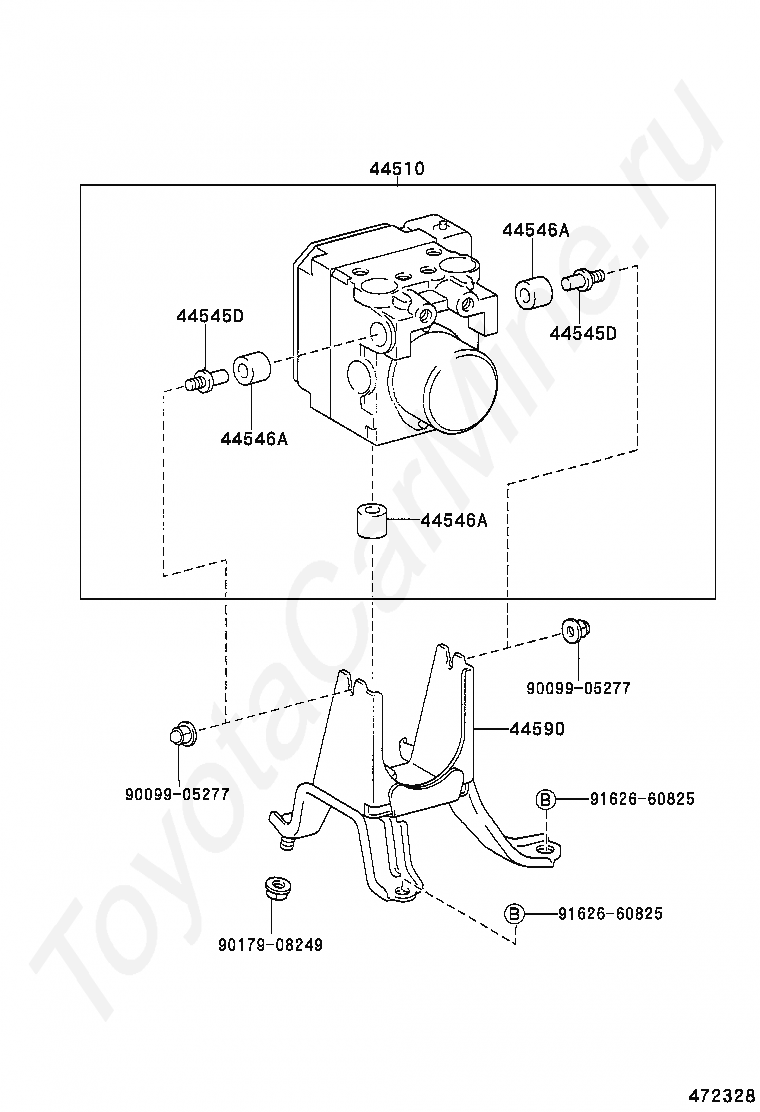

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44590

BRACKET ASSY, BRAKE ACTUATOR

9009905277

Крепеж

9017908249

Крепеж

9162660825

Крепеж

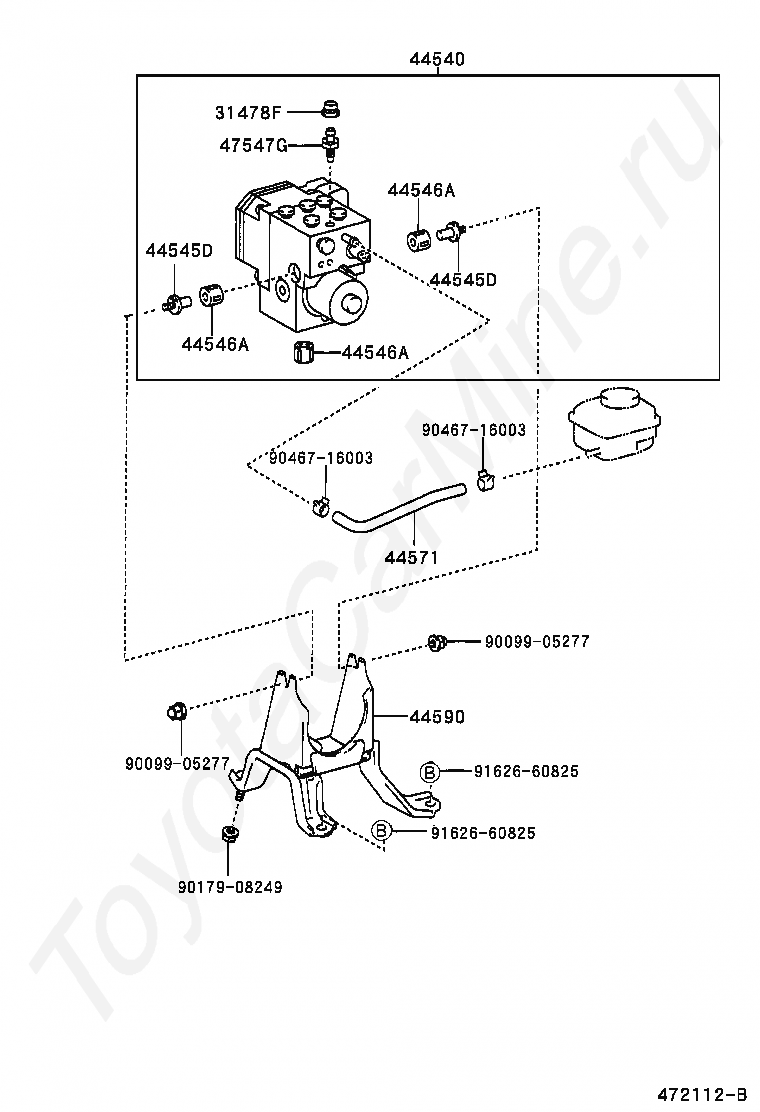

Код

Описание

31478F

CAP, BLEEDER PLUG(FOR BRAKE TRACTION ACTUATOR)

44540

ACTUATOR ASSY, ABS & TRACTION

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44571

HOSE, BRAKE ACTUATOR

44590

BRACKET ASSY, BRAKE ACTUATOR

47547G

PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR)

9009905277

Крепеж

9017908249

Крепеж

9046716003

Крепеж

9162660825

Крепеж

Тормозная магистраль TOYOTA HARRIER, 1997/12 - 2003/02, 3 литра, 24 клапана DOHC, EFI, фургон, MCU10
