Боковая панель кузова TOYOTA GRNVA/HIACE/MJSTY, 2019/03 - 2025, 3,5 литра, 24 клапана, DOHC, GRH322, механика, МКПП, 6 скоростей

Каталог

Ближний Восток

Модель

GRNVA/HIACE/MJSTY

Двигатель

3,5 литра, 24 клапана, DOHC

Фрейм

GRH322

Трансмиссия

механика МКПП, 6 скоростей

Опции

левый руль высокая крыша 4 двери боковое стекло Q GCC 694W

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
  • 4
+
+
+
+
+
+
+
+
+
+
+
+
+
+

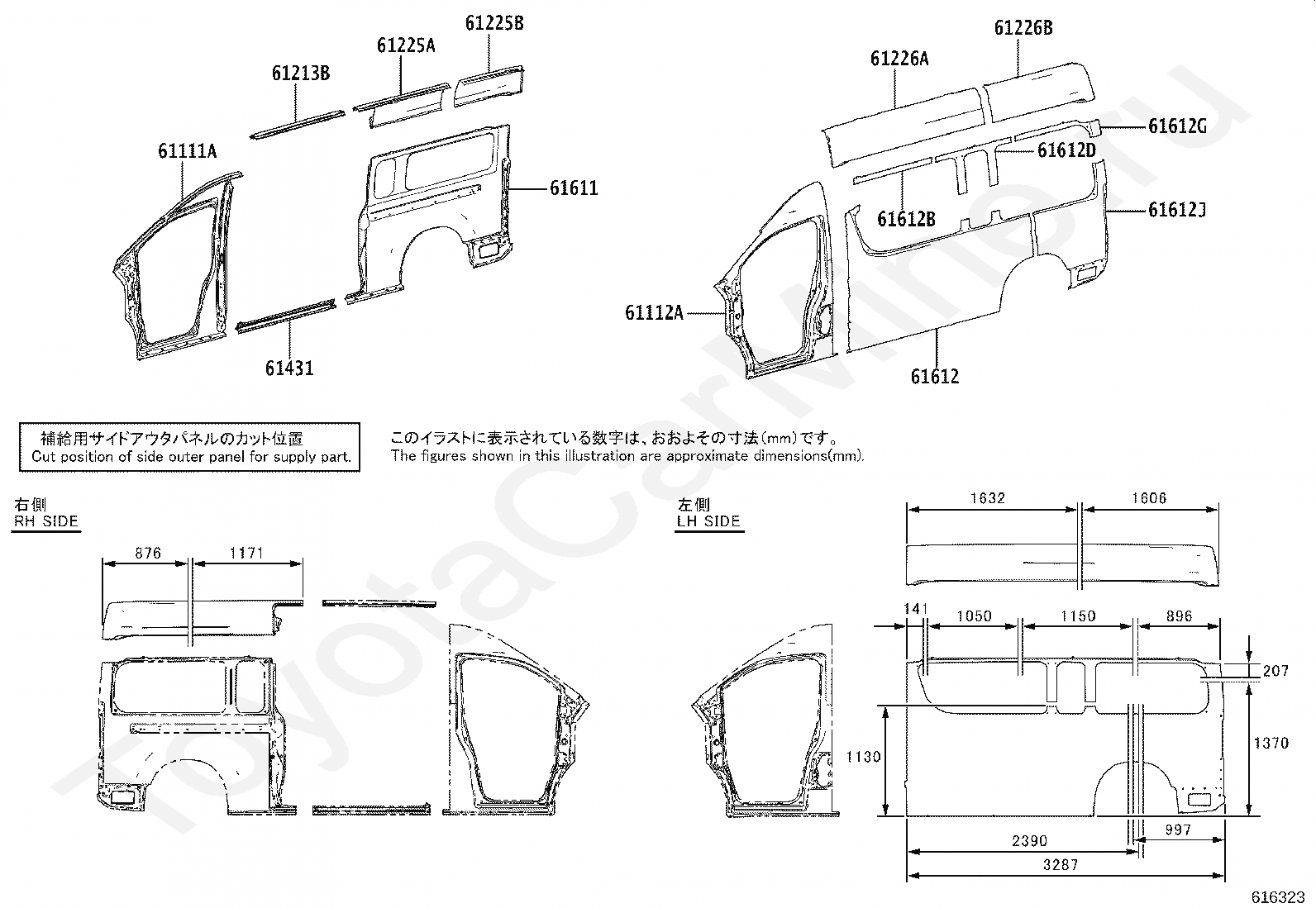

Код

Описание

61111A

PANEL, FRONT SIDE, OUTER RH

61112A

PANEL, FRONT SIDE, OUTER LH

61213B

RAIL, ROOF SIDE, OUTER NO.2 RH

61225A

RAIL, ROOF SIDE OUTER UPPER NO.1, RH

61225B

RAIL, ROOF SIDE OUTER UPPER NO.2, RH

61226A

RAIL, ROOF SIDE OUTER UPPER NO.1, LH

61226B

RAIL, ROOF SIDE OUTER UPPER NO.2, LH

61431

PANEL, ROCKER, OUTER REAR RH

61611

PANEL, QUARTER, RH

61612

PANEL, QUARTER, LH

61612B

PANEL, QUARTER, NO.2 LH

61612D

PANEL, QUARTER, NO.3 LH

61612G

PANEL, QUARTER, NO.4 LH

61612J

PANEL, QUARTER, NO.5 LH

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

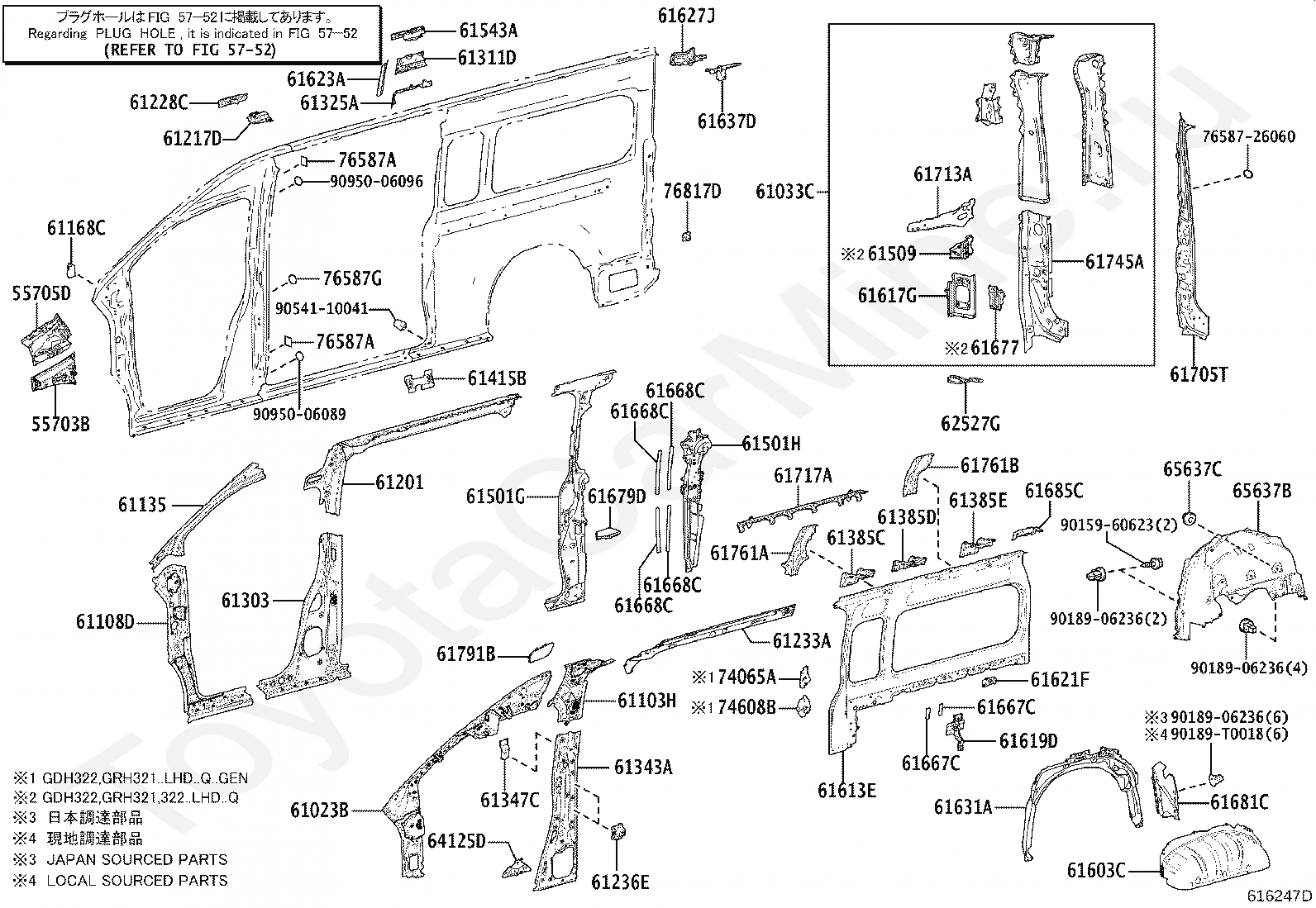

Код

Описание

55703B

PANEL SUB-ASSY, COWL TOP INSIDE CORNER, RH

55705D

PANEL SUB-ASSY, COWL TOP SIDE, RH,

5752

переход к группе запчастей

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61033C

REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, RH

61103H

PANEL SUB-ASSY, SIDE, NO.2 RH

61108D

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

61135

REINFORCEMENT, FRONT BODY PILLAR, UPPER RH

61168C

BRACKET, NO.6 PILLAR OUTER

61201

RAIL SUB-ASSY, ROOF SIDE, RH

61217D

RAIL, ROOF SIDE, OUTER NO.4 RH

61228C

RAIL, ROOF SIDE OUTER UPPER NO.3, RH

61233A

RAIL, ROOF SIDE, INNER NO.2 RH

61236E

BRACKET, PILLAR ASSIST GRIP, LOWER

61303

REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

61311D

PANEL, REAR BODY, FRONT OUTSIDE RH

61325A

REINFORCEMENT, CENTER BODY PILLAR, CENTER RH

61343A

PILLAR, CENTER BODY, INNER RH

61347C

REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, RH

61385C

EXTENSION, CENTER BODY PILLAR, UPPER RH

61385D

EXTENSION, CENTER BODY PILLAR, UPPER RH

61385E

EXTENSION, CENTER BODY PILLAR, UPPER RH

61415B

EXTENSION, ROCKER, OUTER RH

61501G

PILLAR SUB-ASSY, QUARTER LOCK, RH

61501H

PILLAR SUB-ASSY, QUARTER LOCK, RH

61509

REINFORCEMENT SUB-ASSY, REAR SEAT, NO.5

61543A

PANEL, REAR UPPER SIDE INNER CORNER, RH

61603C

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH

61613E

PANEL, QUARTER, INNER RH

61617G

PANEL, QUARTER, INNER REAR RH

61619D

REINFORCEMENT, QUARTER PANEL, RH

61621F

EXTENSION, QUARTER PANEL, LOWER RH

61623A

EXTENSION, QUARTER PANEL, OUTER RH

61627J

PANEL, QUARTER INNER, UPPER REAR RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61637D

REINFORCEMENT, QUARTER, INNER RH

61667C

SEAL, QAURTER PANEL, NO.1

61668C

SEAL, QUARTER PANEL, NO.2

61677

REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH

61679D

SEAL, QUARTER WHEEL HOUSE

61681C

EXTENSION, REAR WHEEL OPENING, RH

61685C

BRACKET, REAR SEAT BACK STOPPER, RH

61705T

FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH

61713A

EXTENSION, ROOF SIDE, OUTER RH

61717A

REINFORCEMENT, QUARTER PANEL EXTENSION, RH

61745A

REINFORCEMENT, BACK DOOR OPENING, LOWER RH

61761A

REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH

61761B

REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH

61791B

COVER, ROOF SIDE INNER SERVICE HOLE

62527G

PAD, QUARTER TRIM, LOWER RH

64125D

ANCHOR, PILLAR SEAT BELT, RH

65637B

LINER, REAR WHEEL HOUSE, RH

65637C

CLIP, REAR WHEEL HOUSE LINER

74065A

BRACKET SUB-ASSY, ASSIST GRIP, NO.1

74608B

RETAINER SUB-ASSY, ASSIST GRIP, RH

7658726060

Крепеж

76587A

PROTECTOR, CENTER PILLAR OUTER

76587G

PROTECTOR, CENTER PILLAR OUTER

76817D

CLIP, BACK DOOR OUTSIDE GARNISH

9015960623

Крепеж

9018906236

Крепеж

90189T0018

Крепеж

9054110041

Крепеж

9095006089

Крепеж

9095006096

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

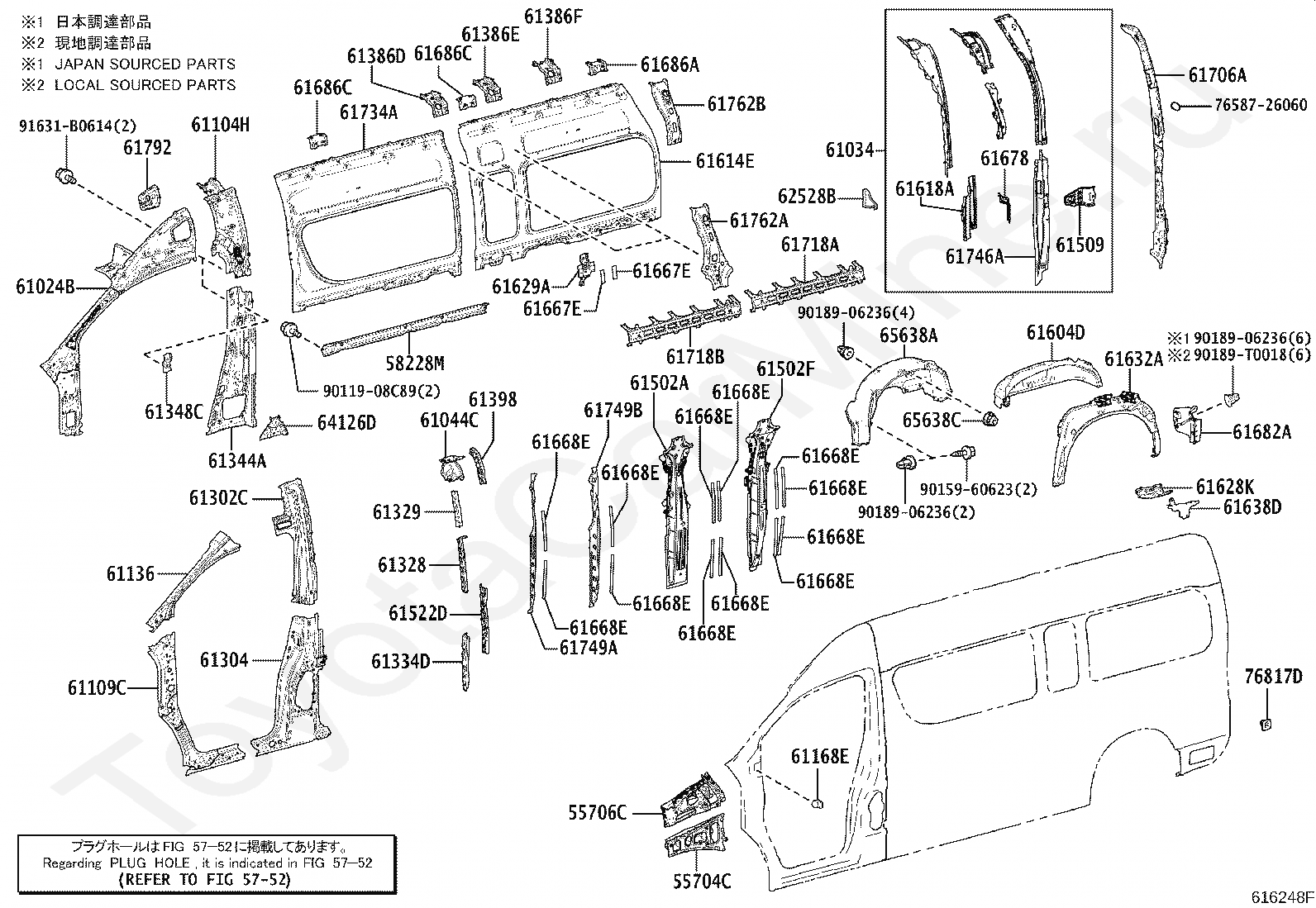

Код

Описание

55704C

PANEL SUB-ASSY, COWL TOP INSIDE CORNER, LH

55706C

PANEL SUB-ASSY, COWL TOP SIDE, LH

5752

переход к группе запчастей

58228M

PLATE, FLOOR PANEL SIDE, LH

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61034

REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH

61044C

EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH

61104H

PANEL SUB-ASSY, SIDE, NO.2 LH

61109C

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH

61136

REINFORCEMENT, FRONT BODY PILLAR, UPPER LH

61168E

BRACKET, NO.6 PILLAR OUTER

61302C

PILLAR SUB-ASSY, CENTER BODY, OUTER LH

61304

REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

61328

REINFORCEMENT, CENTER BODY PILLAR, OUTER LH

61329

PLATE, CENTER BODY PILLAR, OUTER LH

61334D

BASE, CENTER BODY PILLAR COVER, LH

61344A

PILLAR, CENTER BODY, INNER LH

61348C

REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, LH

61386D

EXTENSION, CENTER BODY PILLAR, UPPER LH

61386E

EXTENSION, CENTER BODY PILLAR, UPPER LH

61386F

EXTENSION, CENTER BODY PILLAR, UPPER LH

61398

PATCH, CENTER BODY PILLAR, INNER LH

61502A

PILLAR SUB-ASSY, QUARTER LOCK, LH

61502F

PILLAR SUB-ASSY, QUARTER LOCK, LH

61509

REINFORCEMENT SUB-ASSY, REAR SEAT, NO.5

61522D

REINFORCEMENT, REAR UPPER SIDE PANEL, LH

61604D

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH

61614E

PANEL, QUARTER, INNER LH

61618A

PANEL, QUARTER, INNER REAR LH

61628K

PANEL, QUARTER INNER, UPPER REAR LH

61629A

REINFORCEMENT, QUARTER PANEL, LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61638D

REINFORCEMENT, QUARTER, INNER LH

61667E

SEAL, QUARTER PANEL, NO.1

61668E

SEAL, QUARTER PANEL, NO.2

61678

REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH

61682A

EXTENSION, REAR WHEEL OPENING, LH

61686A

BRACKET, REAR SEAT BACK STOPPER, LH

61686C

BRACKET, REAR SEAT BACK STOPPER, LH

61706A

FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH

61718A

REINFORCEMENT, QUARTER PANEL EXTENSION, LH

61718B

REINFORCEMENT, QUARTER PANEL EXTENSION, LH

61734A

PANEL, ROOF SIDE, INNER FRONT LH

61746A

REINFORCEMENT, BACK DOOR OPENING, LOWER LH

61749A

REINFORCEMENT, ROOF SIDE, INNER REAR

61749B

REINFORCEMENT, ROOF SIDE, INNER REAR

61762A

REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH

61762B

REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH

61792

COVER, ROOF SIDE INNER SERVICE HOLE

62528B

PAD, QUARTER TRIM, LOWER LH

64126D

ANCHOR, PILLAR SEAT BELT, LH

65638A

LINER, REAR WHEEL HOUSE, LH

65638C

CLIP, REAR WHEEL HOUSE LINER

7658726060

Крепеж

76817D

CLIP, BACK DOOR OUTSIDE GARNISH

9011908C89

Крепеж

9015960623

Крепеж

9018906236

Крепеж

90189T0018

Крепеж

91631B0614

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+

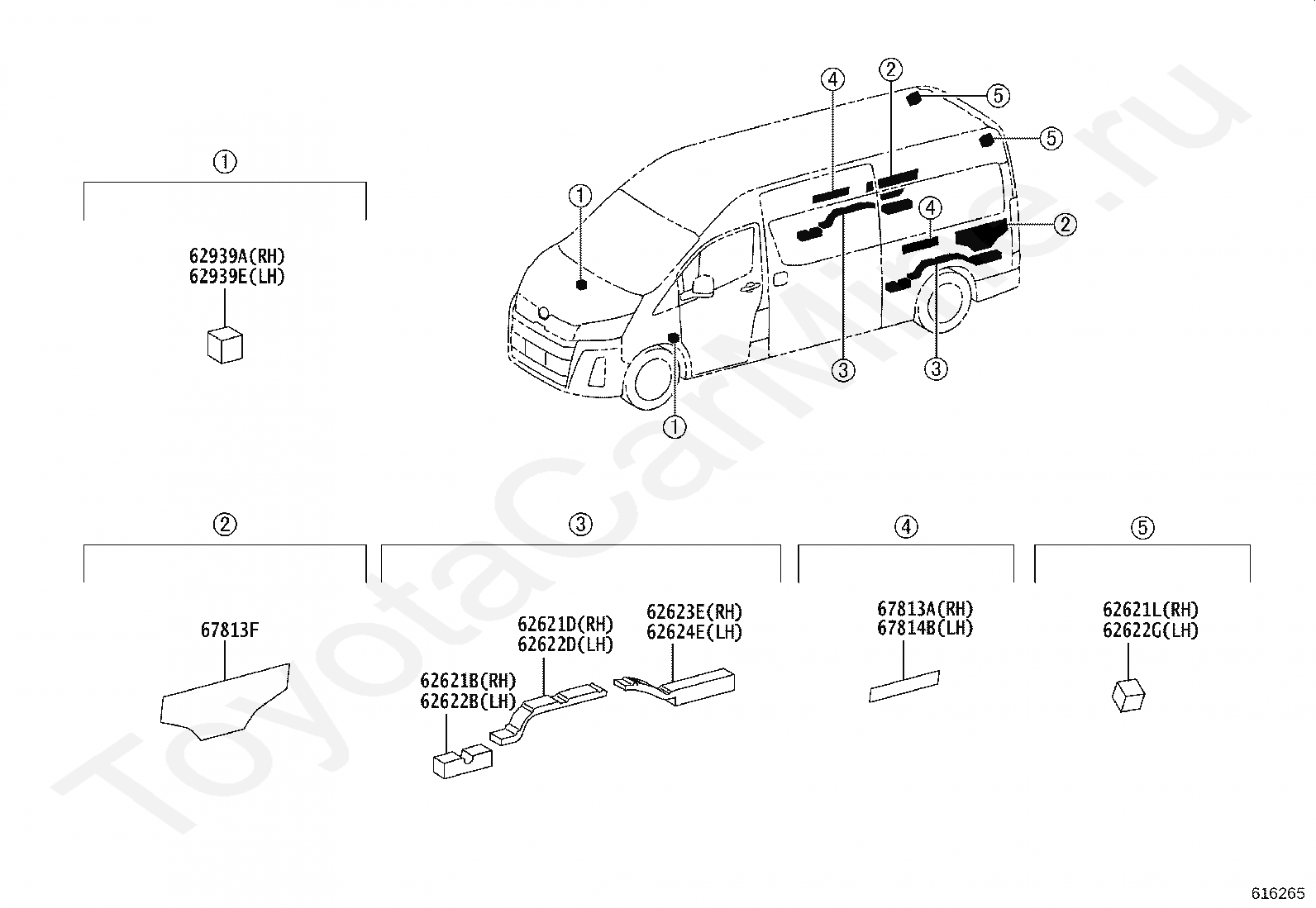

Код

Описание

62621B

PAD, QUARTER WHEEL HOUSE, INNER FRONT RH

62621D

PAD, QUARTER WHEEL HOUSE, INNER FRONT RH

62621L

PAD, QUARTER WHEEL HOUSE, INNER FRONT RH

62622B

PAD, QUARTER WHEEL HOUSE, INNER FRONT LH

62622D

PAD, QUARTER WHEEL HOUSE, INNER FRONT LH

62622G

PAD, QUARTER WHEEL HOUSE, INNER FRONT LH

62623E

PAD, QUARTER WHEEL HOUSE, INNER REAR RH

62624E

PAD, QUARTER WHEEL HOUSE, INNER REAR LH

62939A

SILENCER, QUARTER VENT

62939E

SILENCER, QUARTER VENT

67813A

SHEET, QUARTER PANEL SILENCER, RH

67813F

SHEET, QUARTER PANEL SILENCER

67814B

SHEET, QUARTER PANEL SILENCER, LH
